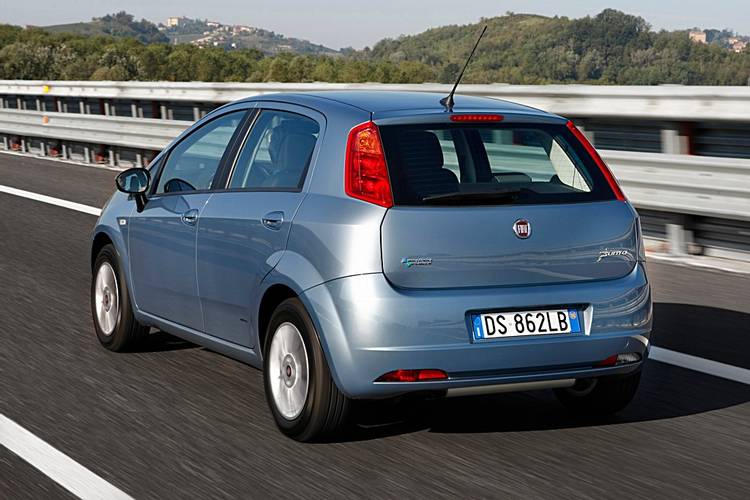

Fiat Grande Punto
Date of manufacture
2005 – 2009 (Three-door hatchback)
2005 – 2009 (Five-door hatchback)
Platform
GM Fiat Small platform
Manufacturing locations
Potenza, Italy
Turin, Italy
Designer
Giorgetto Giugiaro
Tags
B-segment
Italian cars
The Fiat Grande Punto is available in two body styles: three-door hatchback and five-door hatchback. The model was first introduced to the market in 2005 and is based on the GM Fiat Small platform. It offers a wide range of petrol and diesel engines, the most powerful of which is the 1.9 Multijet with 96 kW, which is also the fastest model in the range with a top speed of 200 km/h. The most economical engine, the 1.3 Multijet 16V, has a fuel consumption of 4.4 l/100 km and emissions of 115 g/km. In terms of safety, EURONCAP gave the model a rating of 5 out of 5. The luggage compartment of the three-door hatchback is around 275 litres, as is the case with the five-door hatchback.
Car body style
Three-door hatchback
Date of manufacture
2005 – 2009Internal designation
199Five-door hatchback
Date of manufacture
2005 – 2009Internal designation
199
Technical data
Three-door hatchback
| 1.2 | 1.4 | 1.4 | 1.4 LPG | 1.4 Starjet 16v | 1.4 T-Jet 16v | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1242 | 1368 | 1368 | 1368 | 1368 | 1368 |
| Maximum output / speed [kW/min-1] | 48/5500 | 57/6000 | 57/6000 | 57/6000 | 70/6000 | 88/5000 |
| Maximum torque [Nm/min-1] | 102/3000 | 115/3000 | 115/3000 | 115/3000 | 125/4500 | 206/2000 |
| Bore and stroke [mm x mm] | 70,8 x 78,9 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,1:1 | 11,0:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear robotic manual | 5 gear manual | 6 gear manual | 5 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 155 | 165 | 165 | 165 | 178 | 195 |
| Acceleration 0–100 km/h [s] | 14.5 | 13.2 | 13.2 | 13.2 | 11.4 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5 | 7.5 | 6.8 | 7.5 [9.4 LPG] | 8.4 | 8.7 |
| Out of town [l] | 4.9 | 5.0 | 5.0 | 5.0 [6.2 LPG] | 4.6 | 5.4 |
| Combined [l] | 5.9 | 5.9 | 5.7 | 5.9 [7.4 LPG] | 6.0 | 6.6 |
| CO2 emissions [g/km] | 139 | 139 | 134 | 139 [119 LPG] | 142 | 155 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1015 | 1025 | 1025 | 1025 | 1135 | 1155 |
| Overall weight [kg] | - | - | - | - | - | - |
| Maximum trailer weight unbraked/braked [kg] | 400/900 | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 275 | 275 | 275 | 252 | 275 | 275 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1030 | -/1030 | -/1030 | -/1010 | -/1030 | -/1030 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 [38 LPG] | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar |
| Tyre dimensions front | 175/65 R15 88T | 175/65 R15 88T | 175/65 R15 88T | 185/65 R15 T | 185/65 R15 T | 185/65 R15 |
| Tyre dimensions rear | 175/65 R15 88T | 175/65 R15 88T | 175/65 R15 88T | 185/65 R15 T | 185/65 R15 T | 185/65 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 257 | 257 | 257 | 257 | 284 | 284 |
| Brake dimensions rear | - | - | - | - | - | 264 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.0/- | 10.0/- | 10.0/- | 10.0/- | 10.0/- | 10.5/- |
| Overall length [mm] | 4030 | 4030 | 4030 | 4030 | 4030 | 4030 |
| Overall width without/including mirrors [mm] | 1687/- | 1687/- | 1687/- | 1687/- | 1687/- | 1687/- |
| Overall height [mm] | 1490 | 1490 | 1490 | 1490 | 1490 | 1490 |
| Wheelbase [mm] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Front wheel track [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Rear wheel track [mm] | 1466 | 1466 | 1466 | 1466 | 1466 | 1466 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 545 | 545 | 545 | 545 | 545 | 545 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 987 | 987 | 987 | 987 | 987 | 987 |
| Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.3 Multijet 16V | 1.3 Multijet 16V | 1.3 Multijet 16V | 1.6 Multijet 16v | 1.9 Multijet | 1.9 Multijet | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1248 | 1248 | 1248 | 1598 | 1910 | 1910 |
| Maximum output / speed [kW/min-1] | 55/4000 | 66/4000 | 66/4000 | 88/3750 | 88/4000 | 96/4000 |
| Maximum torque [Nm/min-1] | 190/1750 | 200/1750 | 200/1750 | 320/1750 | 280/2000 | 280/2000 |
| Bore and stroke [mm x mm] | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 79,5 x 80,5 | 82,0 x 90,4 | 82,0 x 90,4 |
| Compression ratio | 17,6:1 | 17,6:1 | 17,6:1 | 16,5:1 | 18,0:1 | 18,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear robotic manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 165 | 175 | 175 | 193 | 190 | 200 |
| Acceleration 0–100 km/h [s] | 13.6 | 11.9 | 11.9 | 9.6 | 10.0 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.2 | 5.9 | 5.5 | 5.9 | 7.3 | 7.8 |
| Out of town [l] | 3.5 | 3.7 | 3.7 | 4.1 | 4.5 | 4.7 |
| Combined [l] | 4.5 | 4.5 | 4.4 | 4.8 | 5.5 | 5.8 |
| CO2 emissions [g/km] | 119 | 119 | 115 | 126 | 145 | 154 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1090 | 1130 | 1130 | 1190 | 1205 | 1205 |
| Overall weight [kg] | - | - | - | - | - | - |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 275 | 275 | 275 | 275 | 275 | 275 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar |
| Tyre dimensions front | 175/65 R15 T | 185/65 R15 H | 185/65 R15 H | 185/65 R15 H | 185/65 R15 88T | 205/45 R17 88V |
| Tyre dimensions rear | 175/65 R15 T | 185/65 R15 H | 185/65 R15 H | 185/65 R15 H | 185/65 R15 88T | 205/45 R17 88V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 257 | 284 | 284 | 284 | 284 | 284 |
| Brake dimensions rear | - | - | - | 264 | 264 | 264 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.0/- | 10.5/- | 10.5/- | 11.0/- | 10.5/- | 11.0/- |
| Overall length [mm] | 4030 | 4030 | 4030 | 4030 | 4030 | 4030 |
| Overall width without/including mirrors [mm] | 1687/- | 1687/- | 1687/- | 1687/- | 1687/- | 1687/- |
| Overall height [mm] | 1490 | 1490 | 1490 | 1490 | 1490 | 1490 |
| Wheelbase [mm] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Front wheel track [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Rear wheel track [mm] | 1466 | 1466 | 1466 | 1466 | 1466 | 1466 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 545 | 545 | 545 | 545 | 545 | 545 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 987 | 987 | 987 | 987 | 987 | 987 |
| Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Five-door hatchback
| 1.2 | 1.4 | 1.4 | 1.4 Natural Power | 1.4 LPG | 1.4 Starjet 16v | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1242 | 1368 | 1368 | 1368 | 1368 | 1368 |
| Maximum output / speed [kW/min-1] | 48/5500 | 57/6000 | 57/6000 | 57/6000 [51/6000 CNG] | 57/6000 | 70/6000 |
| Maximum torque [Nm/min-1] | 102/3000 | 115/3000 | 115/3000 | 115/3000 [104/3000 CNG] | 115/3000 | 125/4500 |
| Bore and stroke [mm x mm] | 70,8 x 78,9 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,1:1 | 11,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear robotic manual | 5 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 155 | 165 | 165 | 162 [156 CNG] | 165 | 178 |
| Acceleration 0–100 km/h [s] | 14.5 | 13.2 | 13.2 | 14.9 [16.9 CNG] | 13.2 | 11.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5 | 7.5 | 6.8 | 7.9 [8.2 CNG] | 7.5 [9.4 LPG] | 8.4 |
| Out of town [l] | 4.9 | 5.0 | 5.0 | 5.4 [5.4 CNG] | 5.0 [6.2 LPG] | 4.6 |
| Combined [l] | 5.9 | 5.9 | 5.7 | 6.3 [6.4 CNG] | 5.9 [7.4 LPG] | 6.0 |
| CO2 emissions [g/km] | 139 | 139 | 134 | 149 [115 CNG] | 139 [119 LPG] | 142 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1030 | 1040 | 1040 | 1185 | 1040 | 1150 |
| Overall weight [kg] | - | - | - | - | - | - |
| Maximum trailer weight unbraked/braked [kg] | 400/900 | 400/1000 | 400/1000 | 400/500 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 275 | 275 | 275 | 200 | 252 | 275 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1030 | -/1030 | -/1030 | -/925 | -/1010 | -/1030 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 [84 CNG] | 45 [38 LPG] | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar |
| Tyre dimensions front | 175/65 R15 88T | 175/65 R15 88T | 175/65 R15 88T | 185/65 R15 | 185/65 R15 T | 185/65 R15 T |
| Tyre dimensions rear | 175/65 R15 88T | 175/65 R15 88T | 175/65 R15 88T | 185/65 R15 | 185/65 R15 T | 185/65 R15 T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 257 | 257 | 257 | 257 | 257 | 284 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.0/- | 10.0/- | 10.0/- | 11.0/- | 10.0/- | 10.0/- |
| Overall length [mm] | 4030 | 4030 | 4030 | 4030 | 4030 | 4030 |
| Overall width without/including mirrors [mm] | 1687/- | 1687/- | 1687/- | 1687/- | 1687/- | 1687/- |
| Overall height [mm] | 1490 | 1490 | 1490 | 1514 | 1490 | 1490 |
| Wheelbase [mm] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Front wheel track [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Rear wheel track [mm] | 1466 | 1466 | 1466 | 1466 | 1466 | 1466 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 545 | 545 | 545 | 545 | 545 | 545 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 987 | 987 | 987 | 987 | 987 | 987 |
| Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 T-Jet 16v | 1.3 Multijet 16V | 1.3 Multijet 16V | 1.3 Multijet 16V | 1.6 Multijet 16v | 1.9 Multijet | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1368 | 1248 | 1248 | 1248 | 1598 | 1910 |
| Maximum output / speed [kW/min-1] | 88/5000 | 55/4000 | 66/4000 | 66/4000 | 88/3750 | 88/4000 |
| Maximum torque [Nm/min-1] | 206/2000 | 190/1750 | 200/1750 | 200/1750 | 320/1750 | 280/2000 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 79,5 x 80,5 | 82,0 x 90,4 |
| Compression ratio | 9,8:1 | 17,6:1 | 17,6:1 | 17,6:1 | 16,5:1 | 18,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear robotic manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 195 | 165 | 175 | 175 | 193 | 190 |
| Acceleration 0–100 km/h [s] | 8.9 | 13.6 | 11.9 | 11.9 | 9.6 | 10.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7 | 6.2 | 5.9 | 5.5 | 5.9 | 7.3 |
| Out of town [l] | 5.4 | 3.5 | 3.7 | 3.7 | 4.1 | 4.5 |
| Combined [l] | 6.6 | 4.5 | 4.5 | 4.4 | 4.8 | 5.5 |
| CO2 emissions [g/km] | 155 | 119 | 119 | 115 | 126 | 145 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1170 | 1105 | 1145 | 1145 | 1205 | 1220 |
| Overall weight [kg] | - | - | - | - | - | - |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 275 | 275 | 275 | 275 | 275 | 275 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar | rigid with torsion bar |
| Tyre dimensions front | 185/65 R15 | 175/65 R15 T | 185/65 R15 H | 185/65 R15 H | 185/65 R15 H | 185/65 R15 88T |
| Tyre dimensions rear | 185/65 R15 | 175/65 R15 T | 185/65 R15 H | 185/65 R15 H | 185/65 R15 H | 185/65 R15 88T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 284 | 257 | 284 | 284 | 284 | 284 |
| Brake dimensions rear | 264 | - | - | - | 264 | 264 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.5/- | 10.0/- | 10.5/- | 10.5/- | 11.0/- | 10.5/- |
| Overall length [mm] | 4030 | 4030 | 4030 | 4030 | 4030 | 4030 |
| Overall width without/including mirrors [mm] | 1687/- | 1687/- | 1687/- | 1687/- | 1687/- | 1687/- |
| Overall height [mm] | 1490 | 1490 | 1490 | 1490 | 1490 | 1490 |
| Wheelbase [mm] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Front wheel track [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Rear wheel track [mm] | 1466 | 1466 | 1466 | 1466 | 1466 | 1466 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 545 | 545 | 545 | 545 | 545 | 545 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 987 | 987 | 987 | 987 | 987 | 987 |
| Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
