Fiat Tipo
Date of manufacture
9/2015 – 2020 (Sedan)
2016 – 2020 (Five-door hatchback)
2016 – 2020 (Estate)
Platform
FCA Small Wide LWB
Manufacturing locations
Bursa, Turkey
Designer
Centro Stile Fiat
Tags
C-segment
Italian cars
The Fiat Tipo is a modern car that was released in 2015. The car is manufactured in Turkey and is built on the FCA Small Wide LWB platform. It is offered in three different body styles - sedan, five-door hatchback and estate. The range of engines includes both petrol and diesel units with the highest power of 88 kW from the 1.6 MultiJet. This model is the fastest version with a top speed of 200 km/h and the best acceleration from 0-100 km/h in 9.6 seconds. The 1.3 MultiJet has the lowest fuel consumption of 4.1 l/100 km and CO2 emissions of 108 g/km. The luggage compartment volume of the sedan body is 520 l, five-door hatchback 440 l and estate 550 l. The Fiat Tipo achieved a rating of 4 out of 5 from EURONCAP in 2016 for passenger safety.
Car body style
Sedan
Date of manufacture
9/2015 – 2020Internal designation
356Engine size

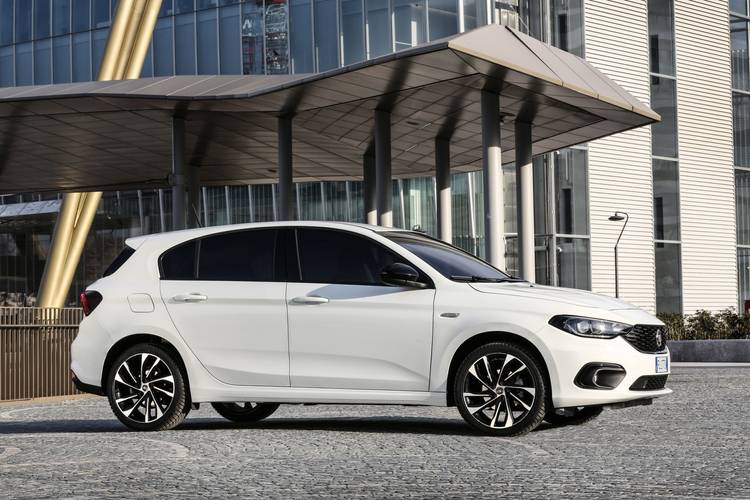

Five-door hatchback
Date of manufacture
2016 – 2020Internal designation
356Engine size
Estate
Date of manufacture
2016 – 2020Internal designation
356Engine size
Technical data
Sedan
| 1.4 | 1.4 | 1.6 E-TorQ | 1.3 MultiJet | 1.3 MultiJet start&stop | 1.6 MultiJet | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from to 2018 | - | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1598 | 1248 | 1248 | 1598 |
| Maximum output / speed [kW/min-1] | 70/6000 | 70/6000 | 81/5500 | 70/3750 | 70/3750 | 88/3750 |
| Maximum torque [Nm/min-1] | 127/4500 | 127/4500 | 152/4500 | 200/1500 | 200/1500 | 320/1750 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 77,0 x 85,8 | 69,9 x 82,0 | 69,9 x 82,0 | 79,5 x 80,5 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 16,8:1 | 16,8:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 5 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 185 | 185 | 192 | 180 | 180 | 199 |
| Acceleration 0–100 km/h [s] | 11.5 | 11.5 | 11.2 | 11.7 | 11.7 | 9.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 8.4-7.5 | 8.5 | 5.2 | 5.7-4.3 | 5.6-5.2 |
| Out of town [l] | 4.6 | 6.5-6.0 | 5.0 | 3.5 | 4.0-3.4 | 4.3-3.6 |
| Combined [l] | 5.7 | 7.2-6.6 | 6.3 | 4.1 | 4.6-3.7 | 4.7-4.2 |
| CO2 emissions [g/km] | 133 | 164-150 | 146 | 108 | 122-98 | 125-110 |
| Emission standard | EU6 | Euro 6d-Temp | EU6 | EU6 | EU6 - Euro 6d-Temp | EU6 - Euro 6d-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1255 | 1225 | 1280 | 1280 | 1280-1335 | 1345-1385 |
| Overall weight [kg] | - | 1650 | - | - | 1760 | 1810 |
| Maximum trailer weight unbraked/braked [kg] | 400/1200 | 400/1200 | 400/800 | 400/1200 | 400/1200 | 400/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | 60 | - | - | 60 | 60 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 284 x 22 | 284 x 22 | 284 x 22 | 284 x 22 | 284 x 22 | 284 x 22 |
| Brake dimensions rear | - | 228 drum | - | - | 228 drum | 251 x 10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.93/- | 10.93/- | 10.93/- | 10.93/- | 10.93/- | 10.93/- |
| Overall length [mm] | 4532 | 4532 | 4532 | 4532 | 4532 | 4532 |
| Overall width without/including mirrors [mm] | 1792/2002 | 1792/2002 | 1792/2002 | 1792/2002 | 1792/2002 | 1792/2002 |
| Overall height [mm] | 1497 | 1497 | 1497 | 1497 | 1497 | 1497 |
| Wheelbase [mm] | 2636 | 2636 | 2636 | 2636 | 2636 | 2636 |
| Front wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Rear wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Forward overhang [mm] | 893 | 893 | 893 | 893 | 893 | 893 |
| Rear overhang [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Five-door hatchback
| 1.4 | 1.4 | 1.6 E-TorQ | 1.4 T-Jet | 1.4 T-Jet LPG | 1.3 MultiJet | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | - | from to 2018 | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1598 | 1368 | 1368 | 1248 |
| Maximum output / speed [kW/min-1] | 70/6000 | 70/6000 | 81/5500 | 88/5000 | 88/5000 | 70/3750 |
| Maximum torque [Nm/min-1] | 127/4500 | 127/4500 | 152/4500 | 215/2500 | 215/2500 | 200/1500 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 77,0 x 85,8 | 72,0 x 84,0 | 72,0 x 84,0 | 69,9 x 82,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 9.8:1 | 9.8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 5 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 185 | 185 | 192 | 200 | 200 | 180 |
| Acceleration 0–100 km/h [s] | 12.0 | 12.4 | 11.5 | 9.6-9.9 | 10.1 | 12.0-12.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 8.4-7.5 | 9.2 | 9.0-7.7 | 8.2 [11.4 LPG] | 5.7-4.5 |
| Out of town [l] | 4.5 | 6.5-6.0 | 4.6 | 6.1-5.0 | 5.2 [6.5 LPG] | 4.0-3.3 |
| Combined [l] | 5.7 | 7.2-6.6 | 6.3 | 7.1-6.0 | 6.3 [8.3 LPG] | 4.6-3.7 |
| CO2 emissions [g/km] | 132 | 164-150 | 146 | 163-139 | 146-135 | 122-99 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | 198-169 | - | 179-162 | - | 144-121 |
| Emission standard | EU6 | Euro 6d-Temp | EU6 | EU6 - Euro 6d-Temp | EU6 | EU6 - Euro 6d-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1270 | 1270 | 1385 | 1350 | 1350 | 1365-1375 |
| Overall weight [kg] | - | 1695 | - | 1775 | 1650 | 1800 |
| Maximum trailer weight unbraked/braked [kg] | 500/1200 | 500/1200-1500 | 500/800 | 500/1200-1500 | 500/1200 | 500/1200-1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 440 | 440 | 440 | 440 | 440 | 440 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 [53 LPG] | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 284 x 22 | 284 x 22 | 284 x 22 | 281 x 26 | 281 x 26 | 284 x 22 |
| Brake dimensions rear | 251 x 10 | 251 x 10 | 251 x 10 | 264 x 10 | 264 x 10 | 251 x 10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.93/- | 10.93/- | 10.93/- | 10.93/- | 10.93/- | 10.93/- |
| Overall length [mm] | 4368 | 4368 | 4368 | 4368 | 4368 | 4368 |
| Overall width without/including mirrors [mm] | 1792/2002 | 1792/2002 | 1792/2002 | 1792/2002 | 1792/2002 | 1792/2002 |
| Overall height [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Wheelbase [mm] | 2638 | 2638 | 2638 | 2638 | 2638 | 2638 |
| Front wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Rear wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Forward overhang [mm] | 893 | 893 | 893 | 893 | 893 | 893 |
| Rear overhang [mm] | 837 | 837 | 837 | 837 | 837 | 837 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 MultiJet | 1.6 MultiJet | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 88/3750 | 88/3750 | ||||
| Maximum torque [Nm/min-1] | 320/1750 | 320/1750 | ||||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 200 | 200 | ||||
| Acceleration 0–100 km/h [s] | 9.8-10.1 | 10.1-10.2 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.7-4.4 | 5.6-4.4 | ||||
| Out of town [l] | 4.3-3.3 | 4.2-3.4 | ||||
| Combined [l] | 4.7-3.7 | 4.7-3.8 | ||||
| CO2 emissions [g/km] | 124-98 | 125-99 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | - | - | ||||
| CO2 emissions [g/km] | 144 | 144 | ||||
| Emission standard | EU6 - Euro 6d-Temp | EU6 - Euro 6d-Temp | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1370-1395 | 1395-1465 | ||||
| Overall weight [kg] | 1820 | 1890 | ||||
| Maximum trailer weight unbraked/braked [kg] | 500/1200-1500 | 500/1000-1300 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 60 | 60 | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 440 | 440 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 45 | 45 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 281 x 26 | 281 x 26 | ||||
| Brake dimensions rear | 264 x 10 | 264 x 10 | ||||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.93/- | 10.93/- | ||||
| Overall length [mm] | 4368 | 4368 | ||||
| Overall width without/including mirrors [mm] | 1792/2002 | 1792/2002 | ||||
| Overall height [mm] | 1495 | 1495 | ||||
| Wheelbase [mm] | 2638 | 2638 | ||||
| Front wheel track [mm] | 1542 | 1542 | ||||
| Rear wheel track [mm] | 1543 | 1543 | ||||
| Forward overhang [mm] | 893 | 893 | ||||
| Rear overhang [mm] | 837 | 837 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Estate
| 1.4 | 1.4 | 1.4 T-Jet | 1.4 T-Jet LPG | 1.6 E-TorQ | 1.3 MultiJet | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | - | from to 2018 | from to 2018 | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1368 | 1368 | 1598 | 1248 |
| Maximum output / speed [kW/min-1] | 70/6000 | 70/6000 | 88/5000 | 88/5000 | 81/5500 | 70/3750 |
| Maximum torque [Nm/min-1] | 127/4500 | 127/4500 | 215/2500 | 215/2500 | 152/4500 | 200/1500 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 77,0 x 85,8 | 69,9 x 82,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 9.8:1 | 9.8:1 | 11,0:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
| - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 185 | 185 | 200 | 200 | 192 | 180 |
| Acceleration 0–100 km/h [s] | 12.3 | 12.6 | 9.8-10.1 | 10.3 | 11.7 | 12.3-12.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 8.4-7.5 | 9.0-7.7 | 8.2 [11.4 LPG] | 9.2 | 5.7-4.5 |
| Out of town [l] | 4.5 | 6.5-6.0 | 6.1-5.0 | 5.2 [6.5 LPG] | 4.6 | 4.0-3.3 |
| Combined [l] | 5.7 | 7.2-6.6 | 7.1-6.0 | 6.3 [8.3 LPG] | 6.3 | 4.6-3.7 |
| CO2 emissions [g/km] | 132 | 164-150 | 163-139 | 146-135 | 146 | 122-99 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | - | 179-162 | - | - | 144-121 |
| Emission standard | EU6 | Euro 6d-Temp | EU6 - Euro 6d-Temp | EU6 | EU6 | EU6 - Euro 6d-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280 | 1360 | 1380 | 1395 | 1395 | 1375-1395 |
| Overall weight [kg] | 1755 | 1755 | 1855 | - | 1870 | 1850-1870 |
| Maximum trailer weight unbraked/braked [kg] | 500-550/1200 | 500-550/1200-1500 | 500-550/1200-1500 | 550/1200 | 500-550/800 | 500-550/1200-1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 [53 LPG] | 50 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 284 x 22 | 284 x 22 | 281 x 26 | 281 x 26 | 284 x 22 | 284 x 22 |
| Brake dimensions rear | 251 x 10 | 251 x 10 | 264 x 10 | 264 x 10 | 251 x 10 | 251 x 10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.93/- | 10.93/- | 10.93/- | 10.93/- | 10.93/- | 10.93/- |
| Overall length [mm] | 4571 | 4571 | 4571 | 4571 | 4571 | 4571 |
| Overall width without/including mirrors [mm] | 1792/2002 | 1792/2002 | 1792/2002 | 1792/2002 | 1792/2002 | 1792/2002 |
| Overall height [mm] | 1514 | 1514 | 1514 | 1514 | 1514 | 1514 |
| Wheelbase [mm] | 2638 | 2638 | 2638 | 2638 | 2638 | 2638 |
| Front wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Rear wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Forward overhang [mm] | 893 | 893 | 893 | 893 | 893 | 893 |
| Rear overhang [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 MultiJet | 1.6 MultiJet | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 88/3750 | 88/3750 | ||||
| Maximum torque [Nm/min-1] | 320/1750 | 320/1750 | ||||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 200 | 200 | ||||
| Acceleration 0–100 km/h [s] | 10.1-10.3 | 10.3-10.4 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.7-4.4 | 5.6-4.4 | ||||
| Out of town [l] | 4.3-3.3 | 4.2-3.4 | ||||
| Combined [l] | 4.7-3.7 | 4.7-3.8 | ||||
| CO2 emissions [g/km] | 124-98 | 125-99 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | - | - | ||||
| CO2 emissions [g/km] | 144 | 144 | ||||
| Emission standard | EU6 - Euro 6d-Temp | EU6 - Euro 6d-Temp | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1395-1465 | 1395-1475 | ||||
| Overall weight [kg] | 1870-1940 | 1870-1950 | ||||
| Maximum trailer weight unbraked/braked [kg] | 500-550/1200-1500 | 500-550/1000-1300 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 60 | 60 | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 550 | 550 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 45 | 45 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 281 x 26 | 281 x 26 | ||||
| Brake dimensions rear | 264 x 10 | 264 x 10 | ||||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.93/- | 10.93/- | ||||
| Overall length [mm] | 4571 | 4571 | ||||
| Overall width without/including mirrors [mm] | 1792/2002 | 1792/2002 | ||||
| Overall height [mm] | 1514 | 1514 | ||||
| Wheelbase [mm] | 2638 | 2638 | ||||
| Front wheel track [mm] | 1542 | 1542 | ||||
| Rear wheel track [mm] | 1543 | 1543 | ||||
| Forward overhang [mm] | 893 | 893 | ||||
| Rear overhang [mm] | 1040 | 1040 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

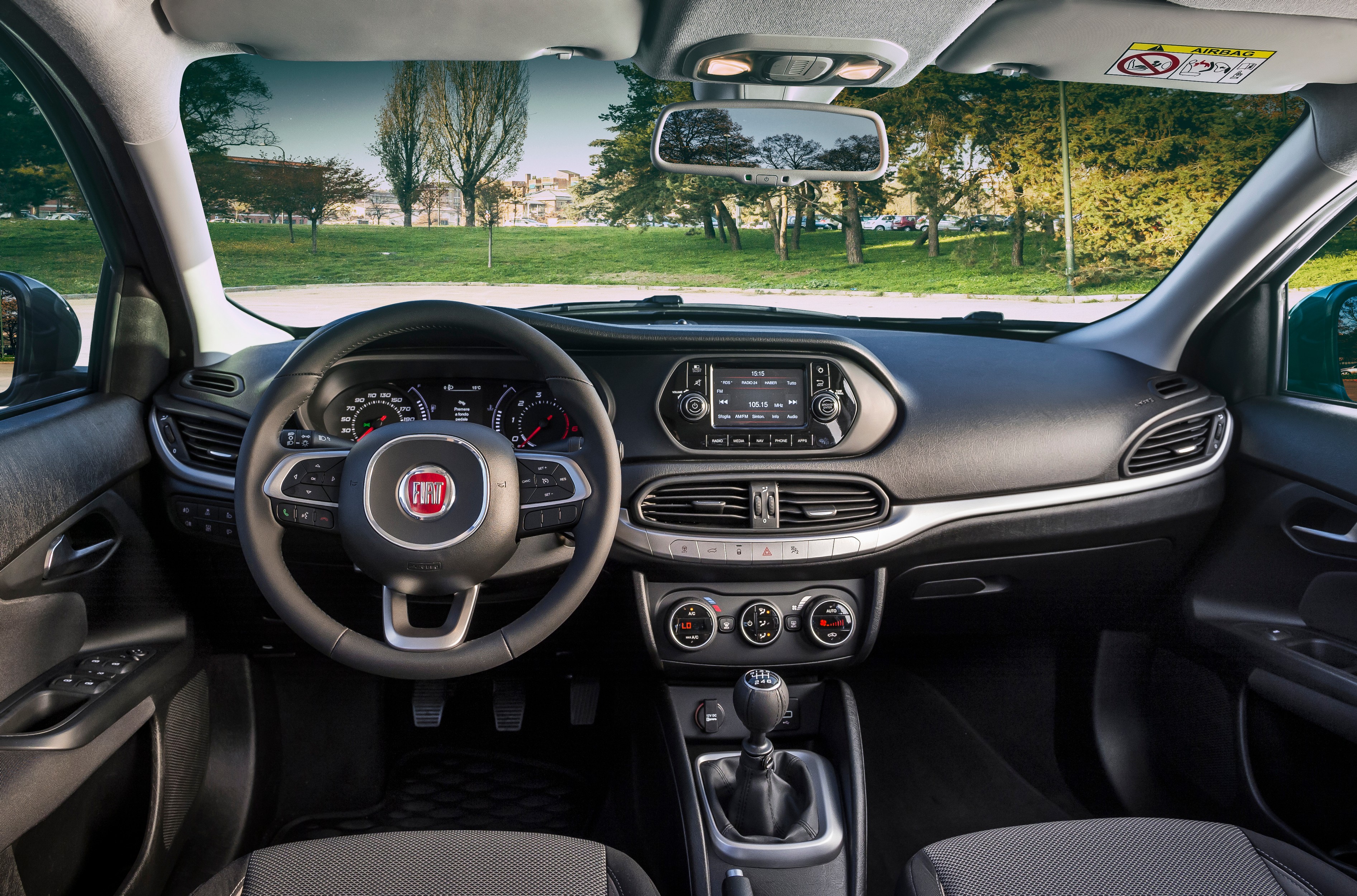

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
