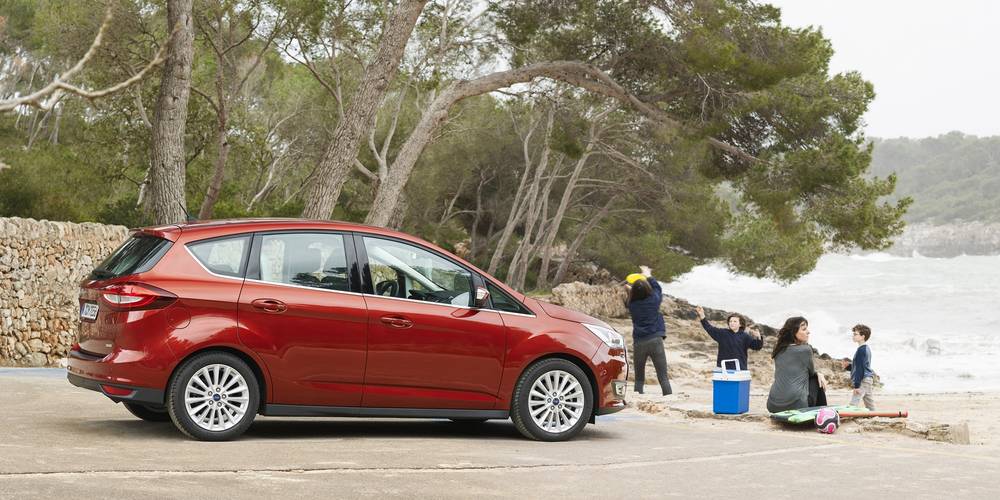

Ford C-Max
Date of manufacture
4/2015 – 2019 (MPV)
Platform
Ford Global C platform
Manufacturing locations
Valencia, Spain
Saarlouis, Germany
Designer
Joel Piaskowski
Tags
Mid-size MPV
German cars
The Ford C-Max is a body variant of the MPV that has been produced since 2015. The vehicle is built on the Ford Global C platform and offers petrol and diesel engines. The most powerful version, the 1.5 EcoBoost Grand, has a power output of 134 kW and a top speed of 213 km/h. The most economical model is the 1.5 Duratorq TDCi with a combined fuel consumption of 4.2 l/100 km and CO2 emissions of 110 g/km. The luggage compartment has a capacity of 471 l and the vehicle was tested according to EURONCAP in 2017, where it received a rating of 3 out of 5 points. The vehicle is produced in Spain and Germany.
Car body style
MPV
after upgrade (facelift)
Date of manufacture
4/2015 – 2019Internal designation
C344Engine size
Petrol
Diesel
Technical data
MPV
| 1.6 TI-VTC | 1.0 EcoBoost | 1.0 EcoBoost Grand | 1.6 TI-VTC LPG | 1.0 EcoBoost | 1.0 EcoBoost Grand | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | - | - | from to 2018 | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 4/16 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1596 | 998 | 998 | 1596 | 998 | 998 |
| Maximum output / speed [kW/min-1] | 63/6000 | 74/6000 | 74/6000 | 88/6300 [86/6400 LPG] | 92/6000 | 92/6000 |
| Maximum torque [Nm/min-1] | 150/2500-4500 | 170/1400-4000 | 170/1400-4000 | 150/4000-5000 [147/4000-5000 LPG] | 170/1400-4000 | 170/1400-4000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 71,9 x 82,0 | 71,9 x 82,0 | 79,0 x 81,4 | 71,9 x 82,0 | 71,9 x 82,0 |
| Compression ratio | 11,0:1 | 10,0:1 | 10,0:1 | 11,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| Coolant volume [l] | 5.5 | 5.8 | 5.8 | 5.5 | 5.8 | 5.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 165 | 174 | 172 | 185 | 187 | 185 |
| Acceleration 0–100 km/h [s] | 15.9 | 12.9 | 13.7 | - | 11.4 | 12.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 6.6-6.2 | 7.0-6.4 | 8.7 [10.5 LPG] | 6.8-6.2 | 6.9-6.4 |
| Out of town [l] | 5.2 | 5.1-4.5 | 5.4-4.6 | 5.3 [6.3 LPG] | 5.2-4.5 | 5.4-4.6 |
| Combined [l] | 6.4 | 5.7-5.1 | 6.0-5.2 | 6.6 [7.9 LPG] | 5.8-5.1 | 6.0-5.2 |
| CO2 emissions [g/km] | 149 | 130-117 | 136-119 | 154 [127 LPG] | 131-117 | 136-119 |
| Emission standard | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1374 | 1391-1473 | 1493-1576 | - | 1391-1473 | 1493-1576 |
| Overall weight [kg] | 1860 | 1900-1725 | 2150-2210 | - | 1900-1725 | 2150-2210 |
| Maximum trailer weight unbraked/braked [kg] | 685/800 | 695-735/1200 | 745-750/900 | - | 695-735/1200 | 745-750/900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 471 | 471 | 520 | - | 471 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1723 | -/1723 | -/1787 | - | -/1723 | -/1787 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 870 | 870 | 1013 | - | 870 | 1013 |
| Boot length with rear seats folded [mm] | 1706 | 1706 | 1780 | - | 1706 | 1780 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | - | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 601 | 601 | 609 | 601 | 601 | 609 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5-7 | 5 | 5 | 5-7 |
| Fuel tank volume [l] | 55 | 55 | 60 | - | 55 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 |
| Wheel size rear | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 300 x 25 | 278 x 25 | 278 x 25 | 300 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/11.1 | 10.7/11.1 | 11.2/11.6 | 10.7/11.1 | 10.7/11.1 | 11.2/11.6 |
| Overall length [mm] | 4379 | 4379 | 4519 | 4379 | 4379 | 4519 |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 |
| Overall height [mm] | 1610 | 1610 | 1642 | 1610 | 1610 | 1642 |
| Wheelbase [mm] | 2648 | 2648 | 2788 | 2648 | 2648 | 2788 |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | 1554 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1041 | 1041 | 1038 | 1041 | 1041 | 1038 |
| Headroom rear [mm] | 981 | 981 | 988 | 981 | 981 | 988 |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 |
| Rear elbow/shoulder width [mm] | -/1402 | -/1402 | -/1427 | -/1402 | -/1402 | -/1427 |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 |
| Legroom rear knees/total [mm] | -/916 | -/916 | -/864 | -/916 | -/916 | -/864 |
| Third row of seats, headroom [mm] | - | - | 937 | - | - | 937 |
| Third row elbow/shoulder width [mm] | - | - | -/1190 | - | - | -/1190 |
| 1.5 EcoBoost | 1.5 EcoBoost Grand | 1.5 EcoBoost | 1.5 EcoBoost Grand | 1.5 EcoBoost | 1.5 EcoBoost Grand | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 110/6000 | 110/6000 | 110/6000 | 110/6000 | 134/6000 | 134/6000 |
| Maximum torque [Nm/min-1] | 240/1600-4000 | 240/1600-4000 | 240/1600-4000 | 240/1600-4000 | 240/1600-5000 | 240/1600-5000 |
| Bore and stroke [mm x mm] | 79,2 x 76,4 | 79,2 x 76,4 | 79,2 x 76,4 | 79,2 x 76,4 | 79,2 x 76,4 | 79,2 x 76,4 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| Coolant volume [l] | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 204 | 202 | 200 | 199 | 213 | 211 |
| Acceleration 0–100 km/h [s] | 9.4 | 9.7 | 10.2 | 10.5 | 9.2 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4-7.8 | 9.8-8.1 | 10.2-8.9 | 10.5-9.2 | 8.9 | 9.2 |
| Out of town [l] | 6.0-5.1 | 6.2-5.2 | 6.3-5.1 | 6.6-5.4 | 5.1 | 5.4 |
| Combined [l] | 7.3-6.1 | 7.5-6.3 | 7.7-6.5 | 8.0-6.8 | 6.5 | 6.8 |
| CO2 emissions [g/km] | 165-139 | 172-144 | 176-149 | 182-154 | 149 | 154 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1394-1484 | 1473-1578 | 1413-1520 | 1507-1617 | 1413 | 1507 |
| Overall weight [kg] | 1915-1940 | 2195-2210 | 1975-2000 | 2200-2250 | 2000 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 695-740/1500 | 735-750/1300 | 705-750/1500 | 750/1300 | 705/1500 | 750/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 471 | 520 | 471 | 520 | 471 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1723 | -/1787 | -/1723 | -/1787 | -/1723 | -/1787 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 870 | 1013 | 870 | 1013 | 870 | 1013 |
| Boot length with rear seats folded [mm] | 1706 | 1780 | 1706 | 1780 | 1706 | 1780 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 601 | 609 | 601 | 609 | 601 | 609 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5-7 | 5 | 5-7 | 5 | 5-7 |
| Fuel tank volume [l] | 55 | 60 | 55 | 60 | 55 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 |
| Wheel size rear | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 |
| Brake dimensions front | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/11.1 | 11.2/11.6 | 10.7/11.1 | 11.2/11.6 | 10.7/11.1 | 11.2/11.6 |
| Overall length [mm] | 4379 | 4519 | 4379 | 4519 | 4379 | 4519 |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 |
| Overall height [mm] | 1610 | 1642 | 1610 | 1642 | 1610 | 1642 |
| Wheelbase [mm] | 2648 | 2788 | 2648 | 2788 | 2648 | 2788 |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | 1554 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1041 | 1038 | 1041 | 1038 | 1041 | 1038 |
| Headroom rear [mm] | 981 | 988 | 981 | 988 | 981 | 988 |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 |
| Rear elbow/shoulder width [mm] | -/1402 | -/1427 | -/1402 | -/1427 | -/1402 | -/1427 |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 |
| Legroom rear knees/total [mm] | -/916 | -/864 | -/916 | -/864 | -/916 | -/864 |
| Third row of seats, headroom [mm] | - | 937 | - | 937 | - | 937 |
| Third row elbow/shoulder width [mm] | - | -/1190 | - | -/1190 | - | -/1190 |
| 1.5 Duratorq TDCi | 1.5 Duratorq TDCi Grand | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi Grand | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi Grand | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 70/3600 | 70/3600 | 88/3600 | 88/3600 | 88/3600 | 88/3600 |
| Maximum torque [Nm/min-1] | 270/1500-2000 | 270/1500-2000 | 270/1500-2000 | 270/1500-2000 | 270/1500-2000 | 270/1500-2000 |
| Bore and stroke [mm x mm] | 73,5 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 |
| Coolant volume [l] | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 170 | 166 | 184 | 180 | 184 | 178 |
| Acceleration 0–100 km/h [s] | 13.4 | 14.4 | 11.3 | 12.3 | 12.4 | 13.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.1 | 5.3 | 5.1 | 5.3 | 5.4 | 5.9 |
| Out of town [l] | 3.7 | 4.1 | 3.7 | 4.1 | 4.1 | 4.5 |
| Combined [l] | 4.2 | 4.6 | 4.2 | 4.6 | 4.6 | 5.0 |
| CO2 emissions [g/km] | 110 | 118 | 110 | 118 | 120 | 129 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1403 | 1501 | 1403 | 1501 | 1472 | 1532 |
| Overall weight [kg] | 1915 | 2225 | 1915 | 2225 | 2000 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 700/1200 | 750/1200 | 700/1200 | 750/1200 | 735/1200 | 750/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 471 | 520 | 471 | 520 | 471 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1723 | -/1787 | -/1723 | -/1787 | -/1723 | -/1787 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 870 | 1013 | 870 | 1013 | 870 | 1013 |
| Boot length with rear seats folded [mm] | 1706 | 1780 | 1706 | 1780 | 1706 | 1780 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 601 | 609 | 601 | 609 | 601 | 609 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5-7 | 5 | 5-7 | 5 | 5-7 |
| Fuel tank volume [l] | 53 | 60 | 53 | 60 | 53 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 |
| Wheel size rear | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 |
| Brake dimensions front | 278 x 25 | 300 x 25 | 278 x 25 | 300 x 25 | 278 x 25 | 300 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/11.1 | 11.2/11.6 | 10.7/11.1 | 11.2/11.6 | 10.7/11.1 | 11.2/11.6 |
| Overall length [mm] | 4379 | 4519 | 4379 | 4519 | 4379 | 4519 |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 |
| Overall height [mm] | 1610 | 1642 | 1610 | 1642 | 1610 | 1642 |
| Wheelbase [mm] | 2648 | 2788 | 2648 | 2788 | 2648 | 2788 |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | 1554 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1041 | 1038 | 1041 | 1038 | 1041 | 1038 |
| Headroom rear [mm] | 981 | 988 | 981 | 988 | 981 | 988 |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 |
| Rear elbow/shoulder width [mm] | -/1402 | -/1427 | -/1402 | -/1427 | -/1402 | -/1427 |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 |
| Legroom rear knees/total [mm] | -/916 | -/864 | -/916 | -/864 | -/916 | -/864 |
| Third row of seats, headroom [mm] | - | 937 | - | 937 | - | 937 |
| Third row elbow/shoulder width [mm] | - | -/1190 | - | -/1190 | - | -/1190 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi Grand | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi Grand | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi Grand | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 110/3500 | 110/3500 | 110/3500 | 110/3500 | 125/3500 | 125/3500 |
| Maximum torque [Nm/min-1] | 370/2000-2500 | 370/2000-2500 | 370/2000-2500 | 370/2000-2500 | 400/2000-2500 | 400/2000-2500 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 |
| Coolant volume [l] | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 204 | 202 | 202 | 200 | 212 | 209 |
| Acceleration 0–100 km/h [s] | 9.5 | 9.8 | 10.3 | 10.7 | 8.5 | 8.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.0 | 5.2 | 5.5 | 5.6 | 5.5 | 5.6 |
| Out of town [l] | 4.0 | 4.2 | 4.4 | 4.6 | 4.4 | 4.6 |
| Combined [l] | 4.4 | 4.6 | 4.8 | 5.0 | 4.8 | 5.0 |
| CO2 emissions [g/km] | 114 | 119 | 124 | 129 | 124 | 129 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1491 | 1577 | 1519 | 1605 | 1519 | 1605 |
| Overall weight [kg] | 2050 | 2300 | 2050 | 2300 | 2050 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 745/1500 | 750/1800 | 750/1500 | 750/1800 | 750/1500 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 471 | 520 | 471 | 520 | 471 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1723 | -/1787 | -/1723 | -/1787 | -/1723 | -/1787 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 870 | 1013 | 870 | 1013 | 870 | 1013 |
| Boot length with rear seats folded [mm] | 1706 | 1780 | 1706 | 1780 | 1706 | 1780 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 601 | 609 | 601 | 609 | 601 | 609 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5-7 | 5 | 5-7 | 5 | 5-7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 |
| Wheel size rear | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 | 7.0 x 16 |
| Brake dimensions front | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/11.1 | 11.2/11.6 | 10.7/11.1 | 11.2/11.6 | 10.7/11.1 | 11.2/11.6 |
| Overall length [mm] | 4379 | 4519 | 4379 | 4519 | 4379 | 4519 |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 |
| Overall height [mm] | 1610 | 1642 | 1610 | 1642 | 1610 | 1642 |
| Wheelbase [mm] | 2648 | 2788 | 2648 | 2788 | 2648 | 2788 |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | 1554 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1041 | 1038 | 1041 | 1038 | 1041 | 1038 |
| Headroom rear [mm] | 981 | 988 | 981 | 988 | 981 | 988 |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 |
| Rear elbow/shoulder width [mm] | -/1402 | -/1427 | -/1402 | -/1427 | -/1402 | -/1427 |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 |
| Legroom rear knees/total [mm] | -/916 | -/864 | -/916 | -/864 | -/916 | -/864 |
| Third row of seats, headroom [mm] | - | 937 | - | 937 | - | 937 |
| Third row elbow/shoulder width [mm] | - | -/1190 | - | -/1190 | - | -/1190 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
