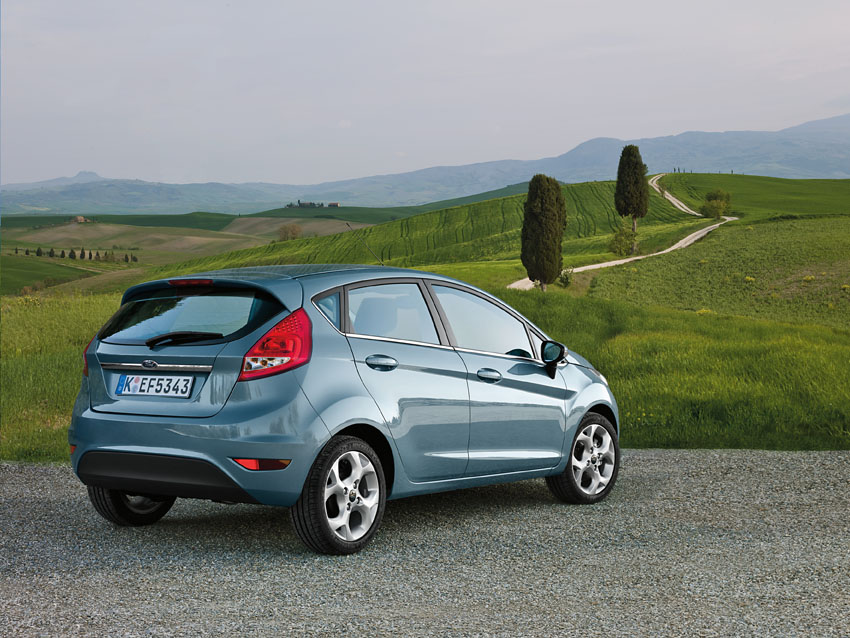

Ford Fiesta
Date of manufacture
6/2008 – 2012 (Three-door hatchback)
6/2008 – 2012 (Five-door hatchback)
Platform
Ford global B-car platform
Manufacturing locations
Almussafes, Spain
Cologne, Germany
Designer
-
Tags
B-segment
German cars
The Ford Fiesta is available in two body styles: three-door hatchback and five-door hatchback. It has been produced since 2008 and can be manufactured in Spain and Germany on the Ford Global B-car platform. It offers petrol and diesel engines, the most powerful of which is the 1.6 Ti-VCT with 88 kW, reaching a top speed of 193 km/h and accelerating from 0-100 km/h in 9.9 seconds. The most fuel-efficient engine is the 1.6 Duratorq TDCi ECOnetic with a consumption of 3.6 l/100 km and emissions of 95 g/km. The luggage compartment of the three-door hatchback model is 281 l, the same for the five-door model. EURONCAP safety tests rated this car 5 out of 5.
Car body style
Three-door hatchback
Date of manufacture
6/2008 – 2012Internal designation
B299Five-door hatchback
Date of manufacture
6/2008 – 2012Internal designation
B299
Technical data
Three-door hatchback
| 1.25 Duratec | 1.4 Duratec | 1.4 Duratec | 1.6 Ti-VCT | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi ECOnetic | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1242 | 1388 | 1388 | 1596 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 44/6000 | 71/5750 | 71/5750 | 88/6000 | 66/4000 | 66/4000 |
| Maximum torque [Nm/min-1] | 109/3600 | 128/4200 | 128/4200 | 152/4050 | 204/1750-2500 | 204/1750-2500 |
| Bore and stroke [mm x mm] | 71,9 x 76,5 | 76,0 x 76,5 | 76,0 x 76,5 | 79,0 x 81,4 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 18,3:1 | 18,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 152 | 175 | 166 | 193 | 175 | 178 |
| Acceleration 0–100 km/h [s] | 16.9 | 12.2 | 13.9 | 9.9 | 11.9 | 12.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3 | 7.6 | 8.9 | 7.9 | 5.2 | 4.6 |
| Out of town [l] | 4.4 | 4.7 | 5.1 | 4.6 | 3.6 | 3.2 |
| Combined [l] | 5.5 | 5.8 | 6.5 | 5.8 | 4.2 | 3.7 |
| CO2 emissions [g/km] | 127 | 133 | 154 | 134 | 110 | 98 |
| Emission standard | EU5 | EU4 - EU5 | EU4 - EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1098 | 1103 | 1103 | 1109 | - | - |
| Overall weight [kg] | 1490 | 1490 | 1525 | 1500 | 1550 | 1550 |
| Maximum trailer weight unbraked/braked [kg] | 500/500 | 520/800 | 545/800 | 520/900 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 281 | 281 | 281 | 281 | 281 | 281 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | -/965 | -/965 | -/965 | -/965 |
| Boot length [mm] | 719 | 719 | 719 | 719 | 719 | 719 |
| Boot length with rear seats folded [mm] | 1378 | 1378 | 1378 | 1378 | 1378 | 1378 |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | -/540 | -/540 | -/540 | -/540 | -/540 | -/540 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 40 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 175/65 R14 | 175/65 R14 | 175/65 R14 | 195/50 R15 | 175/65 R14 | 175/65 R14 |
| Tyre dimensions rear | 175/65 R14 | 175/65 R14 | 175/65 R14 | 195/50 R15 | 175/65 R14 | 175/65 R14 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 258 x 23 | 258 x 23 | 258 x 23 | 258 x 23 | 258 x 23 | 258 x 23 |
| Brake dimensions rear | 200x30 drum | 200x30 drum | 200x30 drum | 200x30 drum | 200x30 drum | 200x30 drum |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.2 | -/10.2 | -/10.2 | -/10.2 | -/10.2 | -/10.2 |
| Overall length [mm] | 3950 | 3950 | 3950 | 3950 | 3950 | 3950 |
| Overall width without/including mirrors [mm] | 1722/1973 | 1722/1973 | 1722/1973 | 1722/1973 | 1722/1973 | 1722/1973 |
| Overall height [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Wheelbase [mm] | 2489 | 2489 | 2489 | 2489 | 2489 | 2489 |
| Front wheel track [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Rear wheel track [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | 1460 |
| Forward overhang [mm] | 799 | 799 | 799 | 799 | 799 | 799 |
| Rear overhang [mm] | 662 | 662 | 662 | 662 | 662 | 662 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 |
| Rear elbow/shoulder width [mm] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Legroom front knees/total [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 |
| Legroom rear knees/total [mm] | -/823 | -/823 | -/823 | -/823 | -/823 | -/823 |
| 1.6 Duratorq TDCi | 1.6 Duratorq TDCi ECOnetic | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1560 | 1560 | ||||
| Maximum output / speed [kW/min-1] | 70/4000 | 70/4000 | ||||
| Maximum torque [Nm/min-1] | 205/1750-2500 | 205/1750-2500 | ||||
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | ||||
| Compression ratio | - | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 5 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 175 | 178 | ||||
| Acceleration 0–100 km/h [s] | 11.8 | 12.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.9 | 4.4 | ||||
| Out of town [l] | 3.6 | 3.2 | ||||
| Combined [l] | 4.1 | 3.6 | ||||
| CO2 emissions [g/km] | 107 | 95 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1155 | 1158 | ||||
| Overall weight [kg] | 1550 | 1550 | ||||
| Maximum trailer weight unbraked/braked [kg] | 550/900 | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 281 | 281 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | ||||
| Boot length [mm] | 719 | 719 | ||||
| Boot length with rear seats folded [mm] | 1378 | 1378 | ||||
| Boot width between wheels/max [mm] | -/1004 | -/1004 | ||||
| Boot height to headliner/ceiling [mm] | -/540 | -/540 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 40 | 40 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | ||||
| Rear suspension | torsion bar | torsion bar | ||||
| Tyre dimensions front | 175/65 R14 | 175/65 R14 | ||||
| Tyre dimensions rear | 175/65 R14 | 175/65 R14 | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 258 x 23 | 258 x 23 | ||||
| Brake dimensions rear | 200x30 drum | 200x30 drum | ||||
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/10.2 | -/10.2 | ||||
| Overall length [mm] | 3950 | 3950 | ||||
| Overall width without/including mirrors [mm] | 1722/1973 | 1722/1973 | ||||
| Overall height [mm] | 1481 | 1481 | ||||
| Wheelbase [mm] | 2489 | 2489 | ||||
| Front wheel track [mm] | 1473 | 1473 | ||||
| Rear wheel track [mm] | 1460 | 1460 | ||||
| Forward overhang [mm] | 799 | 799 | ||||
| Rear overhang [mm] | 662 | 662 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 991 | 991 | ||||
| Headroom rear [mm] | 953 | 953 | ||||
| Front elbow/shoulder width [mm] | -/1350 | -/1350 | ||||
| Rear elbow/shoulder width [mm] | -/1300 | -/1300 | ||||
| Legroom front knees/total [mm] | -/1111 | -/1111 | ||||
| Legroom rear knees/total [mm] | -/823 | -/823 |
Five-door hatchback
| 1.25 Duratec | 1.25 Duratec | 1.4 Duratec | 1.4 Duratec | 1.6 Ti-VCT | 1.4 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1242 | 1242 | 1388 | 1388 | 1596 | 1398 |
| Maximum output / speed [kW/min-1] | 44/6000 | 60/5800 | 71/5750 | 71/5750 | 88/6000 | 50/4000 |
| Maximum torque [Nm/min-1] | 109/3600 | 114/4200 | 128/4200 | 128/4200 | 152/4050 | 160/1750 |
| Bore and stroke [mm x mm] | 71,9 x 76,5 | 71,9 x 76,5 | 76,0 x 76,5 | 76,0 x 76,5 | 79,0 x 81,4 | 73,7 x 82,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 18,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - | - |
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 152 | 168 | 175 | 166 | 193 | 162 |
| Acceleration 0–100 km/h [s] | 16.9 | 13.3 | 12.2 | 13.9 | 9.9 | 14.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3 | 7.4 | 7.6 | 8.9 | 7.9 | 5.3 |
| Out of town [l] | 4.4 | 4.5 | 4.7 | 5.1 | 4.6 | 3.5 |
| Combined [l] | 5.5 | 5.6 | 5.8 | 6.5 | 5.8 | 4.2 |
| CO2 emissions [g/km] | 127 | 129 | 133 | 154 | 134 | 110 |
| Emission standard | EU5 | EU5 | EU4 - EU5 | EU4 - EU5 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1109 | 1109 | 1114 | 1114 | 1119 | - |
| Overall weight [kg] | 1495 | 1495 | 1495 | 1530 | 1500 | 1540 |
| Maximum trailer weight unbraked/braked [kg] | 500/500 | 500/600 | 520/800 | 545/800 | 520/900 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 281 | 281 | 281 | 281 | 281 | 281 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | -/965 | -/965 | -/965 | -/965 |
| Boot length [mm] | 719 | 719 | 719 | 719 | 719 | 719 |
| Boot length with rear seats folded [mm] | 1378 | 1378 | 1378 | 1378 | 1378 | 1378 |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | -/540 | -/540 | -/540 | -/540 | -/540 | -/540 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 195/50 R15 | 175/65 R14 |
| Tyre dimensions rear | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 195/50 R15 | 175/65 R14 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 258 x 23 | 258 x 23 | 258 x 23 | 258 x 23 | 258 x 23 | 258 x 23 |
| Brake dimensions rear | 200 x 30 drum | 200 x 30 drum | 200 x 30 drum | 200 x 30 drum | 200 x 30 drum | 200 x 30 drum |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.2 | -/10.2 | -/10.2 | -/10.2 | -/10.2 | -/10.2 |
| Overall length [mm] | 3950 | 3950 | 3950 | 3950 | 3950 | 3950 |
| Overall width without/including mirrors [mm] | 1722/1973 | 1722/1973 | 1722/1973 | 1722/1973 | 1722/1973 | 1722/1973 |
| Overall height [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Wheelbase [mm] | 2489 | 2489 | 2489 | 2489 | 2489 | 2489 |
| Front wheel track [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Rear wheel track [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | 1460 |
| Forward overhang [mm] | 799 | 799 | 799 | 799 | 799 | 799 |
| Rear overhang [mm] | 662 | 662 | 662 | 662 | 662 | 662 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 |
| Rear elbow/shoulder width [mm] | 1297/- | 1297/- | 1297/- | 1297/- | 1297/- | 1297/- |
| Legroom front knees/total [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 |
| Legroom rear knees/total [mm] | -/823 | -/823 | -/823 | -/823 | -/823 | -/823 |
| 1.4 Duratorq TDCi | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi ECOnetic | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi ECOnetic | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1398 | 1560 | 1560 | 1560 | 1560 | |
| Maximum output / speed [kW/min-1] | 51/4000 | 66/4000 | 66/4000 | 70/4000 | 70/4000 | |
| Maximum torque [Nm/min-1] | 160/1750-2500 | 204/1750-2500 | 204/1750-2500 | 205/1750-2500 | 205/1750-2500 | |
| Bore and stroke [mm x mm] | 73,7 x 82,0 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | |
| Compression ratio | - | 18,3:1 | 18,3:1 | - | - | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | |
| Drive specifications | - | - | - | - | - | |
| Top speed [km/h] | 162 | 175 | 178 | 175 | 178 | |
| Acceleration 0–100 km/h [s] | 14.8 | 11.9 | 12.3 | 11.8 | 12.9 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 4.8 | 5.2 | 4.6 | 4.9 | 4.4 | |
| Out of town [l] | 3.6 | 3.6 | 3.2 | 3.6 | 3.2 | |
| Combined [l] | 4.1 | 4.2 | 3.7 | 4.1 | 3.6 | |
| CO2 emissions [g/km] | 107 | 110 | 98 | 107 | 95 | |
| Emission standard | EU5 | EU4 | EU4 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1152 | - | - | 1164 | 1166 | |
| Overall weight [kg] | 1540 | 1555 | 1555 | 1555 | 1555 | |
| Maximum trailer weight unbraked/braked [kg] | 550/750 | - | - | 550/750 | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 281 | 281 | 281 | 281 | 281 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | -/965 | -/965 | -/965 | |
| Boot length [mm] | 719 | 719 | 719 | 719 | 719 | |
| Boot length with rear seats folded [mm] | 1378 | 1378 | 1378 | 1378 | 1378 | |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | |
| Boot height to headliner/ceiling [mm] | -/540 | -/540 | -/540 | -/540 | -/540 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 3 | 3 | 3 | 3 | 3 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 40 | 40 | 40 | 40 | 40 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | |
| Tyre dimensions front | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | |
| Tyre dimensions rear | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | 258 x 23 | 258 x 23 | 258 x 23 | 258 x 23 | 258 x 23 | |
| Brake dimensions rear | 200 x 30 drum | 200 x 30 drum | 200 x 30 drum | 200 x 30 drum | 200 x 30 drum | |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/10.2 | -/10.2 | -/10.2 | -/10.2 | -/10.2 | |
| Overall length [mm] | 3950 | 3950 | 3950 | 3950 | 3950 | |
| Overall width without/including mirrors [mm] | 1722/1973 | 1722/1973 | 1722/1973 | 1722/1973 | 1722/1973 | |
| Overall height [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | |
| Wheelbase [mm] | 2489 | 2489 | 2489 | 2489 | 2489 | |
| Front wheel track [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | |
| Rear wheel track [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | |
| Forward overhang [mm] | 799 | 799 | 799 | 799 | 799 | |
| Rear overhang [mm] | 662 | 662 | 662 | 662 | 662 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | |
| Front elbow/shoulder width [mm] | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 | |
| Rear elbow/shoulder width [mm] | 1297/- | 1297/- | 1297/- | 1297/- | 1297/- | |
| Legroom front knees/total [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | |
| Legroom rear knees/total [mm] | -/823 | -/823 | -/823 | -/823 | -/823 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
