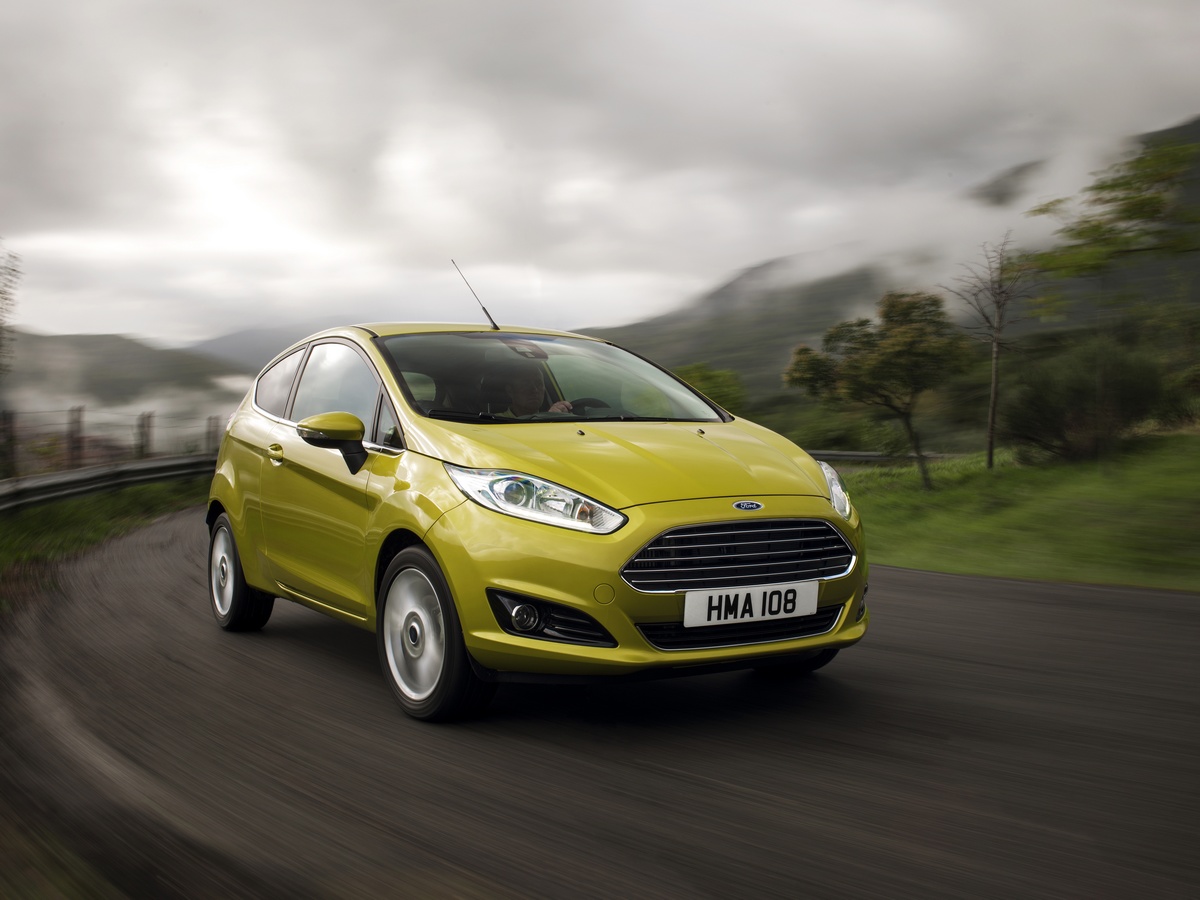

Ford Fiesta
Date of manufacture
2012 – 2017 (Three-door hatchback)
2012 – 2017 (Five-door hatchback)
Platform
Ford global B-car platform
Manufacturing locations
Almussafes, Spain
Cologne, Germany
Designer
-
Tags
B-segment
German cars
The Ford Fiesta has been manufactured since 2012 and is available as a three-door hatchback and a five-door hatchback. The car can come from different countries, such as Germany or Spain, and is built on the Ford global B-car platform. The engine range includes petrol and diesel engines, the most powerful model being the 1.6 EcoBoost ST with 134 kW of power and a top speed of 223 km/h. The fastest acceleration to 100 km/h is 6.9 seconds for this model. The most economical engine is the 1.5 Duratorq TDCi ECOnetic with a combined fuel consumption of 3.2 l/100 km and CO2 emissions of 82 g/km. The luggage compartment has a capacity of 276 l regardless of the body type. The EURONCAP safety tests rated the Ford Fiesta 5 out of 5 points in 2012.
Car body style
Three-door hatchback
after upgrade (facelift)
Date of manufacture
2012 – 2017Internal designation
B299Five-door hatchback
after upgrade (facelift)
Date of manufacture
2012 – 2017Internal designation
B299
Technical data
Three-door hatchback
| 1.25 Duratec | 1.0 | 1.0 | 1.0 | 1.25 Duratec | 1.4 LPG | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2015 to | from 2015 to | from 2015 to | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1241 | 998 | 998 | 998 | 1241 | 1388 |
| Maximum output / speed [kW/min-1] | 44/6000 | 48/4500 | 59/6300 | 59/6300 | 60/5800 | 68/5500 |
| Maximum torque [Nm/min-1] | 109/3600 | 105/4100 | 105/4100 | 105/4100 | 114/4200 | 123/4300 |
| Bore and stroke [mm x mm] | 71,9 x 76,4 | 71,9 x 82,0 | 71,9 x 82,0 | 71,9 x 82,0 | 71,9 x 76,4 | - |
| Compression ratio | 11,0:1 | 12.0:1 | 12.0:1 | 12.0:1 | 11,0:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
| - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
| - | - | - |
| - |
| Top speed [km/h] | 152 | 155 | 165 | 165 | 168 | 175 |
| Acceleration 0–100 km/h [s] | 16.9 | 16.8 | 14.9 | 14.9 | 13.3 | 12.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8 | 5.1 | 5.8 | 5.1 | 6.8 | 7.8 [9.7 LPG] |
| Out of town [l] | 4.3 | 3.8 | 3.8 | 3.8 | 4.3 | 4.4 [5.5 LPG] |
| Combined [l] | 5.2 | 4.3 | 4.6 | 4.3 | 5.2 | 5.6 [7.1 LPG] |
| CO2 emissions [g/km] | 122 | 99 | 105 | 99 | 122 | 131 [114 LPG] |
| Emission standard | EU5 - EU6 | EU6 | EU6 | EU6 | EU5 - EU6 | EU5 - EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1044-1118 | 1050 | 1044 | 1050 | 1044-1118 | 1044 |
| Overall weight [kg] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Maximum trailer weight unbraked/braked [kg] | 500/500 | 520/650 | 520/650 | 520/650 | 520/600 | 520/800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 276 | 276 | 276 | 276 | 276 | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/960 | -/960 | -/960 | -/960 | -/960 | - |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | - |
| Boot length with rear seats folded [mm] | 1346 | 1346 | 1346 | 1346 | 1346 | - |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | - |
| Boot height to headliner/ceiling [mm] | -/550 | -/550 | -/550 | -/550 | -/550 | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 175/65 R14 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Tyre dimensions rear | 175/65 R14 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Wheel size front | 5.5 x 14 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 5.5 x 14 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- |
| Overall length [mm] | 3969 | 3969 | 3969 | 3969 | 3969 | 3969 |
| Overall width without/including mirrors [mm] | 1709/1978 | 1709/1978 | 1709/1978 | 1709/1978 | 1709/1978 | 1709/1978 |
| Overall height [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Wheelbase [mm] | 2489 | 2489 | 2489 | 2489 | 2489 | 2489 |
| Front wheel track [mm] | 1492 | 1492 | 1492 | 1492 | 1492 | 1492 |
| Rear wheel track [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Forward overhang [mm] | 818 | 818 | 818 | 818 | 818 | 818 |
| Rear overhang [mm] | 662 | 662 | 662 | 662 | 662 | 662 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1405/1350 | 1405/1350 | 1405/1350 | 1405/1350 | 1405/1350 | 1405/1350 |
| Rear elbow/shoulder width [mm] | 1389/1300 | 1389/1300 | 1389/1300 | 1389/1300 | 1389/1300 | 1389/1300 |
| Legroom front knees/total [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 |
| Legroom rear knees/total [mm] | -/823 | -/823 | -/823 | -/823 | -/823 | -/823 |
| 1.0 EcoBoost | 1.0 EcoBoost | 1.0 EcoBoost | 1.6 Duratec Ti-VCT | 1.0 EcoBoost | 1.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 1597 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 74/6000 | 74/6000 | 74/6000 | 77/6300 | 92/6000 | 103/6000 |
| Maximum torque [Nm/min-1] | 170/1400-4000 | 170/1400-4000 | 170/1400-4000 | 150/4200-4500 | 170/1400-4500 | 180/1400-5000 |
| Bore and stroke [mm x mm] | 71,9 x 82,0 | 71,9 x 82,0 | 71,9 x 82,0 | 79,0 x 81,4 | 71,9 x 82,0 | 71,9 x 82,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 11,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic | 5 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 180 | 180 | 180 | 184 | 196 | 201 |
| Acceleration 0–100 km/h [s] | 11.2 | 11.2 | 10.8 | 10.5 | 9.4 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 5.3 | 6.6 | 8.4 | 5.4 | 5.6 |
| Out of town [l] | 3.7 | 3.7 | 3.9 | 4.5 | 3.7 | 3.9 |
| Combined [l] | 4.6 | 4.3 | 4.9 | 5.9 | 4.3 | 4.5 |
| CO2 emissions [g/km] | 105 | 99 | 114 | 138 | 99 | 104 |
| Emission standard | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 | EU5 - EU6 | EU5 - EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1147 | 1129-1147 | 1111-1168 | - | 1123-1147 | 1128 |
| Overall weight [kg] | 1550 | 1550 | 1570 | 1560 | 1550 | 1550 |
| Maximum trailer weight unbraked/braked [kg] | 545/900 | 545/900 | 555/900 | 540/650 | 545/900 | -/900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 276 | 276 | 276 | 276 | 276 | 276 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | 1346 | 1346 | 1346 | 1346 | 1346 | 1346 |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | -/550 | -/550 | -/550 | -/550 | -/550 | -/550 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | 42 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Tyre dimensions rear | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- |
| Overall length [mm] | 3969 | 3969 | 3969 | 3969 | 3969 | 3969 |
| Overall width without/including mirrors [mm] | 1709/1978 | 1709/1978 | 1709/1978 | 1709/1978 | 1709/1978 | 1709/1978 |
| Overall height [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Wheelbase [mm] | 2489 | 2489 | 2489 | 2489 | 2489 | 2489 |
| Front wheel track [mm] | 1492 | 1492 | 1492 | 1492 | 1492 | 1492 |
| Rear wheel track [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Forward overhang [mm] | 818 | 818 | 818 | 818 | 818 | 818 |
| Rear overhang [mm] | 662 | 662 | 662 | 662 | 662 | 662 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1405/1350 | 1405/1350 | 1405/1350 | 1405/1350 | 1405/1350 | 1405/1350 |
| Rear elbow/shoulder width [mm] | 1389/1300 | 1389/1300 | 1389/1300 | 1389/1300 | 1389/1300 | 1389/1300 |
| Legroom front knees/total [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 |
| Legroom rear knees/total [mm] | -/823 | -/823 | -/823 | -/823 | -/823 | -/823 |
| 1.6 EcoBoost ST | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi | 1.6 Duratorq TDCi | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi ECOnetic | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1596 | 1498 | 1498 | 1560 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 134/5700 | 55/3750 | 55/3750 | 70/3800 | 70/3750 | 70/3750 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 185/1750 | 185/1750 | 200/1750 | 215/1750-2750 | 215/1750-2750 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 73,5 x 88,3 | 73,5 x 88,3 | 75,0 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 |
| Compression ratio | 10,1:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 223 | 167 | 167 | 181 | 181 | 178 |
| Acceleration 0–100 km/h [s] | 6.9 | 13.5 | 13.5 | 11.7 | 10.9 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | 4.4-4.3 | 3.8 | 4.4 | 4.3 | 3.4 |
| Out of town [l] | 4.8 | 3.3-3.2 | 3.2 | 3.2 | 3.2 | 3.0 |
| Combined [l] | 5.9 | 3.7-3.6 | 3.4 | 3.6 | 3.6 | 3.2 |
| CO2 emissions [g/km] | 138 | 98-84 | 89 | 95 | 94 | 82 |
| Emission standard | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1163-1196 | 1113-1166 | 1113-1166 | 1169 | 1116 | 1127 |
| Overall weight [kg] | 1575 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Maximum trailer weight unbraked/braked [kg] | - | 550-555/750 | 555/750 | 550/750 | 555/750 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 276 | 276 | 276 | 276 | 276 | 276 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | 1346 | 1346 | 1346 | 1346 | 1346 | 1346 |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | -/550 | -/550 | -/550 | -/550 | -/550 | -/550 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 40 | 40 | 40 | 40 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/40 R17 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Tyre dimensions rear | 205/40 R17 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Wheel size front | 7.0 x 17 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 7.0 x 17 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | 278 x 23 | - | - | - | - | - |
| Brake dimensions rear | 253 x 10 | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- |
| Overall length [mm] | 3975 | 3969 | 3969 | 3969 | 3969 | 3969 |
| Overall width without/including mirrors [mm] | 1709/1978 | 1709/1978 | 1709/1978 | 1709/1978 | 1709/1978 | 1709/1978 |
| Overall height [mm] | 1456 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Wheelbase [mm] | 2489 | 2489 | 2489 | 2489 | 2489 | 2489 |
| Front wheel track [mm] | - | 1492 | 1492 | 1492 | 1492 | 1492 |
| Rear wheel track [mm] | - | 1481 | 1481 | 1481 | 1481 | 1481 |
| Forward overhang [mm] | 811 | 818 | 818 | 818 | 818 | 818 |
| Rear overhang [mm] | 675 | 662 | 662 | 662 | 662 | 662 |
| Clearance [mm] | - | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1405/1350 | 1405/1350 | 1405/1350 | 1405/1350 | 1405/1350 | 1405/1350 |
| Rear elbow/shoulder width [mm] | 1389/1300 | 1389/1300 | 1389/1300 | 1389/1300 | 1389/1300 | 1389/1300 |
| Legroom front knees/total [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 |
| Legroom rear knees/total [mm] | -/823 | -/823 | -/823 | -/823 | -/823 | -/823 |
Five-door hatchback
| 1.25 Duratec | 1.0 | 1.0 | 1.0 | 1.25 Duratec | 1.4 LPG | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2015 to | from 2015 to | from 2015 to | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1241 | 998 | 998 | 998 | 1241 | 1388 |
| Maximum output / speed [kW/min-1] | 44/6000 | 48/4500 | 59/6300 | 59/6300 | 60/5800 | 68/5500 |
| Maximum torque [Nm/min-1] | 109/3600 | 105/4100 | 105/4100 | 105/4100 | 114/4200 | 123/4300 |
| Bore and stroke [mm x mm] | 71,9 x 76,4 | 71,9 x 82,0 | 71,9 x 82,0 | 71,9 x 82,0 | 71,9 x 76,4 | - |
| Compression ratio | 11,0:1 | 12.0:1 | 12.0:1 | 12.0:1 | 11,0:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
| - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
| - | - | - |
| - |
| Top speed [km/h] | 152 | 155 | 165 | 165 | 168 | 175 |
| Acceleration 0–100 km/h [s] | 16.9 | 16.8 | 14.9 | 14.9 | 13.3 | 12.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8 | 5.1 | 5.8 | 5.1 | 6.8 | 7.8 [9.7 LPG] |
| Out of town [l] | 4.3 | 3.8 | 3.8 | 3.8 | 4.3 | 4.4 [5.5 LPG] |
| Combined [l] | 5.2 | 4.3 | 4.6 | 4.3 | 5.2 | 5.6 [7.1 LPG] |
| CO2 emissions [g/km] | 122 | 99 | 105 | 99 | 122 | 131 [114 LPG] |
| Emission standard | EU5 - EU6 | EU6 | EU6 | EU6 | EU5 - EU6 | EU5 - EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1051-1128 | 1055 | 1054 | 1055 | 1051-1128 | 1052 |
| Overall weight [kg] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Maximum trailer weight unbraked/braked [kg] | 500/500 | 525/650 | 525/650 | 525/650 | 525/600 | 520/900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 276 | 276 | 276 | 276 | 276 | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/960 | -/960 | -/960 | -/960 | -/960 | - |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | - |
| Boot length with rear seats folded [mm] | 1346 | 1346 | 1346 | 1346 | 1346 | - |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | - |
| Boot height to headliner/ceiling [mm] | -/550 | -/550 | -/550 | -/550 | -/550 | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 175/65 R14 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Tyre dimensions rear | 175/65 R14 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Wheel size front | 5.5 x 14 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 5.5 x 14 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- |
| Overall length [mm] | 3969 | 3969 | 3969 | 3969 | 3969 | 3969 |
| Overall width without/including mirrors [mm] | 1722/1978 | 1722/1978 | 1722/1978 | 1722/1978 | 1722/1978 | 1722/1978 |
| Overall height [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Wheelbase [mm] | 2489 | 2489 | 2489 | 2489 | 2489 | 2489 |
| Front wheel track [mm] | 1492 | 1492 | 1492 | 1492 | 1492 | 1492 |
| Rear wheel track [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Forward overhang [mm] | 818 | 818 | 818 | 818 | 818 | 818 |
| Rear overhang [mm] | 662 | 662 | 662 | 662 | 662 | 662 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1374/1350 | 1374/1350 | 1374/1350 | 1374/1350 | 1374/1350 | 1374/1350 |
| Rear elbow/shoulder width [mm] | 1367/1297 | 1367/1297 | 1367/1297 | 1367/1297 | 1367/1297 | 1367/1297 |
| Legroom front knees/total [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 |
| Legroom rear knees/total [mm] | -/823 | -/823 | -/823 | -/823 | -/823 | -/823 |
| 1.0 EcoBoost | 1.0 EcoBoost | 1.0 EcoBoost | 1.6 Duratec Ti-VCT | 1.0 EcoBoost | 1.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 1597 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 74/6000 | 74/6000 | 74/6000 | 77/6300 | 92/6000 | 103/6000 |
| Maximum torque [Nm/min-1] | 170/1400-4000 | 170/1400-4000 | 170/1400-4000 | 150/4200-4500 | 170/1400-4500 | 180/1400-5000 |
| Bore and stroke [mm x mm] | 71,9 x 82,0 | 71,9 x 82,0 | 71,9 x 82,0 | 79,0 x 81,4 | 71,9 x 82,0 | 71,9 x 82,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 11,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic | 5 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 180 | 180 | 180 | 184 | 196 | 201 |
| Acceleration 0–100 km/h [s] | 11.2 | 11.2 | 10.8 | 10.5 | 9.4 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 5.3 | 6.6 | 8.4 | 5.4 | 5.6 |
| Out of town [l] | 3.7 | 3.7 | 3.9 | 4.5 | 3.7 | 3.9 |
| Combined [l] | 4.6 | 4.3 | 4.9 | 5.9 | 4.3 | 4.5 |
| CO2 emissions [g/km] | 105 | 99 | 114 | 138 | 99 | 104 |
| Emission standard | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 | EU5 - EU6 | EU5 - EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1157 | 1130-1157 | 1121-1178 | - | 1124-1157 | 1130 |
| Overall weight [kg] | 1555 | 1555 | 1575 | 1565 | 1555 | 1560 |
| Maximum trailer weight unbraked/braked [kg] | 545/900 | 550/900 | 560/900 | 545/650 | 550/900 | -/900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 276 | 276 | 276 | 276 | 276 | 276 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | 1346 | 1346 | 1346 | 1346 | 1346 | 1346 |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | -/550 | -/550 | -/550 | -/550 | -/550 | -/550 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | 42 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Tyre dimensions rear | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- |
| Overall length [mm] | 3969 | 3969 | 3969 | 3969 | 3969 | 3969 |
| Overall width without/including mirrors [mm] | 1722/1978 | 1722/1978 | 1722/1978 | 1722/1978 | 1722/1978 | 1722/1978 |
| Overall height [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Wheelbase [mm] | 2489 | 2489 | 2489 | 2489 | 2489 | 2489 |
| Front wheel track [mm] | 1492 | 1492 | 1492 | 1492 | 1492 | 1492 |
| Rear wheel track [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Forward overhang [mm] | 818 | 818 | 818 | 818 | 818 | 818 |
| Rear overhang [mm] | 662 | 662 | 662 | 662 | 662 | 662 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1374/1350 | 1374/1350 | 1374/1350 | 1374/1350 | 1374/1350 | 1374/1350 |
| Rear elbow/shoulder width [mm] | 1367/1297 | 1367/1297 | 1367/1297 | 1367/1297 | 1367/1297 | 1367/1297 |
| Legroom front knees/total [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 |
| Legroom rear knees/total [mm] | -/823 | -/823 | -/823 | -/823 | -/823 | -/823 |
| 1.6 EcoBoost ST | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi | 1.6 Duratorq TDCi | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi ECOnetic | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1596 | 1498 | 1498 | 1560 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 134/5700 | 55/3750 | 55/3750 | 70/3800 | 70/3750 | 70/3750 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 185/1750 | 185/1750 | 200/1750 | 215/1750-2750 | 215/1750-2750 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 73,5 x 88,3 | 73,5 x 88,3 | 75,0 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 |
| Compression ratio | 10,1:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 223 | 167 | 167 | 181 | 181 | 178 |
| Acceleration 0–100 km/h [s] | 6.9 | 13.5 | 13.5 | 11.7 | 10.9 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 4.4-4.3 | 3.8 | 4.4 | 4.3 | 3.4 |
| Out of town [l] | 4.8 | 3.3-3.2 | 3.2 | 3.2 | 3.2 | 3.0 |
| Combined [l] | 6.1 | 3.7-3.6 | 3.4 | 3.6 | 3.6 | 3.2 |
| CO2 emissions [g/km] | 141 | 98-94 | 89 | 95 | 94 | 82 |
| Emission standard | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1182 | 1123-1176 | 1123-1176 | 1179 | 1123 | 1136 |
| Overall weight [kg] | 1595 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Maximum trailer weight unbraked/braked [kg] | - | 555/750 | 555/750 | 555/750 | 555/750 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 276 | 276 | 276 | 276 | 276 | 276 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | 1346 | 1346 | 1346 | 1346 | 1346 | 1346 |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | -/550 | -/550 | -/550 | -/550 | -/550 | -/550 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 40 | 40 | 40 | 40 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 | 0.328 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/40 R17 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Tyre dimensions rear | 205/40 R17 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 | 195/50 R15 |
| Wheel size front | 7.0 x 17 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 7.0 x 17 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | 278 x 23 | - | - | - | - | - |
| Brake dimensions rear | 253 x 10 | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- | 10.1/- |
| Overall length [mm] | 3975 | 3969 | 3969 | 3969 | 3969 | 3969 |
| Overall width without/including mirrors [mm] | 1722/1978 | 1722/1978 | 1722/1978 | 1722/1978 | 1722/1978 | 1722/1978 |
| Overall height [mm] | 1456 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Wheelbase [mm] | 2489 | 2489 | 2489 | 2489 | 2489 | 2489 |
| Front wheel track [mm] | - | 1492 | 1492 | 1492 | 1492 | 1492 |
| Rear wheel track [mm] | - | 1481 | 1481 | 1481 | 1481 | 1481 |
| Forward overhang [mm] | 811 | 818 | 818 | 818 | 818 | 818 |
| Rear overhang [mm] | 675 | 662 | 662 | 662 | 662 | 662 |
| Clearance [mm] | - | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1374/1350 | 1374/1350 | 1374/1350 | 1374/1350 | 1374/1350 | 1374/1350 |
| Rear elbow/shoulder width [mm] | 1367/1297 | 1367/1297 | 1367/1297 | 1367/1297 | 1367/1297 | 1367/1297 |
| Legroom front knees/total [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 |
| Legroom rear knees/total [mm] | -/823 | -/823 | -/823 | -/823 | -/823 | -/823 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
