Ford Fiesta
Date of manufacture
2017 – to this day (Three-door hatchback)
2017 – to this day (Five-door hatchback)
Platform
Ford global B-car
Manufacturing locations
Cologne, Germany
Designer
Ivan Telesca
Tags
B-segment
German cars
The Ford Fiesta is available in three-door hatchback and five-door hatchback body styles. The car has been produced since 2017. Its country of origin, where the model is manufactured, is Germany. The car is built on the Ford global B-car platform. The engine range includes petrol and diesel engines. The most powerful model is the 1.5 EcoBoost 200 with 147 kW. The fastest model is the 1.5 EcoBoost 200 with a top speed of 232 km/h. The model with the lowest combined fuel consumption of 3.2 l/100 km is the 1.5 TDCi 85. CO2 emissions are 82 g/km. The five-door hatchback body style has a trunk size of 303 l. The three-door hatchback body style has a luggage compartment size of 292 l. During the EURONCAP safety tests, the car received a rating of 5 out of 5. Tested according to the 2017 methodology.
Car body style

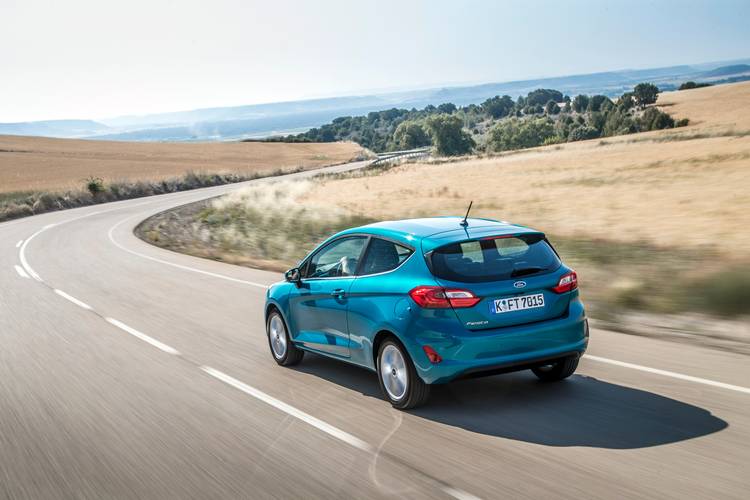

Three-door hatchback
Date of manufacture
2017 – to this dayInternal designation

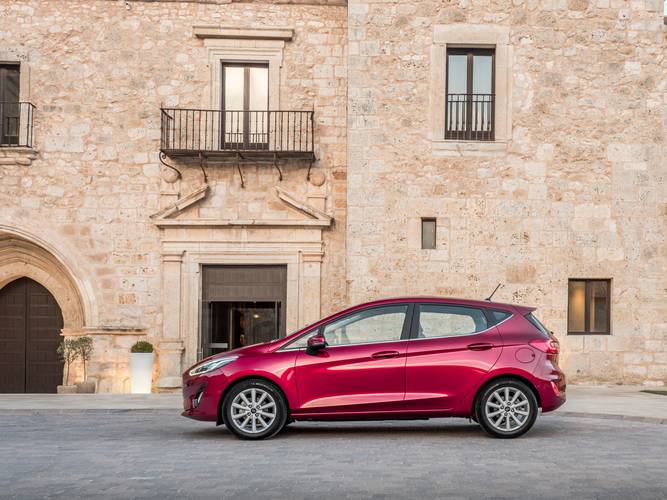

-Five-door hatchback
Date of manufacture
2017 – to this dayInternal designation
-
Technical data
Three-door hatchback
| 1.1 Ti-VCT 70 | 1.1 Ti-VCT 70 | 1.1 Ti-VCT 75 | 1.1 Ti-VCT 85 | 1.1 Ti-VCT 85 | 1.0 EcoBoost 95 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from 2020 to | from to 2020 | from to 2020 | from 2020 to |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1084 | 1084 | 1084 | 1084 | 1084 | 999 |
| Maximum output / speed [kW/min-1] | 52/5000-6500 | 52/5000-6500 | 55/5500 | 63/6300 | 63/6300 | 70/4000-6000 |
| Maximum torque [Nm/min-1] | 110/3500 | 110/3500 | 105/3500 | 110/3500 | 110/3500 | 170/1500-3900 |
| Bore and stroke [mm x mm] | 73.0 x 86.3 | 73.0 x 86.3 | 73.0 x 86.3 | 73.0 x 86.3 | 73.0 x 86.3 | 71.9 x 82.0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 10,0:1 |
| Oil volume [l] | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.6 |
| Coolant volume [l] | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 160 | 160 | 165 | 170 | 170 | 180 |
| Acceleration 0–100 km/h [s] | 14.9 | 14.9 | 14.5 | 13.8-14.0 | 13.8-14.0 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7-6.1 | 6.7-5.6 | 5.5-5.4 | 6.8-6.1 | 6.8-5.6 | 5.3-5.0 |
| Out of town [l] | 4.4-3.9 | 4.5-3.7 | 4.1-4.0 | 4.5-3.9 | 4.6-3.7 | 3.9-3.6 |
| Combined [l] | 5.3-4.7 | 5.3-4.4 | 4.6-4.5 | 5.4-4.7 | 5.4-4.4 | 4.4-4.1 |
| CO2 emissions [g/km] | 120-107 | 120-101 | 104-102 | 121-107 | 121-101 | 100-97 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | 5.0 |
| CO2 emissions [g/km] | - | - | - | - | - | 114 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1108 | 1113 | 1152 | 1108 | 1113 | 1164 |
| Overall weight [kg] | 1615 | 1620 | 1516 | 1615 | 1620 | 1685 |
| Maximum trailer weight unbraked/braked [kg] | 550/750 | 555/750 | - | 550/750 | 555/750 | 580/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 65 | 65 | - | 65 | 65 | 65 |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 292 | 292 | 292 | 292 | 292 | 292 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1093 | -/1093 | -/1093 | -/1093 | -/1093 | -/1093 |
| Boot length [mm] | 721 | 721 | 721 | 721 | 721 | 721 |
| Boot length with rear seats folded [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Boot width between wheels/max [mm] | 980/- | 980/- | 980/- | 980/- | 980/- | 980/- |
| Boot height to headliner/ceiling [mm] | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 |
| Loading edge height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | 42 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.321 | 0.321 | 0.321 | 0.321 | 0.321 | 0.30 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 |
| Brake dimensions rear | 202 x 8 drum | 202 x 8 drum | 202 x 8 drum | 202 x 8 drum | 202 x 8 drum | 252 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.05/- | 10.05/- | 10.05/- | 10.05/- | 10.05/- | 10.05/- |
| Overall length [mm] | 4040 | 4040 | 4040 | 4040 | 4040 | 4040 |
| Overall width without/including mirrors [mm] | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 |
| Overall height [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1476 |
| Wheelbase [mm] | 2493 | 2493 | 2493 | 2493 | 2493 | 2493 |
| Front wheel track [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Rear overhang [mm] | 708 | 708 | 708 | 708 | 708 | 708 |
| Clearance [mm] | 105-133 | 105-133 | 105-133 | 105-133 | 105-133 | 105-133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 |
| Rear elbow/shoulder width [mm] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Legroom front knees/total [mm] | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 |
| Legroom rear knees/total [mm] | -/835 | -/835 | -/835 | -/835 | -/835 | -/835 |
| 1.0 EcoBoost 100 | 1.0 EcoBoost 100 | 1.0 EcoBoost 125 | 1.0 EcoBoost 125 | 1.0 EcoBoost 125 | 1.0 EcoBoost 140 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2020 | from 2020 to | from 2020 to | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 998 | 998 | 998 | 999 | 999 | 998 |
| Maximum output / speed [kW/min-1] | 74/4500-6500 | 74/4500-6500 | 92/6000 | 92/6000 | 92/6000 | 103/6000 |
| Maximum torque [Nm/min-1] | 170/1500-4000 | 170/1500-4000 | 170/1500-4500 | 170/1400 | 210/1750 | 180/1500-5000 |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 4.6 | 4.6 | 4.6 | 4.6 | - | 4.6 |
| Coolant volume [l] | 5.8 | 5.8 | 5.8 | 5.8 | - | 5.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 183 | 180 | 195 | 199 | 203 | 202 |
| Acceleration 0–100 km/h [s] | 10.5-10.6 | 12.2-12.4 | 9.9-10.0 | 9.9 | 9.4 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.8-5.4 | 7.4-6.9 | 5.8-5.4 | 6.0-5.8 | 5.1-4.8 | 6.1-5.8 |
| Out of town [l] | 4.2-3.6 | 4.8-4.2 | 4.2-3.6 | 4.1-3.9 | 3.8-3.6 | 4.4-3.8 |
| Combined [l] | 4.8-4.3 | 5.8-5.2 | 4.8-4.3 | 4.8-4.6 | 4.3-4.0 | 5.0-4.5 |
| CO2 emissions [g/km] | 109-94 | 130-118 | 109-98 | 109-104 | 96-92 | 113-102 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | 5.6 | 5.0 | - |
| CO2 emissions [g/km] | - | - | - | 127 | 112 | - |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d | Euro 6d | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 48 | - |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, - A⋅h | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1144 | 1184 | 1144 | 1220 | 1212 | 1144 |
| Overall weight [kg] | 1645 | 1650 | 1645 | 1680 | 1685 | 1645 |
| Maximum trailer weight unbraked/braked [kg] | 570/1000 | 590/1000 | 570/1000 | 610/1000 | 605/1000 | 570/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 65 | 45 | 65 | 45 | 45 | 65 |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 0/- | 0/- | 50/- |
| Boot volume [l] | 292 | 292 | 292 | 292 | 292 | 292 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1093 | -/1093 | -/1093 | -/1093 | -/1093 | -/1093 |
| Boot length [mm] | 721 | 721 | 721 | 721 | 721 | 721 |
| Boot length with rear seats folded [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Boot width between wheels/max [mm] | 980/- | 980/- | 980/- | 980/- | 980/- | 980/- |
| Boot height to headliner/ceiling [mm] | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 |
| Loading edge height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | 42 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 205/45 R17 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 205/45 R17 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Brake dimensions front | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 |
| Brake dimensions rear | 252 x 12 | 252 x 12 | 252 x 12 | 252 x 12 | 252 x 12 | 252 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.05/- | 10.05/- | 10.05/- | 10.05/- | 10.05/- | 10.05/- |
| Overall length [mm] | 4040 | 4040 | 4040 | 4040 | 4040 | 4065 |
| Overall width without/including mirrors [mm] | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 |
| Overall height [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1466 |
| Wheelbase [mm] | 2493 | 2493 | 2493 | 2493 | 2493 | 2493 |
| Front wheel track [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Rear overhang [mm] | 708 | 708 | 708 | 708 | 708 | 708 |
| Clearance [mm] | 105-133 | 105-133 | 105-133 | 105-133 | 105-133 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 |
| Rear elbow/shoulder width [mm] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Legroom front knees/total [mm] | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 |
| Legroom rear knees/total [mm] | -/835 | -/835 | -/835 | -/835 | -/835 | -/835 |
| 1.0 EcoBoost 155 | 1.5 EcoBoost 200 | 1.5 TDCi 85 | 1.5 TDCi 85 | 1.5 TDCi 120 | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2018 to | from to 2020 | from to 2020 | from to 2020 | |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 3/12 | 3/12 | 4/8 | 4/8 | 4/8 | |
| Engine displacement [cm³] | 999 | 1497 | 1499 | 1499 | 1499 | |
| Maximum output / speed [kW/min-1] | 114/6000 | 147/6000 | 63/3750 | 63/3750 | 88/3600 | |
| Maximum torque [Nm/min-1] | 240/2500 | 290/1600-4000 | 215/1750-2500 | 215/1750-2500 | 270/1750-2500 | |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 84.0 x 90.0 | 73.5 x 88.3 | 73.5 x 88.3 | 73.5 x 88.3 | |
| Compression ratio | 10,0:1 | 9.7:1 | 16.0:1 | 16.0:1 | 16.0:1 | |
| Oil volume [l] | - | 5.25 | 3.8 | 3.8 | 3.8 | |
| Coolant volume [l] | - | 6.15 | 5.8 | 5.8 | 5.8 | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | |
| Drive specifications | - | - | - | - | - | |
| Top speed [km/h] | 219 | 232 | 170-175 | 170-175 | 195 | |
| Acceleration 0–100 km/h [s] | 8.9 | 6.5 | 12.4-12.5 | 12.4-12.5 | 9.0-9.2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.2-4.8 | 7.6 | 4.5-4.1 | 4.2-3.5 | 4.8-3.9 | |
| Out of town [l] | 3.8-3.5 | 5.1 | 3.8-3.1 | 3.6-3.0 | 4.0-3.2 | |
| Combined [l] | 4.4-4.0 | 6.0 | 4.1-3.5 | 3.9-3.2 | 4.4-3.5 | |
| CO2 emissions [g/km] | 99-92 | 136 | 104-90 | 99-82 | 111-89 | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | 5.0 | - | - | - | - | |
| CO2 emissions [g/km] | 114 | - | - | - | - | |
| Emission standard | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | 48 | - | - | - | - | |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - A⋅h | - | - | - | - | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1214 | 1262 | 1158 | 1163 | 1188 | |
| Overall weight [kg] | 1685 | 1635 | 1650 | 1655 | 1665 | |
| Maximum trailer weight unbraked/braked [kg] | 605/1000 | - | 575/750 | 580/750 | 590/1000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 45 | - | 45 | 45 | 40 | |
| Maximum load on roof/carrier [kg] | 0/- | - | 50/- | 50/- | 50/- | |
| Boot volume [l] | 292 | 311 | 292 | 292 | 292 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1093 | -/1093 | -/1093 | -/1093 | -/1093 | |
| Boot length [mm] | 721 | 721 | 721 | 721 | 721 | |
| Boot length with rear seats folded [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | |
| Boot width between wheels/max [mm] | 980/- | 980/- | 980/- | 980/- | 980/- | |
| Boot height to headliner/ceiling [mm] | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 | |
| Loading edge height [mm] | 700 | 700 | 700 | 700 | 700 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 3 | 3 | 3 | 3 | 3 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.30 | 0.341 | 0.297 | 0.297 | 0.297 | |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | |
| Tyre dimensions front | 195/55 R16 | 205/45 R17 | 195/60 R15 | 195/60 R15 | 195/60 R15 | |
| Tyre dimensions rear | 195/55 R16 | 205/45 R17 | 195/60 R15 | 195/60 R15 | 195/60 R15 | |
| Wheel size front | 6.5J x 16 | 7.5J x 17 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | |
| Wheel size rear | 6.5J x 16 | 7.5J x 17 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | |
| Brake dimensions front | 262 x 23 | 278 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | |
| Brake dimensions rear | 252 x 12 | 253 x 12 | 202 x 8 drum | 202 x 8 drum | 252 x 12 | |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.05/- | 11.0/11.4 | 10.05/- | 10.05/- | 10.05/- | |
| Overall length [mm] | 4040 | 4068 | 4040 | 4040 | 4040 | |
| Overall width without/including mirrors [mm] | 1735/1941 | 1783/1941 | 1735/1941 | 1735/1941 | 1735/1941 | |
| Overall height [mm] | 1476 | 1469 | 1476 | 1476 | 1476 | |
| Wheelbase [mm] | 2493 | 2493 | 2493 | 2493 | 2493 | |
| Front wheel track [mm] | 1508 | 1506 | 1508 | 1508 | 1508 | |
| Rear wheel track [mm] | 1471 | 1467 | 1471 | 1471 | 1471 | |
| Forward overhang [mm] | 839 | 842 | 839 | 839 | 839 | |
| Rear overhang [mm] | 708 | 733 | 708 | 708 | 708 | |
| Clearance [mm] | 105-133 | 103-121 | 105-133 | 105-133 | 105-133 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 992 | 992 | 992 | 992 | 992 | |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | |
| Front elbow/shoulder width [mm] | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 | |
| Rear elbow/shoulder width [mm] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | |
| Legroom front knees/total [mm] | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 | |
| Legroom rear knees/total [mm] | -/835 | -/835 | -/835 | -/835 | -/835 |
Five-door hatchback
| 1.1 Ti-VCT 70 | 1.1 Ti-VCT 70 | 1.1 Ti-VCT 75 | 1.1 Ti-VCT 85 | 1.1 Ti-VCT 85 | 1.0 EcoBoost 95 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from 2020 to | from to 2020 | from to 2020 | from 2020 to |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1084 | 1084 | 1084 | 1084 | 1084 | 999 |
| Maximum output / speed [kW/min-1] | 52/5000-6500 | 52/5000-6500 | 55/5500 | 63/6300 | 63/6300 | 70/4000-6000 |
| Maximum torque [Nm/min-1] | 110/3500 | 110/3500 | 105/3500 | 110/3500 | 110/3500 | 170/1500-3900 |
| Bore and stroke [mm x mm] | 73.0 x 86.3 | 73.0 x 86.3 | 73.0 x 86.3 | 73.0 x 86.3 | 73.0 x 86.3 | 71.9 x 82.0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 10,0:1 |
| Oil volume [l] | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.6 |
| Coolant volume [l] | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 160 | 160 | 165 | 170 | 170 | 180 |
| Acceleration 0–100 km/h [s] | 14.9 | 14.9 | 14.5 | 13.8-14.0 | 13.8-14.0 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7-6.1 | 6.7-5.6 | 5.5-5.4 | 6.8-6.1 | 6.8-5.6 | 5.3-5.0 |
| Out of town [l] | 4.4-3.9 | 4.5-3.7 | 4.1-4.0 | 4.5-3.9 | 4.6-3.7 | 3.9-3.6 |
| Combined [l] | 5.3-4.7 | 5.3-4.4 | 4.6-4.5 | 5.4-4.7 | 5.4-4.4 | 4.4-4.1 |
| CO2 emissions [g/km] | 120-107 | 120-101 | 104-102 | 121-107 | 121-101 | 100-97 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | 5.0 |
| CO2 emissions [g/km] | - | - | - | - | - | 114 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1130 | 1135 | 1164 | 1130 | 1135 | 1164 |
| Overall weight [kg] | 1635 | 1640 | 1520 | 1635 | 1640 | 1690 |
| Maximum trailer weight unbraked/braked [kg] | 565/750 | 565/750 | - | 565/750 | 565/750 | 580/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 65 | 65 | - | 65 | 65 | 65 |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 303 | 303 | 303 | 303 | 303 | 303 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/984 | -/984 | -/984 | -/984 | -/984 | -/984 |
| Boot length [mm] | 721 | 721 | 721 | 721 | 721 | 721 |
| Boot length with rear seats folded [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Boot width between wheels/max [mm] | 980/- | 980/- | 980/- | 980/- | 980/- | 980/- |
| Boot height to headliner/ceiling [mm] | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 |
| Loading edge height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | 42 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.321 | 0.321 | 0.321 | 0.321 | 0.321 | 0.30 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 |
| Brake dimensions rear | 202 x 8 drum | 202 x 8 drum | 202 x 8 drum | 202 x 8 drum | 202 x 8 drum | 252 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.05/- | 10.05/- | 10.05/- | 10.05/- | 10.05/- | 10.05/- |
| Overall length [mm] | 4040 | 4040 | 4040 | 4040 | 4040 | 4040 |
| Overall width without/including mirrors [mm] | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 |
| Overall height [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1476 |
| Wheelbase [mm] | 2493 | 2493 | 2493 | 2493 | 2493 | 2493 |
| Front wheel track [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Rear overhang [mm] | 708 | 708 | 708 | 708 | 708 | 708 |
| Clearance [mm] | 105-133 | 105-133 | 105-133 | 105-133 | 105-133 | 105-133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 |
| Rear elbow/shoulder width [mm] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Legroom front knees/total [mm] | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 |
| Legroom rear knees/total [mm] | -/835 | -/835 | -/835 | -/835 | -/835 | -/835 |
| 1.0 EcoBoost 100 | 1.0 EcoBoost 100 | 1.0 EcoBoost 125 | 1.0 EcoBoost 125 | 1.0 EcoBoost 125 | 1.0 EcoBoost 140 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2020 | from 2020 to | from 2020 to | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 998 | 998 | 998 | 999 | 999 | 998 |
| Maximum output / speed [kW/min-1] | 74/4500-6500 | 74/4500-6500 | 92/6000 | 92/6000 | 92/6000 | 103/6000 |
| Maximum torque [Nm/min-1] | 170/1500-4000 | 170/1500-4000 | 170/1500-4500 | 170/1400 | 210/1750 | 180/1500-5000 |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 4.6 | 4.6 | 4.6 | 4.6 | - | 4.6 |
| Coolant volume [l] | 5.8 | 5.8 | 5.8 | 5.8 | - | 5.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 183 | 180 | 195 | 199 | 203 | 202 |
| Acceleration 0–100 km/h [s] | 10.5-10.6 | 12.2-12.4 | 9.9-10.0 | 9.9 | 9.4 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.8-5.4 | 7.4-6.9 | 5.8-5.4 | 6.1-5.8 | 5.1-4.8 | 6.1-5.8 |
| Out of town [l] | 4.2-3.6 | 4.8-4.2 | 4.2-3.6 | 4.2-3.9 | 3.8-3.6 | 4.4-3.8 |
| Combined [l] | 4.8-4.3 | 5.8-5.2 | 4.8-4.3 | 4.9-4.6 | 4.3-4.0 | 5.0-4.5 |
| CO2 emissions [g/km] | 109-94 | 130-118 | 109-98 | 110-104 | 96-92 | 113-102 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | 5.6 | 5.0 | - |
| CO2 emissions [g/km] | - | - | - | 127 | 112 | - |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d | Euro 6d | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 48 | - |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, - A⋅h | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1163 | 1206 | 1164 | 1236 | 1217 | 1164 |
| Overall weight [kg] | 1665 | 1675 | 1665 | 1690 | 1685 | 1665 |
| Maximum trailer weight unbraked/braked [kg] | 580/1000 | 600/1000 | 580/1000 | 615/1000 | 605/1000 | 580/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 65 | 45 | 65 | 45 | 45 | 65 |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 0/- | 0/- | 50/- |
| Boot volume [l] | 303 | 303 | 303 | 303 | 303 | 303 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/984 | -/984 | -/984 | -/984 | -/984 | -/984 |
| Boot length [mm] | 721 | 721 | 721 | 721 | 721 | 721 |
| Boot length with rear seats folded [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Boot width between wheels/max [mm] | 980/- | 980/- | 980/- | 980/- | 980/- | 980/- |
| Boot height to headliner/ceiling [mm] | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 |
| Loading edge height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | 42 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 205/45 R17 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 205/45 R17 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Brake dimensions front | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | 262 x 23 |
| Brake dimensions rear | 252 x 12 | 252 x 12 | 252 x 12 | 252 x 12 | 252 x 12 | 252 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.05/- | 10.05/- | 10.05/- | 10.05/- | 10.05/- | 10.05/- |
| Overall length [mm] | 4040 | 4040 | 4040 | 4040 | 4040 | 4065 |
| Overall width without/including mirrors [mm] | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 | 1735/1941 |
| Overall height [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1466 |
| Wheelbase [mm] | 2493 | 2493 | 2493 | 2493 | 2493 | 2493 |
| Front wheel track [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Rear overhang [mm] | 708 | 708 | 708 | 708 | 708 | 708 |
| Clearance [mm] | 105-133 | 105-133 | 105-133 | 105-133 | 105-133 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 |
| Rear elbow/shoulder width [mm] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Legroom front knees/total [mm] | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 |
| Legroom rear knees/total [mm] | -/835 | -/835 | -/835 | -/835 | -/835 | -/835 |
| 1.0 EcoBoost 155 | 1.5 EcoBoost 200 | 1.5 TDCi 85 | 1.5 TDCi 85 | 1.5 TDCi 120 | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2018 to | from to 2020 | from to 2020 | from to 2020 | |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 3/12 | 3/12 | 4/8 | 4/8 | 4/8 | |
| Engine displacement [cm³] | 999 | 1497 | 1499 | 1499 | 1499 | |
| Maximum output / speed [kW/min-1] | 114/6000 | 147/6000 | 63/3750 | 63/3750 | 88/3600 | |
| Maximum torque [Nm/min-1] | 240/2500 | 290/1600-4000 | 215/1750-2500 | 215/1750-2500 | 270/1750-2500 | |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 84.0 x 90.0 | 73.5 x 88.3 | 73.5 x 88.3 | 73.5 x 88.3 | |
| Compression ratio | 10,0:1 | 9.7:1 | 16.0:1 | 16.0:1 | 16.0:1 | |
| Oil volume [l] | - | 5.25 | 3.8 | 3.8 | 3.8 | |
| Coolant volume [l] | - | 6.15 | 5.8 | 5.8 | 5.8 | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | |
| Drive specifications | - | - | - | - | - | |
| Top speed [km/h] | 219 | 232 | 170-175 | 170-175 | 195 | |
| Acceleration 0–100 km/h [s] | 8.9 | 6.5 | 12.4-12.5 | 12.4-12.5 | 9.0-9.2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.2-4.8 | 7.6 | 4.5-4.1 | 4.2-3.5 | 4.8-3.9 | |
| Out of town [l] | 3.8-3.5 | 5.1 | 3.8-3.1 | 3.6-3.0 | 4.0-3.2 | |
| Combined [l] | 4.4-4.0 | 6.0 | 4.1-3.5 | 3.9-3.2 | 4.4-3.5 | |
| CO2 emissions [g/km] | 99-92 | 136 | 104-90 | 99-82 | 111-89 | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | 5.0 | - | - | - | - | |
| CO2 emissions [g/km] | 114 | - | - | - | - | |
| Emission standard | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | 48 | - | - | - | - | |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - A⋅h | - | - | - | - | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1219 | 1283 | 1186 | 1191 | 1207 | |
| Overall weight [kg] | 1685 | 1655 | 1670 | 1675 | 1685 | |
| Maximum trailer weight unbraked/braked [kg] | 605/1000 | - | 590/750 | 595/750 | 600/1000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 45 | - | 45 | 45 | 40 | |
| Maximum load on roof/carrier [kg] | 0/- | - | 50/- | 50/- | 50/- | |
| Boot volume [l] | 303 | 303 | 303 | 303 | 303 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/984 | -/984 | -/984 | -/984 | -/984 | |
| Boot length [mm] | 721 | 721 | 721 | 721 | 721 | |
| Boot length with rear seats folded [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | |
| Boot width between wheels/max [mm] | 980/- | 980/- | 980/- | 980/- | 980/- | |
| Boot height to headliner/ceiling [mm] | 553/824 | 553/824 | 553/824 | 553/824 | 553/824 | |
| Loading edge height [mm] | 700 | 700 | 700 | 700 | 700 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.30 | 0.341 | 0.297 | 0.297 | 0.297 | |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | |
| Tyre dimensions front | 195/55 R16 | 205/45 R17 | 195/60 R15 | 195/60 R15 | 195/60 R15 | |
| Tyre dimensions rear | 195/55 R16 | 205/45 R17 | 195/60 R15 | 195/60 R15 | 195/60 R15 | |
| Wheel size front | 6.5J x 16 | 7.5J x 17 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | |
| Wheel size rear | 6.5J x 16 | 7.5J x 17 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | |
| Brake dimensions front | 262 x 23 | 278 x 23 | 262 x 23 | 262 x 23 | 262 x 23 | |
| Brake dimensions rear | 252 x 12 | 253 x 12 | 202 x 8 drum | 202 x 8 drum | 252 x 12 | |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.05/- | 11.0/11.4 | 10.05/- | 10.05/- | 10.05/- | |
| Overall length [mm] | 4040 | 4068 | 4040 | 4040 | 4040 | |
| Overall width without/including mirrors [mm] | 1735/1941 | 1783/1941 | 1735/1941 | 1735/1941 | 1735/1941 | |
| Overall height [mm] | 1476 | 1469 | 1476 | 1476 | 1476 | |
| Wheelbase [mm] | 2493 | 2493 | 2493 | 2493 | 2493 | |
| Front wheel track [mm] | 1508 | 1506 | 1508 | 1508 | 1508 | |
| Rear wheel track [mm] | 1471 | 1467 | 1471 | 1471 | 1471 | |
| Forward overhang [mm] | 839 | 842 | 839 | 839 | 839 | |
| Rear overhang [mm] | 708 | 733 | 708 | 708 | 708 | |
| Clearance [mm] | 105-133 | 103-121 | 105-133 | 105-133 | 105-133 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 992 | 992 | 992 | 992 | 992 | |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | |
| Front elbow/shoulder width [mm] | -/1346 | -/1346 | -/1346 | -/1346 | -/1346 | |
| Rear elbow/shoulder width [mm] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | |
| Legroom front knees/total [mm] | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 | |
| Legroom rear knees/total [mm] | -/835 | -/835 | -/835 | -/835 | -/835 |

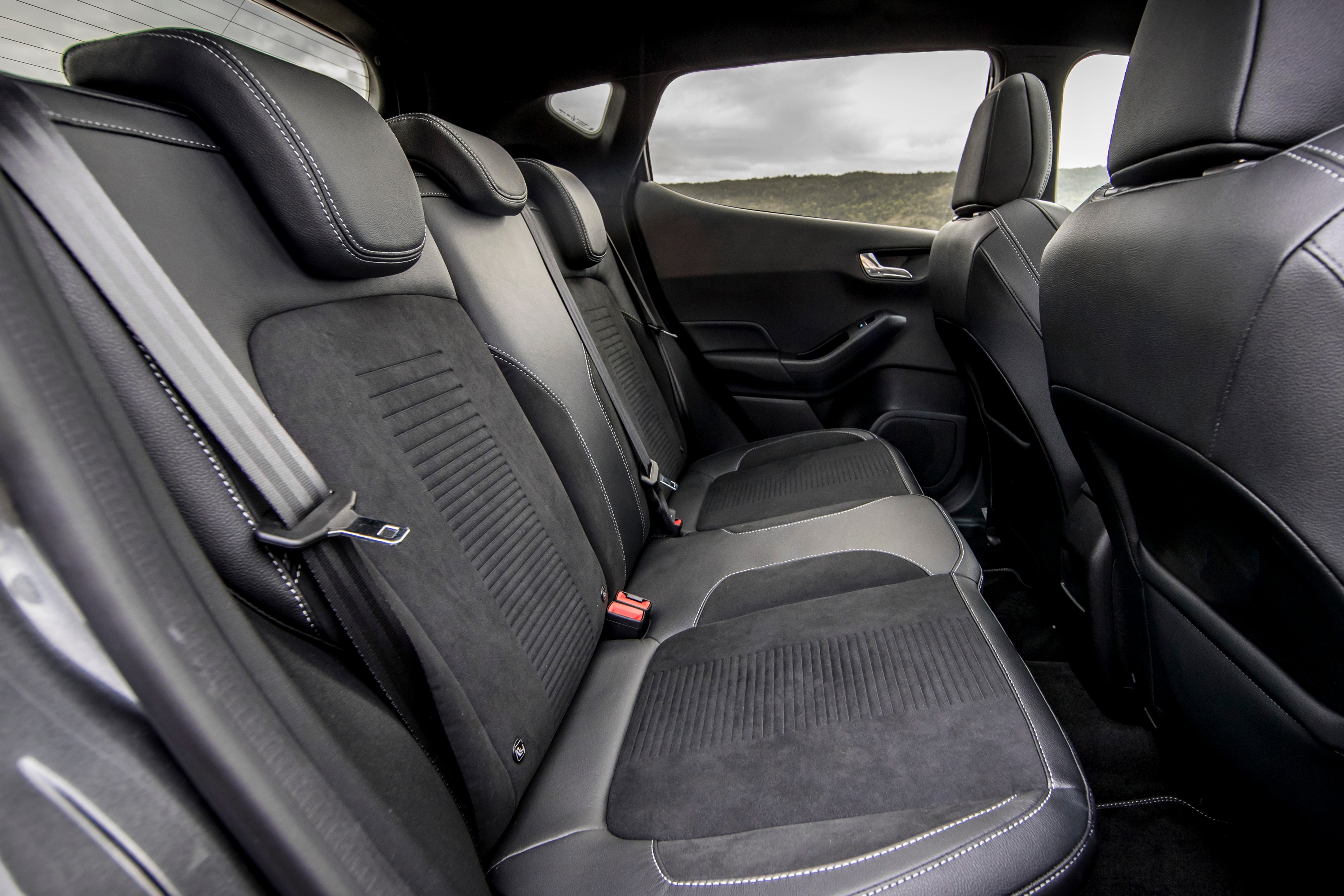

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
