Ford Focus
Date of manufacture
2007 – 2010 (Three-door hatchback)
2007 – 2010 (Five-door hatchback)
2008 – 2010 (Sedan)
2007 – 2010 (Estate)
2008 – 2010 (Convertible)
Platform
Ford C1 platform
Manufacturing locations
Saarlouis, Germany
Designer
Murat Güler
Stefan Lamm
Tags
C-segment
German cars
The Ford Focus is available in various body styles - three-door hatchback, five-door hatchback, sedan, estate and convertible. It has been manufactured in Germany since 2007 on the Ford C1 platform. It offers a wide range of engine options with both petrol and diesel engines. The most powerful version, the RS, produces 224 kW and the fastest version, the RS, has a top speed of 263 km/h and accelerates from 0-100 km/h in 5.9 seconds. The most fuel-efficient model, the 1.6 Duratorq TDCi ECOnetic, has a fuel consumption of 3.8 l/100 km and CO2 emissions of 99 g/km. The luggage capacity of the car varies depending on the body type - 385 l for the three-door hatchback, 482 l for the five-door hatchback, 526 l for the sedan and 248-534 l for the convertible. EURONCAP safety tests resulted in a rating of 5 out of 5.
Car body style

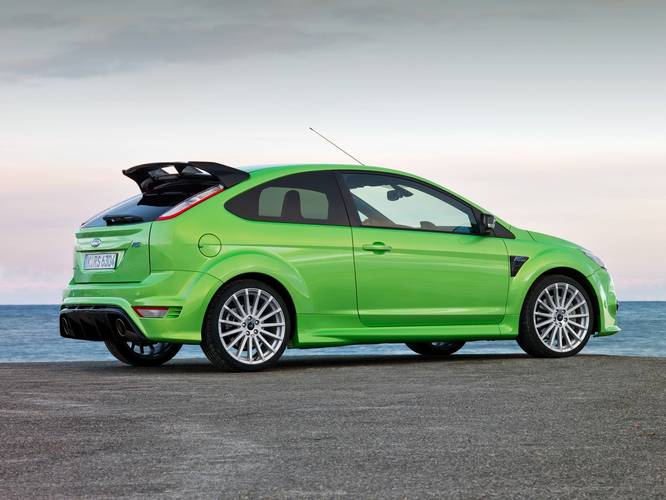

Three-door hatchback
after upgrade (facelift)
Date of manufacture
2007 – 2010Internal designation
DA Engine size

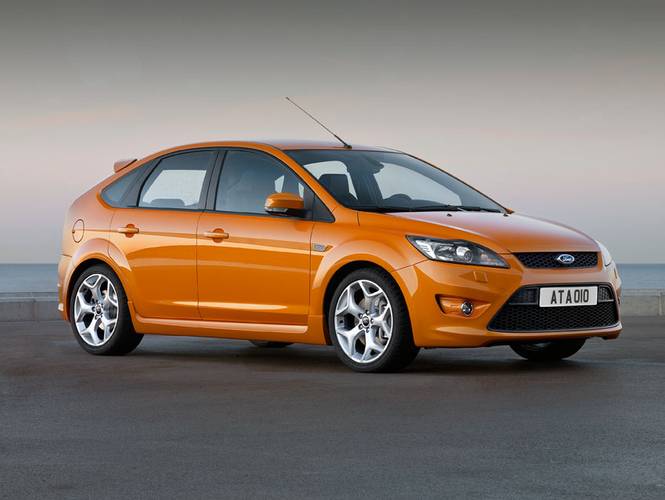

Five-door hatchback
after upgrade (facelift)
Date of manufacture
2007 – 2010Internal designation
DA Sedan
after upgrade (facelift)
Date of manufacture
2008 – 2010Internal designation
DA Engine size
Estate
after upgrade (facelift)
Date of manufacture
2007 – 2010Internal designation
DAW Convertible
after upgrade (facelift)
Date of manufacture
2008 – 2010Internal designation
DA Engine size
Technical data
Three-door hatchback
| 1.4 Duratec | 1.6 Duratec | 1.6 Duratec | 2.5 Duratec ST | RS | 1.6 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 5/20 | 5/20 | 4/16 |
| Engine displacement [cm³] | 1388 | 1596 | 1596 | 2522 | 2522 | 1560 |
| Maximum output / speed [kW/min-1] | 59/5700 | 74/6000 | 74/6000 | 166/6000 | 224/6500 | 66/4000 |
| Maximum torque [Nm/min-1] | 124/3500 | 150/4000 | 150/4000 | 320/1600-4000 | 440/2300-4500 | 215/1750 |
| Bore and stroke [mm x mm] | 76,0 x 76,5 | 79,0 x 81,4 | 79,0 x 81,4 | 83,0 x 93,2 | 83,0 x 93,2 | 75,0 x 88,3 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 9,0:1 | 8,5:1 | 18,3 : 1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual | 5 gear manual |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 164 | 180 | 172 | 241 | 263 | 177 |
| Acceleration 0–100 km/h [s] | 14.1 | 11.9 | 13.6 | 6.8 | 5.9 | 12.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7 | 8.7 | 10.3 | 13.8 | 13.4 | 5.6 |
| Out of town [l] | 5.4 | 5.5 | 5.8 | 6.8 | 7.0 | 3.8 |
| Combined [l] | 6.6 | 6.7 | 7.5 | 9.3 | 9.4 | 4.5 |
| CO2 emissions [g/km] | 155 | 159 | 179 | 224 | 225 | 118 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1229 | 1227 | 1255 | 1392 | 1468 | 1335 |
| Overall weight [kg] | 1750 | 1820 | 1845 | 1860 | 1860 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | 610/700 | 610/1200 | 625/800 | - | - | 665/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 385 | 385 | 385 | 385 | 385 | 385 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 |
| Boot length [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Boot length with rear seats folded [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/833 | -/833 | -/833 | -/833 | -/833 | -/833 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 62 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.324 | 0.324 | 0.324 | 0.324 | 0.38 | 0.324 |
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/40R18 | 235/35 R19 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/40R18 | 235/35 R19 | 195/65 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 8.0 x 18 | 8.5 x 19 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 8.0 x 18 | 8.5 x 19 | 6.0 x 15 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 320 x 25 | 336 x 30 | 278 x 25 |
| Brake dimensions rear | - | - | - | 265 x 11 | 302 x 11 | - |
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.68/- | 12.2/- | 10.4/- |
| Overall length [mm] | 4337 | 4337 | 4337 | 4357 | 4402 | 4337 |
| Overall width without/including mirrors [mm] | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | 1842/- | 1839/2019 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1497 | 1500 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1586 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1587 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Front elbow/shoulder width [mm] | -/1408 | -/1408 | -/1408 | -/1408 | -/1414 | -/1408 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1399 | -/1385 |
| Legroom front knees/total [mm] | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 |
| Legroom rear knees/total [mm] | -/853 | -/853 | -/853 | -/853 | -/853 | -/853 |
Five-door hatchback
| 1.4 Duratec | 1.6 Duratec | 1.6 Duratec | 1.6 Duratec Ti-VCT | 1.8 Duratec FFV | 2.0 Duratec | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1388 | 1596 | 1596 | 1596 | 1798 | 1999 |
| Maximum output / speed [kW/min-1] | 59/5700 | 74/6000 | 74/6000 | 85/6000 | 92/6000 | 107/6000 |
| Maximum torque [Nm/min-1] | 124/3500 | 150/4000 | 150/4000 | 155/4150 | 165/4000 | 185/4500 |
| Bore and stroke [mm x mm] | 76,0 x 76,5 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 83,0 x 83,1 | 87,5 x 83,1 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,8:1 | 10,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - |
|
| - |
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 164 | 180 | 172 | 190 | 198 | 206 |
| Acceleration 0–100 km/h [s] | 14.1 | 11.9 | 13.6 | 10.8 | 10.3 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7 | 8.7 | 10.6 | 8.7 | 9.6 | 9.8 |
| Out of town [l] | 5.4 | 5.5 | 6.0 | 5.4 | 5.6 | 5.4 |
| Combined [l] | 6.6 | 6.7 | 7.7 | 6.6 | 7.0 | 7.1 |
| CO2 emissions [g/km] | 155 | 159 | 184 | 157 | 169 | 169 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1247 | 1249 | 1286 | 1257 | 1307 | 1327 |
| Overall weight [kg] | 1750 | 1820 | 1845 | 1825 | 1895 | 1895 |
| Maximum trailer weight unbraked/braked [kg] | 620/700 | 620/1200 | 640/800 | 625/1200 | 650/1200 | 660/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 385 | 385 | 385 | 385 | 385 | 385 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 |
| Boot length [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Boot length with rear seats folded [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/833 | -/833 | -/833 | -/833 | -/833 | -/833 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.324 | 0.324 | 0.324 | 0.324 | 0.324 | 0.324 |
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 300 x 25 |
| Brake dimensions rear | - | - | - | 265 x 11 | 265 x 11 | 265 x 11 |
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 4337 | 4337 | 4337 | 4337 | 4337 | 4337 |
| Overall width without/including mirrors [mm] | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Front elbow/shoulder width [mm] | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 |
| Legroom rear knees/total [mm] | -/853 | -/853 | -/853 | -/853 | -/853 | -/853 |
| 2.5 Duratec ST | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi ECOnetic | 1.6 Duratorq TDCi ECOnetic | 1.8 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 2522 | 1560 | 1560 | 1560 | 1560 | 1753 |
| Maximum output / speed [kW/min-1] | 166/6000 | 66/4000 | 80/4000 | 80/4000 | 80/4000 | 85/3700 |
| Maximum torque [Nm/min-1] | 320/1600-4000 | 215/1750 | 240/1750 | 240/1750 | 240/1750 | 280/1900 |
| Bore and stroke [mm x mm] | 83,0 x 93,2 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 82,5 x 82,0 |
| Compression ratio | 9,0:1 | 18,3 : 1 | 18,3 : 1 | 18,3 : 1 | 18,3 : 1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 241 | 177 | 188 | 191 | 191 | 190 |
| Acceleration 0–100 km/h [s] | 6.8 | 12.6 | 10.9 | 10.9 | 10.9 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.8 | 5.6 | 5.8 | 5.0 | 4.5 | 6.7 |
| Out of town [l] | 6.8 | 3.8 | 3.8 | 3.4 | 3.4 | 4.3 |
| Combined [l] | 9.3 | 4.5 | 4.5 | 4.0 | 3.8 | 5.2 |
| CO2 emissions [g/km] | 224 | 118 | 119 | 104 | 99 | 137 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1437 | 1352 | 1357 | - | - | 1391 |
| Overall weight [kg] | 1890 | 1880 | 1885 | - | - | 1950 |
| Maximum trailer weight unbraked/braked [kg] | - | 675/1200 | 675/1300 | - | - | 695/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 385 | 385 | 385 | 385 | 385 | 385 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 |
| Boot length [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Boot length with rear seats folded [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/833 | -/833 | -/833 | -/833 | -/833 | -/833 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.324 | 0.324 | 0.324 | 0.324 | 0.324 | 0.324 |
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 225/40R18 | 195/65 R15 | 205/55 R16 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 225/40R18 | 195/65 R15 | 205/55 R16 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Wheel size front | 8.0 x 18 | 6.0 x 15 | 6.5 x 16 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 |
| Wheel size rear | 8.0 x 18 | 6.0 x 15 | 6.5 x 16 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 |
| Brake dimensions front | 320 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | 265 x 11 | - | - | - | - | 265 x 11 |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.68/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 4357 | 4337 | 4337 | 4337 | 4337 | 4337 |
| Overall width without/including mirrors [mm] | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Front elbow/shoulder width [mm] | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 |
| Legroom rear knees/total [mm] | -/853 | -/853 | -/853 | -/853 | -/853 | -/853 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1997 | 1997 | ||||
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | ||||
| Maximum torque [Nm/min-1] | 320/2000 | 320/2000 | ||||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | ||||
| Compression ratio | 18,3 : 1 | 18,3 : 1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 203 | 200 | ||||
| Acceleration 0–100 km/h [s] | 9.3 | 9.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.0 | 7.8 | ||||
| Out of town [l] | 4.5 | 4.7 | ||||
| Combined [l] | 5.5 | 5.8 | ||||
| CO2 emissions [g/km] | 144 | 154 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1391 | 1436 | ||||
| Overall weight [kg] | 1950 | 1950 | ||||
| Maximum trailer weight unbraked/braked [kg] | 695/1500 | 695/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 385 | 385 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1247 | -/1247 | ||||
| Boot length [mm] | 927 | 927 | ||||
| Boot length with rear seats folded [mm] | 1529 | 1529 | ||||
| Boot width between wheels/max [mm] | -/1050 | -/1050 | ||||
| Boot height to headliner/ceiling [mm] | -/833 | -/833 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 53 | 53 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.324 | 0.324 | ||||
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | ||||
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | 6.5 x 16 | 6.5 x 16 | ||||
| Wheel size rear | 6.5 x 16 | 6.5 x 16 | ||||
| Brake dimensions front | 300 x 25 | 300 x 25 | ||||
| Brake dimensions rear | 265 x 11 | 265 x 11 | ||||
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | ||||
| Overall length [mm] | 4337 | 4337 | ||||
| Overall width without/including mirrors [mm] | 1839/2019 | 1839/2019 | ||||
| Overall height [mm] | 1500 | 1500 | ||||
| Wheelbase [mm] | 2640 | 2640 | ||||
| Front wheel track [mm] | 1535 | 1535 | ||||
| Rear wheel track [mm] | 1531 | 1531 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 999 | 999 | ||||
| Headroom rear [mm] | 978 | 978 | ||||
| Front elbow/shoulder width [mm] | -/1408 | -/1408 | ||||
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | ||||
| Legroom front knees/total [mm] | -/1100 | -/1100 | ||||
| Legroom rear knees/total [mm] | -/853 | -/853 |
Sedan
| 1.6 Duratec | 1.6 Duratec Ti-VCT | 1.8 Duratorq TDCi | 2.0 Duratorq TDCi | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/16 | ||
| Engine displacement [cm³] | 1596 | 1596 | 1753 | 1997 | ||
| Maximum output / speed [kW/min-1] | 74/6000 | 85/6000 | 85/3700 | 100/4000 | ||
| Maximum torque [Nm/min-1] | 150/4000 | 155/4150 | 280/1900 | 320/2000 | ||
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 79,0 x 81,4 | 82,5 x 82,0 | 85,0 x 88,0 | ||
| Compression ratio | 11,0:1 | 11,0:1 | 17,0:1 | 18,3 : 1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications | - |
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 182 | 193 | 193 | 205 | ||
| Acceleration 0–100 km/h [s] | 12.0 | 10.9 | 10.9 | 9.4 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 8.7 | 8.7 | 6.8 | 7.2 | ||
| Out of town [l] | 5.5 | 5.4 | 4.4 | 4.6 | ||
| Combined [l] | 6.7 | 6.6 | 5.3 | 5.6 | ||
| CO2 emissions [g/km] | 159 | 157 | 139 | 147 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1270 | 1279 | 1416 | 1435 | ||
| Overall weight [kg] | 1820 | 1825 | 1950 | 1950 | ||
| Maximum trailer weight unbraked/braked [kg] | 635/1200 | 635/1200 | 705/1500 | 715/1500 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 526 | 526 | 526 | 526 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | 1058 | 1058 | 1058 | 1058 | ||
| Boot length with rear seats folded [mm] | 1659 | 1659 | 1659 | 1659 | ||
| Boot width between wheels/max [mm] | -/1048 | -/1048 | -/1048 | -/1048 | ||
| Boot height to headliner/ceiling [mm] | -/459 | -/459 | -/459 | -/459 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 55 | 55 | 53 | 53 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | ||
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | ||
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | ||
| Tyre dimensions front | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | ||
| Tyre dimensions rear | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | ||
| Wheel size front | 6.0 x 15 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | ||
| Wheel size rear | 6.0 x 15 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | ||
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 300 x 25 | ||
| Brake dimensions rear | 265 x 11 | 265 x 11 | 265 x 11 | 265 x 11 | ||
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | ||
| Overall length [mm] | 4481 | 4481 | 4481 | 4481 | ||
| Overall width without/including mirrors [mm] | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | ||
| Overall height [mm] | 1497 | 1497 | 1497 | 1497 | ||
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | ||
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | ||
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 999 | 999 | 999 | 999 | ||
| Headroom rear [mm] | 966 | 966 | 966 | 966 | ||
| Front elbow/shoulder width [mm] | -/1408 | -/1408 | -/1408 | -/1408 | ||
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | ||
| Legroom front knees/total [mm] | -/1100 | -/1100 | -/1100 | -/1100 | ||
| Legroom rear knees/total [mm] | -/853 | -/853 | -/853 | -/853 |
Estate
| 1.4 Duratec | 1.6 Duratec | 1.6 Duratec | 1.6 Duratec Ti-VCT | 1.8 Duratec FFV | 2.0 Duratec | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1388 | 1596 | 1596 | 1596 | 1798 | 1999 |
| Maximum output / speed [kW/min-1] | 59/5700 | 74/6000 | 74/6000 | 85/6000 | 92/6000 | 107/6000 |
| Maximum torque [Nm/min-1] | 124/3500 | 150/4000 | 150/4000 | 155/4150 | 165/4000 | 185/4500 |
| Bore and stroke [mm x mm] | 76,0 x 76,5 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 83,0 x 83,1 | 87,5 x 83,1 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,8:1 | 10,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - |
|
| - |
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 164 | 180 | 172 | 190 | 198 | 206 |
| Acceleration 0–100 km/h [s] | 14.4 | 12.2 | 13.9 | 11.0 | 10.5 | 9.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7 | 8.7 | 10.6 | 8.7 | 9.6 | 9.8 |
| Out of town [l] | 5.4 | 5.5 | 6.0 | 5.4 | 5.6 | 5.4 |
| Combined [l] | 6.6 | 6.7 | 7.7 | 6.6 | 7.0 | 7.1 |
| CO2 emissions [g/km] | 155 | 159 | 184 | 157 | 169 | 169 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1277 | 1277 | 1308 | 1279 | 1340 | 1359 |
| Overall weight [kg] | 1750 | 1820 | 1845 | 1825 | 1895 | 1895 |
| Maximum trailer weight unbraked/braked [kg] | 635/700 | 635/1200 | 650/800 | 635/1200 | 670/1200 | 675/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 482 | 482 | 482 | 482 | 482 | 482 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1525 | -/1525 | -/1525 | -/1525 | -/1525 | -/1525 |
| Boot length [mm] | 1042 | 1042 | 1042 | 1042 | 1042 | 1042 |
| Boot length with rear seats folded [mm] | 1669 | 1669 | 1669 | 1669 | 1669 | 1669 |
| Boot width between wheels/max [mm] | -/1159 | -/1159 | -/1159 | -/1159 | -/1159 | -/1159 |
| Boot height to headliner/ceiling [mm] | -/890 | -/890 | -/890 | -/890 | -/890 | -/890 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.316 | 0.316 | 0.316 | 0.316 | 0.316 | 0.316 |
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 300 x 25 |
| Brake dimensions rear | 265 x 11 | 265 x 11 | 265 x 11 | 265 x 11 | 265 x 11 | 265 x 11 |
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 4468 | 4468 | 4468 | 4468 | 4468 | 4468 |
| Overall width without/including mirrors [mm] | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 |
| Overall height [mm] | 1501 | 1501 | 1501 | 1501 | 1501 | 1501 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 1009 | 1009 | 1009 | 1009 | 1009 | 1009 |
| Front elbow/shoulder width [mm] | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 |
| Legroom rear knees/total [mm] | -/853 | -/853 | -/853 | -/853 | -/853 | -/853 |
| 1.6 Duratorq TDCi | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi ECOnetic | 1.8 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1560 | 1560 | 1753 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 66/4000 | 80/4000 | 80/4000 | 85/3700 | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 215/1750 | 240/1750 | 240/1750 | 280/1900 | 320/2000 | 320/2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 82,5 x 82,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 18,3 : 1 | 18,3 : 1 | 18,3 : 1 | 17,0:1 | 18,3 : 1 | 18,3 : 1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 177 | 188 | 191 | 190 | 203 | 200 |
| Acceleration 0–100 km/h [s] | 12.9 | 11.1 | 11.1 | 10.9 | 9.5 | 9.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 5.8 | 5.0 | 6.8 | 7.2 | 7.8 |
| Out of town [l] | 3.8 | 3.8 | 3.4 | 4.4 | 4.6 | 4.7 |
| Combined [l] | 4.5 | 4.5 | 4.0 | 5.3 | 5.6 | 5.8 |
| CO2 emissions [g/km] | 118 | 119 | 104 | 139 | 147 | 154 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1386 | 1391 | - | 1426 | 1438 | 1451 |
| Overall weight [kg] | 1880 | 1885 | - | 1950 | 2000 | 2000 |
| Maximum trailer weight unbraked/braked [kg] | 690/1200 | 695/1300 | - | 710/1500 | 715/1500 | 715/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 482 | 482 | 482 | 482 | 482 | 482 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1525 | -/1525 | -/1525 | -/1525 | -/1525 | -/1525 |
| Boot length [mm] | 1042 | 1042 | 1042 | 1042 | 1042 | 1042 |
| Boot length with rear seats folded [mm] | 1669 | 1669 | 1669 | 1669 | 1669 | 1669 |
| Boot width between wheels/max [mm] | -/1159 | -/1159 | -/1159 | -/1159 | -/1159 | -/1159 |
| Boot height to headliner/ceiling [mm] | -/890 | -/890 | -/890 | -/890 | -/890 | -/890 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.316 | 0.316 | 0.316 | 0.316 | 0.316 | 0.316 |
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 195/65 R15 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.5J x 16 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.5J x 16 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | 265 x 11 | 265 x 11 | 265 x 11 | 265 x 11 | 265 x 11 | 265 x 11 |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 4468 | 4468 | 4468 | 4468 | 4468 | 4468 |
| Overall width without/including mirrors [mm] | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 | 1839/2019 |
| Overall height [mm] | 1501 | 1501 | 1501 | 1501 | 1501 | 1501 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 1009 | 1009 | 1009 | 1009 | 1009 | 1009 |
| Front elbow/shoulder width [mm] | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 |
| Legroom rear knees/total [mm] | -/853 | -/853 | -/853 | -/853 | -/853 | -/853 |
Convertible
| 1.6 Duratec | 2.0 Duratec | 2.0 Duratec | 2.0 Duratorq TDCi | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1596 | 1999 | 1999 | 1997 | ||
| Maximum output / speed [kW/min-1] | 74/6000 | 107/6000 | 107/6000 | 100/4000 | ||
| Maximum torque [Nm/min-1] | 150/4000 | 185/4500 | 185/4500 | 320/2000 | ||
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 | 85,0 x 88,0 | ||
| Compression ratio | 11,0:1 | 10,8:1 | 10,8:1 | 18,3 : 1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications | - | - | - |
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear manual | 5 gear manual | 4 gear automatic | 6 gear manual | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 182 | 210 | 198 | 205 | ||
| Acceleration 0–100 km/h [s] | 13.6 | 10.3 | 11.9 | 10.3 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 9.4 | 10.6 | 11.8 | 7.7 | ||
| Out of town [l] | 5.8 | 5.7 | 6.3 | 4.9 | ||
| Combined [l] | 7.1 | 7.5 | 8.3 | 5.9 | ||
| CO2 emissions [g/km] | 169 | 179 | 199 | 156 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1473 | 1525 | 1536 | 1608 | ||
| Overall weight [kg] | 1870 | 1950 | 1930 | 2045 | ||
| Maximum trailer weight unbraked/braked [kg] | -/1100 | -/1350 | -/1250 | -/1450 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 248-534 | 248-534 | 248-534 | 248-534 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | 912 | 912 | 912 | 912 | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | -/924 | -/924 | -/924 | -/924 | ||
| Boot height to headliner/ceiling [mm] | -/554 | -/554 | -/554 | -/554 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 55 | 55 | 55 | 53 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | ||
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | ||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | ||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | ||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | ||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Rack & pinion with hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | ||
| Overall length [mm] | 4500 | 4500 | 4500 | 4500 | ||
| Overall width without/including mirrors [mm] | 1834/- | 1834/- | 1834/- | 1834/- | ||
| Overall height [mm] | 1448 | 1448 | 1448 | 1448 | ||
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | ||
| Front wheel track [mm] | - | - | - | - | ||
| Rear wheel track [mm] | - | - | - | - | ||
| Forward overhang [mm] | 866 | 866 | 866 | 866 | ||
| Rear overhang [mm] | 994 | 994 | 994 | 994 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 965 | 965 | 965 | 965 | ||
| Headroom rear [mm] | 925 | 925 | 925 | 925 | ||
| Front elbow/shoulder width [mm] | -/1412 | -/1412 | -/1412 | -/1412 | ||
| Rear elbow/shoulder width [mm] | -/1216 | -/1216 | -/1216 | -/1216 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
