Ford Focus
Date of manufacture
4/2011 – 2014 (Five-door hatchback)
4/2011 – 2014 (Sedan)
5/2011 – 2014 (Estate)
Platform
Ford global C-car
Manufacturing locations
Saarlouis, Germany
Designer
Martin Smith
Stefan Lamm
Murat Güler
Todd Willing
Tags
C-segment
German cars
The Ford Focus is available in three different body styles - a five-door hatchback, sedan and estate. It has been produced since 2011 in Germany on the Ford Global C-car platform. The engine range includes petrol and diesel engines, the most powerful being the 1.6 EcoBoost with 134 kW and the fastest being the 2.0 EcoBoost ST with a top speed of 248 km/h and 0-100 km/h acceleration in 6.5 seconds. The most economical variant is the 1.6 Duratorq TDCi with CO2 emissions of 109 g/km and fuel consumption of 4.2 l/100 km. The boot of the five-door hatchback has a capacity of 363 l, the sedan 475 l and the estate 490 l. The model underwent EURONCAP safety tests in 2012 and received a rating of 5 out of 5.
Car body style

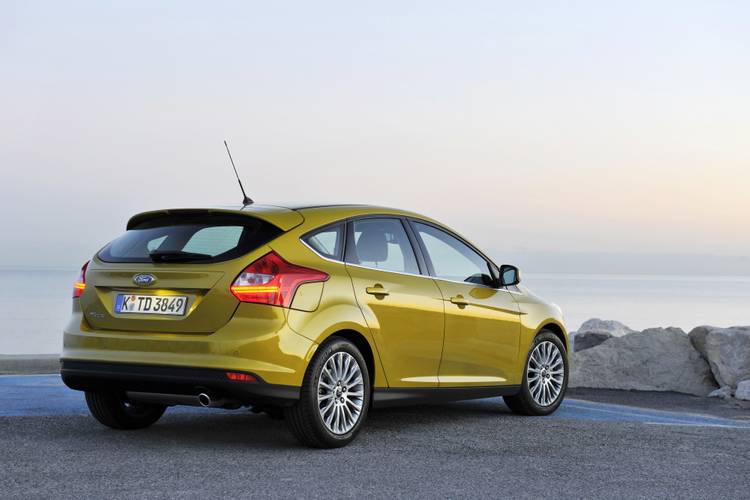

Five-door hatchback
Date of manufacture
4/2011 – 2014Internal designation

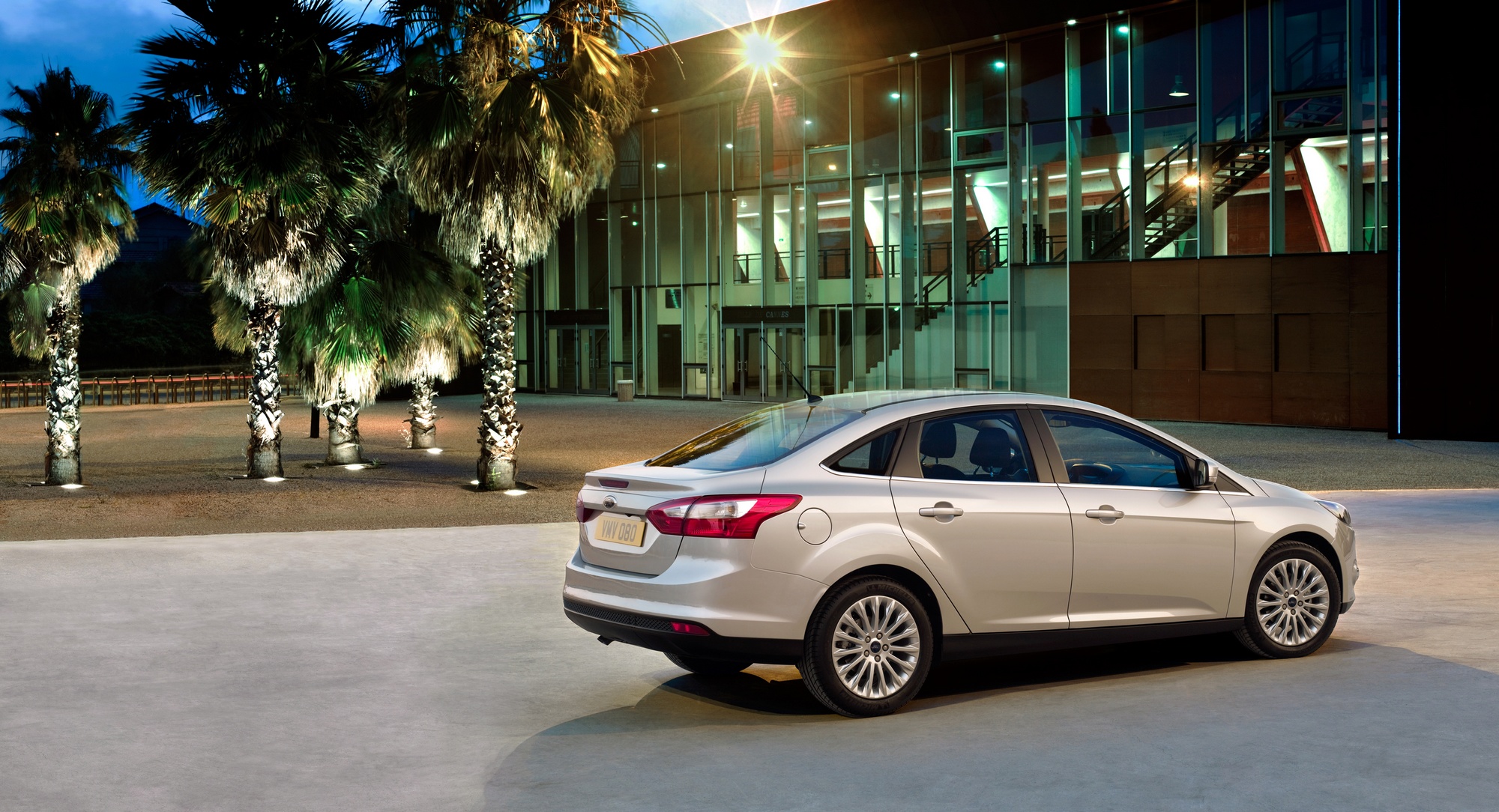

C346Sedan
Date of manufacture
4/2011 – 2014Internal designation
C346Estate
Date of manufacture
5/2011 – 2014Internal designation
C346
Technical data
Five-door hatchback
| 1.6 Ti-VCT | 1.0 EcoBoost | 1.6 Ti-VCT | 1.6 Ti-VCT | 1.6 Ti-VCT | 1.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 4/16 | 4/16 | 4/16 | 3/12 |
| Engine displacement [cm³] | 1596 | 998 | 1596 | 1596 | 1596 | 998 |
| Maximum output / speed [kW/min-1] | 63/6000 | 74/6000 | 77/6000 | 92/6000 | 92/6000 | 92/6000 |
| Maximum torque [Nm/min-1] | 141/2500 | 170/1400-4000 | 150/4000-4500 | 159/4000 | 159/4000 | 170/1400-4500 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 71,9 x 82,0 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 71,9 x 82,0 |
| Compression ratio | 11,0:1 | 10,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 170 | 185 | 187 | 196 | 193 | 193 |
| Acceleration 0–100 km/h [s] | 14.9 | 12.5 | 12.3 | 10.9 | 11.7 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 5.8 | 8.0 | 8.0 | 8.7 | 6.3 |
| Out of town [l] | 4.7 | 4.1 | 4.7 | 4.7 | 4.9 | 4.2 |
| Combined [l] | 5.9 | 4.7 | 5.9 | 5.9 | 6.4 | 5.0 |
| CO2 emissions [g/km] | 136 | 109 | 136 | 136 | 146 | 114 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1270 | 1276 | 1270 | 1276 | 1316 | 1280 |
| Overall weight [kg] | 1825 | 1900 | 1825 | 1825 | 1825 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 635/700 | 635/1000 | 635/700 | 635/800 | 655/1000 | 635/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 363 | 363 | 363 | 363 | 363 | 363 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4358 | 4358 | 4358 | 4358 | 4358 | 4358 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| 1.6 EcoBoost | 1.6 EcoBoost FFV | 1.6 EcoBoost | 2.0 EcoBoost ST | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1596 | 1596 | 1596 | 2000 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 110/5700 | 110/5700 | 134/5700 | 184/- | 70/3600 | 70/3600 |
| Maximum torque [Nm/min-1] | 240/1600-4000 | 240/1600-4000 | 240/1600-4000 | 360/1750 | 230/1500-2000 | 230/1500-2000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 87,5 x 83,1 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 9,3:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 210 | 210 | 222 | 248 | 180 | 180 |
| Acceleration 0–100 km/h [s] | 8.6 | 8.6 | 7.9 | 6.5 | 12.5 | 12.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 8.3 (11.4 E85) | 8.3 | 9.9 | 5.7 | 5.1 |
| Out of town [l] | 5.0 | 5.0 (6.5 E85) | 5.0 | 5.6 | 3.7 | 3.7 |
| Combined [l] | 6.2 | 6.2 (8.3 E85) | 6.2 | 7.2 | 4.5 | 4.2 |
| CO2 emissions [g/km] | 144 | 144 (136 E85) | 144 | 169 | 117 | 109 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1333 | 1333 | 1333 | 1437 | 1338 | 1338 |
| Overall weight [kg] | 1900 | 1900 | 1900 | 2025 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 665/1500 | 665/1500 | 665/1500 | - | 665/1200 | 665/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 363 | 363 | 363 | 363 | 363 | 363 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 215/55 R16 | 235/40 R18 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 215/55 R16 | 235/40 R18 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 8.0J x 18 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 8.0J x 18 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 25 | 300 x 25 | 300 x 25 | 320 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | 271 x 11 | 271 x 11 | 271 x 11 | 271 x 11 | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/12.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4358 | 4358 | 4358 | 4362 | 4358 | 4358 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | - | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | - | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| 1.6 Duratorq TDCi | 1.6 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1560 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 85/3600 | 85/3600 | 103/3750 | 103/3750 | 120/3750 | 120/3750 |
| Maximum torque [Nm/min-1] | 270/1750-2500 | 270/1750-2500 | 320/1750-2750 | 320/1750-2750 | 340/2000-3250 | 340/2000-3250 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 193 | 193 | 207 | 205 | 218 | 215 |
| Acceleration 0–100 km/h [s] | 10.8 | 10.8 | 8.9 | 9.5 | 8.6 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.7 | 5.1 | 6.3 | 6.8 | 6.3 | 6.8 |
| Out of town [l] | 3.7 | 3.7 | 4.2 | 4.4 | 4.2 | 4.4 |
| Combined [l] | 4.5 | 4.2 | 5.0 | 5.3 | 5.0 | 5.3 |
| CO2 emissions [g/km] | 117 | 109 | 129 | 139 | 129 | 139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1344 | 1344 | 1421 | 1461 | 1421 | 1461 |
| Overall weight [kg] | 1900 | 1900 | 2050 | 2050 | 2050 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 670/1200 | 670/1200 | 710/1500 | 730/1500 | 710/1500 | 730/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 363 | 363 | 363 | 363 | 363 | 363 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | - | - | 271 x 11 | 271 x 11 | 271 x 11 | 271 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4358 | 4358 | 4358 | 4358 | 4358 | 4358 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
Sedan
| 1.6 Ti-VCT | 1.6 Ti-VCT | 1.6 Ti-VCT | 1.0 EcoBoost | 1.6 EcoBoost | 1.6 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 1596 | 1596 | 998 | 1596 | 1596 |
| Maximum output / speed [kW/min-1] | 77/6000 | 92/6000 | 92/6000 | 92/6000 | 110/5700 | 134/5700 |
| Maximum torque [Nm/min-1] | 150/4000-4500 | 159/4000 | 159/4000 | 170/1400-4500 | 240/1600-4000 | 240/1600-4000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 71,9 x 82,0 | 79,0 x 81,4 | 79,0 x 81,4 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 189 | 198 | 195 | 195 | 212 | 224 |
| Acceleration 0–100 km/h [s] | 12.4 | 11.0 | 11.8 | 11.4 | 8.7 | 8.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.1 | 8.1 | 9.3 | 6.4 | 7.7 | 7.7 |
| Out of town [l] | 4.8 | 4.8 | 4.8 | 4.4 | 5.0 | 5.0 |
| Combined [l] | 6.0 | 6.0 | 6.4 | 5.1 | 6.0 | 6.0 |
| CO2 emissions [g/km] | 139 | 139 | 149 | 117 | 139 | 139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1290 | 1296 | 1324 | 1306 | 1340 | 1340 |
| Overall weight [kg] | 1825 | 1825 | 1825 | 1900 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 645/700 | 645/800 | 660/1000 | 650/1200 | 670/1500 | 670/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | - | - | - | - | 271 x 11 | 271 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4534 | 4534 | 4534 | 4534 | 4534 | 4534 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| 1.6 Duratorq TDCi | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1560 | 1560 | 1560 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 70/3600 | 70/3600 | 85/3600 | 85/3600 | 103/3750 | 103/3750 |
| Maximum torque [Nm/min-1] | 230/1500-2000 | 230/1500-2000 | 270/1750-2500 | 270/1750-2500 | 320/1750-2750 | 320/1750-2750 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 182 | 182 | 195 | 195 | 209 | 207 |
| Acceleration 0–100 km/h [s] | 12.6 | 12.6 | 10.9 | 10.9 | 9.0 | 9.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.7 | 5.1 | 5.7 | 5.1 | 6.3 | 6.8 |
| Out of town [l] | 3.7 | 3.7 | 3.7 | 3.7 | 4.2 | 4.4 |
| Combined [l] | 4.5 | 4.2 | 4.5 | 4.2 | 5.0 | 5.3 |
| CO2 emissions [g/km] | 117 | 109 | 117 | 109 | 129 | 139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1345 | 1345 | 1350 | 1350 | 1429 | 1468 |
| Overall weight [kg] | 1900 | 1900 | 1900 | 1900 | 2050 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 670/1200 | 670/1200 | 675/1200 | 675/1200 | 710/1500 | 730/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | - | - | - | - | 271 x 11 | 271 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4534 | 4534 | 4534 | 4534 | 4534 | 4534 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1997 | 1997 | ||||
| Maximum output / speed [kW/min-1] | 120/3750 | 120/3750 | ||||
| Maximum torque [Nm/min-1] | 340/2000-3250 | 340/2000-3250 | ||||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | ||||
| Compression ratio | 16,0:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 220 | 217 | ||||
| Acceleration 0–100 km/h [s] | 8.7 | 9.0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.3 | 6.8 | ||||
| Out of town [l] | 4.2 | 4.4 | ||||
| Combined [l] | 5.0 | 5.3 | ||||
| CO2 emissions [g/km] | 129 | 139 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1429 | 1468 | ||||
| Overall weight [kg] | 2050 | 2050 | ||||
| Maximum trailer weight unbraked/braked [kg] | 710/1500 | 730/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 475 | 475 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | -/1130 | -/1130 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 55 | 55 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | ||||
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | ||||
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | ||||
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | ||||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | ||||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | ||||
| Brake dimensions front | 300 x 25 | 300 x 25 | ||||
| Brake dimensions rear | 271 x 11 | 271 x 11 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | ||||
| Overall length [mm] | 4534 | 4534 | ||||
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | ||||
| Overall height [mm] | 1484 | 1484 | ||||
| Wheelbase [mm] | 2648 | 2648 | ||||
| Front wheel track [mm] | 1544 | 1544 | ||||
| Rear wheel track [mm] | 1534 | 1534 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 993 | 993 | ||||
| Headroom rear [mm] | 962 | 962 | ||||
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | ||||
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | ||||
| Legroom front knees/total [mm] | -/1094 | -/1094 | ||||
| Legroom rear knees/total [mm] | -/849 | -/849 |
Estate
| 1.0 EcoBoost | 1.6 Ti-VCT | 1.6 Ti-VCT | 1.6 Ti-VCT | 1.0 EcoBoost | 1.6 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 3/12 | 4/16 |
| Engine displacement [cm³] | 998 | 1596 | 1596 | 1596 | 998 | 1596 |
| Maximum output / speed [kW/min-1] | 74/6000 | 77/6000 | 92/6000 | 92/6000 | 92/6000 | 110/5700 |
| Maximum torque [Nm/min-1] | 170/1400-4000 | 150/4000-4500 | 159/4000 | 159/4000 | 170/1400-4500 | 240/1600-4000 |
| Bore and stroke [mm x mm] | 71,9 x 82,0 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 71,9 x 82,0 | 79,0 x 81,4 |
| Compression ratio | 10,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 185 | 187 | 196 | 193 | 193 | 210 |
| Acceleration 0–100 km/h [s] | 12.7 | 12.5 | 11.1 | 11.9 | 11.5 | 8.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9 | 8.1 | 8.1 | 9.3 | 6.4 | 8.3 |
| Out of town [l] | 4.2 | 4.8 | 4.8 | 4.8 | 4.4 | 5.0 |
| Combined [l] | 4.8 | 6.0 | 6.0 | 6.4 | 5.1 | 6.2 |
| CO2 emissions [g/km] | 112 | 139 | 139 | 149 | 117 | 144 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1312 | 1307 | 1312 | 1341 | 1316 | 1357 |
| Overall weight [kg] | 1900 | 1825 | 1825 | 1825 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 655/1000 | 650/700 | 655/800 | 670/1000 | 655/1200 | 675/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1149/- | 1149/- | 1149/- | 1149/- | 1149/- | 1149/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 300 x 25 |
| Brake dimensions rear | - | - | - | - | - | 271 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4556 | 4556 | 4556 | 4556 | 4556 | 4556 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | 1505 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| 1.6 EcoBoost FFV | 1.6 EcoBoost | 2.0 EcoBoost ST | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1596 | 1596 | 2000 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 110/5700 | 134/5700 | 184/- | 70/3600 | 70/3600 | 85/3600 |
| Maximum torque [Nm/min-1] | 240/1600-4000 | 240/1600-4000 | 360/1750 | 230/1500-2000 | 230/1500-2000 | 270/1750-2500 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 79,0 x 81,4 | 87,5 x 83,1 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 10,0:1 | 10,0:1 | 9,3:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 210 | 222 | 248 | 180 | 180 | 193 |
| Acceleration 0–100 km/h [s] | 8.8 | 8.1 | 6.5 | 12.7 | 12.7 | 11.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 (11.4 E85) | 8.3 | 9.9 | 5.7 | 5.1 | 5.7 |
| Out of town [l] | 5.0 (6.5 E85) | 5.0 | 5.6 | 3.7 | 3.7 | 3.7 |
| Combined [l] | 6.2 (8.3 E85) | 6.2 | 7.2 | 4.5 | 4.2 | 4.5 |
| CO2 emissions [g/km] | 144 (136 E85) | 144 | 169 | 117 | 109 | 117 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1357 | 1357 | 1461 | 1362 | 1362 | 1368 |
| Overall weight [kg] | 1900 | 1900 | 2025 | 1900 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 675/1500 | 675/1500 | - | 680/1200 | 680/1200 | 680/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1149/- | 1149/- | 1149/- | 1149/- | 1149/- | 1149/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 235/40 R18 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 235/40 R18 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 7.0J x 16 | 8.0J x 18 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 7.0J x 16 | 8.0J x 18 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 25 | 300 x 25 | 320 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | 271 x 11 | 271 x 11 | 271 x 11 | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/12.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4556 | 4556 | 4556 | 4556 | 4556 | 4556 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | 1505 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | - | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | - | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| 1.6 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1560 | 1997 | 1997 | 1997 | 1997 | |
| Maximum output / speed [kW/min-1] | 85/3600 | 103/3750 | 103/3750 | 120/3750 | 120/3750 | |
| Maximum torque [Nm/min-1] | 270/1750-2500 | 320/1750-2750 | 320/1750-2750 | 340/2000-3250 | 340/2000-3250 | |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 193 | 207 | 205 | 218 | 215 | |
| Acceleration 0–100 km/h [s] | 11.1 | 9.1 | 9.7 | 8.8 | 9.1 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.1 | 6.3 | 6.8 | 6.3 | 6.8 | |
| Out of town [l] | 3.7 | 4.2 | 4.4 | 4.2 | 4.4 | |
| Combined [l] | 4.2 | 5.0 | 5.3 | 5.0 | 5.3 | |
| CO2 emissions [g/km] | 109 | 129 | 139 | 129 | 139 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1368 | 1460 | 1471 | 1460 | 1471 | |
| Overall weight [kg] | 1900 | 2050 | 2050 | 2050 | 2050 | |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 730/1500 | 735/1500 | 730/1500 | 735/1500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | 1149/- | 1149/- | 1149/- | 1149/- | 1149/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Wheel size front | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |
| Wheel size rear | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |
| Brake dimensions front | 278 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | |
| Brake dimensions rear | - | 271 x 11 | 271 x 11 | 271 x 11 | 271 x 11 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | |
| Overall length [mm] | 4556 | 4556 | 4556 | 4556 | 4556 | |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | |
| Overall height [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | |
| Headroom rear [mm] | 999 | 999 | 999 | 999 | 999 | |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | |
| Legroom rear knees/total [mm] | -/849 | -/849 | -/849 | -/849 | -/849 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
