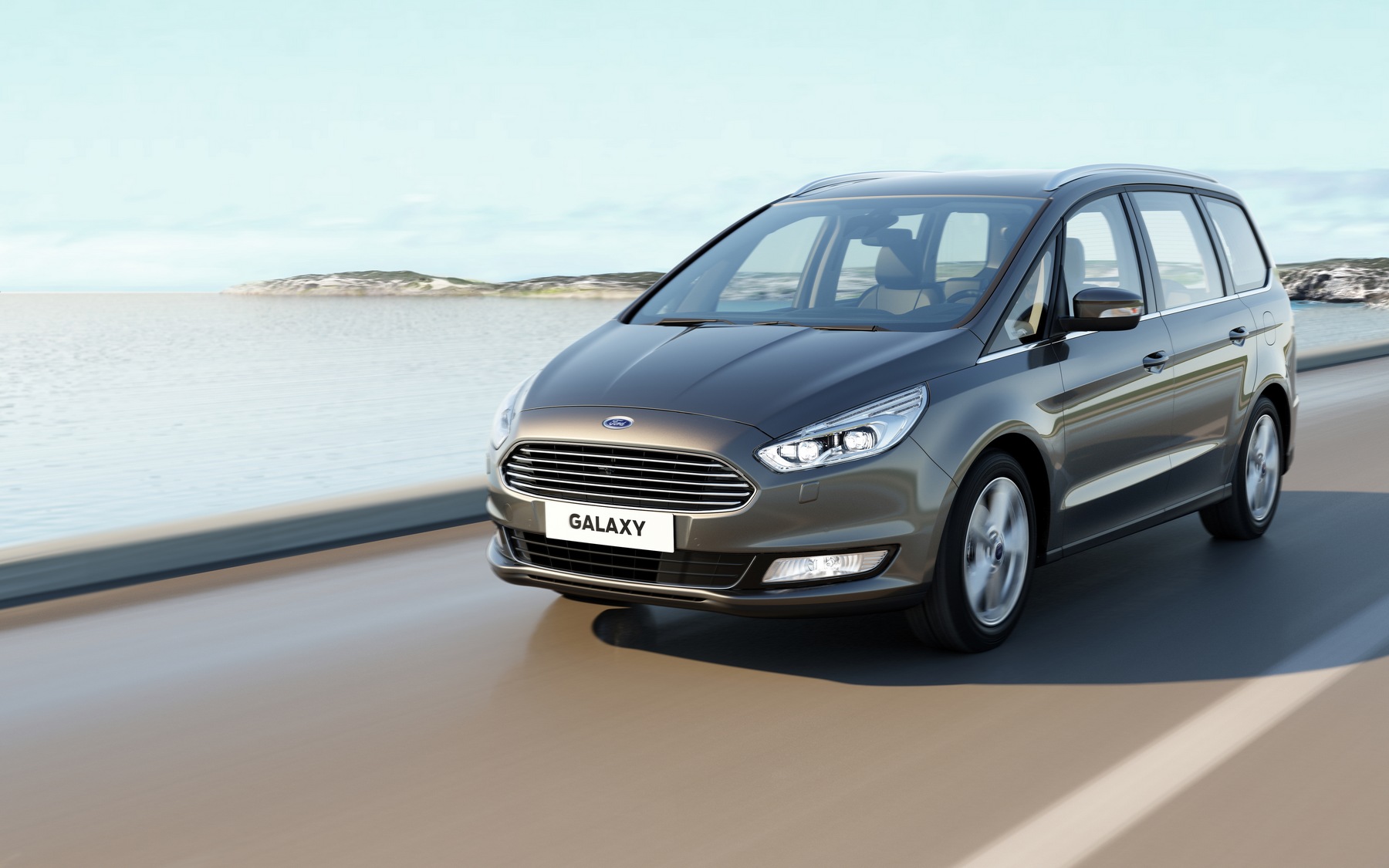

Ford Galaxy
Date of manufacture
5/2015 – 2019 (MPV)
Platform
Ford CD4 platform
Manufacturing locations
Valencia, Spain
Designer
Joel Piaskowski
Tags
Large MPV
German cars
The Ford Galaxy has been produced since 2015 and its only body style is MPV. The model comes from Spain and is built on the Ford CD4 platform. The engine range includes petrol and diesel engines, the most powerful model being the 2.0 EcoBlue Bi-Turbo 240 with a maximum power of 177 kW. The fastest model is the 2.0 EcoBoost, which reaches a top speed of 222 km/h and accelerates from 0-100 km/h in 8.6 seconds. The most economical variant is the 2.0 Duratorq TDCi with a combined fuel consumption of 5 l/100 km and CO2 emissions of 129 g/km. The luggage compartment has a capacity of 300 l and the model was tested by EURONCAP in 2015, achieving an overall rating of 5 out of 5.
Car body style
MPV
Date of manufacture
5/2015 – 2019Internal designation
CD390Engine size
PetrolDiesel
Technical data
MPV
| 1.5 EcoBoost | 1.5 EcoBoost | 2.0 EcoBoost | 2.0 Duratorq TDCi | 2.0 EcoBlue 120 | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from to 2018 | from 2018 to | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1999 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 118/6000 | 121/5500 | 177/5400 | 88/3500 | 88/3500 | 110/3500 |
| Maximum torque [Nm/min-1] | 240/1500-4500 | 242/1600-4000 | 345/2300-4900 | 310/1750-2000 | 340/1750-2250 | 350/2000-2500 |
| Bore and stroke [mm x mm] | 79,02 x 76,40 | 79,02 x 76,40 | 87,50 x 83,10 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 17,0:1 | 16,0:1 | 17,0:1 |
| Oil volume [l] | - | 4.1 | - | - | 5.5 | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 195 | 195 | 222 | 180 | 176 | 195 |
| Acceleration 0–100 km/h [s] | 10.0 | 9.9 | 8.6 | 13.6 | 12.6 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 9.0 | 10.3 | 5.6 | 6.2-6.1 | 5.6 |
| Out of town [l] | 5.6 | 6.5 | 6.5 | 4.6 | 4.7-4.6 | 4.6 |
| Combined [l] | 6.5 | 7.5 | 7.9 | 5.0 | 5.7-5.1 | 5.0 |
| CO2 emissions [g/km] | 149 | 172 | 180 | 129 | 147-135 | 129 |
| Emission standard | EU6 | EU6-TEMP | EU6 | EU6 | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1765 | 1811 | 1875 | 1854 | - | 1853 |
| Overall weight [kg] | 2510 | 2510 | 2585 | 2540 | - | 2535 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1800 | 750/1500 | - | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 300 | 300 | 300 | 300 | 300 | 300 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2339 | -/2339 | -/2339 | -/2339 | -/2339 | -/2339 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | 2057 | 2057 | 2057 | 2057 | 2057 | 2057 |
| Boot width between wheels/max [mm] | -/1145 | -/1145 | -/1145 | -/1145 | -/1145 | -/1145 |
| Boot height to headliner/ceiling [mm] | -/985 | -/985 | -/985 | -/985 | -/985 | -/985 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 70 | 66 | 70 | 70 | 68 | 70 |
| AdBlue tank volume [l] | - | - | - | - | 11.5 | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5J x 17 | 7.5 J x 17 |
| Wheel size rear | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5J x 17 | 7.5 J x 17 |
| Brake dimensions front | 316 x 32 | 316 x 32 | 316 x 32 | 316 x 32 | 316 x 32 | 316 x 32 |
| Brake dimensions rear | 316 x 11 | 316 x 11 | 316 x 11 | 316 x 11 | 316 x 11 | 316 x 11 |
| Steering | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/12.0 | 11.6/12.4 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 |
| Overall length [mm] | 4848 | 4848 | 4848 | 4848 | 4848 | 4848 |
| Overall width without/including mirrors [mm] | 1916/2137 | 1916/2137 | 1916/2137 | 1916/2137 | 1916/2137 | 1916/2137 |
| Overall height [mm] | 1747 | 1747 | 1747 | 1747 | 1747 | 1747 |
| Wheelbase [mm] | 2849 | 2849 | 2849 | 2849 | 2849 | 2849 |
| Front wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Headroom rear [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Front elbow/shoulder width [mm] | 1432/1531 | 1432/1531 | 1432/1531 | 1432/1531 | 1432/1531 | 1432/1531 |
| Rear elbow/shoulder width [mm] | 1451/1535 | 1451/1535 | 1451/1535 | 1451/1535 | 1451/1535 | 1451/1535 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Third row elbow/shoulder width [mm] | 1148/1359 | 1148/1359 | 1148/1359 | 1148/1359 | 1148/1359 | 1148/1359 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 EcoBlue 150 | 2.0 EcoBlue 150 | 2.0 EcoBlue 150 AWD | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from 2018 to | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 110/3500 | 110/3500 | 110/3500 | 110/3500 | 110/3500 | 132/3500 |
| Maximum torque [Nm/min-1] | 350/2000-2500 | 350/2000-2500 | 370/2000-2500 | 370/2000-2500 | 370/2000-2500 | 400/2000-2500 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 17,0:1 | 17,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 17,0:1 |
| Oil volume [l] | - | - | 5.5 | 5.5 | 5.5 | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | 4x4 | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 192 | 193 | 194 | 192 | 192 | 208 |
| Acceleration 0–100 km/h [s] | 10.9 | 12.2 | 10.7 | 10.8 | 11.1 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1 | 6.1 | 6.2-6.0 | 6.2-6.1 | 6.9 | 5.6 |
| Out of town [l] | 4.9 | 4.9 | 4.8-4.6 | 5.0-4.8 | 5.3-5.2 | 4.6 |
| Combined [l] | 5.4 | 5.4 | 5.7-5.1 | 5.9-5.3 | 6.1-5.8 | 5.0 |
| CO2 emissions [g/km] | 139 | 139 | 147-133 | 153-140 | 159-155 | 129 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1860 | 1927 | 1849 | - | - | 1869 |
| Overall weight [kg] | 2545 | 2655 | 2595 | - | - | 2545 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/1800 | - | - | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 300 | 300 | 300 | 300 | 300 | 300 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2339 | -/2339 | -/2339 | -/2339 | -/2339 | -/2339 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | 2057 | 2057 | 2057 | 2057 | 2057 | 2057 |
| Boot width between wheels/max [mm] | -/1145 | -/1145 | -/1145 | -/1145 | -/1145 | -/1145 |
| Boot height to headliner/ceiling [mm] | -/985 | -/985 | -/985 | -/985 | -/985 | -/985 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 70 | 70 | 68 | 68 | 64 | 70 |
| AdBlue tank volume [l] | - | - | 11.5 | 11.5 | 11.5 | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Wheel size rear | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Brake dimensions front | 316 x 32 | 316 x 32 | 316 x 32 | 316 x 32 | 316 x 32 | 316 x 32 |
| Brake dimensions rear | 316 x 11 | 316 x 11 | 316 x 11 | 316 x 11 | 316 x 11 | 316 x 11 |
| Steering | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 |
| Overall length [mm] | 4848 | 4848 | 4848 | 4848 | 4848 | 4848 |
| Overall width without/including mirrors [mm] | 1916/2137 | 1916/2137 | 1916/2137 | 1916/2137 | 1916/2137 | 1916/2137 |
| Overall height [mm] | 1747 | 1747 | 1747 | 1747 | 1747 | 1747 |
| Wheelbase [mm] | 2849 | 2849 | 2849 | 2849 | 2849 | 2849 |
| Front wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Headroom rear [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Front elbow/shoulder width [mm] | 1432/1531 | 1432/1531 | 1432/1531 | 1432/1531 | 1432/1531 | 1432/1531 |
| Rear elbow/shoulder width [mm] | 1451/1535 | 1451/1535 | 1451/1535 | 1451/1535 | 1451/1535 | 1451/1535 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Third row elbow/shoulder width [mm] | 1148/1359 | 1148/1359 | 1148/1359 | 1148/1359 | 1148/1359 | 1148/1359 |
| 2.0 Duratorq TDCi | 2.0 EcoBlue 190 | 2.0 EcoBlue 190 | 2.0 EcoBlue 190 AWD | 2.0 Duratorq TDCi Bi-Turbo | 2.0 EcoBlue Bi-Turbo 240 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from 2018 to | from 2018 to | from to 2018 | from 2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 132/3500 | 140/3500 | 140/3500 | 140/3500 | 154/3750 | 177/4000 |
| Maximum torque [Nm/min-1] | 400/2000-2500 | 400/2000-3000 | 400/2000-3000 | 400/2000-3000 | 450/2000-2250 | 500/2000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 17,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | 5.5 | 5.5 | 5.5 | - | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 203 | 207 | 204 | 202 | 214 | 216 |
| Acceleration 0–100 km/h [s] | 10.6 | 9.5 | 9.7 | 10.0 | 8.9 | 8.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 6.2-6.0 | 6.2-6.0 | 7.2-7.0 | 6.3 | 7.4-7.3 |
| Out of town [l] | 5.4 | 4.8-4.6 | 5.0-4.7 | 5.6-5.5 | 5.1 | 5.4 |
| Combined [l] | 5.8 | 5.7-5.1 | 5.9-5.2 | 6.3-6.1 | 5.5 | 6.3-6.1 |
| CO2 emissions [g/km] | 149 | 147-133 | 153-136 | 164-159 | 144 | 163-158 |
| Emission standard | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1956 | - | 1860 | 1944 | 1896 | 1894 |
| Overall weight [kg] | 2685 | - | 2605 | 2675 | 2620 | 2635 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | - | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 300 | 300 | 300 | 300 | 300 | 300 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2339 | -/2339 | -/2339 | -/2339 | -/2339 | -/2339 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | 2057 | 2057 | 2057 | 2057 | 2057 | 2057 |
| Boot width between wheels/max [mm] | -/1145 | -/1145 | -/1145 | -/1145 | -/1145 | -/1145 |
| Boot height to headliner/ceiling [mm] | -/985 | -/985 | -/985 | -/985 | -/985 | -/985 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 70 | 68 | 68 | 64 | 70 | 68 |
| AdBlue tank volume [l] | - | 11.5 | 11.5 | 11.5 | - | 11.5 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Wheel size rear | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Brake dimensions front | 316 x 32 | 316 x 32 | 316 x 32 | 316 x 32 | 316 x 32 | 316 x 32 |
| Brake dimensions rear | 316 x 11 | 316 x 11 | 316 x 11 | 316 x 11 | 316 x 11 | 316 x 11 |
| Steering | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 |
| Overall length [mm] | 4848 | 4848 | 4848 | 4848 | 4848 | 4848 |
| Overall width without/including mirrors [mm] | 1916/2137 | 1916/2137 | 1916/2137 | 1916/2137 | 1916/2137 | 1916/2137 |
| Overall height [mm] | 1747 | 1747 | 1747 | 1747 | 1747 | 1747 |
| Wheelbase [mm] | 2849 | 2849 | 2849 | 2849 | 2849 | 2849 |
| Front wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Headroom rear [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Front elbow/shoulder width [mm] | 1432/1531 | 1432/1531 | 1432/1531 | 1432/1531 | 1432/1531 | 1432/1531 |
| Rear elbow/shoulder width [mm] | 1451/1535 | 1451/1535 | 1451/1535 | 1451/1535 | 1451/1535 | 1451/1535 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Third row elbow/shoulder width [mm] | 1148/1359 | 1148/1359 | 1148/1359 | 1148/1359 | 1148/1359 | 1148/1359 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
