Ford Ka

Date of manufacture

9/2008 – 5/2016 (Three-door hatchback)

Platform

Fiat Mini platform

Manufacturing locations

Tychy, Poland

Designer

Car body style

Three-door hatchback

Date of manufacture

9/2008 – 5/2016

Internal designation

RU8

Engine size

Petrol

1.2 Duratec

Diesel

1.3 Duratorq TDCi

Euro NCAP

Technical data

Three-door hatchback

	1.2 Duratec	1.2 Duratec	1.2 Duratec	1.3 Duratorq TDCi	1.3 Duratorq TDCi
Date of sale	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/8	4/8	4/8	4/16	4/16
Engine displacement [cm³]	1242	1242	1242	1248	1248
Maximum output / speed [kW/min-1]	51/5500	51/5500	51/5500	55/4000	55/4000
Maximum torque [Nm/min-1]	102/3000	102/3000	102/3000	145/1500-3000	145/1500-3000
Bore and stroke [mm x mm]	70,8 x 78,9	70,8 x 78,9	70,8 x 78,9	69,6 x 82,0	69,6 x 82,0
Compression ratio	11,1:1	11,1:1	11,1:1	17,6:1	17,6:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	-	start&stop system	-	direct injection Common Rail turbo-supercharged particulate filter	direct injection Common Rail turbo-supercharged particulate filter start&stop system

Drive axle	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear manual
Drive specifications	-	-	constant ratio gearbox 3,73	-	-

Top speed [km/h]	159	159	160	161	161
Acceleration 0–100 km/h [s]	13.1	13.4	12.8	13.1	13.2
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	6.3	5.8	6.6	5.2	4.9
Out of town [l]	4.4	4.4	4.5	3.7	3.7
Combined [l]	5.1	4.9	5.3	4.2	4.1
CO2 emissions [g/km]	119	115	125	112	109

Emission standard	EU4	EU5-EU6	EU4	EU4	EU5
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	940	940	940	1055	1055
Overall weight [kg]	1320	1320	1320	1415	1415
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	50/-	50/-	50/-	50/-	50/-

Boot volume [l]	224	224	224	224	224
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/747	-/747	-/747	-/747	-/747
Boot length [mm]	592	592	592	592	592
Boot length with rear seats folded [mm]	1217	1217	1217	1217	1217
Boot width between wheels/max [mm]	-/1018	-/1018	-/1018	-/1018	-/1018
Boot height to headliner/ceiling [mm]	-/854	-/854	-/854	-/854	-/854
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	3	3	3	3	3
Number of seats	4	4	4	4	4
Fuel tank volume [l]	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0.337	0.337	0.337	0.337	0.337
Front suspension	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	175/65 R14	175/65 R14	175/65 R14	195/50 R15	195/50 R15
Tyre dimensions rear	175/65 R14	175/65 R14	175/65 R14	195/50 R15	195/50 R15
Wheel size front	5.5J x 14	5.5J x 14	5.5J x 14	6.0J x 15	6.0J x 15
Wheel size rear	5.5J x 14	5.5J x 14	5.5J x 14	6.0J x 15	6.0J x 15
Brake dimensions front	240	240	240	240	240
Brake dimensions rear	-	-	-	-	-
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	9.25/9.8	9.25/-	9.25/9.8	9.25/9.8	9.25/9.8

Overall length [mm]	3620	3620	3620	3620	3620
Overall width without/including mirrors [mm]	1658/1894	1658/1894	1658/1894	1658/1894	1658/1894
Overall height [mm]	1505	1505	1505	1505	1505
Wheelbase [mm]	2300	2300	2300	2300	2300
Front wheel track [mm]	1414	1414	1414	1414	1414
Rear wheel track [mm]	1408	1408	1408	1408	1408
Forward overhang [mm]	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-
Clearance [mm]	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987
Headroom rear [mm]	930	930	930	930	930
Front elbow/shoulder width [mm]	-/1277	-/1277	-/1277	-/1277	-/1277
Rear elbow/shoulder width [mm]	-/1242	-/1242	-/1242	-/1242	-/1242
Legroom front knees/total [mm]	-/1035	-/1035	-/1035	-/1035	-/1035
Legroom rear knees/total [mm]	-/825	-/825	-/825	-/825	-/825

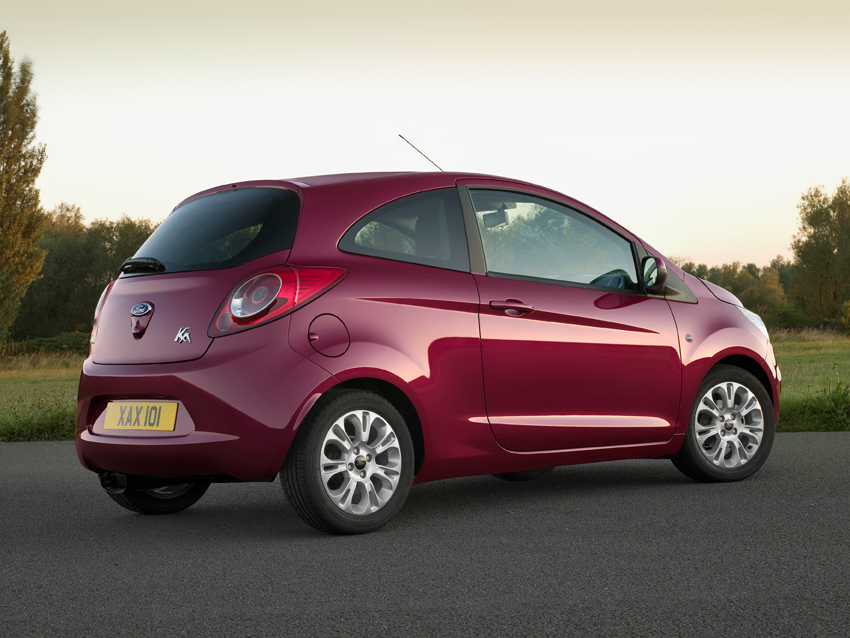

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
