Ford Kuga
Date of manufacture
2019 – to this day (Medium SUV)
Platform
Ford C2
Manufacturing locations
Valencia, Spain
Louisville, USA
Designer
Andrew Bazinski
Tags
Compact SUV
German cars
Ford Kuga is a mid-size SUV produced by Ford since 2019. The vehicle is built on the C2 platform and offers drivers the option to choose from a list of power units with gasoline, diesel and hybrid engines. The highest power is provided by the 2.5 Duratec Plug-In with a maximum power of 165 kW. The fastest version 2.0 EcoBlue 190 reaches a speed of 208 km/h, while the most economical 1.5 EcoBlue 120 has a combined consumption of 4 l/100 km and CO2 emissions of 105 g/km. The trunk volume is 412-526 l and the model received a EURONCAP rating of 5 out of 5 for 2019.
Car body style
Medium SUV
Date of manufacture
2019 – to this dayInternal designation
CX482Engine size
PetrolPetrol + ElectricDiesel
Diesel + Electric
Technical data
Medium SUV
| 1.5 EcoBoost 120 | 1.5 EcoBoost 150 | 2.5 Duratec Hybrid | 2.5 Duratec Hybrid | 2.5 Duratec Plug-In | 1.5 EcoBlue 120 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol + Electric | Petrol + Electric | Petrol + Electric | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1497 | 1497 | 2488 | 2488 | 2488 | 1499 |
| Maximum output / speed [kW/min-1] | 88/5500 | 110/6000 | 140/5500 | 140/5500 | 165/5500 | 88/4000 |
| Maximum torque [Nm/min-1] | 240/1600-3000 | 240/1600-4000 | 200 | 200 | 200 | 300/1750-2250 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 89.0 x 100.0 | 89.0 x 100.0 | 89.0 x 100.0 | 75.0 x 84.8 |
| Compression ratio | 11.0:1 | 11.0:1 | 13.0:1 | 13.0:1 | 13.0:1 | 16.4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 1 gear automatic | 1 gear automatic | 6 gear manual |
| Drive specifications | - | - |
|
|
| - |
| Top speed [km/h] | 184 | 195 | 196 | 196 | 200 [137 el.] | 180 |
| Acceleration 0–100 km/h [s] | 11.6 | 9.7 | 9.1 | 9.5 | 9.2 | 11.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.0-6.8 | 6.9-6.5 | - | 6.6-6.4 | - | 4.6-4.4 |
| Out of town [l] | 5.2-4.9 | 5.2-4.9 | - | 4.8-4.6 | - | 3.9-3.7 |
| Combined [l] | 5.9-5.6 | 5.9-5.5 | 5.8-5.4 | 5.4-5.3 | 1.2-1.4 | 4.1-4.0 |
| CO2 emissions [g/km] | 134-127 | 133-125 | 132-123 | 125-120 | 26 | 108-105 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | 15.8 kWh | - |
| CO2 emissions [g/km] | - | - | - | - | - | - |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 48 | 48 | - | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 1.1 kWh | Lithium-Ionen-Akkumulator, 1.1 kWh | Lithium-Ionen-Akkumulator, 14.4 kWh | - |
| Range with fully charged battery [km] | - | - | - | - | 56 | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | -/60 | -/60 | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1564 | 1564 | 1701 | 1773 | 1844 | 1576 |
| Overall weight [kg] | 2075 | 2075 | 2215 | 2280 | 2320 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/1600 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 412-526 | 412-526 | 385-486 | 385-486 | 385-486 | 412-526 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1534 | -/1534 | -/1481 | -/1481 | -/1481 | -/1534 |
| Boot length [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Boot length with rear seats folded [mm] | 1739 | 1739 | 1739 | 1739 | 1739 | 1739 |
| Boot width between wheels/max [mm] | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 715 | 715 | 715 | 715 | 715 | 715 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Boot opening width min/max [mm] | -/1070 | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 45 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | 14 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | twist beam axle with trailing arms |
| Tyre dimensions front | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 |
| Wheel size rear | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 |
| Brake dimensions front | 308 x 27 | 308 x 27 | 308 x 27 | 308 x 27 | 308 x 27 | 308 x 27 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.38/- | 11.38/- | 11.38/- | 11.38/- | 11.38/- | 11.38/- |
| Overall length [mm] | 4614 | 4614 | 4614 | 4614 | 4614 | 4614 |
| Overall width without/including mirrors [mm] | 1883/2178 | 1883/2178 | 1883/2178 | 1883/2178 | 1883/2178 | 1883/2178 |
| Overall height [mm] | 1661 | 1661 | 1658 | 1658 | 1658 | 1661 |
| Wheelbase [mm] | 2710 | 2710 | 2710 | 2710 | 2710 | 2710 |
| Front wheel track [mm] | 1597 | 1597 | 1597 | 1597 | 1597 | 1597 |
| Rear wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Forward overhang [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Rear overhang [mm] | 938 | 938 | 938 | 938 | 938 | 938 |
| Clearance [mm] | 146-191 | 146-191 | 160 | 160 | 160 | 146-191 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 |
| Approach angle rear [°] | 23.6 | 23.6 | 23.6 | 23.6 | 23.6 | 23.6 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Headroom rear [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Front elbow/shoulder width [mm] | 1410/1464 | 1410/1464 | 1410/1464 | 1410/1464 | 1410/1464 | 1410/1464 |
| Rear elbow/shoulder width [mm] | 1355/1423 | 1355/1423 | 1355/1423 | 1355/1423 | 1355/1423 | 1355/1423 |
| Legroom front knees/total [mm] | -/1077 | -/1077 | -/1077 | -/1077 | -/1077 | -/1077 |
| Legroom rear knees/total [mm] | -/986 | -/986 | -/986 | -/986 | -/986 | -/986 |
| 1.5 EcoBlue 120 | 2.0 EcoBlue 190 | 2.0 EcoBlue Hybrid | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1499 | 1995 | 1995 | |||
| Maximum output / speed [kW/min-1] | 88/4000 | 140/3500 | 110/3500 | |||
| Maximum torque [Nm/min-1] | 300/1750-2250 | 400/2000-3000 | 370/3500 | |||
| Bore and stroke [mm x mm] | 75.0 x 84.8 | 84.0 x 90.0 | 84.0 x 90.0 | |||
| Compression ratio | 16.4:1 | 16.5:1 | 16.5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | 4x4 | Front | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | |||
| Drive specifications |
|
| - | |||
| Top speed [km/h] | 177 | 208 | 194 | |||
| Acceleration 0–100 km/h [s] | 12.0 | 8.7 | 9.6 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.1 | 5.7-5.6 | 4.7-4.2 | |||
| Out of town [l] | 4.2-4.0 | 4.6-4.4 | 4.2-4.0 | |||
| Combined [l] | 4.5-4.4 | 5.0-4.8 | 4.4-4.1 | |||
| CO2 emissions [g/km] | 119-117 | 131-126 | 116-109 | |||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| System voltage [V] | - | - | 48 | |||
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 1.1 kWh | |||
| Range with fully charged battery [km] | - | - | - | |||
| Charging time | - | - | - | |||
| Number of modules/cells | - | - | -/60 | |||
| Battery weight [kg] | - | - | - | |||
| Charger | - | - | - | |||
| Standby weight [kg] | 1599 | 1735 | 1680 | |||
| Overall weight [kg] | 2110 | 2245 | 2155 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/2100 | 750/1900 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 412-526 | 412-526 | 385-486 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1534 | -/1534 | -/1481 | |||
| Boot length [mm] | 961 | 961 | 961 | |||
| Boot length with rear seats folded [mm] | 1739 | 1739 | 1739 | |||
| Boot width between wheels/max [mm] | 1051/- | 1051/- | 1051/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 715 | 715 | 715 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | 885 | 885 | 885 | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 54 | 54 | 54 | |||
| AdBlue tank volume [l] | 14 | 14 | 14 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | |||
| Rear suspension | twist beam axle with trailing arms | multilink | multilink | |||
| Tyre dimensions front | 225/65 R17 | 225/65 R17 | 225/65 R17 | |||
| Tyre dimensions rear | 225/65 R17 | 225/65 R17 | 225/65 R17 | |||
| Wheel size front | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | |||
| Wheel size rear | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | |||
| Brake dimensions front | 308 x 27 | 308 x 27 | 308 x 27 | |||
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | |||
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.38/- | 11.38/- | 11.38/- | |||
| Overall length [mm] | 4614 | 4614 | 4614 | |||
| Overall width without/including mirrors [mm] | 1883/2178 | 1883/2178 | 1883/2178 | |||
| Overall height [mm] | 1661 | 1661 | 1658 | |||
| Wheelbase [mm] | 2710 | 2710 | 2710 | |||
| Front wheel track [mm] | 1597 | 1597 | 1597 | |||
| Rear wheel track [mm] | 1588 | 1588 | 1588 | |||
| Forward overhang [mm] | 966 | 966 | 966 | |||
| Rear overhang [mm] | 938 | 938 | 938 | |||
| Clearance [mm] | 146-191 | 146-191 | 160 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 19.1 | 19.1 | 19.1 | |||
| Approach angle rear [°] | 23.6 | 23.6 | 23.6 | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1017 | 1017 | 1017 | |||
| Headroom rear [mm] | 999 | 999 | 999 | |||
| Front elbow/shoulder width [mm] | 1410/1464 | 1410/1464 | 1410/1464 | |||
| Rear elbow/shoulder width [mm] | 1355/1423 | 1355/1423 | 1355/1423 | |||
| Legroom front knees/total [mm] | -/1077 | -/1077 | -/1077 | |||
| Legroom rear knees/total [mm] | -/986 | -/986 | -/986 | |||
| Rating | - | - |    | |||
| Clean Air Index | - | - | 4.7/10 | |||
| Energy Efficiency Index | - | - | 5.8/10 | |||
| GHG index | - | - | 1.8/10 |

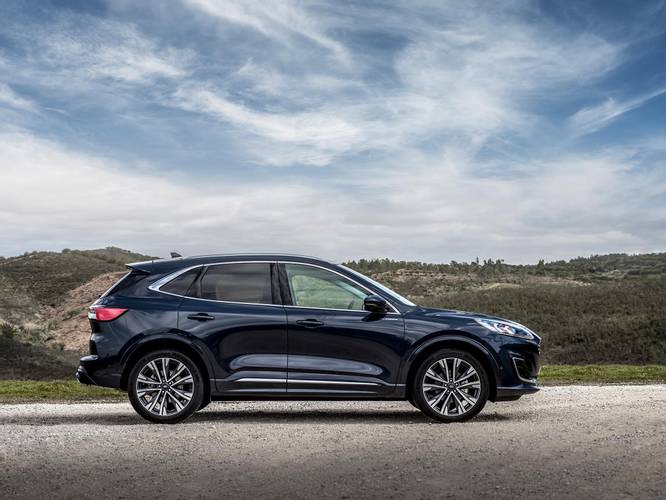

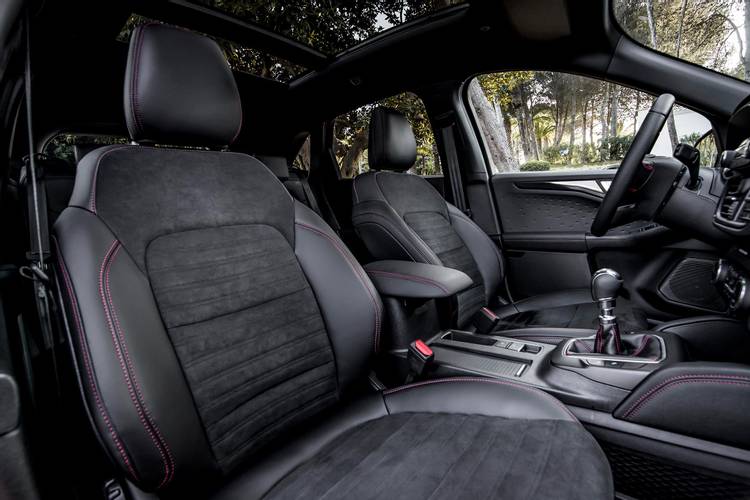

Gallery
