Ford Mondeo
Date of manufacture
3/2007 – 8/2010 (Sedan)
3/2007 – 8/2010 (Liftback)
3/2007 – 8/2010 (Estate)
Platform
Ford EUCD platform
Manufacturing locations
Genk, Belgium
Designer
-
Tags
D-segment
German cars
The Ford Mondeo is available as a sedan, liftback and estate. The car has been in production since 2007. The country of origin where the car is manufactured is Belgium. The car is built on the Ford EUCD platform. The list of power units has petrol and diesel engines. The most powerful car is the 2.5 Duratec with 162 kW of power. The fastest version is the 2.5 Duratec with a top speed of 245 km/h. The best acceleration from 0-100 km/h is 7.5 seconds for the 2.5 Duratec. The most fuel efficient model is the 2.0 Duratorq TDCi with a combined fuel consumption of 5.2 l/100 km and CO2 emissions of 139 g/km. The sedan body style has a luggage capacity of 535 l. The liftback body style offers a boot capacity of 528 l. The estate body style offers a boot capacity of 542 l. In terms of safety, the car has been rated 5 out of 5 by EURONCAP.
Car body style
Sedan
Date of manufacture
3/2007 – 8/2010Internal designation
CD345Liftback
Date of manufacture
3/2007 – 8/2010Internal designation
CD345Estate
Date of manufacture
3/2007 – 8/2010Internal designation
CD345
Technical data
Sedan
| 1.6 Duratec | 1.6 Duratec | 2.0 Duratec | 2.0 Duratec FFV | 2.3 Duratec | 2.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 1596 | 1999 | 1999 | 2261 | 1999 |
| Maximum output / speed [kW/min-1] | 81/6200 | 92/6300 | 107/6000 | 107/6000 | 118/6500 | 149/6000 |
| Maximum torque [Nm/min-1] | 160/4100 | 160/4100 | 185/4500 | 190/4500 | 208/4000 | 300/1750-4000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 | 87,5 x 94,0 | 87,5 x 83,1 |
| Compression ratio | 11,0:1 | 11,0:1 | 10,8:1 | 10,8:1 | 10,6:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 190 | 195 | 210 | 210 | 207 | 232 |
| Acceleration 0–100 km/h [s] | 12.7 | 12.3 | 9.9 | 9.9 | 10.5 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0 | 10.0 | 11.2 | 11.2 | 13.8 | 10.7 |
| Out of town [l] | 5.6 | 5.6 | 6.0 | 6.0 | 6.7 | 6.0 |
| Combined [l] | 7.2 | 7.2 | 7.9 | 7.9 | 9.3 | 7.7 |
| CO2 emissions [g/km] | 170 | 170 | 189 | 189 | 223 | 232 |
| Emission standard | EU4 | EU4 | EU4-EU5 | EU4-EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1435 | 1435 | 1477 | 1479 | 1543 | 1583 |
| Overall weight [kg] | 2050 | 2050 | 2090 | 2090 | 2165 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | -/900 | -/900 | -/1500 | - | -/1400 | -/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 535 | 535 | 535 | 535 | 535 | 535 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1035 | -/1035 | -/1035 | -/1035 | -/1035 | -/1035 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 |
| Overall length [mm] | 4844 | 4844 | 4844 | 4844 | 4844 | 4844 |
| Overall width without/including mirrors [mm] | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | 1589 | 1589 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 921 | 921 | 921 | 921 | 921 | 921 |
| Rear overhang [mm] | 1073 | 1073 | 1073 | 1073 | 1073 | 1073 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Front elbow/shoulder width [mm] | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 |
| Rear elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/980 | -/980 | -/980 | -/980 | -/980 | -/980 |
| 2.5 Duratec | 1.8 Duratorq TDCi | 2.0 Duratorq TDCi | 1.8 Duratorq TDCi | 1.8 Duratorq TDCi | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 4/8 | 4/16 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 2521 | 1753 | 1997 | 1753 | 1753 | 1997 |
| Maximum output / speed [kW/min-1] | 162/5000 | 74/3850 | 85/4000 | 92/3700 | 92/3700 | 103/4000 |
| Maximum torque [Nm/min-1] | 320/1500-4800 | 280/1800 | 300/1750-2300 | 320/1800 | 320/1800 | 320/1740-2240 |
| Bore and stroke [mm x mm] | 83,0 x 93,2 | 82,6 x 82,0 | 85,0 x 88,0 | 82,5 x 82,0 | 82,5 x 82,0 | 85,0 x 88,0 |
| Compression ratio | 9,0:1 | 18,5:1 | 17,9:1 | 18,5:1 | 18,5:1 | 17,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 6 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 245 | 185 | 192 | 200 | 200 | 210 |
| Acceleration 0–100 km/h [s] | 7.5 | 12.3 | 11.2 | 10.7 | 10.5 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.6 | 7.3 | 6.4-6.6 | 7.3 | 7.5 | 6.4-7.6 |
| Out of town [l] | 6.8 | 4.6 | 4.4-4.6 | 4.6 | 4.8 | 4.6-4.9 |
| Combined [l] | 9.3 | 5.6 | 5.2-5.3 | 5.6 | 5.8 | 5.3-5.9 |
| CO2 emissions [g/km] | 222 | 149 | 139 | 149 | 154 | 139-156 |
| Emission standard | EU4 | EU4 | EU4-EU5 | EU4 | EU4 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1581 | 1505 | 1559 | 1505 | 1548 | 1559 |
| Overall weight [kg] | 2185 | 2150 | 2170 | 2150 | 2155 | 2170 |
| Maximum trailer weight unbraked/braked [kg] | - | -/1600 | -/1800 | -/1600 | -/1600 | -/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 535 | 535 | 535 | 535 | 535 | 535 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1035 | -/1035 | -/1035 | -/1035 | -/1035 | -/1035 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar |
| Tyre dimensions front | 235/45 R17 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 235/45 R17 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 |
| Overall length [mm] | 4844 | 4844 | 4844 | 4844 | 4844 | 4844 |
| Overall width without/including mirrors [mm] | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | 1589 | 1589 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 921 | 921 | 921 | 921 | 921 | 921 |
| Rear overhang [mm] | 1073 | 1073 | 1073 | 1073 | 1073 | 1073 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Front elbow/shoulder width [mm] | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 |
| Rear elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/980 | -/980 | -/980 | -/980 | -/980 | -/980 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.2 Duratorq TDCi | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 2179 | ||
| Maximum output / speed [kW/min-1] | 103/4000 | 120/3750 | 120/3750 | 129/3500 | ||
| Maximum torque [Nm/min-1] | 320/1740-2240 | 340/2000-3250 | 340/2000-3250 | 400/1750-2750 | ||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 | ||
| Compression ratio | 17,9:1 | 17,9:1 | 17,9:1 | 15,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | ||
| Drive specifications |
|
|
| - | ||
| Top speed [km/h] | 205 | 220 | 215 | 223 | ||
| Acceleration 0–100 km/h [s] | 10.2 | 8.9 | 9.5 | 8.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 7.2-9.7 | 6.4 | 7.2 | 8.4 | ||
| Out of town [l] | 4.7-5.5 | 4.6 | 4.7 | 4.9 | ||
| Combined [l] | 5.6-7.1 | 5.3 | 5.6 | 6.2 | ||
| CO2 emissions [g/km] | 149-187 | 139 | 149 | 165 | ||
| Emission standard | EU4-EU5 | EU5 | EU5 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1575 | 1571 | 1587 | 1613 | ||
| Overall weight [kg] | 2230 | 2180 | 2230 | 2210 | ||
| Maximum trailer weight unbraked/braked [kg] | -/2000 | -/1800 | -/2000 | -/2000 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 535 | 535 | 535 | 535 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | -/1035 | -/1035 | -/1035 | -/1035 | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | ||
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | ||
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | ||
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | ||
| Overall length [mm] | 4844 | 4844 | 4844 | 4844 | ||
| Overall width without/including mirrors [mm] | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | ||
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | ||
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | ||
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | ||
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | ||
| Forward overhang [mm] | 921 | 921 | 921 | 921 | ||
| Rear overhang [mm] | 1073 | 1073 | 1073 | 1073 | ||
| Clearance [mm] | 110 | 110 | 110 | 110 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 996 | 996 | 996 | 996 | ||
| Headroom rear [mm] | 976 | 976 | 976 | 976 | ||
| Front elbow/shoulder width [mm] | -/1448 | -/1448 | -/1448 | -/1448 | ||
| Rear elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | ||
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | ||
| Legroom rear knees/total [mm] | -/980 | -/980 | -/980 | -/980 |
Liftback
| 1.6 Duratec | 1.6 Duratec | 2.0 Duratec | 2.0 Duratec FFV | 2.3 Duratec | 2.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 1596 | 1999 | 1999 | 2261 | 1999 |
| Maximum output / speed [kW/min-1] | 81/6200 | 92/6300 | 107/6000 | 107/6000 | 118/6500 | 149/6000 |
| Maximum torque [Nm/min-1] | 160/4100 | 160/4100 | 185/4500 | 190/4500 | 208/4000 | 300/1750-4000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 | 87,5 x 94,0 | 87,5 x 83,1 |
| Compression ratio | 11,0:1 | 11,0:1 | 10,8:1 | 10,8:1 | 10,6:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 190 | 195 | 210 | 210 | 207 | 232 |
| Acceleration 0–100 km/h [s] | 12.7 | 12.3 | 9.9 | 9.9 | 10.5 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0 | 10.0 | 11.2 | 11.2 | 13.8 | 10.7 |
| Out of town [l] | 5.6 | 5.6 | 6.0 | 6.0 | 6.7 | 6.0 |
| Combined [l] | 7.2 | 7.2 | 7.9 | 7.9 | 9.3 | 7.7 |
| CO2 emissions [g/km] | 170 | 170 | 189 | 189 | 223 | 179 |
| Emission standard | EU4 | EU4 | EU4-EU5 | EU4-EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1435 | 1435 | 1477 | 1479 | 1543 | 1583 |
| Overall weight [kg] | 2050 | 2050 | 2090 | 2090 | 2165 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | -/900 | -/900 | -/1500 | - | -/1400 | -/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 528 | 528 | 528 | 528 | 528 | 528 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 |
| Boot length [mm] | 1171 | 1171 | 1171 | 1171 | 1171 | 1171 |
| Boot length with rear seats folded [mm] | 1886 | 1886 | 1886 | 1886 | 1886 | 1886 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 |
| Overall length [mm] | 4778 | 4778 | 4778 | 4778 | 4778 | 4778 |
| Overall width without/including mirrors [mm] | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | 1589 | 1589 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 921 | 921 | 921 | 921 | 921 | 921 |
| Rear overhang [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 |
| Rear elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| 2.5 Duratec | 1.8 Duratorq TDCi | 2.0 Duratorq TDCi | 1.8 Duratorq TDCi | 1.8 Duratorq TDCi | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 4/8 | 4/16 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 2521 | 1753 | 1997 | 1753 | 1753 | 1997 |
| Maximum output / speed [kW/min-1] | 162/5000 | 74/3850 | 85/4000 | 92/3700 | 92/3700 | 103/4000 |
| Maximum torque [Nm/min-1] | 320/1500-4800 | 280/1800 | 300/1750-2300 | 320/1800 | 320/1800 | 320/1740-2240 |
| Bore and stroke [mm x mm] | 83,0 x 93,2 | 82,6 x 82,0 | 85,0 x 88,0 | 82,5 x 82,0 | 82,5 x 82,0 | 85,0 x 88,0 |
| Compression ratio | 9,0:1 | 18,5:1 | 17,9:1 | 18,5:1 | 18,5:1 | 17,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 6 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 245 | 185 | 192 | 200 | 200 | 210 |
| Acceleration 0–100 km/h [s] | 7.5 | 12.3 | 11.2 | 10.7 | 10.5 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.6 | 7.3 | 4.6-6.6 | 7.3 | 7.5 | 6.4-7.6 |
| Out of town [l] | 6.8 | 4.6 | 4.4-4.6 | 4.6 | 4.8 | 4.6-4.9 |
| Combined [l] | 9.3 | 5.6 | 5.2-5.3 | 5.6 | 5.8 | 5.3-5.9 |
| CO2 emissions [g/km] | 222 | 149 | 139 | 149 | 154 | 139-156 |
| Emission standard | EU4 | EU4 | EU4-EU5 | EU4 | EU4 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1581 | 1505 | 1559 | 1505 | 1548 | 1559 |
| Overall weight [kg] | 2185 | 2150 | 2170 | 2150 | 2155 | 2170 |
| Maximum trailer weight unbraked/braked [kg] | - | -/1600 | -/1800 | -/1600 | -/1600 | -/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 528 | 528 | 528 | 528 | 528 | 528 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 |
| Boot length [mm] | 1171 | 1171 | 1171 | 1171 | 1171 | 1171 |
| Boot length with rear seats folded [mm] | 1886 | 1886 | 1886 | 1886 | 1886 | 1886 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar |
| Tyre dimensions front | 235/45 R17 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 235/45 R17 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 |
| Overall length [mm] | 4778 | 4778 | 4778 | 4778 | 4778 | 4778 |
| Overall width without/including mirrors [mm] | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | 1589 | 1589 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 921 | 921 | 921 | 921 | 921 | 921 |
| Rear overhang [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 |
| Rear elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.2 Duratorq TDCi | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 2179 | ||
| Maximum output / speed [kW/min-1] | 103/4000 | 120/3750 | 120/3750 | 129/3500 | ||
| Maximum torque [Nm/min-1] | 320/1740-2240 | 340/2000-3250 | 340/2000-3250 | 400/1750-2750 | ||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 | ||
| Compression ratio | 17,9:1 | 17,9:1 | 17,9:1 | 15,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | ||
| Drive specifications |
|
|
| - | ||
| Top speed [km/h] | 205 | 220 | 215 | 223 | ||
| Acceleration 0–100 km/h [s] | 10.2 | 8.9 | 9.5 | 8.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 7.2-9.7 | 6.4 | 7.2 | 8.4 | ||
| Out of town [l] | 4.7-5.5 | 4.6 | 4.7 | 4.9 | ||
| Combined [l] | 5.6-7.1 | 5.3 | 5.6 | 6.2 | ||
| CO2 emissions [g/km] | 149-187 | 139 | 149 | 165 | ||
| Emission standard | EU4-EU5 | EU5 | EU5 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1575 | 1571 | 1587 | 1613 | ||
| Overall weight [kg] | 2230 | 2180 | 2230 | 2210 | ||
| Maximum trailer weight unbraked/braked [kg] | -/2000 | -/1800 | -/2000 | -/2000 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 528 | 528 | 528 | 528 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1448 | -/1448 | -/1448 | -/1448 | ||
| Boot length [mm] | 1171 | 1171 | 1171 | 1171 | ||
| Boot length with rear seats folded [mm] | 1886 | 1886 | 1886 | 1886 | ||
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | ||
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | ||
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | ||
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | ||
| Overall length [mm] | 4778 | 4778 | 4778 | 4778 | ||
| Overall width without/including mirrors [mm] | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | ||
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | ||
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | ||
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | ||
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | ||
| Forward overhang [mm] | 921 | 921 | 921 | 921 | ||
| Rear overhang [mm] | 1007 | 1007 | 1007 | 1007 | ||
| Clearance [mm] | 110 | 110 | 110 | 110 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 996 | 996 | 996 | 996 | ||
| Headroom rear [mm] | 965 | 965 | 965 | 965 | ||
| Front elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | ||
| Rear elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | ||
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | ||
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 |
Estate
| 1.6 Duratec | 1.6 Duratec | 2.0 Duratec | 2.0 Duratec FFV | 2.3 Duratec | 2.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 1596 | 1999 | 1999 | 2261 | 1999 |
| Maximum output / speed [kW/min-1] | 81/6200 | 92/6300 | 107/6000 | 107/6000 | 118/6500 | 149/6000 |
| Maximum torque [Nm/min-1] | 160/4100 | 160/4100 | 185/4500 | 190/4500 | 208/4000 | 300/1750-4000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 | 87,5 x 94,0 | 87,5 x 83,1 |
| Compression ratio | 11,0:1 | 11,0:1 | 10,8:1 | 10,8:1 | 10,6:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 185 | 190 | 205 | 205 | 202 | 227 |
| Acceleration 0–100 km/h [s] | 12.9 | 12.6 | 10.3 | 10.3 | 10.8 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0 | 10.0 | 11.2 | 11.2 | 13.8 | 10.7 |
| Out of town [l] | 5.6 | 5.6 | 6.0 | 6.0 | 6.7 | 6.0 |
| Combined [l] | 7.2 | 7.2 | 7.9 | 7.9 | 9.3 | 7.7 |
| CO2 emissions [g/km] | 170 | 170 | 189 | 189 | 223 | 179 |
| Emission standard | EU4 | EU4 | EU4-EU5 | EU4-EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1455 | 1455 | 1498 | 1498 | 1574 | 1602 |
| Overall weight [kg] | 2050 | 2050 | 2200 | 2200 | 2265 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | -/900 | -/900 | -/1500 | -/1500 | -/1400 | -/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 542 | 542 | 542 | 542 | 542 | 542 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1733 | -/1733 | -/1733 | -/1733 | -/1733 | -/1733 |
| Boot length [mm] | 1183 | 1183 | 1183 | 1183 | 1183 | 1183 |
| Boot length with rear seats folded [mm] | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Boot width between wheels/max [mm] | -/1141 | -/1141 | -/1141 | -/1141 | -/1141 | -/1141 |
| Boot height to headliner/ceiling [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 |
| Overall length [mm] | 4830 | 4830 | 4830 | 4830 | 4830 | 4830 |
| Overall width without/including mirrors [mm] | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 |
| Overall height [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | 1589 | 1589 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 921 | 921 | 921 | 921 | 921 | 921 |
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Clearance [mm] | 112 | 112 | 112 | 112 | 112 | 112 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Front elbow/shoulder width [mm] | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 |
| Rear elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| 2.5 Duratec | 1.8 Duratorq TDCi | 2.0 Duratorq TDCi | 1.8 Duratorq TDCi | 1.8 Duratorq TDCi | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 4/8 | 4/16 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 2521 | 1753 | 1997 | 1753 | 1753 | 1997 |
| Maximum output / speed [kW/min-1] | 162/5000 | 74/3850 | 85/4000 | 92/3700 | 92/3700 | 103/4000 |
| Maximum torque [Nm/min-1] | 320/1500-4800 | 280/1800 | 300/1750-2300 | 320/1800 | 320/1800 | 320/1740-2240 |
| Bore and stroke [mm x mm] | 83,0 x 93,2 | 82,6 x 82,0 | 85,0 x 88,0 | 82,5 x 82,0 | 82,5 x 82,0 | 85,0 x 88,0 |
| Compression ratio | 9,0:1 | 18,5:1 | 17,9:1 | 18,5:1 | 18,5:1 | 17,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 6 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 240 | 180 | 187 | 195 | 195 | 205 |
| Acceleration 0–100 km/h [s] | 7.7 | 12.7 | 11.4 | 10.9 | 10.8 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.6 | 7.4 | 6.4-6.6 | 7.4 | 7.6 | 6.4-7.6 |
| Out of town [l] | 6.8 | 4.7 | 4.4-4.6 | 4.7 | 4.9 | 4.6-4.9 |
| Combined [l] | 9.3 | 5.7 | 5.2-5.3 | 5.7 | 5.9 | 5.3-5.9 |
| CO2 emissions [g/km] | 222 | 151 | 139 | 151 | 156 | 139-156 |
| Emission standard | EU4 | EU4 | EU4-EU5 | EU4 | EU4 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1600 | 1524 | 1578 | 1524 | 1576 | 1578 |
| Overall weight [kg] | 2295 | 2255 | 2275 | 2255 | 2265 | 2275 |
| Maximum trailer weight unbraked/braked [kg] | - | -/1600 | -/1800 | -/1600 | -/1600 | -/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 542 | 542 | 542 | 542 | 542 | 542 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1733 | -/1733 | -/1733 | -/1733 | -/1733 | -/1733 |
| Boot length [mm] | 1183 | 1183 | 1183 | 1183 | 1183 | 1183 |
| Boot length with rear seats folded [mm] | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Boot width between wheels/max [mm] | -/1141 | -/1141 | -/1141 | -/1141 | -/1141 | -/1141 |
| Boot height to headliner/ceiling [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar |
| Tyre dimensions front | 215/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 |
| Overall length [mm] | 4830 | 4830 | 4830 | 4830 | 4830 | 4830 |
| Overall width without/including mirrors [mm] | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 |
| Overall height [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | 1589 | 1589 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 921 | 921 | 921 | 921 | 921 | 921 |
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Clearance [mm] | 112 | 112 | 112 | 112 | 112 | 112 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Front elbow/shoulder width [mm] | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 |
| Rear elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.2 Duratorq TDCi | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 2179 | ||
| Maximum output / speed [kW/min-1] | 103/4000 | 120/3750 | 120/3750 | 129/3500 | ||
| Maximum torque [Nm/min-1] | 320/1740-2240 | 340/2000-3250 | 340/2000-3250 | 400/1750-2750 | ||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 | ||
| Compression ratio | 17,9:1 | 17,9:1 | 17,9:1 | 15,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | ||
| Drive specifications |
|
|
| - | ||
| Top speed [km/h] | 200 | 215 | 210 | 218 | ||
| Acceleration 0–100 km/h [s] | 10.4 | 9.1 | 9.8 | 8.9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 7.2-9.7 | 6.4 | 7.2 | 8.4 | ||
| Out of town [l] | 4.7-5.5 | 4.6 | 4.7 | 4.9 | ||
| Combined [l] | 5.6-7.1 | 5.3 | 5.6 | 6.2 | ||
| CO2 emissions [g/km] | 149-187 | 139 | 149 | 165 | ||
| Emission standard | EU4-EU5 | EU5 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1594 | 1589 | 1606 | 1629 | ||
| Overall weight [kg] | 2335 | 2275 | 2300 | 2320 | ||
| Maximum trailer weight unbraked/braked [kg] | -/2000 | -/1800 | -/2000 | -/2000 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 542 | 542 | 542 | 542 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1733 | -/1733 | -/1733 | -/1733 | ||
| Boot length [mm] | 1183 | 1183 | 1183 | 1183 | ||
| Boot length with rear seats folded [mm] | 1920 | 1920 | 1920 | 1920 | ||
| Boot width between wheels/max [mm] | -/1141 | -/1141 | -/1141 | -/1141 | ||
| Boot height to headliner/ceiling [mm] | -/849 | -/849 | -/849 | -/849 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | ||
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | ||
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | ||
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | ||
| Overall length [mm] | 4830 | 4830 | 4830 | 4830 | ||
| Overall width without/including mirrors [mm] | 1886/2078 | 1886/2078 | 1886/2078 | 1886/2078 | ||
| Overall height [mm] | 1512 | 1512 | 1512 | 1512 | ||
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | ||
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | ||
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | ||
| Forward overhang [mm] | 921 | 921 | 921 | 921 | ||
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1059 | ||
| Clearance [mm] | 112 | 112 | 112 | 112 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 996 | 996 | 996 | 996 | ||
| Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | ||
| Front elbow/shoulder width [mm] | -/1448 | -/1448 | -/1448 | -/1448 | ||
| Rear elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | ||
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | ||
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 |

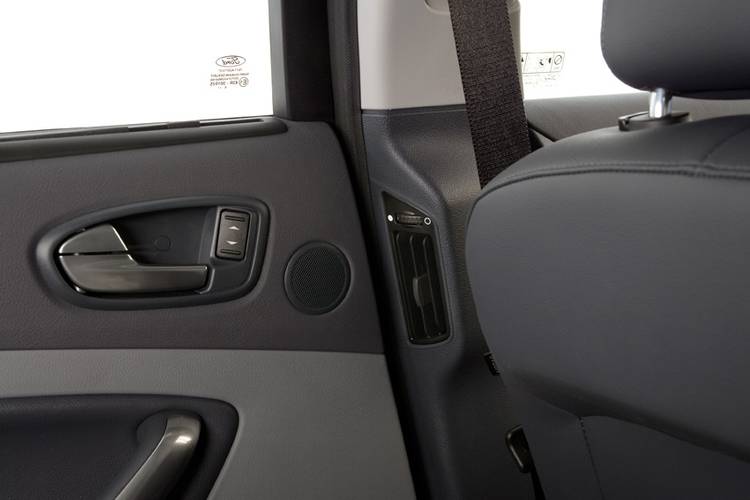

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
