Ford Mustang
Date of manufacture
2017 – to this day (Convertible)
2017 – to this day (Fastback)
Platform
-
Manufacturing locations
Flat Rock, USA
Designer
Kemal Curić
Tags
S-segment
American cars
The Ford Mustang is available as a convertible and fastback. The car has been made in the USA since 2017 and only offers petrol engines. The most powerful 5.0 Ti-VCT V8 MACH 1 version produces 338 kW and reaches speeds of up to 267 km/h. The 5.0 Ti-VCT V8 GT has the best acceleration from 0-100 km/h with a time of 4.3 seconds. The most economical 2.3 EcoBoost variant has a fuel consumption of 9 l/100 km and CO2 emissions of 199 g/km. The fastback offers a luggage compartment size of 408 l, the convertible 332 l. The model underwent EURONCAP safety tests in 2017 with a rating of 3 out of 5 points.
Car body style
Convertible
after upgrade (facelift)
Date of manufacture
2017 – to this dayInternal designation
S550Fastback
after upgrade (facelift)
Date of manufacture
2017 – to this dayInternal designation
S550
Technical data

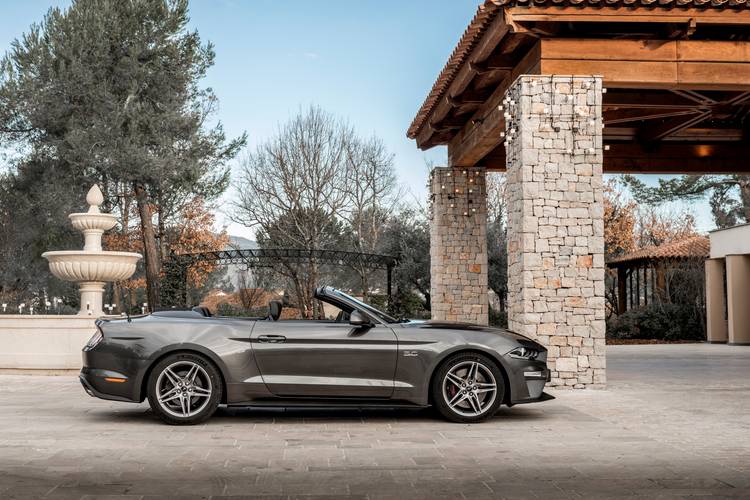

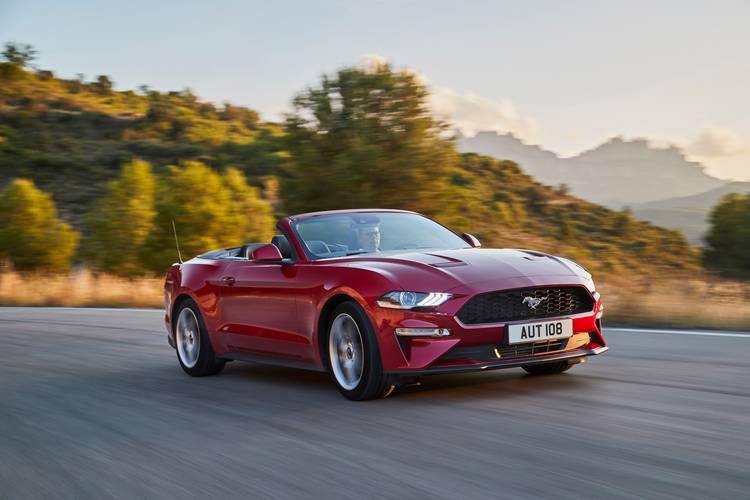

Convertible
| 2.3 EcoBoost | 2.3 EcoBoost | 5.0 Ti-VCT V8 GT | 5.0 Ti-VCT V8 GT | 5.0 Ti-VCT V8 GT | 5.0 Ti-VCT V8 GT | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2020 | from to 2020 | from 2020 to | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2261 | 2261 | 5038 | 5038 | 5038 | 5038 |
| Maximum output / speed [kW/min-1] | 213/5400 | 213/5400 | 331/7000 | 331/7000 | 330/7000 | 330/7000 |
| Maximum torque [Nm/min-1] | 440/3000 | 440/3000 | 529/4600 | 529/4600 | 529/4600 | 529/4600 |
| Bore and stroke [mm x mm] | 87,55 x 94,0 | 87,55 x 94,0 | 93.0 x 92,7 | 93.0 x 92,7 | 93.0 x 92,7 | 93.0 x 92,7 |
| Compression ratio | 9,5:1 | 9,5:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | 5.7 | 5.7 | 9.5 | 9.5 | 9.5 | 9.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 10 gear automatic | 6 gear manual | 10 gear automatic | 6 gear manual | 10 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 233 | 233 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.0 | 5.7 | 4.8 | 4.5 | 5.1 | 4.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.1 | 13.7 | 19.1 | 19.6 | 18.9 | 18.3 |
| Out of town [l] | 7.3 | 7.0 | 9.1 | 8.5 | 8.7 | 8.3 |
| Combined [l] | 9.1 | 9.5 | 12.8 | 12.5 | 12.5 | 12.0 |
| CO2 emissions [g/km] | 200 | 211 | 285 | 279 | 284 | 273 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1723 | 1728 | 1807 | 1818 | 1882 | 1893 |
| Overall weight [kg] | 2073 | 2073 | 2150 | 2150 | 2150 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 332 | 332 | 332 | 332 | 408 | 408 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 761 | 761 | 761 | 761 | 761 | 761 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 640/- | 640/- | 640/- | 640/- | 640/- | 640/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 59 | 59 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 255/40 R19 | 255/40 R19 | 255/40 R19 | 255/40 R19 | 255/40 R19 | 255/40 R19 |
| Tyre dimensions rear | 255/40 R19 | 255/40 R19 | 275/40 R19 | 275/40 R19 | 275/40 R19 | 275/40 R19 |
| Wheel size front | 9.0J x 19 | 9.0J x 19 | 9.0J x 19 | 9.0J x 19 | 9.0J x 19 | 9.0J x 19 |
| Wheel size rear | 9.0J x 19 | 9.0J x 19 | 9.5J x 19 | 9.5J x 19 | 9.5J x 19 | 9.5J x 19 |
| Brake dimensions front | 352 x 32 | 352 x 32 | 380 x 34 | 380 x 34 | 380 x 34 | 380 x 34 |
| Brake dimensions rear | 330 x 25 | 330 x 25 | 330 x 25 | 330 x 25 | 330 x 25 | 330 x 25 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 12.2/- |
| Overall length [mm] | 4789 | 4789 | 4789 | 4789 | 4789 | 4789 |
| Overall width without/including mirrors [mm] | 1916/2081 | 1916/2081 | 1916/2081 | 1916/2081 | 1916/2081 | 1916/2081 |
| Overall height [mm] | 1387 | 1387 | 1396 | 1396 | 1396 | 1396 |
| Wheelbase [mm] | 2720 | 2720 | 2720 | 2720 | 2720 | 2720 |
| Front wheel track [mm] | 1582 | 1582 | 1642 | 1642 | 1642 | 1642 |
| Rear wheel track [mm] | 1656 | 1656 | 1642 | 1642 | 1642 | 1642 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Headroom rear [mm] | 906 | 906 | 906 | 906 | 906 | 906 |
| Front elbow/shoulder width [mm] | 1395/1430 | 1395/1430 | 1395/1430 | 1395/1430 | 1395/1430 | 1395/1430 |
| Rear elbow/shoulder width [mm] | 1111/1135 | 1111/1135 | 1111/1135 | 1111/1135 | 1111/1135 | 1111/1135 |
| Legroom front knees/total [mm] | -/1131 | -/1131 | -/1131 | -/1131 | -/1131 | -/1131 |
| Legroom rear knees/total [mm] | -/742 | -/742 | -/742 | -/742 | -/742 | -/742 |
Fastback
| 2.3 EcoBoost | 2.3 EcoBoost | 5.0 Ti-VCT V8 GT | 5.0 Ti-VCT V8 GT | 5.0 Ti-VCT V8 GT | 5.0 Ti-VCT V8 GT | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2020 | from to 2020 | from 2020 to | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2261 | 2261 | 5038 | 5038 | 5038 | 5038 |
| Maximum output / speed [kW/min-1] | 213/5400 | 213/5400 | 331/7000 | 331/7000 | 330/7000 | 330/7000 |
| Maximum torque [Nm/min-1] | 440/3000 | 440/3000 | 529/4600 | 529/4600 | 529/4600 | 529/4600 |
| Bore and stroke [mm x mm] | 87,55 x 94,0 | 87,55 x 94,0 | 93.0 x 92,7 | 93.0 x 92,7 | 93.0 x 92,7 | 93.0 x 92,7 |
| Compression ratio | 9,5:1 | 9,5:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | 5.7 | 5.7 | 9.5 | 9.5 | 9.5 | 9.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 10 gear automatic | 6 gear manual | 10 gear automatic | 6 gear manual | 10 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 233 | 233 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.8 | 5.5 | 4.6 | 4.3 | 4.9 | 4.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.2 | 13.4 | 16.6 | 19.0 | 18.6 | 18.3 |
| Out of town [l] | 7.2 | 6.8 | 8.8 | 8.2 | 8.5 | 8.1 |
| Combined [l] | 9.0 | 9.2 | 12.4 | 12.1 | 12.2 | 11.8 |
| CO2 emissions [g/km] | 199 | 205 | 277 | 270 | 278 | 268 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1662 | 1673 | 1743 | 1756 | 1818 | 1831 |
| Overall weight [kg] | 2023 | 2023 | 2150 | 2150 | 2105 | 2105 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 408 | 408 | 408 | 408 | 408 | 408 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 761 | 761 | 761 | 761 | 761 | 761 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 640/- | 640/- | 640/- | 640/- | 640/- | 640/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 59 | 59 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 255/40 R19 | 255/40 R19 | 255/40 R19 | 255/40 R19 | 255/40 R19 | 255/40 R19 |
| Tyre dimensions rear | 255/40 R19 | 255/40 R19 | 275/40 R19 | 275/40 R19 | 275/40 R19 | 275/40 R19 |
| Wheel size front | 9.0J x 19 | 9.0J x 19 | 9.0J x 19 | 9.0J x 19 | 9.0J x 19 | 9.0J x 19 |
| Wheel size rear | 9.0J x 19 | 9.0J x 19 | 9.5J x 19 | 9.5J x 19 | 9.5J x 19 | 9.5J x 19 |
| Brake dimensions front | 352 x 32 | 352 x 32 | 380 x 34 | 380 x 34 | 380 x 34 | 380 x 34 |
| Brake dimensions rear | 330 x 25 | 330 x 25 | 330 x 25 | 330 x 25 | 330 x 25 | 330 x 25 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 12.2/- |
| Overall length [mm] | 4789 | 4789 | 4789 | 4789 | 4789 | 4789 |
| Overall width without/including mirrors [mm] | 1916/2081 | 1916/2081 | 1916/2081 | 1916/2081 | 1916/2081 | 1916/2081 |
| Overall height [mm] | 1373 | 1373 | 1382 | 1382 | 1382 | 1382 |
| Wheelbase [mm] | 2720 | 2720 | 2720 | 2720 | 2720 | 2720 |
| Front wheel track [mm] | 1582 | 1582 | 1642 | 1642 | 1642 | 1642 |
| Rear wheel track [mm] | 1656 | 1656 | 1642 | 1642 | 1642 | 1642 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Headroom rear [mm] | 884 | 884 | 884 | 884 | 884 | 884 |
| Front elbow/shoulder width [mm] | 1395/1430 | 1395/1430 | 1395/1430 | 1395/1430 | 1395/1430 | 1395/1430 |
| Rear elbow/shoulder width [mm] | 1203/1327 | 1203/1327 | 1203/1327 | 1203/1327 | 1203/1327 | 1203/1327 |
| Legroom front knees/total [mm] | -/1131 | -/1131 | -/1131 | -/1131 | -/1131 | -/1131 |
| Legroom rear knees/total [mm] | -/737 | -/737 | -/737 | -/737 | -/737 | -/737 |

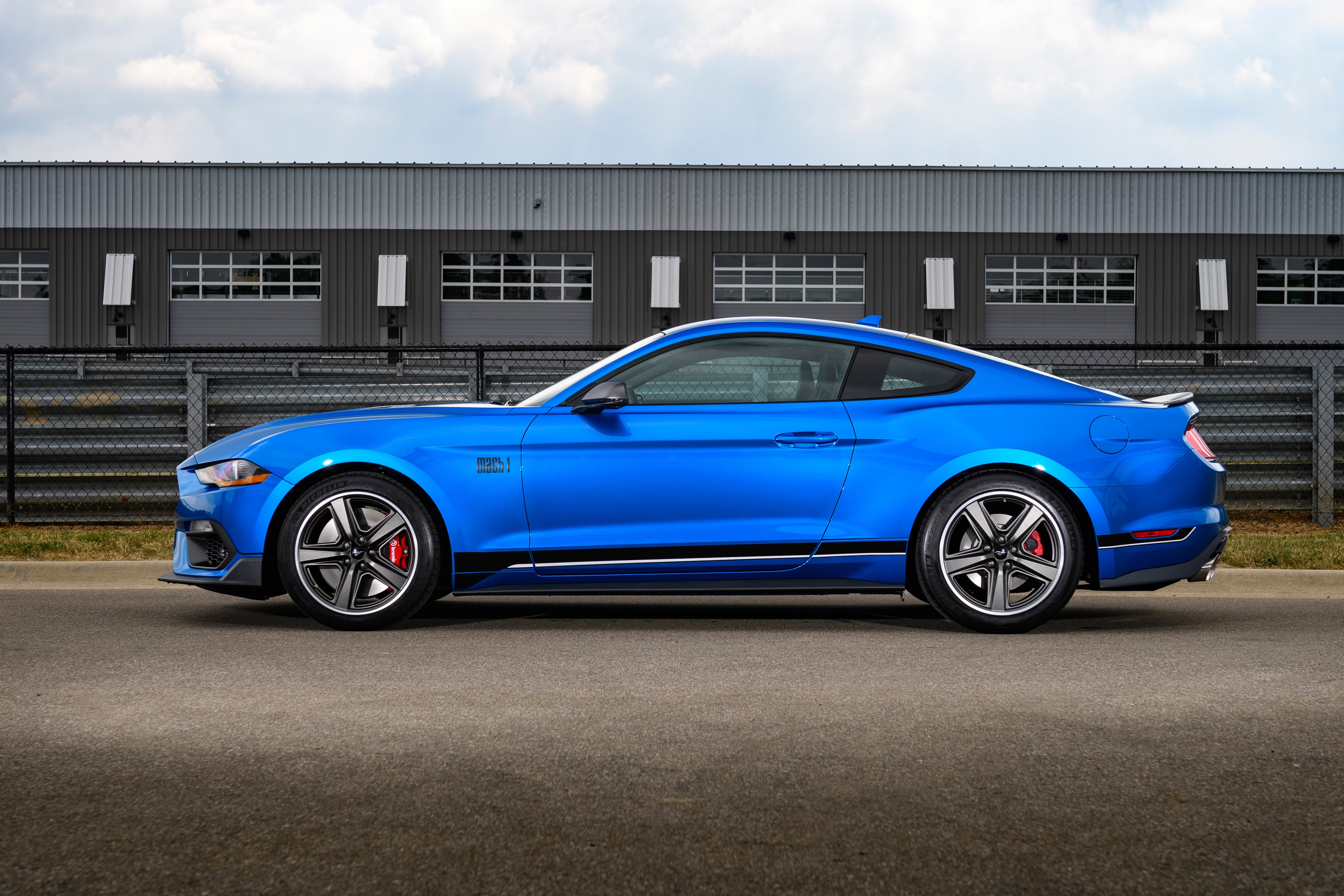

| 5.0 Ti-VCT V8 Bullitt | 5.0 Ti-VCT V8 MACH 1 | 5.0 Ti-VCT V8 MACH 1 | ||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from 2020 to | from 2020 to | |||
| Engine type | Petrol | Petrol | Petrol | |||
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | |||
| Engine displacement [cm³] | 5038 | 5038 | 5038 | |||
| Maximum output / speed [kW/min-1] | 338/7250 | 338/7250 | 338/7250 | |||
| Maximum torque [Nm/min-1] | 529/4600 | 529/4900 | 529/4600 | |||
| Bore and stroke [mm x mm] | 93.0 x 92,7 | 93.0 x 92,7 | 93.0 x 92,7 | |||
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | |||
| Oil volume [l] | 9.5 | 9.5 | 9.5 | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | Rear | Rear | |||
| Gearbox | 6 gear manual | 6 gear manual | 10 gear automatic | |||
| Drive specifications | - | - |
| |||
| Top speed [km/h] | 262 | 267 | 250 | |||
| Acceleration 0–100 km/h [s] | 4.9 | 4.8 | 4.4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 19.3 | 20.3 | 18.3 | |||
| Out of town [l] | 8.7 | 9.7 | 8.4 | |||
| Combined [l] | 12.6 | 13.6 | 12.0 | |||
| CO2 emissions [g/km] | 277 | 312 | 275 | |||
| Emission standard | Euro 6d-TEMP | Euro 6d | Euro 6d | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1851 | 1779 | 1801 | |||
| Overall weight [kg] | 2105 | 2114 | 2150 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 408 | 408 | 408 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 761 | 761 | 761 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 640/- | 640/- | 640/- | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 61 | 61 | 61 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | |||
| Tyre dimensions front | 255/40 R19 | 255/40 R19 | 255/40 R19 | |||
| Tyre dimensions rear | 275/40 R19 | 275/40 R19 | 275/40 R19 | |||
| Wheel size front | 9.0J x 19 | 9.0J x 19 | 9.0J x 19 | |||
| Wheel size rear | 9.5J x 19 | 9.5J x 19 | 9.5J x 19 | |||
| Brake dimensions front | 380 x 34 | 380 x 34 | 380 x 34 | |||
| Brake dimensions rear | 330 x 25 | 330 x 25 | 330 x 25 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 12.2/- | 12.2/- | 12.2/- | |||
| Overall length [mm] | 4789 | 4789 | 4789 | |||
| Overall width without/including mirrors [mm] | 1916/2081 | 1916/2081 | 1916/2081 | |||
| Overall height [mm] | 1382 | 1382 | 1382 | |||
| Wheelbase [mm] | 2720 | 2720 | 2720 | |||
| Front wheel track [mm] | 1642 | 1642 | 1642 | |||
| Rear wheel track [mm] | 1642 | 1642 | 1642 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 144 | 144 | 144 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 955 | 955 | 955 | |||
| Headroom rear [mm] | 884 | 884 | 884 | |||
| Front elbow/shoulder width [mm] | 1395/1430 | 1395/1430 | 1395/1430 | |||
| Rear elbow/shoulder width [mm] | 1203/1327 | 1203/1327 | 1203/1327 | |||
| Legroom front knees/total [mm] | -/1131 | -/1131 | -/1131 | |||
| Legroom rear knees/total [mm] | -/737 | -/737 | -/737 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
