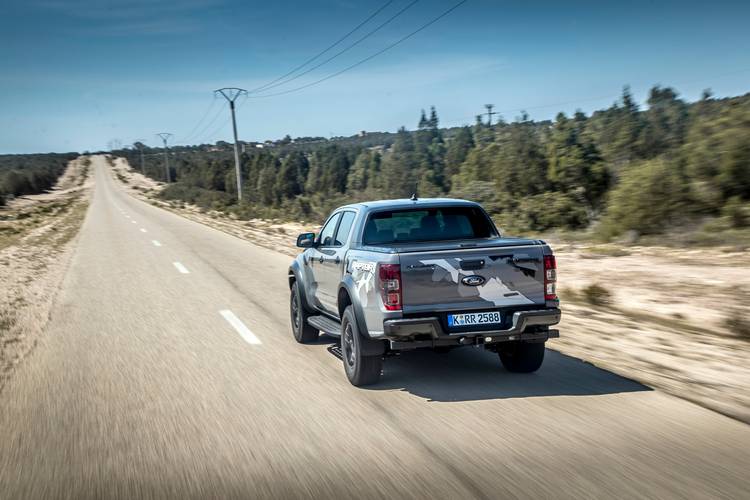

Ford Ranger
Date of manufacture
2019 – to this day (Pick-up)
Platform
-
Manufacturing locations
Wayne, Michigan, USA
Rayong, Thailand
Designer
-
Tags
Pick-up
American cars
The Ford Ranger is manufactured as a pick-up. The vehicle has been produced since 2019. Countries of production include the USA and Thailand. The powertrain offering consists exclusively of diesel engines. The most powerful model is the Raptor 2.0 EcoBlue 213 Double Cab with 156 kW of power. The top speed of the Raptor 2.0 EcoBlue 213 Double Cab is 180 km/h. The 2.0 EcoBlue 130 Super Cab has the lowest combined fuel consumption of 6.9 l/100 km. CO2 emissions are 179 g/km. The model was tested for safety in 2012 and achieved an overall rating of 5 out of 5 according to EURONCAP.
Car body style
Pick-up
after upgrade (facelift) (II)
Date of manufacture
2019 – to this dayInternal designation
T6Engine size
Technical data
Pick-up
| 2.0 EcoBlue 130 Einzelkabine | 2.0 EcoBlue 170 Einzelkabine | 2.0 EcoBlue 130 Extrakabine | 2.0 EcoBlue 170 Extrakabine | 2.0 EcoBlue 170 Extrakabine | 2.0 EcoBlue 213 Extrakabine | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1996 | 1996 | 1996 | 1996 | 1996 | 1996 |
| Maximum output / speed [kW/min-1] | 96 | 125 | 96 | 125 | 125 | 156 |
| Maximum torque [Nm/min-1] | 340 | 420 | 340 | 420 | 420 | 500/1750-2000 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 15.8:1 | 15.8:1 | 15.8:1 | 15.8:1 | 15.8:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 10 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 165 | 180 | 165 | 180 | 180 | 180 |
| Acceleration 0–100 km/h [s] | - | - | - | - | - | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | - | - | - | - |
| Out of town [l] | - | - | - | - | - | - |
| Combined [l] | 7.2 | 7.2 | 7.2-6.9 | 7.2-6.9 | 7.7-7.5 | 7.9-7.8 |
| CO2 emissions [g/km] | 188 | 188 | 188-179 | 188-179 | 201-197 | 208-203 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2092-2179 | 2092-2179 | 2133-2240 | 2133-2314 | 2187-2323 | 2235-2348 |
| Overall weight [kg] | 3200 | 3270 | 3200 | 3270 | 3270 | 3270 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 750/2500 | 750/3500 | 750/2500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 2317 | 2317 | 1847 | 1847 | 1847 | 1847 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 |
| Boot height to headliner/ceiling [mm] | 511/- | 511/- | 511/- | 511/- | 511/- | 511/- |
| Loading edge height [mm] | 835 | 835 | 835 | 835 | 835 | 835 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 4 | 4 | 4 | 4 |
| Number of seats | 2 | 2 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- |
| Overall length [mm] | 5282 | 5282 | 5282-5359 | 5282-5359 | 5282-5359 | 5282-5359 |
| Overall width without/including mirrors [mm] | 1867/2163 | 1867/2163 | 1867/2163 | 1867/2163 | 1867/2163 | 1867/2163 |
| Overall height [mm] | 1800 | 1800 | 1804 | 1804 | 1804 | 1804 |
| Wheelbase [mm] | 3220 | 3220 | 3220 | 3220 | 3220 | 3220 |
| Front wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 229 | 229 | 229 | 229 | 229 | 229 |
| Wading depth [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Approach angle front [°] | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Approach angle rear [°] | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Transition angle [°] | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | 35 | 35 | 35 | 35 | 35 | 35 |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | - | - | 938 | 938 | 938 | 938 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1058 | -/1058 | -/1058 | -/1058 | -/1058 | -/1058 |
| Legroom rear knees/total [mm] | - | - | -/796 | -/796 | -/796 | -/796 |
| 2.0 EcoBlue 213 Extrakabine | 3.2 Dutatorq TDCi 200 Extrakabine | 3.2 Dutatorq TDCi 200 Extrakabine | 2.0 EcoBlue 130 Doppelkabine | 2.0 EcoBlue 170 Doppelkabine | 2.0 EcoBlue 170 Doppelkabine | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2020 | from to 2020 | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 5/- | 5/- | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1996 | 3196 | 3196 | 1996 | 1996 | 1996 |
| Maximum output / speed [kW/min-1] | 156 | 147 | 147 | 96 | 125 | 125 |
| Maximum torque [Nm/min-1] | 500/1750-2000 | 470/1500-2750 | 470/1500-2750 | 340 | 420 | 420 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | - | - | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.0:1 | - | - | 15.8:1 | 15.8:1 | 15.8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 10 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 10 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 180 | 175 | 175 | 165 | 180 | 180 |
| Acceleration 0–100 km/h [s] | - | - | - | - | - | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | - | - | - | - |
| Out of town [l] | - | - | - | - | - | - |
| Combined [l] | 7.9-7.6 | 8.9-8.5 | 9.5 | 7.2-6.9 | 7.2-6.9 | 7.7-7.5 |
| CO2 emissions [g/km] | 207-199 | 229 | 248 | 188-179 | 188-179 | 201-197 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2225-2368 | 2184-2366 | 2205-2383 | 2193-2356 | 2193-2396 | 2245-2416 |
| Overall weight [kg] | 3270 | 3270 | 3270 | 3200 | 3270 | 3270 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 750/3500 | 750/3500 | 750/3500 | 750/2500 | 750/3500 | 750/3500 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1847 | 1847 | 1847 | 1613 | 1613 | 1613 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 |
| Boot height to headliner/ceiling [mm] | 511/- | 511/- | 511/- | 511/- | 511/- | 511/- |
| Loading edge height [mm] | 835 | 835 | 835 | 835 | 835 | 835 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4 | 4 | 4 | 5 | 5 | 5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- |
| Overall length [mm] | 5282-5359 | 5282-5359 | 5282-5359 | 5282-5363 | 5282-5363 | 5282-5363 |
| Overall width without/including mirrors [mm] | 1867/2163 | 1867/2163 | 1867/2163 | 1867/2163 | 1867/2163 | 1867/2163 |
| Overall height [mm] | 1804 | 1804 | 1804 | 1815 | 1815 | 1815 |
| Wheelbase [mm] | 3220 | 3220 | 3220 | 3220 | 3220 | 3220 |
| Front wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 229 | 229 | 229 | 229 | 229 | 229 |
| Wading depth [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Approach angle front [°] | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Approach angle rear [°] | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Transition angle [°] | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | 35 | 35 | 35 | 35 | 35 | 35 |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1022 | 1022 | 1022 |
| Headroom rear [mm] | 938 | 938 | 938 | 986 | 986 | 986 |
| Front elbow/shoulder width [mm] | - | - | - | -/1355 | -/1355 | -/1355 |
| Rear elbow/shoulder width [mm] | - | - | - | -/1432 | -/1432 | -/1432 |
| Legroom front knees/total [mm] | -/1058 | -/1058 | -/1058 | -/1058 | -/1058 | -/1058 |
| Legroom rear knees/total [mm] | -/796 | -/796 | -/796 | 39/902 | 39/902 | 39/902 |
| 2.0 EcoBlue 213 Doppelkabine | 2.0 EcoBlue 213 Doppelkabine | 3.2 Dutatorq TDCi 200 Doppelkabine | 3.2 Dutatorq TDCi 200 Doppelkabine | Raptor 2.0 EcoBlue 213 Doppelkabine | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2020 | from to 2020 | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 5/- | 5/- | 4/16 | |
| Engine displacement [cm³] | 1996 | 1996 | 3196 | 3196 | 1996 | |
| Maximum output / speed [kW/min-1] | 156 | 156 | 147 | 147 | 156 | |
| Maximum torque [Nm/min-1] | 500/1750-2000 | 500/1750-2000 | 470/1500-2750 | 470/1500-2750 | 500/1750-2000 | |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | - | - | 84.0 x 90.0 | |
| Compression ratio | 16.0:1 | 16.0:1 | - | - | 16.0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear manual | 10 gear automatic | 6 gear manual | 6 gear automatic | 10 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 180 | 180 | 175 | 175 | 180 | |
| Acceleration 0–100 km/h [s] | - | - | - | - | 10.5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | - | - | - | - | 10.6 | |
| Out of town [l] | - | - | - | - | 8.0 | |
| Combined [l] | 7.9-7.8 | 7.9-7.6 | 8.9-8.5 | 9.5 | 8.9 | |
| CO2 emissions [g/km] | 208-203 | 207-199 | 229 | 248 | 233 | |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 2289-2430 | 2309-2384 | 2240-2449 | 2259-2465 | 2585 | |
| Overall weight [kg] | 3270 | 3270 | 3270 | 3270 | 2130 | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/2500 | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | - | - | - | - | - | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | 1613 | 1613 | 1613 | 1613 | 1575 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | |
| Boot height to headliner/ceiling [mm] | 511/- | 511/- | 511/- | 511/- | 541/- | |
| Loading edge height [mm] | 835 | 835 | 835 | 835 | 906 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | - | - | - | - | double wishbone | |
| Rear suspension | - | - | - | - | multilink | |
| Tyre dimensions front | - | - | - | - | 285/70 R17 | |
| Tyre dimensions rear | - | - | - | - | 285/70 R17 | |
| Wheel size front | - | - | - | - | 8.5J x 17 | |
| Wheel size rear | - | - | - | - | 8.5J x 17 | |
| Brake dimensions front | - | - | - | - | 332 x 32 | |
| Brake dimensions rear | - | - | - | - | 332 x 24 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.9/- | |
| Overall length [mm] | 5282-5363 | 5282-5363 | 5282-5363 | 5282-5363 | 5363 | |
| Overall width without/including mirrors [mm] | 1867/2163 | 1867/2163 | 1867/2163 | 1867/2163 | 2028/2180 | |
| Overall height [mm] | 1815 | 1815 | 1815 | 1815 | 1873 | |
| Wheelbase [mm] | 3220 | 3220 | 3220 | 3220 | 3220 | |
| Front wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1710 | |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1710 | |
| Forward overhang [mm] | - | - | - | - | 908 | |
| Rear overhang [mm] | - | - | - | - | 1246 | |
| Clearance [mm] | 229 | 229 | 229 | 229 | 283 | |
| Wading depth [mm] | 800 | 800 | 800 | 800 | 850 | |
| Approach angle front [°] | 28.0 | 28.0 | 28.0 | 28.0 | 32.5 | |
| Approach angle rear [°] | 28.0 | 28.0 | 28.0 | 28.0 | 24 | |
| Transition angle [°] | 25.0 | 25.0 | 25.0 | 25.0 | 25 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | 35 | 35 | 35 | 35 | - | |
| Headroom front [mm] | 1022 | 1022 | 1022 | 1022 | 1022 | |
| Headroom rear [mm] | 986 | 986 | 986 | 986 | 986 | |
| Front elbow/shoulder width [mm] | -/1355 | -/1355 | -/1355 | -/1355 | -/1355 | |
| Rear elbow/shoulder width [mm] | -/1432 | -/1432 | -/1432 | -/1432 | -/1432 | |
| Legroom front knees/total [mm] | -/1058 | -/1058 | -/1058 | -/1058 | -/1058 | |
| Legroom rear knees/total [mm] | 39/902 | 39/902 | 39/902 | 39/902 | 39/902 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
