Ford Tourneo Connect
Date of manufacture
2019 – to this day (Medium MPV)
Platform
Ford Global C-car
Manufacturing locations
Valencia, Spain
Designer
Paul Wraith
Tags
Mid-size MPV
German cars
The Ford Tourneo Connect is a mid-size MPV manufactured since 2019 in Spain on the Ford Global C-car platform. It is offered with petrol and diesel power units, the most powerful of which is the 1.5 EcoBlue 120 Grand with 88 kW. The top speed reaches 171 km/h. The most fuel-efficient engine is the 1.5 EcoBlue 100 with a combined consumption of 4.3 l/100 km and CO2 emissions of 113 g/km. The trunk has a capacity of 520 l. The vehicle's safety was tested by EURONCAP according to the 2018 methodology and received a rating of 4 out of 5.
Car body style
Medium MPV
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
-
Technical data
Medium MPV
| 1.0 EcoBoost 100 | 1.5 EcoBlue 75 | 1.5 EcoBlue 75 Grand | 1.5 EcoBlue 100 | 1.5 EcoBlue 100 Grand | 1.5 EcoBlue 100 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2020 | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum output / speed [kW/min-1] | 74/4500 | 55/3600 | 55/3600 | 74/3600 | 74/3600 | 74/3600 |
| Maximum torque [Nm/min-1] | 170/1400-4000 | 220/1750-2250 | 220/1750-2250 | 240/1750-2500 | 240/1750-2500 | 270/1750-2250 |
| Bore and stroke [mm x mm] | 71,9 x 82,0 | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 |
| Compression ratio | 10,0:1 | 16.4:1 | 16.4:1 | 16.4:1 | 16.4:1 | 16.4:1 |
| Oil volume [l] | 4.1 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 |
| Coolant volume [l] | 5.5 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 165 | 145 | 145 | 163 | 163 | 160 |
| Acceleration 0–100 km/h [s] | 14.0 | 17.8 | 17.8 | 13.3 | 13.3 | 14.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.1-6.4 | 4.9-4.8 | 5.2-5.1 | 5.3-4.7 | 5.6-4.9 | 5.3-4.9 |
| Out of town [l] | 5.7-5.3 | 4.4-4.3 | 4.6-4.5 | 4.5-4.1 | 4.7-4.2 | 4.7-4.3 |
| Combined [l] | 6.2-5.8 | 4.6-4.5 | 4.8-4.7 | 4.8-4.3 | 5.0-4.5 | 4.9-4.5 |
| CO2 emissions [g/km] | 139-133 | 120-118 | 126-124 | 126-113 | 132-118 | 130-119 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1592-1727 | 1662-1771 | 1751-1913 | 1662-1797 | 1751-1959 | 1680-1815 |
| Overall weight [kg] | 2145-1250 | 2200 | 2260-2405 | 2185-2235 | 2260-2445 | 2210-2250 |
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 750/1200 | 750/1050-1200 | 750/1350 | 750/1173-1350 | 750/1350 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 520 | 520 | 775 | 520 | 775 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1838 | -/1838 | -/2761 [2620 seven seats] | -/1838 | -/2761 [2620 seven seats] | -/1838 |
| Boot length [mm] | 890 | 890 | 1264 [450 seven seats] | 890 | 1264 [450 seven seats] | 890 |
| Boot length with rear seats folded [mm] | 1394 | 1394 | 2174 | 1394 | 2174 | 1394 |
| Boot width between wheels/max [mm] | 1193/1533 | 1193/1533 | 1193/1496 | 1193/1533 | 1193/1496 | 1193/1533 |
| Boot height to headliner/ceiling [mm] | -/1185 | -/1185 | -/1078 | -/1185 | -/1078 | -/1185 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5-7 | 5 | 5-7 | 5 |
| Fuel tank volume [l] | 56 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 12.2/12.5 | 11.0/- | 12.2/12.5 | 11.0/- |
| Overall length [mm] | 4425 | 4425 | 4818 | 4425 | 4818 | 4425 |
| Overall width without/including mirrors [mm] | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 |
| Overall height [mm] | 1819 | 1819 | 1820 | 1819 | 1820 | 1819 |
| Wheelbase [mm] | 2662 | 2662 | 3062 | 2662 | 3062 | 2662 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 EcoBlue 100 Grand | 1.5 EcoBlue 120 | 1.5 EcoBlue 120 Grand | 1.5 EcoBlue 120 | 1.5 EcoBlue 120 Grand | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Maximum output / speed [kW/min-1] | 74/3600 | 88/4000 | 88/4000 | 88/4000 | 88/4000 | |
| Maximum torque [Nm/min-1] | 270/1750-2250 | 270/1750-2000 | 270/1750-2000 | 270/1750-2000 | 270/1750-2000 | |
| Bore and stroke [mm x mm] | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | |
| Compression ratio | 16.4:1 | 16.4:1 | 16.4:1 | 16.4:1 | 16.4:1 | |
| Oil volume [l] | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | |
| Coolant volume [l] | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
| - | - |
|
| |
| Top speed [km/h] | 160 | 171 | 171 | 16.8 | 16.8 | |
| Acceleration 0–100 km/h [s] | 14.1 | 12.6 | 12.6 | 12.9 | 12.9 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.5-5.1 | 5.3-4.7 | 5.6-5.0 | 5.2 | 5.4-5.3 | |
| Out of town [l] | 4.8-4.4 | 4.5-4.1 | 4.7-4.2 | 4.8-4.6 | 5.1-4.9 | |
| Combined [l] | 5.2-4.7 | 4.8-4.3 | 5.0-4.5 | 5.0-4.9 | 5.2-5.1 | |
| CO2 emissions [g/km] | 136-123 | 126-113 | 132-118 | 132-130 | 138-135 | |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1775-1968 | 1669-1798 | 1766-1952 | 1687-1815 | 1775-1968 | |
| Overall weight [kg] | 2320-2445 | 2200-2235 | 2300-2445 | 2215-2250 | 2320-2445 | |
| Maximum trailer weight unbraked/braked [kg] | 720-750/1165-1339 | 750/1488-1500 | 750/1270-1438 | 750/1050-1200 | 730-750/1204-1379 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 775 | 520 | 775 | 520 | 775 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2761 [2620 seven seats] | -/1838 | -/2761 [2620 seven seats] | -/1838 | -/2761 [2620 seven seats] | |
| Boot length [mm] | 1264 [450 seven seats] | 890 | 1264 [450 seven seats] | 890 | 1264 [450 seven seats] | |
| Boot length with rear seats folded [mm] | 2174 | 1394 | 2174 | 1394 | 2174 | |
| Boot width between wheels/max [mm] | 1193/1496 | 1193/1533 | 1193/1496 | 1193/1533 | 1193/1496 | |
| Boot height to headliner/ceiling [mm] | -/1078 | -/1185 | -/1078 | -/1185 | -/1078 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5-7 | 5 | 5-7 | 5 | 5-7 | |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 12.2/12.5 | 11.0/- | 12.2/12.5 | 11.0/- | 12.2/12.5 | |
| Overall length [mm] | 4818 | 4425 | 4818 | 4425 | 4818 | |
| Overall width without/including mirrors [mm] | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | |
| Overall height [mm] | 1820 | 1819 | 1820 | 1819 | 1820 | |
| Wheelbase [mm] | 3062 | 2662 | 3062 | 2662 | 3062 | |
| Front wheel track [mm] | - | - | - | - | - | |
| Rear wheel track [mm] | - | - | - | - | - | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

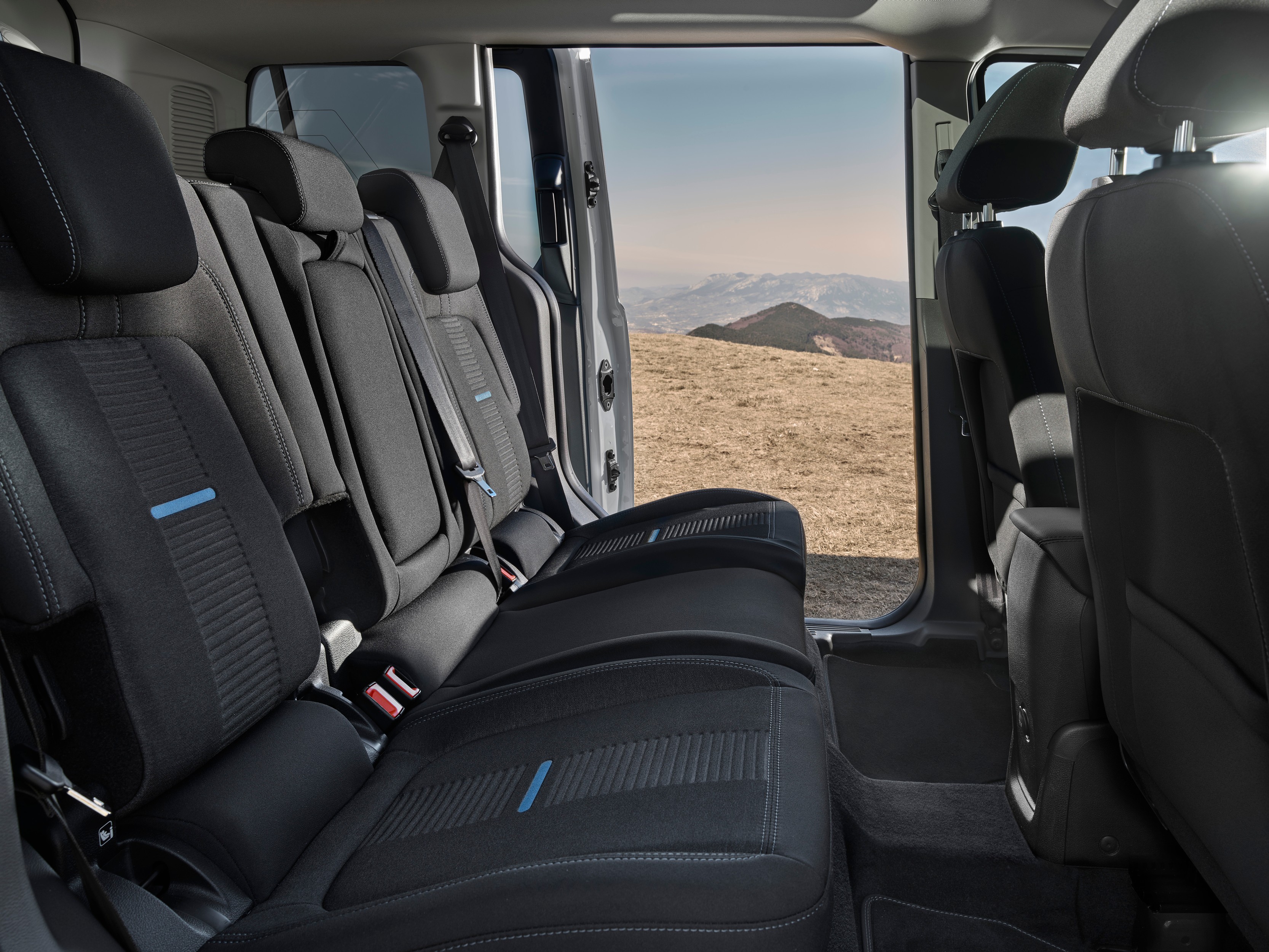

Gallery
