Honda Civic
Date of manufacture
2017 – 2019 (Five-door hatchback)
2017 – 2019 (Sedan)
Platform
-
Manufacturing locations
Swindon, United Kingdom
Saitama, Japan
Designer
Daisuke Tsutamori
Jarad Hall
Guy Melville-Brown
Tags
C-segment
Japanese cars
The Honda Civic is produced in two body styles - a five-door hatchback and a sedan. Since 2017, the cars have been manufactured in the UK and Japan. Gasoline and diesel engines are available, the most powerful of which is the Type R with 235 kW. The Type R has a top speed of 272 km/h, while the 1.6 i-DTEC has the lowest fuel consumption of 3.4 l/100 km and emissions of 91 g/km. The sedan has a boot capacity of 519 l, while the hatchback has 420-478 l. In 2017, the model underwent EURONCAP safety tests and received a rating of 5 out of 5.
Car body style

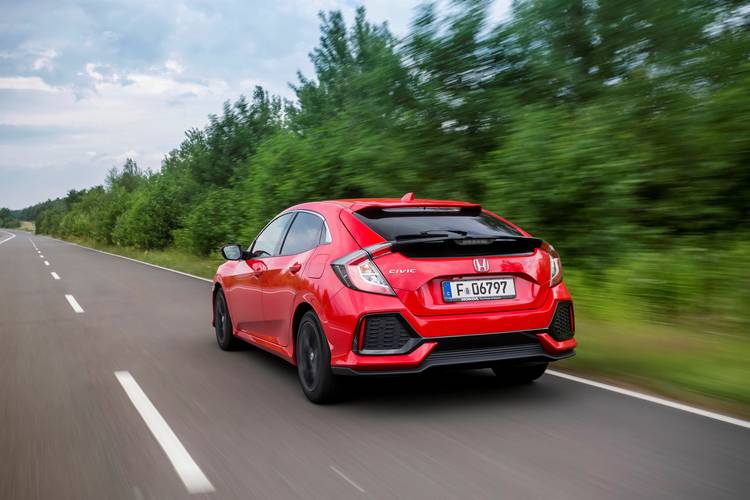

Five-door hatchback
Date of manufacture
2017 – 2019Internal designation
FKSedan (sedan)
Date of manufacture
2017 – 2019Internal designation
FCEngine size
Technical data
Five-door hatchback
| 1.0 VTEC TURBO | 1.0 VTEC TURBO | 1.0 VTEC TURBO | 1.0 VTEC TURBO | 1.5 VTEC TURBO | 1.5 VTEC TURBO | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 988 | 988 | 988 | 988 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 93/5500 | 95/5500 | 95/5500 | 93/5500 | 134/5500 | 134/5500 |
| Maximum torque [Nm/min-1] | 200/2250 | 200/2250 | 180/1700-4500 | 180/1700-4500 | 240/1900-5000 | 240/1900-5000 |
| Bore and stroke [mm x mm] | 73 x 78.7 | 73 x 78.7 | 73 x 78.7 | 73 x 78.7 | 73 x 89.5 | 73 x 89.5 |
| Compression ratio | 10,0 : 1 | 10,0 : 1 | 10,0 : 1 | 10,0 : 1 | 10,6 : 1 | 10,6 : 1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 1 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 203 | 203 | 200 | 200 | 220 | 220 |
| Acceleration 0–100 km/h [s] | 10,4-11,2 | 10,4-11,2 | 10,2-11,0 | 10,2-11,0 | 8,2-8,4 | 8,2-8,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,9 | 6,1-6,4 | 5,5-5,7 | 5,2 | 7,4 | 7,1 |
| Out of town [l] | 4,2 | 4,1-4,4 | 4,2-4,6 | 4,4 | 4,9 | 4,8 |
| Combined [l] | 4,8 | 5,8-5,1 | 4,7-5,0 | 4,7 | 5,8 | 5,6 |
| CO2 emissions [g/km] | 110 | 110-117 | 106-114 | 107 | 133 | 128 |
| Emission standard | Euro 6d-TEMP | Euro 6 | Euro 6 | Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1229-1348 | 1229-1348 | 1239-1356 | 1239-1356 | 1307-1357 | 1307-1357 |
| Overall weight [kg] | 1645-1775 | 1645-1775 | 1655-1775 | 1655-1775 | 1760 | 1760 |
| Maximum trailer weight unbraked/braked [kg] | 500/1200 | 500/1200 | 500/800 | 500/800 | 500/1400 | 500/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 45/- | 45/- | 45/- | 45/- | 45/- | 45/- |
| Boot volume [l] | 420-478 | 420-478 | 420-478 | 420-478 | 420-478 | 420-478 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 770-828/1209-1267 | 770-828/1209-1267 | 770-828/1209-1267 | 770-828/1209-1267 | 770-828/1209-1267 | 770-828/1209-1267 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 46 | 46 | 46 | 46 | 46 | 46 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/45 R17 | 235/45 R17 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/45 R17 | 235/45 R17 |
| Wheel size front | 8,0J x 16 | 8,0J x 16 | 8,0J x 16 | 8,0J x 16 | 8,0J x 17 | 8,0J x 17 |
| Wheel size rear | 8,0J x 16 | 8,0J x 16 | 8,0J x 16 | 8,0J x 16 | 8,0J x 17 | 8,0J x 17 |
| Brake dimensions front | 282/280 | 282/280 | 282 | 282 | 293 | 293 |
| Brake dimensions rear | 260/282 | 260/282 | 260 | 260 | 282 | 282 |
| Steering | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS |
| Number of steering wheel turns | 2,14 | 2,14 | 2,14 | 2,14 | 2,22 | 2,22 |
| Turning diameter track/circumference [m] | 10,6/11,6 | 10,6/11,6 | 10,6/11,6 | 10,6/11,6 | 11,0-11,8 | 11,0-11,8 |
| Overall length [mm] | 4518 | 4518 | 4518 | 4518 | 4518 | 4518 |
| Overall width without/including mirrors [mm] | 1799/2076 | 1799/2076 | 1799/2076 | 1799/2076 | 1799/2076 | 1799/2076 |
| Overall height [mm] | 1434 | 1434 | 1434 | 1434 | 1434 | 1434 |
| Wheelbase [mm] | 2697 | 2697 | 2697 | 2697 | 2697 | 2697 |
| Front wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1537 | 1537 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1565 | 1565 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 129 | 129 | 129 | 129 | 129 | 129 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 VTEC TURBO | 1.5 VTEC TURBO | Type R | Type R | 1.6 i-DTEC | 1.6 i-DTEC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1996 | 1996 | 1597 | 1597 |
| Maximum output / speed [kW/min-1] | 134/6000 | 134/6000 | 235/6500 | 235/6500 | 88/4000 | 88/4000 |
| Maximum torque [Nm/min-1] | 220/1700-5500 | 220/1700-5500 | 400/2500-4500 | 400/2500-4500 | 300/2000 | 300/2000 |
| Bore and stroke [mm x mm] | 73 x 89.5 | 73 x 89.5 | 86,0 x 85,9 | 86,0 x 85,9 | 76 x 88 | 76 x 88 |
| Compression ratio | 10,6 : 1 | 10,6 : 1 | 9,8:1 | 9,8:1 | 16,0 : 1 | 16,0 : 1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 1 gear automatic | 1 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 9 gear automatic |
| Drive specifications |
|
| - | - | - |
|
| Top speed [km/h] | 200 | 200 | 272 | 272 | 201 | 200 |
| Acceleration 0–100 km/h [s] | 8,4-8,5 | 8,4-8,5 | 5,7-5,8 | 5,7-5,8 | 9,8-10,2 | 10,2-10,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9 | 7,7 | 9,8 | 9,1 | 3,7 | 4,7 |
| Out of town [l] | 5,0 | 5,0 | 6,5 | 7,1 | 3,5 | 3,8 |
| Combined [l] | 6,1 | 6,0 | 7,7 | 7,8 | 3,5 | 4,1 |
| CO2 emissions [g/km] | 137 | 137 | 176 | 178 | 93 | 109 |
| Emission standard | Euro 6 | Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1340-1397 | 1340-1397 | 1380-1420 | 1380-1420 | 1287-1407 | 1313-1430 |
| Overall weight [kg] | 1790-1820 | 1790-1820 | 1760 | 1760 | 1710-1835 | 1740-1860 |
| Maximum trailer weight unbraked/braked [kg] | 500/1000 | 500/1000 | - | - | 500/1400 | 500/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | - | - | 75 | 75 |
| Maximum load on roof/carrier [kg] | 45/- | 45/- | - | - | 45/- | 45/- |
| Boot volume [l] | 420-478 | 420-478 | 420-457 | 420-457 | 420-478 | 420-478 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 770-828/1209-1267 | 770-828/1209-1267 | 786-823/- | 786-823/- | 770-828/1209-1267 | 770-828/1209-1267 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 46 | 46 | 46 | 46 | 46 | 46 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/45 R17 | 235/45 R17 | 245/30 ZR20 90Y | 245/30 ZR20 90Y | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 235/45 R17 | 235/45 R17 | 245/30 ZR20 90Y | 245/30 ZR20 90Y | 215/55 R16 | 215/55 R16 |
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,5J x 20 ET60 | 8,5J x 20 ET60 | 8,0J x 16 | 8,0J x 16 |
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,5J x 20 ET60 | 8,5J x 20 ET60 | 8,0J x 16 | 8,0J x 16 |
| Brake dimensions front | 293 | 293 | 350 | 350 | 282/280 | 282/280 |
| Brake dimensions rear | 282 | 282 | 305 | 305 | 260/282 | 260/282 |
| Steering | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS |
| Number of steering wheel turns | 2,22 | 2,22 | 2,11 | 2,11 | 2,22 | 2,22 |
| Turning diameter track/circumference [m] | 11,0-11,8 | 11,0-11,8 | -/12,56 | -/12,56 | 10,7/11,6 | 10,7/11,6 |
| Overall length [mm] | 4518 | 4518 | 4557 | 4557 | 4518 | 4518 |
| Overall width without/including mirrors [mm] | 1799/2076 | 1799/2076 | 1877/- | 1877/- | 1799/2076 | 1799/2076 |
| Overall height [mm] | 1434 | 1434 | 1434 | 1434 | 1434 | 1434 |
| Wheelbase [mm] | 2697 | 2697 | 2699 | 2699 | 2697 | 2697 |
| Front wheel track [mm] | 1537 | 1537 | 1584 | 1584 | 1547 | 1547 |
| Rear wheel track [mm] | 1565 | 1565 | 1602 | 1602 | 1575 | 1575 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 129 | 129 | 126 | 126 | 129 | 129 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

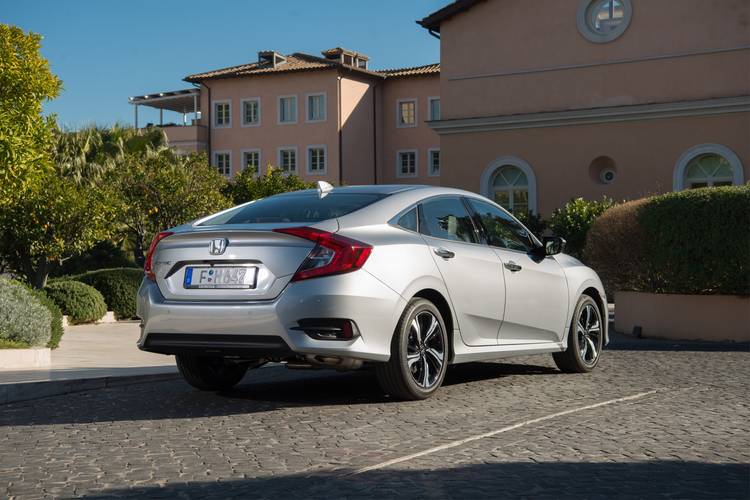

Sedan (sedan)
| 1.5 VTEC TURBO | 1.5 VTEC TURBO | 1.5 VTEC TURBO | 1.5 VTEC TURBO | 1.6 i-DTEC | 1.6 i-DTEC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1498 | 1498 | 1597 | 1597 |
| Maximum output / speed [kW/min-1] | 134/5500 | 134/5500 | 134/6000 | 134/6000 | 88/4000 | 88/4000 |
| Maximum torque [Nm/min-1] | 240/1900-5000 | 240/1900-5000 | 220/1700-5500 | 220/1700-5500 | 300/2000 | 300/2000 |
| Bore and stroke [mm x mm] | 73 x 89.5 | 73 x 89.5 | 73 x 89.5 | 73 x 89.5 | 76 x 88 | 76 x 88 |
| Compression ratio | 10,6 : 1 | 10,6 : 1 | 10,6 : 1 | 10,6 : 1 | 16,0 : 1 | 16,0 : 1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 1 gear automatic | 6 gear manual | 9 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 210 | 210 | 200 | 200 | 201 | 200 |
| Acceleration 0–100 km/h [s] | 8,4-8,6 | 8,4-8,6 | 8,1-8,2 | 8,1-8,2 | 9,9-10,1 | 10,7-10,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,4 | 7,0 | 7,7-7,8 | 7,5 | 3,5 | 4,7 |
| Out of town [l] | 4,7-4,8 | 4,6 | 4,7 | 4,7 | 3,4 | 3,8 |
| Combined [l] | 5,7-5,8 | 5,5 | 5,8 | 5,7 | 3,4 | 4,1 |
| CO2 emissions [g/km] | 130-131 | 125 | 131-132 | 130 | 91 | 108 |
| Emission standard | Euro 6 | Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1279-1321 | 1279-1321 | 1307-1348 | 1307-1348 | 1314-1366 | 1337-1389 |
| Overall weight [kg] | 1740 | 1740 | 1770 | 1770 | 1800 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 500/1200 | 500/1200 | 500/800 | 500/800 | 500/1400 | 500/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 519 | 519 | 519 | 519 | 519 | 519 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 46 | 46 | 46 | 46 | 46 | 46 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 235/45 R17 | 235/45 R17 | 235/45 R17 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 235/45 R17 | 235/45 R17 | 235/45 R17 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 8,0J x 16 | 8,0J x 17 | 8,0J x 16 | 8,0J x 17 | 8,0J x 16 | 8,0J x 16 |
| Wheel size rear | 8,0J x 16 | 8,0J x 17 | 8,0J x 16 | 8,0J x 17 | 8,0J x 16 | 8,0J x 16 |
| Brake dimensions front | 293 | 293 | 293 | 293 | 293 | 293 |
| Brake dimensions rear | 282 | 282 | 282 | 282 | 282 | 282 |
| Steering | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS | Electric variable power steering MA-EPS |
| Number of steering wheel turns | 2,22 | 2,22 | 2,22 | 2,22 | 2,22 | 2,22 |
| Turning diameter track/circumference [m] | 10,6/11,3 | 10,6/11,3 | 10,6/11,3 | 10,6/11,3 | 10,6/11,3 | 10,6/11,3 |
| Overall length [mm] | 4648 | 4648 | 4648 | 4648 | 4648 | 4648 |
| Overall width without/including mirrors [mm] | 1799/2075 | 1799/2075 | 1799/2075 | 1799/2075 | 1799/2075 | 1799/2075 |
| Overall height [mm] | 1416 | 1416 | 1416 | 1416 | 1416 | 1416 |
| Wheelbase [mm] | 2698 | 2698 | 2698 | 2698 | 2698 | 2698 |
| Front wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Rear wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1575 | 1575 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
