Basic information Technical Specifications Gallery

Hyundai i20

Date of manufacture

2018 – 2020 (Five-door hatchback)

Platform

Hyundai-Kia PB

Manufacturing locations

İzmit, Turkey

Chennai, India

Designer

Casey Hyun

Car body style

Five-door hatchback

after upgrade (facelift)

Date of manufacture

2018 – 2020

Internal designation

Engine size

1.2 D-CVVT 16V

1.4 D-CVVT 16V

1.0 T-GDI

Euro NCAP

Test year 2015

pre-facelift version (2015)

Technical data

Five-door hatchback

	1.2 D-CVVT 16V	1.2 D-CVVT 16V	1.4 D-CVVT 16V	1.0 T-GDI	1.0 T-GDI	1.0 T-GDI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	3/12	3/12	3/12
Engine displacement [cm³]	1248	1248	1368	998	998	998
Maximum output / speed [kW/min-1]	55/6000	62/6000	74/6000	74/4500	74/4500	88.3/6000
Maximum torque [Nm/min-1]	121/4000	121/4000	133/3500	172/1500	172/1500	172/1500-4000
Bore and stroke [mm x mm]	71,0 x 78,8	71,0 x 78,8	72,0 x 84,0	71,0 x 84,0	71,0 x 84,0	71,0 x 84,0
Compression ratio	10,5:1	10,5:1	10,5:1	10.5:1	10.5:1	10.5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves D‐CVVT	variable timing of intake and exhaust valves D‐CVVT	variable timing of intake and exhaust valves D‐CVVT	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D-CVVT Gasoline Particulate Filter start&stop system ISG	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D-CVVT Gasoline Particulate Filter start&stop system ISG	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D-CVVT Gasoline Particulate Filter start&stop system ISG

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	6 gear manual	5 gear manual	7 gear automatic	5 gear manual
Drive specifications	-	-	-	-	seven-speed dual-clutch automatic gearbox	-

Top speed [km/h]	170	170	184	188	182	190
Acceleration 0–100 km/h [s]	13,6	12,8	11,6	10,8	11,4	10,2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7,0-7,2	6,6-7,1	6,9	4,4-5,9	5,4-5,9	5,9-6,2
Out of town [l]	4,8-4,9	4,5-5,0	4,9-5,0	4,3-4,6	4,5-4,7	4,4-4,6
Combined [l]	5,6-5,8	5,3-5,8	5,6-5,7	4,8-5,1	4,8-5,2	5,0-5,2
CO2 emissions [g/km]	160-164	152-162	160-161	126-135	124-136	136-141

Emission standard	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1055-1233	1055-1233	1085-1250	1140-1239	1185-1325	1145-1293
Overall weight [kg]	1580	1580	1600	1600	1650	1640
Maximum trailer weight unbraked/braked [kg]	450/910	450/910	450/1000	450/1000	450/800	450/1110
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	70/-	70/-	70/-	70/-	70/-	70/-

Boot volume [l]	326	326	326	326	326	326
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1042	-/1042	-/1042	-/1042	-/1042	-/1042
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	-	-	-	-	-	-
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar
Tyre dimensions front	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15
Tyre dimensions rear	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4035	4035	4035	4035	4035	4035
Overall width without/including mirrors [mm]	1734/-	1734/-	1734/-	1734/-	1734/-	1734/-
Overall height [mm]	1474	1474	1474	1474	1474	1474
Wheelbase [mm]	2570	2570	2570	2570	2570	2570
Front wheel track [mm]	1520	1520	1520	1520	1520	1520
Rear wheel track [mm]	1519	1519	1519	1519	1519	1519
Forward overhang [mm]	815	815	815	815	815	815
Rear overhang [mm]	650	650	650	650	650	650
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1038	1038	1038	1038	1038	1038
Headroom rear [mm]	978	978	978	978	978	978
Front elbow/shoulder width [mm]	1301/1365	1301/1365	1301/1365	1301/1365	1301/1365	1301/1365
Rear elbow/shoulder width [mm]	1252/1350	1252/1350	1252/1350	1252/1350	1252/1350	1252/1350
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.0 T-GDI
Date of sale	-
Engine type	Ignition supercharged
Number of cylinders/valves	3/12
Engine displacement [cm³]	998
Maximum output / speed [kW/min-1]	88.3/6000
Maximum torque [Nm/min-1]	172/1500-4000
Bore and stroke [mm x mm]	71,0 x 84,0
Compression ratio	10.5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D-CVVT Gasoline Particulate Filter start&stop system ISG

Drive axle	Front
Gearbox	7 gear automatic
Drive specifications	seven-speed dual-clutch automatic gearbox

Top speed [km/h]	190
Acceleration 0–100 km/h [s]	10,5
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	5,6-5,9
Out of town [l]	4,6-4,9
Combined [l]	5,0-5,3
CO2 emissions [g/km]	128-136

Emission standard	Euro 6d-TEMP
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1185-1325
Overall weight [kg]	1650
Maximum trailer weight unbraked/braked [kg]	450/800
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	70/-

Boot volume [l]	326
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1042
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	-
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson, torsion stabiliser
Rear suspension	rigid with torsion bar
Tyre dimensions front	185/65 R15
Tyre dimensions rear	185/65 R15
Wheel size front	6.0J x 15
Wheel size rear	6.0J x 15
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.2/-

Overall length [mm]	4035
Overall width without/including mirrors [mm]	1734/-
Overall height [mm]	1474
Wheelbase [mm]	2570
Front wheel track [mm]	1520
Rear wheel track [mm]	1519
Forward overhang [mm]	815
Rear overhang [mm]	650
Clearance [mm]	140
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	1038
Headroom rear [mm]	978
Front elbow/shoulder width [mm]	1301/1365
Rear elbow/shoulder width [mm]	1252/1350
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

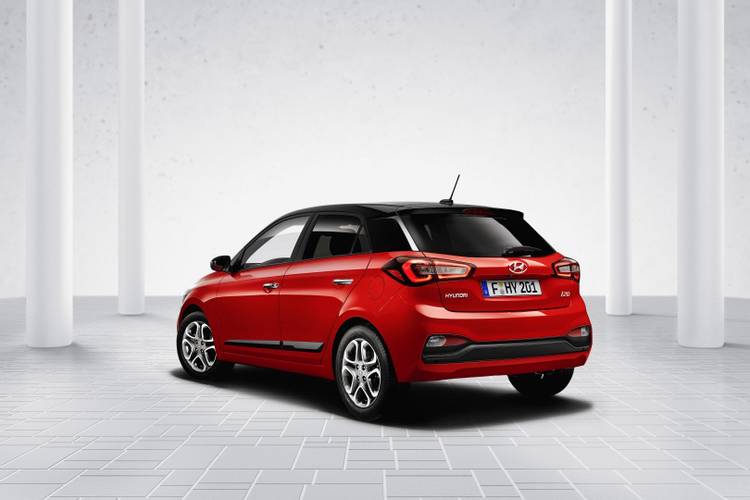

Hyundai i20 GB facelift 2018 infotainment

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
