Hyundai i30
Date of manufacture
2010 – 12/2011 (Five-door hatchback)
2010 – 5/2012 (Estate)
Platform
-
Manufacturing locations
Nošovice, Czechia
Designer
Thomas Bürkle
Tags
C-segment
Korean cars
The Hyundai i30 is a five-door hatchback and estate, produced since 2010 in the Czech Republic. It offers a wide range of petrol and diesel engines with a maximum power of 94 kW from the 1.6 CRDi unit. The highest speed of 197 km/h is achieved by the 1.6 CRDi ISG model and the best acceleration from 0-100 km/h in 10.8 seconds is achieved by the 1.6 CVVT model. The lowest fuel consumption of 4.3 l/100 km and emissions of 113 g/km are also achieved by the 1.6 CRDi ISG model. The five-door hatchback has a cargo space of 340 l, while the estate has 415 l. The Hyundai i30 has passed EURONCAP safety tests and has been rated 5 out of 5 points.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2010 – 12/2011Internal designation

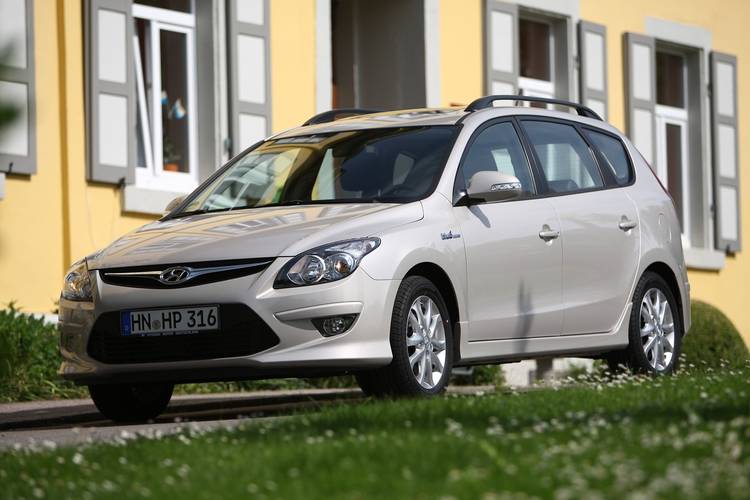

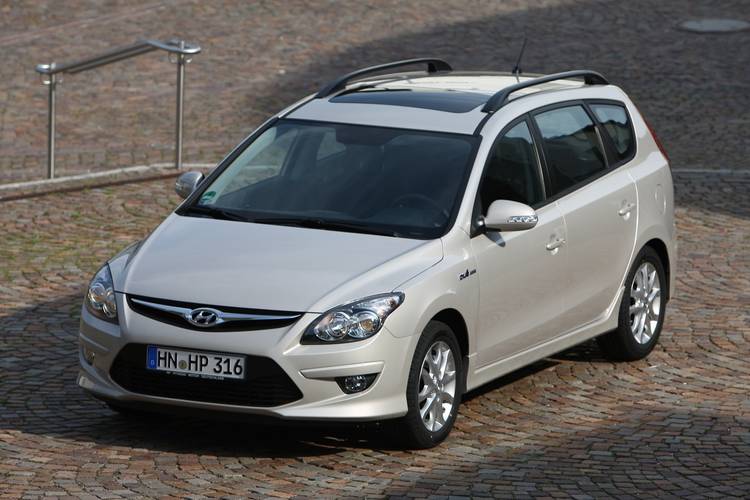

FD Estate
after upgrade (facelift)
Date of manufacture
2010 – 5/2012Internal designation
FD
Technical data
Five-door hatchback
| 1.4 CVVT | 1.4 CVVT | 1.6 CVVT | 1.6 CVVT ISG | 1.6 CVVT | 1.6 CRDi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1591 | 1591 | 1591 | 1582 |
| Maximum output / speed [kW/min-1] | 80/6200 | 80/6200 | 93/6200 | 93/6200 | 93/6200 | 66/4000 |
| Maximum torque [Nm/min-1] | 137/5000 | 137/5000 | 157/4200 | 157/4200 | 157/4200 | 235/1750-2500 |
| Bore and stroke [mm x mm] | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,2 x 84,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 17,3:1 |
| Oil volume [l] | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 187 | 187 | 192 | 192 | 187 | 172 |
| Acceleration 0–100 km/h [s] | 11.6 | 11.6 | 10.8 | 10.8 | 11.9 | 14.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 6.9 | 8.0 | 7.3 | 9.0 | 5.3 |
| Out of town [l] | 5.2 | 5.0 | 5.2 | 5.1 | 5.7 | 4.1 |
| Combined [l] | 6.1 | 5.7 | 6.2 | 5.9 | 6.9 | 4.5 |
| CO2 emissions [g/km] | 145 | 135 | 152 | 142 | 165 | 119 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 83 | 83 | 83 | 83 | 83 | 75 |
| Driving noise [dB] | 71 | 71 | 71 | 71 | 71 | 71 |
| Standby weight [kg] | 1268-1368 | 1268-1368 | 1268-1368 | 1268-1368 | 1289-1389 | 1366-1470 |
| Overall weight [kg] | 1720 | 1720 | 1720 | 1720 | 1740 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1400 |
| Maximum front/rear axle load [kg] | 960/920 | 960/920 | 960/920 | 960/920 | 960/920 | 1040/940 |
| Maximum vertical load on the tow bar [kg] | 55 | 55 | 55 | 55 | 55 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | 262 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 10.2/- |
| Overall length [mm] | 4245 | 4245 | 4245 | 4245 | 4245 | 4245 |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi ISG | 1.6 CRDi | 1.6 CRDi ISG | 1.6 CRDi | 1.6 CRDi | 1.6 CRDi ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1582 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 66/4000 | 85/4000 | 85/4000 | 85/4000 | 94/4000 | 94/4000 |
| Maximum torque [Nm/min-1] | 235/1750-2500 | 255/1900-2750 | 255/1900-2750 | 255/1900-2750 | 260/1900-2750 | 260/1900-2750 |
| Bore and stroke [mm x mm] | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 172 | 188 | 188 | 180 | 197 | 197 |
| Acceleration 0–100 km/h [s] | 14.0 | 11.5 | 11.5 | 12.8 | 11.0 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.8 | 5.3 | 4.9 | 7.1 | 5.3 | 4.9 |
| Out of town [l] | 4.1 | 4.1 | 4.2 | 4.8 | 4.1 | 4.2 |
| Combined [l] | 4.3 | 4.5 | 4.5 | 5.7 | 4.5 | 4.5 |
| CO2 emissions [g/km] | 113 | 119 | 117 | 150 | 119 | 117 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 75 | 76 | 76 | 80 | - | - |
| Driving noise [dB] | 71 | 72 | 72 | 71 | - | - |
| Standby weight [kg] | 1366-1470 | 1366-1470 | 1366-1470 | 1373-1478 | 1366-1470 | 1366-1470 |
| Overall weight [kg] | 1820 | 1820 | 1820 | 1840 | 1820 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1400 | 550/1400 | 550/1300 | 550/1400 | 550/1400 |
| Maximum front/rear axle load [kg] | 1040/940 | 1040/940 | 1040/940 | 1040/940 | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 185/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6J x 16 | 6J x 16 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6J x 16 | 6J x 16 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | 262 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 10.2/- |
| Overall length [mm] | 4245 | 4245 | 4245 | 4245 | 4245 | 4245 |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1582 | |||||
| Maximum output / speed [kW/min-1] | 94/4000 | |||||
| Maximum torque [Nm/min-1] | 260/1900-2750 | |||||
| Bore and stroke [mm x mm] | 77,2 x 84,5 | |||||
| Compression ratio | 17,3:1 | |||||
| Oil volume [l] | 5.3 | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 4 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 186 | |||||
| Acceleration 0–100 km/h [s] | 12.3 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.1 | |||||
| Out of town [l] | 4.8 | |||||
| Combined [l] | 5.7 | |||||
| CO2 emissions [g/km] | 150 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1373-1478 | |||||
| Overall weight [kg] | 1840 | |||||
| Maximum trailer weight unbraked/braked [kg] | 550/1300 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 75 | |||||
| Maximum load on roof/carrier [kg] | 80/- | |||||
| Boot volume [l] | 340 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 53 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.329 | |||||
| Front suspension | MacPherson, torsion stabiliser | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 205/55 R16 | |||||
| Tyre dimensions rear | 205/55 R16 | |||||
| Wheel size front | 6J x 16 | |||||
| Wheel size rear | 6J x 16 | |||||
| Brake dimensions front | 280 | |||||
| Brake dimensions rear | 262 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.2/- | |||||
| Overall length [mm] | 4245 | |||||
| Overall width without/including mirrors [mm] | 1775/- | |||||
| Overall height [mm] | 1480 | |||||
| Wheelbase [mm] | 2650 | |||||
| Front wheel track [mm] | 1546 | |||||
| Rear wheel track [mm] | 1544 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 150 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate
| 1.4 CVVT | 1.4 CVVT ISG | 1.6 CVVT | 1.6 CVVT ISG | 1.6 CVVT | 1.6 CRDi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1591 | 1591 | 1591 | 1582 |
| Maximum output / speed [kW/min-1] | 80/6200 | 80/6200 | 93/6200 | 93/6200 | 93/6200 | 66/4000 |
| Maximum torque [Nm/min-1] | 137/5000 | 137/5000 | 157/4200 | 157/4200 | 157/4200 | 235/1750-2500 |
| Bore and stroke [mm x mm] | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,2 x 84,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 17,3:1 |
| Oil volume [l] | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 187 | 187 | 192 | 192 | 187 | 172 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.7 | 11.0 | 11.0 | 12.2 | 13.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 6.9 | 8.0 | 7.3 | 8.8 | 5.5 |
| Out of town [l] | 5.5 | 5.3 | 5.5 | 5.4 | 5.9 | 4.3 |
| Combined [l] | 6.3 | 5.9 | 6.5 | 6.1 | 6.9 | 4.7 |
| CO2 emissions [g/km] | 147 | 138 | 152 | 142 | 162 | 124 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 83 | 83 | 83 | 83 | 83 | 75 |
| Driving noise [dB] | 71 | 71 | 71 | 71 | 71 | 71 |
| Standby weight [kg] | 1311-1415 | 1311-1415 | 1311-1415 | 1311-1415 | 1331-1435 | 1409-1517 |
| Overall weight [kg] | 1820 | 1820 | 1820 | 1820 | 1840 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1400 |
| Maximum front/rear axle load [kg] | 1000/980 | 1000/980 | 1000/980 | 1000/980 | 1000/980 | 1040/1020 |
| Maximum vertical load on the tow bar [kg] | 55 | 55 | 55 | 55 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 415 | 415 | 415 | 415 | 415 | 415 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | 262 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.42/- | 10.42/- | 10.42/- | 10.42/- | 10.42/- | 10.42/- |
| Overall length [mm] | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- |
| Overall height [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi ISG | 1.6 CRDi | 1.6 CRDi ISG | 1.6 CRDi | 1.6 CRDi | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1582 | 1582 | 1582 | 1582 | 1582 | |
| Maximum output / speed [kW/min-1] | 66/4000 | 85/4000 | 85/4000 | 85/4000 | 94/4000 | |
| Maximum torque [Nm/min-1] | 235/1750-2500 | 255/1900-2750 | 255/1900-2750 | 255/1900-2750 | 260/1900-2750 | |
| Bore and stroke [mm x mm] | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | |
| Compression ratio | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | |
| Oil volume [l] | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | |
| Drive specifications | - | - | - | - | - | |
| Top speed [km/h] | 172 | 188 | 188 | 180 | 197 | |
| Acceleration 0–100 km/h [s] | 13.9 | 11.7 | 11.7 | 13.0 | 11.2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.1 | 5.4 | 5.1 | 7.2 | 5.5 | |
| Out of town [l] | 4.3 | 4.3 | 4.3 | 5.1 | 4.3 | |
| Combined [l] | 4.6 | 4.7 | 4.6 | 5.8 | 4.7 | |
| CO2 emissions [g/km] | 122 | 124 | 122 | 154 | 124 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | 75 | 76 | 76 | 80 | - | |
| Driving noise [dB] | 71 | 72 | 72 | 71 | - | |
| Standby weight [kg] | 1409-1517 | 1409-1517 | 1409-1517 | 1416-1523 | 1409-1517 | |
| Overall weight [kg] | 1920 | 1920 | 1920 | 1940 | 1920 | |
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1400 | 550/1400 | 550/1300 | 550/- | |
| Maximum front/rear axle load [kg] | 1040/1020 | 1040/1020 | 1040/1020 | 1040/1020 | - | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 415 | 415 | 415 | 415 | 415 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 185/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | |
| Tyre dimensions rear | 185/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.0J x 15 | |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.0J x 15 | |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.42/- | 10.42/- | 10.42/- | 10.42/- | 10.42/- | |
| Overall length [mm] | 4500 | 4500 | 4500 | 4500 | 4500 | |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | |
| Overall height [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | |
| Forward overhang [mm] | 900 | 900 | 900 | 900 | 900 | |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

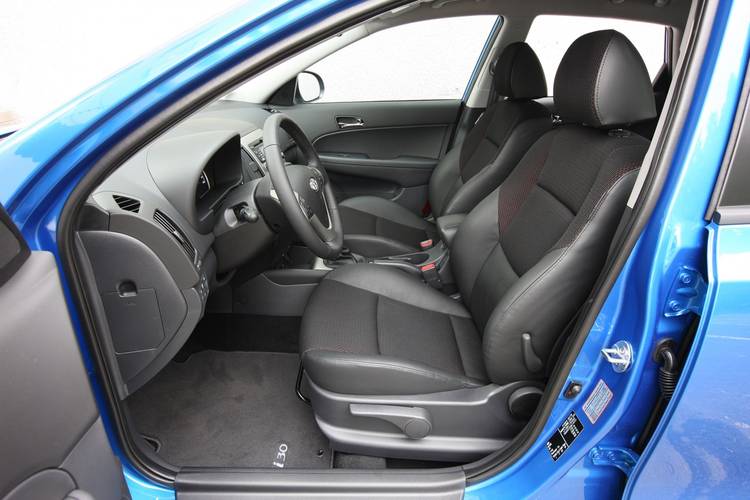

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
