Hyundai i30

i30 GD 2012

Date of manufacture

11/2012 – 1/2015 (Three-door hatchback)

1/2012 – 1/2015 (Five-door hatchback)

6/2012 – 1/2015 (Estate)

Platform

Hyundai-Kia J5

Manufacturing locations

Nošovice, Czechia

Ulsan, South Korea

Designer

Thomas Bürkle

Tags

C-segment

Korean cars

The Hyundai i30 is a modern car that was released in 2012. The vehicle is available in three body styles: three-door hatchback, five-door hatchback and estate. The car is based on the Hyundai-Kia J5 platform and offers a wide range of engine options - petrol and diesel engines. The most powerful model is the 1.6 GDI with 99 kW, the fastest model is the 1.6 CRDi VGT with a top speed of 197 km/h and the most economical model is the 1.6 CRDi VGT ISG with a combined fuel consumption of 3.7 l/100 km and CO2 emissions of 97 g/km. The luggage compartment varies depending on the body type - 378 l (three-door hatchback and five-door hatchback) or 528 l (estate). The Hyundai i30 successfully passed the EURONCAP safety tests in 2012 and received a rating of 5 out of 5.

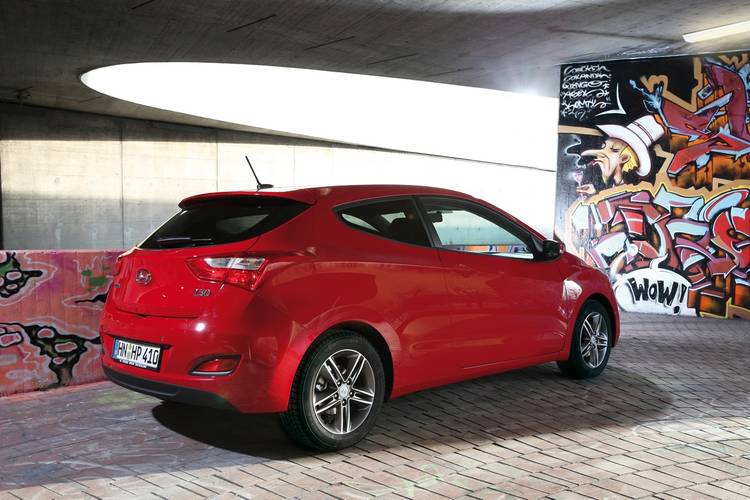

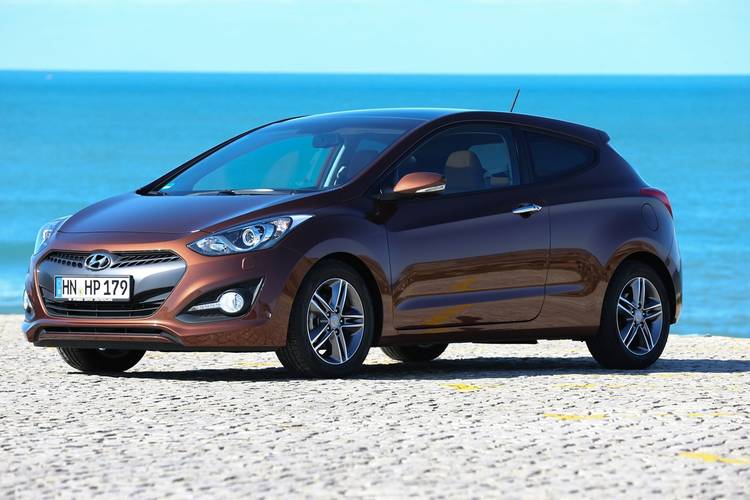

Car body style

Three-door hatchback

Date of manufacture

11/2012 – 1/2015

Internal designation

GD

Engine size

Petrol

Diesel

1.6 CRDi VGT ISG

1.6 CRDi VGT ISG

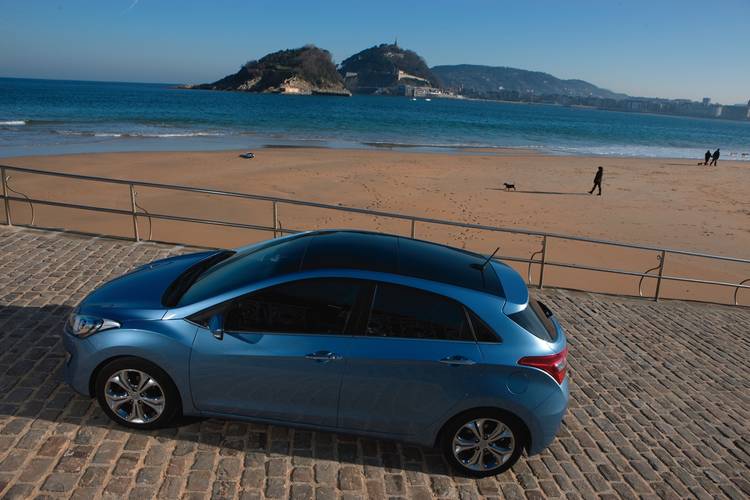

Five-door hatchback

Date of manufacture

1/2012 – 1/2015

Internal designation

GD

Engine size

Petrol

Diesel

1.4 CRDi VGT ISG

1.6 CRDi VGT ISG

1.6 CRDi VGT ISG

Estate

Date of manufacture

6/2012 – 1/2015

Internal designation

GD

Engine size

Petrol

Diesel

1.4 CRDi VGT ISG

1.6 CRDi VGT ISG

1.6 CRDi VGT ISG

Euro NCAP

Technical data

Three-door hatchback

	1.4 CVVT	1.4 CVVT ISG	1.6 D-CVVT	1.6 D-CVVT ISG	1.6 D-CVVT	1.6 GDI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1396	1396	1591	1591	1591	1591
Maximum output / speed [kW/min-1]	73,2/5500	73,2/5500	88/6300	88/6300	88/6300	99/6300
Maximum torque [Nm/min-1]	137/4200	137/4200	156/4850	156/4850	156/4850	164/4850
Bore and stroke [mm x mm]	77,0 x 75,0	77,0 x 75,0	77,0 x 85,44	77,0 x 85,44	77,0 x 85,44	77,0 x 85,44
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	11,0:1
Oil volume [l]	3.3	3.3	-	-	-	3.6
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake valves CVVT	variable timing of intake valves CVVT start&stop system ISG	variable timing of intake and exhaust valves D‐CVVT	variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	variable timing of intake and exhaust valves D‐CVVT	direct injection GDI variable timing of intake and exhaust valves D‐CVVT

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	-	-	-	automatic gearbox	-

Top speed [km/h]	182	182	192	192	192	195
Acceleration 0–100 km/h [s]	13.2	13.2	10.9	10.9	11.9	9.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.9	7.2	8.5	7.8	9.5	7.7
Out of town [l]	4.9	4.6	5.0	4.8	5.2	4.6
Combined [l]	6.0	5.6	6.3	5.9	6.8	5.7
CO2 emissions [g/km]	139	130	146	138	159	134

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	79	79	-	-	-	78
Driving noise [dB]	72	72	-	-	-	72

Standby weight [kg]	1260-1380	1260-1380	1262-1390	1262-1390	1295-1419	1267-1395
Overall weight [kg]	1820	1820	1820	1820	1850	1820
Maximum trailer weight unbraked/braked [kg]	600/1200	600/1200	600/1300	600/1300	600/1200	600/1400
Maximum front/rear axle load [kg]	960/960	960/960	960/960	960/960	960/960	960/960
Maximum vertical load on the tow bar [kg]	60	60	60	60	60	60
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	378	378	378	378	378	378
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1316	-/1316	-/1316	-/1316	-/1316	-/1316
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	53	53	53	53	53	53
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	280	280	-	-	-	300
Brake dimensions rear	262	262	262	262	262	262
Steering	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4300	4300	4300	4300	4300	4300
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1470	1465	1470	1465	1470	1470
Wheelbase [mm]	2650	2650	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1563	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571	1571	1571	1571
Forward overhang [mm]	880	880	880	880	880	880
Rear overhang [mm]	770	770	770	770	770	770
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	966	966	966	966	966	966
Front elbow/shoulder width [mm]	1370/1420	1370/1420	1370/1420	1370/1420	1370/1420	1370/1420
Rear elbow/shoulder width [mm]	1334/1374	1334/1374	1334/1374	1334/1374	1334/1374	1334/1374
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 GDI ISG	1.6 GDI	1.6 CRDi VGT	1.6 CRDi VGT ISG	1.6 CRDi VGT	1.6 CRDi VGT
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1591	1591	1582	1582	1582	1582
Maximum output / speed [kW/min-1]	99/6300	99/6300	81/4000	81/4000	81/4000	94/4000
Maximum torque [Nm/min-1]	164/4850	164/4850	260/1900-2750	260/1900-2750	260/1900-2750	260/1900-2750
Bore and stroke [mm x mm]	77,0 x 85,44	77,0 x 85,44	77,2 x 84,5	77,2 x 84,5	77,2 x 84,5	77,2 x 84,5
Compression ratio	11,0:1	11,0:1	17,3:1	17,3:1	17,3:1	17,3:1
Oil volume [l]	3.6	3.6	5.3	5.3	5.3	5.3
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection GDI variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	direct injection GDI variable timing of intake and exhaust valves D‐CVVT	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	automatic gearbox	-	-	automatic gearbox	-

Top speed [km/h]	190	192	185	185	180	197
Acceleration 0–100 km/h [s]	9.9	11.0	11.5	11.5	12.3	10.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.4	9.1	4.9	4.1	7.2	4.9
Out of town [l]	4.3	5.3	3.7	3.5	4.5	3.7
Combined [l]	5.0	6.7	4.1	3.7	5.5	4.1
CO2 emissions [g/km]	118	157	109	97	145	109

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	78	77	-	-	-	77
Driving noise [dB]	72	72	-	-	-	72

Standby weight [kg]	1267-1395	1299-1423	1365-1496	1365-1496	1385-1511	1365-1496
Overall weight [kg]	1820	1850	1920	1920	1940	1920
Maximum trailer weight unbraked/braked [kg]	600/1400	600/1300	650/1500	650/1500	650/1400	650/1500
Maximum front/rear axle load [kg]	960/960	960/960	1050/960	1050/960	1050/960	1050/960
Maximum vertical load on the tow bar [kg]	60	60	75	75	75	75
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	378	378	378	378	378	378
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1316	-/1316	-/1316	-/1316	-/1316	-/1316
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	53	53	53	53	53	53
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	300	300	-	-	-	300
Brake dimensions rear	262	262	262	262	262	262
Steering	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4300	4300	4300	4300	4300	4300
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1465	1470	1470	1465	1470	1470
Wheelbase [mm]	2650	2650	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1563	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571	1571	1571	1571
Forward overhang [mm]	880	880	880	880	880	880
Rear overhang [mm]	770	770	770	770	770	770
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	966	966	966	966	966	966
Front elbow/shoulder width [mm]	1370/1420	1370/1420	1370/1420	1370/1420	1370/1420	1370/1420
Rear elbow/shoulder width [mm]	1334/1374	1334/1374	1334/1374	1334/1374	1334/1374	1334/1374
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 CRDi VGT ISG	1.6 CRDi VGT
Date of sale	-	-
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1582	1582
Maximum output / speed [kW/min-1]	94/4000	94/4000
Maximum torque [Nm/min-1]	260/1900-2750	260/1900-2750
Bore and stroke [mm x mm]	77,2 x 84,5	77,2 x 84,5
Compression ratio	17,3:1	17,3:1
Oil volume [l]	5.3	5.3
Coolant volume [l]	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front
Gearbox	6 gear manual	6 gear automatic
Drive specifications	-	automatic gearbox

Top speed [km/h]	197	186
Acceleration 0–100 km/h [s]	10.9	11.7
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	4.1	7.2
Out of town [l]	3.5	4.5
Combined [l]	3.7	5.5
CO2 emissions [g/km]	97	145

Emission standard	EU5	EU5
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	77	77
Driving noise [dB]	72	71

Standby weight [kg]	1365-1496	1385-1511
Overall weight [kg]	1920	1940
Maximum trailer weight unbraked/braked [kg]	650/1500	650/1400
Maximum front/rear axle load [kg]	1050/960	1050/960
Maximum vertical load on the tow bar [kg]	75	75
Maximum load on roof/carrier [kg]	80/-	80/-

Boot volume [l]	378	378
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1316	-/1316
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	3	3
Number of seats	5	5
Fuel tank volume [l]	53	53
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15
Brake dimensions front	300	300
Brake dimensions rear	262	262
Steering	Rack & pinion	Rack & pinion
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-

Overall length [mm]	4300	4300
Overall width without/including mirrors [mm]	1780/-	1780/-
Overall height [mm]	1465	1470
Wheelbase [mm]	2650	2650
Front wheel track [mm]	1563	1563
Rear wheel track [mm]	1571	1571
Forward overhang [mm]	880	880
Rear overhang [mm]	770	770
Clearance [mm]	140	140
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1021	1021
Headroom rear [mm]	966	966
Front elbow/shoulder width [mm]	1370/1420	1370/1420
Rear elbow/shoulder width [mm]	1334/1374	1334/1374
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

Five-door hatchback

	1.4 CVVT	1.4 CVVT ISG	1.6 D-CVVT	1.6 D-CVVT ISG	1.6 D-CVVT	1.6 GDI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1396	1396	1591	1591	1591	1591
Maximum output / speed [kW/min-1]	73,2/5500	73,2/5500	88/6300	88/6300	88/6300	99/6300
Maximum torque [Nm/min-1]	137/4200	137/4200	156/4850	156/4850	156/4850	164/4850
Bore and stroke [mm x mm]	77,0 x 75,0	77,0 x 75,0	77,0 x 85,44	77,0 x 85,44	77,0 x 85,44	77,0 x 85,44
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	11,0:1
Oil volume [l]	3.3	3.3	-	-	-	3.6
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake valves CVVT	variable timing of intake valves CVVT start&stop system ISG	variable timing of intake and exhaust valves D‐CVVT	variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	variable timing of intake and exhaust valves D‐CVVT	direct injection GDI variable timing of intake and exhaust valves D‐CVVT

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	-	-	-	automatic gearbox	-

Top speed [km/h]	182	182	192	192	192	195
Acceleration 0–100 km/h [s]	13.2	13.2	10.9	10.9	11.9	9.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.9	7.2	8.5	7.8	9.5	7.7
Out of town [l]	4.9	4.6	5.0	4.8	5.2	4.6
Combined [l]	6.0	5.6	6.3	5.9	6.8	5.7
CO2 emissions [g/km]	139	130	146	138	159	134

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	79	79	-	-	-	78
Driving noise [dB]	73	73	-	-	-	72

Standby weight [kg]	1260-1380	1260-1356	1262-1386	1262-1358	1295-1419	1268-1399
Overall weight [kg]	1820	1720	1820	1720	1850	1820
Maximum trailer weight unbraked/braked [kg]	600/1200	600/1200	600/1300	600/1300	600/1200	600/1400
Maximum front/rear axle load [kg]	960/960	960/960	960/960	960/960	960/960	960/960
Maximum vertical load on the tow bar [kg]	60	60	60	60	60	60
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	378	378	378	378	378	378
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1316	-/1316	-/1316	-/1316	-/1316	-/1316
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	53	53	53	53	53	53
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	280	280	-	-	-	300
Brake dimensions rear	262	262	262	262	262	262
Steering	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4300	4300	4300	4300	4300	4300
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1470	1465	1470	1465	1470	1470
Wheelbase [mm]	2650	2650	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1563	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571	1571	1571	1571
Forward overhang [mm]	880	880	880	880	880	880
Rear overhang [mm]	770	770	770	770	770	770
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1018	1018	1018	1018	1018	1018
Headroom rear [mm]	963	963	963	963	963	963
Front elbow/shoulder width [mm]	-/1420	-/1420	-/1420	-/1420	-/1420	-/1420
Rear elbow/shoulder width [mm]	-/1395	-/1395	-/1395	-/1395	-/1395	-/1395
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 GDI ISG	1.6 GDI	1.4 CRDi VGT	1.4 CRDi VGT ISG	1.6 CRDi VGT	1.6 CRDi VGT ISG
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1591	1591	1396	1396	1582	1582
Maximum output / speed [kW/min-1]	99/6300	99/6300	66/4000	66/4000	81/4000	81/4000
Maximum torque [Nm/min-1]	164/4850	164/4850	220/1500-2750	220/1500-2750	260/1900-2750	260/1900-2750
Bore and stroke [mm x mm]	77,0 x 85,44	77,0 x 85,44	75,0 x 79,0	75,0 x 79,0	77,2 x 84,5	77,2 x 84,5
Compression ratio	11,0:1	11,0:1	17,0:1	17,0:1	17,3:1	17,3:1
Oil volume [l]	3.6	3.6	5.3	5.3	5.3	5.3
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection GDI variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	direct injection GDI variable timing of intake and exhaust valves D‐CVVT	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear manual	6 gear manual	6 gear manual
Drive specifications	-	automatic gearbox	-	-	-	-

Top speed [km/h]	190	192	170	170	185	185
Acceleration 0–100 km/h [s]	9.9	11.0	13.5	13.5	11.5	11.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.4	9.1	5.3	4.7	4.9	4.1
Out of town [l]	4.3	5.3	3.5	3.6	3.7	3.5
Combined [l]	5.0	6.7	4.1	4.0	4.1	3.7
CO2 emissions [g/km]	118	157	109	105	109	97

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	78	77	75	75	77	77
Driving noise [dB]	72	72	71	71	72	72

Standby weight [kg]	1268-1364	1300-1431	1355-1476	1355-1451	1365-1495	1365-1461
Overall weight [kg]	1720	1850	1910	1810	1920	1820
Maximum trailer weight unbraked/braked [kg]	600/1400	600/1300	650/1500	650/1500	650/1500	650/1500
Maximum front/rear axle load [kg]	960/960	960/960	1050/960	1050/960	1050/960	1050/960
Maximum vertical load on the tow bar [kg]	60	60	75	75	75	75
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	378	378	378	378	378	378
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1316	-/1316	-/1316	-/1316	-/1316	-/1316
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	53	53	53	53	53	53
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	300	300	280	280	-	-
Brake dimensions rear	262	262	262	262	262	262
Steering	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4300	4300	4300	4300	4300	4300
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1465	1470	1470	1470	1470	1465
Wheelbase [mm]	2650	2650	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1563	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571	1571	1571	1571
Forward overhang [mm]	880	880	880	880	880	880
Rear overhang [mm]	770	770	770	770	770	770
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1018	1018	1018	1018	1018	1018
Headroom rear [mm]	963	963	963	963	963	963
Front elbow/shoulder width [mm]	-/1420	-/1420	-/1420	-/1420	-/1420	-/1420
Rear elbow/shoulder width [mm]	-/1395	-/1395	-/1395	-/1395	-/1395	-/1395
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 CRDi VGT	1.6 CRDi VGT	1.6 CRDi VGT ISG	1.6 CRDi VGT
Date of sale	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1582	1582	1582	1582
Maximum output / speed [kW/min-1]	81/4000	94/4000	94/4000	94/4000
Maximum torque [Nm/min-1]	260/1900-2750	260/1900-2750	260/1900-2750	260/1900-2750
Bore and stroke [mm x mm]	77,2 x 84,5	77,2 x 84,5	77,2 x 84,5	77,2 x 84,5
Compression ratio	17,3:1	17,3:1	17,3:1	17,3:1
Oil volume [l]	5.3	5.3	5.3	5.3
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front
Gearbox	6 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	automatic gearbox	-	-	automatic gearbox

Top speed [km/h]	180	197	188	186
Acceleration 0–100 km/h [s]	12.3	10.9	10.9	11.7
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	7.2	4.9	4.1	7.2
Out of town [l]	4.5	3.7	3.5	4.5
Combined [l]	5.5	4.1	3.7	5.5
CO2 emissions [g/km]	145	109	97	145

Emission standard	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	77	77	77	77
Driving noise [dB]	71	72	72	71

Standby weight [kg]	1385-1515	1365-1495	1365-1461	1385-1515
Overall weight [kg]	1940	1920	1820	1940
Maximum trailer weight unbraked/braked [kg]	650/1400	650/1500	650/1500	650/1400
Maximum front/rear axle load [kg]	1050/960	1050/960	1050/960	1050/960
Maximum vertical load on the tow bar [kg]	75	75	75	75
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-

Boot volume [l]	378	378	378	378
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1316	-/1316	-/1316	-/1316
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	53	53	53	53
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	300	300	300
Brake dimensions rear	262	262	262	262
Steering	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4300	4300	4300	4300
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1470	1470	1465	1470
Wheelbase [mm]	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571	1571
Forward overhang [mm]	880	880	880	880
Rear overhang [mm]	770	770	770	770
Clearance [mm]	140	140	140	140
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	1018	1018	1018	1018
Headroom rear [mm]	963	963	963	963
Front elbow/shoulder width [mm]	-/1420	-/1420	-/1420	-/1420
Rear elbow/shoulder width [mm]	-/1395	-/1395	-/1395	-/1395
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Estate

	1.4 CVVT	1.4 CVVT ISG	1.6 D-CVVT	1.6 D-CVVT ISG	1.6 D-CVVT	1.6 GDI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1396	1396	1591	1591	1591	1591
Maximum output / speed [kW/min-1]	73,2/5500	73,2/5500	88/6300	88/6300	88/6300	99/6300
Maximum torque [Nm/min-1]	137/4200	137/4200	156/4850	156/4850	156/4850	164/4850
Bore and stroke [mm x mm]	77,0 x 75,0	77,0 x 75,0	77,0 x 85,44	77,0 x 85,44	77,0 x 85,44	77,0 x 85,44
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	11,0:1
Oil volume [l]	3.3	3.3	3.6	3.6	3.6	3.6
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake valves CVVT	variable timing of intake valves CVVT start&stop system ISG	variable timing of intake and exhaust valves D‐CVVT	variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	variable timing of intake and exhaust valves D‐CVVT	direct injection GDI variable timing of intake and exhaust valves D‐CVVT

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	-	-	-	automatic gearbox	-

Top speed [km/h]	180	180	190	190	190	192
Acceleration 0–100 km/h [s]	13.5	13.5	11.2	11.2	12.3	10.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.6	7.6	8.5	8.3	9.5	8.1
Out of town [l]	5.3	5.2	5.0	5.3	5.4	5.1
Combined [l]	6.5	6.1	6.3	6.4	6.9	6.2
CO2 emissions [g/km]	145	136	146	144	162	140

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	79	79	-	-	-	78
Driving noise [dB]	73	73	-	-	-	72

Standby weight [kg]	1288-1421	1288-1421	1290-1425	1290-1425	1324-1455	1298-1441
Overall weight [kg]	1820	1820	1820	1820	1850	1820
Maximum trailer weight unbraked/braked [kg]	600/1200	600/1200	600/1300	600/1300	600/1200	600/1400
Maximum front/rear axle load [kg]	960/1050	960/1050	960/1050	960/1050	960/1050	960/1050
Maximum vertical load on the tow bar [kg]	60	60	60	60	60	60
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	528	528	528	528	528	528
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1642	-/1642	-/1642	-/1642	-/1642	-/1642
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	53	53	53	53	53	53
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	280	280	-	-	-	300
Brake dimensions rear	262	262	262	262	262	262
Steering	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4485	4485	4485	4485	4485	4485
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1500	1495	1500	1495	1500	1500
Wheelbase [mm]	2650	2650	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1563	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571	1571	1571	1571
Forward overhang [mm]	880	880	880	880	880	880
Rear overhang [mm]	955	955	955	955	955	955
Clearance [mm]	140	135	140	135	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1033	1033	1033	1033	1033	1033
Headroom rear [mm]	1005	1005	1005	1005	1005	1005
Front elbow/shoulder width [mm]	1375/1420	1375/1420	1375/1420	1375/1420	1375/1420	1375/1420
Rear elbow/shoulder width [mm]	1296/1395	1296/1395	1296/1395	1296/1395	1296/1395	1296/1395
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 GDI ISG	1.6 GDI	1.4 CRDi VGT	1.4 CRDi VGT ISG	1.6 CRDi VGT	1.6 CRDi VGT ISG
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1591	1591	1396	1396	1582	1582
Maximum output / speed [kW/min-1]	99/6300	99/6300	66/4000	66/4000	81/4000	81/4000
Maximum torque [Nm/min-1]	164/4850	164/4850	220/1500-2750	220/1500-2750	260/1900-2750	260/1900-2750
Bore and stroke [mm x mm]	77,0 x 85,44	77,0 x 85,44	75,0 x 79,0	75,0 x 79,0	77,2 x 84,5	77,2 x 84,5
Compression ratio	11,0:1	11,0:1	17,0:1	17,0:1	17,3:1	17,3:1
Oil volume [l]	3.6	3.6	5.3	5.3	5.3	5.3
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection GDI variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	direct injection GDI variable timing of intake and exhaust valves D‐CVVT	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear manual	6 gear manual	6 gear manual
Drive specifications	-	automatic gearbox	-	-	-	-

Top speed [km/h]	192	190	170	170	185	185
Acceleration 0–100 km/h [s]	10.2	11.3	13.9	13.9	11.8	11.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.3	9.4	5.4	5.0	5.1	5.0
Out of town [l]	4.9	5.5	3.9	3.8	3.9	3.8
Combined [l]	5.8	6.8	4.4	4.2	4.3	4.2
CO2 emissions [g/km]	130	160	113	109	113	110

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	78	77	75	75	77	77
Driving noise [dB]	72	72	71	71	72	72

Standby weight [kg]	1298-1441	1330-1469	1397-1530	1397-1530	1401-1542	1401-1542
Overall weight [kg]	1820	1850	1910	1910	1920	1920
Maximum trailer weight unbraked/braked [kg]	600/1400	600/1300	650/1500	650/1500	650/1500	650/1500
Maximum front/rear axle load [kg]	960/1050	960/1050	1050/1050	1050/1050	1050/1050	1050/1050
Maximum vertical load on the tow bar [kg]	60	60	75	75	75	75
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	528	528	528	528	528	528
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1642	-/1642	-/1642	-/1642	-/1642	-/1642
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	53	53	53	53	53	53
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	300	300	280	280	-	-
Brake dimensions rear	262	262	262	262	262	262
Steering	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4485	4485	4485	4485	4485	4485
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1495	1500	1500	1495	1500	1495
Wheelbase [mm]	2650	2650	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1563	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571	1571	1571	1571
Forward overhang [mm]	880	880	880	880	880	880
Rear overhang [mm]	955	955	955	955	955	955
Clearance [mm]	135	140	140	135	140	135
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1033	1033	1033	1033	1033	1033
Headroom rear [mm]	1005	1005	1005	1005	1005	1005
Front elbow/shoulder width [mm]	1375/1420	1375/1420	1375/1420	1375/1420	1375/1420	1375/1420
Rear elbow/shoulder width [mm]	1296/1395	1296/1395	1296/1395	1296/1395	1296/1395	1296/1395
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 CRDi VGT	1.6 CRDi VGT	1.6 CRDi VGT ISG	1.6 CRDi VGT
Date of sale	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1582	1582	1582	1582
Maximum output / speed [kW/min-1]	81/4000	94/4000	94/4000	94/4000
Maximum torque [Nm/min-1]	260/1900-2750	260/1900-2750	260/1900-2750	260/1900-2750
Bore and stroke [mm x mm]	77,2 x 84,5	77,2 x 84,5	77,2 x 84,5	77,2 x 84,5
Compression ratio	17,3:1	17,3:1	17,3:1	17,3:1
Oil volume [l]	5.3	5.3	5.3	5.3
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front
Gearbox	6 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	automatic gearbox	-	-	automatic gearbox

Top speed [km/h]	180	193	193	185
Acceleration 0–100 km/h [s]	12.7	11.2	11.2	12.1
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	7.5	5.1	5.0	7.5
Out of town [l]	4.6	3.9	3.8	4.6
Combined [l]	5.6	4.3	4.2	5.6
CO2 emissions [g/km]	149	113	110	149

Emission standard	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	77	77	77	77
Driving noise [dB]	71	72	72	71

Standby weight [kg]	1423-1578	1401-1542	1401-1542	1423-1578
Overall weight [kg]	1940	1920	1920	1940
Maximum trailer weight unbraked/braked [kg]	650/1400	650/1500	650/1500	650/1400
Maximum front/rear axle load [kg]	1050/1050	1050/1050	1050/1050	1050/1050
Maximum vertical load on the tow bar [kg]	75	75	75	75
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-

Boot volume [l]	528	528	528	528
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1642	-/1642	-/1642	-/1642
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	53	53	53	53
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	300	300	300
Brake dimensions rear	262	262	262	262
Steering	Rack & pinion	Rack & pinion	Rack & pinion	Rack & pinion
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4485	4485	4485	4485
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1500	1500	1495	1500
Wheelbase [mm]	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571	1571
Forward overhang [mm]	880	880	880	880
Rear overhang [mm]	955	955	955	955
Clearance [mm]	140	140	135	140
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	1033	1033	1033	1033
Headroom rear [mm]	1005	1005	1005	1005
Front elbow/shoulder width [mm]	1375/1420	1375/1420	1375/1420	1375/1420
Rear elbow/shoulder width [mm]	1296/1395	1296/1395	1296/1395	1296/1395
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

Hyundai i30 GD 2012 boot

Hyundai i30 GD 2012 rear folding seats

Hyundai i30 GD 2012 wagon

Hyundai i30 GD 2013 wagon

Hyundai i30 GD 2014 wagon

Hyundai i30 GD 2012 wagon

Hyundai i30 GD 2012 wagon

Hyundai i30 GD 2012 wagon

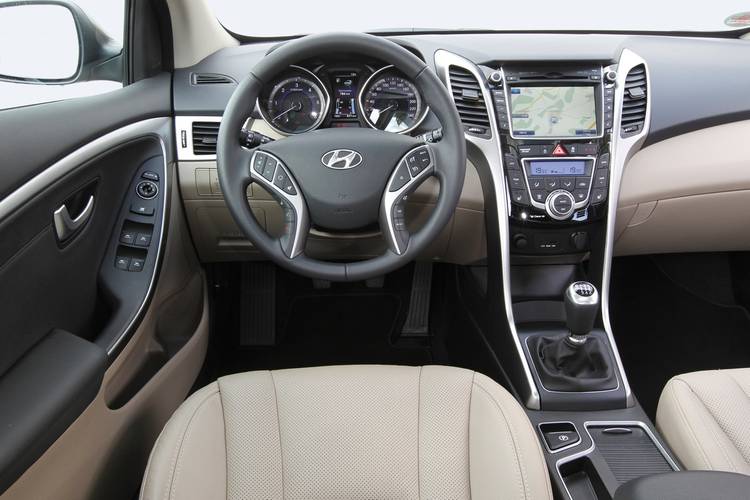

Hyundai i30 GD 2012 interior

Hyundai i30 GD 2013 interior

Hyundai i30 GD 2014 interior

Hyundai i30 GD 2012 Tourer Combi boot

Hyundai i30 GD 2012 Tourer Combi rear folding seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
