Hyundai i30
Date of manufacture
12/2016 – 2018 (Five-door hatchback)
2017 – 2018 (Fastback)
2017 – 2018 (Estate)
Platform
Hyundai-Kia J6
Manufacturing locations
Nošovice, Czechia
Ulsan, South Korea
Designer
-
Tags
C-segment
Korean cars
Hyundai i30 is a modern car family consisting of a five-door hatchback, fastback and estate. The car has been produced since 2016 in the Czech Republic and South Korea on the Hyundai-Kia J6 platform. It offers a wide range of engines, including petrol and diesel units. The highest power is provided by the 2.0 N T-GDI Performance 275 with 202 kW, the highest speed is 250 km/h and the best acceleration from 0-100 km/h in 6.1 seconds. The lowest fuel consumption of 3.6 l/100 km can be boasted by the 1.6 CRDi 95 with CO2 emissions of 95 g/km. The luggage compartment varies depending on the body type: 395 l for the hatchback, 450 l for the fastback and 602 l for the estate. The safety of the car was rated 5 out of 5 by EURONCAP in 2017.
Car body style
Five-door hatchback
Date of manufacture
12/2016 – 2018Internal designation
PDFastback
Date of manufacture
2017 – 2018Internal designation

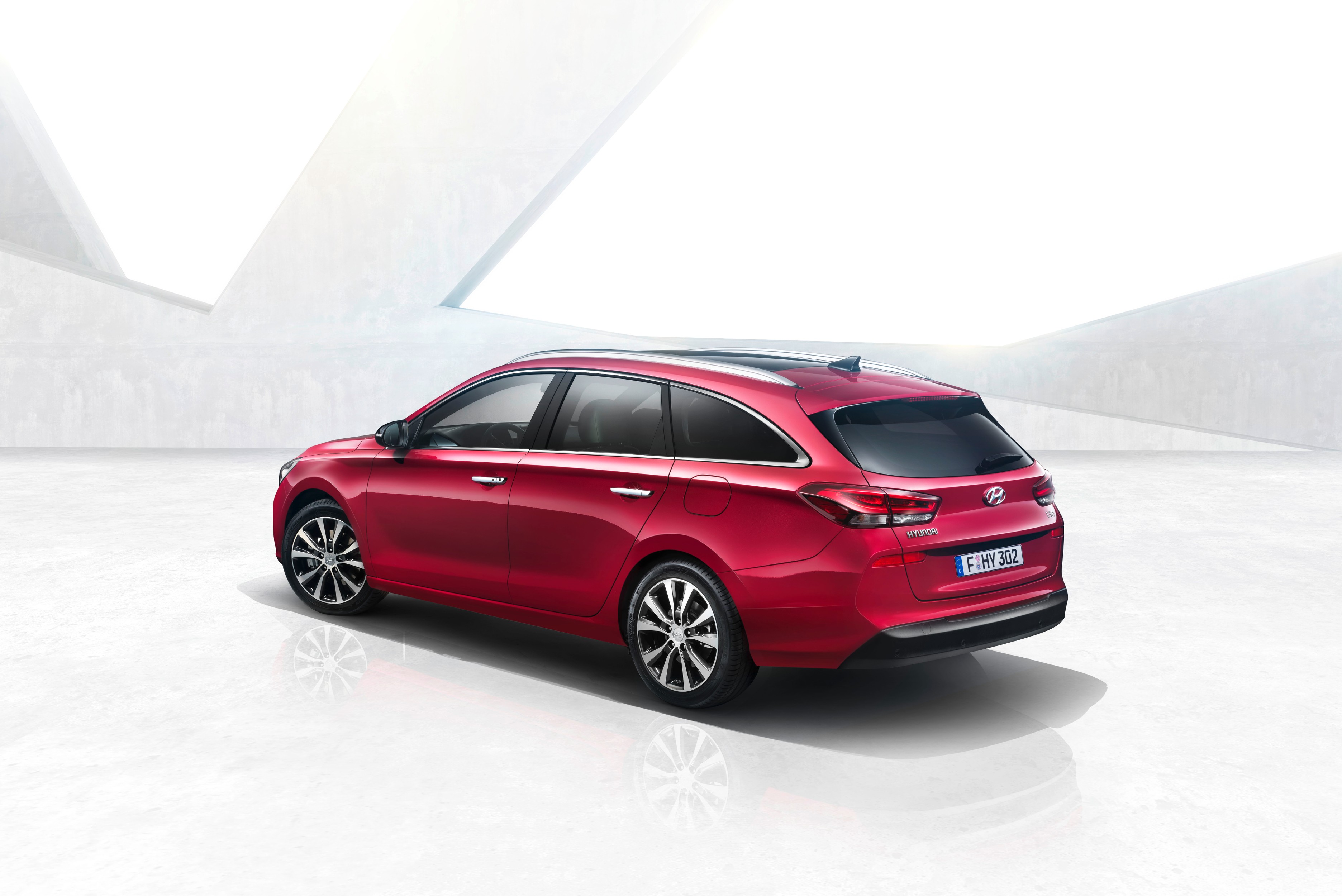

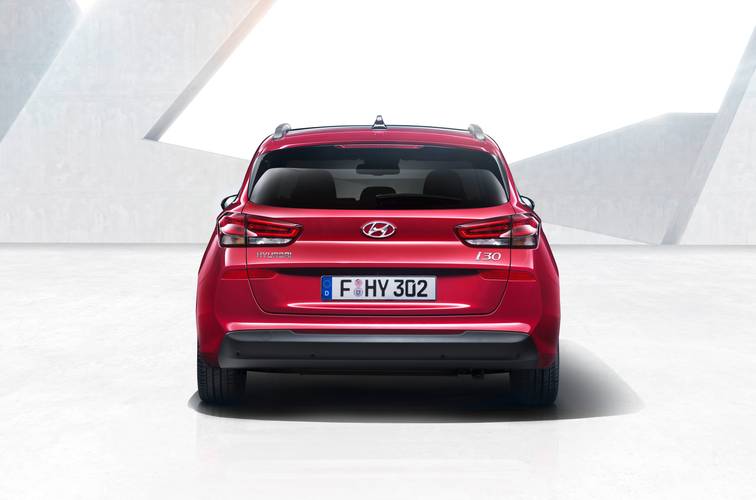

PDEstate
Date of manufacture
2017 – 2018Internal designation
PD
Technical data
Five-door hatchback
| 1,4i MPI CVVT 100 | 1,0 T-GDI D-CVVT 120 | 1.4 T-GDI D-CVVT 140 | 1.4 T-GDI D-CVVT 140 | 2.0 N T-GDI 250 | 2.0 N T-GDI Performance 275 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 998 | 1353 | 1353 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 73.3/6000 | 88.3/6000 | 103/6000 | 103/6000 | 184/6000 | 202/6000 |
| Maximum torque [Nm/min-1] | 134/4000 | 172/1500-4000 | 242/1500-3200 | 242/1500-3200 | 353/1450-4000 | 378/1750-4200 |
| Bore and stroke [mm x mm] | 72.0 x 84.0 | 71.0 x 84.0 | 71.6 x 84.0 | 71.6 x 84.0 | 86.0 x 86.0 | 86.0 x 86.0 |
| Compression ratio | 10.5:1 | 10.0:1 | 10.0:1 | 10.0:1 | 9.5:1 | 9.5:1 |
| Oil volume [l] | 3.6 | 3.6 | 4.2 | 4.2 | - | - |
| Coolant volume [l] | 5.8 | 6.0 | 6.1 | 6.1 | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 183 | 190 | 210 | 205 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 12.6 | 11.1 | 8.9 | 9.2 | 6.4 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.6 | 5.8 | 6.6 | 6.4 | 9.5 | 9.7 |
| Out of town [l] | 4.8 | 4.6 | 4.8 | 5.0 | 5.5 | 5.7 |
| Combined [l] | 5.4 | 5.0 | 5.4 | 5.5 | 7.0 | 7.1 |
| CO2 emissions [g/km] | 126 | 115 | 124 | 125 | 159 | 163 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 76 | 74 | 79 | 77 | - | - |
| Driving noise [dB] | 70 | 71 | 70 | 70 | - | - |
| Standby weight [kg] | 1319-1466 | 1344-1492 | 1354-1502 | 1390-1538 | 1579 | 1579 |
| Overall weight [kg] | 1760 | 1800 | 1820 | 1850 | 1950 | 1950 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | 600/1400 | 600/1400 | 700/1600 | 700/1600 |
| Maximum front/rear axle load [kg] | 1050/950 | 1050/950 | 1050/950 | 1050/950 | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 395 | 395 | 395 | 395 | 395 | 395 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.30 | 0.30 | 0.30 | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/40 R18 | 235/35 R19 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/40 R18 | 235/35 R19 |
| Wheel size front | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | - | - |
| Wheel size rear | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | - | - |
| Brake dimensions front | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | - | - |
| Brake dimensions rear | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | 2.14 | 2.14 |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4340 | 4340 | 4340 | 4340 | 4335 | 4335 |
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1451 | 1447 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1557 | 1556 |
| Rear wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1566 | 1564 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | - | - |
| Rear overhang [mm] | 785 | 785 | 785 | 785 | - | - |
| Clearance [mm] | 140 | 140 | 140 | 140 | 136 | 132 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 |
| Rear elbow/shoulder width [mm] | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| 1.6 CRDi 95 | 1.6 CRDi 110 | 1.6 CRDi 110 | 1.6 CRDi 136 | 1.6 CRDi 136 | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1582 | 1582 | 1582 | 1582 | 1582 | |
| Maximum output / speed [kW/min-1] | 70/4000 | 81/4000 | 81/4000 | 100/4000 | 100/4000 | |
| Maximum torque [Nm/min-1] | 280/1500-2250 | 280/1500-2500 | 300/1750-2500 | 280/1500-3000 | 300/1750-2500 | |
| Bore and stroke [mm x mm] | 77.2 x 84.5 | 77.2 x 84.5 | 77.2 x 84.5 | 77.2 x 84.5 | 77.2 x 84.5 | |
| Compression ratio | 16.0:1 | 16.0:1 | 16.0:1 | 16.0:1 | 16.0:1 | |
| Oil volume [l] | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | |
| Coolant volume [l] | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | |
| Drive specifications | - | - |
| - |
| |
| Top speed [km/h] | 186 | 190 | 190 | 200 | 200 | |
| Acceleration 0–100 km/h [s] | 12.2 | 11.0 | 11.2 | 10.2 | 10.6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 4.0 | 4.2 | 4.4 | 4.3 | 4.4 | |
| Out of town [l] | 3.5 | 3.6 | 3.9 | 3.7 | 3.9 | |
| Combined [l] | 3.6 | 3.8 | 4.1 | 3.9 | 4.1 | |
| CO2 emissions [g/km] | 95 | 99 | 109 | 102 | 109 | |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | 76 | 76 | 75 | 76 | 75 | |
| Driving noise [dB] | 70 | 70 | 70 | 70 | 70 | |
| Standby weight [kg] | 1413-1561 | 1413-1561 | 1443-1591 | 1413-1561 | 1443-1591 | |
| Overall weight [kg] | 1860 | 1860 | 1900 | 1860 | 1900 | |
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | |
| Maximum front/rear axle load [kg] | 1050/950 | 1050/950 | 1050/950 | 1050/950 | 1050/950 | |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 395 | 395 | 395 | 395 | 395 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | |
| Wheel size front | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | |
| Wheel size rear | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | |
| Brake dimensions front | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | |
| Brake dimensions rear | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | |
| Overall length [mm] | 4340 | 4340 | 4340 | 4340 | 4340 | |
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | |
| Rear wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1581 | |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | |
| Rear overhang [mm] | 785 | 785 | 785 | 785 | 785 | |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 994 | 994 | 994 | 994 | 994 | |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | |
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 | |
| Rear elbow/shoulder width [mm] | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 | |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 |

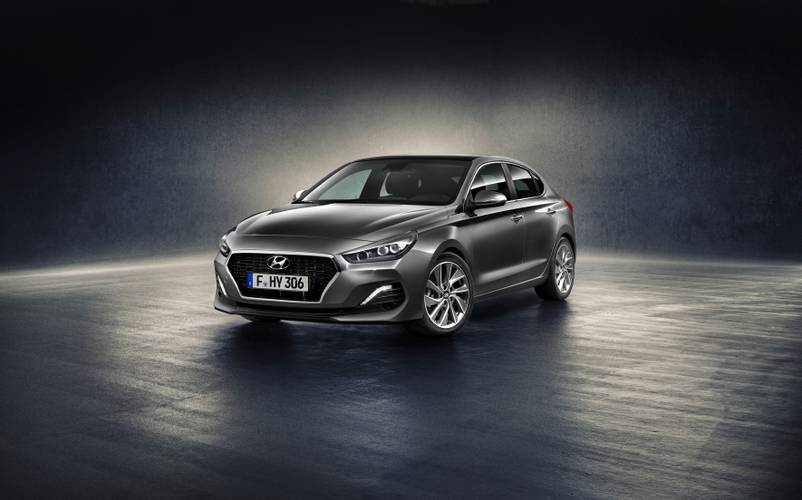

Fastback
| 1,0 T-GDI D-CVVT 120 | 1.4 T-GDI D-CVVT 140 | 1.4 T-GDI D-CVVT 140 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | |||
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 998 | 1353 | 1353 | |||
| Maximum output / speed [kW/min-1] | 88.3/6000 | 103/6000 | 103/6000 | |||
| Maximum torque [Nm/min-1] | 172/1500-4000 | 242/1500-3200 | 242/1500-3200 | |||
| Bore and stroke [mm x mm] | 71.0 x 84.0 | 71.6 x 84.0 | 71.6 x 84.0 | |||
| Compression ratio | 10.0:1 | 10.0:1 | 10.0:1 | |||
| Oil volume [l] | 3.6 | 4.2 | 4.2 | |||
| Coolant volume [l] | 6.0 | 6.1 | 6.1 | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | |||
| Drive specifications | - | - |
| |||
| Top speed [km/h] | 188 | 208 | 203 | |||
| Acceleration 0–100 km/h [s] | 11.5 | 9.2 | 9.5 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.0 | 6.9-6.7 | 6.4-6.3 | |||
| Out of town [l] | 4.6 | 5.1-4.9 | 5.1-4.9 | |||
| Combined [l] | 5.2 | 5.7-5.5 | 5.6-5.4 | |||
| CO2 emissions [g/km] | 120 | 134-129 | 129-125 | |||
| Emission standard | Euro 6 | Euro 6 | Euro 6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | 74 | 83 | 80 | |||
| Driving noise [dB] | 71 | 68 | 69 | |||
| Standby weight [kg] | 1392-1535 | 1405-1559 | 1437-1589 | |||
| Overall weight [kg] | 1820 | 1840 | 1860 | |||
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1400 | 600/1400 | |||
| Maximum front/rear axle load [kg] | 1050/950 | 1050/950 | 1050/950 | |||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | |||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | |||
| Boot volume [l] | 450 | 450 | 450 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1351 | -/1351 | -/1351 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 50 | 50 | 50 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.30 | 0.30 | 0.30 | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | 225/45 R17 | |||
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | 225/45 R17 | |||
| Wheel size front | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | |||
| Wheel size rear | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | |||
| Brake dimensions front | 288 [305 subject to a surcharge] | 288 [305 subject to a surcharge] | 288 [305 subject to a surcharge] | |||
| Brake dimensions rear | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | 2.57 | 2.57 | 2.57 | |||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | |||
| Overall length [mm] | 4455 | 4455 | 4455 | |||
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | 1795/2039 | |||
| Overall height [mm] | 1425 | 1425 | 1425 | |||
| Wheelbase [mm] | 2650 | 2650 | 2650 | |||
| Front wheel track [mm] | 1559 | 1559 | 1559 | |||
| Rear wheel track [mm] | 1567 | 1567 | 1567 | |||
| Forward overhang [mm] | 905 | 905 | 905 | |||
| Rear overhang [mm] | 900 | 900 | 900 | |||
| Clearance [mm] | 135 | 135 | 135 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 979 | 979 | 979 | |||
| Headroom rear [mm] | 950 | 950 | 950 | |||
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | -/1427 | |||
| Rear elbow/shoulder width [mm] | -/1367 | -/1367 | -/1367 | |||
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | |||
| Legroom rear knees/total [mm] | -/875 | -/875 | -/875 |
Estate
| 1,4i MPI CVVT 100 | 1,0 T-GDI D-CVVT 120 | 1.4 T-GDI D-CVVT 140 | 1.4 T-GDI D-CVVT 140 | 1.6 CRDi 110 | 1.6 CRDi 110 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 998 | 1353 | 1353 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 73.3/6000 | 88.3/6000 | 103/6000 | 103/6000 | 81/4000 | 81/4000 |
| Maximum torque [Nm/min-1] | 134/4000 | 172/1500-4000 | 242/1500-3200 | 242/1500-3200 | 280/1500-2500 | 300/1750-2500 |
| Bore and stroke [mm x mm] | 72.0 x 84.0 | 71.0 x 84.0 | 71.6 x 84.0 | 71.6 x 84.0 | 77.2 x 84.5 | 77.2 x 84.5 |
| Compression ratio | 10.5:1 | 10.0:1 | 10.0:1 | 10.0:1 | 16.0:1 | 16.0:1 |
| Oil volume [l] | 3.6 | 3.6 | 4.2 | 4.2 | 5.3 | 5.3 |
| Coolant volume [l] | 5.8 | 6.0 | 6.1 | 6.1 | 4.6 | 4.6 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 181 | 185 | 208 | 203 | 188 | 188 |
| Acceleration 0–100 km/h [s] | 12.9 | 11.4 | 9.2 | 9.5 | 11.3 | 11.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,9 | 6,0 | 6,7 | 6,4 | 4,2 | 4,7 |
| Out of town [l] | 4,9 | 4,6 | 4,8 | 5,0 | 3,6 | 4,1 |
| Combined [l] | 5.6 | 5.2 | 5.5 | 5.5 | 3.8 | 4.3 |
| CO2 emissions [g/km] | 131 | 120 | 129 | 125 | 99 | 112 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 76 | 74 | 79 | 77 | 76 | 75 |
| Driving noise [dB] | 70 | 71 | 70 | 70 | 70 | 70 |
| Standby weight [kg] | 1360-1522 | 1395-1558 | 1412-1575 | 1444-1607 | 1460-1623 | 1490-1653 |
| Overall weight [kg] | 1800 | 1840 | 1850 | 1880 | 1900 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | 600/1400 | 600/1400 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | 1050/970 | 1050/970 | 1050/970 | 1050/970 | 1050/970 | 1050/970 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 602 | 602 | 602 | 602 | 602 | 602 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1650 | -/1650 | -/1650 | -/1650 | -/1650 | -/1650 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 |
| Wheel size rear | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 |
| Brake dimensions front | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] |
| Brake dimensions rear | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4585 | 4585 | 4585 | 4585 | 4585 | 4585 |
| Overall width without/including mirrors [mm] | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1581 | 1581 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1426 | -/1426 | -/1426 | -/1426 | -/1426 | -/1426 |
| Rear elbow/shoulder width [mm] | -/1405 | -/1405 | -/1405 | -/1405 | -/1405 | -/1405 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| 1.6 CRDi 136 | 1.6 CRDi 136 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1582 | 1582 | ||||
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | ||||
| Maximum torque [Nm/min-1] | 280/1500-3000 | 300/1750-2500 | ||||
| Bore and stroke [mm x mm] | 77.2 x 84.5 | 77.2 x 84.5 | ||||
| Compression ratio | 16.0:1 | 16.0:1 | ||||
| Oil volume [l] | 5.3 | 5.3 | ||||
| Coolant volume [l] | 4.6 | 4.6 | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 7 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 198 | 198 | ||||
| Acceleration 0–100 km/h [s] | 10.5 | 10.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4,3 | 4,7 | ||||
| Out of town [l] | 3,7 | 4,1 | ||||
| Combined [l] | 3.9 | 4.3 | ||||
| CO2 emissions [g/km] | 102 | 112 | ||||
| Emission standard | Euro 6 | Euro 6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | 76 | 75 | ||||
| Driving noise [dB] | 70 | 70 | ||||
| Standby weight [kg] | 1460-1623 | 1490-1653 | ||||
| Overall weight [kg] | 1900 | 1940 | ||||
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | ||||
| Maximum front/rear axle load [kg] | 1050/970 | 1050/970 | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | ||||
| Boot volume [l] | 602 | 602 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1650 | -/1650 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 50 | 50 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | ||||
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | ||||
| Wheel size front | 6,0J x 15 | 6,0J x 15 | ||||
| Wheel size rear | 6,0J x 15 | 6,0J x 15 | ||||
| Brake dimensions front | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | ||||
| Brake dimensions rear | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | ||||
| Overall length [mm] | 4585 | 4585 | ||||
| Overall width without/including mirrors [mm] | 1795/2050 | 1795/2050 | ||||
| Overall height [mm] | 1465 | 1465 | ||||
| Wheelbase [mm] | 2650 | 2650 | ||||
| Front wheel track [mm] | 1573 | 1573 | ||||
| Rear wheel track [mm] | 1581 | 1581 | ||||
| Forward overhang [mm] | 905 | 905 | ||||
| Rear overhang [mm] | 1030 | 1030 | ||||
| Clearance [mm] | 140 | 140 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | -/1426 | -/1426 | ||||
| Rear elbow/shoulder width [mm] | -/1405 | -/1405 | ||||
| Legroom front knees/total [mm] | -/1073 | -/1073 | ||||
| Legroom rear knees/total [mm] | -/883 | -/883 |

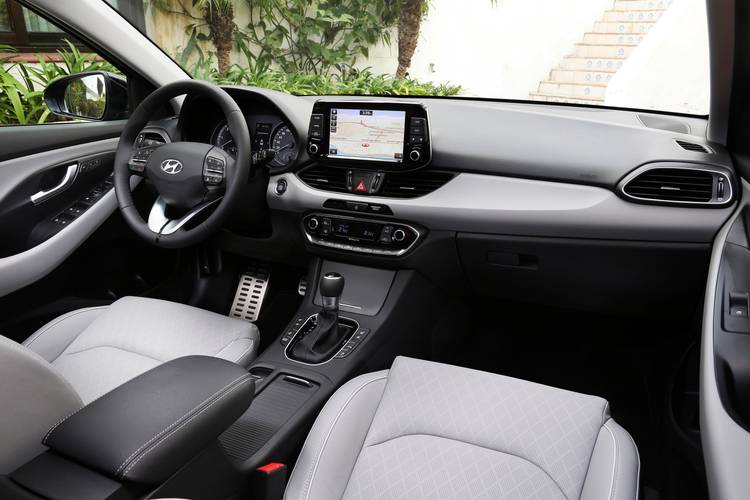

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
