Hyundai i30
Date of manufacture
2018 – 2020 (Five-door hatchback)
2018 – 2020 (Estate)
2018 – 2020 (Fastback)
Platform
Hyundai-Kia J6
Manufacturing locations
Nošovice, Czechia
Ulsan, South Korea
Designer
-
Tags
C-segment
Korean cars
The Hyundai i30 model comes in three body styles: five-door hatchback, estate and fastback. The car has been produced since 2018 and is manufactured in the Czech Republic and South Korea. It is built on the Hyundai-Kia J6 platform. The engine range includes petrol and diesel units. The most powerful version is the 2.0 N T-GDI Performance 275 with 202 kW of power. The 2.0 N T-GDI Performance 275 has a top speed of 250 km/h and the 2.0 N T-GDI Project C has the best acceleration from 0-100 km/h in 6.0 seconds. The most fuel-efficient version is the 1.6 CRDi 95 with a combined fuel consumption of 3.9 l/100 km and CO2 emissions of 99 g/km. The five-door hatchback has a boot capacity of 395 l, the estate has a luggage capacity of 602 l and the fastback has a boot capacity of 450 l. The model was tested in the area of safety in 2017 and achieved an overall rating of 5 out of 5 according to EURONCAP.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2018 – 2020Internal designation
PDEstate
after upgrade (facelift)
Date of manufacture
2018 – 2020Internal designation

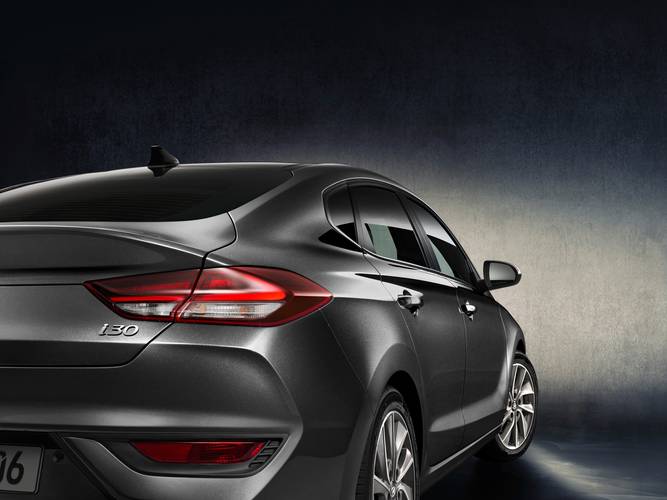

PDFastback
after upgrade (facelift)
Date of manufacture
2018 – 2020Internal designation
PD
Technical data
Five-door hatchback
| 1,4i MPI CVVT 100 | 1,0 T-GDI D-CVVT 120 | 1.4 T-GDI D-CVVT 140 | 1.4 T-GDI D-CVVT 140 | 2.0 N T-GDI 250 | 2.0 N T-GDI Performance 275 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 998 | 1353 | 1353 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 73.3/6000 | 88.3/6000 | 103/6000 | 103/6000 | 184/6000 | 202/6000 |
| Maximum torque [Nm/min-1] | 134/4000 | 172/1500-4000 | 242/1500-3200 | 242/1500-3200 | 353/1450-4000 | 378/1750-4200 |
| Bore and stroke [mm x mm] | 72.0 x 84.0 | 71.0 x 84.0 | 71.6 x 84.0 | 71.6 x 84.0 | 86.0 x 86.0 | 86.0 x 86.0 |
| Compression ratio | 10.5:1 | 10.0:1 | 10.0:1 | 10.0:1 | 9.5:1 | 9.5:1 |
| Oil volume [l] | 3.6 | 3.6 | 4.2 | 4.2 | 4.8 | 4.8 |
| Coolant volume [l] | 5.8 | 6.0 | 6.1 | 6.1 | 8.5 | 8.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 183 | 190 | 210 | 205 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 12,6 | 11,1 | 8,9 | 9,2 | 6.4 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | 5.7 | 5.6 |
| City [l] | 7,8-7,9 | 6,4-6,5 | 6,9-7,2 | 6,5-6,7 | 10.7 | 10.6 |
| Out of town [l] | 5,2 | 4,8-4,9 | 4,9-5,1 | 4,8-5,1 | 5.9 | 6.1 |
| Combined [l] | 6,2 | 5,4-5,5 | 5,7-5,9 | 5,4-5,7 | 7.7 | 7.8 |
| CO2 emissions [g/km] | 141-143 | 123-126 | 130-134 | 123-130 | 176 | 178 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | 8.3 |
| CO2 emissions [g/km] | - | - | - | - | - | 188 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 76 | 74 | 79 | 77 | 92 | 91 |
| Driving noise [dB] | 70 | 71 | 70 | 70 | 71 | 71 |
| Standby weight [kg] | 1260-1407 | 1295-1444 | 1310-1458 | 1342-1490 | 1475-1555 | 1504-1584 |
| Overall weight [kg] | 1760 | 1800 | 1820 | 1850 | 1950 | 1950 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | 600/1100 | 600/1500 | 700/1600 | 700/1600 |
| Maximum front/rear axle load [kg] | 1050/950 | 1050/950 | 1050/950 | 1050/950 | 1090/980 | 1090/980 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 395 | 395 | 395 | 395 | 395 | 395 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.30 | 0.30 | 0.30 | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/40 R18 | 235/35 R19 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/40 R18 | 235/35 R19 |
| Wheel size front | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 7.5J x 18 | 8.0J x 19 |
| Wheel size rear | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 7.5J x 18 | 8.0J x 19 |
| Brake dimensions front | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 330 | 345 |
| Brake dimensions rear | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 300 | 314 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | 2.14 | 2.14 |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4340 | 4340 | 4340 | 4340 | 4335 | 4335 |
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1451 | 1447 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1557 | 1556 |
| Rear wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1566 | 1564 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 785 | 785 | 785 | 785 | 780 | 780 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 136 | 132 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 |
| Rear elbow/shoulder width [mm] | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| 2.0 N T-GDI Project C | 1.6 CRDi 95 | 1.6 CRDi 115 | 1.6 CRDi 115 | 1.6 CRDi 136 | 1.6 CRDi 136 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 202/6000 | 70/4000 | 85/4000 | 85/4000 | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 378/1750-4200 | 280/1500-2250 | 280/1500-2750 | 280/1500-2750 | 280/1500-3000 | 320/2000-2250 |
| Bore and stroke [mm x mm] | 86.0 x 86.0 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 |
| Compression ratio | 9.5:1 | 15.9:1 | 15.9:1 | 15.9:1 | 15.9:1 | 15.9:1 |
| Oil volume [l] | - | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| Coolant volume [l] | - | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 250 | 178 | 192 | 192 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 6.0 | 11,6 | 10,9 | 10,9 | 10,2 | 9,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.7 | 4,3-4,4 | 4,5-4,7 | 4,4 | 4,7-4,9 | 4,5-4,6 |
| Out of town [l] | 5.7 | 3,5-3,7 | 3,8-4,0 | 3,8-3,9 | 3,8-4,2 | 3,9-4,1 |
| Combined [l] | 7.1 | 3,8-3,9 | 4,1-4,3 | 4,0-4,1 | 4,1-4,4 | 4,1-4,3 |
| CO2 emissions [g/km] | 176 | 99-104 | 107-112 | 105-107 | 108-116 | 107-113 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | 74 | 74 | 74 | 74 | 74 |
| Driving noise [dB] | - | 68 | 68 | 69 | 68 | 69 |
| Standby weight [kg] | 1395 net weight | 1388-1487 | 1388-1487 | 1418-1566 | 1388-1487 | 1418-1566 |
| Overall weight [kg] | 1910 | 1880 | 1880 | 1910 | 1880 | 1910 |
| Maximum trailer weight unbraked/braked [kg] | - | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | - | 1050/950 | 1050/950 | 1050/950 | 1050/950 | 1050/950 |
| Maximum vertical load on the tow bar [kg] | - | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 395 | 395 | 395 | 395 | 395 | 395 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | 12 | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | 0.32 | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/35 R19 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 235/35 R19 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 8.0J x 19 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 |
| Wheel size rear | 8.0J x 19 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 |
| Brake dimensions front | - | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] |
| Brake dimensions rear | - | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.14 | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4371 | 4340 | 4340 | 4340 | 4340 | 4340 |
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 |
| Overall height [mm] | 1439 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | - | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | - | 1581 | 1581 | 1581 | 1581 | 1581 |
| Forward overhang [mm] | 933 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 788 | 785 | 785 | 785 | 785 | 785 |
| Clearance [mm] | 126 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 |
| Rear elbow/shoulder width [mm] | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
Estate
| 1,4i MPI CVVT 100 | 1,0 T-GDI D-CVVT 120 | 1.4 T-GDI D-CVVT 140 | 1.4 T-GDI D-CVVT 140 | 1.6 CRDi 115 | 1.6 CRDi 115 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 998 | 1353 | 1353 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 73.3/6000 | 88.3/6000 | 103/6000 | 103/6000 | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 134/4000 | 172/1500-4000 | 242/1500-3200 | 242/1500-3200 | 280/1500-2750 | 280/1500-2750 |
| Bore and stroke [mm x mm] | 72.0 x 84.0 | 71.0 x 84.0 | 71.6 x 84.0 | 71.6 x 84.0 | 77.0 x 85.8 | 77.0 x 85.8 |
| Compression ratio | 10.5:1 | 10.0:1 | 10.0:1 | 10.0:1 | 15.9:1 | 15.9:1 |
| Oil volume [l] | 3.6 | 3.6 | 4.2 | 4.2 | 4.4 | 4.4 |
| Coolant volume [l] | 5.8 | 6.0 | 6.1 | 6.1 | 6.7 | 6.7 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 183 | 190 | 210 | 205 | 192 | 192 |
| Acceleration 0–100 km/h [s] | 12,9 | 11,3 | 9,1 | 9,4 | 11,1 | 11,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,8-7,9 | 6,4-6,5 | 6,9-7,2 | 6,5-6,7 | 4,5-4,7 | 4,4 |
| Out of town [l] | 5,2 | 4,8-4,9 | 4,9-5,1 | 4,8-5,1 | 3,8-4,0 | 3,8-3,9 |
| Combined [l] | 6,2 | 5,4-5,5 | 5,7-5,9 | 5,4-5,7 | 4,1-4,3 | 4,0-4,1 |
| CO2 emissions [g/km] | 141-143 | 123-126 | 130-134 | 123-130 | 107-112 | 105-107 |
| Emission standard | Euro 6-TEMP | Euro 6-TEMP | Euro 6-TEMP | Euro 6-TEMP | Euro 6-TEMP | Euro 6-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 76 | 74 | 79 | 77 | 74 | 74 |
| Driving noise [dB] | 70 | 71 | 70 | 70 | 68 | 69 |
| Standby weight [kg] | 1285-1439 | 1320-1475 | 1337-1492 | 1369-1525 | 1415-1570 | 1445-1601 |
| Overall weight [kg] | 1800 | 1840 | 1850 | 1880 | 1920 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | 600/1410 | 600/1410 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | 1050/970 | 1050/970 | 1050/970 | 1050/970 | 1050/970 | 1050/970 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 602 | 602 | 602 | 602 | 602 | 602 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1650 | -/1650 | -/1650 | -/1650 | -/1650 | -/1650 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | 14 | 14 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 |
| Wheel size rear | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 | 6,0J x 15 |
| Brake dimensions front | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] |
| Brake dimensions rear | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4585 | 4585 | 4585 | 4585 | 4585 | 4585 |
| Overall width without/including mirrors [mm] | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1581 | 1581 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1426 | -/1426 | -/1426 | -/1426 | -/1426 | -/1426 |
| Rear elbow/shoulder width [mm] | -/1405 | -/1405 | -/1405 | -/1405 | -/1405 | -/1405 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| 1.6 CRDi 136 | 1.6 CRDi 136 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | ||||
| Maximum torque [Nm/min-1] | 280/1500-3000 | 320/2000-2250 | ||||
| Bore and stroke [mm x mm] | 77.0 x 85.8 | 77.0 x 85.8 | ||||
| Compression ratio | 15.9:1 | 15.9:1 | ||||
| Oil volume [l] | 4.4 | 4.4 | ||||
| Coolant volume [l] | 6.7 | 6.7 | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 7 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 200 | 200 | ||||
| Acceleration 0–100 km/h [s] | 10,4 | 10,1 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4,7-4,9 | 4,5-4,6 | ||||
| Out of town [l] | 3,8-4,2 | 3,9-4,1 | ||||
| Combined [l] | 4,1-4,4 | 4,1-4,3 | ||||
| CO2 emissions [g/km] | 108-116 | 107-113 | ||||
| Emission standard | Euro 6-TEMP | Euro 6-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | 74 | 74 | ||||
| Driving noise [dB] | 68 | 69 | ||||
| Standby weight [kg] | 1415-1570 | 1445-1601 | ||||
| Overall weight [kg] | 1920 | 1940 | ||||
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | ||||
| Maximum front/rear axle load [kg] | 1050/970 | 1050/970 | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | ||||
| Boot volume [l] | 602 | 602 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1650 | -/1650 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 50 | 50 | ||||
| AdBlue tank volume [l] | 14 | 14 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | ||||
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | ||||
| Wheel size front | 6,0J x 15 | 6,0J x 15 | ||||
| Wheel size rear | 6,0J x 15 | 6,0J x 15 | ||||
| Brake dimensions front | 280 [288/305 subject to a surcharge] | 280 [288/305 subject to a surcharge] | ||||
| Brake dimensions rear | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | ||||
| Overall length [mm] | 4585 | 4585 | ||||
| Overall width without/including mirrors [mm] | 1795/2050 | 1795/2050 | ||||
| Overall height [mm] | 1465 | 1465 | ||||
| Wheelbase [mm] | 2650 | 2650 | ||||
| Front wheel track [mm] | 1573 | 1573 | ||||
| Rear wheel track [mm] | 1581 | 1581 | ||||
| Forward overhang [mm] | 905 | 905 | ||||
| Rear overhang [mm] | 1030 | 1030 | ||||
| Clearance [mm] | 140 | 140 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | -/1426 | -/1426 | ||||
| Rear elbow/shoulder width [mm] | -/1405 | -/1405 | ||||
| Legroom front knees/total [mm] | -/1073 | -/1073 | ||||
| Legroom rear knees/total [mm] | -/883 | -/883 |
Fastback
| 1,0 T-GDI D-CVVT 120 | 1.4 T-GDI D-CVVT 140 | 1.4 T-GDI D-CVVT 140 | 2.0 N T-GDI 250 | 2.0 N T-GDI Performance 275 | 1.6 CRDi 136 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 998 | 1353 | 1353 | 1998 | 1998 | 1598 |
| Maximum output / speed [kW/min-1] | 88.3/6000 | 103/6000 | 103/6000 | 184/6000 | 202/6000 | 100/4000 |
| Maximum torque [Nm/min-1] | 172/1500-4000 | 242/1500-3200 | 242/1500-3200 | 353/1450-4000 | 378/1750-4200 | 280/1500-3000 |
| Bore and stroke [mm x mm] | 71.0 x 84.0 | 71.6 x 84.0 | 71.6 x 84.0 | 86.0 x 86.0 | 86.0 x 86.0 | 77.0 x 85.8 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.0:1 | 9.5:1 | 9.5:1 | 15.9:1 |
| Oil volume [l] | 3.6 | 4.2 | 4.2 | 4.8 | 4.8 | 4.4 |
| Coolant volume [l] | 6.0 | 6.1 | 6.1 | 8.5 | 8.5 | 6.7 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 190 | 210 | 205 | 250 | 250 | 200 |
| Acceleration 0–100 km/h [s] | 11,3 | 9,1 | 9,4 | 6.4 | 6.1 | 10,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 5.7 | 5.6 | - |
| City [l] | 6,4-6,5 | 6,9-7,2 | 6,5-6,7 | 10.7 | 10.6 | 4,7-4,9 |
| Out of town [l] | 4,8-4,9 | 4,9-5,1 | 4,8-5,1 | 5.9 | 6.1 | 3,8-4,2 |
| Combined [l] | 5,4-5,5 | 5,7-5,9 | 5,4-5,7 | 7.7 | 7.8 | 4,1-4,4 |
| CO2 emissions [g/km] | 123-126 | 130-134 | 123-130 | 176 | 178 | 108-116 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 74 | 85 | 83 | 92 | 91 | 74 |
| Driving noise [dB] | 71 | 69 | 69 | 71 | 71 | 68 |
| Standby weight [kg] | 1317-1460 | 1330-1484 | 1362-1514 | 1494-1573 | 1516-1595 | 1410-1562 |
| Overall weight [kg] | 1820 | 1840 | 1860 | 1950 | 1950 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1410 | 600/1410 | 750/1600 | 750/1600 | 650/1500 |
| Maximum front/rear axle load [kg] | 1050/950 | 1050/950 | 1050/950 | 1090/980 | 1090/980 | 1050/950 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | 12 |
| Air resistance [Cd] | 0.30 | 0.30 | 0.30 | 0.297 | 0.297 | 0.30 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/40 R18 | 235/35 R19 | 225/45 R17 |
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/40 R18 | 235/35 R19 | 225/45 R17 |
| Wheel size front | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | 7.5J x 18 | 8.0J x 19 | 7,0J x 17 |
| Wheel size rear | 7,0J x 17 | 7,0J x 17 | 7,0J x 17 | 7.5J x 18 | 8.0J x 19 | 7,0J x 17 |
| Brake dimensions front | 288 [305 subject to a surcharge] | 288 [305 subject to a surcharge] | 288 [305 subject to a surcharge] | 330 | 345 | 288 [305 subject to a surcharge] |
| Brake dimensions rear | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 272 [284 subject to a surcharge] | 300 | 314 | 272 [284 subject to a surcharge] |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.57 | 2.57 | 2.57 | 2.14 | 2.14 | 2.57 |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 11.6/- | 11.6/- | 10.6/- |
| Overall length [mm] | 4455 | 4455 | 4455 | 4455 | 4455 | 4455 |
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 |
| Overall height [mm] | 1425 | 1425 | 1425 | 1417 | 1419 | 1425 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1557 | 1556 | 1559 |
| Rear wheel track [mm] | 1567 | 1567 | 1567 | 1566 | 1564 | 1567 |
| Forward overhang [mm] | 905 | 905 | 905 | 979 | 979 | 905 |
| Rear overhang [mm] | 900 | 900 | 900 | 950 | 950 | 900 |
| Clearance [mm] | 135 | 135 | 135 | 132 | 132 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 979 | 979 | 979 | 979 | 979 | 979 |
| Headroom rear [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 |
| Rear elbow/shoulder width [mm] | -/1367 | -/1367 | -/1367 | -/1367 | -/1367 | -/1367 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/875 | -/875 | -/875 | -/875 | -/875 | -/875 |
| 1.6 CRDi 136 | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1598 | |||||
| Maximum output / speed [kW/min-1] | 100/4000 | |||||
| Maximum torque [Nm/min-1] | 320/2000-2250 | |||||
| Bore and stroke [mm x mm] | 77.0 x 85.8 | |||||
| Compression ratio | 15.9:1 | |||||
| Oil volume [l] | 4.4 | |||||
| Coolant volume [l] | 6.7 | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 200 | |||||
| Acceleration 0–100 km/h [s] | 10,1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 4,5-4,6 | |||||
| Out of town [l] | 3,9-4,1 | |||||
| Combined [l] | 4,1-4,3 | |||||
| CO2 emissions [g/km] | 107-113 | |||||
| Emission standard | Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | 74 | |||||
| Driving noise [dB] | 69 | |||||
| Standby weight [kg] | 1440-1592 | |||||
| Overall weight [kg] | 1440-1592 | |||||
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | |||||
| Maximum front/rear axle load [kg] | 1050/950 | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 80/- | |||||
| Boot volume [l] | 450 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1351 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 50 | |||||
| AdBlue tank volume [l] | 12 | |||||
| Air resistance [Cd] | 0.30 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 225/45 R17 | |||||
| Tyre dimensions rear | 225/45 R17 | |||||
| Wheel size front | 7,0J x 17 | |||||
| Wheel size rear | 7,0J x 17 | |||||
| Brake dimensions front | 288 [305 subject to a surcharge] | |||||
| Brake dimensions rear | 272 [284 subject to a surcharge] | |||||
| Steering | - | |||||
| Number of steering wheel turns | 2.57 | |||||
| Turning diameter track/circumference [m] | 10.6/- | |||||
| Overall length [mm] | 4455 | |||||
| Overall width without/including mirrors [mm] | 1795/2039 | |||||
| Overall height [mm] | 1425 | |||||
| Wheelbase [mm] | 2650 | |||||
| Front wheel track [mm] | 1559 | |||||
| Rear wheel track [mm] | 1567 | |||||
| Forward overhang [mm] | 905 | |||||
| Rear overhang [mm] | 900 | |||||
| Clearance [mm] | 135 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 979 | |||||
| Headroom rear [mm] | 950 | |||||
| Front elbow/shoulder width [mm] | -/1427 | |||||
| Rear elbow/shoulder width [mm] | -/1367 | |||||
| Legroom front knees/total [mm] | -/1073 | |||||
| Legroom rear knees/total [mm] | -/875 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
