Hyundai ix20

Date of manufacture

9/2010 – 4/2015 (MPV)

Platform

Hyundai-Kia PB

Manufacturing locations

Nošovice, Czechia

Designer

Thomas Bürkle

Car body style

MPV

Date of manufacture

9/2010 – 4/2015

Internal designation

Engine size

Petrol

Diesel

Euro NCAP

Technical data

MPV

	1.4 CVVT	1.4 CVVT ISG	1.6 CVVT	1.6 CVVT ISG	1.6 CVVT	1.4 CRDi
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1396	1396	1591	1591	1591	1396
Maximum output / speed [kW/min-1]	66,2/6000	66,2/6000	91,5/6300	91,5/6300	91,5/6300	57/4000
Maximum torque [Nm/min-1]	137,3/4000	137,3/4000	156/4200	156/4200	156/4200	220/1750-2350
Bore and stroke [mm x mm]	77,0 x 74,99	77,0 x 74,99	77,0 x 85,44	77,0 x 85,44	77,0 x 85,44	75,0 x 79,0
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	17,0:1
Oil volume [l]	3.3	3.3	3.3	3.3	3.3	5.3
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake valves CVVT	variable timing of intake valves CVVT start&stop system ISG	variable timing of intake valves CVVT	variable timing of intake valves CVVT start&stop system ISG	variable timing of intake valves CVVT	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	6 gear manual	6 gear manual	4 gear automatic	6 gear manual
Drive specifications	-	-	-	-	automatic gearbox	-

Top speed [km/h]	167	167	184	184	178	160
Acceleration 0–100 km/h [s]	12.9	12.9	10.9	10.9	12.2	15.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.2	6.6	7.4	7.1	8.3	5.0
Out of town [l]	5.3	5.1	5.7	5.2	5.5	4.2
Combined [l]	6.0	5.6	6.4	5.9	6.5	4.5
CO2 emissions [g/km]	140	130	148	139	154	119

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	78	78	78	78	79	79
Driving noise [dB]	71	71	71	71	71	70

Standby weight [kg]	1253-1343	1253-1343	1255-1355	1255-1355	1269-1370	1345-1446
Overall weight [kg]	1710	1710	1710	1710	1730	1800
Maximum trailer weight unbraked/braked [kg]	550/1300	550/1300	550/1300	550/1300	550/1100	550/1300
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	70/-	70/-	70/-	70/-	70/-	70/-

Boot volume [l]	440-570	440-570	440-570	440-570	440-570	440-570
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1486	-/1486	-/1486	-/1486	-/1486	-/1486
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	280	280	280	280	280	280
Brake dimensions rear	258	258	258	258	258	258
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.42/-	10.42/-	10.42/-	10.42/-	10.42/-	10.42/-

Overall length [mm]	4100	4100	4100	4100	4100	4100
Overall width without/including mirrors [mm]	1765/-	1765/-	1765/-	1765/-	1765/-	1765/-
Overall height [mm]	1600	1600	1600	1600	1600	1600
Wheelbase [mm]	2615	2615	2615	2615	2615	2615
Front wheel track [mm]	1553	1553	1553	1553	1553	1553
Rear wheel track [mm]	1557	1557	1557	1557	1557	1557
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	156	156	156	156	156	156
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.4 CRDi ISG	1.4 CRDi	1.4 CRDi ISG	1.6 CRDi	1.6 CRDi ISG
Date of sale	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1396	1396	1396	1582	1582
Maximum output / speed [kW/min-1]	57/4000	66/4000	66/4000	94/4000	94/4000
Maximum torque [Nm/min-1]	220/1750-2350	220/1750-2750	220/1750-2750	260/1900-2750	260/1900-2750
Bore and stroke [mm x mm]	75,0 x 79,0	75,0 x 79,0	75,0 x 79,0	77,2 x 84,5	77,2 x 84,5
Compression ratio	17,0:1	17,0:1	17,0:1	17,3:1	17,3:1
Oil volume [l]	5.3	5.3	5.3	5.3	5.3
Coolant volume [l]	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG

Drive axle	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual
Drive specifications	-	-	-	-	-

Top speed [km/h]	160	167	167	186	186
Acceleration 0–100 km/h [s]	15.5	14.5	14.5	11.2	11.2
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	4.7	5.0	4.7	5.7	5.1
Out of town [l]	4.2	4.2	4.2	4.2	4.0
Combined [l]	4.3	4.5	4.3	4.7	4.4
CO2 emissions [g/km]	114	119	114	125	117

Emission standard	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	79	79	79	79	79
Driving noise [dB]	70	70	70	70	70

Standby weight [kg]	1345-1446	1345-1446	1345-1446	1356-1455	1356-1455
Overall weight [kg]	1800	1800	1800	1810	1810
Maximum trailer weight unbraked/braked [kg]	550/1300	550/1300	550/1300	550/1300	550/1300
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	70/-	70/-	70/-	70/-	70/-

Boot volume [l]	440-570	440-570	440-570	440-570	440-570
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1486	-/1486	-/1486	-/1486	-/1486
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	5	5	5	5	5
Number of seats	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	280	280	280	280	280
Brake dimensions rear	258	258	258	258	258
Steering	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	10.42/-	10.42/-	10.42/-	10.42/-	10.42/-

Overall length [mm]	4100	4100	4100	4100	4100
Overall width without/including mirrors [mm]	1765/-	1765/-	1765/-	1765/-	1765/-
Overall height [mm]	1600	1600	1600	1600	1600
Wheelbase [mm]	2615	2615	2615	2615	2615
Front wheel track [mm]	1553	1553	1553	1553	1553
Rear wheel track [mm]	1557	1557	1557	1557	1557
Forward overhang [mm]	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-
Clearance [mm]	156	156	156	156	156
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

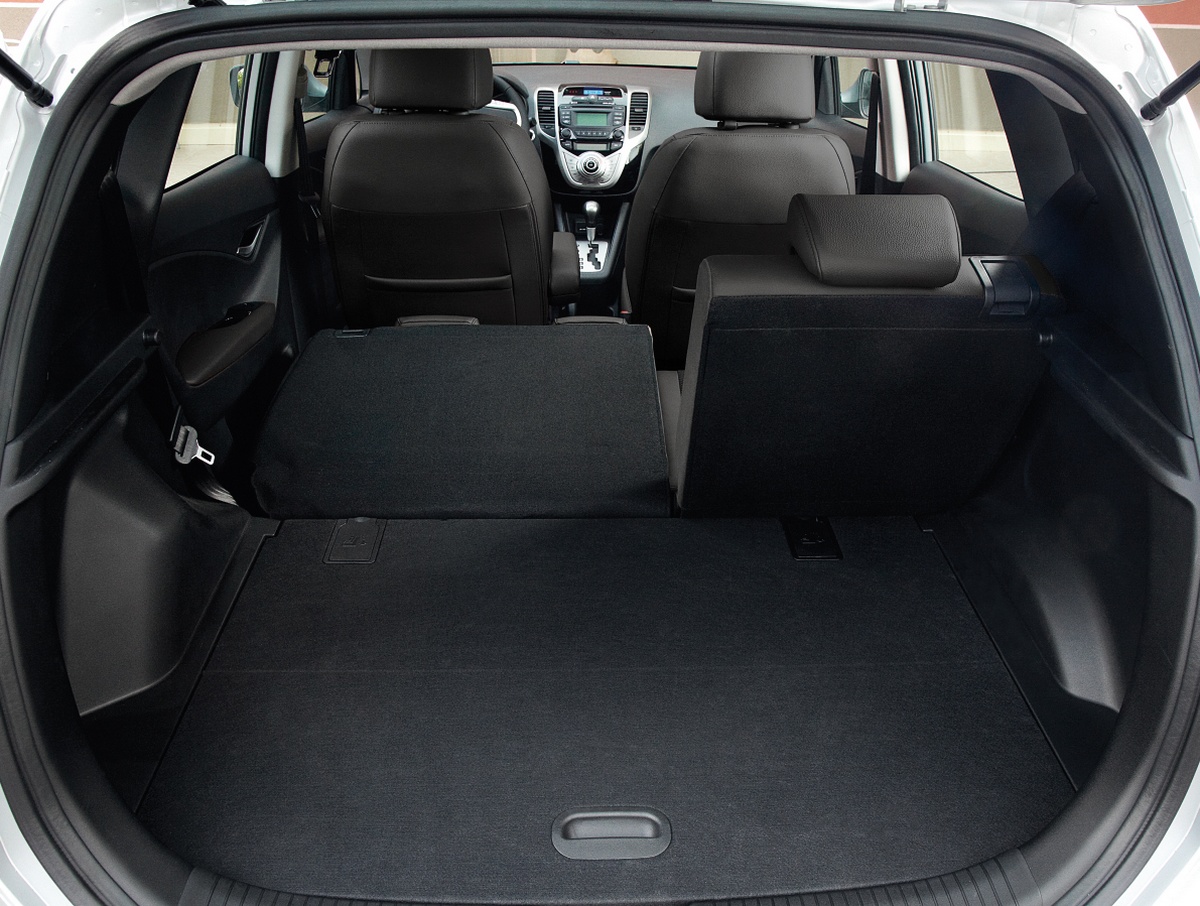

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
