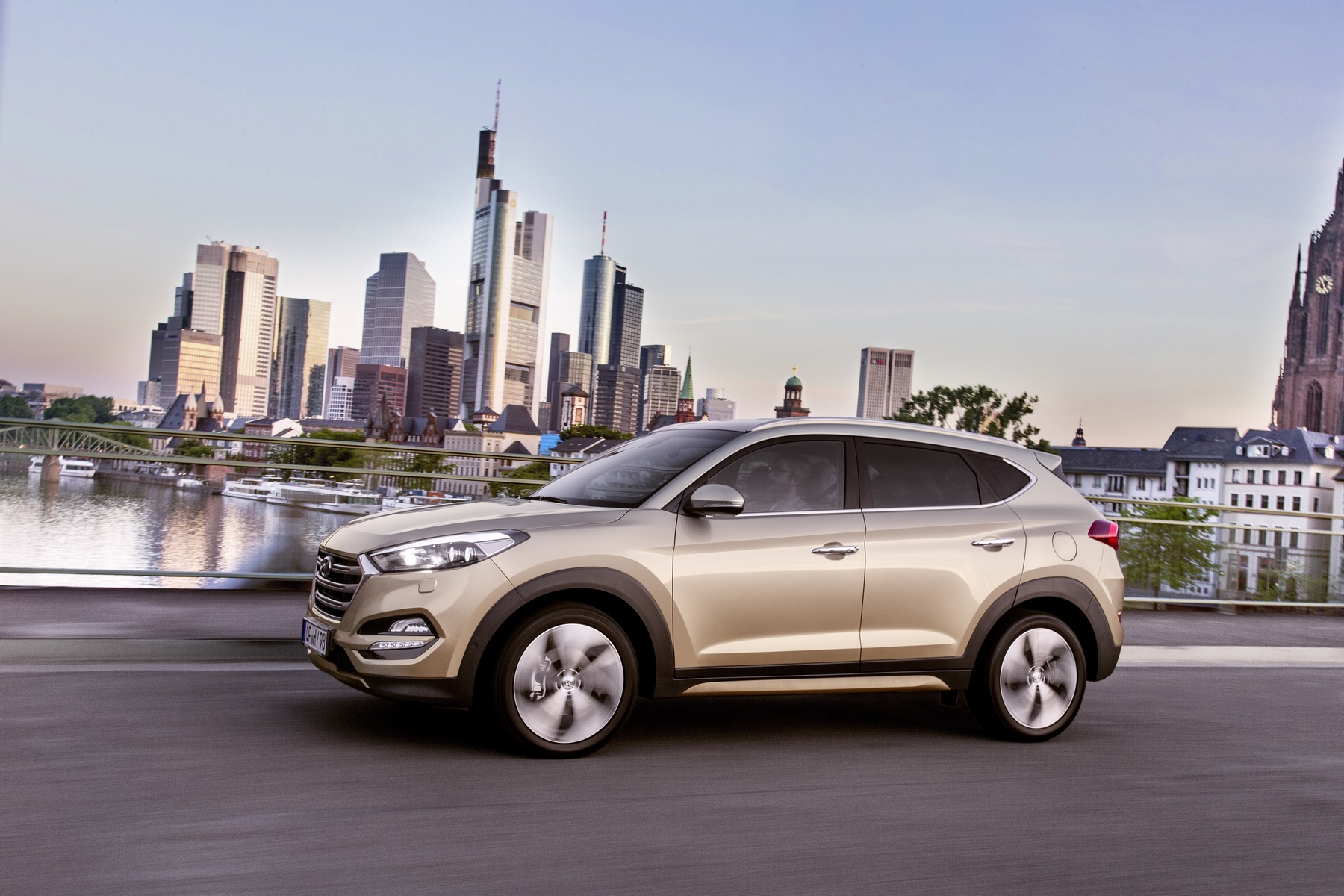

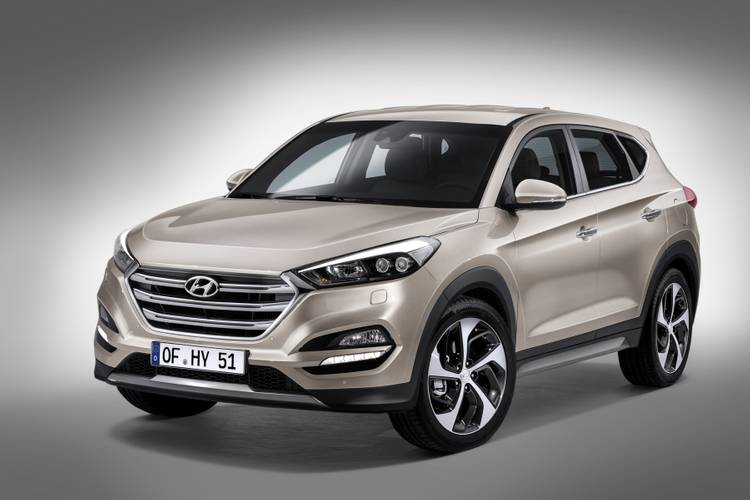

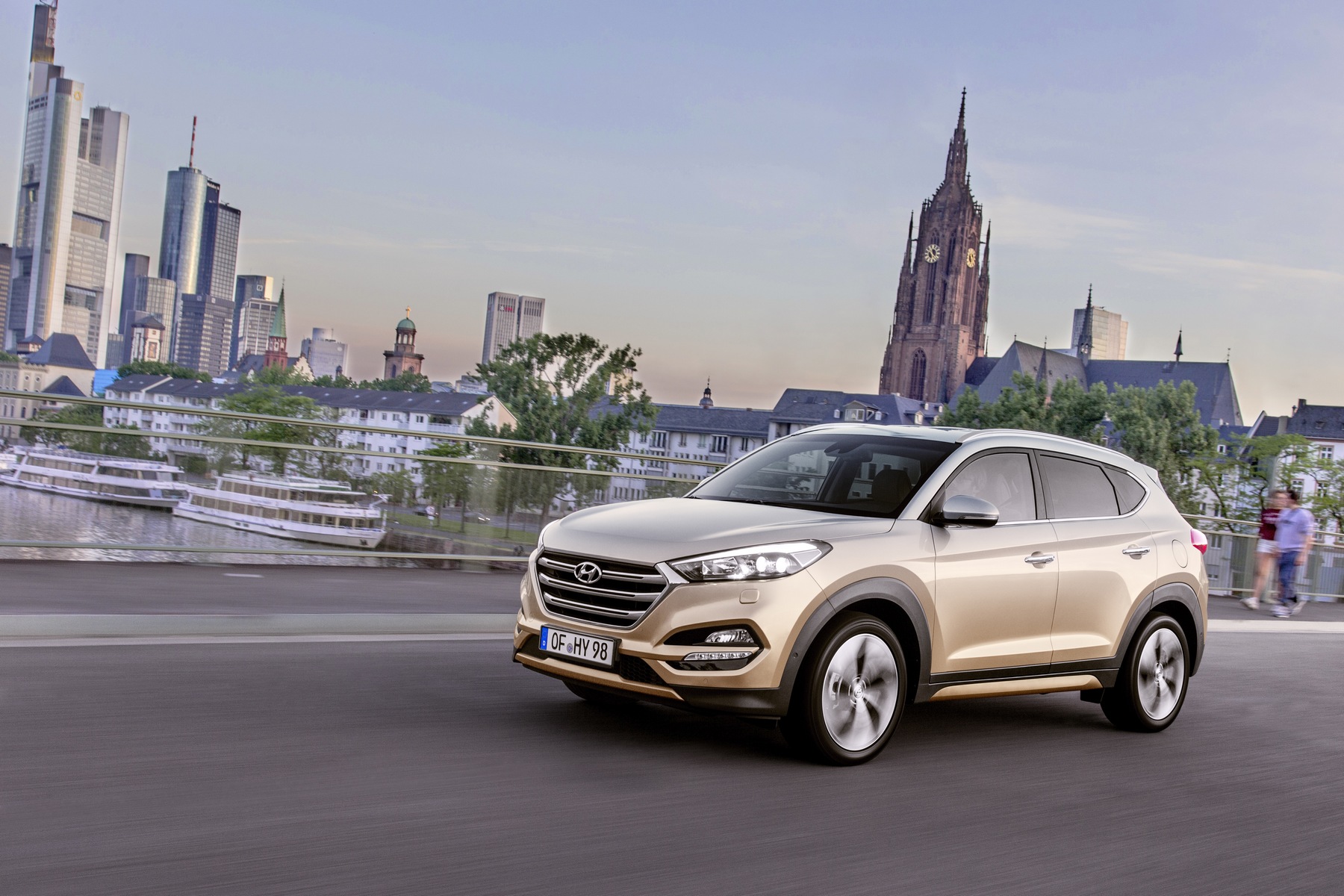

Hyundai Tucson
Date of manufacture
6/2015 – 6/2018 (SUV)
Platform
-
Manufacturing locations
Nošovice, Czechia
Ulsan, South Korea
Designer
Peter Schreyer
Tags
Compact SUV
Korean cars
The Hyundai Tucson SUV has been a popular vehicle since 2015. It offers a wide range of engines, including petrol and diesel engines, with the highest power of 136 kW for the 2.0 CRDi VGT model. The highest speed is achieved by the 1.6 T-GDi with 205 km/h and the best acceleration from 0-100 km/h in 8.9 seconds is also for the same model. The lowest consumption of 4.6 l/100 km is for the 1.7 CRDi VGT ISG and the CO2 emissions are 119 g/km. The luggage compartment has a capacity of 513 l and the Hyundai Tucson has been tested by EURONCAP in terms of safety, where it achieved an overall rating of 5 out of 5.
Car body style
SUV
Date of manufacture
6/2015 – 6/2018Internal designation
TL
Technical data
SUV
| 1.6 GDi | 1.6 GDi ISG | 1.6 T-GDi | 1.6 T-GDi | 1.6 T-GDi | 1.6 T-GDi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1591 | 1591 | 1591 | 1591 | 1591 |
| Maximum output / speed [kW/min-1] | 97/6300 | 97/6300 | 130/5500 | 130/5500 | 130/5500 | 130/5500 |
| Maximum torque [Nm/min-1] | 161/4850 | 161/4850 | 265/1500-4500 | 265/1500-4500 | 265/1500-4500 | 265/1500-4500 |
| Bore and stroke [mm x mm] | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 |
| Compression ratio | 11,0:1 | 11,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 3.6 | 3.6 | 4.5 | 4.5 | 4.5 | 4.5 |
| Coolant volume [l] | 7.7 | 7.7 | 7.5 | 7.5 | 7.5 | 7.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 182 | 182 | 205 | 201 | 202 | 201 |
| Acceleration 0–100 km/h [s] | 11.5 | 11.5 | 9.2 | 8.9 | 9.5 | 9.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 7.9 | 9.8 | 9.0 | 10.0 | 9.2 |
| Out of town [l] | 5.6 | 5.4 | 5.8 | 6.0 | 6.2 | 6.2 |
| Combined [l] | 6.7 | 6.3 | 7.3 | 7.1 | 7.6 | 7.5 |
| CO2 emissions [g/km] | 156 | 147 | 169 | 165 | 177 | 175 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 73 | 73 | 75 | 75 | 75 | 75 |
| Driving noise [dB] | 71 | 71 | 72 | 69 | 72 | 69 |
| Standby weight [kg] | 1454-1539 | 1454-1539 | 1524-1688 | 1550-1703 | 1583-1744 | 1609-1770 |
| Overall weight [kg] | 1895 | 1895 | 2120 | 2130 | 2170 | 2190 |
| Maximum trailer weight unbraked/braked [kg] | 650/1400 | 650/1400 | 750/1900 | 750/1600 | 750/1900 | 750/1600 |
| Maximum front/rear axle load [kg] | 1280/1150 | 1280/1150 | 1280/1150 | 1280/1150 | 1280/1150 | 1280/1150 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 513 | 513 | 488 | 488 | 488 | 488 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1503 | -/1503 | -/1478 | -/1478 | -/1478 | -/1478 |
| Boot length [mm] | 889 | 889 | 889 | 889 | 889 | 889 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | -/806 | -/806 | -/806 | -/806 | -/806 | -/806 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers |
| Tyre dimensions front | 215/70 R16 | 215/70 R16 | 225/60 R17 | 225/60 R17 | 225/60 R17 | 225/60 R17 |
| Tyre dimensions rear | 215/70 R16 | 215/70 R16 | 225/60 R17 | 225/60 R17 | 225/60 R17 | 225/60 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 305 | 305 | 305 | 305 | 305 | 305 |
| Brake dimensions rear | 305 | 305 | 305 | 305 | 305 | 305 |
| Steering | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 |
| Number of steering wheel turns | 2.71 | 2.71 | 2.71 | 2.71 | 2.71 | 2.71 |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4475 | 4475 | 4475 | 4475 | 4475 | 4475 |
| Overall width without/including mirrors [mm] | 1850/2070 | 1850/2070 | 1850/2070 | 1850/2070 | 1850/2070 | 1850/2070 |
| Overall height [mm] | 1645 | 1645 | 1645 | 1645 | 1645 | 1645 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1608 | 1608 | 1620 | 1620 | 1620 | 1620 |
| Rear wheel track [mm] | 1620 | 1620 | 1631 | 1631 | 1631 | 1631 |
| Forward overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Rear overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Clearance [mm] | 172 | 172 | 172 | 172 | 172 | 172 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 |
| Approach angle rear [°] | 23.9 | 23.9 | 23.9 | 23.9 | 23.9 | 23.9 |
| Transition angle [°] | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1413/1450 | 1413/1450 | 1413/1450 | 1413/1450 | 1413/1450 | 1413/1450 |
| Rear elbow/shoulder width [mm] | 1384/- | 1384/- | 1384/- | 1384/- | 1384/- | 1384/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.7 CRDi VGT | 1.7 CRDi VGT ISG | 1.7 CRDi VGT ISG | 2.0 CRDi VGT | 2.0 CRDi VGT ISG | 2.0 CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1685 | 1685 | 1685 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 104/4000 | 100/4000 | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 280/1250-2750 | 280/1250-2750 | 340/1750-2500 | 373/1500-2500 | 373/1500-2500 | 373/1500-2500 |
| Bore and stroke [mm x mm] | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 15,7:1 | 15,7:1 | 15,7:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 5.3 | 5.3 | 5.3 | 7.6 | 7.6 | 7.6 |
| Coolant volume [l] | 6.8 | 6.8 | 6.8 | 9.0 | 9.0 | 9.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 176 | 176 | 185 | 186 | 186 | 184 |
| Acceleration 0–100 km/h [s] | 13.7 | 13.7 | 11.5 | 10.6 | 10.6 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.7 | 5.4 | 5.4 | 5.7 | 5.6 | 6.0 |
| Out of town [l] | 4.2 | 4.2 | 4.7 | 4.4 | 4.4 | 4.8 |
| Combined [l] | 4.7 | 4.6 | 4.9 | 4.9 | 4.8 | 5.2 |
| CO2 emissions [g/km] | 124 | 119 | 129 | 132 | 127 | 139 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 77 | 77 | 77 | 80 | 80 | 80 |
| Driving noise [dB] | 73 | 73 | 72 | 73 | 73 | 73 |
| Standby weight [kg] | 1500-1615 | 1500-1615 | 1545-1698 | 1604-1770 | 1604-1770 | 1662-1826 |
| Overall weight [kg] | 2000 | 2000 | 2085 | 2235 | 2235 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1400 | 750/1600 | 750/2200 | 750/2200 | 750/2200 |
| Maximum front/rear axle load [kg] | 1280/1150 | 1280/1150 | 1280/1150 | 1280/1150 | 1280/1150 | 1280/1150 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 513 | 513 | 513 | 488 | 488 | 488 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1503 | -/1503 | -/1503 | -/1478 | -/1478 | -/1478 |
| Boot length [mm] | 889 | 889 | 889 | 889 | 889 | 889 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | -/806 | -/806 | -/806 | -/806 | -/806 | -/806 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers |
| Tyre dimensions front | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 |
| Tyre dimensions rear | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 305 | 305 | 305 | 305 | 305 | 305 |
| Brake dimensions rear | 305 | 305 | 305 | 305 | 305 | 305 |
| Steering | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 |
| Number of steering wheel turns | 2.71 | 2.71 | 2.71 | 2.71 | 2.71 | 2.71 |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4475 | 4475 | 4475 | 4475 | 4475 | 4475 |
| Overall width without/including mirrors [mm] | 1850/2070 | 1850/2070 | 1850/2070 | 1850/2070 | 1850/2070 | 1850/2070 |
| Overall height [mm] | 1645 | 1645 | 1645 | 1645 | 1645 | 1645 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
| Rear wheel track [mm] | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 |
| Forward overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Rear overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Clearance [mm] | 172 | 172 | 172 | 172 | 172 | 172 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 |
| Approach angle rear [°] | 23.9 | 23.9 | 23.9 | 23.9 | 23.9 | 23.9 |
| Transition angle [°] | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1413/1450 | 1413/1450 | 1413/1450 | 1413/1450 | 1413/1450 | 1413/1450 |
| Rear elbow/shoulder width [mm] | 1384/- | 1384/- | 1384/- | 1384/- | 1384/- | 1384/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 CRDi VGT | 2.0 CRDi VGT | 2.0 CRDi VGT | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1995 | 1995 | 1995 | |||
| Maximum output / speed [kW/min-1] | 100/4000 | 136/4000 | 136/4000 | |||
| Maximum torque [Nm/min-1] | 373/1500-2500 | 400/1750-2750 | 400/1750-2750 | |||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | |||
| Oil volume [l] | 7.6 | 7.6 | 7.6 | |||
| Coolant volume [l] | 9.0 | 9.0 | 9.0 | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 184 | 201 | 201 | |||
| Acceleration 0–100 km/h [s] | 12.0 | 9.9 | 9.5 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.0 | 7.1 | 8.0 | |||
| Out of town [l] | 5.3 | 5.2 | 5.6 | |||
| Combined [l] | 6.0 | 5.9 | 6.5 | |||
| CO2 emissions [g/km] | 156 | 154 | 170 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | 80 | 80 | 77 | |||
| Driving noise [dB] | 74 | 73 | 73 | |||
| Standby weight [kg] | 1690-1854 | 1662-1826 | 1690-1854 | |||
| Overall weight [kg] | 2250 | 2250 | 2250 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2200 | 750/2200 | |||
| Maximum front/rear axle load [kg] | 1280/1150 | 1280/1150 | 1280/1150 | |||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 488 | 488 | 488 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1478 | -/1478 | -/1478 | |||
| Boot length [mm] | 889 | 889 | 889 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | |||
| Boot height to headliner/ceiling [mm] | -/806 | -/806 | -/806 | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 62 | 62 | 62 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | |||
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | |||
| Rear suspension | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | |||
| Tyre dimensions front | 225/60 R17 | 225/60 R17 | 225/60 R17 | |||
| Tyre dimensions rear | 225/60 R17 | 225/60 R17 | 225/60 R17 | |||
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |||
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |||
| Brake dimensions front | 305 | 305 | 305 | |||
| Brake dimensions rear | 305 | 305 | 305 | |||
| Steering | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | |||
| Number of steering wheel turns | 2.71 | 2.71 | 2.71 | |||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | |||
| Overall length [mm] | 4475 | 4475 | 4475 | |||
| Overall width without/including mirrors [mm] | 1850/2070 | 1850/2070 | 1850/2070 | |||
| Overall height [mm] | 1645 | 1645 | 1645 | |||
| Wheelbase [mm] | 2670 | 2670 | 2670 | |||
| Front wheel track [mm] | 1620 | 1620 | 1620 | |||
| Rear wheel track [mm] | 1631 | 1631 | 1631 | |||
| Forward overhang [mm] | 910 | 910 | 910 | |||
| Rear overhang [mm] | 895 | 895 | 895 | |||
| Clearance [mm] | 172 | 172 | 172 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 17.2 | 17.2 | 17.2 | |||
| Approach angle rear [°] | 23.9 | 23.9 | 23.9 | |||
| Transition angle [°] | 18.6 | 18.6 | 18.6 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1005 | 1005 | 1005 | |||
| Headroom rear [mm] | 995 | 995 | 995 | |||
| Front elbow/shoulder width [mm] | 1413/1450 | 1413/1450 | 1413/1450 | |||
| Rear elbow/shoulder width [mm] | 1384/- | 1384/- | 1384/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
