Jaguar F-Pace
Date of manufacture
2015 – 2020 (SUV)
Platform
JLR D7a
Manufacturing locations
Solihull, United Kingdom
Designer
Ian Callum
Tags
Compact SUV
British cars
The Jaguar F-Pace is a luxury SUV manufactured since 2015 in the United Kingdom on the JLR D7a platform. It offers a wide range of petrol and diesel engines, including the most powerful SVR version with 405 kW, which reaches a top speed of 283 km/h and accelerates from 0-100 km/h in 4.3 seconds. The most fuel-efficient variant is the 20d with a combined fuel consumption of 4.9 l/100 km and CO2 emissions of 129 g/km. The luggage compartment volume is 650 l. EURONCAP safety tests in 2017 gave the F-Pace a rating of 5 out of 5.
Car body style
Technical data
SUV
| 25t | 30t | 35t | S | SVR | 20d E-Performance | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | from to 2018 | from 2018 to | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 8/32 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 2995 | 2995 | 5000 | 1999 |
| Maximum output / speed [kW/min-1] | 184/5500 | 221/5500 | 250/6500 | 280/6500 | 405/6000-6500 | 120/4000 |
| Maximum torque [Nm/min-1] | 365/1300-4500 | 400/1500-4500 | 450/4500 | 450/4500 | 680/2500-5500 | 380/1750-2500 |
| Bore and stroke [mm x mm] | 83.0 x 92.99 | 83.0 x 92.99 | 84,5 x 89,0 | 84,5 x 89,0 | 92.5 x 93.0 | 83,0 x 92,4 |
| Compression ratio | 10,5:1 | 9.5:1 | 10,5:1 | 10,5:1 | 9.5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 217 | 233 | 250 | 250 | 283 | 195 |
| Acceleration 0–100 km/h [s] | 7.0 | 6.1 | 5.8 | 5.5 | 4.3 | 10.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.5-9.4 | 10.0-9.9 | 12.2 | 12.2 | 16.5 | 6.6-6.4 |
| Out of town [l] | 7.2-6.9 | 7.1-6.9 | 7.1 | 7.1 | 9.3 | 5.2-5.0 |
| Combined [l] | 8.0-7.8 | 8.2-8.0 | 8.9 | 8.9 | 11.9 | 5.7-5.5 |
| CO2 emissions [g/km] | 183-179 | 185-182 | 209 | 209 | 272 | 150-145 |
| Emission standard | EU6 - Euro6d-TEMP | EU6 - Euro6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | EU6 - Euro6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1831 | 1842 | 1820 | 1861 | 2070 | 1760 |
| Overall weight [kg] | 2460 | 2460 | 2500 | 2500 | 2550 | 2380 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | 750/2400 | 750/2400 | 750/2400 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 650 | 650 | 650 | 650 | 650 | 650 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 |
| Boot length [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Boot length with rear seats folded [mm] | 1825 | 1825 | 1825 | 1825 | 1825 | 1825 |
| Boot width between wheels/max [mm] | -/1255 | -/1255 | -/1255 | -/1255 | -/1255 | -/1255 |
| Boot height to headliner/ceiling [mm] | -/820 | -/820 | -/820 | -/820 | -/820 | -/820 |
| Loading edge height [mm] | 747 | 747 | 747 | 747 | 747 | 747 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.36 | 0.36 | 0.34 | 0.34 | 0.39 | 0.34 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/50 R20 | 255/50 R20 | 255/60 R18 |
| Tyre dimensions rear | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/50 R20 | 255/50 R20 | 255/60 R18 |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 8.5J x 20 | 8.5J x 20 | 7.5J x 18 |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 8.5J x 20 | 8.5J x 20 | 7.5J x 18 |
| Brake dimensions front | 325 | 325 | 350 | 350 | 395 | 325 |
| Brake dimensions rear | 325 | 325 | 325 | 325 | 395 | 325 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.87/- | 11.87/- | 11.87/- | 11.87/- | 11.87/- | 11.87/- |
| Overall length [mm] | 4731 | 4731 | 4731 | 4731 | 4737 | 4731 |
| Overall width without/including mirrors [mm] | 1936/2175 | 1936/2175 | 1936/2175 | 1936/2175 | 1936/2175 | 1936/2175 |
| Overall height [mm] | 1652 | 1652 | 1652 | 1652 | 1652 | 1652 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1641 | 1641 | 1641 | 1641 | 1648 | 1641 |
| Rear wheel track [mm] | 1654 | 1654 | 1654 | 1654 | 1670 | 1654 |
| Forward overhang [mm] | 834 | 834 | 834 | 834 | 841 | 834 |
| Rear overhang [mm] | 1023 | 1023 | 1023 | 1023 | 1022 | 1023 |
| Clearance [mm] | 161 [215 subject to a surcharge] | 161 [215 subject to a surcharge] | 161 [215 subject to a surcharge] | 161 [215 subject to a surcharge] | 161 [215 subject to a surcharge] | 161 [215 subject to a surcharge] |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach angle front [°] | 21.9 [25.4 subject to a surcharge] | 21.9 [25.4 subject to a surcharge] | 21.9 [25.4 subject to a surcharge] | 21.9 [25.4 subject to a surcharge] | 21.9 [25.4 subject to a surcharge] | 21.9 [25.4 subject to a surcharge] |
| Approach angle rear [°] | 20.3 [25.9 subject to a surcharge] | 20.3 [25.9 subject to a surcharge] | 20.3 [25.9 subject to a surcharge] | 20.3 [25.9 subject to a surcharge] | 20.3 [25.9 subject to a surcharge] | 20.3 [25.9 subject to a surcharge] |
| Transition angle [°] | 15.7 [20.0 subject to a surcharge] | 15.7 [20.0 subject to a surcharge] | 15.7 [20.0 subject to a surcharge] | 15.7 [20.0 subject to a surcharge] | 15.7 [20.0 subject to a surcharge] | 15.7 [20.0 subject to a surcharge] |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | -/1465 | -/1465 | -/1465 | -/1465 | -/1465 | -/1465 |
| Rear elbow/shoulder width [mm] | -/1417 | -/1417 | -/1417 | -/1417 | -/1417 | -/1417 |
| Legroom front knees/total [mm] | -/1093 | -/1093 | -/1093 | -/1093 | -/1093 | -/1093 |
| Legroom rear knees/total [mm] | 65/945 | 65/945 | 65/945 | 65/945 | 65/945 | 65/945 |
| 20d | 20d | 20d | 25d | 30d | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | |
| Engine displacement [cm³] | 1999 | 1999 | 1999 | 1999 | 2993 | |
| Maximum output / speed [kW/min-1] | 132/4000 | 132/4000 | 132/4000 | 177/4000 | 221/4000 | |
| Maximum torque [Nm/min-1] | 430/1750-2500 | 430/1750-2500 | 430/1750-2500 | 500/1500-2500 | 700/2000 | |
| Bore and stroke [mm x mm] | 83,0 x 92,4 | 83,0 x 92,4 | 83,0 x 92,4 | 83,0 x 92,4 | 84,0 x 90,0 | |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 16,1:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 209 | 208 | 208 | 217 | 241 | |
| Acceleration 0–100 km/h [s] | 8.9 | 8.5 | 9.0 | 7.2 | 6.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.7 | 6.7-6.0 | 6.9-6.2 | 8.0-7.1 | 7.9-6.9 | |
| Out of town [l] | 4.5 | 5.5-4.7 | 5.7-4.7 | 6.0-5.0 | 5.9-5.6 | |
| Combined [l] | 4.9 | 5.9-5.2 | 6.1-5.3 | 6.7-5.8 | 6.6-6.0 | |
| CO2 emissions [g/km] | 129 | 156-134 | 162-139 | 178-153 | 174-159 | |
| Emission standard | EU6 | EU6 - Euro6d-TEMP | EU6 - Euro6d-TEMP | EU6 - Euro6d-TEMP | EU6 - Euro6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1665 | 1767-1790 | 1775 | 1880 | 1884 | |
| Overall weight [kg] | 2380 | 2380-2460 | 2460 | 2470 | 2570 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2400 | 750/2400 | 750/2400 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 650 | 650 | 650 | 650 | 650 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 | |
| Boot length [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | |
| Boot length with rear seats folded [mm] | 1825 | 1825 | 1825 | 1825 | 1825 | |
| Boot width between wheels/max [mm] | -/1255 | -/1255 | -/1255 | -/1255 | -/1255 | |
| Boot height to headliner/ceiling [mm] | -/820 | -/820 | -/820 | -/820 | -/820 | |
| Loading edge height [mm] | 747 | 747 | 747 | 747 | 747 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 66 | |
| AdBlue tank volume [l] | - | 17 | 17 | 17 | 17 | |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.36 | 0.34 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | |
| Tyre dimensions front | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | |
| Tyre dimensions rear | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | |
| Brake dimensions front | 325 | 325 | 325 | 325 | 350 | |
| Brake dimensions rear | 325 | 325 | 325 | 325 | 325 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.87/- | 11.87/- | 11.87/- | 11.87/- | 11.87/- | |
| Overall length [mm] | 4731 | 4731 | 4731 | 4731 | 4731 | |
| Overall width without/including mirrors [mm] | 1936/2175 | 1936/2175 | 1936/2175 | 1936/2175 | 1936/2175 | |
| Overall height [mm] | 1652 | 1652 | 1652 | 1652 | 1652 | |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | |
| Front wheel track [mm] | 1641 | 1641 | 1641 | 1641 | 1641 | |
| Rear wheel track [mm] | 1654 | 1654 | 1654 | 1654 | 1654 | |
| Forward overhang [mm] | 834 | 834 | 834 | 834 | 834 | |
| Rear overhang [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | |
| Clearance [mm] | 161 [215 subject to a surcharge] | 161 [215 subject to a surcharge] | 161 [215 subject to a surcharge] | 161 [215 subject to a surcharge] | 161 [215 subject to a surcharge] | |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | |
| Approach angle front [°] | 21.9 [25.4 subject to a surcharge] | 21.9 [25.4 subject to a surcharge] | 21.9 [25.4 subject to a surcharge] | 21.9 [25.4 subject to a surcharge] | 21.9 [25.4 subject to a surcharge] | |
| Approach angle rear [°] | 20.3 [25.9 subject to a surcharge] | 20.3 [25.9 subject to a surcharge] | 20.3 [25.9 subject to a surcharge] | 20.3 [25.9 subject to a surcharge] | 20.3 [25.9 subject to a surcharge] | |
| Transition angle [°] | 15.7 [20.0 subject to a surcharge] | 15.7 [20.0 subject to a surcharge] | 15.7 [20.0 subject to a surcharge] | 15.7 [20.0 subject to a surcharge] | 15.7 [20.0 subject to a surcharge] | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | |
| Front elbow/shoulder width [mm] | -/1465 | -/1465 | -/1465 | -/1465 | -/1465 | |
| Rear elbow/shoulder width [mm] | -/1417 | -/1417 | -/1417 | -/1417 | -/1417 | |
| Legroom front knees/total [mm] | -/1093 | -/1093 | -/1093 | -/1093 | -/1093 | |
| Legroom rear knees/total [mm] | 65/945 | 65/945 | 65/945 | 65/945 | 65/945 |

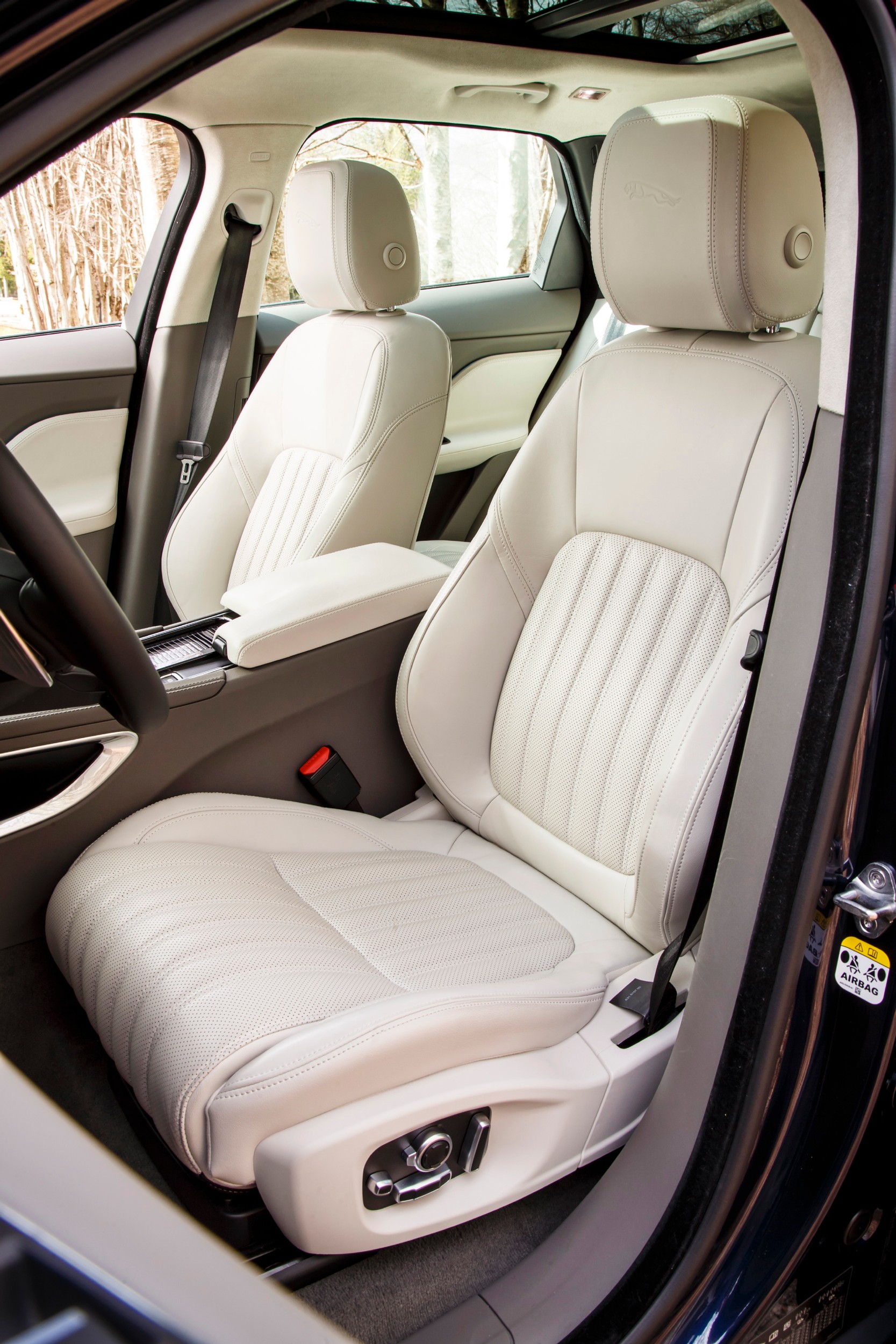

Gallery
