Jaguar F-Type
Date of manufacture
2014 – 2019 (Coupé)
10/2012 – 2019 (Roadster)
Platform
-
Manufacturing locations
Birmingham, United Kingdom
Designer
Ian Callum
Tags
S-segment
British cars
The Jaguar F-Type is available in coupe and roadster body styles. The car has been manufactured since 2012. The country of manufacture of the car is the United Kingdom. The engine list includes only petrol engines. The most powerful car is the SVR with 423 kW of power. The SVR model reaches a maximum speed of 322 km/h. The SVR model has the best acceleration from 0-100 km/h in 3.7 seconds. The P300 has the lowest consumption of 7.9 l/100 km and emissions of 179 g/km. The roadster body model has a luggage capacity of 196-207 l. The coupe body model offers a trunk capacity of 310-324 l.
Car body style
Coupé
Date of manufacture
2014 – 2019Internal designation
X152Roadster
Date of manufacture
10/2012 – 2019Internal designation
X152Technical data
Coupé
| P300 | 3.0 V6 Kompresor / P340 | 3.0 V6 Kompresor / P340 | 3.0 V6 Kompresor / P380 | 3.0 V6 Kompresor / P380 | 3.0 V6 Kompresor / P380 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1997 | 2995 | 2995 | 2995 | 2995 | 2995 |
| Maximum output / speed [kW/min-1] | 221/5500 | 250/6500 | 250/6500 | 280/6500 | 280/6500 | 280/6500 |
| Maximum torque [Nm/min-1] | 400/1500-4500 | 450/3500-5000 | 450/3500-5000 | 460/3500-5000 | 460/3500-5000 | 460/3500-5000 |
| Bore and stroke [mm x mm] | 83.0 x 92.29 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 |
| Compression ratio | 9.5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 250 | 260 | 260 | 275 | 275 | 275 |
| Acceleration 0–100 km/h [s] | 5.7 | 5.7 | 5.3 | 5.5 | 4.9 | 5.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 3.7 | 7.2 | 3.3 | 7.2 | 3.1 | 3.3 |
| City [l] | 10.0 | 14.0 | 13.4-12.4 | 14.5 | 13.7-12.4 | 14.5 |
| Out of town [l] | 6.6 | 8.1 | 7.8-6.8 | 8.2 | 7.6-6.7 | 7.8 |
| Combined [l] | 7.9 | 10.3 | 9.88.8 | 10.6 | 9.8-8.8 | 10.2 |
| CO2 emissions [g/km] | 179 | 234 | 224-205 | 242 | 223-209 | 223 |
| Emission standard | EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1525 | 1567 | 1577 | 1584 | 1594 | 1674 |
| Overall weight [kg] | 1925 | 2000 | 2000 | 2050 | 2050 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 310-324 | 310-324 | 310-324 | 310-324 | 310-324 | 310-324 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1381 | -/1381 | -/1381 | -/1381 | -/1381 | -/1381 |
| Boot height to headliner/ceiling [mm] | -/306 | -/306 | -/306 | -/306 | -/306 | -/306 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 63 | 70-72 | 70-72 | 70-72 | 70-72 | 70-72 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/40 R19 | 245/40 R19 | 245/40 R19 |
| Tyre dimensions rear | 275/40 R18 | 275/40 R18 | 245/45 R18 | 275/35 R19 | 275/35 R19 | 275/35 R19 |
| Wheel size front | 8.5J x18 | 8.5J x18 | 8.5J x18 | 8.5J x 19 | 8.5J x 19 | 8.5J x 19 |
| Wheel size rear | 9.5J x18 | 9.5J x18 | 9.5J x18 | 9.5J x 19 | 9.5J x 19 | 9.5J x 19 |
| Brake dimensions front | 355 | 355 | 355 | 380 | 380 | 380 |
| Brake dimensions rear | 325 | 325 | 325 | 325 | 325 | 325 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.8/- |
| Overall length [mm] | 4482 | 4482 | 4482 | 4482 | 4482 | 4482 |
| Overall width without/including mirrors [mm] | 1923/2042 | 1923/2042 | 1923/2042 | 1923/2042 | 1923/2042 | 1923/2042 |
| Overall height [mm] | 1309-1311 | 1309-1311 | 1309-1311 | 1309-1311 | 1309-1311 | 1309-1311 |
| Wheelbase [mm] | 2622 | 2622 | 2622 | 2622 | 2622 | 2622 |
| Front wheel track [mm] | 1597 | 1597 | 1597 | 1597 | 1597 | 1597 |
| Rear wheel track [mm] | 1649 | 1649 | 1649 | 1649 | 1649 | 1649 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 108 | 108 | 108 | 108 | 108 | 108 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 935-939 | 935-939 | 935-939 | 935-939 | 935-939 | 935-939 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1434 | -/1434 | -/1434 | -/1434 | -/1434 | -/1434 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1088 | -/1088 | -/1088 | -/1088 | -/1088 | -/1088 |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

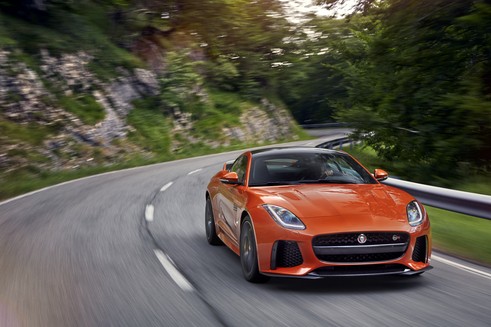

| 5.0 V8 Kompresor R | 5.0 V8 Kompresor R AWD | SVR | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2016 to | |||
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | |||
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | |||
| Engine displacement [cm³] | 5000 | 5000 | 5000 | |||
| Maximum output / speed [kW/min-1] | 405/6500 | 405/6500 | 423/6500 | |||
| Maximum torque [Nm/min-1] | 680/3500 | 680/3500 | 700/3500 | |||
| Bore and stroke [mm x mm] | 92,5 x 93,0 | 92,5 x 93,0 | 92,5 x 93,0 | |||
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | 4x4 | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 300 | 300 | 322 | |||
| Acceleration 0–100 km/h [s] | 4.2 | 4.1 | 3.7 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | 2.4 | 2.5 | 2.3 | |||
| City [l] | 15.9-15.3 | 16.2-15.4 | 16.2-15.4 | |||
| Out of town [l] | 8.3-8.0 | 8.5-8.4 | 8.5-8.4 | |||
| Combined [l] | 11.1-10.7 | 11.3-10.9 | 11.3-10.9 | |||
| CO2 emissions [g/km] | 259-255 | 269-249 | 269-249 | |||
| Emission standard | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU6 - Euro6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1650 | 1730 | 1705 | |||
| Overall weight [kg] | 2050 | 2150 | 2150 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 310-324 | 310-324 | 310 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | 860 | 860 | 860 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | -/1381 | -/1381 | -/1381 | |||
| Boot height to headliner/ceiling [mm] | -/306 | -/306 | -/306 | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 2 | 2 | 2 | |||
| Fuel tank volume [l] | 70-72 | 70-72 | 70 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | double wishbone | double wishbone | double wishbone | |||
| Tyre dimensions front | 255/35 R20 | 255/35 R20 | 265/35 R20 | |||
| Tyre dimensions rear | 295/30 R20 | 295/30 R20 | 305/30 R20 | |||
| Wheel size front | 9J x 20 | 9J x 20 | 9J x 20 | |||
| Wheel size rear | 10.5J x 20 | 10.5J x 20 | 11J x 20 | |||
| Brake dimensions front | 380 | 380 | 380 | |||
| Brake dimensions rear | 376 | 376 | 376 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.3/- | |||
| Overall length [mm] | 4482 | 4482 | 4475 | |||
| Overall width without/including mirrors [mm] | 1923/2042 | 1923/2042 | 1923/2042 | |||
| Overall height [mm] | 1309-1311 | 1309-1311 | 1311 | |||
| Wheelbase [mm] | 2622 | 2622 | 2622 | |||
| Front wheel track [mm] | 1586 | 1585 | 1585 | |||
| Rear wheel track [mm] | 1628 | 1627 | 1611 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 121 | 121 | 121 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 935-939 | 935-939 | 939 | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | -/1434 | -/1434 | -/1434 | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | -/1088 | -/1088 | - | |||
| Legroom rear knees/total [mm] | - | - | - |

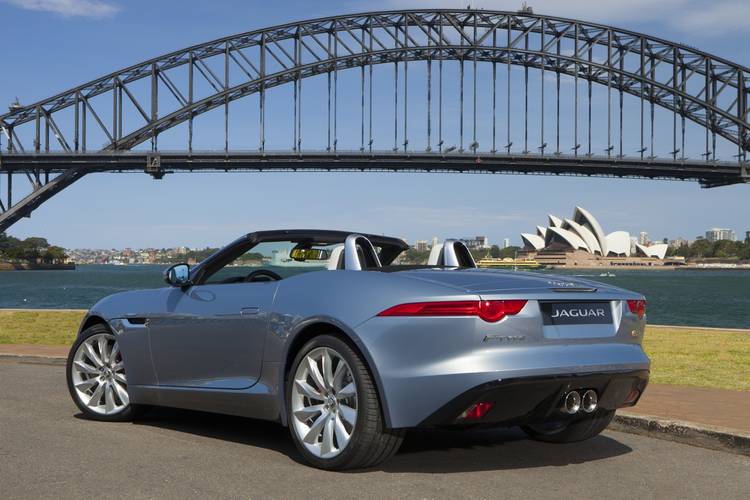

Roadster
| P300 | 3.0 V6 Kompresor / P340 | 3.0 V6 Kompresor / P340 | 3.0 V6 Kompresor / P380 | 3.0 V6 Kompresor / P380 | 3.0 V6 Kompresor / P380 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1997 | 2995 | 2995 | 2995 | 2995 | 2995 |
| Maximum output / speed [kW/min-1] | 221/5500 | 250/6500 | 250/6500 | 280/6500 | 280/6500 | 280/6500 |
| Maximum torque [Nm/min-1] | 400/1500-4500 | 450/3500-5000 | 450/3500-5000 | 460/3500-5000 | 460/3500-5000 | 460/3500-5000 |
| Bore and stroke [mm x mm] | 83.0 x 92.29 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 |
| Compression ratio | 9.5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 250 | 260 | 260 | 275 | 275 | 275 |
| Acceleration 0–100 km/h [s] | 5.7 | 5.7 | 5.3 | 5.5 | 4.9 | 5.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 3.7 | 7.2 | 3.3 | 7.2 | 3.1 | 3.3 |
| City [l] | 10.0 | 14.0 | 13.4-12.4 | 14.5 | 13.7-12.4 | 14.5 |
| Out of town [l] | 6.6 | 8.1 | 7.8-6.8 | 8.2 | 7.6-6.7 | 7.8 |
| Combined [l] | 7.9 | 10.3 | 9.8-8.8 | 10.6 | 9.8-8.8 | 10.2 |
| CO2 emissions [g/km] | 179 | 234 | 224-205 | 242 | 223-209 | 223 |
| Emission standard | EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1545 | 1587 | 1597 | 1604 | 1614 | 1694 |
| Overall weight [kg] | 1925 | 2000 | 2025 | 2050 | 2025-2050 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 196-207 | 196-207 | 196-207 | 196-207 | 196-207 | 196-207 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 844 | 844 | 844 | 844 | 844 | 844 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1323 | -/1323 | -/1323 | -/1323 | -/1323 | -/1323 |
| Boot height to headliner/ceiling [mm] | -/205 | -/205 | -/205 | -/205 | -/205 | -/205 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 63 | 70-72 | 70-72 | 70-72 | 72 | 70-72 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/40 R19 | 245/40 R19 | 245/40 R19 |
| Tyre dimensions rear | 275/40 R18 | 275/40 R18 | 275/40 R18 | 275/35 R19 | 275/35 R19 | 275/35 R19 |
| Wheel size front | 8.5J x 18 | 8.5J x 18 | 8.5J x 18 | 8.5J x 19 | 8.5J x 19 | 8.5J x 19 |
| Wheel size rear | 9.5J x 18 | 9.5J x 18 | 9.5J x 18 | 9.5J x 19 | 9.5J x 19 | 9.5J x 19 |
| Brake dimensions front | 354 | 354 | 354 | 380 | 380 | 380 |
| Brake dimensions rear | 325 | 325 | 325 | 325 | 325 | 325 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.8/- |
| Overall length [mm] | 4470-4482 | 4470-4482 | 4470-4482 | 4470-4482 | 4470-4482 | 4470-4482 |
| Overall width without/including mirrors [mm] | 1923/2042 | 1923/2042 | 1923/2042 | 1923/2042 | 1923/2042 | 1923/2042 |
| Overall height [mm] | 1309 | 1309 | 1308 | 1309 | 1308 | 1309 |
| Wheelbase [mm] | 2622 | 2622 | 2622 | 2622 | 2622 | 2622 |
| Front wheel track [mm] | 1597 | 1597 | 1597 | 1597 | 1597 | 1597 |
| Rear wheel track [mm] | 1649 | 1649 | 1649 | 1649 | 1649 | 1649 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 100 | 101 | 101 | 101 | 101 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 939 | 939 | 939 | 939 | 939 | 939 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1434 | -/1434 | -/1434 | -/1434 | -/1434 | -/1434 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1088 | -/1088 | -/1088 | -/1088 | -/1088 | -/1088 |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 5.0 V8 Kompresor | 5.0 V8 Kompresor R | 5.0 V8 Kompresor R AWD | SVR | |||
|---|---|---|---|---|---|---|
| Date of sale | from to 2014 | - | - | from 2016 to | ||
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | ||
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | 8/32 | ||
| Engine displacement [cm³] | 5000 | 5000 | 5000 | 5000 | ||
| Maximum output / speed [kW/min-1] | 364/6500 | 405/6500 | 405/6500 | 423/6500 | ||
| Maximum torque [Nm/min-1] | 625/2500-5500 | 680/3500 | 680/3500 | 700/3500 | ||
| Bore and stroke [mm x mm] | 92,5 x 93,0 | 92,5 x 93,0 | 92,5 x 93,0 | 92,5 x 93,0 | ||
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | Rear | 4x4 | 4x4 | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 300 | 300 | 300 | 314 | ||
| Acceleration 0–100 km/h [s] | 4.3 | 4.2 | 4.1 | 3.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | 2.4 | 2.5 | 2.3 | ||
| City [l] | 15.9 | 15.9-15.3 | 16.2-15.4 | 16.2-15.4 | ||
| Out of town [l] | 8.3 | 8.3-8.0 | 8.5-8.4 | 8.5-8.4 | ||
| Combined [l] | 11.1 | 11.1-10.7 | 11.3-10.9 | 11.3-10.9 | ||
| CO2 emissions [g/km] | 259 | 259-255 | 269-249 | 269-249 | ||
| Emission standard | EU5 | EU5 - EU6 - Euro6d-TEMP | EU5 - EU6 - Euro6d-TEMP | EU6 - Euro6d-TEMP | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1665 | 1665 | 1745 | 1720 | ||
| Overall weight [kg] | 2025 | 2050 | 2150 | 2150 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 196-207 | 196-207 | 196-207 | 207 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | 844 | 844 | 844 | 844 | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | -/1323 | -/1323 | -/1323 | -/1323 | ||
| Boot height to headliner/ceiling [mm] | -/205 | -/205 | -/205 | -/205 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 2 | 2 | 2 | 2 | ||
| Fuel tank volume [l] | 72 | 72 | 72 | 70 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Tyre dimensions front | 255/35 R20 | 255/35 R20 | 255/35 R20 | 235/35 R20 | ||
| Tyre dimensions rear | 295/30 R20 | 295/30 R20 | 295/30 R20 | 305/30 R20 | ||
| Wheel size front | - | - | - | 9J x 20 | ||
| Wheel size rear | - | - | - | 11J x 20 | ||
| Brake dimensions front | 380 | 380 | 380 | 380 | ||
| Brake dimensions rear | 376 | 376 | 376 | 376 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.8/- | 11.3/- | ||
| Overall length [mm] | 4470-4482 | 4470-4482 | 4470-4482 | 4475 | ||
| Overall width without/including mirrors [mm] | 1923/2042 | 1923/2042 | 1923/2042 | 1923/2042 | ||
| Overall height [mm] | 1319 | 1321 | 1321 | 1308 | ||
| Wheelbase [mm] | 2622 | 2622 | 2622 | 2622 | ||
| Front wheel track [mm] | 1585 | 1586 | 1585 | 1585 | ||
| Rear wheel track [mm] | 1627 | 1628 | 1627 | 1611 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 121 | 121 | 100 | 107 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 939 | 939 | 939 | 939 | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | -/1434 | -/1434 | -/1434 | -/1434 | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | -/1088 | -/1088 | -/1088 | -/1088 | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
