Jaguar XF
Date of manufacture
2015 – 2020 (Sedan)
2017 – 2020 (Estate)
Platform
-
Manufacturing locations
Birmingham, United Kingdom
Changshu, People's Republic of China
Designer
Ian Callum
Tags
E-segment
British cars
The Jaguar XF is a luxury car with sedan and estate body styles, which was launched in 2015. The car is manufactured in the United Kingdom and China. The engine range includes petrol and diesel versions, the highest performance being the S AWD (280 kW) with a top speed of 250 km/h and best 0-100 km/h acceleration in 5.3 seconds. The most efficient engine 25d has a combined fuel consumption of 5.3 l/100 km and CO2 emissions of 139 g/km. The sedan version has a boot capacity of 540 l, the estate 565 l. The XF model received a 5 out of 5 rating for safety from EURONCAP in 2015.
Car body style

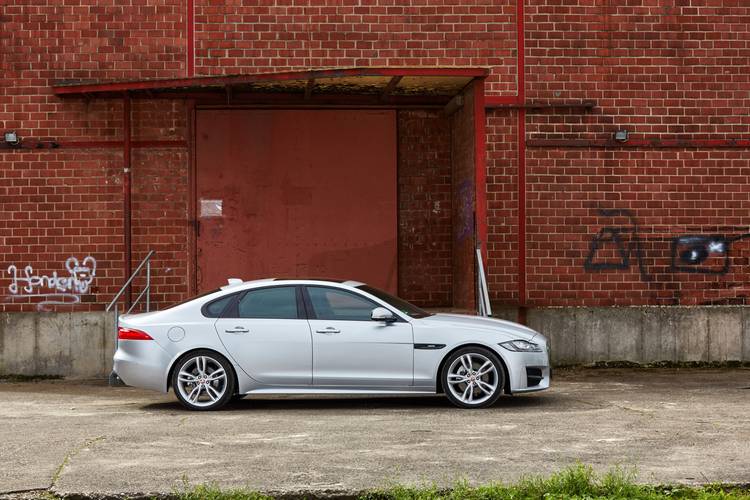

Sedan
Date of manufacture
2015 – 2020Internal designation

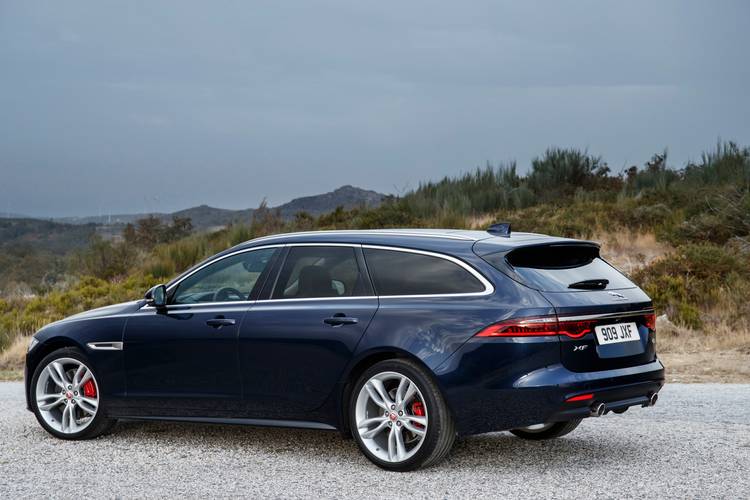

X260Estate (Sportbrake)
Date of manufacture
2017 – 2020Internal designation
X260Engine size
Technical data
Sedan
| 20t | 25t | 25t | 25t AWD | 30t AWD | 35t | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to 2018 | from to 2017 | from 2017 to | from 2017 to | from 2017 to | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1997 | 1999 | 1997 | 1997 | 1997 | 2995 |
| Maximum output / speed [kW/min-1] | 147/5500 | 177/5500 | 184/5500 | 184/5500 | 221/5500 | 250/6500 |
| Maximum torque [Nm/min-1] | 320/1200-4500 | 340/1750-4000 | 365/1200-4500 | 365/1200-4500 | 400/1500-4500 | 450/4500 |
| Bore and stroke [mm x mm] | 83.0 x 92.4 | 87,5 x 83,1 | 83.0 x 92.4 | 83.0 x 92.4 | 83.0 x 92.4 | 84,5 x 89,0 |
| Compression ratio | 10.5:1 | 10,0:1 | 10.5:1 | 10.5:1 | 9.5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 235 | 248 | 244 | 237 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.0 | 6.7 | 6.6 | 5.8 | 5.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 10.5 | 9.0-8.4 | 8.7 | 9.4-8.9 | 11.7 |
| Out of town [l] | 5.8 | 5.8 | 6.2-5.8 | 6.0 | 6.4-6.1 | 6.3 |
| Combined [l] | 6.8 | 7.5 | 7.3-6.8 | 6.9 | 7.5-7.2 | 8.3 |
| CO2 emissions [g/km] | 154 | 179 | 166-154 | 159 | 172-163 | 198 |
| Low speed [l] | - | - | 12.3-11.9 | - | 12.9-12.2 | - |
| Medium speed [l] | - | - | 9.0-8.3 | - | 9.4-8.8 | - |
| High speed [l] | - | - | 7.7-7.0 | - | 8.1-7.4 | - |
| Extra high speed [l] | - | - | 8.8-7.8 | - | 9.4-8.3 | - |
| Combined speed [l] | - | - | 9.0-8.2 | - | 9.5-8.7 | - |
| CO2 emissions [g/km] | - | - | 203-186 | - | 214-196 | - |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1635 | 1590 | 1704 | 1685 | 1786 | 1710 |
| Overall weight [kg] | 2260 | 2210 | 2260 | 2310 | 2330 | 2330 |
| Maximum trailer weight unbraked/braked [kg] | -/1900 | -/1900 | 750/1900 | -/1900 | 750/1900 | -/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | 100 | 100 | - | 100 | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

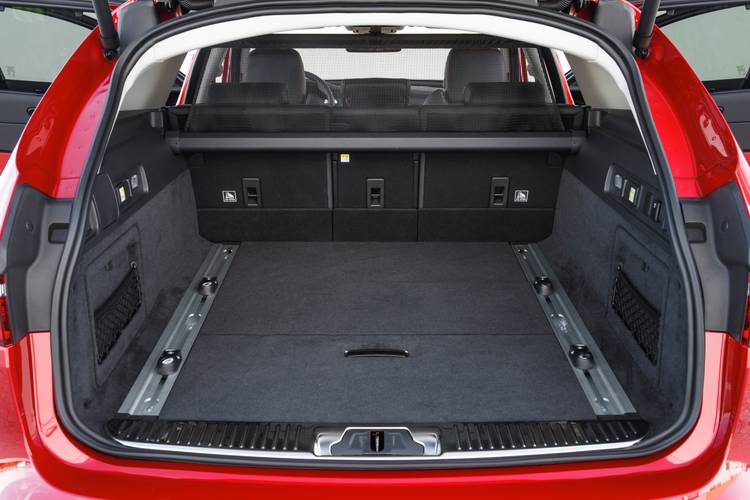

| Boot volume [l] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] |
| Boot length [mm] | 1201 | 1201 | 1201 | 1201 | 1201 | 1201 |
| Boot length with rear seats folded [mm] | 2015 | 2015 | 2015 | 2015 | 2015 | 2015 |
| Boot width between wheels/max [mm] | 850/1257- | 850/1257- | 850/1257- | 850/1257- | 850/1257- | 850/1257- |
| Boot height to headliner/ceiling [mm] | -/686 | -/686 | -/686 | -/686 | -/686 | -/686 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 74 | 74 | 74 | 74 | 74 | 74 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.305 | 0.26 | 0.305 | 0.305 | 0.305 | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 205/55 R17 | 225/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 205/55 R17 | 225/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 225/55 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
| Turning diameter track/circumference [m] | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 |
| Overall length [mm] | 4954 | 4954 | 4954 | 4954 | 4954 | 4954 |
| Overall width without/including mirrors [mm] | 1880/2091 | 1880/2091 | 1880/2091 | 1880/2091 | 1880/2091 | 1880/2091 |
| Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Wheelbase [mm] | 2960 | 2960 | 2960 | 2960 | 2960 | 2960 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 116 | 116 | 116 | 116 | 116 | 116 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Front elbow/shoulder width [mm] | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 |
| Rear elbow/shoulder width [mm] | -/1394 | -/1394 | -/1394 | -/1394 | -/1394 | -/1394 |
| Legroom front knees/total [mm] | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 |
| Legroom rear knees/total [mm] | -/945 | -/945 | -/945 | -/945 | -/945 | -/945 |
| 35t AWD | S | S AWD | 20d E-Performance | 20d E-Performance | 20d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2995 | 2995 | 2995 | 1999 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 250/6500 | 280/6500 | 280/6500 | 120/4000 | 120/4000 | 132/4000 |
| Maximum torque [Nm/min-1] | 450/4500 | 450/4500 | 450/4500 | 380/1750-2500 | 380/1750-2500 | 430/1750-2500 |
| Bore and stroke [mm x mm] | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 83,0 x 92,4 | 83,0 x 92,4 | 83,0 x 92,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | 4x4 | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 250 | 250 | 250 | 229 | 227 | 230 |
| Acceleration 0–100 km/h [s] | 5.4 | 5.3 | 5.3 | 9.8 | 9.1 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.9 | 11.7 | 11.9 | 5.9-4.8 | 6.5-5.1 | 6.0-5.1 |
| Out of town [l] | 6.7 | 6.3 | 6.7 | 4.0-3.6 | 4.3-3.6 | 4.3-3.9 |
| Combined [l] | 8.6 | 8.3 | 8.6 | 4,7-4.0 | 5,1-4.1 | 5,0-4.3 |
| CO2 emissions [g/km] | 204 | 198 | 204 | 124-104 | 135-109 | 131-114 |
| Low speed [l] | - | - | - | 8.1-7.6 | 8.7-8.2 | 8.0-7.4 |
| Medium speed [l] | - | - | - | 6.2-5.8 | 6.2-5.8 | 6.4-5.7 |
| High speed [l] | - | - | - | 5.3-4.9 | 5.3-4.8 | 5.3-4.8 |
| Extra high speed [l] | - | - | - | 5.8-5.4 | 5.9-5.4 | 6.2-5.4 |
| Combined speed [l] | - | - | - | 6.1-5.6 | 6.1-5.7 | 6.2-5.6 |
| CO2 emissions [g/km] | - | - | - | 156-147 | 148-161 | 163-146 |
| Emission standard | EU6 | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1760 | 1710 | 1760 | 1699 | 1720 | 1719 |
| Overall weight [kg] | 2370 | 2330 | 2370 | 2190 | 2230 | 2270 |
| Maximum trailer weight unbraked/braked [kg] | -/2000 | -/2000 | -/2000 | - | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] |
| Boot length [mm] | 1201 | 1201 | 1201 | 1201 | 1201 | 1201 |
| Boot length with rear seats folded [mm] | 2015 | 2015 | 2015 | 2015 | 2015 | 2015 |
| Boot width between wheels/max [mm] | 850/1257- | 850/1257- | 850/1257- | 850/1257- | 850/1257- | 850/1257- |
| Boot height to headliner/ceiling [mm] | -/686 | -/686 | -/686 | -/686 | -/686 | -/686 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 74 | 74 | 74 | 55 | 55 | 66 |
| AdBlue tank volume [l] | - | - | - | 16 | 16 | 16 |
| Air resistance [Cd] | 0.3 | 0.29 | 0.3 | 0.26 | 0.26 | 0.28 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 225/55 R17 | 245/40 R19 | 245/40 R19 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 245/40 R19 | 245/40 R19 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.5J x 17 | 8.0J x 19 | 8.0J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 8.0J x 19 | 8.0J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | 325 | 325 | 325 |
| Brake dimensions rear | - | - | - | 300 | 300 | 325 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
| Turning diameter track/circumference [m] | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 |
| Overall length [mm] | 4954 | 4954 | 4954 | 4954 | 4954 | 4954 |
| Overall width without/including mirrors [mm] | 1880/2091 | 1880/2091 | 1880/2091 | 1880/2091 | 1880/2091 | 1880/2091 |
| Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Wheelbase [mm] | 2960 | 2960 | 2960 | 2960 | 2960 | 2960 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 116 | 116 | 116 | 116 | 116 | 116 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Front elbow/shoulder width [mm] | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 |
| Rear elbow/shoulder width [mm] | -/1394 | -/1394 | -/1394 | -/1394 | -/1394 | -/1394 |
| Legroom front knees/total [mm] | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 |
| Legroom rear knees/total [mm] | -/945 | -/945 | -/945 | -/945 | -/945 | -/945 |
| 20d | 20d AWD | 25d | 25d AWD | 30d | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | |
| Engine displacement [cm³] | 1999 | 1999 | 1999 | 1999 | 2993 | |
| Maximum output / speed [kW/min-1] | 132/4000 | 132/4000 | 177/4000 | 177/4000 | 221/4000 | |
| Maximum torque [Nm/min-1] | 430/1750-2500 | 430/1750-2500 | 500/1500 | 500/1500 | 700/2000 | |
| Bore and stroke [mm x mm] | 83,0 x 92,4 | 83,0 x 92,4 | 83,0 x 92,4 | 83,0 x 92,4 | 84,0 x 90,0 | |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 16,1:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 229 | 222 | 246 | 245 | 250 | |
| Acceleration 0–100 km/h [s] | 8.4 | 8.5 | 6.9 | 6.9 | 6.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6.5-5.2 | 7.0-5.7 | 6.5 | 7.4-6.7 | 7.4-6.6 | |
| Out of town [l] | 4.5-3.8 | 4.8-4.5 | 4.6 | 5.0-4.8 | 5.1-4.8 | |
| Combined [l] | 5,5-4.3 | 5.6-4.9 | 5.3 | 5.9-5.5 | 5.9-5.5 | |
| CO2 emissions [g/km] | 139-114 | 148-129 | 139 | 155-144 | 157-144 | |
| Low speed [l] | 9.6-8.9 | 9.7-9.0 | - | 10.6-10.2 | 9.5-9.0 | |
| Medium speed [l] | 6.4-5.7 | 7.2-6.6 | - | 7.3-6.7 | 7.0-6.6 | |
| High speed [l] | 5.2-4.6 | 6.0-5.4 | - | 6.3-5.6 | 5.9-5.4 | |
| Extra high speed [l] | 6.0-5.3 | 6.8-6.1 | - | 7.1-6.2 | 6.8-6.3 | |
| Combined speed [l] | 6.3-5.7 | 7.0-6.4 | - | 7.3-6.7 | 6.9-6.4 | |
| CO2 emissions [g/km] | 165-149 | 184-167 | - | 192-175 | 182-169 | |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1734 | 1771 | - | 1808 | 1878 | |
| Overall weight [kg] | 2295 | 2340 | 2300 | 2370 | 2390 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] | 540 [415 VDA] | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] | -/885 [680 VDA] | |
| Boot length [mm] | 1201 | 1201 | 1201 | 1201 | 1201 | |
| Boot length with rear seats folded [mm] | 2015 | 2015 | 2015 | 2015 | 2015 | |
| Boot width between wheels/max [mm] | 850/1257- | 850/1257- | 850/1257- | 850/1257- | 850/1257- | |
| Boot height to headliner/ceiling [mm] | -/686 | -/686 | -/686 | -/686 | -/686 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | |
| AdBlue tank volume [l] | 16 | 16 | 16 | 16 | 16 | |
| Air resistance [Cd] | 0.28 | 0.28 | 0.3 | 0.3 | 0.3 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 205/55 R17 | 205/55 R17 | 245/45 R18 | |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 205/55 R17 | 205/55 R17 | 245/45 R18 | |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.0J x 18 | |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.0J x 18 | |
| Brake dimensions front | 325 | 325 | 325 | 325 | 350 | |
| Brake dimensions rear | 325 | 325 | 325 | 325 | 325 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | |
| Turning diameter track/circumference [m] | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | |
| Overall length [mm] | 4954 | 4954 | 4954 | 4954 | 4954 | |
| Overall width without/including mirrors [mm] | 1880/2091 | 1880/2091 | 1880/2091 | 1880/2091 | 1880/2091 | |
| Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | |
| Wheelbase [mm] | 2960 | 2960 | 2960 | 2960 | 2960 | |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | 116 | 116 | 116 | 116 | 116 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | |
| Front elbow/shoulder width [mm] | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 | |
| Rear elbow/shoulder width [mm] | -/1394 | -/1394 | -/1394 | -/1394 | -/1394 | |
| Legroom front knees/total [mm] | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 | |
| Legroom rear knees/total [mm] | -/945 | -/945 | -/945 | -/945 | -/945 |
Estate (Sportbrake)
| 25t | 30t AWD | 20d E-Performance | 20d E-Performance | 20d | 20d AWD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1999 | 1999 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 184/5500 | 221/5500 | 120/4000 | 120/4000 | 132/4000 | 132/4000 |
| Maximum torque [Nm/min-1] | 365/1200-4500 | 400/1500-4500 | 380/1750-2500 | 380/1750-2500 | 430/1750-2500 | 430/1750-2500 |
| Bore and stroke [mm x mm] | 83.0 x 92.4 | 83.0 x 92.4 | 83,0 x 92,4 | 83,0 x 92,4 | 83,0 x 92,4 | 83,0 x 92,4 |
| Compression ratio | 10.5:1 | 9.5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 241 | 250 | 219 | 219 | 221 | 219 |
| Acceleration 0–100 km/h [s] | 6.9 | 6.0 | 10.1 | 9.3 | 8.5 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1 | 9.5 | 6.4 | 6.7 | 6.7-6.5 | 7.0-6.9 |
| Out of town [l] | 6.5 | 6.6 | 4.4 | 4.5 | 4.7-4.6 | 5.0-4.8 |
| Combined [l] | 7.5 | 7.7 | 5.1 | 5.3 | 5.4-5.3 | 5.7-5.6 |
| CO2 emissions [g/km] | 172 | 176 | 135 | 139 | 143-139 | 151-147 |
| Low speed [l] | 12.4-12.0 | 13.1-12.5 | 8.4 | 8.6-8.3 | 9.6-9.1 | 9.8-9.2 |
| Medium speed [l] | 9.1-8.5 | 9.5-9.0 | 6.5-6.2 | 6.2-5.9 | 6.5-5.9 | 7.4-6.8 |
| High speed [l] | 7.9-7.2 | 8.4-7.8 | 5.3-5.1 | 5.2-5.0 | 5.3-4.8 | 6.1-5.6 |
| Extra high speed [l] | 9.7-9.0 | 9.8-9.0 | 6.0-5.7 | 6.0-5.7 | 6.1-5.5 | 7.0-4.3 |
| Combined speed [l] | 9.7-9.1 | 9.8-9.1 | 6.2-6.0 | 6.1-5.9 | 6.4-5.8 | 7.2-6.6 |
| CO2 emissions [g/km] | 207-192 | 220-206 | 162-156 | 161-154 | 169-153 | 188-172 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1775 | 1838 | 1727 | 1753 | 1789 | 1842 |
| Overall weight [kg] | 2290 | 2400 | 2260 | 2260 | 2320 | 2375 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 565 [490 VDA] | 565 [490 VDA] | 565 [490 VDA] | 565 [490 VDA] | 565 [490 VDA] | 565 [490 VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1035 [- | -/1035 [- | -/1035 [- | -/1035 [- | -/1035 [- | -/1035 [- |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1058/- | 1058/- | 1058/- | 1058/- | 1058/- | 1058/- |
| Boot height to headliner/ceiling [mm] | -/635 | -/635 | -/635 | -/635 | -/635 | -/635 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 74 | 74 | 55 | 55 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 205/55 R17 | 205/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 205/55 R17 | 205/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | 325 | 350 | 325 | 325 | 325 | 325 |
| Brake dimensions rear | 325 | 325 | 325 | 325 | 325 | 325 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
| Turning diameter track/circumference [m] | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 | 11.61/11.94 |
| Overall length [mm] | 4955 | 4955 | 4955 | 4955 | 4955 | 4955 |
| Overall width without/including mirrors [mm] | 1987/2091 | 1987/2091 | 1987/2091 | 1987/2091 | 1987/2091 | 1987/2091 |
| Overall height [mm] | 1494 | 1494 | 1494 | 1494 | 1494 | 1494 |
| Wheelbase [mm] | 2960 | 2960 | 2960 | 2960 | 2960 | 2960 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 116 | 116 | 116 | 116 | 116 | 116 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 |
| Legroom rear knees/total [mm] | -/957 | -/957 | -/957 | -/957 | -/957 | -/957 |
| 25d AWD | 30d | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 6/24 | ||||
| Engine displacement [cm³] | 1999 | 2993 | ||||
| Maximum output / speed [kW/min-1] | 177/4000 | 221/4000 | ||||
| Maximum torque [Nm/min-1] | 500/1500 | 700/2000 | ||||
| Bore and stroke [mm x mm] | 83,0 x 92,4 | 84,0 x 90,0 | ||||
| Compression ratio | 15,5:1 | 16,1:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | Rear | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 241 | 250 | ||||
| Acceleration 0–100 km/h [s] | 7.0 | 6.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.6-7.5 | 7.5 | ||||
| Out of town [l] | 5.2-5.0 | 5.3 | ||||
| Combined [l] | 6.1-5.9 | 6.1 | ||||
| CO2 emissions [g/km] | 161-157 | 160 | ||||
| Low speed [l] | 10.6-10.2 | 9.7-9.1 | ||||
| Medium speed [l] | 7.4-6.8 | 7.1-6.7 | ||||
| High speed [l] | 6.4-5.8 | 6.0-5.5 | ||||
| Extra high speed [l] | 7.3-6.4 | 6.9-6.4 | ||||
| Combined speed [l] | 7.5-6.8 | 7.0-6.5 | ||||
| CO2 emissions [g/km] | 196-179 | 185-172 | ||||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1875 | 1924 | ||||
| Overall weight [kg] | 2395 | 2430 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 565 [490 VDA] | 565 [490 VDA] | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1035 [- | -/1035 [- | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | 1058/- | 1058/- | ||||
| Boot height to headliner/ceiling [mm] | -/635 | -/635 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 66 | 66 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | ||||
| Tyre dimensions front | 205/55 R17 | 245/45 R18 | ||||
| Tyre dimensions rear | 205/55 R17 | 245/45 R18 | ||||
| Wheel size front | 7.5J x 17 | 8.0J x 18 | ||||
| Wheel size rear | 7.5J x 17 | 8.0J x 18 | ||||
| Brake dimensions front | 325 | 350 | ||||
| Brake dimensions rear | 325 | 325 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | 2.6 | 2.6 | ||||
| Turning diameter track/circumference [m] | 11.61/11.94 | 11.61/11.94 | ||||
| Overall length [mm] | 4955 | 4955 | ||||
| Overall width without/including mirrors [mm] | 1987/2091 | 1987/2091 | ||||
| Overall height [mm] | 1494 | 1494 | ||||
| Wheelbase [mm] | 2960 | 2960 | ||||
| Front wheel track [mm] | 1605 | 1605 | ||||
| Rear wheel track [mm] | 1607 | 1607 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 116 | 116 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 991 | 991 | ||||
| Headroom rear [mm] | 995 | 995 | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | -/1055 | -/1055 | ||||
| Legroom rear knees/total [mm] | -/957 | -/957 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
