Jaguar XF
Date of manufacture
2020 – to this day (Sedan)
2020 – to this day (Estate)
Platform
JLR D7a
Manufacturing locations
Birmingham, United Kingdom
Changshu, People's Republic of China
Designer
Ian Callum
Tags
E-segment
British cars
The new Jaguar XF is available as a sedan and estate. From 2020, the car is manufactured in the UK and China on the JLR D7a platform. The engine range includes petrol and diesel variants, the most powerful being the P300 AWD with 221 kW. The fastest version reaches a top speed of 250 km/h and 0-100 km/h in 6.1 seconds. The most economical variant is the D200 MHEV with fuel consumption of 5.6 l/100 km and emissions of 146 g/km. The sedan body offers a luggage capacity of 459 l, while the estate offers 716 l. The car's safety was rated 5 out of 5 by EURONCAP in 2015.

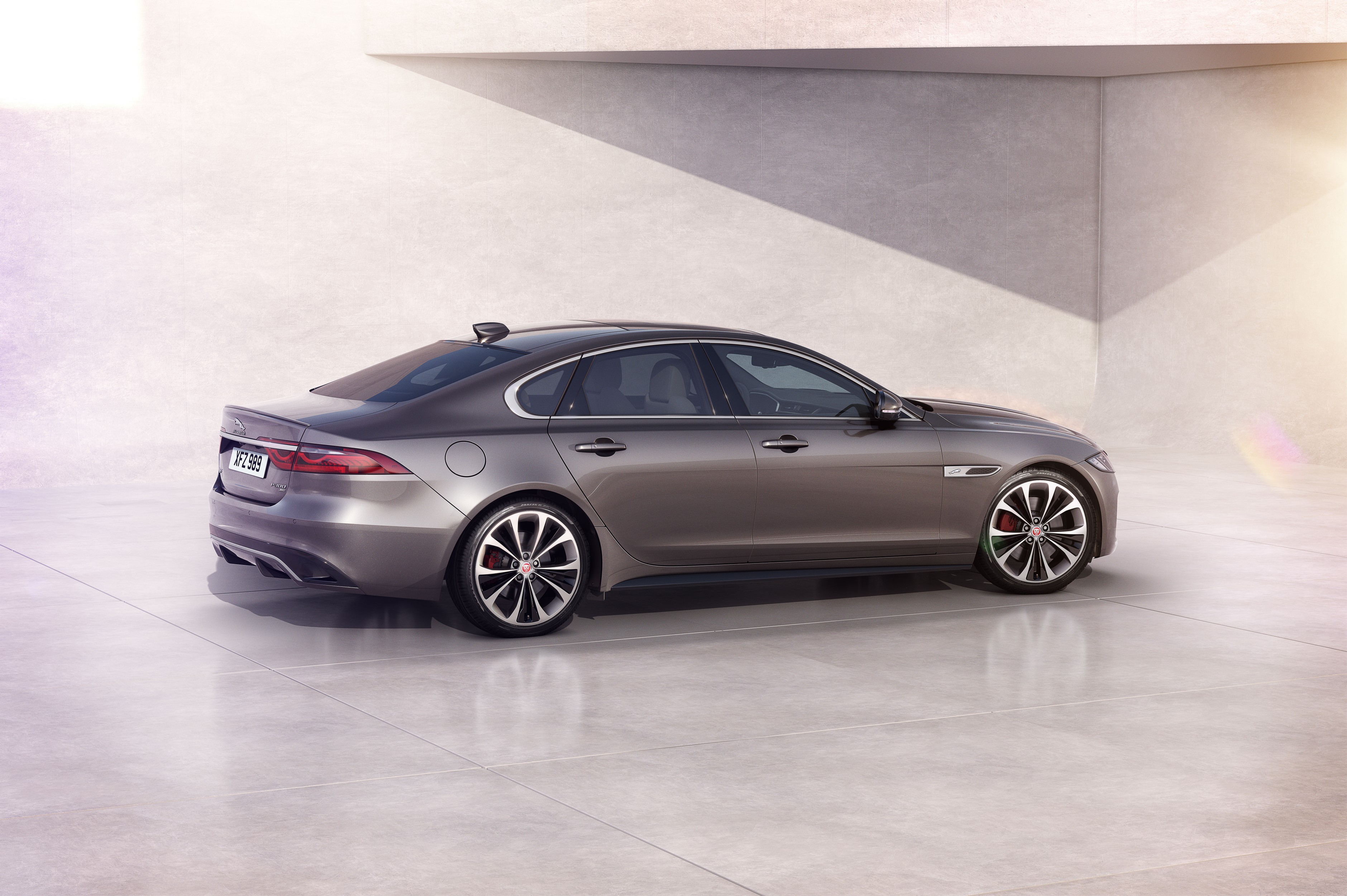

Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
X260Engine size

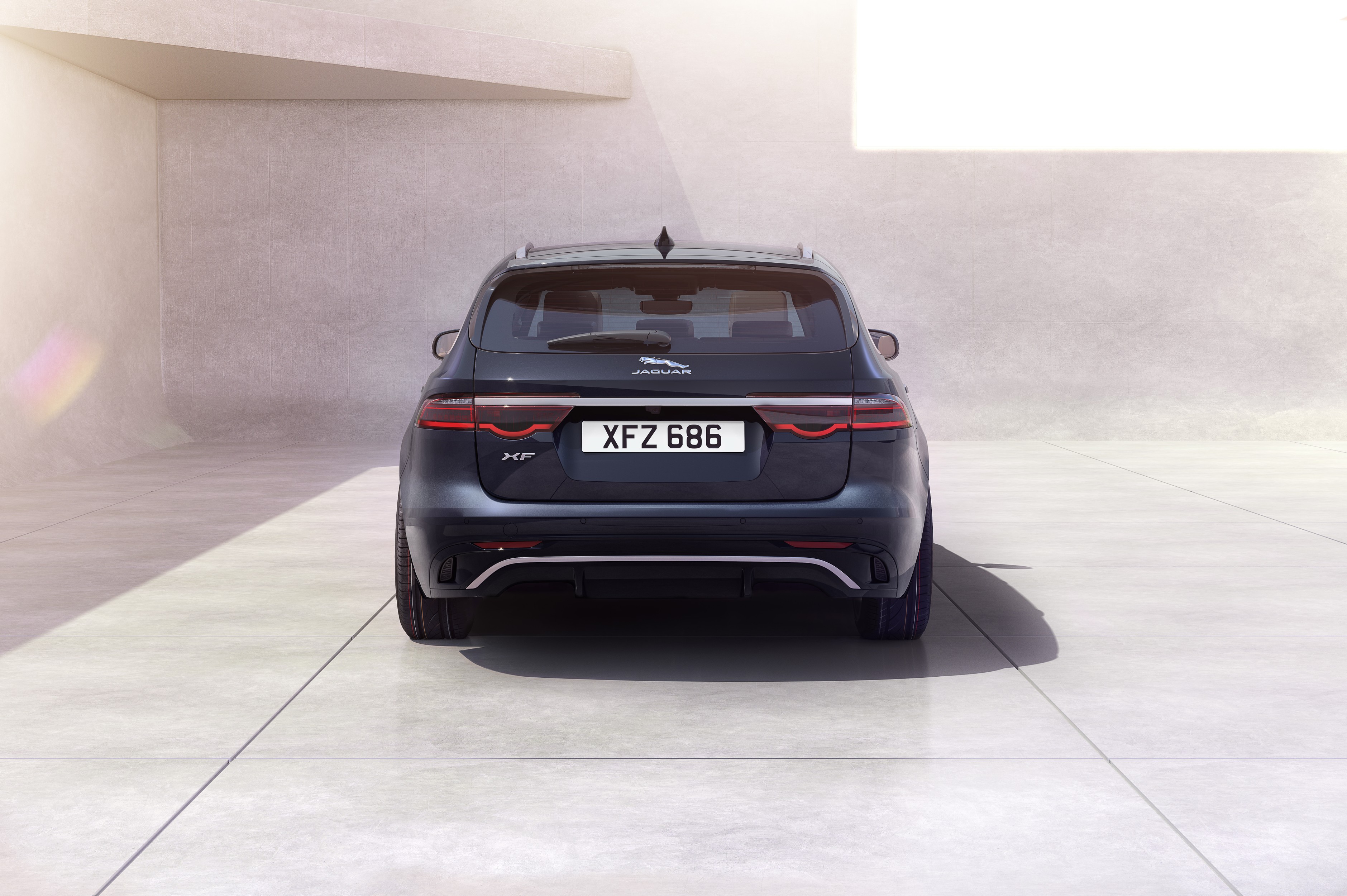

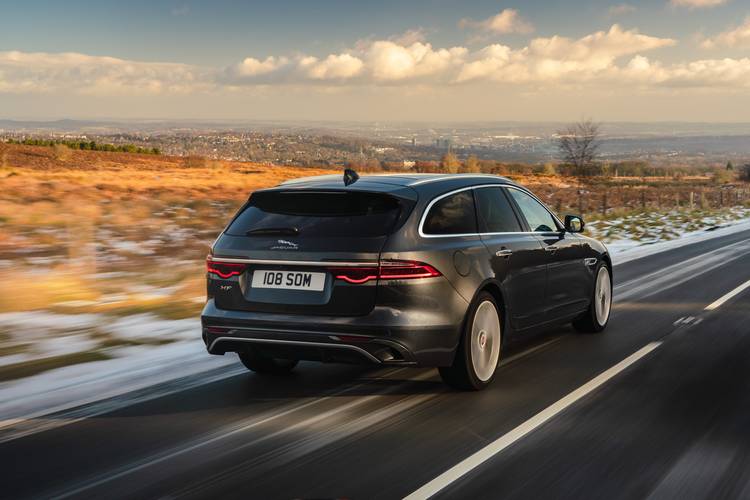

Estate (Sportbrake)
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
X260Engine size
Technical data
Sedan
| P250 | P250 AWD | P300 AWD | D200 MHEV | D200 MHEV AWD | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | |
| Maximum output / speed [kW/min-1] | 184/5500 | 184/5500 | 221/5500 | 150/4250 | 150/4250 | |
| Maximum torque [Nm/min-1] | 365/1200-4500 | 365/1200-4500 | 400/1500-4500 | 430/1750-2500 | 430/1750-2500 | |
| Bore and stroke [mm x mm] | 83.0 x 92.4 | 83.0 x 92.4 | 83.0 x 92.29 | 83,0 x 92.31 | 83,0 x 92.31 | |
| Compression ratio | 10.5:1 | 10.5:1 | 9.5:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | 4x4 | 4x4 | Rear | 4x4 | |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 250 | 240 | 250 | 235 | 230 | |
| Acceleration 0–100 km/h [s] | 6.9 | 7.0 | 6.1 | 7.6 | 7.8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | 4.5 | 4.7 | 4.0 | 5.5 | 5.7 | |
| City [l] | 9.2-8.9 | - | 9.2-9.1 | 5.3-5.2 | 5.5-5.4 | |
| Out of town [l] | 5.9-5.8 | - | 6.4-6.3 | 4.1-3.9 | 4.3-4.2 | |
| Combined [l] | 7.1-6.9 | - | 7.4-7.4 | 4.5-4.4 | 4.7 | |
| CO2 emissions [g/km] | 162-157 | - | 168-167 | 119-115 | 123-119 | |
| Low speed [l] | 12.7-12.1 | - | 13.1-13.0 | 6.7-6.2 | 7.2-6.7 | |
| Medium speed [l] | 9.0-8.7 | - | 9.4-8.8 | 5.6-5.1 | 5.2-5.7 | |
| High speed [l] | 7.5-6.8 | - | 8.1-7.3 | 4.8-4.2 | 5.2-4.7 | |
| Extra high speed [l] | 8.5-7.6 | - | 9.0-7.9 | 5.8-5.0 | 6.1-5.5 | |
| Combined speed [l] | 8.9-8.0 | - | 9.3-8.6 | 5.6-4.9 | 6.0-5.5 | |
| CO2 emissions [g/km] | 200-181 | - | 211-193 | 146-130 | 157-143 | |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | - | - | - | 48 | 48 | |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1735 | 1785 | 1819 | 1810 | 1869 | |
| Overall weight [kg] | 2290 | - | 2370 | 2350 | 2410 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | - | 750/1900 | 750/2000 | 750/2000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 459 [344 VDA] | 459 [344 VDA] | 459 [344 VDA] | 459 [344 VDA] | 459 [344 VDA] | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/928 [672 VDA] | -/928 [672 VDA] | -/928 [672 VDA] | -/928 [672 VDA] | -/928 [672 VDA] | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | 791/1203 | 791/1203 | 791/1203 | 791/1203 | 791/1203 | |
| Boot height to headliner/ceiling [mm] | -/687 | -/687 | -/687 | -/687 | -/687 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 74 | 74 | 74 | 66 | 66 | |
| AdBlue tank volume [l] | - | - | - | 16 | 16 | |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.25 | 0.25 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | |
| Tyre dimensions front | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | |
| Tyre dimensions rear | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | |
| Brake dimensions front | 325 [350 subject to a surcharge] | 325 [350 subject to a surcharge] | 350 | 325 | 325 | |
| Brake dimensions rear | 325 | 325 | 325 | 325 | 325 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | |
| Turning diameter track/circumference [m] | 11.65/12.0 | 11.65/12.0 | 11.65/12.0 | 11.65/12.0 | 11.65/12.0 | |
| Overall length [mm] | 4962 | 4962 | 4962 | 4962 | 4962 | |
| Overall width without/including mirrors [mm] | 1982/2089 | 1982/2089 | 1982/2089 | 1982/2089 | 1982/2089 | |
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | 1456 | |
| Wheelbase [mm] | 2960 | 2960 | 2960 | 2960 | 2960 | |
| Front wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | |
| Forward overhang [mm] | 847 | 847 | 847 | 847 | 847 | |
| Rear overhang [mm] | 1155 | 1155 | 1155 | 1155 | 1155 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 970 | 970 | 970 | 970 | 970 | |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | -/1054 | -/1054 | -/1054 | -/1054 | -/1054 | |
| Legroom rear knees/total [mm] | -/957 | -/957 | -/957 | -/957 | -/957 |
Estate (Sportbrake)
| P250 | P300 AWD | D200 MHEV | D200 MHEV AWD | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | ||
| Maximum output / speed [kW/min-1] | 184/5500 | 221/5500 | 150/4250 | 150/4250 | ||
| Maximum torque [Nm/min-1] | 365/1200-4500 | 400/1500-4500 | 430/1750-2500 | 430/1750-2500 | ||
| Bore and stroke [mm x mm] | 83.0 x 92.4 | 83.0 x 92.29 | 83,0 x 92.31 | 83,0 x 92.31 | ||
| Compression ratio | 10.5:1 | 9.5:1 | 16,5:1 | 16,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | 4x4 | Rear | 4x4 | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 241 | 250 | 230 | 230 | ||
| Acceleration 0–100 km/h [s] | 7.1 | 6.2 | 7.8 | 8.0 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | 4.6 | 4.1 | 5.7 | 5.9 | ||
| City [l] | 9.5-9.2 | 9.3 | 5.5-5.3 | 5.6-5.5 | ||
| Out of town [l] | 6.0-5.9 | 6.9-6.8 | 4.3-4.2 | 4.4 | ||
| Combined [l] | 7.3-7.1 | 7.8-7.7 | 4.7-4.6 | 4.9-4.8 | ||
| CO2 emissions [g/km] | 165-160 | 177-176 | 125-121 | 128-126 | ||
| Low speed [l] | 12.8-12.2 | 13.2-13.0 | 6.8-6.4 | 7.3-6.9 | ||
| Medium speed [l] | 9.2-8.3 | 9.6-9.1 | 5.7-5.2 | 6.3-5.9 | ||
| High speed [l] | 7.7-7.0 | 8.4-7.8 | 5.0-4.4 | 5.4-4.9 | ||
| Extra high speed [l] | 8.8-8.0 | 9.5-8.7 | 6.1-5.4 | 6.4-5.9 | ||
| Combined speed [l] | 9.1-8.3 | 9.7-9.0 | 5.8-5.2 | 6.2-5.7 | ||
| CO2 emissions [g/km] | 205-188 | 218-204 | 151-137 | 162-150 | ||
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| System voltage [V] | - | - | 48 | 48 | ||
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | ||
| Range with fully charged battery [km] | - | - | - | - | ||
| Charging time | - | - | - | - | ||
| Number of modules/cells | - | - | - | - | ||
| Battery weight [kg] | - | - | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 1801 | 1880 | 1870 | 1931 | ||
| Overall weight [kg] | 2330 | 2400 | 2390 | 2450 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/2000 | 750/2000 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 716 [563 VDA] | 716 [563 VDA] | 716 [563 VDA] | 716 [563 VDA] | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1695 [- | -/1695 [- | -/1695 [- | -/1695 [- | ||
| Boot length [mm] | 1111 | 1111 | 1111 | 1111 | ||
| Boot length with rear seats folded [mm] | -/1970 | -/1970 | -/1970 | -/1970 | ||
| Boot width between wheels/max [mm] | 1058/1089 | 1058/1089 | 1058/1089 | 1058/1089 | ||
| Boot height to headliner/ceiling [mm] | 635/- | 635/- | 635/- | 635/- | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 74 | 74 | 66 | 66 | ||
| AdBlue tank volume [l] | - | - | 16 | 16 | ||
| Air resistance [Cd] | 0.3 | 0.3 | 0.29 | 0.29 | ||
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | ||
| Tyre dimensions front | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | ||
| Tyre dimensions rear | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | ||
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | ||
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | ||
| Brake dimensions front | 325 [350 subject to a surcharge] | 350 | 325 | 325 | ||
| Brake dimensions rear | 325 | 325 | 325 | 325 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | 2.6 | 2.6 | 2.6 | 2.6 | ||
| Turning diameter track/circumference [m] | 11.65/12.0 | 11.65/12.0 | 11.65/12.0 | 11.65/12.0 | ||
| Overall length [mm] | 4964 | 4964 | 4964 | 4964 | ||
| Overall width without/including mirrors [mm] | 1982/2089 | 1982/2089 | 1982/2089 | 1982/2089 | ||
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | ||
| Wheelbase [mm] | 2960 | 2960 | 2960 | 2960 | ||
| Front wheel track [mm] | 1602 | 1602 | 1602 | 1602 | ||
| Rear wheel track [mm] | 1604 | 1604 | 1604 | 1604 | ||
| Forward overhang [mm] | 847 | 847 | 847 | 847 | ||
| Rear overhang [mm] | 1155 | 1155 | 1155 | 1155 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 991 | 991 | 991 | 991 | ||
| Headroom rear [mm] | 994 | 994 | 994 | 994 | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | -/1054 | -/1054 | -/1054 | -/1054 | ||
| Legroom rear knees/total [mm] | -/957 | -/957 | -/957 | -/957 |

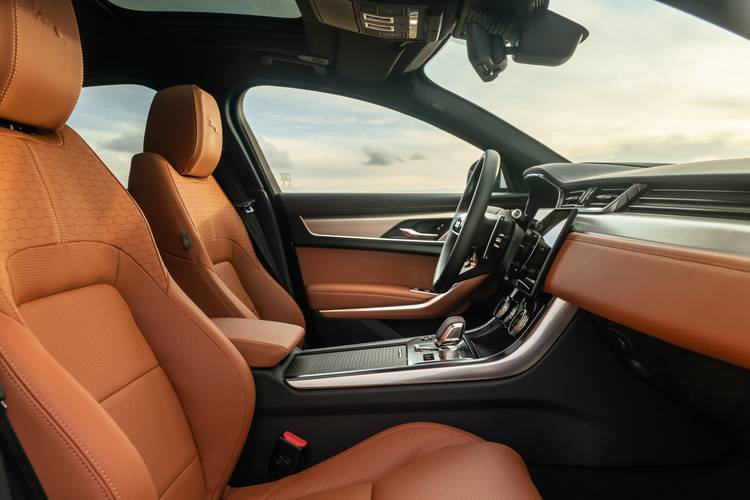

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
