Jeep Renegade
Date of manufacture
2018 – to this day (Small SUV)
Platform
FCA Small Wide 4×4
Manufacturing locations
Melfi, Italy
Designer
Jeremy Glover
Ian Hedge
Tags
Small SUV
American cars
The Jeep Renegade, a small SUV produced since 2018 in collaboration with Italian carmaker FCA, offers a wide range of engines - including petrol, diesel and hybrid powertrains. The most powerful model is the 1.3 T-GDI 4xe 240 Trailhawk with 177 kW of power and the fastest version reaches a top speed of 199 km/h. This model also has the best acceleration 0-100 km/h (7.1 seconds) as well as the lowest fuel consumption of 1.9 l/100 km and emissions of 53 g/km. The boot capacity is 351 l. In terms of safety, the EURONCAP awarded the Renegade a rating of 3 out of 5 in 2019.
Car body style
Small SUV
after upgrade (facelift)
Date of manufacture
2018 – to this dayInternal designation
BU
Technical data
Small SUV
| 1.0 T-GDI 120 | 1.3 T-GDI 150 | 1.3 T-GDI 4xe 190 | 1.3 T-GDI 4xe 240 | 1.3 T-GDI 4xe 240 Trailhawk | 1.6 MultiJet II | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2020 to | from 2020 to | from 2020 to | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1332 | 1332 | 1332 | 1332 | 1598 |
| Maximum output / speed [kW/min-1] | 88/5750 | 110/5500 | 96/5550 combustion 44 el. 140 total | 133/5750 combustion 44 el. 177 total | 133/5750 combustion 44 el. 177 total | 88/3750 |
| Maximum torque [Nm/min-1] | 190/1750 | 270/1850 | 270/1850 250 el. | 270/1850 250 el. | 270/1850 250 el. | 320/1750 |
| Bore and stroke [mm x mm] | 70.0 x 86.5 | 70.0 x 86.5 | 70.0 x 86.5 | 70.0 x 86.5 | 70.0 x 86.5 | 79.5 x 80.5 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | 5.2 |
| Coolant volume [l] | - | - | - | - | - | 6.1 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 185 | 196 | 182 [130 el.] | 199 [130 el.] | 199 [130 el.] | 178 |
| Acceleration 0–100 km/h [s] | 11,2 | 9,4-9.8 | 7.5 | 7.1 | 7.1 | 10,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,5-6.9 | 7,9-6.8 | - | - | - | 5,9 |
| Out of town [l] | 5,5-4.8 | 5,9-5.5 | - | - | - | 4,3 |
| Combined [l] | 6,1-5.6 | 6,4-6.0 | 1.9 [23.9 kWh] | 2.0 [22.9 kWh] | 2.0 [22.9 kWh] | 4,9 |
| CO2 emissions [g/km] | 139-128 | 146-136 | 44 | 46 | 46 | 129 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | - | 53-47 | 54-49 | 54-49 | - |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 11.4 kWh | Lithium-Ionen-Akkumulator, 11.4 kWh | Lithium-Ionen-Akkumulator, 11.4 kWh | - |
| Range with fully charged battery [km] | - | - | 50.4 | 49.5 | 49.5 | - |
| Charging time | - | - |
|
|
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1320-1395 | 1320-1395 | 1845 | 1845 | 1845 | 1430 |
| Overall weight [kg] | 1860 | 1900 | 2315 | 2315 | 2315 | 1950 |
| Maximum trailer weight unbraked/braked [kg] | 600/1250 | 600/1450 | 600/1150 | 600/1150 | 600/1150 | 600/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | - | - | - | 60 |
| Maximum load on roof/carrier [kg] | 70/- | 70/- | - | - | - | 70/- |
| Boot volume [l] | 351 | 351 | 351 | 351 | 351 | 351 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1297 | -/1297 | -/1297 | -/1297 | -/1297 | -/1297 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 36.5 | 36.5 | 36.5 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | 13 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 235/45 R19 | 215/60 R17 | 215/65 R16 |
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 235/45 R19 | 215/60 R17 | 215/65 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | 2.68 | 2.68 | - | - | - | 2.68 |
| Turning diameter track/circumference [m] | 11,07/- | 11,07/- | 11,07/- | 11,07/- | 11,07/- | 11,07/- |
| Overall length [mm] | 4236 | 4236 | 4239 | 4239 | 4257 | 4236 |
| Overall width without/including mirrors [mm] | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- |
| Overall height [mm] | 1667 | 1667 | 1723 | 1723 | 1718 | 1667 |
| Wheelbase [mm] | 2570 | 2570 | 2570 | 2570 | 2570 | 2570 |
| Front wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 166 | 161 | 186 | 186 | 201 | 175 |
| Wading depth [mm] | - | - | 400 | 400 | 400 | - |
| Approach angle front [°] | 18,6 | 17,6 | 19 | 19 | 28 | 17.9 |
| Approach angle rear [°] | 21,2 | 22,2 | 27 | 27 | 28 | 29.7 |
| Transition angle [°] | 14,4 | 13,5 | 16 | 16 | 18 | 21.2 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Headroom rear [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Front elbow/shoulder width [mm] | 1348/1419 | 1348/1419 | 1348/1419 | 1348/1419 | 1348/1419 | 1348/1419 |
| Rear elbow/shoulder width [mm] | 1319/1400 | 1319/1400 | 1319/1400 | 1319/1400 | 1319/1400 | 1319/1400 |
| Legroom front knees/total [mm] | -/1046 | -/1046 | -/1046 | -/1046 | -/1046 | -/1046 |
| Legroom rear knees/total [mm] | -/887 | -/887 | -/887 | -/887 | -/887 | -/887 |
| 1.6 MultiJet II | 1.6 MultiJet | 2.0 MultiJet II 140 | 2.0 MultiJet II 140 | 2.0 MultiJet II 170 Trailhawk | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from 2020 to | from to 2020 | from to 2020 | from to 2020 | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1598 | 1598 | 1956 | 1956 | 1956 | |
| Maximum output / speed [kW/min-1] | 88/3750 | 96/3750 | 103/3750 | 103/3750 | 125/3750 | |
| Maximum torque [Nm/min-1] | 320/1750 | 320/1500 | 350/1750 | 350/1750 | 350/1750 | |
| Bore and stroke [mm x mm] | 79.5 x 80.5 | 79.5 x 80.5 | 83 x 90.4 | 83 x 90.4 | 83 x 90.4 | |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | |
| Oil volume [l] | 5.2 | - | 5.2 | 5.2 | 5.2 | |
| Coolant volume [l] | 6.1 | - | 6.5 | 6.5 | 6.5 | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 9 gear automatic | 9 gear automatic | |
| Drive specifications |
| - |
|
|
| |
| Top speed [km/h] | 178 | 193 | 182 | 182 | 190 | |
| Acceleration 0–100 km/h [s] | 10,2 | 10.4 | 9,5 | 10,0 | 8,9 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6,0 | 5.8 | 6,8 | 7,6 | 8,0 | |
| Out of town [l] | 4,5 | 4.0 | 5,0 | 5,2 | 5,6 | |
| Combined [l] | 5,0 | 4.7 | 5,8 | 6,4 | 6,6 | |
| CO2 emissions [g/km] | 131 | 125 | 153 | 167 | 173 | |
| Emission standard | Euro 6d-TEMP | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1430 | 1505 | 1540 | 1540 | 1660 | |
| Overall weight [kg] | 1995 | 1950 | 2100 | 2100 | 2170 | |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1500 | 600/1500 | 600/1500 | 600/1500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | |
| Maximum load on roof/carrier [kg] | 70/- | 70/- | 70/- | 70/- | 70/- | |
| Boot volume [l] | 351 | 351 | 351 | 351 | 351 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1297 | -/1297 | -/1297 | -/1297 | -/1297 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | |
| AdBlue tank volume [l] | 13 | 13 | 13 | 13 | 13 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Tyre dimensions front | 215/65 R16 | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/60 R17 | |
| Tyre dimensions rear | 215/65 R16 | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/60 R17 | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | |
| Number of steering wheel turns | 2.68 | 2.68 | 2.68 | 2.76 | 2.76 | |
| Turning diameter track/circumference [m] | 11,07/- | 11,07/- | 11,07/- | 10.76/- | 10.76/- | |
| Overall length [mm] | 4236 | 4236 | 4236 | 4236 | 4236 | |
| Overall width without/including mirrors [mm] | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- | |
| Overall height [mm] | 1667 | 1667 | 1667 | 1667 | 1667 | |
| Wheelbase [mm] | 2570 | 2570 | 2570 | 2570 | 2570 | |
| Front wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1541 | |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1541 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | 175 | 175 | 198 | 198 | 210 | |
| Wading depth [mm] | - | - | 305 | 305 | 480 | |
| Approach angle front [°] | 17.9 | 17.9 | 21.0 | 21.0 | 30.0 | |
| Approach angle rear [°] | 29.7 | 29.7 | 32.1 | 32.1 | 34.0 | |
| Transition angle [°] | 21.2 | 21.2 | 23.5 | 23.5 | 24.0 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | |
| Headroom rear [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | |
| Front elbow/shoulder width [mm] | 1348/1419 | 1348/1419 | 1348/1419 | 1348/1419 | 1348/1419 | |
| Rear elbow/shoulder width [mm] | 1319/1400 | 1319/1400 | 1319/1400 | 1319/1400 | 1319/1400 | |
| Legroom front knees/total [mm] | -/1046 | -/1046 | -/1046 | -/1046 | -/1046 | |
| Legroom rear knees/total [mm] | -/887 | -/887 | -/887 | -/887 | -/887 |

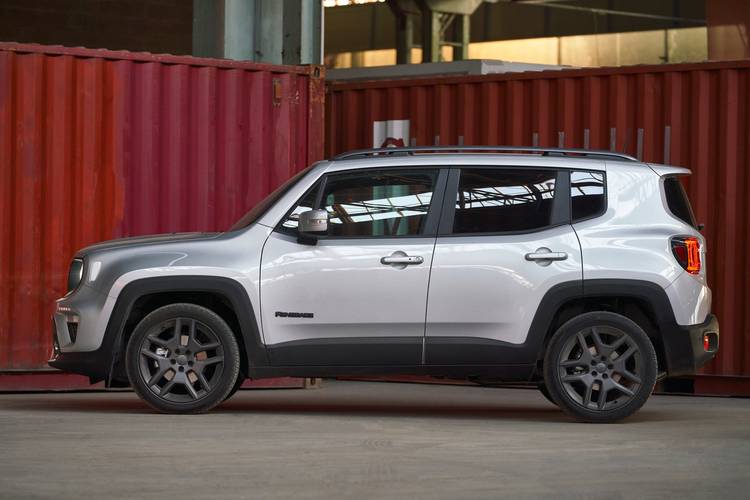

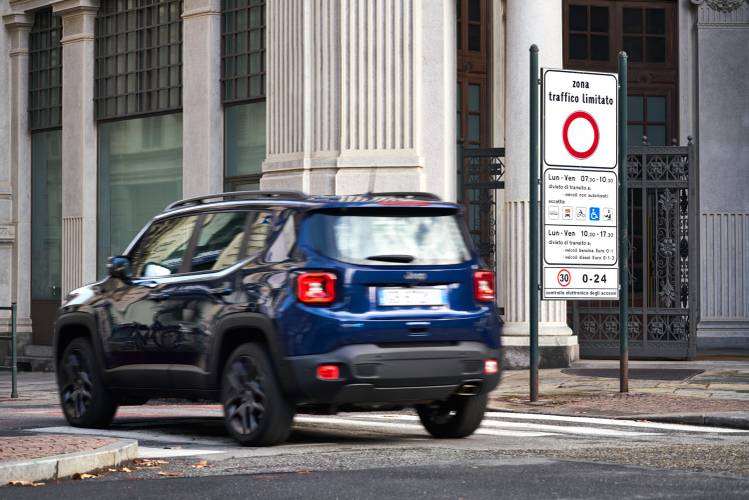

Gallery
