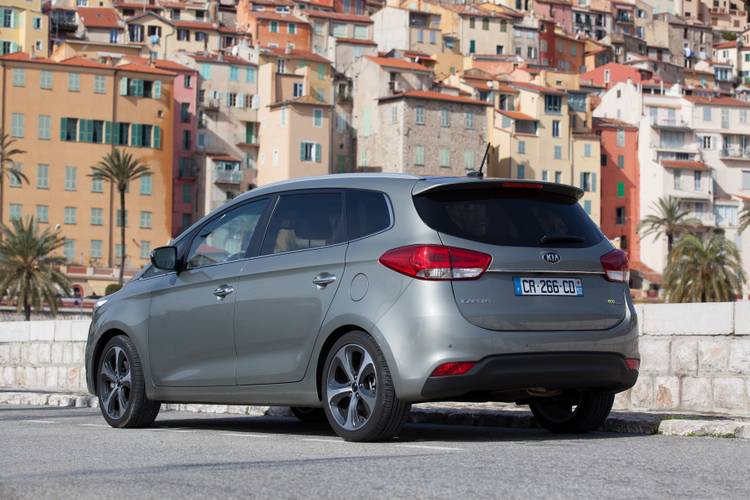

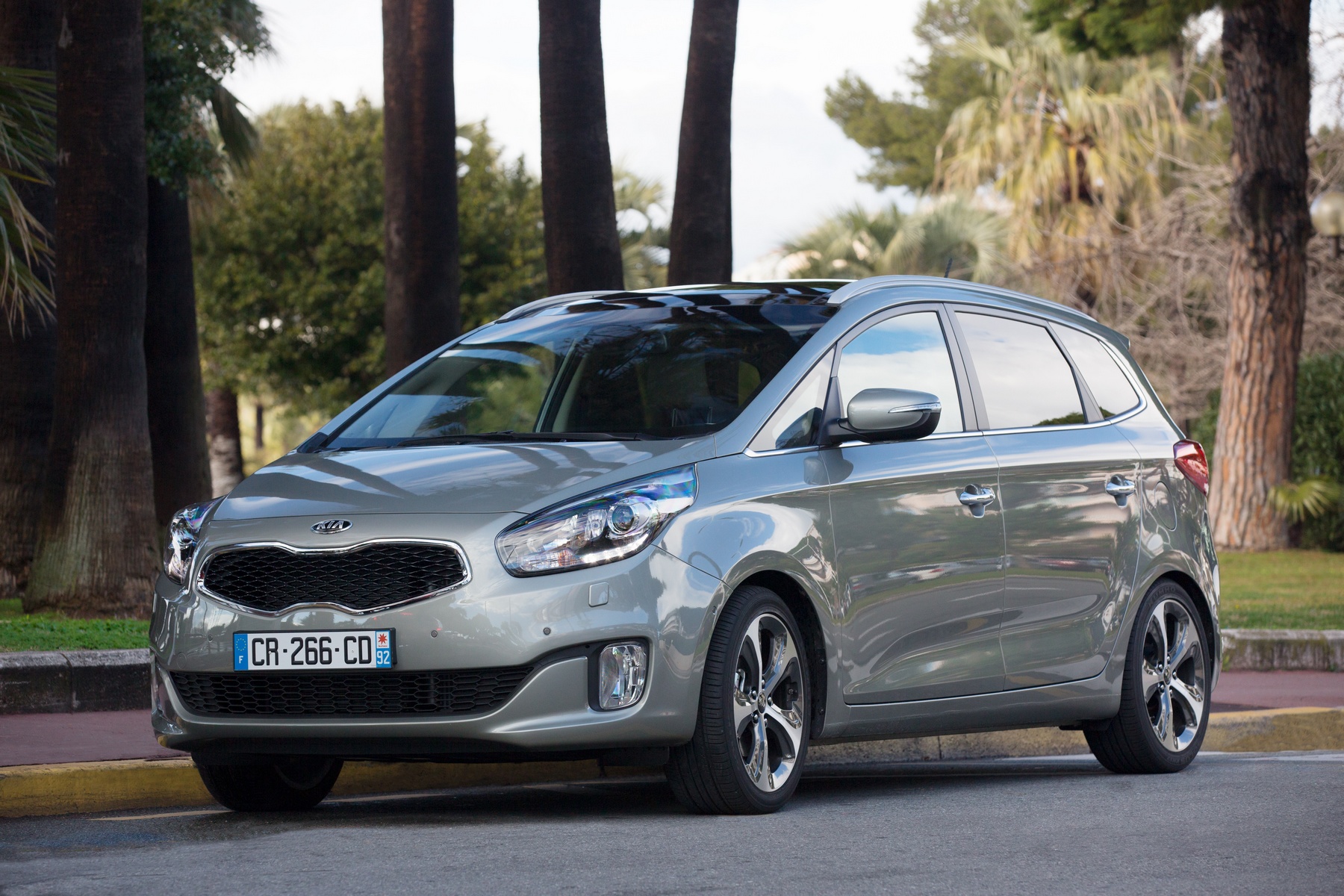

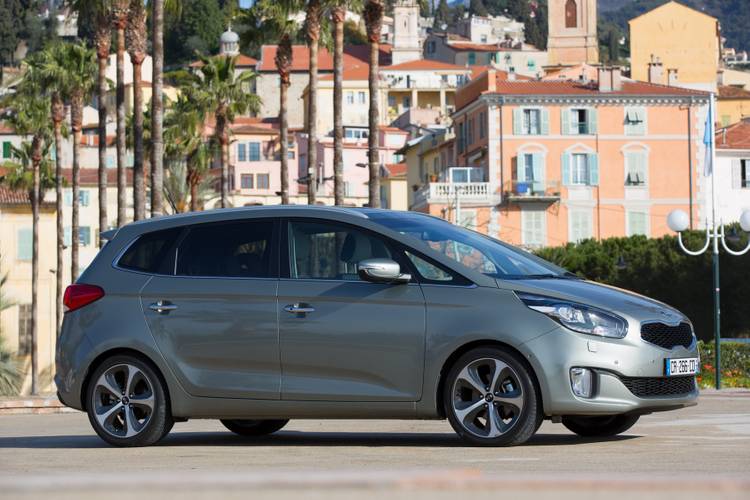

Kia Carens
Date of manufacture
2013 – 2016 (MPV)
Platform
-
Manufacturing locations
Gwangju, South Korea
Designer
Peter Schreyer
Gregory Guillaume
Tags
Mid-size MPV
Korean cars
The new Kia Carens model is an MPV that was released to the market in 2013. The car is manufactured in South Korea and offers a wide range of petrol and diesel engines. The most powerful model is the 2.0 GDI 7-seater with a maximum power of 122 kW, the highest speed reaches 203 km/h and the fastest acceleration from 0-100 km/h is 9.7 seconds. The most economical engine is the 1.7 CRDi ISG with a combined consumption of 4.5 l/100 km and CO2 emissions of 118 g/km. The car's trunk volume is 536 liters and according to the EURONCAP test of 2013, this model received a rating of 5 out of 5 for safety.
Car body style
MPV
Date of manufacture
2013 – 2016Internal designation
RPEngine size
Petrol
Diesel
Technical data
MPV
| 1.6 GDI | 1.6 GDI ISG | 1.6 GDI 7 seats | 1.6 GDI ISG 7 seats | 2.0 GDI | 2.0 GDI ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1591 | 1591 | 1591 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 99/6300 | 99/6300 | 99/6300 | 99/6300 | 122/6500 | 122/6500 |
| Maximum torque [Nm/min-1] | 165/4850 | 165/4850 | 165/4850 | 165/4850 | 213/4700 | 213/4700 |
| Bore and stroke [mm x mm] | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 81,0 x 97,0 | 81,0 x 97,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,5:1 | 11,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 185 | 185 | 185 | 185 | 203 | 203 |
| Acceleration 0–100 km/h [s] | 11.3 | 11.3 | 11.3 | 11.3 | 9.7 | 9.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3-9.0 | 7.8-8.4 | 8.3-9.0 | 7.8-8.4 | 9.7 | 9.3 |
| Out of town [l] | 5.4-5.6 | 5.2-5.3 | 5.4-5.6 | 5.2-5.3 | 5.8 | 5.9 |
| Combined [l] | 6.5-6.8 | 6.2-6.4 | 6.5-6.8 | 6.2-6.4 | 7.3 | 7.2 |
| CO2 emissions [g/km] | 150-159 | 143-149 | 150-159 | 143-149 | 169 | 166 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1458-1580 | 1458-1580 | 1483-1606 | 1483-1606 | 1495-1615 | 1495-1615 |
| Overall weight [kg] | 2000 | 2000 | 2140 | 2140 | 2040 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 710/1300 | 710/1300 | 730/1300 | 730/1300 | 730/1500 | 730/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 536 | 536 | 103 | 103 | 536 | 536 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1694 | -/1694 | -/1650 | -/1650 | -/1694 | -/1694 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 7 | 7 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 |
| Wheel size rear | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 |
| Brake dimensions front | 300x28 | 300x28 | 300x28 | 300x28 | 300x28 | 300x28 |
| Brake dimensions rear | 284x10 | 284x10 | 284x10 | 284x10 | 284x10 | 284x10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 |
| Overall width without/including mirrors [mm] | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- |
| Overall height [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Wheelbase [mm] | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Rear overhang [mm] | 835 | 835 | 835 | 835 | 835 | 835 |
| Clearance [mm] | 151 | 151 | 151 | 151 | 151 | 151 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 |
| Rear elbow/shoulder width [mm] | -/1440 | -/1440 | -/1440 | -/1440 | -/1440 | -/1440 |
| Legroom front knees/total [mm] | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 |
| Legroom rear knees/total [mm] | -/940 | -/940 | -/940 | -/940 | -/940 | -/940 |
| Third row of seats, headroom [mm] | - | - | 867 | 867 | 867 | 867 |
| Third row elbow/shoulder width [mm] | - | - | -/1313 | -/1313 | -/1313 | -/1313 |
| 2.0 GDI 7 seats | 2.0 GDI ISG 7 seats | 2.0 GDI | 2.0 GDI 7 seats | 1.7 CRDi | 1.7 CRDi ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1999 | 1999 | 1999 | 1685 | 1685 |
| Maximum output / speed [kW/min-1] | 122/6500 | 122/6500 | 122/6500 | 122/6500 | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 213/4700 | 213/4700 | 213/4700 | 213/4700 | 260/1250-2750 | 260/1250-2750 |
| Bore and stroke [mm x mm] | 81,0 x 97,0 | 81,0 x 97,0 | 81,0 x 97,0 | 81,0 x 97,0 | 77,2 x 90,0 | 77,2 x 90,0 |
| Compression ratio | 11,5:1 | 11,5:1 | 11,5:1 | 11,5:1 | 17,0:1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 203 | 203 | 200 | 200 | 181 | 181 |
| Acceleration 0–100 km/h [s] | 9.7 | 9.7 | 10.8 | 10.8 | 13.0 | 13.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.7 | 9.3 | 10.6 | 10.6 | 5.5-6.1 | 5.1-5.8 |
| Out of town [l] | 5.8 | 5.9 | 6.3 | 6.3 | 4.3-4.4 | 4.1 |
| Combined [l] | 7.3 | 7.2 | 7.9 | 7.9 | 4.8-4.9 | 4.5-4.7 |
| CO2 emissions [g/km] | 169 | 166 | 184 | 184 | 125-129 | 117-124 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1519-1640 | 1519-1640 | 1520-1639 | 1544-1664 | 1557-1682 | 1557-1682 |
| Overall weight [kg] | 2180 | 2180 | 2060 | 2200 | 2110 | 2110 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 740/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 103 | 103 | 536 | 103 | 536 | 536 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1650 | -/1650 | -/1694 | -/1650 | -/1694 | -/1694 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 7 | 7 | 5 | 7 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 |
| Wheel size rear | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 |
| Brake dimensions front | 300x28 | 300x28 | 300x28 | 300x28 | 300x28 | 300x28 |
| Brake dimensions rear | 284x10 | 284x10 | 284x10 | 284x10 | 284x10 | 284x10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 |
| Overall width without/including mirrors [mm] | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- |
| Overall height [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Wheelbase [mm] | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Rear overhang [mm] | 835 | 835 | 835 | 835 | 835 | 835 |
| Clearance [mm] | 151 | 151 | 151 | 151 | 151 | 151 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 |
| Rear elbow/shoulder width [mm] | -/1440 | -/1440 | -/1440 | -/1440 | -/1440 | -/1440 |
| Legroom front knees/total [mm] | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 |
| Legroom rear knees/total [mm] | -/940 | -/940 | -/940 | -/940 | -/940 | -/940 |
| Third row of seats, headroom [mm] | 867 | 867 | - | 867 | - | - |
| Third row elbow/shoulder width [mm] | -/1313 | -/1313 | - | -/1313 | - | - |
| 1.7 CRDi 7 seats | 1.7 CRDi ISG 7 seats | 1.7 CRDi | 1.7 CRDi ISG | 1.7 CRDi 7 seats | 1.7 CRDi ISG 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1685 | 1685 | 1685 | 1685 | 1685 | 1685 |
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 100/4000 | 100/4000 | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 260/1250-2750 | 260/1250-2750 | 331/1750-2500 | 331/1750-2500 | 331/1750-2500 | 331/1750-2500 |
| Bore and stroke [mm x mm] | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 |
| Compression ratio | 17,0:1 | 17,0:1 | 17,0:1 | 17,0:1 | 17,0:1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 181 | 181 | 191 | 191 | 191 | 191 |
| Acceleration 0–100 km/h [s] | 13.0 | 13.0 | 10.4 | 10.4 | 10.4 | 10.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.5-6.1 | 5.1-5.8 | 6.2 | 5.7 | 6.2 | 5.7 |
| Out of town [l] | 4.3-4.4 | 4.1 | 4.4 | 4.3 | 4.4 | 4.3 |
| Combined [l] | 4.8-4.9 | 4.5-4.7 | 5.1 | 4.8 | 5.1 | 4.8 |
| CO2 emissions [g/km] | 125-129 | 117-124 | 134 | 127 | 134 | 127 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1581-1706 | 1581-1706 | 1567-1692 | 1567-1692 | 1591-1716 | 1591-1716 |
| Overall weight [kg] | 2240 | 2240 | 2110 | 2110 | 2250 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 103 | 103 | 536 | 536 | 536 | 536 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1650 | -/1650 | -/1694 | -/1694 | -/1694 | -/1694 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 7 | 7 | 5 | 5 | 7 | 7 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 |
| Wheel size rear | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 |
| Brake dimensions front | 300x28 | 300x28 | 300x28 | 300x28 | 300x28 | 300x28 |
| Brake dimensions rear | 284x10 | 284x10 | 284x10 | 284x10 | 284x10 | 284x10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 |
| Overall width without/including mirrors [mm] | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- |
| Overall height [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Wheelbase [mm] | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Rear overhang [mm] | 835 | 835 | 835 | 835 | 835 | 835 |
| Clearance [mm] | 151 | 151 | 151 | 151 | 151 | 151 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 |
| Rear elbow/shoulder width [mm] | -/1440 | -/1440 | -/1440 | -/1440 | -/1440 | -/1440 |
| Legroom front knees/total [mm] | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 |
| Legroom rear knees/total [mm] | -/940 | -/940 | -/940 | -/940 | -/940 | -/940 |
| Third row of seats, headroom [mm] | 867 | 867 | - | - | 867 | 867 |
| Third row elbow/shoulder width [mm] | -/1313 | -/1313 | - | - | -/1313 | -/1313 |
| 1.7 CRDi | 1.7 CRDi 7 seats | 1.7 CRDi | 1.7 CRDi ISG | 1.7 CRDi 7 seats | 1.7 CRDi ISG 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1685 | 1685 | 1685 | 1685 | 1685 | 1685 |
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | 104/4000 | 104/4000 | 104/4000 | 104/4000 |
| Maximum torque [Nm/min-1] | 331/1750-2500 | 331/1750-2500 | 340/1750-2500 | 340/1750-2500 | 340/1750-2500 | 340/1750-2500 |
| Bore and stroke [mm x mm] | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 |
| Compression ratio | 17,0:1 | 17,0:1 | 15,7:1 | 15,7:1 | 15,7:1 | 15,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - | - | - | - |
| Top speed [km/h] | 191 | 191 | 191 | 191 | 191 | 191 |
| Acceleration 0–100 km/h [s] | 12.0 | 12.0 | 10.4 | 10.4 | 10.4 | 10.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 7.7 | 5.7 | 5.1 | 5.7 | 5.1 |
| Out of town [l] | 5.1 | 5.1 | 4.3 | 4.2 | 4.3 | 4.2 |
| Combined [l] | 6.1 | 6.1 | 4.8 | 4.5 | 4.8 | 4.5 |
| CO2 emissions [g/km] | 159 | 159 | 126 | 118 | 126 | 118 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1587-1711 | 1600-1724 | 1567-1692 | 1567-1692 | 1591-1716 | 1591-1716 |
| Overall weight [kg] | 2130 | 2270 | 2110 | 2110 | 2250 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 536 | 103 | 536 | 536 | 103 | 103 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1694 | -/1650 | -/1694 | -/1694 | -/1650 | -/1650 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 5 | 7 | 7 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 |
| Wheel size rear | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 |
| Brake dimensions front | 300x28 | 300x28 | 300x28 | 300x28 | 300x28 | 300x28 |
| Brake dimensions rear | 284x10 | 284x10 | 284x10 | 284x10 | 284x10 | 284x10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 |
| Overall width without/including mirrors [mm] | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- |
| Overall height [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Wheelbase [mm] | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Rear overhang [mm] | 835 | 835 | 835 | 835 | 835 | 835 |
| Clearance [mm] | 151 | 151 | 151 | 151 | 151 | 151 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 |
| Rear elbow/shoulder width [mm] | -/1440 | -/1440 | -/1440 | -/1440 | -/1440 | -/1440 |
| Legroom front knees/total [mm] | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 |
| Legroom rear knees/total [mm] | -/940 | -/940 | -/940 | -/940 | -/940 | -/940 |
| Third row of seats, headroom [mm] | - | 867 | - | - | 867 | 867 |
| Third row elbow/shoulder width [mm] | - | -/1313 | - | - | -/1313 | -/1313 |
| 1.7 CRDi | 1.7 CRDi 7 seats | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1685 | 1685 | ||||
| Maximum output / speed [kW/min-1] | 104/4000 | 104/4000 | ||||
| Maximum torque [Nm/min-1] | 340/1750-2500 | 340/1750-2500 | ||||
| Bore and stroke [mm x mm] | 77,2 x 90,0 | 77,2 x 90,0 | ||||
| Compression ratio | 15,7:1 | 15,7:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 7 gear automatic | 7 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 186 | 186 | ||||
| Acceleration 0–100 km/h [s] | 12.0 | 12.0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.1 | 6.1 | ||||
| Out of town [l] | 4.7 | 4.7 | ||||
| Combined [l] | 5.2 | 5.2 | ||||
| CO2 emissions [g/km] | 135 | 135 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1587-1711 | 1600-1724 | ||||
| Overall weight [kg] | 2130 | 2270 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 536 | 103 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1694 | -/1650 | ||||
| Boot volume, third row of seats [l] | - | - | ||||
| Boot volume, third row seats folded [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 7 | ||||
| Fuel tank volume [l] | 58 | 58 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.3 | 0.3 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | ||||
| Wheel size rear | 6.5Jx16 ET48.5 | 6.5Jx16 ET48.5 | ||||
| Brake dimensions front | 300x28 | 300x28 | ||||
| Brake dimensions rear | 284x10 | 284x10 | ||||
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | ||||
| Overall length [mm] | 4525 | 4525 | ||||
| Overall width without/including mirrors [mm] | 1805/- | 1805/- | ||||
| Overall height [mm] | 1605 | 1605 | ||||
| Wheelbase [mm] | 2750 | 2750 | ||||
| Front wheel track [mm] | 1573 | 1573 | ||||
| Rear wheel track [mm] | 1586 | 1586 | ||||
| Forward overhang [mm] | 940 | 940 | ||||
| Rear overhang [mm] | 835 | 835 | ||||
| Clearance [mm] | 151 | 151 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1035 | 1035 | ||||
| Headroom rear [mm] | 1002 | 1002 | ||||
| Front elbow/shoulder width [mm] | -/1438 | -/1438 | ||||
| Rear elbow/shoulder width [mm] | -/1440 | -/1440 | ||||
| Legroom front knees/total [mm] | -/1034 | -/1034 | ||||
| Legroom rear knees/total [mm] | -/940 | -/940 | ||||
| Third row of seats, headroom [mm] | - | 867 | ||||
| Third row elbow/shoulder width [mm] | - | -/1313 |

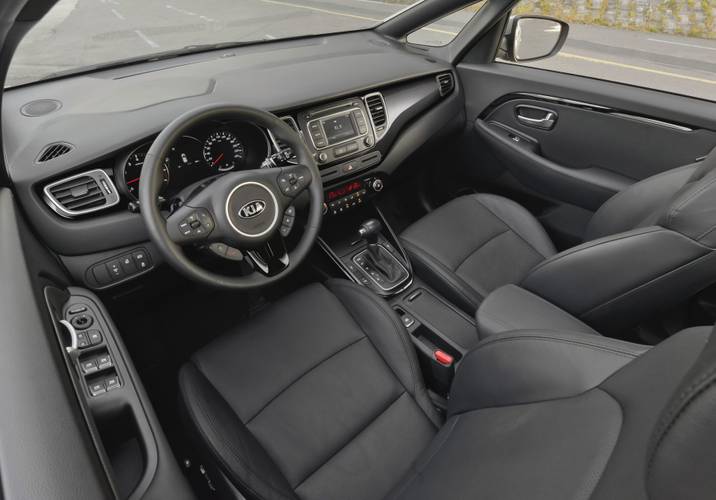

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
