Kia Optima

Date of manufacture

2010 – 2013 (Sedan)

Platform

Manufacturing locations

Hwaseong, South Korea

Designer

Peter Schreyer

Miklos Kovacs

Davide Limongelli

Gregory Guillaume

Car body style

Sedan

Date of manufacture

2010 – 2013

Internal designation

Engine size

Petrol

2.0 CVVL

Petrol + Electric

Diesel

Technical data

Sedan

	2.0 CVVL	2.0 CVVL	2.0 CVVT Hybrid	1.7 CRDi	1.7 CRDi ISG	1.7 CRDi
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol + Electric	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	1999	1685	1685	1685
Maximum output / speed [kW/min-1]	121/6200	121/6200	110/6000 combustion 30/1400 el. 140/6000 total	100/4000	100/4000	100/4000
Maximum torque [Nm/min-1]	196/4800	196/4800	180/6500 combustion 205/0-1400 el. 340/1400 total	325/2000-2500	325/2000-2500	325/2000-2500
Bore and stroke [mm x mm]	81,0 x 97,0	81,0 x 97,0	81,0 x 97,0	77,2 x 90,0	77,2 x 90,0	77,2 x 90,0
Compression ratio	10,3:1	10,3:1	12,5:1	17,0:1	17,0:1	17,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing and lift CVVL	variable valve timing and lift CVVL	Full Hybrid HEV variable valve timing CVVT electric synchronous motor with permanent magnet brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry start&stop system	direct injection Common Rail turbocharger with variable blade geometry

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear automatic	6 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	-	automatic gearbox	automatic gearbox	-	-	automatic gearbox

Top speed [km/h]	210	208	185	202	202	197
Acceleration 0–100 km/h [s]	9.5	10.6	9.4	10.3	10.3	11.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	9.3	10.3	5.7	6.1	5.7	7.9
Out of town [l]	5.6	6.1	5.4	4.5	4.4	4.9
Combined [l]	7.0	7.6	5.3	5.1	4.9	6.0
CO2 emissions [g/km]	162	177	125	133	128	158

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	-	-	-	-	-	-
Battery type and capacity	-	-	Lithium-polymer, 5.3 Ah	-	-	-
Range with fully charged battery [km]	-	-	-	-	-	-
Charging time	-	-	-	-	-	-
Number of modules/cells	-	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	1496-1576	1511-1589	1662-1723	1559-1637	1559-1637	1581-1659
Overall weight [kg]	2000	2000	2050	2050	2050	2050
Maximum trailer weight unbraked/braked [kg]	650/1300	650/1300	-	650/1300	650/1300	650/1300
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	505	505	381	505	505	505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	65	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.29	0.26	0.29	0.29	0.29
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	205/65 R16	205/65 R16	215/55 R17	205/65 R16	205/65 R16	205/65 R16
Tyre dimensions rear	205/65 R16	205/65 R16	215/55 R17	205/65 R16	205/65 R16	205/65 R16
Wheel size front	6.5J x 16	6.5J x 16	7.0J x 17	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	7.0J x 17	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	300 x 28	300 x 28	300 x 28	300 x 28	300 x 28	300 x 28
Brake dimensions rear	262 x 10	262 x 10	284 x 10	262 x 10	262 x 10	262 x 10
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9	10.9	10.9	10.9	10.9	10.9

Overall length [mm]	4845	4845	4845	4845	4845	4845
Overall width without/including mirrors [mm]	1830/-	1830/-	1830/-	1830/-	1830/-	1830/-
Overall height [mm]	1455	1455	1455	1455	1455	1455
Wheelbase [mm]	2795	2795	2795	2795	2795	2795
Front wheel track [mm]	1601	1601	1601	1601	1601	1601
Rear wheel track [mm]	1601	1601	1601	1601	1601	1601
Forward overhang [mm]	965	965	965	965	965	965
Rear overhang [mm]	1085	1085	1085	1085	1085	1085
Clearance [mm]	135	135	135	135	135	135
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1028	1028	1028	1028	1028	1028
Headroom rear [mm]	965	965	965	965	965	965
Front elbow/shoulder width [mm]	1388/1455	1388/1455	1388/1455	1388/1455	1388/1455	1388/1455
Rear elbow/shoulder width [mm]	1384/1415	1384/1415	1384/1415	1384/1415	1384/1415	1384/1415
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

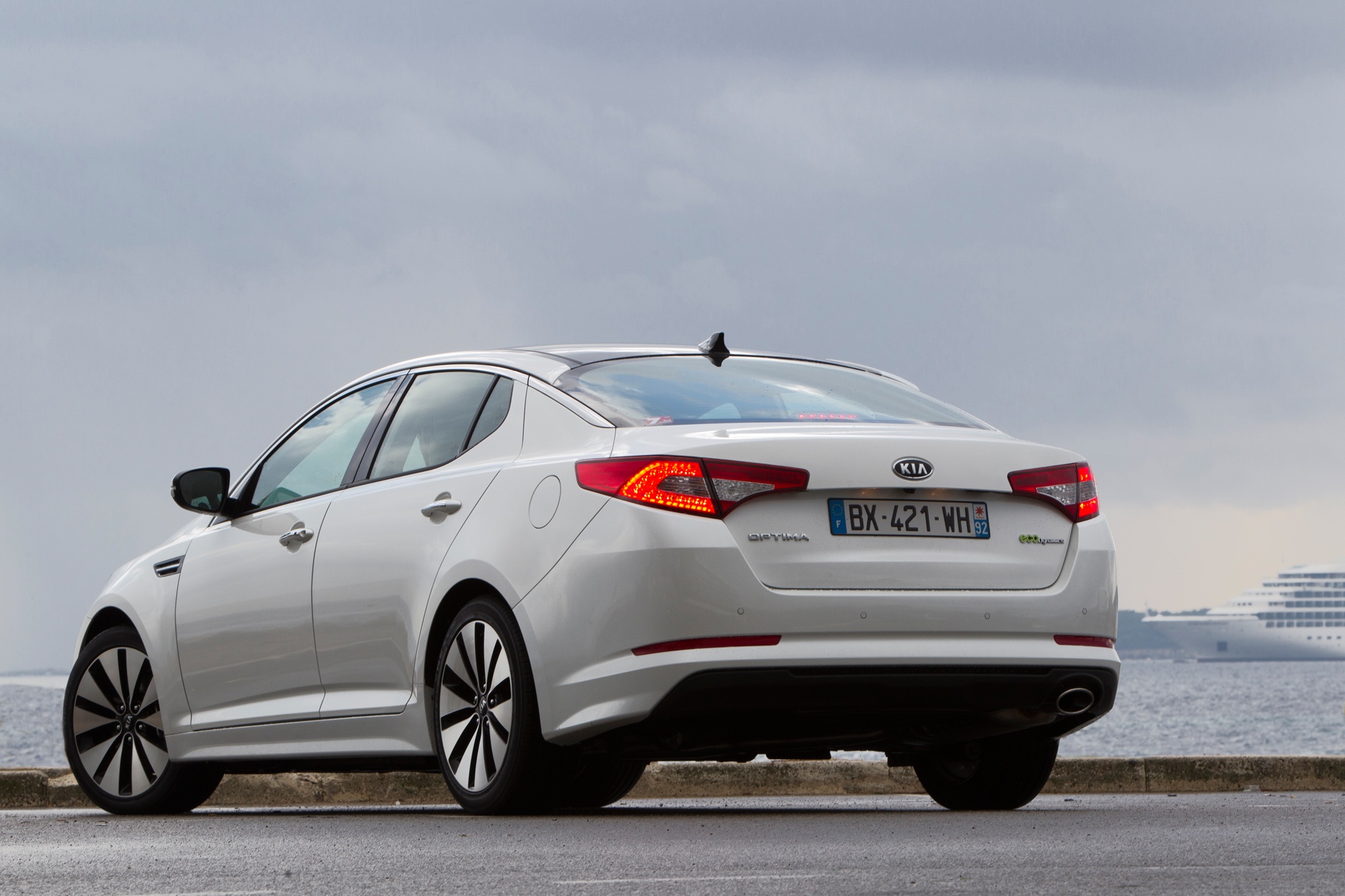

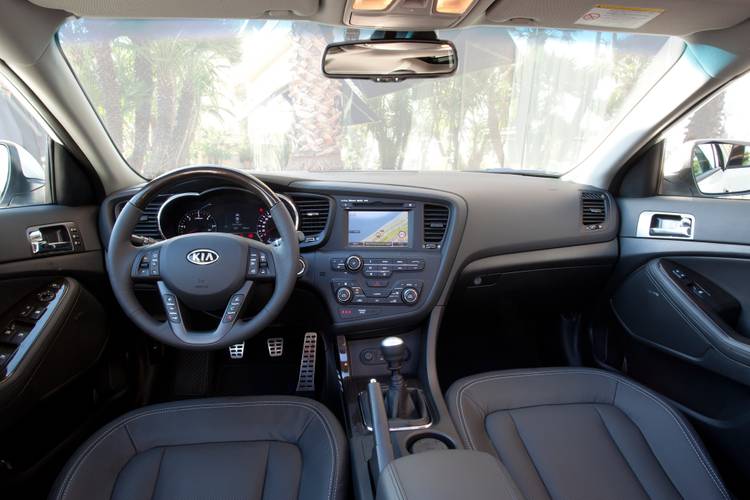

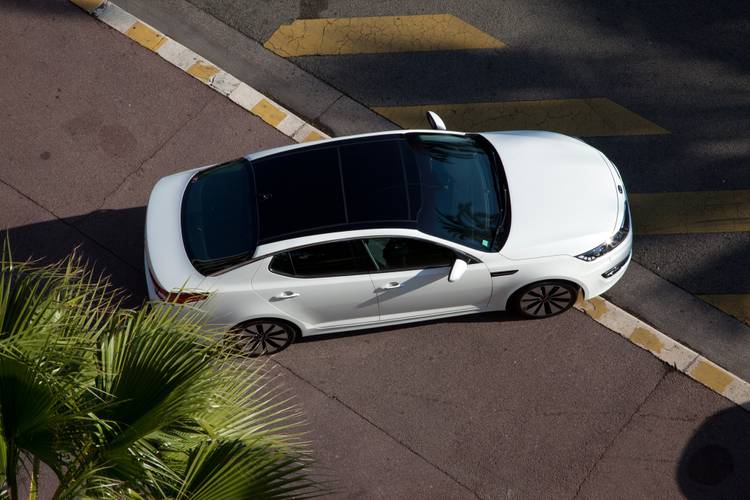

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
