Kia Rio
Date of manufacture
2011 – 2014 (Three-door hatchback)
2011 – 2014 (Five-door hatchback)
Platform
-
Manufacturing locations
Gwangmyeong, South Korea
Designer
Peter Schreyer
Tags
B-segment
Korean cars
The Kia Rio is available in hatchback three-door and five-door versions, which have been manufactured since 2011. The engine range includes petrol and diesel engines with the highest power output of 80 kW in the 1.4 CVVT model and the best acceleration from 0-100 km/h in 11.5 seconds in the same engine. The fuel consumption is lowest in the 1.1 CRDi ISG model with a value of 3.6 l/100 km and CO2 emissions of 94 g/km. The luggage compartment size is 288 l in both variants. In 2011, the Kia Rio underwent EURONCAP safety tests and received a rating of 5 out of 5.
Car body style
Three-door hatchback
Date of manufacture
2011 – 2014Internal designation
UBEngine size
Five-door hatchback
Date of manufacture
2011 – 2014Internal designation
UBEngine size
Technical data
Three-door hatchback
| 1.25 CVVT | 1.25 CVVT ISG | 1.4 CVVT | 1.4 CVVT ISG | 1.4 CVVT | 1.1 CRDi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 3/12 |
| Engine displacement [cm³] | 1248 | 1248 | 1396 | 1396 | 1396 | 1120 |
| Maximum output / speed [kW/min-1] | 63/6000 | 63/6000 | 80/6300 | 80/6300 | 80/6300 | 55/4000 |
| Maximum torque [Nm/min-1] | 121/4000 | 121/4000 | 137/4200 | 137/4200 | 137/4200 | 170/1500-2750 |
| Bore and stroke [mm x mm] | 71,0 x 78,8 | 71,0 x 78,8 | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 74,99 | 75,0 x 84,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 4 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 172 | 172 | 183 | 183 | 170 | 158 |
| Acceleration 0–100 km/h [s] | 13.1 | 13.1 | 11.5 | 11.5 | 13.2 | 16.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 5.8 | 7.0 | 6.5 | 8.5 | 4.5 |
| Out of town [l] | 4.3 | 4.2 | 4.3 | 4.3 | 5.0 | 3.5 |
| Combined [l] | 5.0 | 4.8 | 5.3 | 5.1 | 6.3 | 3.9 |
| CO2 emissions [g/km] | 114 | 109 | 124 | 119 | 147 | 102 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1104-1211 | 1104-1211 | 1141-1248 | 1141-1248 | 1168-1273 | 1191-1293 |
| Overall weight [kg] | 1560 | 1560 | 1600 | 1600 | 1630 | 1640 |
| Maximum trailer weight unbraked/braked [kg] | 450/900 | 450/900 | 450/1050 | 450/1050 | 450/850 | 450/800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 70/- | 70/- | 70/- | 70/- | 70/- | 70/- |

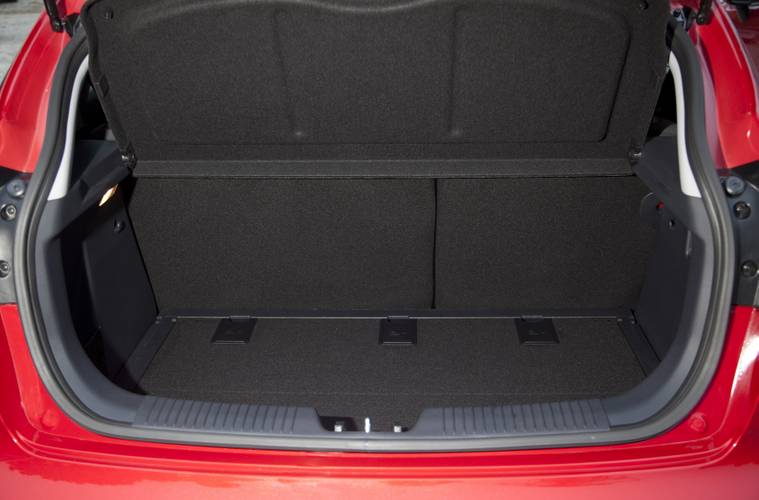

| Boot volume [l] | 288 | 288 | 288 | 288 | 288 | 288 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/923 | -/923 | -/923 | -/923 | -/923 | -/923 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 43 | 43 | 43 | 43 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | 256x22 | 256x22 | 280x22 | 280x22 | 280x22 | 256x22 |
| Brake dimensions rear | 262x10 | 262x10 | 262x10 | 262x10 | 262x10 | 262x10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.52/- | 10.52/- | 10.52/- | 10.52/- | 10.52/- | 10.52/- |
| Overall length [mm] | 4045 | 4045 | 4045 | 4045 | 4045 | 4045 |
| Overall width without/including mirrors [mm] | 1720/- | 1720/- | 1720/- | 1720/- | 1720/- | 1720/- |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2570 | 2570 | 2570 | 2570 | 2570 | 2570 |
| Front wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | 805 | 805 | 805 | 805 | 805 | 805 |
| Rear overhang [mm] | 670 | 670 | 670 | 670 | 670 | 670 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Front elbow/shoulder width [mm] | 1323/1350 | 1323/1350 | 1323/1350 | 1323/1350 | 1323/1350 | 1323/1350 |
| Rear elbow/shoulder width [mm] | 1301/1324 | 1301/1324 | 1301/1324 | 1301/1324 | 1301/1324 | 1301/1324 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.1 CRDi ISG | 1.4 CRDi | 1.4 CRDi ISG | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1120 | 1396 | 1396 | |||
| Maximum output / speed [kW/min-1] | 55/4000 | 66/4000 | 66/4000 | |||
| Maximum torque [Nm/min-1] | 170/1500-2750 | 220/1750-2750 | 220/1750-2750 | |||
| Bore and stroke [mm x mm] | 75,0 x 84,5 | 75,0 x 79,0 | 75,0 x 79,0 | |||
| Compression ratio | 16,0:1 | 17,0:1 | 17,0:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 158 | 172 | 172 | |||
| Acceleration 0–100 km/h [s] | 16.1 | 14.2 | 14.2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 3.9 | 4.9 | 4.3 | |||
| Out of town [l] | 3.3 | 3.7 | 3.5 | |||
| Combined [l] | 3.6 | 4.1 | 3.8 | |||
| CO2 emissions [g/km] | 94 | 109 | 100 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1191-1293 | 1239-1341 | 1239-1341 | |||
| Overall weight [kg] | 1640 | 1690 | 1690 | |||
| Maximum trailer weight unbraked/braked [kg] | 450/800 | 450/1100 | 450/1100 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 70/- | 70/- | 70/- | |||
| Boot volume [l] | 288 | 288 | 288 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/923 | -/923 | -/923 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 43 | 43 | 43 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | |||
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | |||
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | |||
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | |||
| Brake dimensions front | 256x22 | 280x22 | 280x22 | |||
| Brake dimensions rear | 262x10 | 262x10 | 262x10 | |||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.52/- | 10.52/- | 10.52/- | |||
| Overall length [mm] | 4045 | 4045 | 4045 | |||
| Overall width without/including mirrors [mm] | 1720/- | 1720/- | 1720/- | |||
| Overall height [mm] | 1455 | 1455 | 1455 | |||
| Wheelbase [mm] | 2570 | 2570 | 2570 | |||
| Front wheel track [mm] | 1521 | 1521 | 1521 | |||
| Rear wheel track [mm] | 1525 | 1525 | 1525 | |||
| Forward overhang [mm] | 805 | 805 | 805 | |||
| Rear overhang [mm] | 670 | 670 | 670 | |||
| Clearance [mm] | 140 | 140 | 140 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1015 | 1015 | 1015 | |||
| Headroom rear [mm] | 960 | 960 | 960 | |||
| Front elbow/shoulder width [mm] | 1323/1350 | 1323/1350 | 1323/1350 | |||
| Rear elbow/shoulder width [mm] | 1301/1324 | 1301/1324 | 1301/1324 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Five-door hatchback
| 1.25 CVVT | 1.25 CVVT ISG | 1.4 CVVT | 1.4 CVVT ISG | 1.4 CVVT | 1.1 CRDi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 3/12 |
| Engine displacement [cm³] | 1248 | 1248 | 1396 | 1396 | 1396 | 1120 |
| Maximum output / speed [kW/min-1] | 63/6000 | 63/6000 | 80/6300 | 80/6300 | 80/6300 | 55/4000 |
| Maximum torque [Nm/min-1] | 121/4000 | 121/4000 | 137/4200 | 137/4200 | 137/4200 | 170/1500-2750 |
| Bore and stroke [mm x mm] | 71,0 x 78,8 | 71,0 x 78,8 | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 74,99 | 75,0 x 84,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 4 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 172 | 172 | 183 | 183 | 170 | 158 |
| Acceleration 0–100 km/h [s] | 13.1 | 13.1 | 11.5 | 11.5 | 13.2 | 16.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 5.8 | 7.0 | 6.5 | 8.5 | 4.5 |
| Out of town [l] | 4.3 | 4.2 | 4.3 | 4.3 | 5.0 | 3.5 |
| Combined [l] | 5.0 | 4.8 | 5.3 | 5.1 | 6.3 | 3.9 |
| CO2 emissions [g/km] | 114 | 109 | 124 | 119 | 147 | 102 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1104-1211 | 1104-1211 | 1141-1248 | 1141-1248 | 1168-1273 | 1191-1293 |
| Overall weight [kg] | 1560 | 1560 | 1600 | 1600 | 1630 | 1640 |
| Maximum trailer weight unbraked/braked [kg] | 450/900 | 450/900 | 450/1050 | 450/1050 | 450/850 | 450/800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 70/- | 70/- | 70/- | 70/- | 70/- | 70/- |
| Boot volume [l] | 288 | 288 | 288 | 288 | 288 | 288 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/923 | -/923 | -/923 | -/923 | -/923 | -/923 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 43 | 43 | 43 | 43 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | 256x22 | 256x22 | 280x22 | 280x22 | 280x22 | 256x22 |
| Brake dimensions rear | 262x10 | 262x10 | 262x10 | 262x10 | 262x10 | 262x10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.52/- | 10.52/- | 10.52/- | 10.52/- | 10.52/- | 10.52/- |
| Overall length [mm] | 4045 | 4045 | 4045 | 4045 | 4045 | 4045 |
| Overall width without/including mirrors [mm] | 1720/- | 1720/- | 1720/- | 1720/- | 1720/- | 1720/- |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2570 | 2570 | 2570 | 2570 | 2570 | 2570 |
| Front wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | 805 | 805 | 805 | 805 | 805 | 805 |
| Rear overhang [mm] | 670 | 670 | 670 | 670 | 670 | 670 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Front elbow/shoulder width [mm] | 1323/1350 | 1323/1350 | 1323/1350 | 1323/1350 | 1323/1350 | 1323/1350 |
| Rear elbow/shoulder width [mm] | 1301/1324 | 1301/1324 | 1301/1324 | 1301/1324 | 1301/1324 | 1301/1324 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.1 CRDi ISG | 1.4 CRDi | 1.4 CRDi ISG | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1120 | 1396 | 1396 | |||
| Maximum output / speed [kW/min-1] | 55/4000 | 66/4000 | 66/4000 | |||
| Maximum torque [Nm/min-1] | 170/1500-2750 | 220/1750-2750 | 220/1750-2750 | |||
| Bore and stroke [mm x mm] | 75,0 x 84,5 | 75,0 x 79,0 | 75,0 x 79,0 | |||
| Compression ratio | 16,0:1 | 17,0:1 | 17,0:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 158 | 172 | 172 | |||
| Acceleration 0–100 km/h [s] | 16.1 | 14.2 | 14.2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 3.9 | 4.9 | 4.3 | |||
| Out of town [l] | 3.3 | 3.7 | 3.5 | |||
| Combined [l] | 3.6 | 4.1 | 3.8 | |||
| CO2 emissions [g/km] | 94 | 109 | 100 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1191-1293 | 1239-1341 | 1239-1341 | |||
| Overall weight [kg] | 1640 | 1690 | 1690 | |||
| Maximum trailer weight unbraked/braked [kg] | 450/800 | 450/1100 | 450/1100 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 70/- | 70/- | 70/- | |||
| Boot volume [l] | 288 | 288 | 288 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/923 | -/923 | -/923 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 43 | 43 | 43 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | |||
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | |||
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | |||
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | |||
| Brake dimensions front | 256x22 | 280x22 | 280x22 | |||
| Brake dimensions rear | 262x10 | 262x10 | 262x10 | |||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.52/- | 10.52/- | 10.52/- | |||
| Overall length [mm] | 4045 | 4045 | 4045 | |||
| Overall width without/including mirrors [mm] | 1720/- | 1720/- | 1720/- | |||
| Overall height [mm] | 1455 | 1455 | 1455 | |||
| Wheelbase [mm] | 2570 | 2570 | 2570 | |||
| Front wheel track [mm] | 1521 | 1521 | 1521 | |||
| Rear wheel track [mm] | 1525 | 1525 | 1525 | |||
| Forward overhang [mm] | 805 | 805 | 805 | |||
| Rear overhang [mm] | 670 | 670 | 670 | |||
| Clearance [mm] | 140 | 140 | 140 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1015 | 1015 | 1015 | |||
| Headroom rear [mm] | 960 | 960 | 960 | |||
| Front elbow/shoulder width [mm] | 1323/1350 | 1323/1350 | 1323/1350 | |||
| Rear elbow/shoulder width [mm] | 1301/1324 | 1301/1324 | 1301/1324 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
