Kia Rio

Date of manufacture

2017 – 2020 (Five-door hatchback)

Platform

Hyundai-Kia GB

Manufacturing locations

Gwangmyeong, South Korea

Pesquería, Mexico

Designer

Peter Schreyer

Car body style

Five-door hatchback

Date of manufacture

2017 – 2020

Internal designation

Engine size

1.25 CVVT

1.4 CVVT

1.0 T-GDI

Euro NCAP

Advanced Driving Assistance Pack

Technical data

Five-door hatchback

	1.25 CVVT	1.4 CVVT	1.4 CVVT	1.4 CVVT	1.0 T-GDI	1.0 T-GDI
Date of sale	-	-	from to 2018	from 2018 to	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	3/12	3/12
Engine displacement [cm³]	1248	1368	1368	1368	998	998
Maximum output / speed [kW/min-1]	61,8/6000	73,6/600	73,6/600	73,6/600	88,3/6000	88,3/6000
Maximum torque [Nm/min-1]	121,6/4000	133,3/4000	133,3/4000	133,3/4000	171,1/1500-4000	171,1/1500-4000
Bore and stroke [mm x mm]	71,0 x 78,8	72,0 x 84,0	72,0 x 84,0	72,0 x 84,0	71,0 x 84,0	71,0 x 84,0
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,0:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves CVVT start&stop system ISG	variable valve timing CVVT start&stop system ISG	variable valve timing CVVT start&stop system ISG	variable valve timing CVVT start&stop system ISG	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT Particle filter for diesel engines (only models that comply with Euro 6d-TEMP) start&stop system ISG	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT Particle filter for diesel engines (only models that comply with Euro 6d-TEMP) start&stop system ISG

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	6 gear manual	4 gear automatic	6 gear automatic	6 gear manual	7 gear automatic
Drive specifications	-	-	automatic gearbox	six-speed automatic gearbox	-	seven-speed dual-clutch automatic gearbox DCT

Top speed [km/h]	170	176	166	183	190	190
Acceleration 0–100 km/h [s]	12.9	12.2	13.9	12.9	10.2	10.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.5-6.0	7.0-6.3	8.2	7.8-7.3	6.2-5.6	5.9-5.6
Out of town [l]	5.1-4.1	5.1-4.3	4.9	5.6-5.2	4.6-4.2	4.9-4.6
Combined [l]	5.6-4.8	5.6-5.0	6.1	6.4-5.9	5.2-4.7	5.3-5.0
CO2 emissions [g/km]	128-109	133-114	140	147-136	119-107	121-114

Emission standard	EU6 - Euro 6d-TEMP	EU6 - Euro 6d-TEMP	EU6	Euro 6d-TEMP	EU6 - Euro 6d-TEMP	EU6 - Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1110-1198	1130-1218	1158-1246	1158-1246	1160-1248	1195-1283
Overall weight [kg]	1560	1580	1600	1600	1620	1650
Maximum trailer weight unbraked/braked [kg]	450/910	450/1000	450/800	450/800	450/1110	450/1110
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	70/-	70/-	70/-	70/-	70/-	70/-

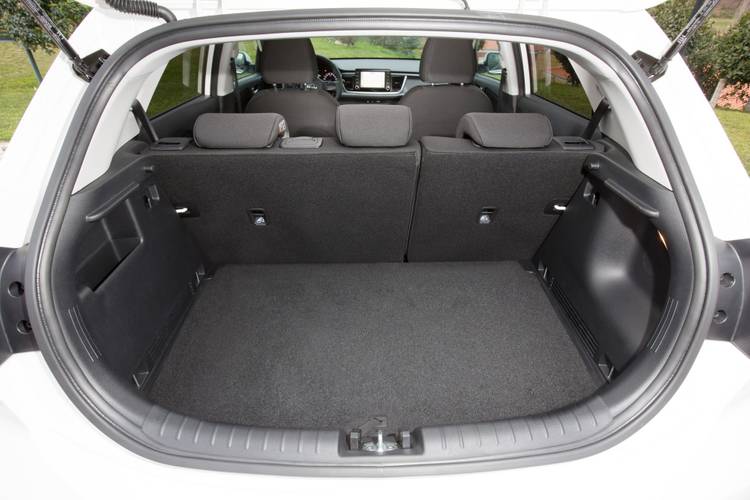

Boot volume [l]	325	325	325	325	325	325

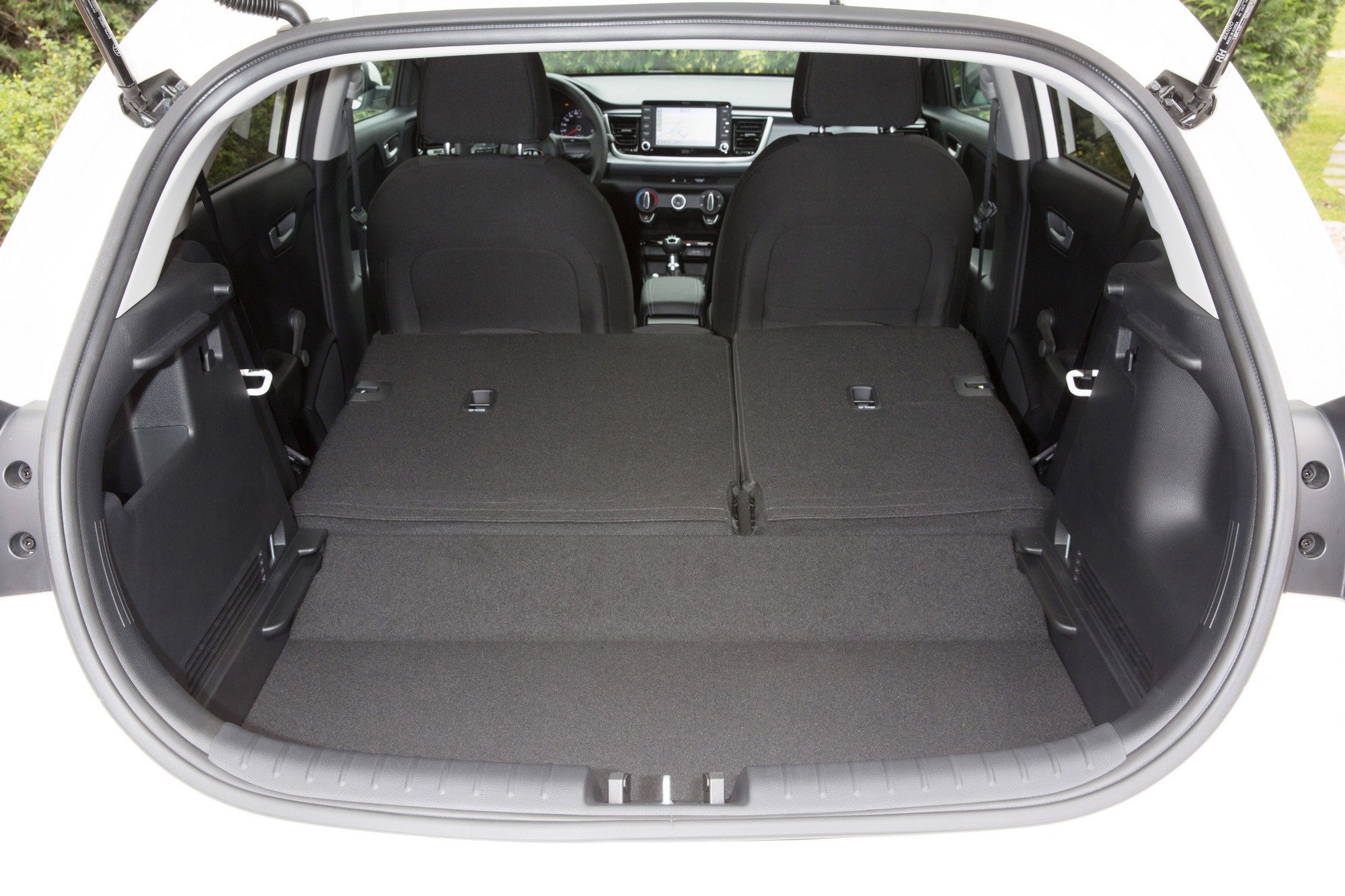

Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1103	-/1103	-/1103	-/1103	-/1103	-/1103
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	45	45	45	45	45	45
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs	MacPherson, coil springs	MacPherson, coil springs	MacPherson, coil springs	MacPherson, coil springs	MacPherson, coil springs
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	185/65 R15	185/65 R15	185/65 R15	185/65 R15	195/55 R16	195/55 R16
Tyre dimensions rear	185/65 R15	185/65 R15	185/65 R15	185/65 R15	195/55 R16	195/55 R16
Wheel size front	6.0J x 15 ET46	6.0J x 15 ET46	6.0J x 15 ET46	6.0J x 15 ET46	6.0J x 16 ET49	6.0J x 16 ET49
Wheel size rear	6.0J x 15 ET46	6.0J x 15 ET46	6.0J x 15 ET46	6.0J x 15 ET46	6.0J x 16 ET49	6.0J x 16 ET49
Brake dimensions front	256	256	256	256	256	256
Brake dimensions rear	203	203	203	203	203	203
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4065	4065	4065	4065	4065	4065
Overall width without/including mirrors [mm]	1725/-	1725/-	1725/-	1725/-	1725/-	1725/-
Overall height [mm]	1450	1450	1450	1450	1450	1450
Wheelbase [mm]	2580	2580	2580	2580	2580	2580
Front wheel track [mm]	1518	1518	1518	1518	1518	1518
Rear wheel track [mm]	1524	1524	1524	1524	1524	1524
Forward overhang [mm]	830	830	830	830	830	830
Rear overhang [mm]	655	655	655	655	655	655
Clearance [mm]	135	135	135	135	135	135
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1020	1020	1020	1020	1020	1020
Headroom rear [mm]	964	964	964	964	964	964
Front elbow/shoulder width [mm]	1344/1375	1344/1375	1344/1375	1344/1375	1344/1375	1344/1375
Rear elbow/shoulder width [mm]	1330/1355	1330/1355	1330/1355	1330/1355	1330/1355	1330/1355
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

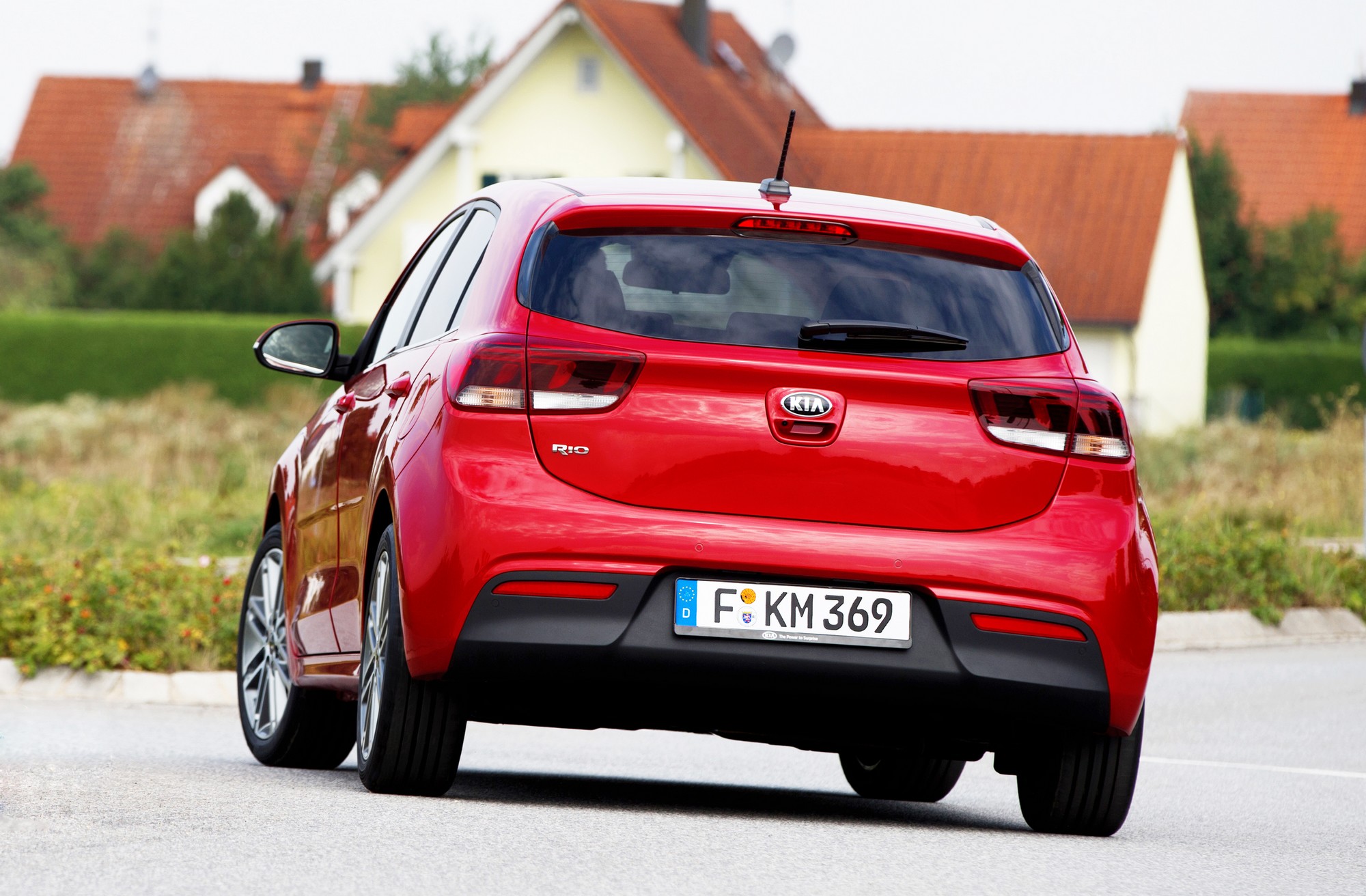

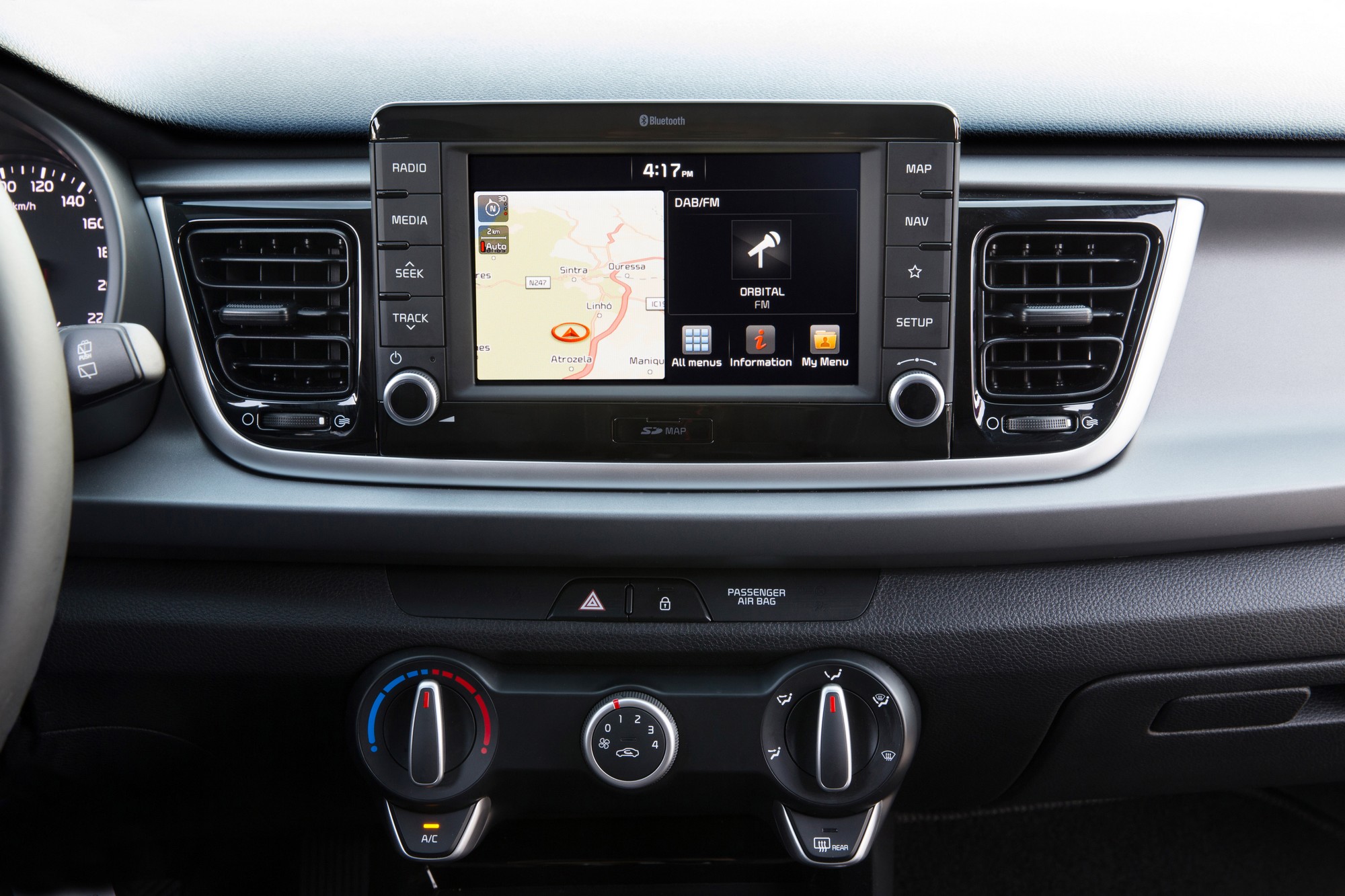

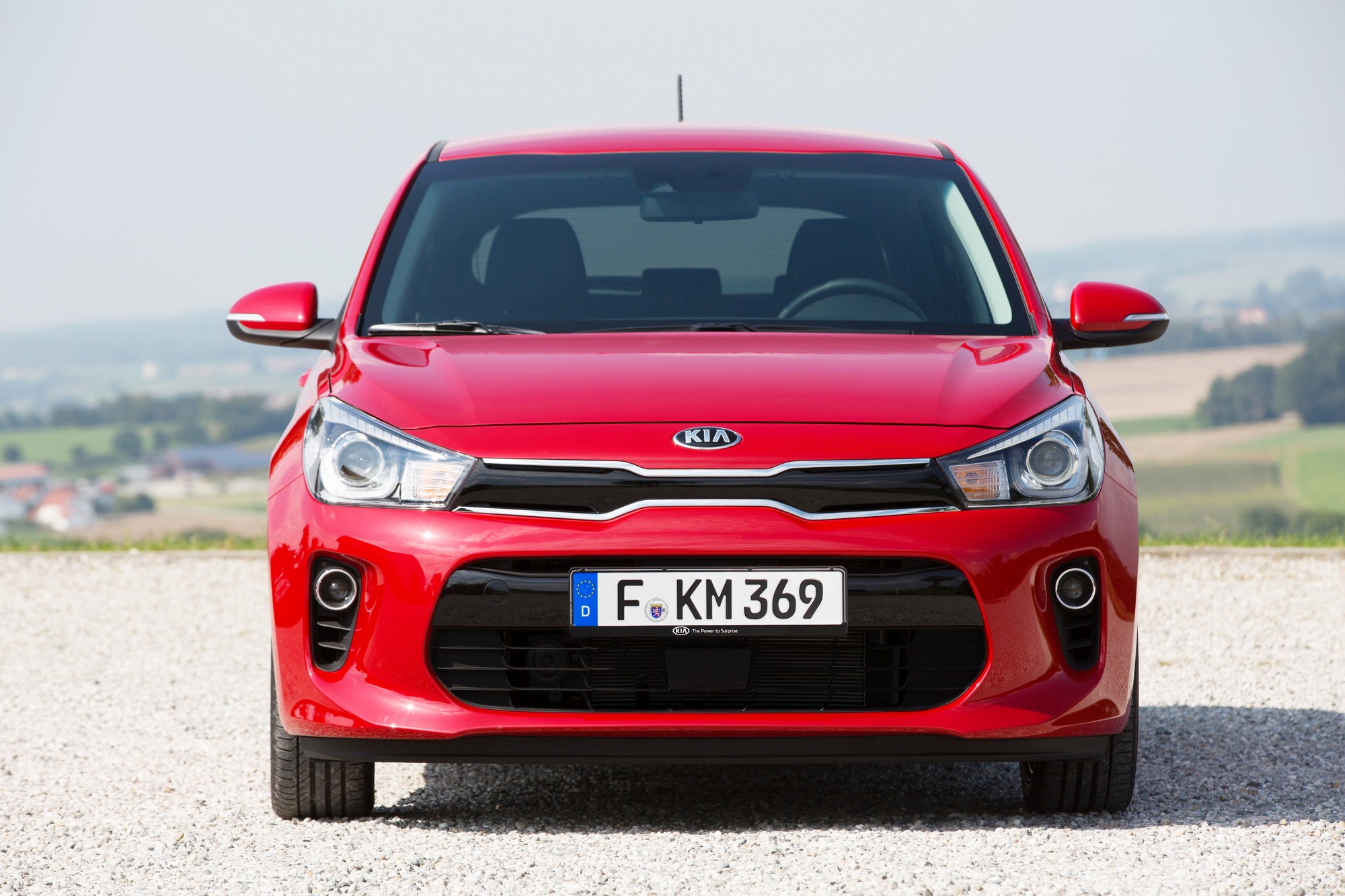

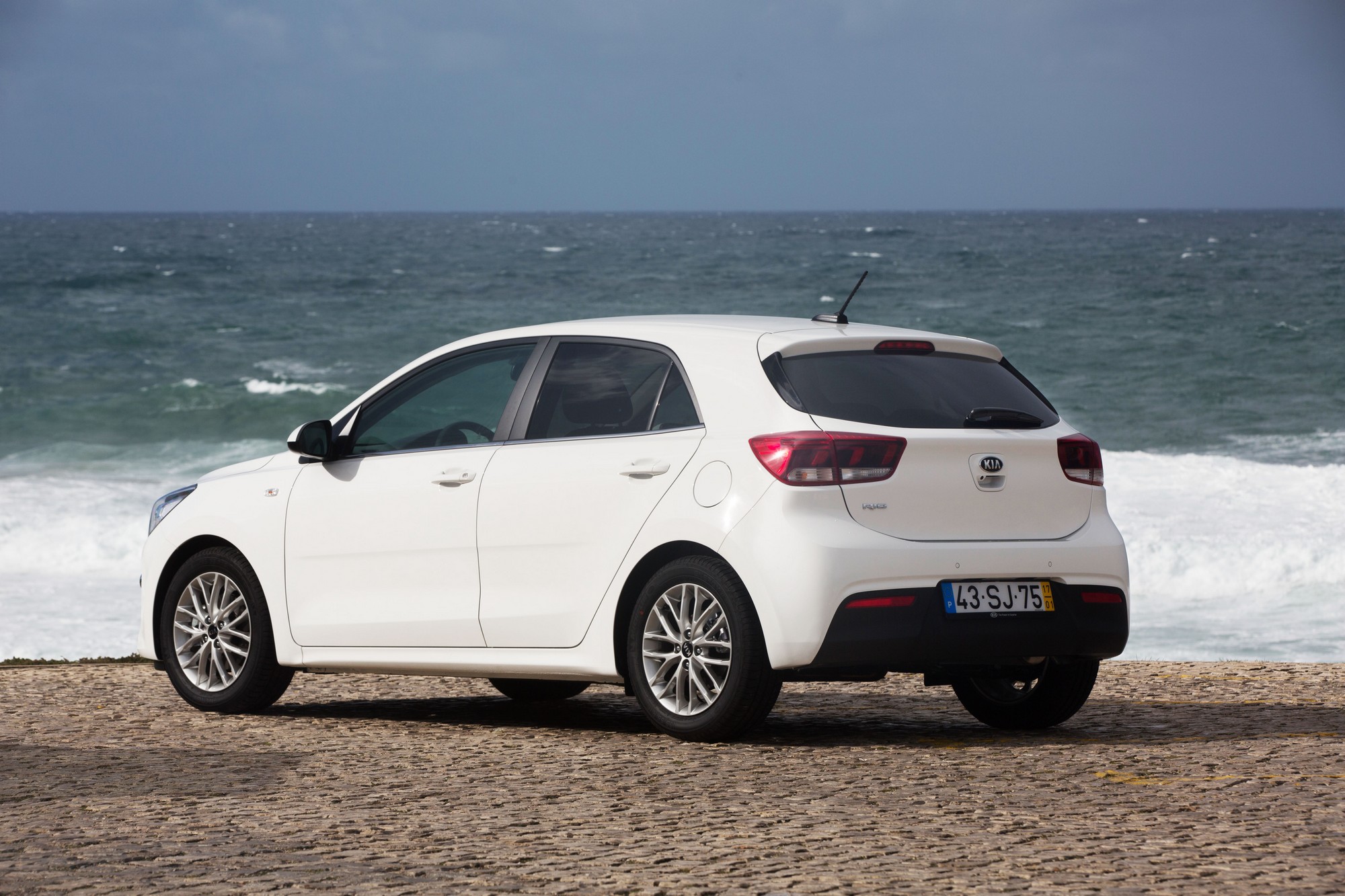

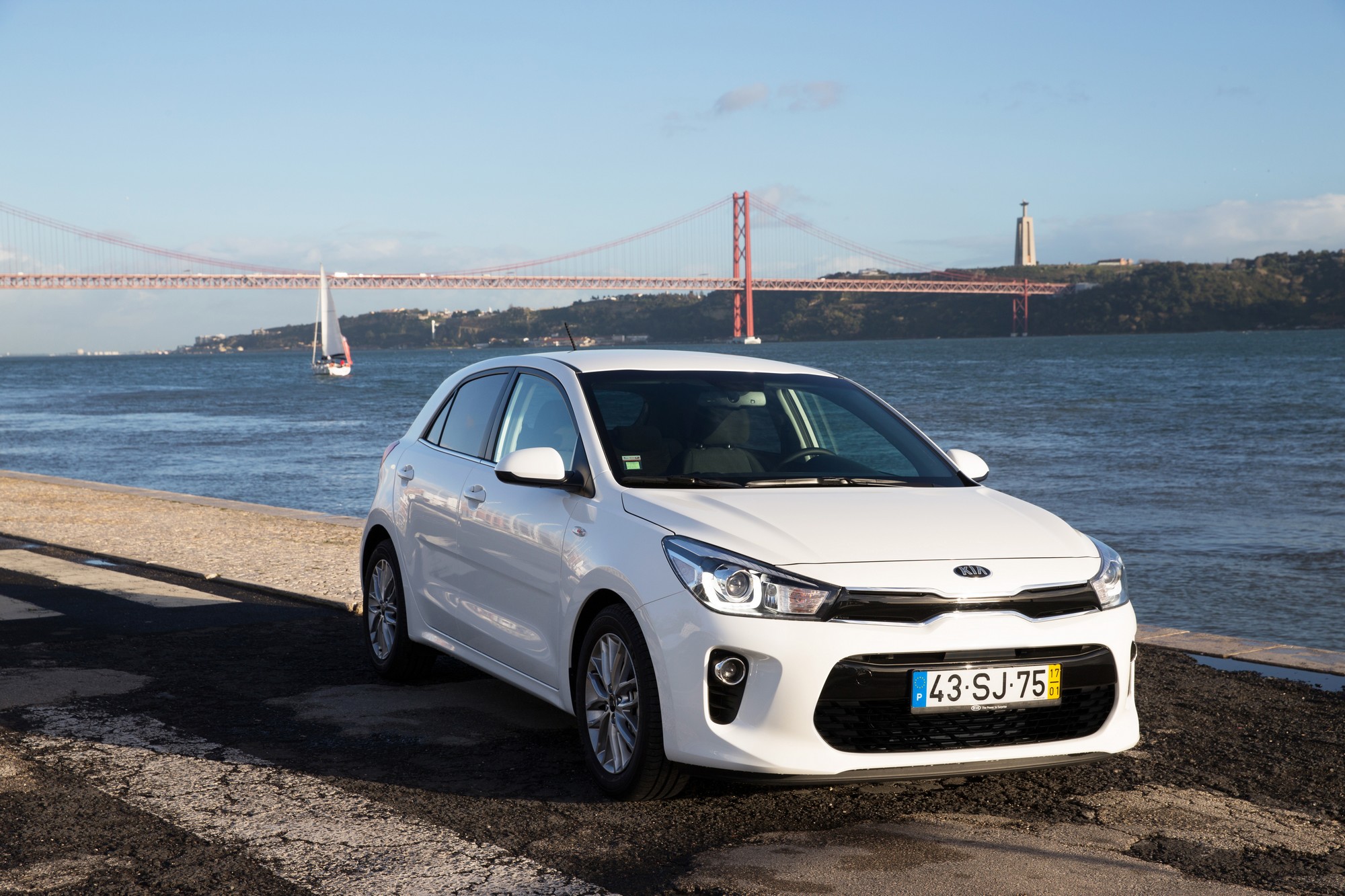

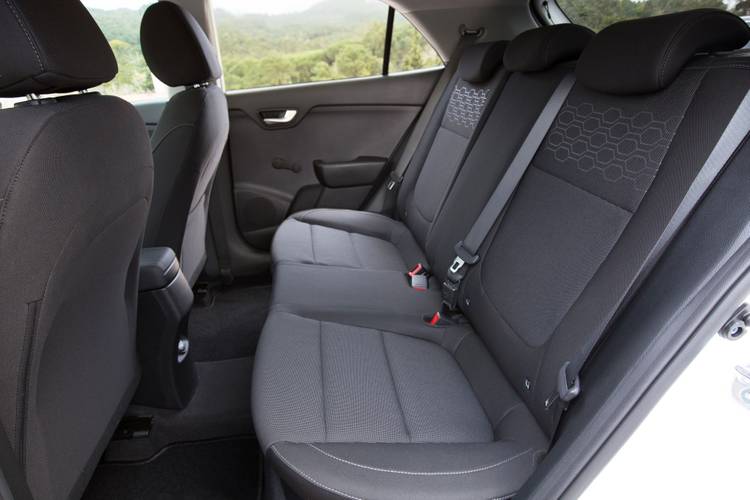

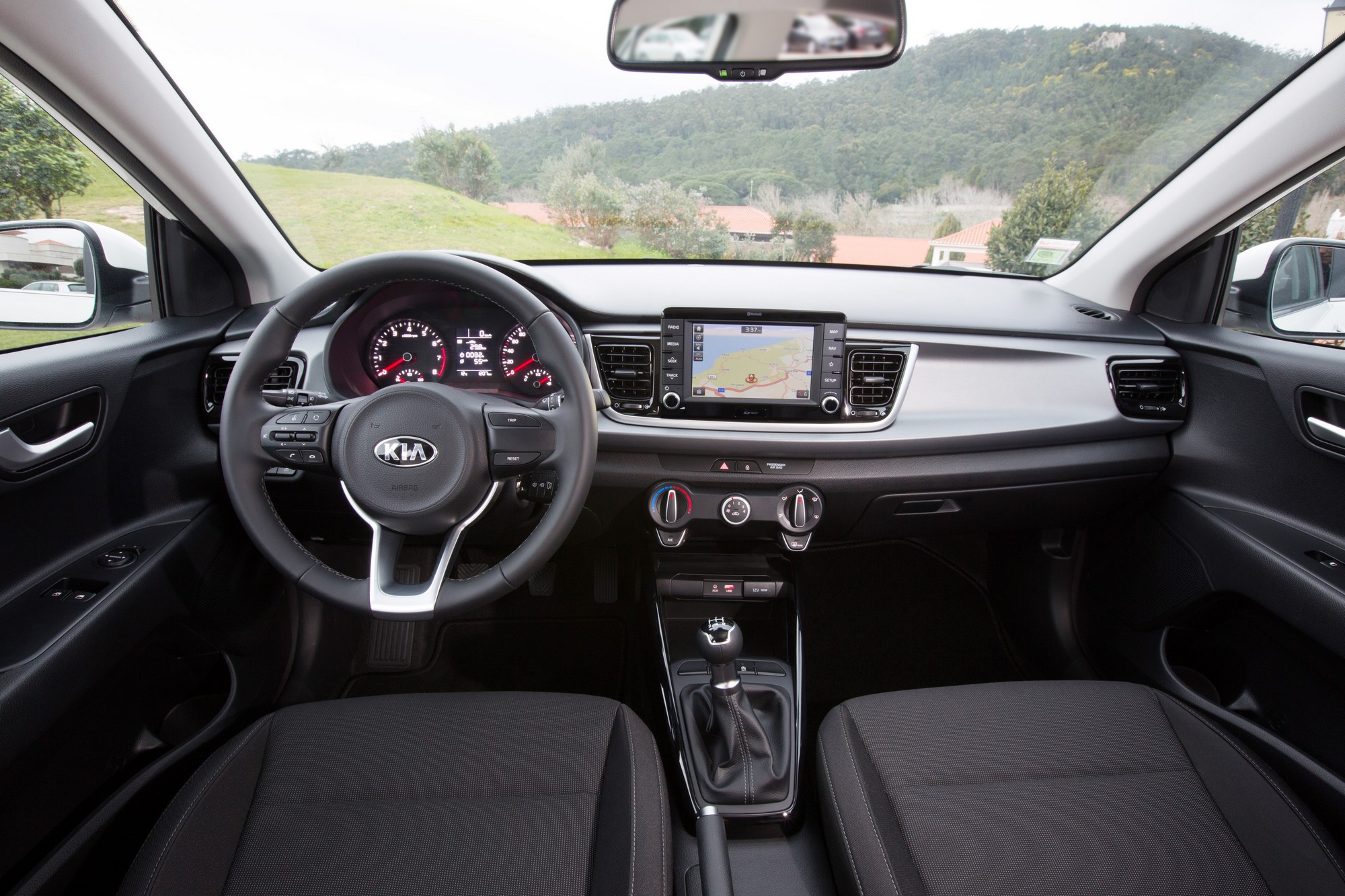

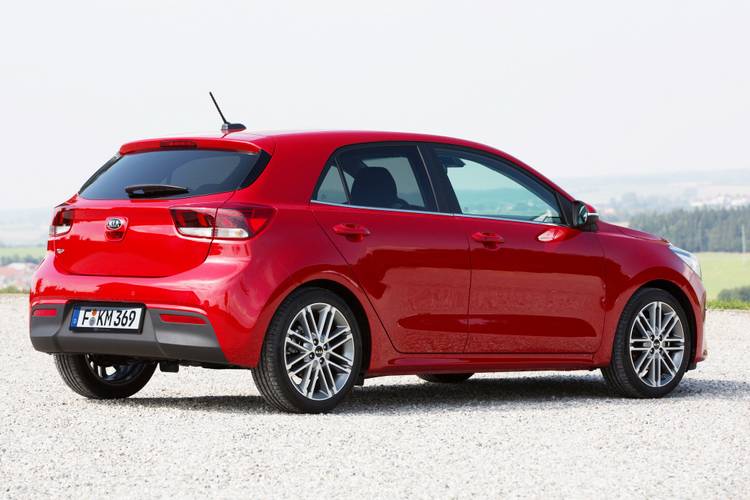

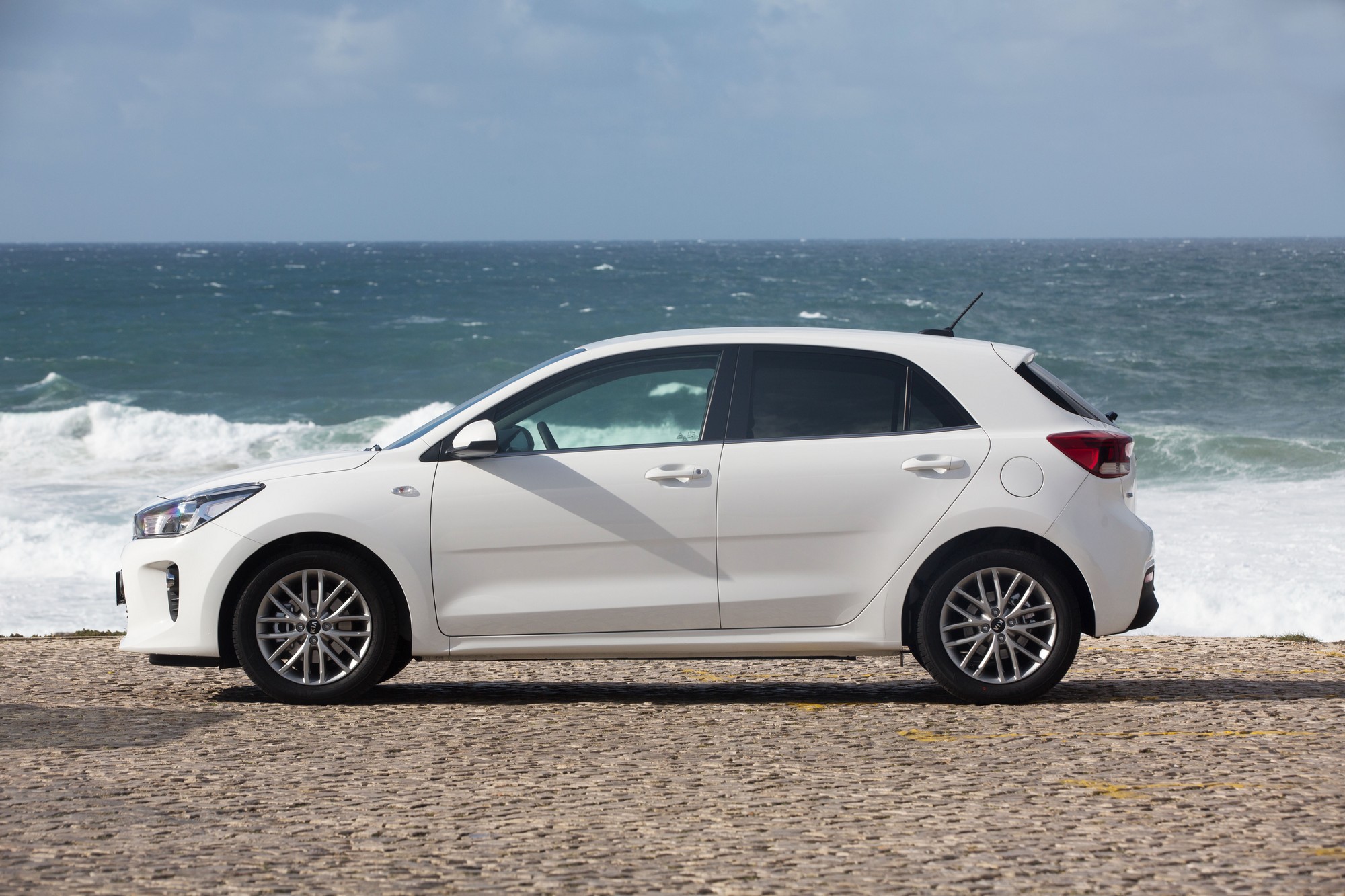

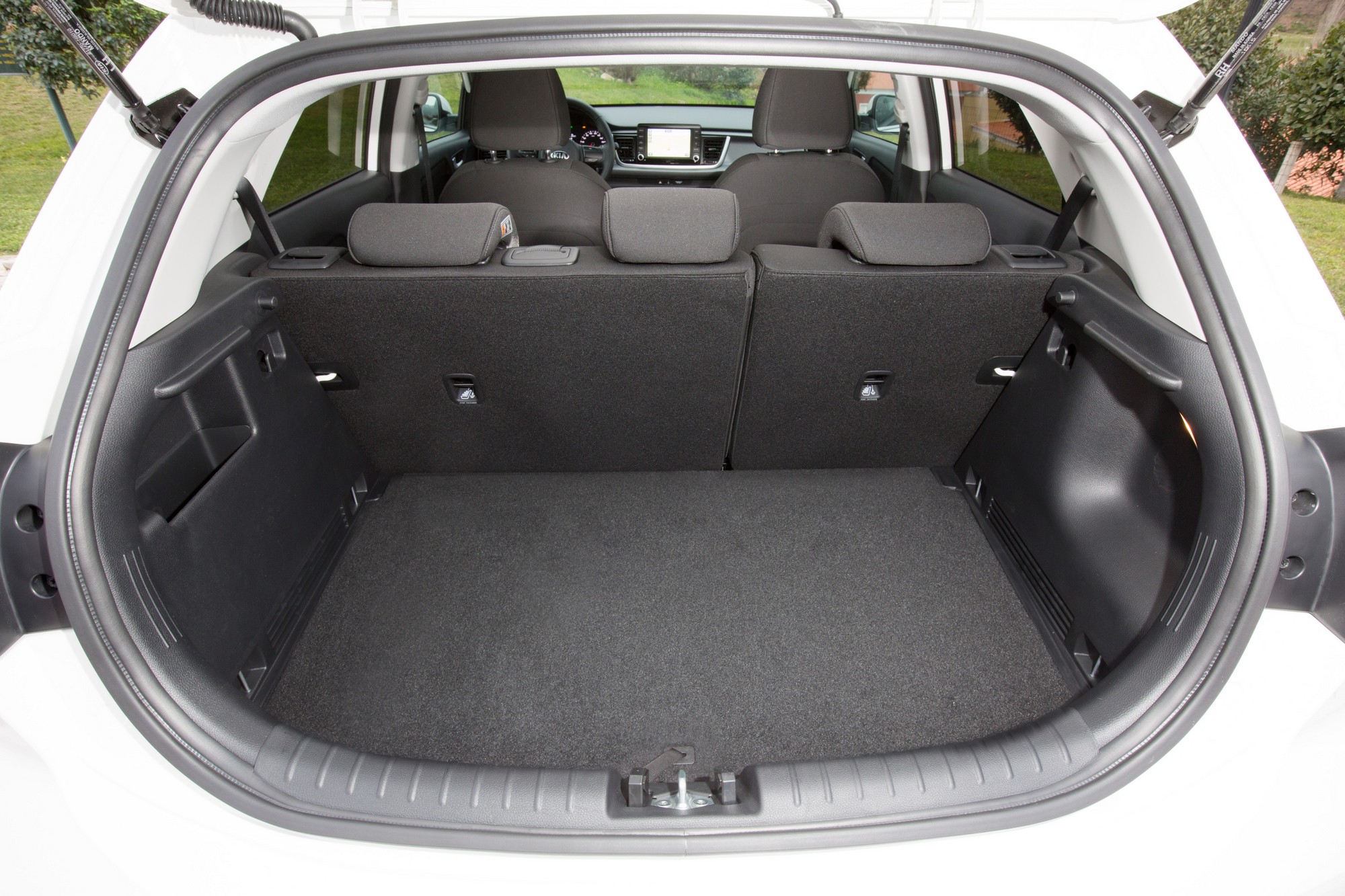

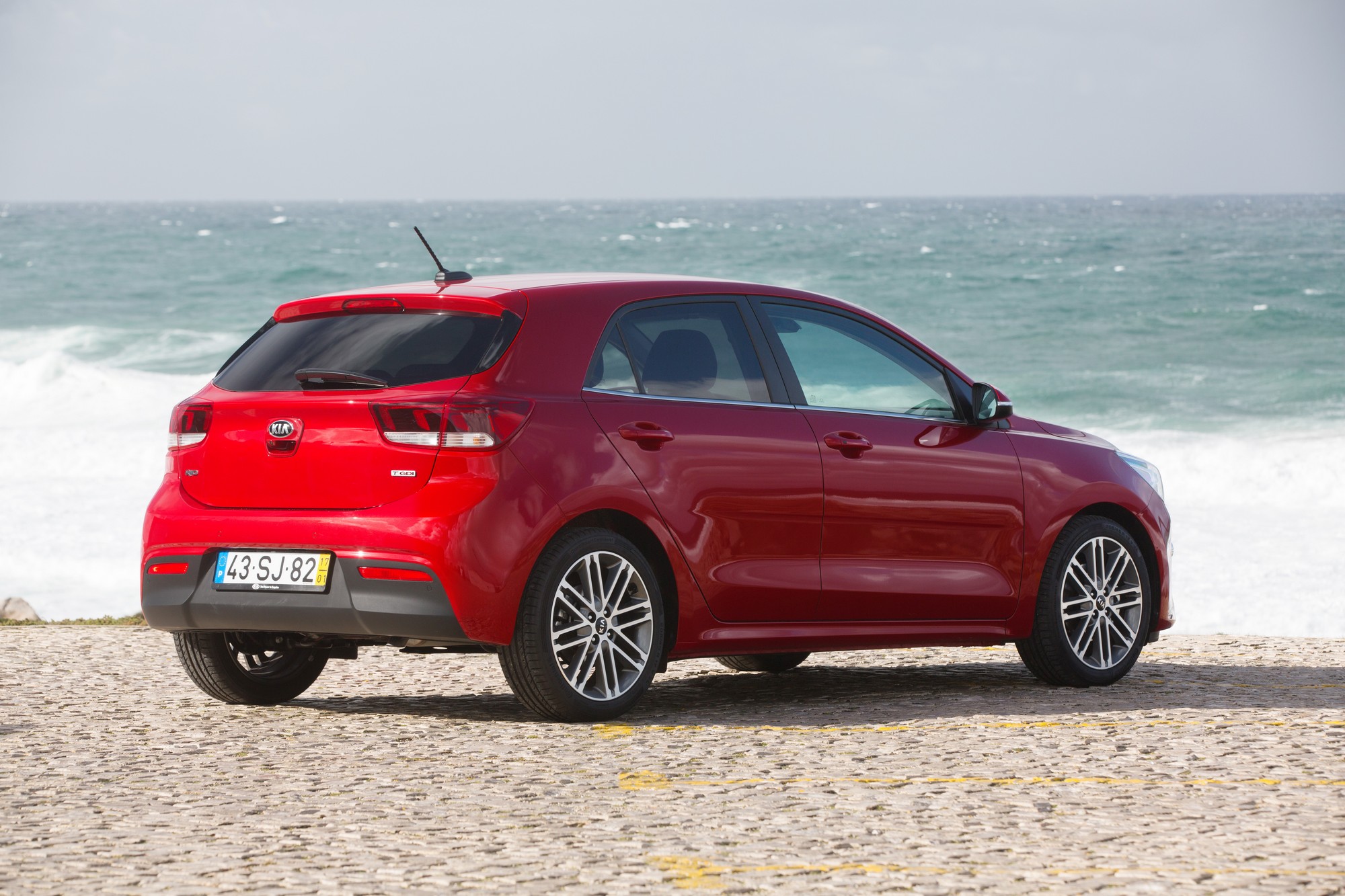

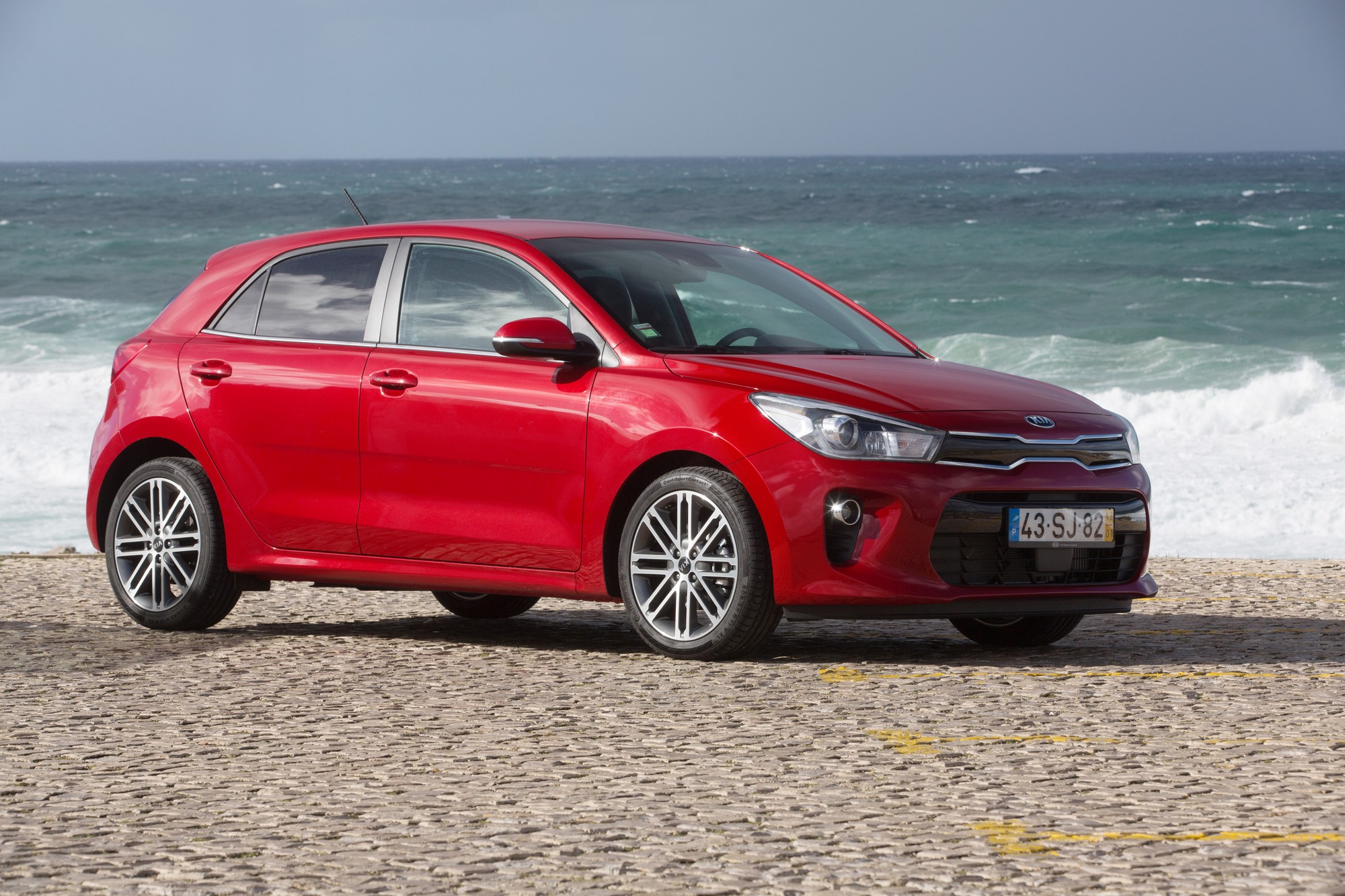

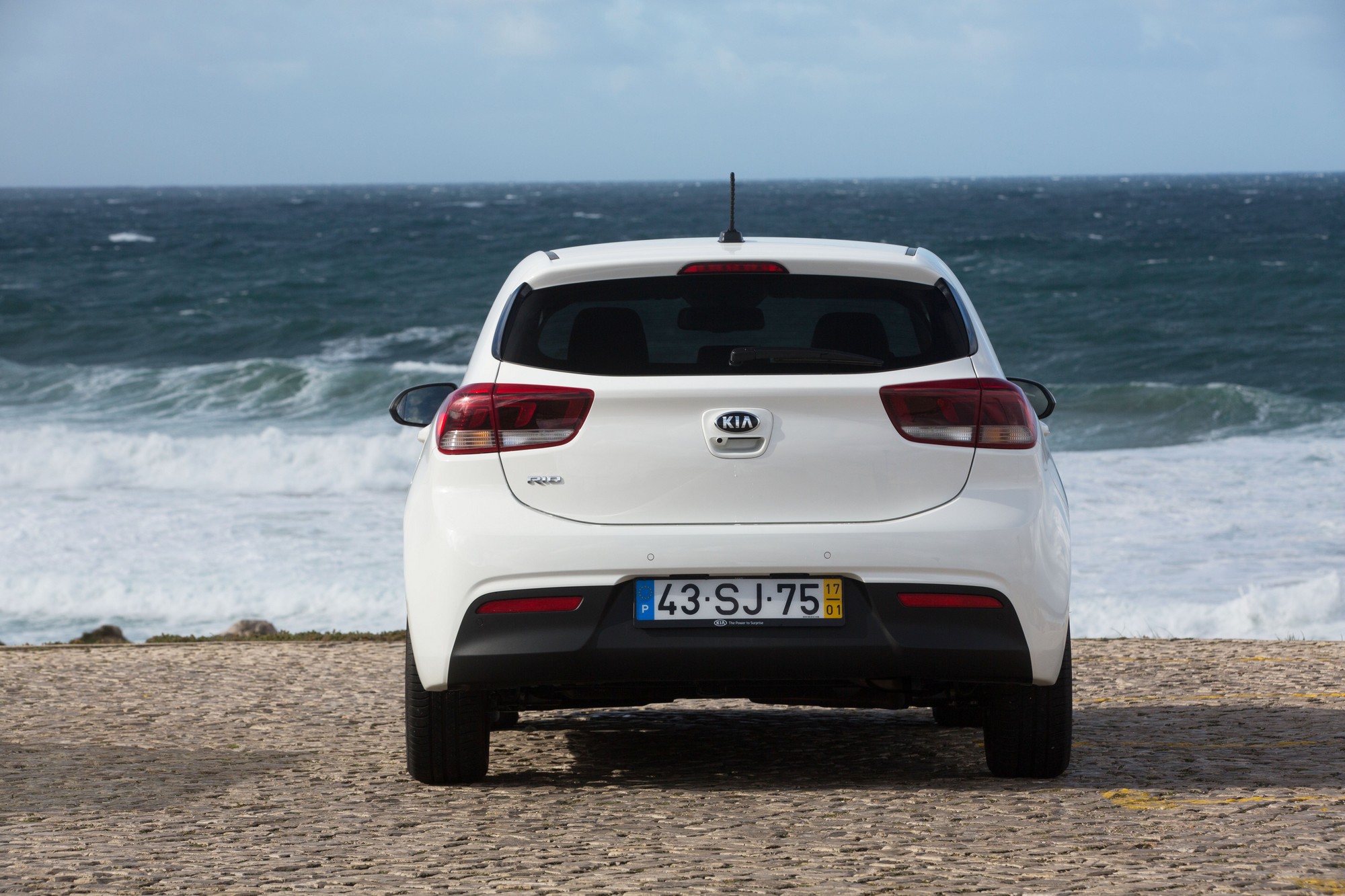

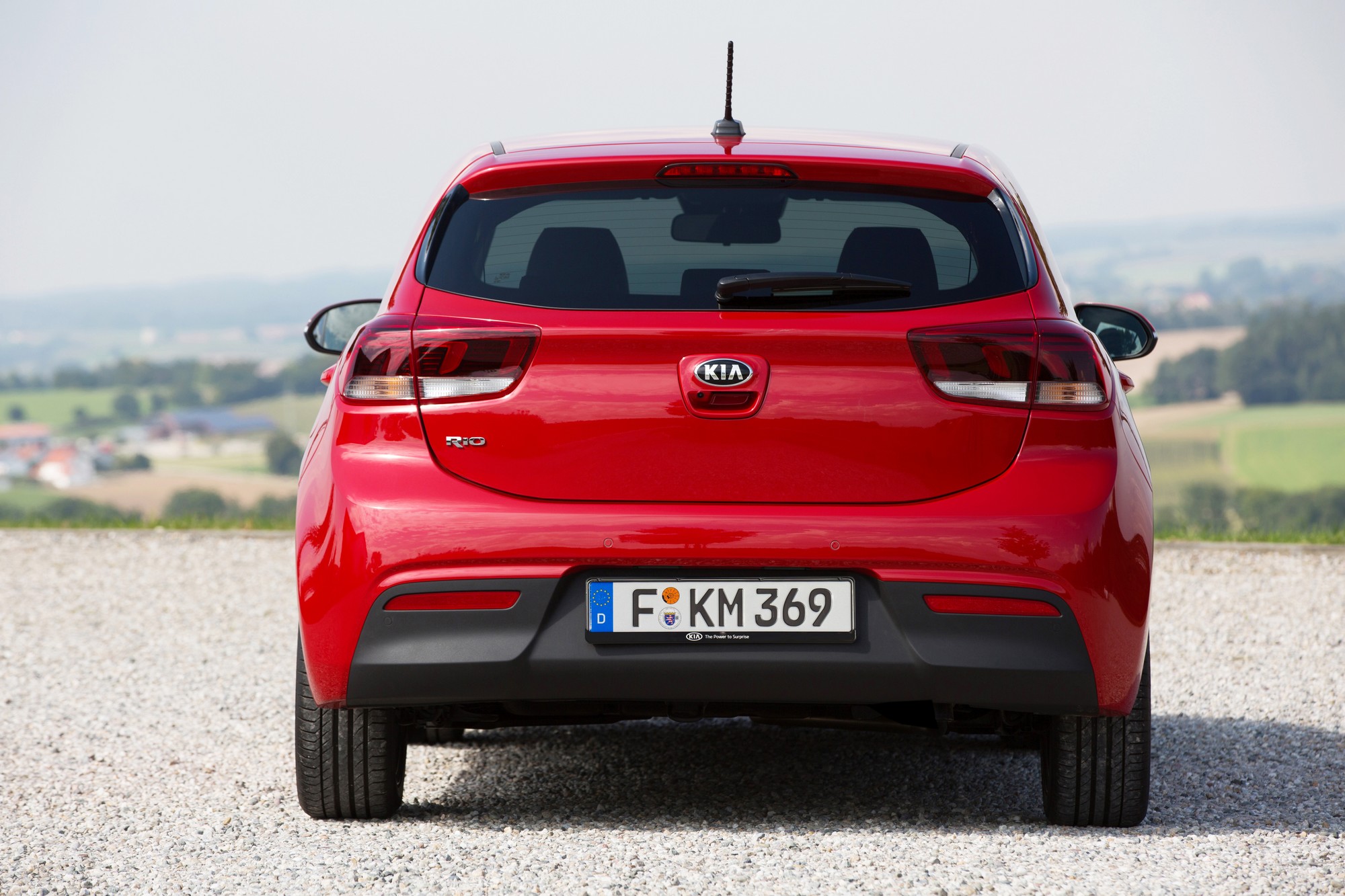

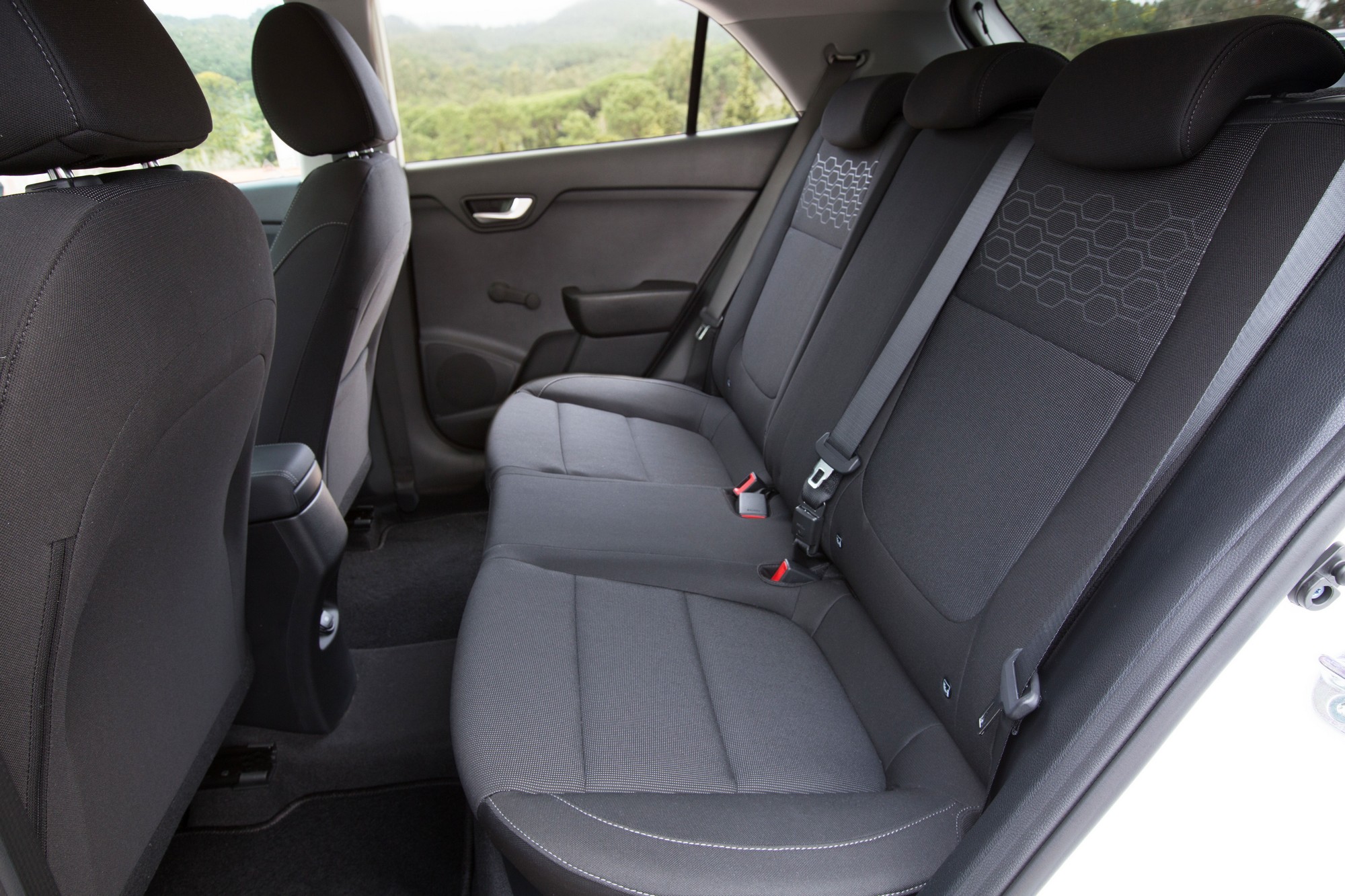

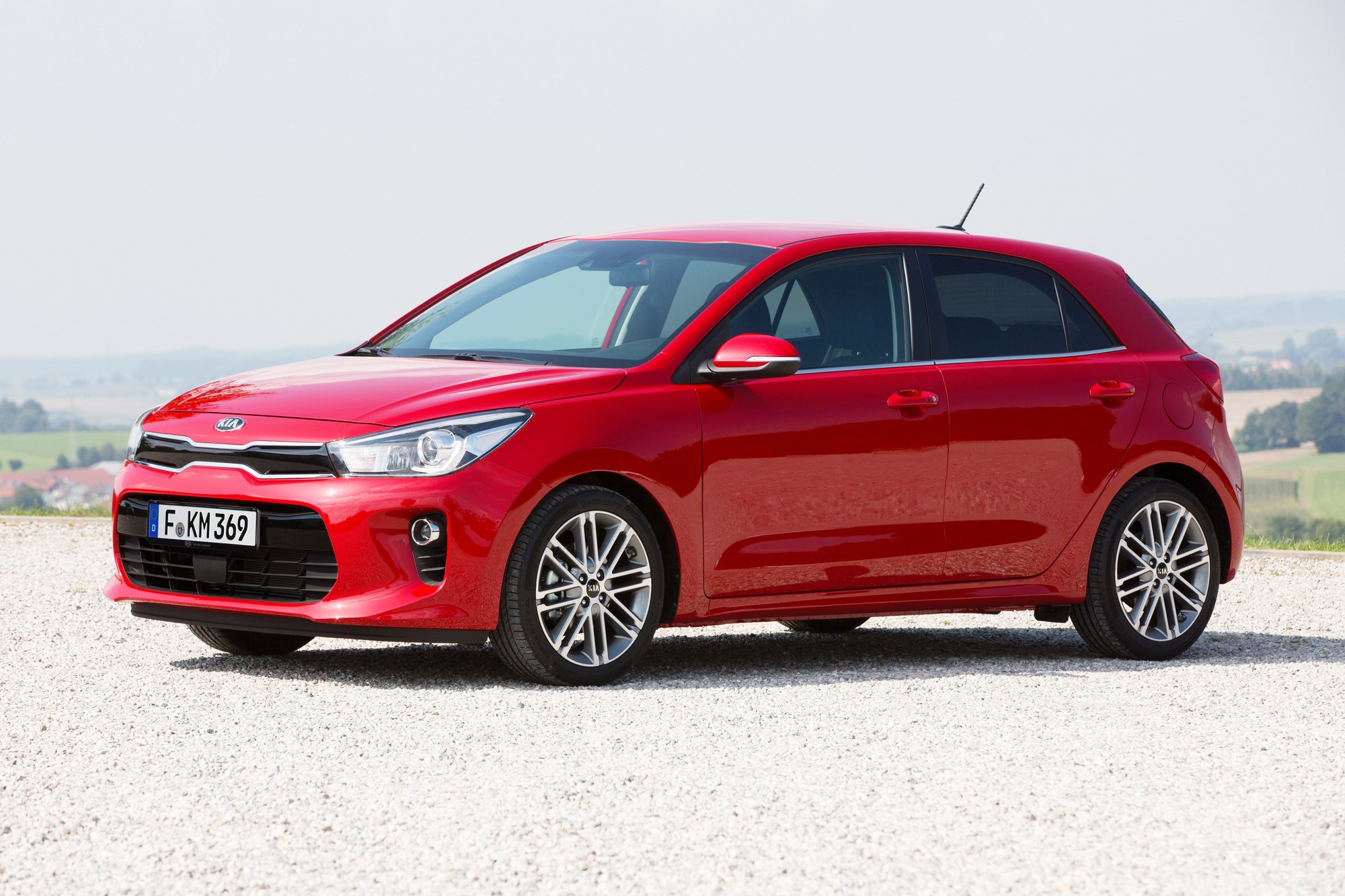

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
