Kia Sorento
Date of manufacture
2012 – 2015 (SUV)
Platform
-
Manufacturing locations
Hwaseong, South Korea
West Point, Georgia, USA
Kaliningrad, Russia
Designer
Peter Schreyer
Tags
Compact SUV
Korean cars
The Kia Sorento is an SUV that has been produced since 2012. It is manufactured in countries such as South Korea, USA and Russia. It offers petrol and diesel engines with the highest power of 145 kW for the 2.2 CRDi. The top speed of this model is 190 km/h and the best acceleration from 0-100 km/h in 9.3 seconds. The fuel consumption of this model is 5.8 l/100 km with emissions of 153 g/km CO2. The trunk of the car can hold a volume of 660 l. In terms of safety, this model was tested in 2009 and received an overall rating of 5 out of 5 according to EURONCAP.
Car body style
Technical data
SUV
| 2.4 GDI | 2.4 GDI | 2.4 GDI | 2.4 GDI | 2.0 CRDi | 2.0 CRDi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2359 | 2359 | 2359 | 2359 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 141/6300 | 141/6300 | 141/6300 | 141/6300 | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 242,3/4250 | 242,3/4250 | 242,3/4250 | 242,3/4250 | 382/1800-2500 | 382/1800-2500 |
| Bore and stroke [mm x mm] | 88,0 x 97,0 | 88,0 x 97,0 | 88,0 x 97,0 | 88,0 x 97,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 11,3:1 | 11,3:1 | 11,3:1 | 11,3:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 190 | 190 | 190 | 190 | 186 | 187 |
| Acceleration 0–100 km/h [s] | 9.8 | 10.2 | 10.3 | 10.7 | 10.8 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.8 | 11.7 | 12.0 | 12.2 | 8.1 | 8.1 |
| Out of town [l] | 6.9 | 6.7 | 7.0 | 7.1 | 4.9 | 4.9 |
| Combined [l] | 8.7 | 8.6 | 8.9 | 8.9 | 6.1 | 6.1 |
| CO2 emissions [g/km] | 202 | 199 | 207 | 208 | 159 | 160 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1680-1815 | 1698-1840 | 1750-1885 | 1768-1910 | 1794-1929 | 1861-1996 |
| Overall weight [kg] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2500 | 750/2500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |

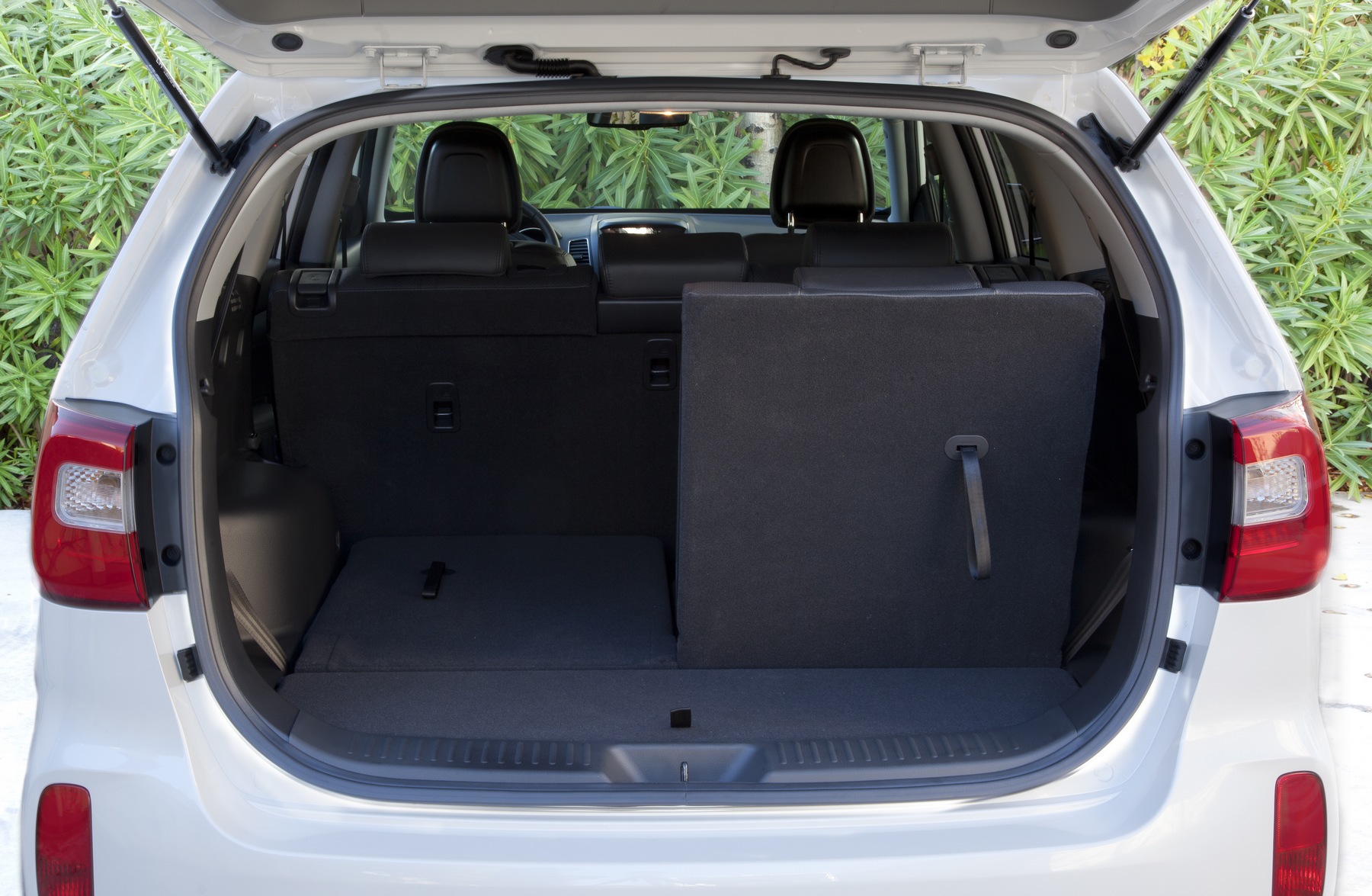

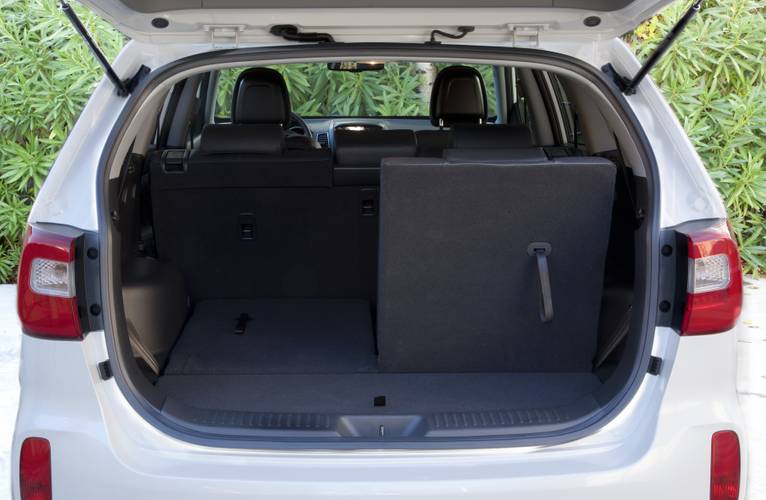

| Boot volume [l] | 660 | 660 | 660 | 660 | 660 | 660 |

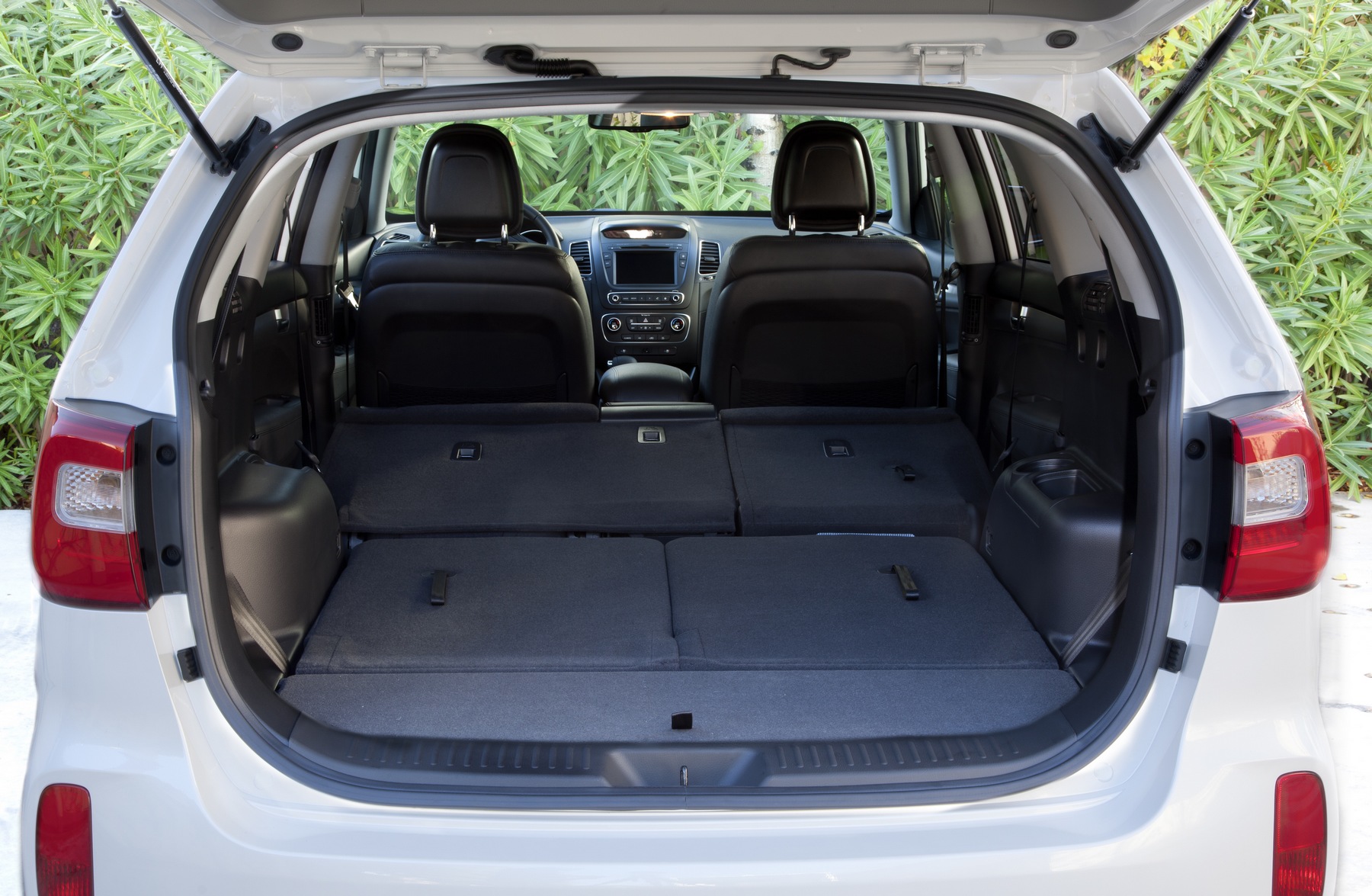

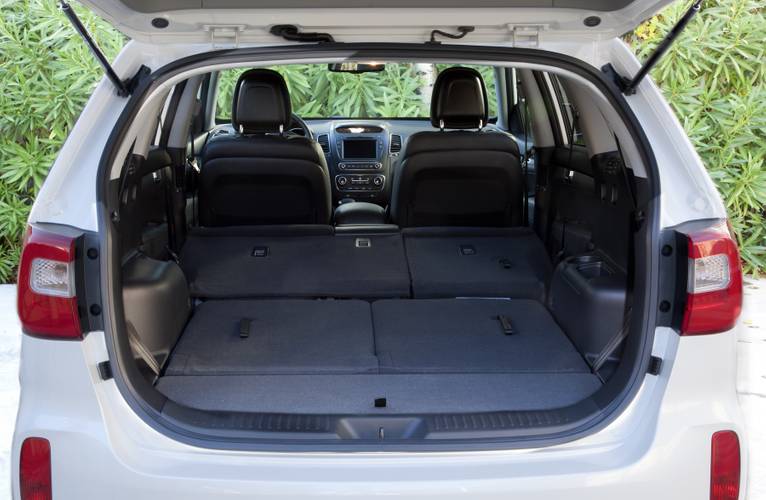

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1675 | -/1675 | -/1675 | -/1675 | -/1675 | -/1675 |
| Boot length [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/870 | -/870 | -/870 | -/870 | -/870 | -/870 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4685 | 4685 | 4685 | 4685 | 4685 | 4685 |
| Overall width without/including mirrors [mm] | 1885/- | 1885/- | 1885/- | 1885/- | 1885/- | 1885/- |
| Overall height [mm] | 1735 | 1735 | 1735 | 1735 | 1735 | 1735 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Rear wheel track [mm] | 1623 | 1623 | 1623 | 1623 | 1623 | 1623 |
| Forward overhang [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Rear overhang [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Clearance [mm] | 185 | 185 | 185 | 185 | 185 | 185 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19.7 | 19.7 | 19.7 | 19.7 | 19.7 | 19.7 |
| Approach angle rear [°] | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 |
| Transition angle [°] | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.2 CRDi | 2.2 CRDi | 2.2 CRDi | 2.2 CRDi | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 2199 | 2199 | 2199 | 2199 | ||
| Maximum output / speed [kW/min-1] | 145/3800 | 145/3800 | 145/3800 | 145/3800 | ||
| Maximum torque [Nm/min-1] | 422/1800-2500 | 436/1800-2500 | 422/1800-2500 | 436/1800-2500 | ||
| Bore and stroke [mm x mm] | 85,4 x 96,0 | 85,4 x 96,0 | 85,4 x 96,0 | 85,4 x 96,0 | ||
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | 4x4 | 4x4 | ||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - |
|
|
| ||
| Top speed [km/h] | 190 | 190 | 190 | 190 | ||
| Acceleration 0–100 km/h [s] | 9.3 | 9.7 | 9.7 | 9.9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 7.3 | 8.7 | 7.4 | 8.8 | ||
| Out of town [l] | 5.0 | 5.1 | 5.0 | 5.4 | ||
| Combined [l] | 5.8 | 6.4 | 5.9 | 6.7 | ||
| CO2 emissions [g/km] | 153 | 169 | 155 | 175 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1795-1930 | 1823-1965 | 1862-1999 | 1890-2033 | ||
| Overall weight [kg] | 2510 | 2510 | 2510 | 2510 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2000 | 750/2500 | 750/2000 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 660 | 660 | 660 | 660 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1675 | -/1675 | -/1675 | -/1675 | ||
| Boot length [mm] | 1078 | 1078 | 1078 | 1078 | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | -/870 | -/870 | -/870 | -/870 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | ||
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | ||
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | ||
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | ||
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | ||
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | ||
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | ||
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | ||
| Overall length [mm] | 4685 | 4685 | 4685 | 4685 | ||
| Overall width without/including mirrors [mm] | 1885/- | 1885/- | 1885/- | 1885/- | ||
| Overall height [mm] | 1735 | 1735 | 1735 | 1735 | ||
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | ||
| Front wheel track [mm] | 1626 | 1626 | 1626 | 1626 | ||
| Rear wheel track [mm] | 1623 | 1623 | 1623 | 1623 | ||
| Forward overhang [mm] | 945 | 945 | 945 | 945 | ||
| Rear overhang [mm] | 1040 | 1040 | 1040 | 1040 | ||
| Clearance [mm] | 185 | 185 | 185 | 185 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 19.7 | 19.7 | 19.7 | 19.7 | ||
| Approach angle rear [°] | 22.4 | 22.4 | 22.4 | 22.4 | ||
| Transition angle [°] | 17.1 | 17.1 | 17.1 | 17.1 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |

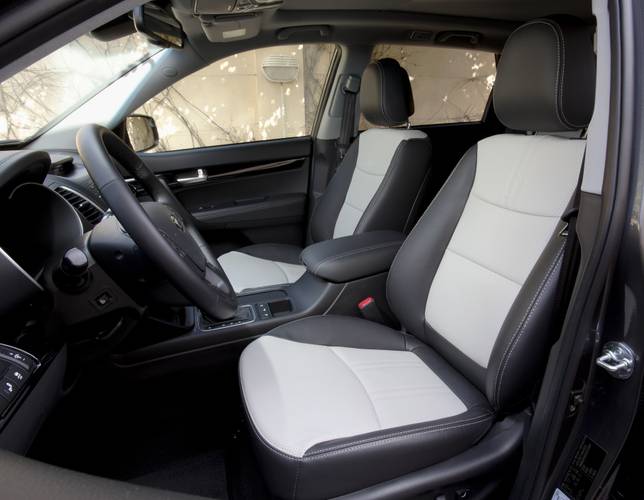

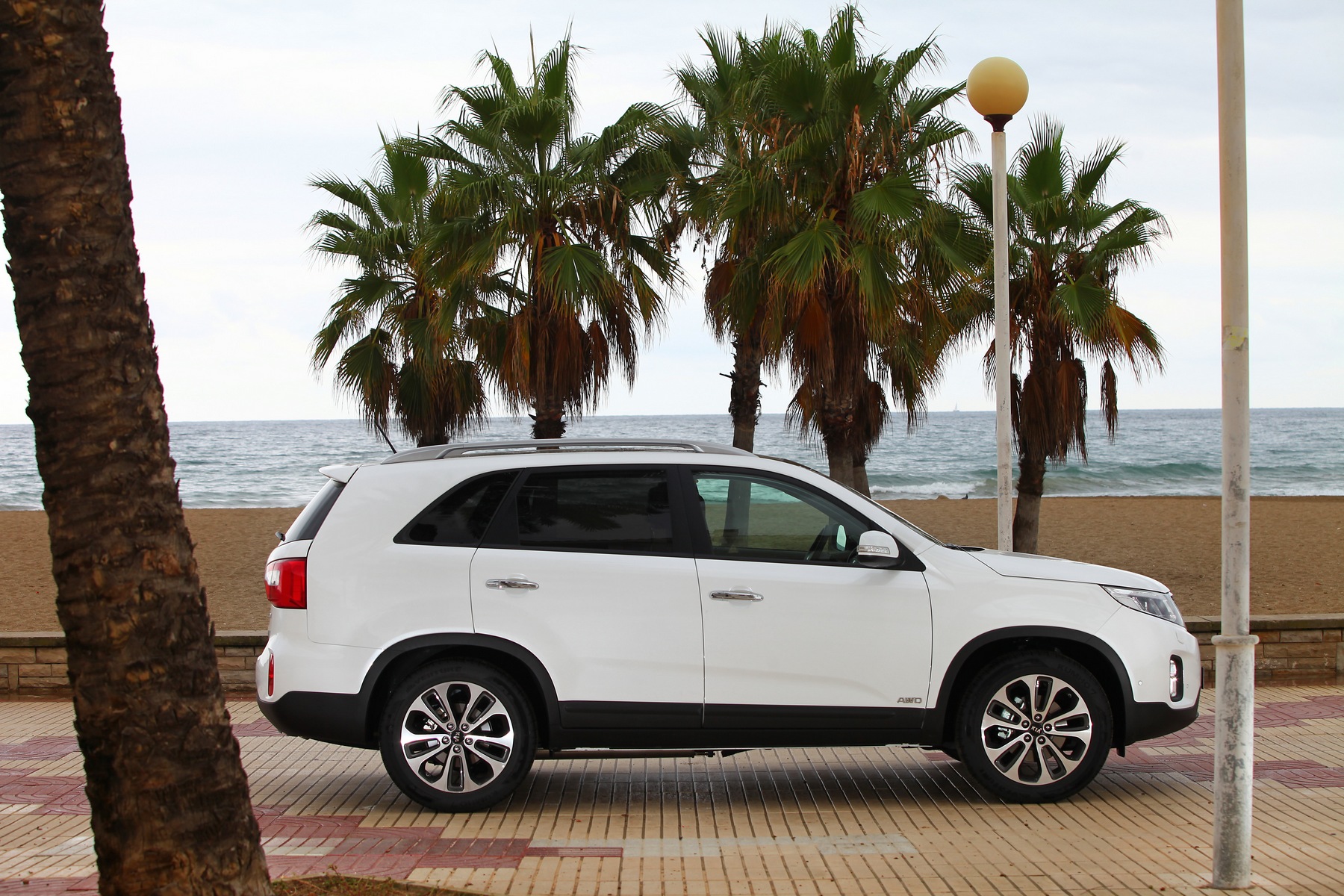

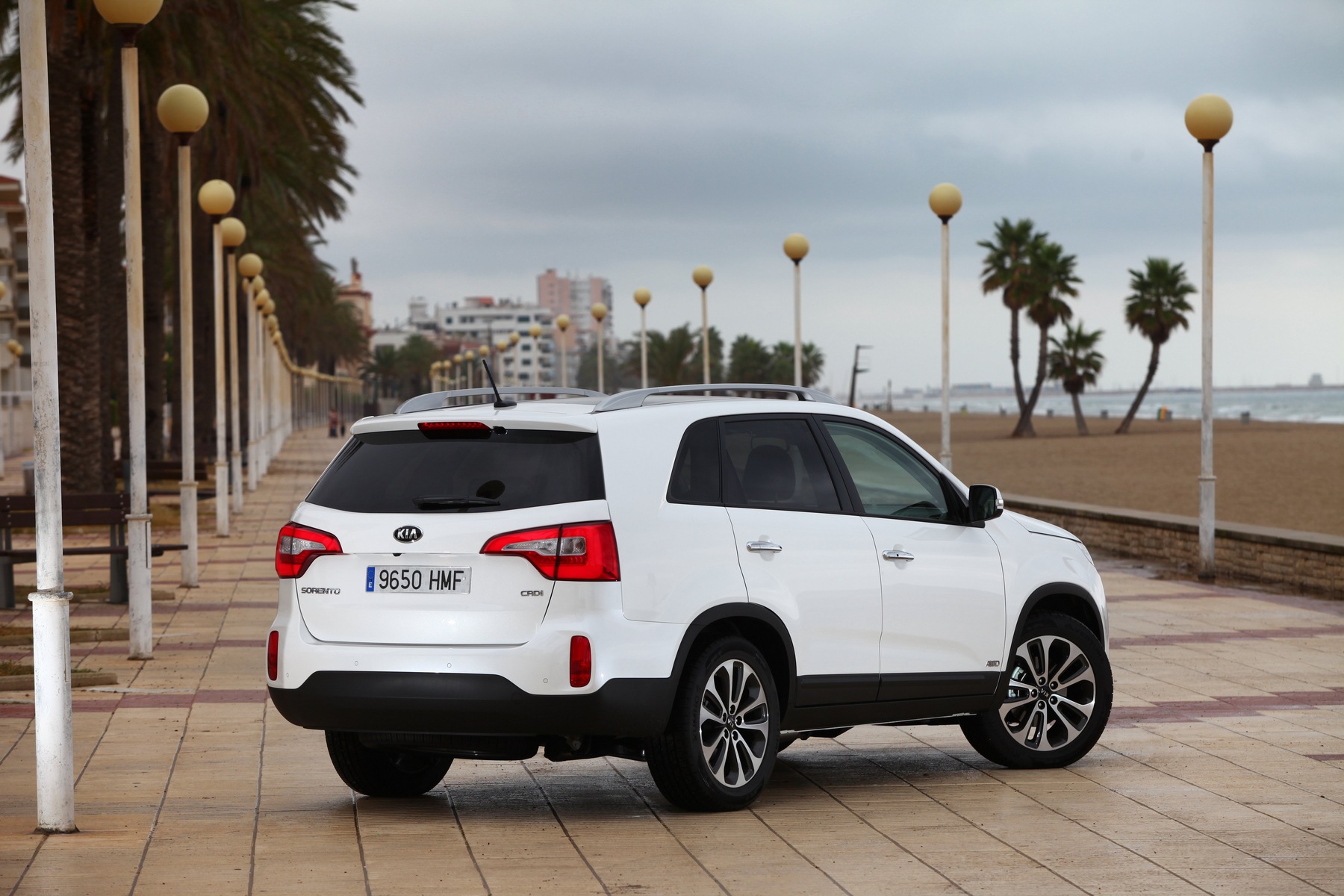

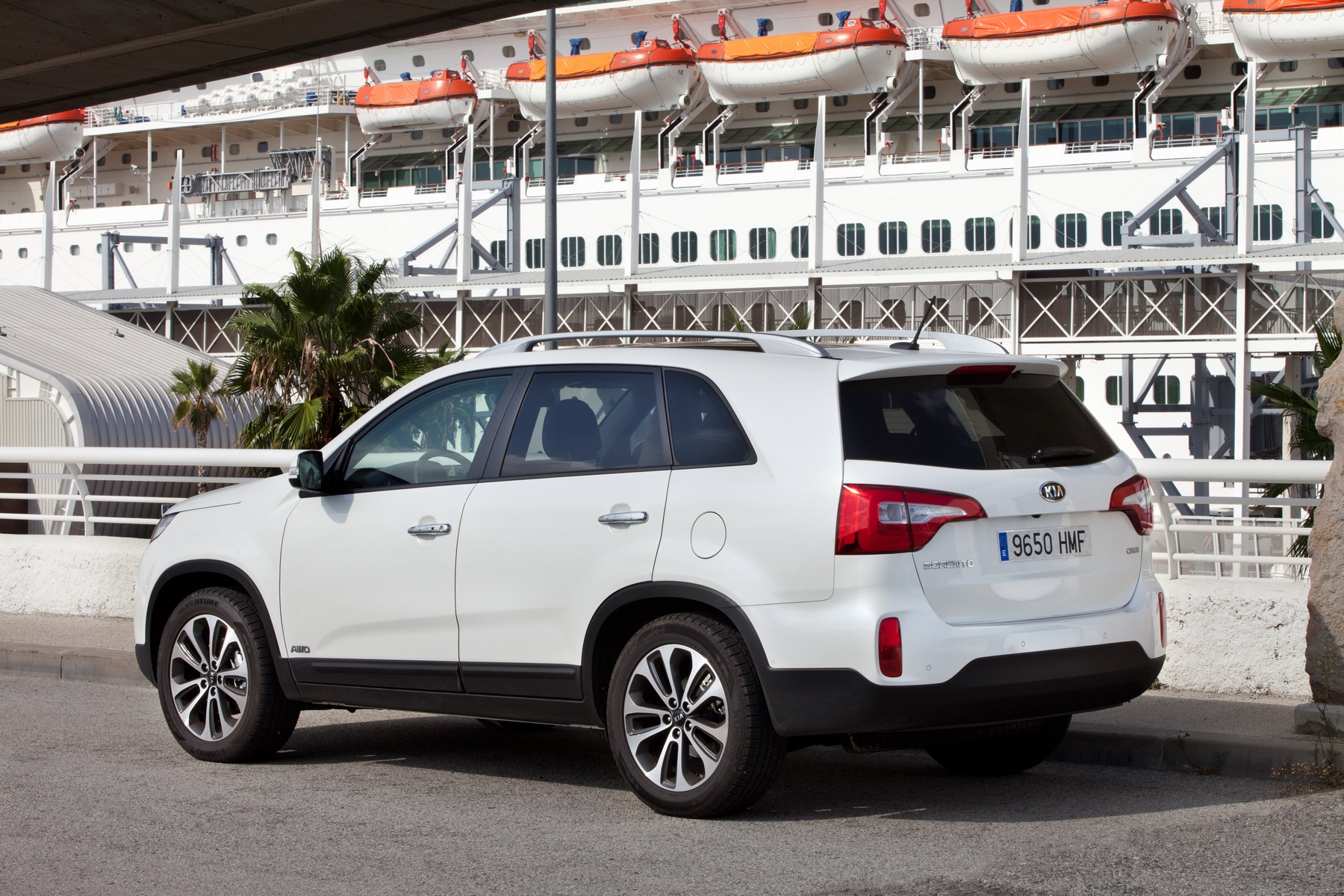

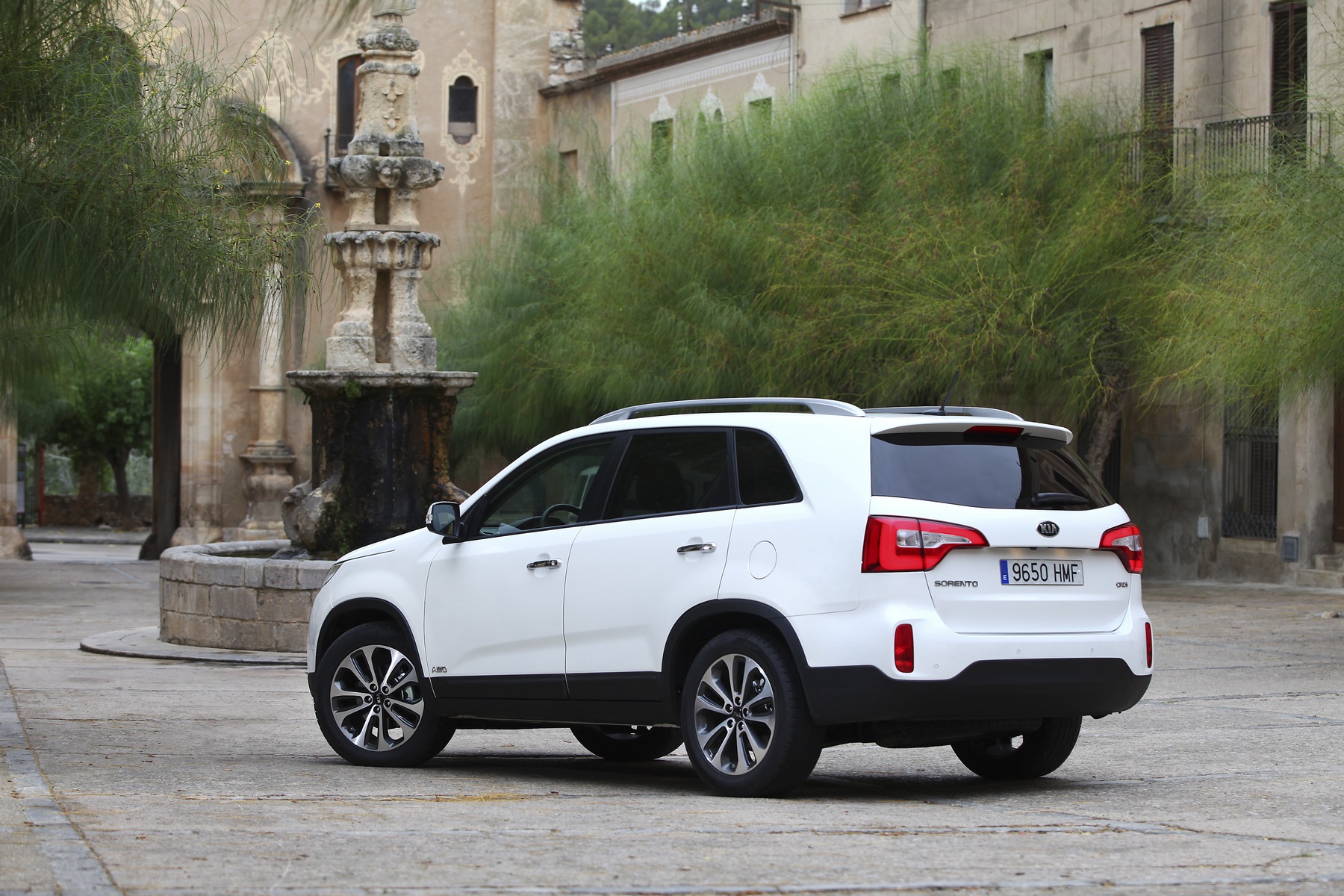

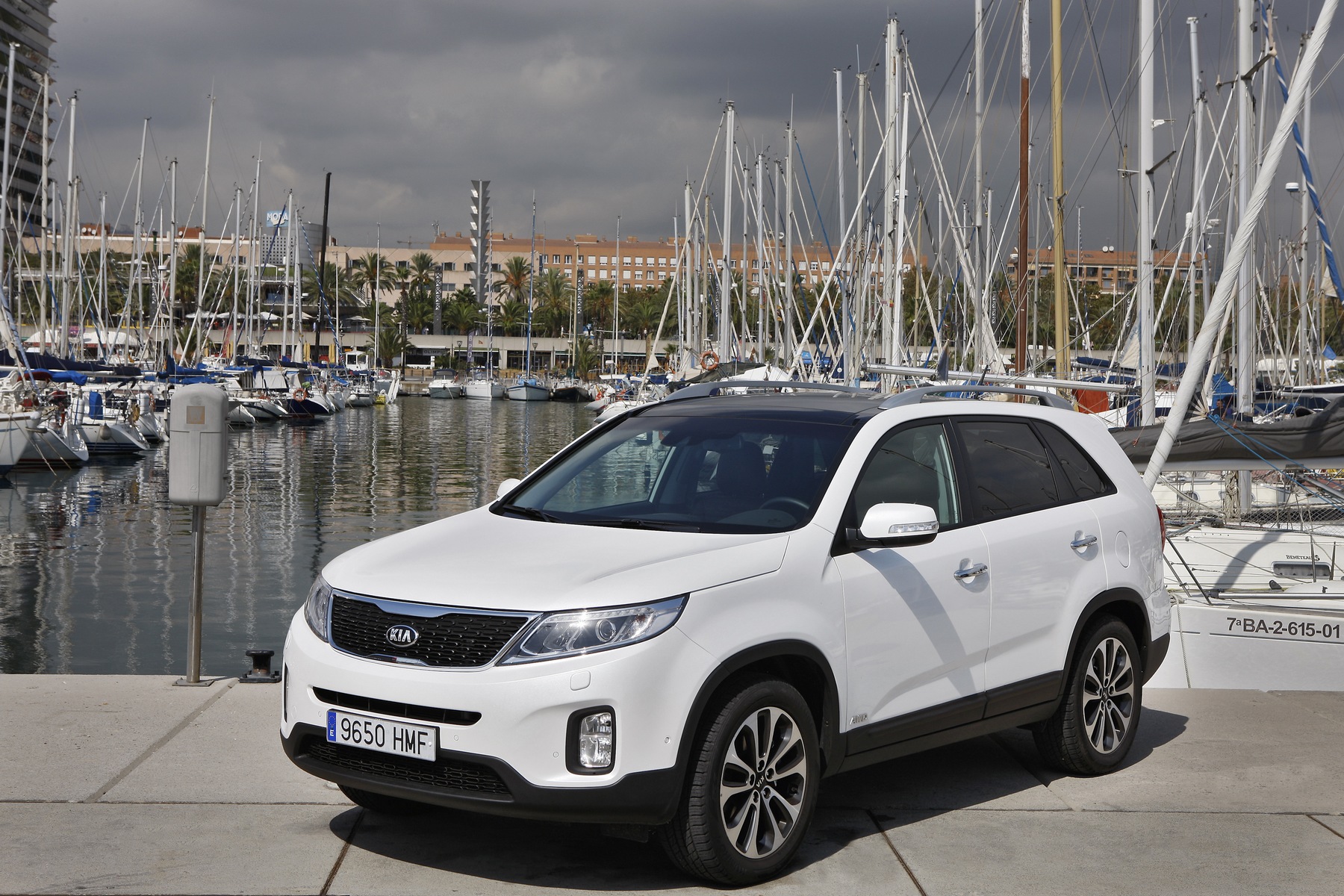

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
