Basic information Technical Specifications Gallery

Kia Sorento

Date of manufacture

2020 – to this day (Large SUV)

Platform

Hyundai-Kia N3

Manufacturing locations

Hwaseong, South Korea

West Point, Georgia, USA

Designer

Car body style

Large SUV

Date of manufacture

2020 – to this day

Internal designation

MQ4

Engine size

Petrol + Electric

Diesel

Euro NCAP

Technical data

Large SUV

	1.6 T-GDI HEV	1.6 T-GDI HEV AWD	1.6 T-GDI PHEV AWD	2.2 CRDI	2.2 CRDI AWD
Date of sale	-	-	from 2021 to	-	-
Engine type	Petrol supercharged + Electric	Petrol supercharged + Electric	Petrol supercharged + Electric	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1598	2151	2151
Maximum output / speed [kW/min-1]	132/5500 combustion 44/1600-2000 el. 169 total	132/5500 combustion 44/1600-2000 el. 169 total	132/5500 combustion 66.9/2100-3300 el. 195 total	148/3800	148/3800
Maximum torque [Nm/min-1]	265/1500-4500 combustion 264/0-1600 el. 350 total	265/1500-4500 combustion 264/0-1600 el. 350 total	265/1500-4500 combustion 304/0-2100 el. 350 total	440/1750-2750	440/1750-2750
Bore and stroke [mm x mm]	75.6 x 89.0	75.6 x 89.0	75.6 x 89.0	83.0 x 99.4	83.0 x 99.4
Compression ratio	10,5:1	10,5:1	10,5:1	16.0:1	16.0:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	Full Hybrid HEV direct injection GDI turbo-supercharged continuously variable valve period CVVD electric synchronous motor with permanent magnet Gasoline Particulate Filter	Full Hybrid HEV direct injection GDI turbo-supercharged continuously variable valve period CVVD electric synchronous motor with permanent magnet Gasoline Particulate Filter	Plug‐in Hybrid PHEV direct injection GDI turbo-supercharged continuously variable valve period CVVD electric synchronous motor with permanent magnet Gasoline Particulate Filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system ISG

Drive axle	Front	4x4	4x4	Front	4x4
Gearbox	6 gear automatic	6 gear automatic	6 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	dual-clutch automatic gearbox DCT	automatically controlled all-wheel drive six-speed automatic gearbox	automatically controlled all-wheel drive dual-clutch automatic gearbox DCT	eight-speed dual-clutch automatic gearbox	automatically controlled all-wheel drive eight-speed dual-clutch automatic gearbox

Top speed [km/h]	193 [120 el.]	193 [120 el.]	193 [140 el.]	202	202
Acceleration 0–100 km/h [s]	8.6	9.0	8.7	9.0	9.2
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	5.6-5.2	6.3-5.8	-	6.6-6.4	7.1-6.8
Out of town [l]	5.4-5.2	6.1-5.6	-	5.1-4.9	5.4-5.1
Combined [l]	5.4-5.2	6.2-5.6	1.6 [16.1 kWh]	5.6-5.4	6.0-5.7
CO2 emissions [g/km]	124-118	141-129	36	148-143	158-150

Low speed [l]	-	7.2-7.0	-	7.7-7.3	8.3-8.2
Medium speed [l]	-	6.4-5.8	-	6.5-6.1	7.1-6.5
High speed [l]	-	6.2-5.7	-	5.5-5.3	5.8-5.5
Extra high speed [l]	-	9.3-8.3	-	6.7-6.5	7.1-6.6
Combined speed [l]	-	7.5-6.8	-	6.7-6.5	6.8-6.5
CO2 emissions [g/km]	-	170-155	-	169-161	179-169

Emission standard	Euro 6d	Euro 6d	Euro 6d	Euro 6d	Euro 6d
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	68	68	67	69	69

System voltage [V]	270	270	360	-	-
Battery type and capacity	Lithium polymer, 1.49 kWh	Lithium polymer, 1.49 kWh	Lithium polymer, 13.8 kWh	-	-
Range with fully charged battery [km]	-	-	57	-	-
Charging time	-	-	to 100%, 205 minutes, charger 3.3 kW 230V/16A	-	-
Number of modules/cells	-	-	-	-	-
Battery weight [kg]	40	40	139	-	-
Charger	-	-	-	-	-

Standby weight [kg]	1816-1967 [1585-2017 seven seats]	1881-2032 [1922-2081 seven seats]	2015-2130 [2057-2174 seven seats]	1790-1919 [1832-1967 seven seats]	1852-1981 [1894-2029 seven seats]
Overall weight [kg]	2510 [2580 seven seats]	2530 [2610 seven seats]	2530 [2680 seven seats]	2510 [2550 seven seats]	2510 [2600 seven seats]
Maximum trailer weight unbraked/braked [kg]	750/1650	750/1650	750/1500	750/2500	750/2500
Maximum front/rear axle load [kg]	1070/746 [1069/789 seven seats]	1093/788 [1091/831 seven seats]	1148/867 [1148/909 seven seats]	1061/729 [1057/775 seven seats]	1083/769 [1079/815 seven seats]
Maximum vertical load on the tow bar [kg]	100	100	100	100	100
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-

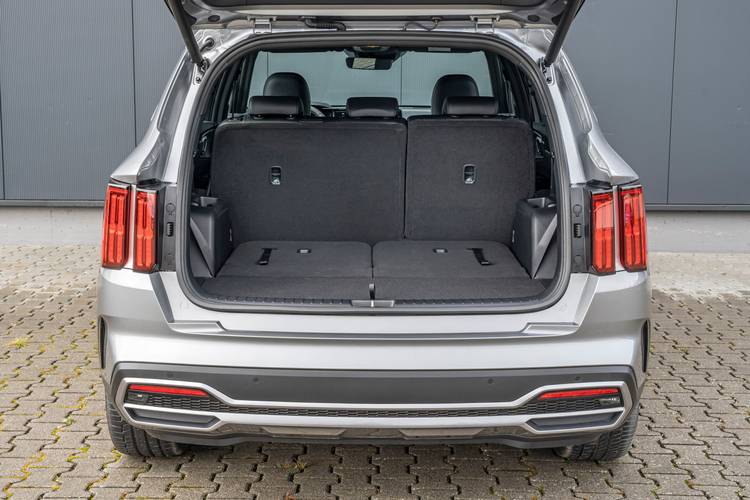

Boot volume [l]	697-902 [179 seven seats]	697-902 [179 seven seats]	693-898 [175 seven seats]	705-910 [187 seven seats]	705-910 [187 seven seats]
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/2085 [-	-/2085 [-	-/2077 [-	-/2100 [-	-/2100 [-
Boot volume, third row of seats [l]	-	-	-	-	-
Boot volume, third row seats folded [l]	-	-	-	-	-
Boot length [mm]	1133-1279	1133-1279	1133-1279	1133-1279	1133-1279
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	- [1080/1100	- [1080/1100	- [1080/1100	- [1080/1100	- [1080/1100
Boot height to headliner/ceiling [mm]	-/858	-/858	-/858	-/858	-/858
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	5	5	5	5	5
Number of seats	5/7	5/7	5/7	5/7	5/7
Fuel tank volume [l]	67	67	47	67	67
AdBlue tank volume [l]	-	-	-	14	14
Air resistance [Cd]	-	-	-	-	-
Front suspension	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas-liquid shock absorbers	multilink, coil springs, stabiliser bar, gas-liquid shock absorbers	multilink, coil springs, stabiliser bar, gas-liquid shock absorbers	multilink, coil springs, stabiliser bar, gas-liquid shock absorbers	multilink, coil springs, stabiliser bar, gas-liquid shock absorbers
Tyre dimensions front	235/65 R17 108 V	235/65 R17 108 V	235/55 R19 105 V	235/65 R17 108 V	235/65 R17 108 V
Tyre dimensions rear	235/65 R17 108 V	235/65 R17 108 V	235/55 R19 105 V	235/65 R17 108 V	235/65 R17 108 V
Wheel size front	7,0J x 17 ET47	7,0J x 17 ET47	7,5J x 19 ET 49.5	7,0J x 17 ET47	7,0J x 17 ET47
Wheel size rear	7,0J x 17 ET47	7,0J x 17 ET47	7,5J x 19 ET 49.5	7,0J x 17 ET47	7,0J x 17 ET47
Brake dimensions front	325	325	325	325 or 345	325 or 345
Brake dimensions rear	305	305	305	305	305
Steering	Rack & pinion with electric power steering m C‐MDPS	Rack & pinion with electric power steering m C‐MDPS	Rack & pinion with electric power steering m C‐MDPS	Rack & pinion with electric power steering m C‐MDPS	Rack & pinion with electric power steering m C‐MDPS
Number of steering wheel turns	2.53	2.53	2.53	2.53	2.53
Turning diameter track/circumference [m]	11.6/-	11.6/-	11.6/-	11.6/-	11.6/-

Overall length [mm]	4810	4810	4810	4810	4810
Overall width without/including mirrors [mm]	1900/2170	1900/2170	1900/2170	1900/2170	1900/2170
Overall height [mm]	1700	1700	1700	1700	1700
Wheelbase [mm]	2815	2815	2815	2815	2815
Front wheel track [mm]	1651	1651	1646	1651	1651
Rear wheel track [mm]	1661	1661	1656	1661	1661
Forward overhang [mm]	930	930	930	930	930
Rear overhang [mm]	1065	1065	1065	1065	1065
Clearance [mm]	174	174	174	176	176
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	16.8	16.8	16.8	16.8	16.8
Approach angle rear [°]	21.3	21.3	21.3	21.3	21.3
Transition angle [°]	15.1	15.1	15.6	16.5	16.5
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1024	1024	1024	1024	1024
Headroom rear [mm]	994	994	994	994	994
Front elbow/shoulder width [mm]	1411/1500	1411/1500	1411/1500	1411/1500	1411/1500
Rear elbow/shoulder width [mm]	1399/1475	1399/1475	1399/1475	1399/1475	1399/1475
Legroom front knees/total [mm]	-/1052	-/1052	-/1052	-/1052	-/1052
Legroom rear knees/total [mm]	-/1024	-/1024	-/1024	-/1024	-/1024
Third row of seats, headroom [mm]	935	935	935	935	935
Third row elbow/shoulder width [mm]	-/1345	-/1345	-/1345	-/1345	-/1345

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
