Kia Stonic

Date of manufacture

2017 – 2020 (SUV)

Platform

Hyundai-Kia GB

Manufacturing locations

Gwangmyeong, South Korea

Designer

Peter Schreyer

Car body style

SUV

Date of manufacture

2017 – 2020

Internal designation

YB CUV

Engine size

Petrol

Diesel

Euro NCAP

Technical data

SUV

	1.25 CVVT 84	1.4 CVVT 100	1.0 T-GDI 120	1.0 T-GDI 120	1.6 CRDi 110	1.6 CRDi 116
Date of sale	-	-	-	from 2018 to 2020	from to 2018	from 2018 to 2020
Engine type	Petrol	Petrol	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	3/12	3/12	4/16	4/16
Engine displacement [cm³]	1248	1368	998	998	1582	1598
Maximum output / speed [kW/min-1]	61,8/6000	73,6/600	88,3/6000	88,3/6000	81/4000	85/4000
Maximum torque [Nm/min-1]	121,6/4000	133,3/4000	171,1/1500-4000	171,1/1500-4000	260/1500-2750	280/1500-2750
Bore and stroke [mm x mm]	71,0 x 78,8	72,0 x 84,0	71,0 x 84,0	71,0 x 84,0	77,2 x 84,5	77.0 x 85.8
Compression ratio	10,5:1	10,5:1	10,0:1	10,0:1	16,0:1	15.9:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves CVVT start&stop system ISG	variable valve timing CVVT start&stop system ISG	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT Particle filter for diesel engines (only models that comply with Euro 6d-TEMP) start&stop system ISG	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT Particle filter for diesel engines (only models that comply with Euro 6d-TEMP) start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry start&stop system ISG	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system ISG

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	6 gear manual	6 gear manual	7 gear automatic	6 gear manual	6 gear manual
Drive specifications	-	-	-	seven-speed dual-clutch automatic gearbox DCT	-	-

Top speed [km/h]	165	172	184	185	175	180
Acceleration 0–100 km/h [s]	13.2	12.6	10.3	10.6	11.3	10.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.9-6.4	7.0-6.8	6.9-6.0	5.9	4.9	4.6-4.3
Out of town [l]	5.4-4.6	5.1-4.6	5.0-4.5	4.9	3.8	3.7
Combined [l]	5.9-5.2	5.8-5.5	5.5-5.0	5.2	4.2	4.0-3.9
CO2 emissions [g/km]	136-118	133-125	130-115	120	109	106-103

Emission standard	EU6 - Euro 6d-TEMP	EU6 - Euro 6d-TEMP	EU6 - Euro 6d-TEMP	Euro 6d-TEMP	EU6 - Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1145-1238	1160-1253	1185-1278	1220-1313	1255-1349	1195-1288
Overall weight [kg]	1600	1610	1640	1670	1700	1720
Maximum trailer weight unbraked/braked [kg]	450/910	450/1000	450/1110	450/1110	450/1110	450/1110
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	70/-	70/-	70/-	70/-	70/-	70/-

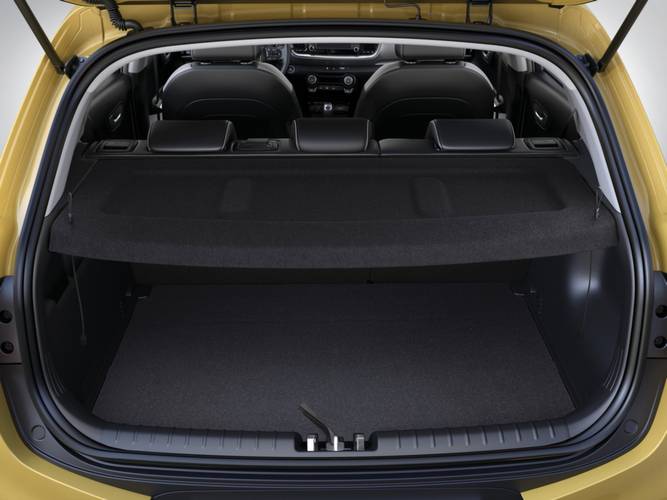

Boot volume [l]	352	352	352	352	352	352
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1155	-/1155	-/1155	-/1155	-/1155	-/1155
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	45	45	45	45	45	45
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	twist beam axle with trailing arms, gas shock absorbers and torsion bar	twist beam axle with trailing arms, gas shock absorbers and torsion bar	twist beam axle with trailing arms, gas shock absorbers and torsion bar	twist beam axle with trailing arms, gas shock absorbers and torsion bar	twist beam axle with trailing arms, gas shock absorbers and torsion bar	twist beam axle with trailing arms, gas shock absorbers and torsion bar
Tyre dimensions front	185/65 R15	185/65 R15	185/65 R15	185/65 R15	205/55 R17	205/55 R17
Tyre dimensions rear	185/65 R15	185/65 R15	185/65 R15	185/65 R15	205/55 R17	205/55 R17
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	-	-
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	-	-
Brake dimensions front	280	280	280	280	280	280
Brake dimensions rear	262	262	262	262	262	262
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	2.52	2.52	2.52	2.52	2.52	2.52
Turning diameter track/circumference [m]	10.4/-	10.4/-	10.4/-	10.4/-	10.4/-	10.4/-

Overall length [mm]	4140	4140	4140	4140	4140	4140
Overall width without/including mirrors [mm]	1760/2025	1760/2025	1760/2025	1760/2025	1760/2025	1760/2025
Overall height [mm]	1520	1520	1520	1520	1520	1520
Wheelbase [mm]	2580	2580	2580	2580	2580	2580
Front wheel track [mm]	1531-1537	1531-1537	1531-1537	1531-1537	1531-1537	1531-1537
Rear wheel track [mm]	1539-1544	1539-1544	1539-1544	1539-1544	1539-1544	1539-1544
Forward overhang [mm]	830	830	830	830	830	830
Rear overhang [mm]	730	730	730	730	730	730
Clearance [mm]	165	165	165	165	183	183
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	996	996	996	996	996	996
Headroom rear [mm]	975	975	975	975	975	975
Front elbow/shoulder width [mm]	1344/1375	1344/1375	1344/1375	1344/1375	1344/1375	1344/1375
Rear elbow/shoulder width [mm]	1330/1355	1330/1355	1330/1355	1330/1355	1330/1355	1330/1355
Legroom front knees/total [mm]	-/1070	-/1070	-/1070	-/1070	-/1070	-/1070
Legroom rear knees/total [mm]	-/850	-/850	-/850	-/850	-/850	-/850

	1.6 CRDi 136
Date of sale	from 2018 to 2020
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1598
Maximum output / speed [kW/min-1]	100/4000
Maximum torque [Nm/min-1]	280/1500-3000
Bore and stroke [mm x mm]	77.0 x 85.8
Compression ratio	15.9:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system ISG

Drive axle	Front
Gearbox	6 gear manual
Drive specifications	-

Top speed [km/h]	185
Acceleration 0–100 km/h [s]	10.3
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	4.7-4.4
Out of town [l]	3.8-3.6
Combined [l]	4.1-3.9
CO2 emissions [g/km]	108-103

Emission standard	Euro 6d-TEMP
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1195-1288
Overall weight [kg]	1720
Maximum trailer weight unbraked/braked [kg]	450/1110
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	75
Maximum load on roof/carrier [kg]	70/-

Boot volume [l]	352
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1155
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	45
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	twist beam axle with trailing arms, gas shock absorbers and torsion bar
Tyre dimensions front	205/55 R17
Tyre dimensions rear	205/55 R17
Wheel size front	-
Wheel size rear	-
Brake dimensions front	280
Brake dimensions rear	262
Steering	Rack & pinion with electric power steering m
Number of steering wheel turns	2.52
Turning diameter track/circumference [m]	10.4/-

Overall length [mm]	4140
Overall width without/including mirrors [mm]	1760/2025
Overall height [mm]	1520
Wheelbase [mm]	2580
Front wheel track [mm]	1531-1537
Rear wheel track [mm]	1539-1544
Forward overhang [mm]	830
Rear overhang [mm]	730
Clearance [mm]	183
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	996
Headroom rear [mm]	975
Front elbow/shoulder width [mm]	1344/1375
Rear elbow/shoulder width [mm]	1330/1355
Legroom front knees/total [mm]	-/1070
Legroom rear knees/total [mm]	-/850

Gallery

Kia Stonic YB CUV 2018 rear folding seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
