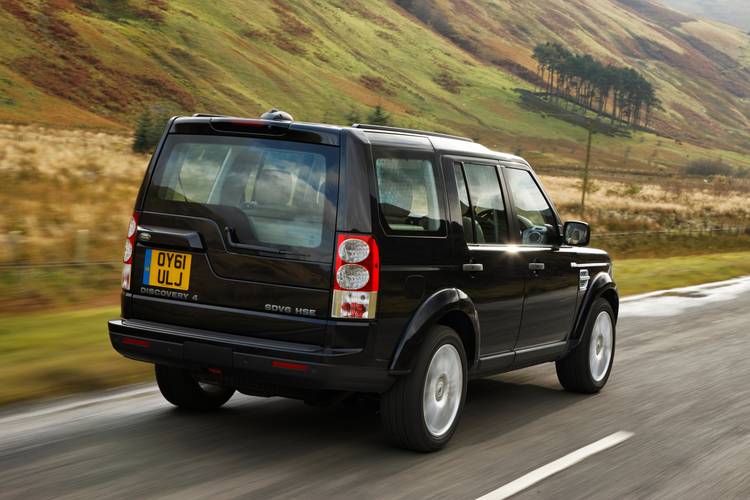

Land Rover Discovery 4
Date of manufacture
2009 – 2014 (Large SUV)
Platform
-
Manufacturing locations
Solihull, United Kingdom
Designer
Gerry McGovern
Tags
Large SUV
British cars
The Land Rover Discovery 4 is a large SUV that has been manufactured in the United Kingdom since 2009. It offers a wide range of power units - petrol and diesel engines with the highest power of 5.0L V8 (276 kW). The fastest version reaches a maximum speed of 195 km/h. The most comfortable variant is the 3.0 LR-TDV6 with the lowest fuel consumption of 8.5 l/100 km and 224 g/km of CO2 emissions. The size of the luggage compartment is 1260 l.
Car body style
Large SUV
Date of manufacture
2009 – 2014Internal designation
L319Engine size
Technical data
Large SUV
| LR-V6 4.0 | 5.0L V8 | 2.7 LR-TDV6 | 2.7 LR-TDV6 | 3.0 LR-TDV6 | 3.0 LR-TDV6 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2011 | - | from to 2011 | from to 2011 | from 2012 to | from to 2011 |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/12 | 8/32 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 3999 | 4999 | 2720 | 2720 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 160/4500 | 276/6500 | 140/4000 | 140/4000 | 155/4000 | 180/4000 |
| Maximum torque [Nm/min-1] | 360/3000 | 510/3500 | 440/1900 | 440/1900 | 520/2000 | 600/2000 |
| Bore and stroke [mm x mm] | 100.0 x 84.4 | 92.5 x 93.0 | 81.0 x 88.0 | 81.0 x 88.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 9.75:1 | 11.5:1 | 18.0:1 | 18.0:1 | 16.1:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic | 8 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 180 | 195 | 180 | 180 | 180 | 180 |
| Acceleration 0–100 km/h [s] | 11.6 | 7.9 | 11.7 | 12.7 | 10.7 | 9.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 19.8 | 11.1 | 13.1 | 9.7 | 11.2 |
| Out of town [l] | - | 10.7 | 8.1 | 8.5 | 7.8 | 8.3 |
| Combined [l] | 15.2 | 14.1-13.9 | 9.2 | 10.2 | 8.5 | 9.3 |
| CO2 emissions [g/km] | 359 | 328 | 244 | 270 | 224 | 244 |
| Emission standard | - | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | 73 | 71 | - | 72-73 |
| Standby weight [kg] | - | - | - | - | 2580-2767 | - |
| Overall weight [kg] | - | - | - | - | 3240 | - |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | 750/3500 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | 1450/1855 | - |
| Maximum vertical load on the tow bar [kg] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | - | 750/3500 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 1260 [280 seven seats] | 1260 [280 seven seats] | 1260 [280 seven seats] | 1260 [280 seven seats] | 1260 [280 seven seats] | 1260 [280 seven seats] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2476 [2558 seven seats] | -/2476 [2558 seven seats] | -/2476 [2558 seven seats] | -/2476 [2558 seven seats] | -/2476 [2558 seven seats] | -/2476 [2558 seven seats] |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1108 [338 seven seats] | 1108 [338 seven seats] | 1108 [338 seven seats] | 1108 [338 seven seats] | 1108 [338 seven seats] | 1108 [338 seven seats] |
| Boot length with rear seats folded [mm] | 1831 [1950 seven seats] | 1831 [1950 seven seats] | 1831 [1950 seven seats] | 1831 [1950 seven seats] | 1831 [1950 seven seats] | 1831 [1950 seven seats] |
| Boot width between wheels/max [mm] | 1146/1235 | 1146/1235 | 1146/1235 | 1146/1235 | 1146/1235 | 1146/1235 |
| Boot height to headliner/ceiling [mm] | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 |
| Fuel tank volume [l] | 86 | 86 | 82 | 82 | 82 | 82 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 317 | 360 | 317 | 317 | 360 | 360 |
| Brake dimensions rear | 325 | 350 | 325 | 325 | 350 | 350 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 | 11.45/11.8 |
| Overall length [mm] | 4829 | 4829 | 4829 | 4829 | 4829 | 4829 |
| Overall width without/including mirrors [mm] | 2020/2176 | 2020/2176 | 2020/2176 | 2020/2176 | 2020/2176 | 2020/2176 |
| Overall height [mm] | 1887 | 1887 | 1887 | 1887 | 1887 | 1887 |
| Wheelbase [mm] | 2885 | 2885 | 2885 | 2885 | 2885 | 2885 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 185-310 | 185-310 | 185-310 | 185-310 | 185-310 | 185-310 |
| Wading depth [mm] | 600-700 | 600-700 | 600-700 | 600-700 | 600-700 | 600-700 |
| Approach angle front [°] | 36.2 | 36.2 | 36.2 | 36.2 | 36.2 | 36.2 |
| Approach angle rear [°] | 27.3 | 27.3 | 27.3 | 27.3 | 27.3 | 27.3 |
| Transition angle [°] | 29.6 | 29.6 | 29.6 | 29.6 | 29.6 | 29.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Front elbow/shoulder width [mm] | -/1503 | -/1503 | -/1503 | -/1503 | -/1503 | -/1503 |
| Rear elbow/shoulder width [mm] | -/1499 | -/1499 | -/1499 | -/1499 | -/1499 | -/1499 |
| Legroom front knees/total [mm] | -/1078 | -/1078 | -/1078 | -/1078 | -/1078 | -/1078 |
| Legroom rear knees/total [mm] | -/955 | -/955 | -/955 | -/955 | -/955 | -/955 |
| Third row of seats, headroom [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Third row elbow/shoulder width [mm] | -/1087 | -/1087 | -/1087 | -/1087 | -/1087 | -/1087 |
| 3.0 LR-SDV6 | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2012 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2993 | |||||
| Maximum output / speed [kW/min-1] | 188/4000 | |||||
| Maximum torque [Nm/min-1] | 600/2000 | |||||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | |||||
| Compression ratio | 16.1:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 180 | |||||
| Acceleration 0–100 km/h [s] | 9.3 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 9.8 | |||||
| Out of town [l] | 8.1 | |||||
| Combined [l] | 8.8 | |||||
| CO2 emissions [g/km] | 230 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 2580-2767 | |||||
| Overall weight [kg] | 3240 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | |||||
| Maximum front/rear axle load [kg] | 1450/1855 | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 1260 [280 seven seats] | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2476 [2558 seven seats] | |||||
| Boot volume, third row of seats [l] | - | |||||
| Boot volume, third row seats folded [l] | - | |||||
| Boot length [mm] | 1108 [338 seven seats] | |||||
| Boot length with rear seats folded [mm] | 1831 [1950 seven seats] | |||||
| Boot width between wheels/max [mm] | 1146/1235 | |||||
| Boot height to headliner/ceiling [mm] | -/1027 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5/7 | |||||
| Fuel tank volume [l] | 82 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.4 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | double wishbone | |||||
| Tyre dimensions front | - | |||||
| Tyre dimensions rear | - | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | 360 | |||||
| Brake dimensions rear | 350 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.45/11.8 | |||||
| Overall length [mm] | 4829 | |||||
| Overall width without/including mirrors [mm] | 2020/2176 | |||||
| Overall height [mm] | 1887 | |||||
| Wheelbase [mm] | 2885 | |||||
| Front wheel track [mm] | 1605 | |||||
| Rear wheel track [mm] | 1612 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 185-310 | |||||
| Wading depth [mm] | 600-700 | |||||
| Approach angle front [°] | 36.2 | |||||
| Approach angle rear [°] | 27.3 | |||||
| Transition angle [°] | 29.6 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1020 | |||||
| Headroom rear [mm] | 1043 | |||||
| Front elbow/shoulder width [mm] | -/1503 | |||||
| Rear elbow/shoulder width [mm] | -/1499 | |||||
| Legroom front knees/total [mm] | -/1078 | |||||
| Legroom rear knees/total [mm] | -/955 | |||||
| Third row of seats, headroom [mm] | 983 | |||||
| Third row elbow/shoulder width [mm] | -/1087 |
