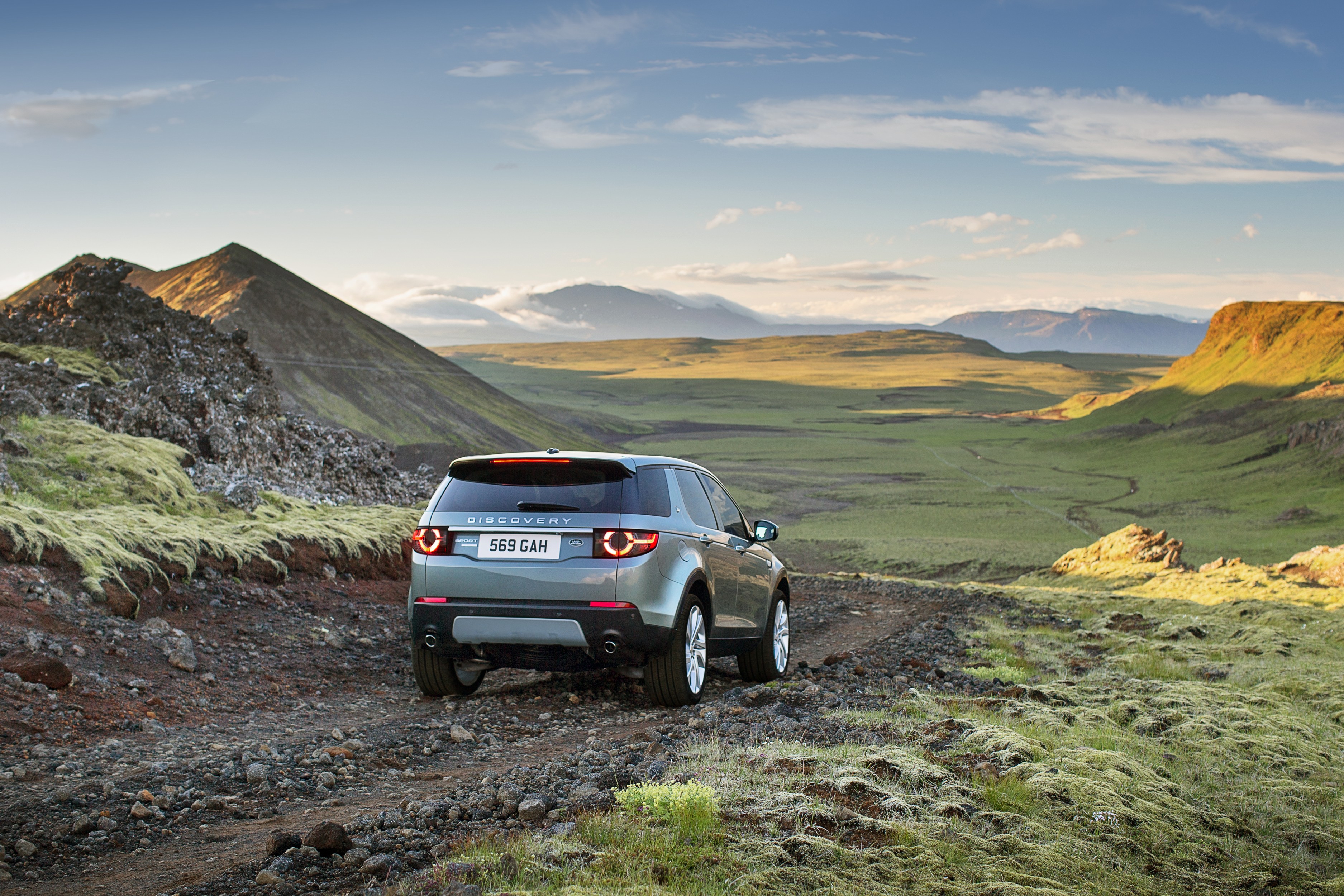

Land Rover Discovery Sport
Date of manufacture
2014 – 2019 (Medium SUV)
Platform
JLR D8
Manufacturing locations
Halewood, United Kingdom
Changshu, People's Republic of China
Designer
Gerry McGovern
Tags
Compact SUV
British cars
The Land Rover Discovery Sport is a mid-size SUV that has been manufactured in the UK and China since 2014. The vehicle uses the JLR D8 platform and offers both petrol and diesel engines. The most powerful Si4 290 version has 213 kW and a top speed of 228 km/h. The most economical 2.0 Td4 150 E-CAPABILITY has a fuel consumption of 4.7 l/100 km and emissions of 123 g/km. The vehicle's boot has a capacity of 981 l. EURONCAP safety tests rated the Land Rover Discovery Sport 5 out of 5 according to the 2014 methodology.
Car body style
Medium SUV
Date of manufacture
2014 – 2019Internal designation
L550
Technical data
Medium SUV
| Si4 240 | Si4 240 | Si4 290 | 2.2 TD4 150 AWD | 2.2 TD4 150 AWD | 2.0 Td4 150 E-CAPABILITY | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to | from 2016 to | from to 2015 | from to 2015 | from 2015 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1998 | 1998 | 2179 | 2179 | 1999 |
| Maximum output / speed [kW/min-1] | 177/5800 | 177/5500 | 213/5500 | 110/3500 | 110/3500 | 110/2400 |
| Maximum torque [Nm/min-1] | 340/1750 | 340/11250 | 400/1500 | 400/1750 | 400/1750 | 380/1750-2500 |
| Bore and stroke [mm x mm] | 87.5 x 83.1 | 83.0 x 93.3 | 83.0 x 93.3 | 85.0 x 96.0 | 85.0 x 96.0 | 83.0 x 92.35 |
| Compression ratio | 10.0:1 | 10.5:1 | 10.5:1 | 15.8:1 | 15.8:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | Front |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 6 gear manual | 9 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 199 | 200 | 228 | 180 | 180 | 180 |
| Acceleration 0–100 km/h [s] | 8.2 | 7.6-7.9 | 6.7-6.8 | 11.7 | 10.3 | 10.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 5.4 | 4.5-4.7 | - | - | 7.2 |
| City [l] | 11.2-10.8 | 10.1 | 10.2-9.8 | 6.9 | 7.5-7.2 | 5.5 |
| Out of town [l] | 6.9-6.7 | 6.8 | 7.3 | 5.2-5.0 | 5.5-5.3 | 4.2 |
| Combined [l] | 8.5-8.2 | 8.0 | 8.4-8.2 | 5.8-5.7 | 6.2-6.0 | 4.7 |
| CO2 emissions [g/km] | 197-191 | 182-181 | 190-186 | 154-149 | 164-159 | 123 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1744 [1841 seven seats] | 1759 [1859 seven seats] | 1884 [1947 seven seats] | 1765 [1854 seven seats] | 1775 [1863 seven seats] | 1740 |
| Overall weight [kg] | 2505 [2575 seven seats] | 2505 [2600 seven seats] | 2505 [2710 seven seats] | 2505 [2600 seven seats] | 2505 [2600 seven seats] | 2380 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/1800 [750/1750 seven seats] | 750/2200 | 750/1800 |
| Maximum front/rear axle load [kg] | 1340/1270 [1310/1360 seven seats] | 1340/1270 [1310/1410 seven seats] | 1340/1270 [1310/1510 seven seats] | 1340/1270 [1310/1360 seven seats] | 1340/1270 [1310/1360 seven seats] | 1250/1200 |
| Maximum vertical load on the tow bar [kg] | 150 [100 seven seats] | 100-150 [100 seven seats] | 100-150 [100 seven seats] | 150 [100 seven seats] | 150 [100 seven seats] | 100 |
| Maximum load on roof/carrier [kg] | 80/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 981 | 981 | 981 | 981 | 981 | 981 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1777 | -/1777 | -/1777 | -/1777 | -/1777 | -/1777 |
| Boot length [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Boot length with rear seats folded [mm] | 1887 | 1887 | 1887 | 1887 | 1887 | 1887 |
| Boot width between wheels/max [mm] | 1108/1318 | 1108/1318 | 1108/1318 | 1108/1318 | 1108/1318 | 1108/1318 |
| Boot height to headliner/ceiling [mm] | -/778 | -/778 | -/778 | -/778 | -/778 | -/778 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 806 | 806 | 806 | 806 | 806 | 806 |
| Boot opening width min/max [mm] | 1104/- | 1104/- | 1104/- | 1104/- | 1104/- | 1104/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5 |
| Fuel tank volume [l] | 70 | 68.5 | 68.5 | 65 | 65 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | 13.7 |
| Air resistance [Cd] | 0.36 | 0.37 | 0.38 | 0.36 | 0.36 | 0.37 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/65 R17 | 225/65 R17 | 235/60 R18 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/65 R17 | 225/65 R17 | 235/60 R18 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 8.0J x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 8.0J x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 325 | 325 | 349 | 325 | 325 | 325 |
| Brake dimensions rear | 300 | 300 | 300 [325 seven seats] | 300 | 300 | 300 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | 2.31 | 2.31 | - |
| Turning diameter track/circumference [m] | 11.6/11.86 | 11.6/11.86 | 11.6/11.86 | 11.6/11.86 | 11.6/11.86 | 11.6/11.86 |
| Overall length [mm] | 4589 | 4589 | 4589 | 4589 | 4589 | 4589 |
| Overall width without/including mirrors [mm] | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 |
| Overall height [mm] | 1724 | 1724 | 1724 | 1724 | 1724 | 1724 |
| Wheelbase [mm] | 2741 | 2741 | 2741 | 2741 | 2741 | 2741 |
| Front wheel track [mm] | 1621 | 1621 | 1621 | 1621 | 1621 | 1621 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 894 | 894 | 894 | 894 | 894 | 894 |
| Rear overhang [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Clearance [mm] | 211 | 211 | 211 | 211 | 211 | 211 |
| Wading depth [mm] | 600 | 600 | 600 | 600 | 600 | 600 |
| Approach angle front [°] | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 |
| Approach angle rear [°] | 31 | 31 | 31 | 31 | 31 | 31 |
| Transition angle [°] | 20-21 | 20-21 | 20-21 | 20-21 | 20-21 | 20-21 |
| Climbing rate [°] | 45 | 45 | 45 | 45 | 45 | 45 |
| Maximum side tilt [°] | 35 | 35 | 35 | 35 | 35 | 35 |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
| Headroom rear [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Front elbow/shoulder width [mm] | -/1458 | -/1458 | -/1458 | -/1458 | -/1458 | -/1458 |
| Rear elbow/shoulder width [mm] | -/1431 | -/1431 | -/1431 | -/1431 | -/1431 | -/1431 |
| Legroom front knees/total [mm] | -/1068 | -/1068 | -/1068 | -/1068 | -/1068 | -/1068 |
| Legroom rear knees/total [mm] | -/999 | -/999 | -/999 | -/999 | -/999 | -/999 |
| 2.0 Td4 150 AWD E-CAPABILITY | 2.0 Td4 150 AWD | 2.0 Td4 150 AWD | 2.0 Td4 180 AWD | 2.0 Td4 180 AWD | 2.2 SD4 180 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from 2015 to | from 2015 to | from 2015 to | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1999 | 1999 | 1999 | 1999 | 2179 |
| Maximum output / speed [kW/min-1] | 110/2400 | 110/2400 | 110/2400 | 132/2400 | 132/2400 | 140/3500 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 430/1750-2500 | 430/1750-2500 | 420/1750 |
| Bore and stroke [mm x mm] | 83.0 x 92.35 | 83.0 x 92.35 | 83.0 x 92.35 | 83.0 x 92.35 | 83.0 x 92.35 | 85.0 x 96.0 |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 9 gear automatic | 6 gear manual | 9 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 180 | 180 | 180 | 188 | 188 | 188 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.7 | 10.3 | 9.9 | 8.9 | 10.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7.8 | 7.8 | 8.2 | 6.5 | 7.0 | - |
| City [l] | 6.4-5.6 | 6.4-5.6 | 6.3 | 6.4-6.11 | 6.3 | 7.3-7.2 |
| Out of town [l] | 4.6-4.5 | 4.6-4.5 | 4.7 | 4.6-4.6 | 4.7 | 5.5-5.3 |
| Combined [l] | 5.3-4.9 | 5.3-4.9 | 5.3 | 5.3-5.1 | 5.3 | 6.1-6.0 |
| CO2 emissions [g/km] | 139-129 | 139-129 | 139 | 139-134 | 139 | 162-159 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1775 | 1775 [1874 seven seats] | 1785 [1884 seven seats] | 1775 [1874 seven seats] | 1785 [1884 seven seats] | 1765 [1854 seven seats] |
| Overall weight [kg] | 2505 | 2505 [2660 seven seats] | 2505 [2640 seven seats] | 2505 [2640 seven seats] | 2505 [2640 seven seats] | 2505 [2600 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2200 | 750/2000 | 750/2500 [750/2200 seven seats] | 750/2000 |
| Maximum front/rear axle load [kg] | 1340/1270 | 1340/1270 [1310/1430 seven seats] | 1340/1270 [1310/1430 seven seats] | 1340/1270 [1310/1430 seven seats] | 1340/1270 [1310/1430 seven seats] | 1340/1270 [1310/1360 seven seats] |
| Maximum vertical load on the tow bar [kg] | 100 | 100-150 [100 seven seats] | 100-150 [100 seven seats] | 100-150 [100 seven seats] | 100-150 [100 seven seats] | 150 [100 seven seats] |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 981 | 981 | 981 | 981 | 981 | 981 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1777 | -/1777 | -/1777 | -/1777 | -/1777 | -/1777 |
| Boot length [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Boot length with rear seats folded [mm] | 1887 | 1887 | 1887 | 1887 | 1887 | 1887 |
| Boot width between wheels/max [mm] | 1108/1318 | 1108/1318 | 1108/1318 | 1108/1318 | 1108/1318 | 1108/1318 |
| Boot height to headliner/ceiling [mm] | -/778 | -/778 | -/778 | -/778 | -/778 | -/778 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 806 | 806 | 806 | 806 | 806 | 806 |
| Boot opening width min/max [mm] | 1104/- | 1104/- | 1104/- | 1104/- | 1104/- | 1104/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 65 |
| AdBlue tank volume [l] | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 | - |
| Air resistance [Cd] | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.36 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 325 | 325 | 325 | 325 | 325 | 325 |
| Brake dimensions rear | 300 | 300 | 300 | 300 | 300 | 300 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | 2.31 |
| Turning diameter track/circumference [m] | 11.6/11.86 | 11.6/11.86 | 11.6/11.86 | 11.6/11.86 | 11.6/11.86 | 11.6/11.86 |
| Overall length [mm] | 4589 | 4589 | 4589 | 4589 | 4589 | 4589 |
| Overall width without/including mirrors [mm] | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 |
| Overall height [mm] | 1724 | 1724 | 1724 | 1724 | 1724 | 1724 |
| Wheelbase [mm] | 2741 | 2741 | 2741 | 2741 | 2741 | 2741 |
| Front wheel track [mm] | 1621 | 1621 | 1621 | 1621 | 1621 | 1621 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 894 | 894 | 894 | 894 | 894 | 894 |
| Rear overhang [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Clearance [mm] | 211 | 211 | 211 | 211 | 211 | 211 |
| Wading depth [mm] | 600 | 600 | 600 | 600 | 600 | 600 |
| Approach angle front [°] | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 |
| Approach angle rear [°] | 31 | 31 | 31 | 31 | 31 | 31 |
| Transition angle [°] | 20-21 | 20-21 | 20-21 | 20-21 | 20-21 | 20-21 |
| Climbing rate [°] | 45 | 45 | 45 | 45 | 45 | 45 |
| Maximum side tilt [°] | 35 | 35 | 35 | 35 | 35 | 35 |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
| Headroom rear [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Front elbow/shoulder width [mm] | -/1458 | -/1458 | -/1458 | -/1458 | -/1458 | -/1458 |
| Rear elbow/shoulder width [mm] | -/1431 | -/1431 | -/1431 | -/1431 | -/1431 | -/1431 |
| Legroom front knees/total [mm] | -/1068 | -/1068 | -/1068 | -/1068 | -/1068 | -/1068 |
| Legroom rear knees/total [mm] | -/999 | -/999 | -/999 | -/999 | -/999 | -/999 |
| 2.2 SD4 180 AWD | 2.0 Sd4 240 AWD | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2016 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2179 | 1999 | ||||
| Maximum output / speed [kW/min-1] | 140/3500 | 177/4000 | ||||
| Maximum torque [Nm/min-1] | 420/1750 | 500/15000 | ||||
| Bore and stroke [mm x mm] | 85.0 x 96.0 | 83.0 x 92.35 | ||||
| Compression ratio | 15.8:1 | 15.5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 9 gear automatic | 9 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 188 | 204 | ||||
| Acceleration 0–100 km/h [s] | 8.9 | 7.5 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | 5.4 | ||||
| City [l] | 7.6-7.3 | 7.3 | ||||
| Out of town [l] | 5.6-5.4 | 5.9 | ||||
| Combined [l] | 6.3-6.1 | 6.4 | ||||
| CO2 emissions [g/km] | 166-161 | 169 | ||||
| Emission standard | EU5 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1755 [1863 seven seats] | 1896 [1990 seven seats] | ||||
| Overall weight [kg] | 2505 [2600 seven seats] | 2550 [2750 seven seats] | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2500 [750/2200 seven seats] | 750/2500 [750/2200 seven seats] | ||||
| Maximum front/rear axle load [kg] | 1340/1270 [1310/1360 seven seats] | 1340/1310 [1340/1510 seven seats] | ||||
| Maximum vertical load on the tow bar [kg] | 150 [100 seven seats] | 100-150 [100 seven seats] | ||||
| Maximum load on roof/carrier [kg] | - | 75/- | ||||
| Boot volume [l] | 981 | 981 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1777 | -/1777 | ||||
| Boot length [mm] | 985 | 985 | ||||
| Boot length with rear seats folded [mm] | 1887 | 1887 | ||||
| Boot width between wheels/max [mm] | 1108/1318 | 1108/1318 | ||||
| Boot height to headliner/ceiling [mm] | -/778 | -/778 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 806 | 806 | ||||
| Boot opening width min/max [mm] | 1104/- | 1104/- | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5/7 | 5/7 | ||||
| Fuel tank volume [l] | 65 | 54 | ||||
| AdBlue tank volume [l] | 18 | 13.7 | ||||
| Air resistance [Cd] | 0.36 | 0.38 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/65 R17 | 235/60 R18 | ||||
| Tyre dimensions rear | 225/65 R17 | 235/60 R18 | ||||
| Wheel size front | 7.0J x 17 | 8.0J x 18 | ||||
| Wheel size rear | 7.0J x 17 | 8.0J x 18 | ||||
| Brake dimensions front | 325 | 349 | ||||
| Brake dimensions rear | 300 | 300 [325 seven seats] | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | 2.31 | - | ||||
| Turning diameter track/circumference [m] | 11.6/11.86 | 11.6/11.86 | ||||
| Overall length [mm] | 4589 | 4589 | ||||
| Overall width without/including mirrors [mm] | 2069/2173 | 2069/2173 | ||||
| Overall height [mm] | 1724 | 1724 | ||||
| Wheelbase [mm] | 2741 | 2741 | ||||
| Front wheel track [mm] | 1621 | 1621 | ||||
| Rear wheel track [mm] | 1630 | 1630 | ||||
| Forward overhang [mm] | 894 | 894 | ||||
| Rear overhang [mm] | 954 | 954 | ||||
| Clearance [mm] | 211 | 211 | ||||
| Wading depth [mm] | 600 | 600 | ||||
| Approach angle front [°] | 23-25 | 23-25 | ||||
| Approach angle rear [°] | 31 | 31 | ||||
| Transition angle [°] | 20-21 | 20-21 | ||||
| Climbing rate [°] | 45 | 45 | ||||
| Maximum side tilt [°] | 35 | 35 | ||||
| Headroom front [mm] | 1021 | 1021 | ||||
| Headroom rear [mm] | 984 | 984 | ||||
| Front elbow/shoulder width [mm] | -/1458 | -/1458 | ||||
| Rear elbow/shoulder width [mm] | -/1431 | -/1431 | ||||
| Legroom front knees/total [mm] | -/1068 | -/1068 | ||||
| Legroom rear knees/total [mm] | -/999 | -/999 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
