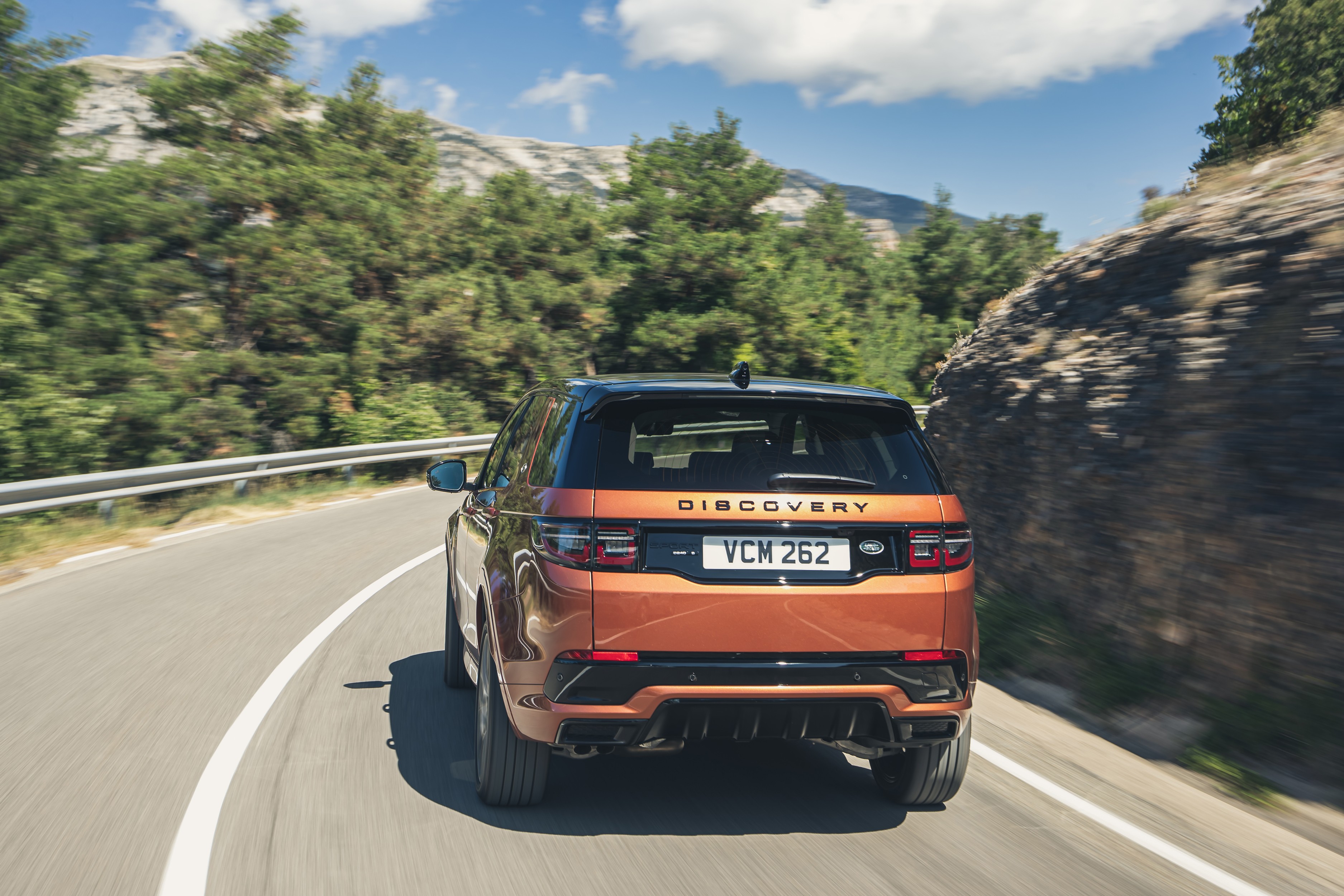

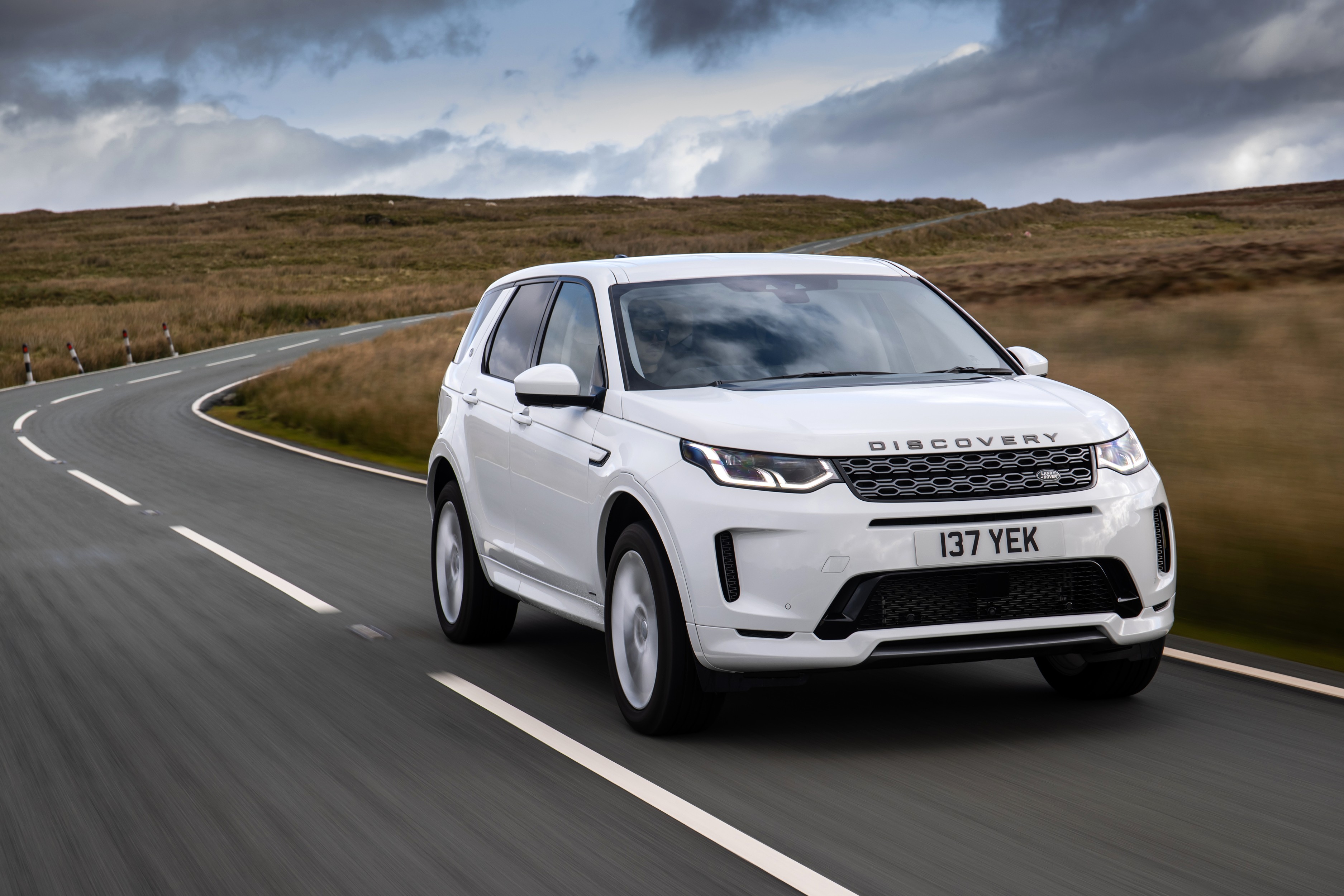

Land Rover Discovery Sport
Date of manufacture
2019 – to this day (Medium SUV)
Platform
JLR D8
Manufacturing locations
Halewood, United Kingdom
Changshu, People's Republic of China
Designer
Gerry McGovern
Tags
Compact SUV
British cars
The Land Rover Discovery Sport can be purchased in a mid-size SUV body style. The vehicle has been manufactured since 2019. Countries of manufacture include the United Kingdom and the People's Republic of China. The vehicle is built on the JLR D8 platform. The car is also available in a plug-in hybrid version. The list of power units includes petrol, diesel and hybrid engines. The highest power is achieved by the P300e AWD (227 kW). The fastest version is the P290 AWD. The maximum speed is 231 km/h. The best acceleration 0-100 km/h in 6.6 seconds is achieved by the P300e AWD. The lowest combined consumption of 2 kWh/100 km is achieved by the P300e AWD. CO2 emissions are 48 g/km. The luggage compartment offers a volume of 963 l. The vehicle was tested in the safety area in 2014 and achieved an overall rating of 5 out of 5 according to EURONCAP.
Car body style
Technical data
Medium SUV
| P200 AWD | P250 AWD | P290 AWD | P300e AWD | D150 | D150 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2020 | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1497 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 147/5500 | 184/5500 | 213/5500 | 147 combustion 80 el. 227/5500 total | 110/2400 | 110/2400 |
| Maximum torque [Nm/min-1] | 320/1200-4000 | 365/1300-4500 | 400/1500-4500 | 540/2000-2500 | 380/1750-2500 | 380/1750-2500 |
| Bore and stroke [mm x mm] | 83.0 x 92.3 | 83.0 x 92.3 | 83.0 x 92.3 | 83.0 x 92.3 | 83.0 x 92.35 | 83.0 x 92.35 |
| Compression ratio | 10.5:1 | 10.5:1 | 9.5:1 | 10.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 8 gear automatic | 6 gear manual | 9 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 207 | 225 | 231-221 | 209 [135 el.] | 194 | 190 |
| Acceleration 0–100 km/h [s] | 9.0 [9.2 seven seats] | 7.6 [7.8 seven seats] | 7.4 | 6.6 | 11.1 [11.4 seven seats] | 11.4 [11.8 seven seats] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 4.2 | - | - |
| City [l] | 10.1-9.8 | 10.2-9.8 | - | - | 6.9-6.3 | 6.6-6.4 |
| Out of town [l] | 6.9-6.6 | 7.0-6.8 | - | - | 5.3-4.7 | 5.3-5.1 |
| Combined [l] | 8.1-7.8 | 8.2-7.9 | 8.1-7.9 | 2.0 [17.2-16.7 kWh] | 5.9-5.3 | 5.9-5.6 |
| CO2 emissions [g/km] | 183-177 | 185-179 | 184-179 | 48-46 | 154-140 | 155-147 |
| Low speed [l] | 13.6-12.8 | 13.6-12.8 | - | - | 8.4-7.6 | 9.7-9.3 |
| Medium speed [l] | 10.0-9.3 | 10.0-9.3 | - | - | 6.8-5.8 | 7.4-6.8 |
| High speed [l] | 8.4-7.7 | 8.5-7.8 | - | - | 6.0-5.0 | 6.5-5.8 |
| Extra high speed [l] | 9.8-9.1 | 9.9-9.2 | - | - | 7.1-6.1 | 7.7-7.1 |
| Combined speed [l] | 9.9-9.2 | 10.0-9.3 | 10.0-9.4 | - | 6.9-5.9 | 7.5-6.9 |
| CO2 emissions [g/km] | 225-208 | 226-210 | 226-211 | - | 186-159 | 198-181 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 48 | - | - | 48 |
| Battery type and capacity | - | - | - | Lithium-ion, 15 kWh (12.17 net) | - | - |
| Range with fully charged battery [km] | - | - | - | 63 | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | 7/84 | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1901 [1979 seven seats] | 1939 [2017 seven seats] | 1957 [2036 seven seats] | 2168 | 1844 [1926 seven seats] | 1948 [2028 seven seats] |
| Overall weight [kg] | 2550 [2700 seven seats] | 2550 [2700 seven seats] | 2570 | 2750 | 2440 [2640 seven seats] | 2590 [2750 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/1600 | 750/1800 | 750/2200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 963 [115 seven seats] | 963 [115 seven seats] | 963 [115 seven seats] | 963 [115 seven seats] | 963 [115 seven seats] | 963 [115 seven seats] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1574 [1451 seven seats] | -/1574 [1451 seven seats] | -/1574 [1451 seven seats] | -/1574 [1451 seven seats] | -/1574 [1451 seven seats] | -/1574 [1451 seven seats] |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 967 [225 seven seats] | 967 [225 seven seats] | 967 [225 seven seats] | 967 [225 seven seats] | 967 [225 seven seats] | 967 [225 seven seats] |
| Boot length with rear seats folded [mm] | 1824 | 1824 | 1824 | 1824 | 1824 | 1824 |
| Boot width between wheels/max [mm] | 1107/1323 | 1107/1323 | 1107/1323 | 1107/1323 | 1107/1323 | 1107/1323 |
| Boot height to headliner/ceiling [mm] | -/757 | -/757 | -/757 | -/757 | -/757 | -/757 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 798 | 798 | 798 | 798 | 798 | 798 |
| Boot opening width min/max [mm] | -/1043 | -/1043 | -/1043 | -/1043 | -/1043 | -/1043 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5/7 | 5/7 | 5/7 | 5 | 5/7 | 5/7 |
| Fuel tank volume [l] | 67 | 67 | 67 | 56.5 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | 17.3 | 17.3 |
| Air resistance [Cd] | 0.33 | 0.33 | 0.34 | - | 0.33 | 0.33 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 325 or 349 | 349 | 349 | 349 | 325 or 349 | 325 or 349 |
| Brake dimensions rear | 300 or 325 | 325 | 325 | 325 | 300 or 325 | 300 or 325 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.31 | 2.31 | 2.31 | 2.31 | 2.31 | 2.31 |
| Turning diameter track/circumference [m] | 11.8/12.14 | 11.8/12.14 | 11.8/12.14 | 11.8/12.14 | 11.8/12.14 | 11.8/12.14 |
| Overall length [mm] | 4597 | 4597 | 4597 | 4597 | 4597 | 4597 |
| Overall width without/including mirrors [mm] | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 |
| Overall height [mm] | 1727 | 1727 | 1727 | 1727 | 1727 | 1727 |
| Wheelbase [mm] | 2741 | 2741 | 2741 | 2741 | 2741 | 2741 |
| Front wheel track [mm] | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 |
| Rear wheel track [mm] | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 |
| Forward overhang [mm] | 901 | 901 | 901 | 901 | 901 | 901 |
| Rear overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Clearance [mm] | 212 | 212 | 212 | 212 | 212 | 212 |
| Wading depth [mm] | 600 | 600 | 600 | 600 | 600 | 600 |
| Approach angle front [°] | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 |
| Approach angle rear [°] | 30.2 | 30.2 | 30.2 | 30.2 | 30.2 | 30.2 |
| Transition angle [°] | 20.6 | 20.6 | 20.6 | 19.5 | 20.6 | 20.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Headroom rear [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Front elbow/shoulder width [mm] | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 |
| Rear elbow/shoulder width [mm] | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 |
| Legroom front knees/total [mm] | -/993 | -/993 | -/993 | -/993 | -/993 | -/993 |
| Legroom rear knees/total [mm] | -/968 | -/968 | -/968 | -/968 | -/968 | -/968 |
| Third row of seats, headroom [mm] | 875 | 875 | 875 | - | 875 | 875 |
| Third row elbow/shoulder width [mm] | -/1197 | -/1197 | -/1197 | - | -/1197 | -/1197 |
| D165 | D165 AWD | D180 AWD | D200 AWD | D240 AWD | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | from to 2020 | from 2020 to | from to 2020 | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1999 | 1999 | 1999 | 1999 | 1999 | |
| Maximum output / speed [kW/min-1] | 120/5500 | 120/5500 | 132/2400 | 150/4250 | 177/2400 | |
| Maximum torque [Nm/min-1] | 380/1500-2500 | 380/1500-2500 | 430/1750-2500 | 430/1600-4000 | 500/1500-2500 | |
| Bore and stroke [mm x mm] | 83.0 x 92.31 | 83.0 x 92.31 | 83.0 x 92.35 | 83.0 x 92.31 | 83.0 x 92.35 | |
| Compression ratio | 16.5:1 | 16.5:1 | 15.5:1 | 16.5:1 | 15.5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear manual | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | |
| Drive specifications | - |
|
|
|
| |
| Top speed [km/h] | 201 | 195 | 202 | 209 | 220 | |
| Acceleration 0–100 km/h [s] | 10.4 [10.8 seven seats] | 10.2 [10.6 seven seats] | 9.7 [10.1 seven seats] | 8.6 [8.9 seven seats] | 7.7 [7.9 seven seats] | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | 7.2 | 8.2 | - | - | - | |
| City [l] | - | - | 6.9-6.6 | - | 7.8-7.3 | |
| Out of town [l] | - | - | 5.3-5.1 | - | 6.0-5.6 | |
| Combined [l] | 5.0 | 5.4-5.3 | 5.9-5.6 | 5.4-5.3 | 6.7-6.2 | |
| CO2 emissions [g/km] | 131 | 144-140 | 155-147 | 144-140 | 175-163 | |
| Low speed [l] | - | - | 10.2-9.8 | - | 10.3-9.7 | |
| Medium speed [l] | - | - | 8.3-7.7 | - | 7.8-7.2 | |
| High speed [l] | - | - | 6.0-5.3 | - | 6.6-6.0 | |
| Extra high speed [l] | - | - | 7.6-7.0 | - | 7.7-7.1 | |
| Combined speed [l] | 6.9-6.3 | 7.3-6.7 | 7.6-7.0 | 7.3-6.7 | 7.7-7.1 | |
| CO2 emissions [g/km] | 180-165 | 191-175 | 199-183 | 191-175 | 203-187 | |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6 | Euro 6d-TEMP - Euro 6 | Euro 6d-TEMP - Euro 6 | Euro 6d-TEMP - Euro 6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | 48 | 48 | 48 | 48 | 48 | |
| Battery type and capacity | - | - | - | - | - | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1844 [1926 seven seats] | 1948 [2028 seven seats] | 1948 [2028 seven seats] | 1948 [2028 seven seats] | 2009 [2090 seven seats] | |
| Overall weight [kg] | 2440 | 2590 | 2590 [2750 seven seats] | 2590 | 2620 [2750 seven seats] | |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2200 | 750/2500 [750/2200 seven seats] | 750/2500 [750/2200 seven seats] | 750/2500 [750/2200 seven seats] | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 963 [115 seven seats] | 963 [115 seven seats] | 963 [115 seven seats] | 963 [115 seven seats] | 963 [115 seven seats] | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1574 [1451 seven seats] | -/1574 [1451 seven seats] | -/1574 [1451 seven seats] | -/1574 [1451 seven seats] | -/1574 [1451 seven seats] | |
| Boot volume, third row of seats [l] | - | - | - | - | - | |
| Boot volume, third row seats folded [l] | - | - | - | - | - | |
| Boot length [mm] | 967 [225 seven seats] | 967 [225 seven seats] | 967 [225 seven seats] | 967 [225 seven seats] | 967 [225 seven seats] | |
| Boot length with rear seats folded [mm] | 1824 | 1824 | 1824 | 1824 | 1824 | |
| Boot width between wheels/max [mm] | 1107/1323 | 1107/1323 | 1107/1323 | 1107/1323 | 1107/1323 | |
| Boot height to headliner/ceiling [mm] | -/757 | -/757 | -/757 | -/757 | -/757 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 798 | 798 | 798 | 798 | 798 | |
| Boot opening width min/max [mm] | -/1043 | -/1043 | -/1043 | -/1043 | -/1043 | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | |
| AdBlue tank volume [l] | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.34 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | - | - | - | - | - | |
| Tyre dimensions rear | - | - | - | - | - | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | 325 or 349 | 325 or 349 | 325 or 349 | 325 or 349 | 349 | |
| Brake dimensions rear | 300 or 325 | 300 or 325 | 300 or 325 | 300 or 325 | 300 or 325 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | 2.31 | 2.31 | 2.31 | 2.31 | 2.31 | |
| Turning diameter track/circumference [m] | 11.8/12.14 | 11.8/12.14 | 11.8/12.14 | 11.8/12.14 | 11.8/12.14 | |
| Overall length [mm] | 4597 | 4597 | 4597 | 4597 | 4597 | |
| Overall width without/including mirrors [mm] | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 | 2069/2173 | |
| Overall height [mm] | 1727 | 1727 | 1727 | 1727 | 1727 | |
| Wheelbase [mm] | 2741 | 2741 | 2741 | 2741 | 2741 | |
| Front wheel track [mm] | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 | |
| Rear wheel track [mm] | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 | |
| Forward overhang [mm] | 901 | 901 | 901 | 901 | 901 | |
| Rear overhang [mm] | 955 | 955 | 955 | 955 | 955 | |
| Clearance [mm] | 212 | 212 | 212 | 212 | 212 | |
| Wading depth [mm] | 600 | 600 | 600 | 600 | 600 | |
| Approach angle front [°] | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | |
| Approach angle rear [°] | 30.2 | 30.2 | 30.2 | 30.2 | 30.2 | |
| Transition angle [°] | 20.6 | 20.6 | 20.6 | 20.6 | 20.6 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | |
| Headroom rear [mm] | 984 | 984 | 984 | 984 | 984 | |
| Front elbow/shoulder width [mm] | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 | |
| Rear elbow/shoulder width [mm] | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 | |
| Legroom front knees/total [mm] | -/993 | -/993 | -/993 | -/993 | -/993 | |
| Legroom rear knees/total [mm] | -/968 | -/968 | -/968 | -/968 | -/968 | |
| Third row of seats, headroom [mm] | 875 | 875 | 875 | 875 | 875 | |
| Third row elbow/shoulder width [mm] | -/1197 | -/1197 | -/1197 | -/1197 | -/1197 | |
| Rating | - | - |    | - | - | |
| Clean Air Index | - | - | 5.8/10 | - | - | |
| Energy Efficiency Index | - | - | 2.0/10 | - | - | |
| GHG index | - | - | 0.6/10 | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
