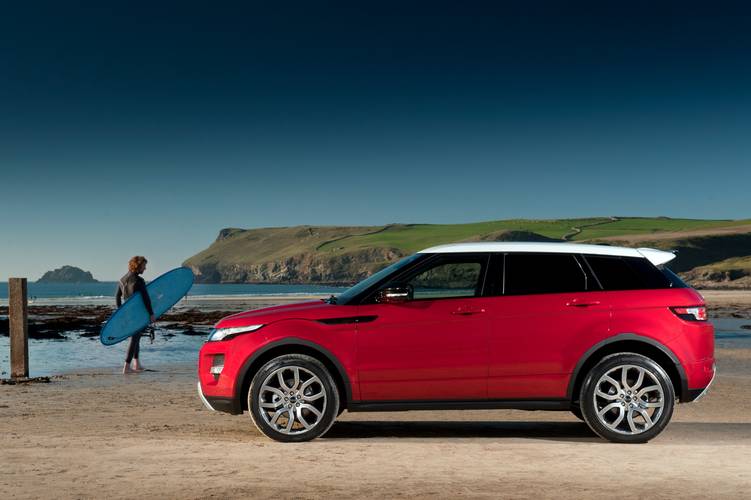

Land Rover Range Rover Evoque

Date of manufacture

7/2011 – 2014 (Small SUV)

7/2011 – 2014 (Coupé)

Platform

JLR D8

Manufacturing locations

Halewood, United Kingdom

Designer

Gerry McGovern

Car body style

Small SUV

Date of manufacture

7/2011 – 2014

Internal designation

L538

Engine size

Petrol

Diesel

Coupé

Date of manufacture

7/2011 – 2014

Internal designation

L538

Engine size

Petrol

Diesel

Euro NCAP

Technical data

Small SUV

	2.0 Si4	2.2 eD4	2.2 TD4	2.2 TD4	2.2 SD4	2.2 SD4
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1999	2179	2179	2179	2179	2179
Maximum output / speed [kW/min-1]	177/5500	110/4000	110/4000	110/4000	140/3500	140/3500
Maximum torque [Nm/min-1]	340/1750	380/1750	400/1750	400/1750	420/1750	420/1750
Bore and stroke [mm x mm]	87,5 ,0 x 83.1	85,0 x 96.0	85,0 x 96.0	85,0 x 96.0	85,0 x 96.0	85,0 x 96.0
Compression ratio	10:1	15.8:1	15.8:1	15.8:1	15.8:1	15.8:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter

Drive axle	4x4	Front	4x4	4x4	4x4	4x4
Gearbox	6 gear automatic	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	six-speed automatic gearbox AWF21	gearbox type M66 EH50	gearbox type M66	six-speed automatic gearbox AWF21	gearbox type M66	gearbox type AWF21

Top speed [km/h]	217	180	185	182	200	195
Acceleration 0–100 km/h [s]	7.6	11.2	10.8	9.6	10	8.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.9	6,0	6.7	7,9	6.7	7,9
Out of town [l]	6.9	4.5	5.2	5.7	5.2	5.7
Combined [l]	8.7	5,0	5.7	6,5	5.7	6,5
CO2 emissions [g/km]	199	133	149	174	149	174

Emission standard	Euro 5	Euro 5	Euro 5	Euro 5	Euro 5	Euro 5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1670	1625	1700	1715	1700	1715
Overall weight [kg]	2350	2350	2350	2350	2350	2350
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1500	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	1300/1145	1300/1145	1300/1145	1300/1145	1300/1145	1300/1145
Maximum vertical load on the tow bar [kg]	150	150	150	150	150	150
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	575	575	575	575	575	575
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1445	-/1445	-/1445	-/1445	-/1445	-/1445
Boot length [mm]	795	795	795	795	795	795
Boot length with rear seats folded [mm]	1580	1580	1580	1580	1580	1580
Boot width between wheels/max [mm]	1000/1105	1000/1105	1000/1105	1000/1105	1000/1105	1000/1105
Boot height to headliner/ceiling [mm]	-/870	-/870	-/870	-/870	-/870	-/870
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.36	0.36	0.36	0.36	0.36	0.36
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Tyre dimensions front	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17
Tyre dimensions rear	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Brake dimensions front	300	300	300	300	300	300
Brake dimensions rear	302	302	302	302	302	302
Steering	-	-	-	-	-	-
Number of steering wheel turns	2.31	2.31	2.31	2.31	2.31	2.31
Turning diameter track/circumference [m]	11.3	11.3	11.3	11.3	11.3	11.3

Overall length [mm]	4365	4365	4365	4365	4365	4365
Overall width without/including mirrors [mm]	1965/2125	1965/2125	1965/2125	1965/2125	1965/2125	1965/2125
Overall height [mm]	1635	1635	1635	1635	1635	1635
Wheelbase [mm]	2660	2660	2660	2660	2660	2660
Front wheel track [mm]	1625	1625	1625	1625	1625	1625
Rear wheel track [mm]	1630	1630	1630	1630	1630	1630
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	212	212	212	212	212	212
Wading depth [mm]	500	500	500	500	500	500
Approach angle front [°]	25	25	25	25	25	25
Approach angle rear [°]	33	33	33	33	33	33
Transition angle [°]	22	22	22	22	22	22
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	990	990	990	990	990	990
Headroom rear [mm]	965	965	965	965	965	965
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Coupé

	2.0 Si4	2.2 eD4	2.2 TD4	2.2 TD4	2.2 SD4	2.2 SD4
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1999	2179	2179	2179	2179	2179
Maximum output / speed [kW/min-1]	177/5500	110/4000	110/4000	110/4000	140/3500	140/3500
Maximum torque [Nm/min-1]	340/1750	380/1750	400/1750	400/1750	420/1750	420/1750
Bore and stroke [mm x mm]	87,5 ,0 x 83.1	85,0 x 96.0	85,0 x 96.0	85,0 x 96.0	85,0 x 96.0	85,0 x 96.0
Compression ratio	10:1	15.8:1	15.8:1	15.8:1	15.8:1	15.8:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter

Drive axle	4x4	Front	4x4	4x4	4x4	4x4
Gearbox	6 gear automatic	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	six-speed automatic gearbox AWF21	gearbox type M66 EH50	gearbox type M66	six-speed automatic gearbox AWF21	gearbox type M66	gearbox type AWF21

Top speed [km/h]	217	180	185	182	200	195
Acceleration 0–100 km/h [s]	7.6	11.2	10.8	9.6	10	8.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.9	5,9	6.7	7,8	6.7	7,8
Out of town [l]	6.9	4.5	5.2	5.7	5.2	5.7
Combined [l]	8.7	4,9	5.7	6,4	5.7	6,4
CO2 emissions [g/km]	199	129	149	169	149	169

Emission standard	Euro 5	Euro 5	Euro 5	Euro 5	Euro 5	Euro 5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1640	1595	1670	1685	1670	1685
Overall weight [kg]	2350	2350	2350	2350	2350	2350
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1500	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	1300/1145	1300/1145	1300/1145	1300/1145	1300/1145	1300/1145
Maximum vertical load on the tow bar [kg]	150	150	150	150	150	150
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	500	500	500	500	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1350	-/1350	-/1350	-/1350	-/1350	-/1350
Boot length [mm]	795	795	795	795	795	795
Boot length with rear seats folded [mm]	1580	1580	1580	1580	1580	1580
Boot width between wheels/max [mm]	1000/1105	1000/1105	1000/1105	1000/1105	1000/1105	1000/1105
Boot height to headliner/ceiling [mm]	-/840	-/840	-/840	-/840	-/840	-/840
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	70	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.35	0.35	0.35	0.35	0.35	0.35
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Tyre dimensions front	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17
Tyre dimensions rear	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Brake dimensions front	300	300	300	300	300	300
Brake dimensions rear	302	302	302	302	302	302
Steering	-	-	-	-	-	-
Number of steering wheel turns	2.31	2.31	2.31	2.31	2.31	2.31
Turning diameter track/circumference [m]	11.3	11.3	11.3	11.3	11.3	11.3

Overall length [mm]	4355	4355	4355	4355	4355	4355
Overall width without/including mirrors [mm]	1965/2125	1965/2125	1965/2125	1965/2125	1965/2125	1965/2125
Overall height [mm]	1605	1605	1605	1605	1605	1605
Wheelbase [mm]	2660	2660	2660	2660	2660	2660
Front wheel track [mm]	1625	1625	1625	1625	1625	1625
Rear wheel track [mm]	1630	1630	1630	1630	1630	1630
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	212	212	212	212	212	212
Wading depth [mm]	500	500	500	500	500	500
Approach angle front [°]	25	25	25	25	25	25
Approach angle rear [°]	33	33	33	33	33	33
Transition angle [°]	22	22	22	22	22	22
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	965	965	965	965	965	965
Headroom rear [mm]	945	945	945	945	945	945
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Gallery

RanRover Evoque L538 Coupe 2011 interior

RanRover Evoque L538 Coupe 2011 front seats

RanRover Evoque L538 Coupe 2011 rear seats

RanRover Evoque L538 Coupe 2011 infotainment

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
