Land Rover Range Rover Sport
Date of manufacture
2017 – to this day (Large SUV)
Platform
JLR D7u
Manufacturing locations
Solihull, United Kingdom
Designer
Gerry McGovern
Tags
Large SUV
British cars
The Land Rover Range Rover Sport is a large SUV that was first produced in 2017 in the United Kingdom. The vehicle is built on the JLR D7u platform and offers a wide range of engine options, from petrol to hybrid. The most powerful version, the 5.0 V8 Supercharged 575 SVR, has a power output of 423 kW and can reach a top speed of 283 km/h with a best 0-100 km/h acceleration time of 4.5 seconds. The P400e PHEV version has the lowest combined fuel consumption of 3.9 l/100 km and CO2 emissions of 87 g/km. The boot capacity is 780 l.
Car body style
Large SUV
after upgrade (facelift)
Date of manufacture
2017 – to this dayInternal designation
L494Engine size
Technical data
Large SUV
| P300 | 3.0 V6 Supercharged 340 | P400 | 5.0 V8 Supercharged 525 / P525 | 5.0 V8 Supercharged 575 SVR | P400e PHEV | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | from 2020 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 1997 | 2995 | 2996 | 5000 | 5000 | 1997 |
| Maximum output / speed [kW/min-1] | 221/5500 | 250/6500 | 294/5500-6500 | 386/6000-6500 | 423/6000-6500 | 221/5500 combustion 85-105 el. 297/1500-4000 total |
| Maximum torque [Nm/min-1] | 400/1500-4000 | 450/3500-5000 | 550/2000-5000 | 625/2500-5500 | 700/3500-5000 | 400 combustion 275 el. 640/1500-3500 total |
| Bore and stroke [mm x mm] | 83.0 x 92.3 | 84.5 x 89.0 | 83.0 x 92.3 | 92.5 x 93.0 | 92.5 x 93.0 | 83.0 x 92.29 |
| Compression ratio | 9.5:1 | 10.5:1 | 10.5:1 | 9.5:1 | 9.5:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 201 | 209 | 225 | 225 [250 subject to a surcharge] | 283 | 220 [137 el.] |
| Acceleration 0–100 km/h [s] | 7.3 | 7.2 | 5.9 | 5.3 | 4.5 | 6.3-6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 4.7 | - | 3.6 | 3.3 | 2.8 | 4.3 |
| City [l] | 12.0-11.9 | 13.4 | 11.7 | 18.0-16.8 | 18.0-17.2 | - |
| Out of town [l] | 8.2-8.1 | 8.4 | 7.7 | 10.0-9.7 | 10.1-9.9 | - |
| Combined [l] | 9.6-9.5 | 10.5 | 9.2 | 12.8-12.3 | 12.8-12.7 | 3.6-3.4 [23.1-22.5 kWh] |
| CO2 emissions [g/km] | 219-217 | 243 | 209 | 294-280 | 294-290 | 81-72 |
| Low speed [l] | 15.9-15.3 | - | 16.1-15.2 | 23.1-20.4 | 22.9 | - |
| Medium speed [l] | 11.5-10.4 | - | 10.9-10.1 | 14.7-13.5 | 15.0 | - |
| High speed [l] | 10.0-9.1 | - | 9.5-8.5 | 12.7-11.7 | 12.7 | - |
| Extra high speed [l] | 12.0-10.9 | - | 11.5-10.2 | 13.9-12.7 | 13.8 | - |
| Combined speed [l] | 11.8-10.8 | - | 11.4-10.3 | 14.9-13.6 | 15.0 | 3.9-3.2 [27.0-25.5 kWh] |
| CO2 emissions [g/km] | 219-217 | - | 209 | 329-288 | 339 | 87-69 |
| Emission standard | EU6 - Euro 6d-TEMP - Euro 6d | EU6 | Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP -Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 48 | - | - | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, - kWh | - | - | Lithium-Ionen-Akkumulator, 13.1 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 41-39 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2083-2151 | 2195 | 2285 | 2323-2390 | 2310-2377 | 2471-2539 |
| Overall weight [kg] | 2900 [3000 seven seats] | 3000 [3130 seven seats] | 3050 [3175 subject to a surcharge] | 3100 [3250 subject to a surcharge] | 3000 | 3200 |
| Maximum trailer weight unbraked/braked [kg] | 750/3000 | 750/3500 | 750/3500 | 750/3500 | 750/3000 | 750/2500 |
| Maximum front/rear axle load [kg] | 1500/1775 | 1500/1775 [1500/1900 seven seats] | - | 1500/1775 [1500/1900 seven seats] | 1500/1700 | 1500/1900 |
| Maximum vertical load on the tow bar [kg] | 120 | 150 | 150 | 150 | 120 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 780 | 780 | 780 | 780 | 780 | 780 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1686 | -/1686 | -/1686 | -/1686 | -/1686 | -/1686 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1050-1150 | 1050-1150 | 1050-1150 | 1050-1150 | 1050-1150 | 1050-1150 |
| Boot length with rear seats folded [mm] | 1868 | 1868 | 1868 | 1868 | 1868 | 1868 |
| Boot width between wheels/max [mm] | 1120/1285 | 1120/1285 | 1120/1285 | 1120/1285 | 1120/1285 | 1120/1285 |
| Boot height to headliner/ceiling [mm] | -/837 | -/837 | -/837 | -/837 | -/837 | -/837 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5 |
| Fuel tank volume [l] | 104 | 104 | 104 | 104 | 104 | 91 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.36 | 0.35 | 0.36 | 0.35 | 0.35 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 349 | 380 | 380 | 380 | 380 | 380 |
| Brake dimensions rear | 325 | 365 | 365 | 365 | 365 | 365 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 12.4/12.5 | 12.4/12.5 | 12.4/12.5 | 12.4/12.5 | 12.4/12.5 | 12.4/12.5 |
| Overall length [mm] | 4879 | 4879 | 4879 | 4879 | 4879 | 4879 |
| Overall width without/including mirrors [mm] | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 |
| Overall height [mm] | 1803 | 1803 | 1803 | 1803 | 1803 | 1803 |
| Wheelbase [mm] | 2923 | 2923 | 2923 | 2923 | 2923 | 2923 |
| Front wheel track [mm] | 1693 | 1693 | 1693 | 1693 | 1693 | 1693 |
| Rear wheel track [mm] | 1686 | 1686 | 1686 | 1686 | 1686 | 1686 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 213 or 278 | 213 or 278 | 213 or 278 | 213 or 278 | 213 or 278 | 213 or 278 |
| Wading depth [mm] | 800 or 850 | 800 or 850 | 800 or 850 | 800 or 850 | 800 or 850 | 800 or 850 |
| Approach angle front [°] | 24.3 or 33.0 | 24.3 or 33.0 | 24.3 or 33.0 | 24.3 or 33.0 | 24.3 or 33.0 | 24.3 or 33.0 |
| Approach angle rear [°] | 24.9 or 31.0 | 24.9 or 31.0 | 24.9 or 31.0 | 24.9 or 31.0 | 24.9 or 31.0 | 24.9 or 31.0 |
| Transition angle [°] | 19.4 or 27.2 | 19.4 or 27.2 | 19.4 or 27.2 | 19.4 or 27.2 | 19.4 or 27.2 | 19.4 or 27.2 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Headroom rear [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Front elbow/shoulder width [mm] | -/1542 | -/1542 | -/1542 | -/1542 | -/1542 | -/1542 |
| Rear elbow/shoulder width [mm] | -/1511 | -/1511 | -/1511 | -/1511 | -/1511 | -/1511 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/939 | -/939 | -/939 | -/939 | -/939 | -/939 |
| Third row of seats, headroom [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Third row elbow/shoulder width [mm] | -/1086 | -/1086 | -/1086 | -/1086 | -/1086 | -/1086 |
| 2.0 SD4 240 | D250 | 3.0 TDV6 258 | D300 | 3.0 SDV6 306 | 4.4 SDV8 339 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from 2020 to | from to 2020 | from 2020 to | from to 2020 | from to 2020 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 |
| Engine displacement [cm³] | 1999 | 2996 | 2993 | 2996 | 2993 | 4367 |
| Maximum output / speed [kW/min-1] | 177/4000 | 183/4000 | 190/4000 | 221/4000 | 225/4000 | 250/3500 |
| Maximum torque [Nm/min-1] | 500/1500 | 600/1250-2250 | 600/2000 | 650/1500-25010 | 700/1500-1750 | 740/1750-2250 |
| Bore and stroke [mm x mm] | 83.0 x 92.35 | 83.0 x 92.31 | 84.0 x 90.0 | 83.0 x 92.31 | 84.0 x 90.0 | 84.0 x 98.5 |
| Compression ratio | 15.5:1 | 15.5:1 | 16.1:1 | 15.5:1 | 16.1:1 | 16.1:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 207 | 209 | 209 | 209 | 209 [225 subject to a surcharge] | 209 [225 subject to a surcharge] |
| Acceleration 0–100 km/h [s] | 8.3 | 8.5 | 7.7 | 7.3 | 7.3 | 6.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 6.4 | - | 5.3 | - | - |
| City [l] | 7.9-7.5 | 10.6-10.4 | 7.8 | 11.5-10.4 | 7.9 | 10.8 |
| Out of town [l] | 5.7-5.5 | 6.0-5.9 | 6.4 | 6.5-5.9 | 6.4 | 7.6 |
| Combined [l] | 6.5-6.2 | 7.7-7.6 | 6.9 | 8.3-7.6 | 7.0 | 8.4 |
| CO2 emissions [g/km] | 172-164 | 203-199 | 182 | 220-200 | 185 | 219 |
| Low speed [l] | - | 13.9-13.2 | - | 13.9-13.2 | 12.6-11.7 | 16.0-15.6 |
| Medium speed [l] | - | 8.4-7.6 | - | 8.4-7.7 | 9.9-8.8 | 11.4-10.4 |
| High speed [l] | - | 7.5-6.6 | - | 7.6-6.7 | 8.4-7.6 | 9.5-9.2 |
| Extra high speed [l] | - | 9.1-8.2 | - | 9.2-8.3 | 9.8-8.9 | 10.4-9.7 |
| Combined speed [l] | - | 9.1-8.3 | - | 9.2-8.3 | 9.8-8.8 | 11.1-10.5 |
| CO2 emissions [g/km] | - | 239-217 | - | 242-218 | 203-195 | 248-242 |
| Emission standard | EU6 - Euro 6d-TEMP | Euro 6d | EU6 - Euro 6d-TEMP | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | 48 | - | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, - kWh | - | Lithium-Ionen-Akkumulator, - kWh | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2111 | 2278 | 2134 | 2278 | 2178 | 2443 |
| Overall weight [kg] | 2950 [3045 seven seats] | 3100 [3230 subject to a surcharge] | 3000 [3150 seven seats] | 3100 [3230 subject to a surcharge] | 3050 [3200 seven seats] | 3200 |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 [700/3000 seven seats] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | 1500/1775 | - | 1500/1775 [1500/1900 seven seats] | - | 1500/1775 [1500/1900 seven seats] | 1500/1775 |
| Maximum vertical load on the tow bar [kg] | 150 [120 seven seats] | 150 | 150 | 150 | 150 | 150 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 780 | 780 | 780 | 780 | 780 | 780 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1686 | -/1686 | -/1686 | -/1686 | -/1686 | -/1686 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1050-1150 | 1050-1150 | 1050-1150 | 1050-1150 | 1050-1150 | 1050-1150 |
| Boot length with rear seats folded [mm] | 1868 | 1868 | 1868 | 1868 | 1868 | 1868 |
| Boot width between wheels/max [mm] | 1120/1285 | 1120/1285 | 1120/1285 | 1120/1285 | 1120/1285 | 1120/1285 |
| Boot height to headliner/ceiling [mm] | -/837 | -/837 | -/837 | -/837 | -/837 | -/837 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 |
| Fuel tank volume [l] | - | 86 | - | 86 | - | - |
| AdBlue tank volume [l] | 18 | 18 | 18 | 18 | 18 | 18 |
| Air resistance [Cd] | 0.34 | 0.35 | 0.34 | 0.35 | 0.35 | 0.35 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 349 | 363 | 349 | 363 | 349 | 380 |
| Brake dimensions rear | 325 | 350 | 325 | 350 | 325 | 365 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 12.4/12.5 | 12.4/12.5 | 12.4/12.5 | 12.4/12.5 | 12.4/12.5 | 12.4/12.5 |
| Overall length [mm] | 4879 | 4879 | 4879 | 4879 | 4879 | 4879 |
| Overall width without/including mirrors [mm] | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 |
| Overall height [mm] | 1803 | 1803 | 1803 | 1803 | 1803 | 1803 |
| Wheelbase [mm] | 2923 | 2923 | 2923 | 2923 | 2923 | 2923 |
| Front wheel track [mm] | 1693 | 1693 | 1693 | 1693 | 1693 | 1693 |
| Rear wheel track [mm] | 1686 | 1686 | 1686 | 1686 | 1686 | 1686 |
| Forward overhang [mm] | - | 883 | - | 883 | - | - |
| Rear overhang [mm] | - | 1195 | - | 1195 | - | - |
| Clearance [mm] | 213 or 278 | 213 or 278 | 213 or 278 | 213 or 278 | 213 or 278 | 213 or 278 |
| Wading depth [mm] | 800 or 850 | 800 or 850 | 800 or 850 | 800 or 850 | 800 or 850 | 800 or 850 |
| Approach angle front [°] | 24.3 or 33.0 | 24.3 or 33.0 | 24.3 or 33.0 | 24.3 or 33.0 | 24.3 or 33.0 | 24.3 or 33.0 |
| Approach angle rear [°] | 24.9 or 31.0 | 24.9 or 31.0 | 24.9 or 31.0 | 24.9 or 31.0 | 24.9 or 31.0 | 24.9 or 31.0 |
| Transition angle [°] | 19.4 or 27.2 | 19.4 or 27.2 | 19.4 or 27.2 | 19.4 or 27.2 | 19.4 or 27.2 | 19.4 or 27.2 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Headroom rear [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Front elbow/shoulder width [mm] | -/1542 | -/1542 | -/1542 | -/1542 | -/1542 | -/1542 |
| Rear elbow/shoulder width [mm] | -/1511 | -/1511 | -/1511 | -/1511 | -/1511 | -/1511 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/939 | -/939 | -/939 | -/939 | -/939 | -/939 |
| Third row of seats, headroom [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Third row elbow/shoulder width [mm] | -/1086 | -/1086 | -/1086 | -/1086 | -/1086 | -/1086 |
| D350 | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2996 | |||||
| Maximum output / speed [kW/min-1] | 258/4000 | |||||
| Maximum torque [Nm/min-1] | 700/1500-3000 | |||||
| Bore and stroke [mm x mm] | 83.0 x 92.31 | |||||
| Compression ratio | 15.5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 225 | |||||
| Acceleration 0–100 km/h [s] | 6.9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | 4.8 | |||||
| City [l] | 11.5-11.4 | |||||
| Out of town [l] | 6.5-6.0 | |||||
| Combined [l] | 8.3-8.0 | |||||
| CO2 emissions [g/km] | 220-210 | |||||
| Low speed [l] | 15.1-14.6 | |||||
| Medium speed [l] | 8.8-8.3 | |||||
| High speed [l] | 8.1-7.3 | |||||
| Extra high speed [l] | 9.6-8.9 | |||||
| Combined speed [l] | 9.7-9.1 | |||||
| CO2 emissions [g/km] | 254-238 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | 48 | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, - kWh | |||||
| Range with fully charged battery [km] | - | |||||
| Charging time | - | |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 2278 | |||||
| Overall weight [kg] | 3100 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 150 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 780 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1686 | |||||
| Boot volume, third row of seats [l] | - | |||||
| Boot volume, third row seats folded [l] | - | |||||
| Boot length [mm] | 1050-1150 | |||||
| Boot length with rear seats folded [mm] | 1868 | |||||
| Boot width between wheels/max [mm] | 1120/1285 | |||||
| Boot height to headliner/ceiling [mm] | -/837 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 86 | |||||
| AdBlue tank volume [l] | 18 | |||||
| Air resistance [Cd] | 0.35 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | - | |||||
| Tyre dimensions rear | - | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | 380 | |||||
| Brake dimensions rear | 365 | |||||
| Steering | - | |||||
| Number of steering wheel turns | 2.7 | |||||
| Turning diameter track/circumference [m] | 12.4/12.5 | |||||
| Overall length [mm] | 4879 | |||||
| Overall width without/including mirrors [mm] | 2073/2220 | |||||
| Overall height [mm] | 1803 | |||||
| Wheelbase [mm] | 2923 | |||||
| Front wheel track [mm] | 1693 | |||||
| Rear wheel track [mm] | 1686 | |||||
| Forward overhang [mm] | 883 | |||||
| Rear overhang [mm] | 1195 | |||||
| Clearance [mm] | 213 or 278 | |||||
| Wading depth [mm] | 800 or 850 | |||||
| Approach angle front [°] | 24.3 or 33.0 | |||||
| Approach angle rear [°] | 24.9 or 31.0 | |||||
| Transition angle [°] | 19.4 or 27.2 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1002 | |||||
| Headroom rear [mm] | 992 | |||||
| Front elbow/shoulder width [mm] | -/1542 | |||||
| Rear elbow/shoulder width [mm] | -/1511 | |||||
| Legroom front knees/total [mm] | -/1073 | |||||
| Legroom rear knees/total [mm] | -/939 | |||||
| Third row of seats, headroom [mm] | 910 | |||||
| Third row elbow/shoulder width [mm] | -/1086 |

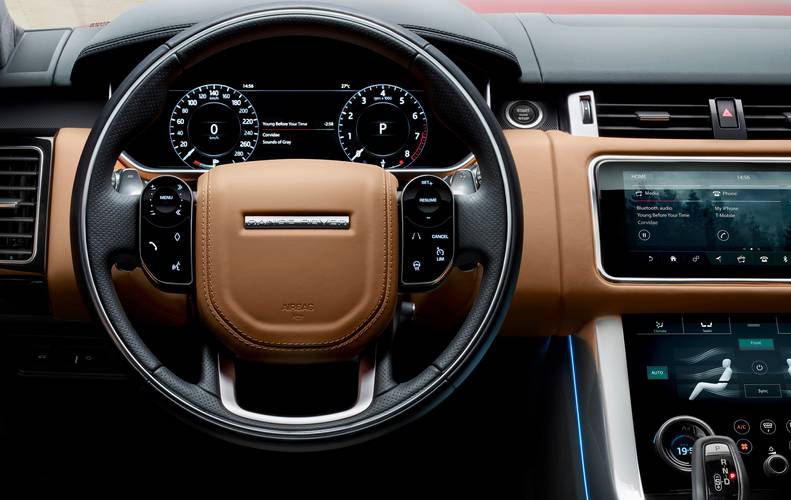

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
