Basic information Technical Specifications Gallery

Lexus LC

Date of manufacture

3/2017 – to this day (Coupé)

2020 – to this day (Convertible)

Platform

TNGA GA-L

Manufacturing locations

Toyota, Japan

Designer

Tadao Mori

Pansoo Kwon

Edward Lee

Car body style

Coupé

Date of manufacture

3/2017 – to this day

Internal designation

XZ100

Engine size

Petrol

500

Petrol + Electric

500h

Convertible

Date of manufacture

2020 – to this day

Internal designation

XZ100

Engine size

500

Technical data

Coupé

	500	500	500h
Date of sale	from to 2021	from to 2020	-
Engine type	Petrol	Petrol	Petrol + Electric
Number of cylinders/valves	8/32	8/32	6/24
Engine displacement [cm³]	4969	4969	3456
Maximum output / speed [kW/min-1]	341/7100	351/7100	220/6000 combustion 132 el. 264 total
Maximum torque [Nm/min-1]	530/4800	540/4800	348/4900 combustion 300 el.
Bore and stroke [mm x mm]	94.0 x 89.5	94.0 x 89.5	94.0 x 83.0
Compression ratio	12.3:1	12.3:1	13.0:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct and indirect injection system EFI & D-4S variable timing of intake and exhaust valves Dual VVT-i	direct and indirect injection system EFI & D-4S variable timing of intake and exhaust valves Dual VVT-i	Full Hybrid electric synchronous motor with permanent magnet direct and indirect injection system EFI & D-4S variable timing of intake valves VVT-iW variable exhaust valve timing VVT-i

Drive axle	Rear	Rear	Rear
Gearbox	10 gear automatic	10 gear automatic	4 gear automatic
Drive specifications	Ten-speed gearbox	Ten-speed gearbox	four-speed automatic gearbox Multistage-Hybrid

Top speed [km/h]	270	270	250
Acceleration 0–100 km/h [s]	4.7	4.4-4.7	4.7-5.0
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	17.6	17.6-17.4	7.3-7.2
Out of town [l]	8.1	8.2-8.0	6.0-5.9
Combined [l]	11.6	11.6-11.5	6.5-6.4
CO2 emissions [g/km]	265	267-263	148-145

Low speed [l]	-	-	-
Medium speed [l]	-	-	-
High speed [l]	-	-	-
Extra high speed [l]	-	-	-
Combined speed [l]	11.6	-	8.1
CO2 emissions [g/km]	262	-	184

Emission standard	Euro 6d	Euro 6	Euro 6 - Euro 6d
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

System voltage [V]	-	-	311
Battery type and capacity	-	-	Lithium-Ionen-Akkumulator, - A⋅h
Range with fully charged battery [km]	-	-	-
Charging time	-	-	-
Number of modules/cells	-	-	-/84
Battery weight [kg]	-	-	-
Charger	-	-	-

Standby weight [kg]	1930-1965	1935-1970	1985-2020
Overall weight [kg]	2375	2375	2445
Maximum trailer weight unbraked/braked [kg]	-	-	-
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	197	197	172
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	2	2	2
Number of seats	4	4	4
Fuel tank volume [l]	82	82	82
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	0.33	0.33	0.33
Front suspension	multilink	multilink	multilink
Rear suspension	multilink	multilink	multilink
Tyre dimensions front	245/45 RF20	245/45 RF20	245/45 RF20
Tyre dimensions rear	275/40 RF20	275/40 RF20	275/40 RF20
Wheel size front	-	-	-
Wheel size rear	-	-	-
Brake dimensions front	400 x 36	338 x 36 or 400 x 36	338 x 36 or 400 x 36
Brake dimensions rear	359 x 30	308 x 30 or 359 x 30	308 x 30 or 359 x 30
Steering	-	-	-
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	-	-	-

Overall length [mm]	4770	4770	4770
Overall width without/including mirrors [mm]	1920/2168	1920/2168	1920/2168
Overall height [mm]	1345	1345	1345
Wheelbase [mm]	2870	2870	2870
Front wheel track [mm]	1630	1630	1630
Rear wheel track [mm]	1635	1635	1635
Forward overhang [mm]	930	930	930
Rear overhang [mm]	970	970	970
Clearance [mm]	133	133	140
Wading depth [mm]	-	-	-
Approach angle front [°]	12.1	12.1	12.1
Approach angle rear [°]	16.3	16.3	16.3
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	944	944	944
Headroom rear [mm]	818	818	818
Front elbow/shoulder width [mm]	1377/1439	1377/1439	1377/1439
Rear elbow/shoulder width [mm]	1112/1245	1112/1245	1112/1245
Legroom front knees/total [mm]	-/813	-/813	-/813
Legroom rear knees/total [mm]	-/572	-/572	-/572

Convertible

	500
Date of sale	-
Engine type	Petrol
Number of cylinders/valves	8/32
Engine displacement [cm³]	4969
Maximum output / speed [kW/min-1]	341/7100
Maximum torque [Nm/min-1]	530/4800
Bore and stroke [mm x mm]	94.0 x 89.5
Compression ratio	12.3:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct and indirect injection system EFI & D-4S variable timing of intake and exhaust valves Dual VVT-i Gasoline Particulate Filter

Drive axle	Rear
Gearbox	10 gear automatic
Drive specifications	Ten-speed gearbox

Top speed [km/h]	270
Acceleration 0–100 km/h [s]	5.0
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	19.4
Out of town [l]	8.7
Combined [l]	12.6
CO2 emissions [g/km]	288

Low speed [l]	-
Medium speed [l]	-
High speed [l]	-
Extra high speed [l]	-
Combined speed [l]	11.72
CO2 emissions [g/km]	275

Emission standard	Euro 6d
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	2110-2130
Overall weight [kg]	2450
Maximum trailer weight unbraked/braked [kg]	-
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	-

Boot volume [l]	149
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	2
Number of seats	4
Fuel tank volume [l]	82
AdBlue tank volume [l]	-
Air resistance [Cd]	0.33
Front suspension	multilink
Rear suspension	multilink
Tyre dimensions front	245/45 RF20
Tyre dimensions rear	275/40 RF20
Wheel size front	-
Wheel size rear	-
Brake dimensions front	400 x 36
Brake dimensions rear	359 x 30
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	-

Overall length [mm]	4770
Overall width without/including mirrors [mm]	1920/2168
Overall height [mm]	1345
Wheelbase [mm]	2870
Front wheel track [mm]	1630
Rear wheel track [mm]	1635
Forward overhang [mm]	930
Rear overhang [mm]	970
Clearance [mm]	131
Wading depth [mm]	-
Approach angle front [°]	12.1
Approach angle rear [°]	16.3
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	933
Headroom rear [mm]	818
Front elbow/shoulder width [mm]	1377/1439
Rear elbow/shoulder width [mm]	1112/1245
Legroom front knees/total [mm]	-/813
Legroom rear knees/total [mm]	-/572

Gallery

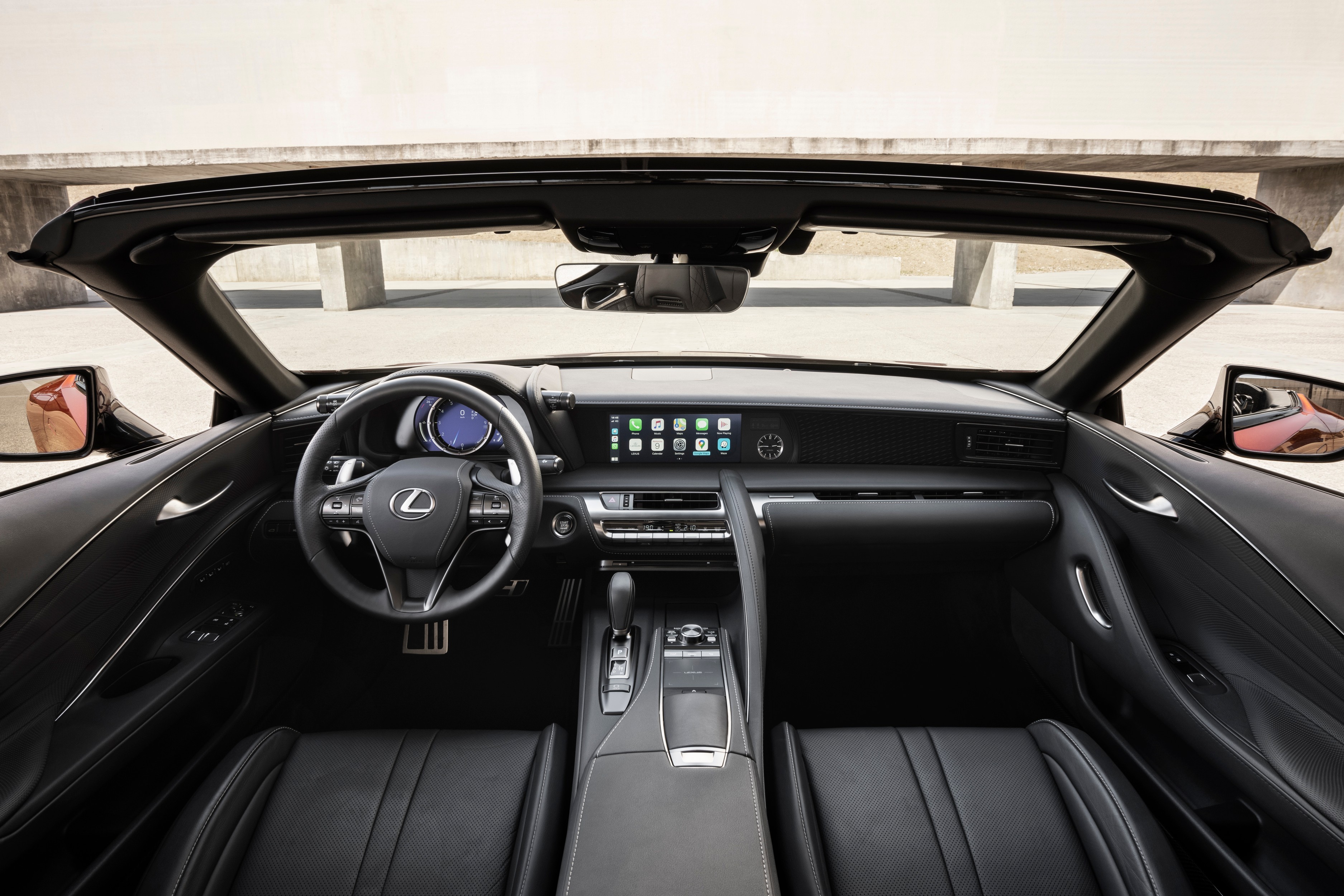

Lexus LC XZ100 2021 convertible infotainment

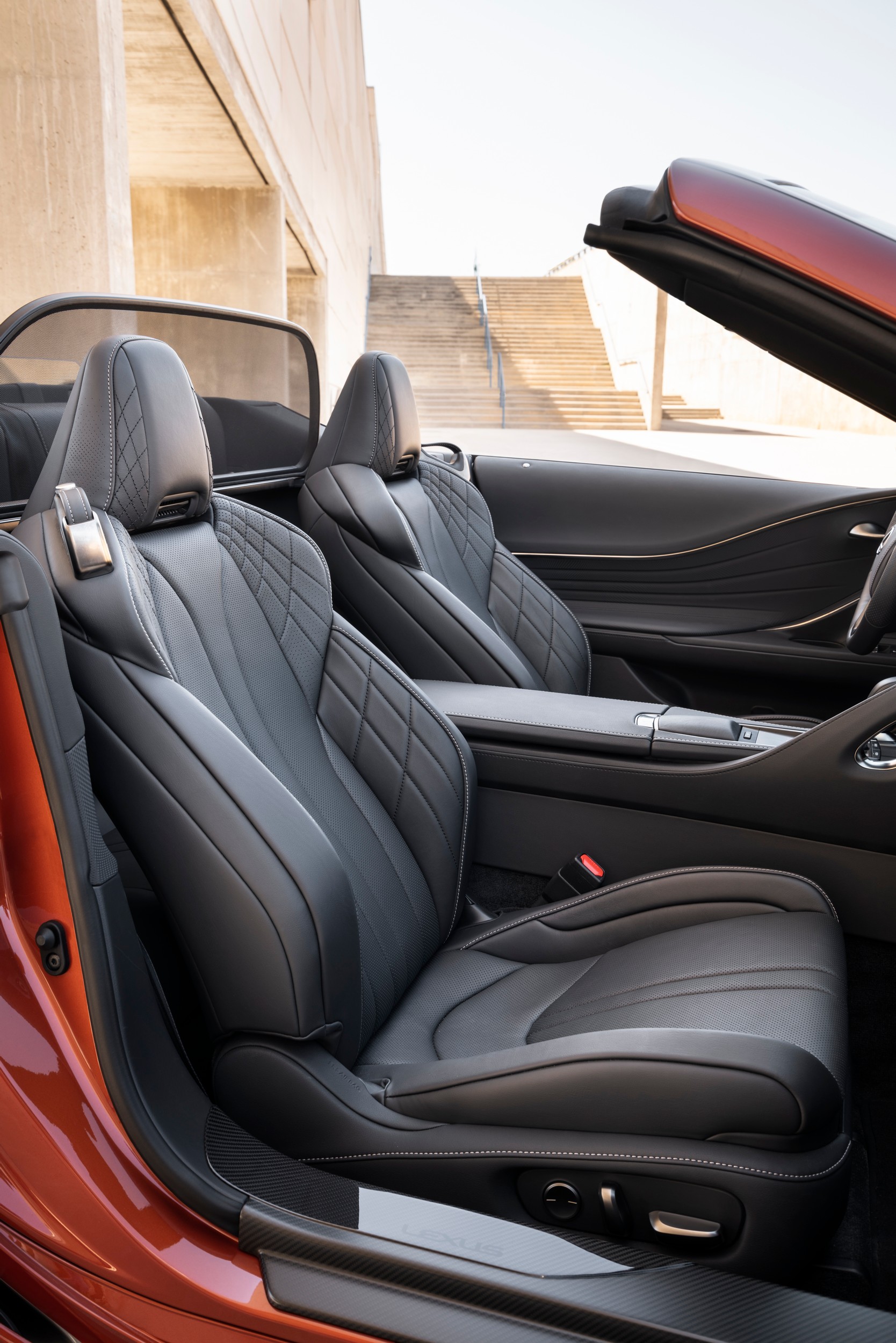

Lexus LC XZ100 2021 convertible front seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
