Lexus NX

Date of manufacture

8/2014 – 2017 (SUV)

Platform

New MC

Manufacturing locations

Miyawaka, Japan

Designer

Nobuyuki Tomatsu

Car body style

SUV

Date of manufacture

8/2014 – 2017

Internal designation

AZ10

Engine size

Petrol

200t

Petrol + Electric

300h

Euro NCAP

Technical data

SUV

	200t	200t	300h	300h
Date of sale	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Petrol + Electric	Petrol + Electric
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	2494	2494
Maximum output / speed [kW/min-1]	175/4800-5600	175/4800-5600	114/5700 combustion 105 el. 145 total	114/5700 combustion 105 + 50 el. 145 total
Maximum torque [Nm/min-1]	350/1650-4000	350/1650-4000	210/4200-4400 combustion 270 el.	210/4200-4400 combustion 270 + 139 el.
Bore and stroke [mm x mm]	86,0 x 86,0	86,0 x 86,0	90,0 x 98,0	90,0 x 98,0
Compression ratio	10,0:1	10,0:1	12,5:1	12,5:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct and indirect injection system D‐4ST turbo-supercharged twin‐scroll variable timing of intake valves VVT‐iW variable exhaust valve timing VVT‐i	direct and indirect injection system D‐4ST turbo-supercharged twin‐scroll variable timing of intake valves VVT‐iW variable exhaust valve timing VVT‐i	Full Hybrid variable valve timing Dual VVT‐i electric synchronous motor with permanent magnet brake energy recuperation	Full Hybrid two electric synchronous motors with permanent magnet Electric motor for driving the rear wheels variable valve timing Dual VVT‐i brake energy recuperation

Drive axle	Front	4x4	Front	4x4
Gearbox	6 gear automatic	6 gear automatic	1 gear automatic	1 gear automatic
Drive specifications	automatic gearbox	all-wheel drive AWD automatic gearbox	automatic gearbox with one variable ratio E‐CVT	automatically controlled all-wheel drive E-FOUR automatic gearbox with one variable ratio E‐CVT

Top speed [km/h]	200	200	180	180
Acceleration 0–100 km/h [s]	7.3	7.1	9.2	9.2
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	10.3	10.4	5.1	5.3
Out of town [l]	6.2	6.5	5.0	5.1
Combined [l]	7.7	7.9	5.1	5.2
CO2 emissions [g/km]	178	183	117	121

Emission standard	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

System voltage [V]	-	-	-	-
Battery type and capacity	-	-	Nickel-metal hydride	Nickel-metal hydride
Range with fully charged battery [km]	-	-	-	-
Charging time	-	-	-	-
Number of modules/cells	-	-	-	-
Battery weight [kg]	-	-	-	-
Charger	-	-	-	-

Standby weight [kg]	1680-1805	1735-1860	1720-1840	1785-1905
Overall weight [kg]	2295	2350	2330	2395
Maximum trailer weight unbraked/braked [kg]	750/1500	750/1500	-	-
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-

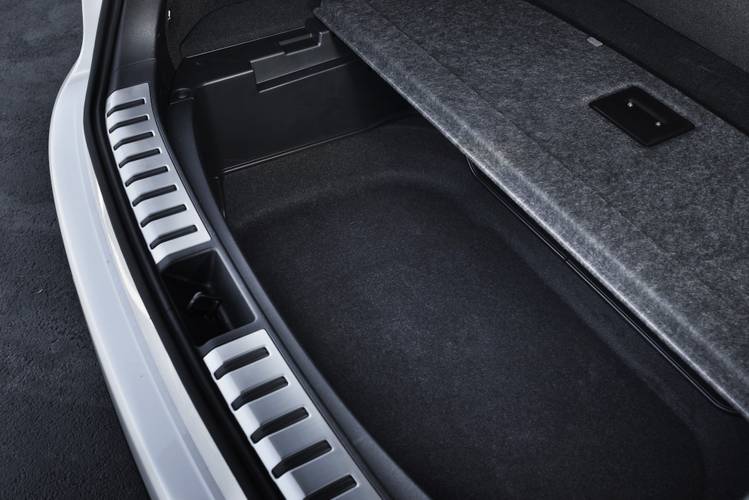

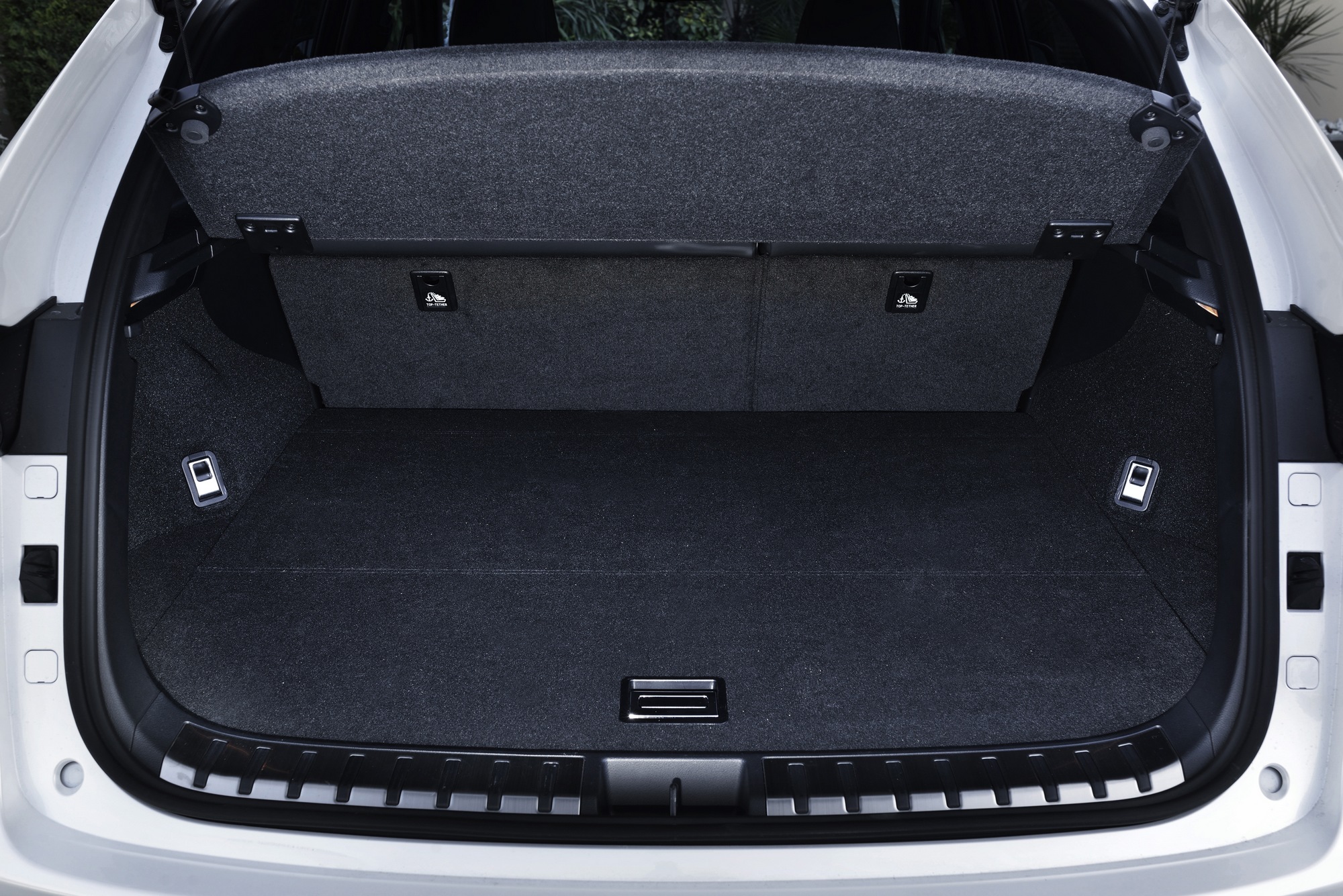

Boot volume [l]	580	580	555	555

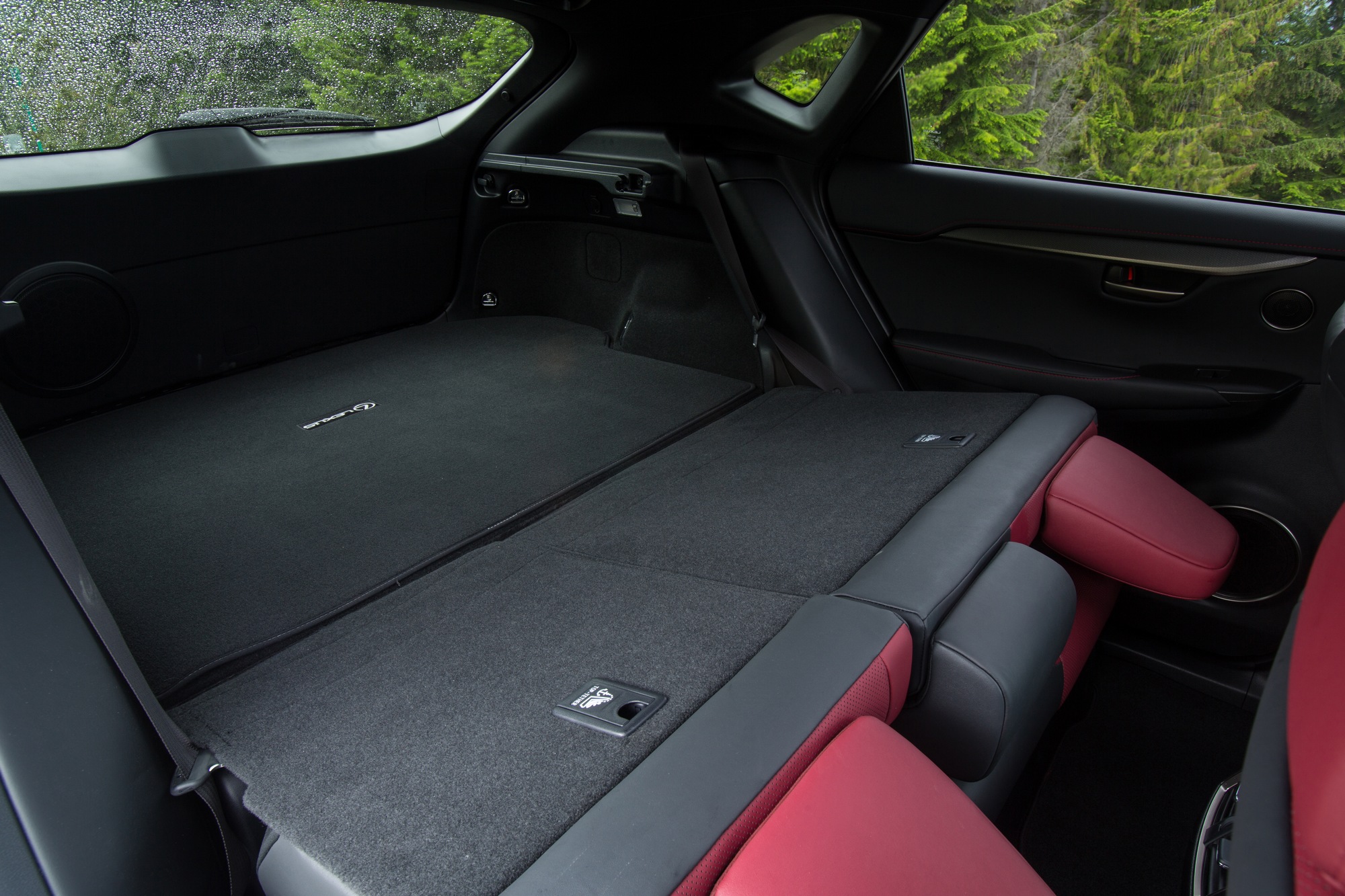

Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1625	-/1625	-/1600	-/1600
Boot length [mm]	950	950	950	950
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-/1347	-/1347	-/1347	-/1347
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	60	60	56	56
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.33	0.34	0.32	0.32
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	225/65 R17	225/65 R17	225/65 R17	225/65 R17
Tyre dimensions rear	225/65 R17	225/65 R17	225/65 R17	225/65 R17
Wheel size front	7.0 x 17	7.0 x 17	7.0 x 17	7.0 x 17
Wheel size rear	7.0 x 17	7.0 x 17	7.0 x 17	7.0 x 17
Brake dimensions front	-	-	-	-
Brake dimensions rear	-	-	-	-
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	-/12.1	-/12.1	-/12.1	-/12.1

Overall length [mm]	4630	4630	4630	4630
Overall width without/including mirrors [mm]	1845/2130	1845/2130	1845/2130	1845/2130
Overall height [mm]	1645	1645	1645	1645
Wheelbase [mm]	2660	2660	2660	2660
Front wheel track [mm]	1580	1580	1580	1580
Rear wheel track [mm]	1580	1580	1580	1580
Forward overhang [mm]	995	995	995	995
Rear overhang [mm]	975	975	975	975
Clearance [mm]	190	190	185	185
Wading depth [mm]	-	-	-	-
Approach angle front [°]	17.2	17.2	17.2	17.2
Approach angle rear [°]	24.2	24.2	24.5	24.5
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	971	971	971	971
Headroom rear [mm]	968	968	968	968
Front elbow/shoulder width [mm]	1400/1455	1400/1455	1400/1455	1400/1455
Rear elbow/shoulder width [mm]	1370/1405	1370/1405	1370/1405	1370/1405
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

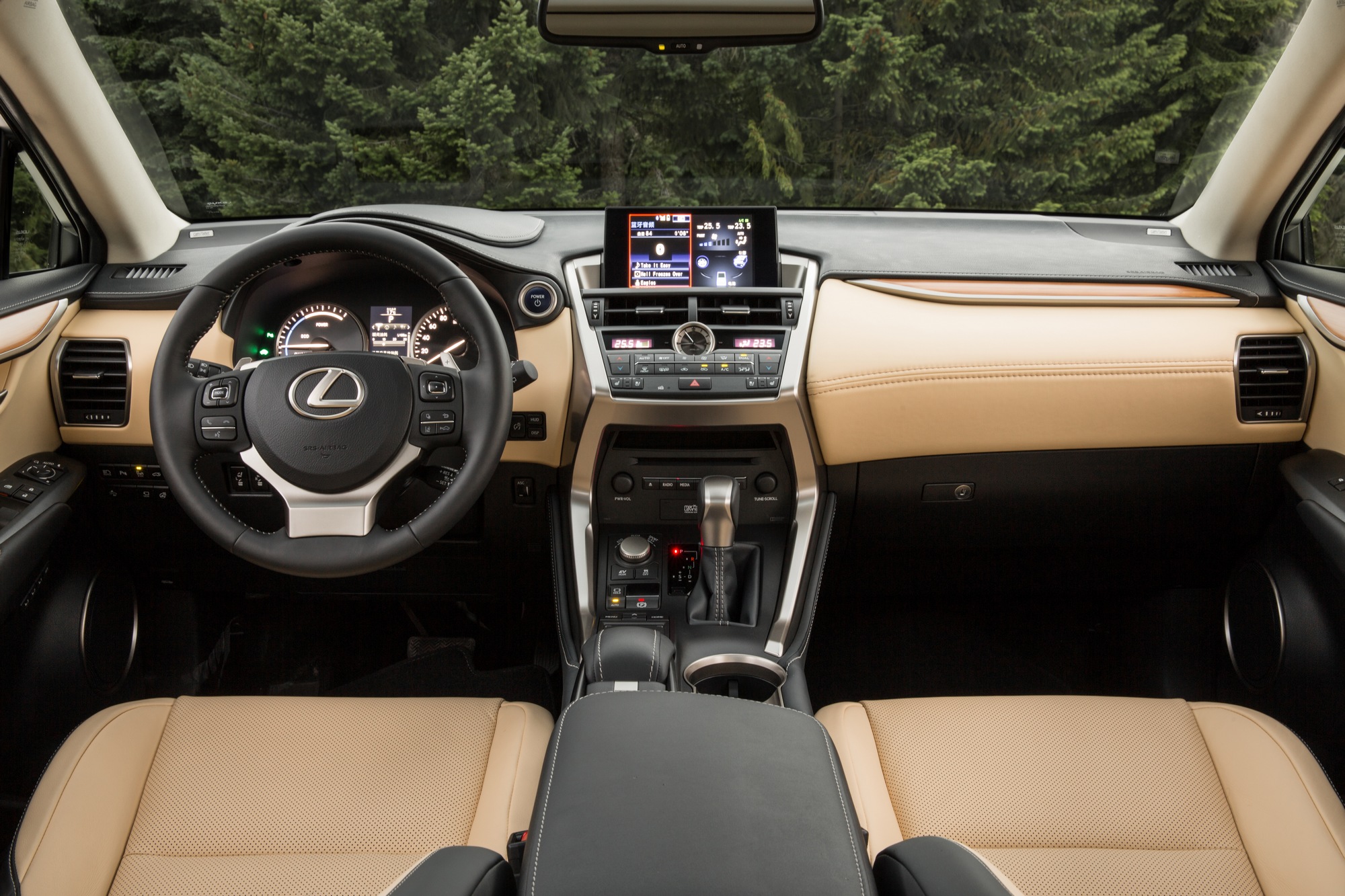

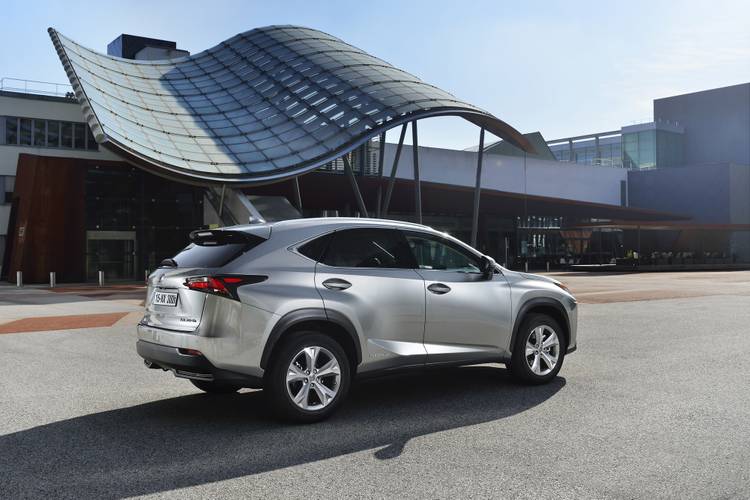

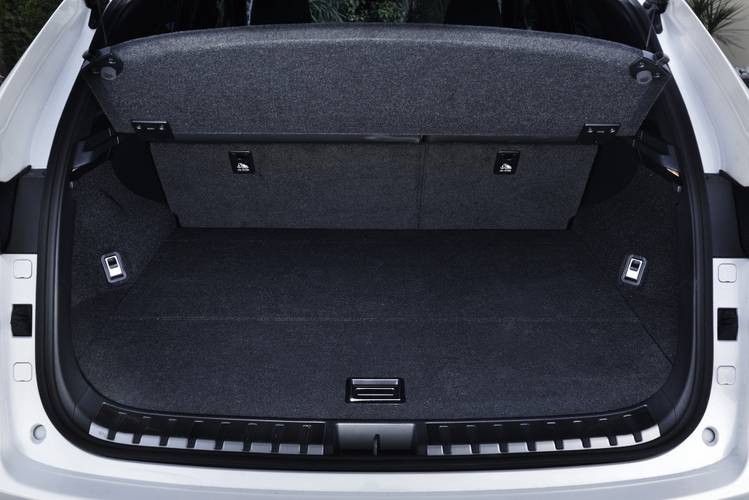

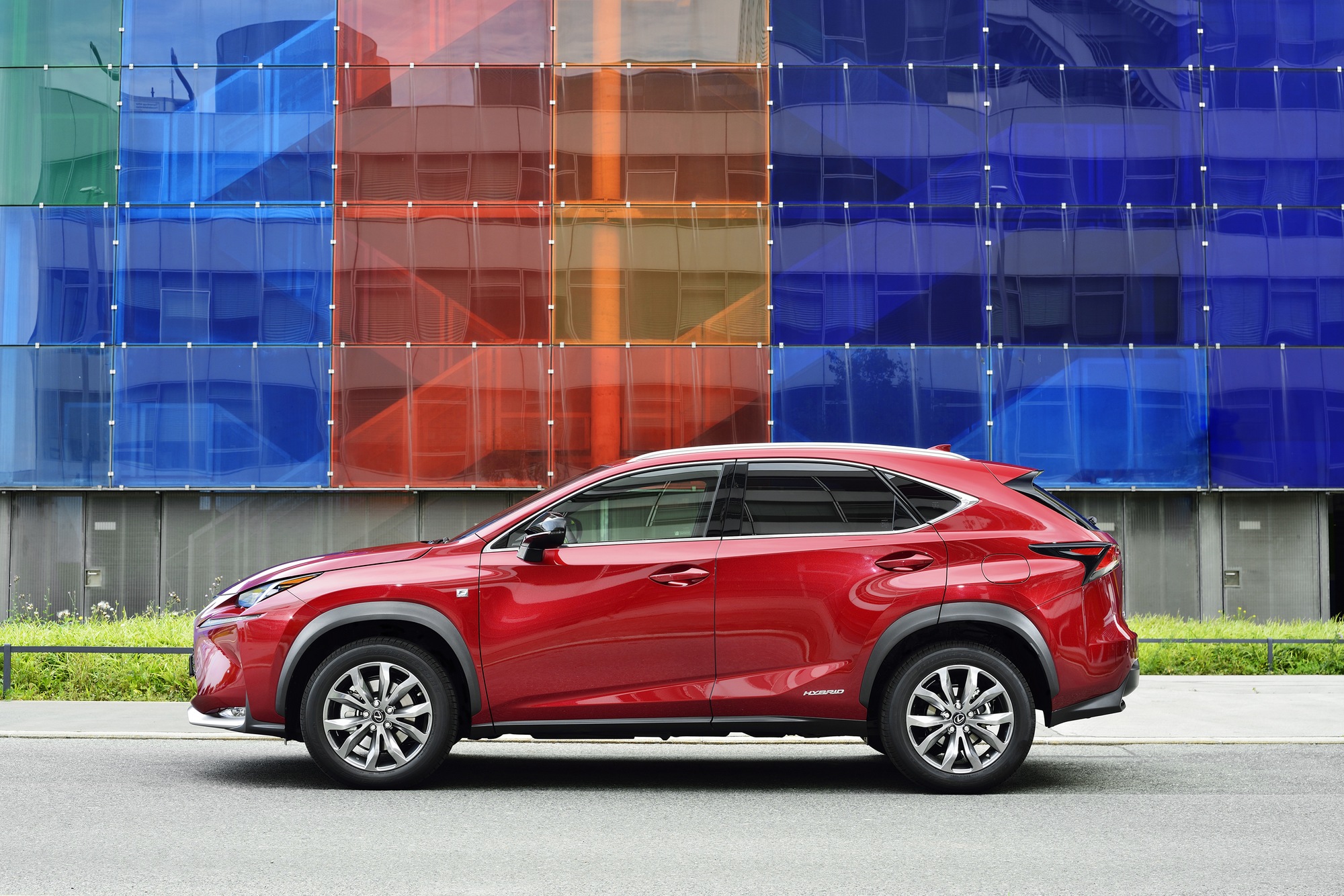

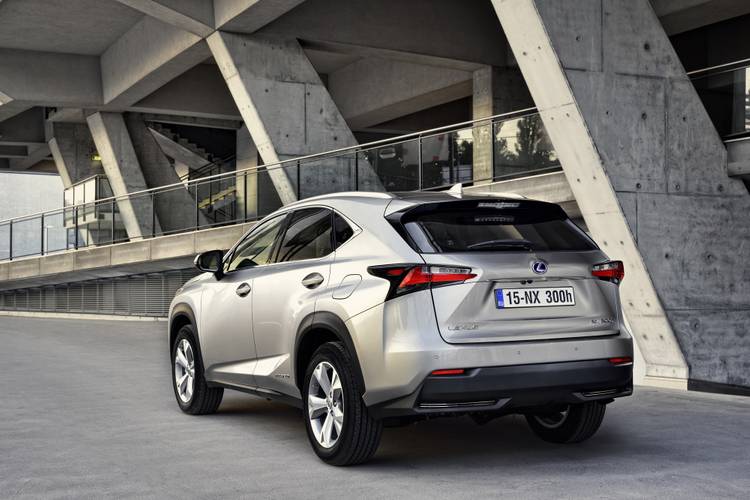

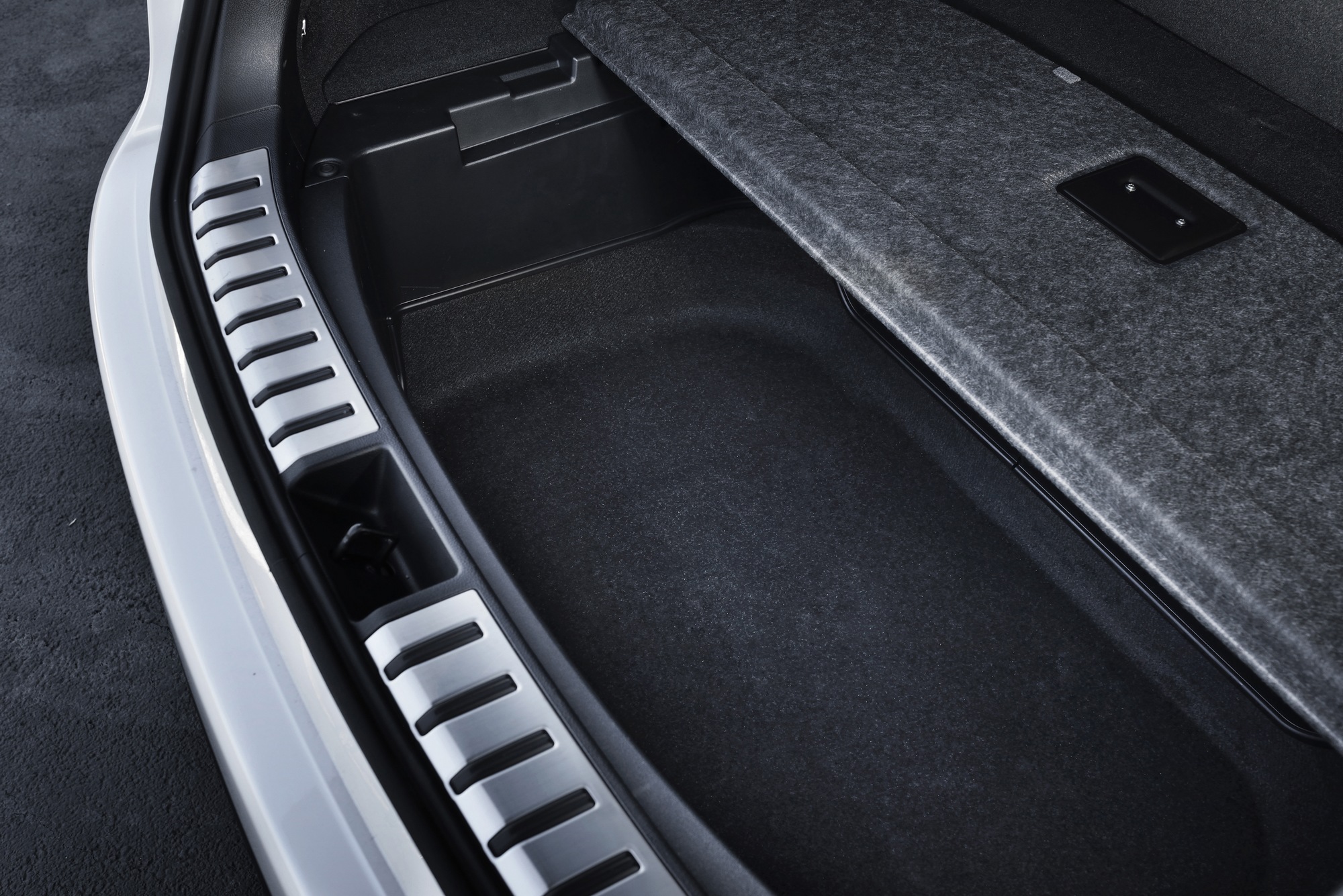

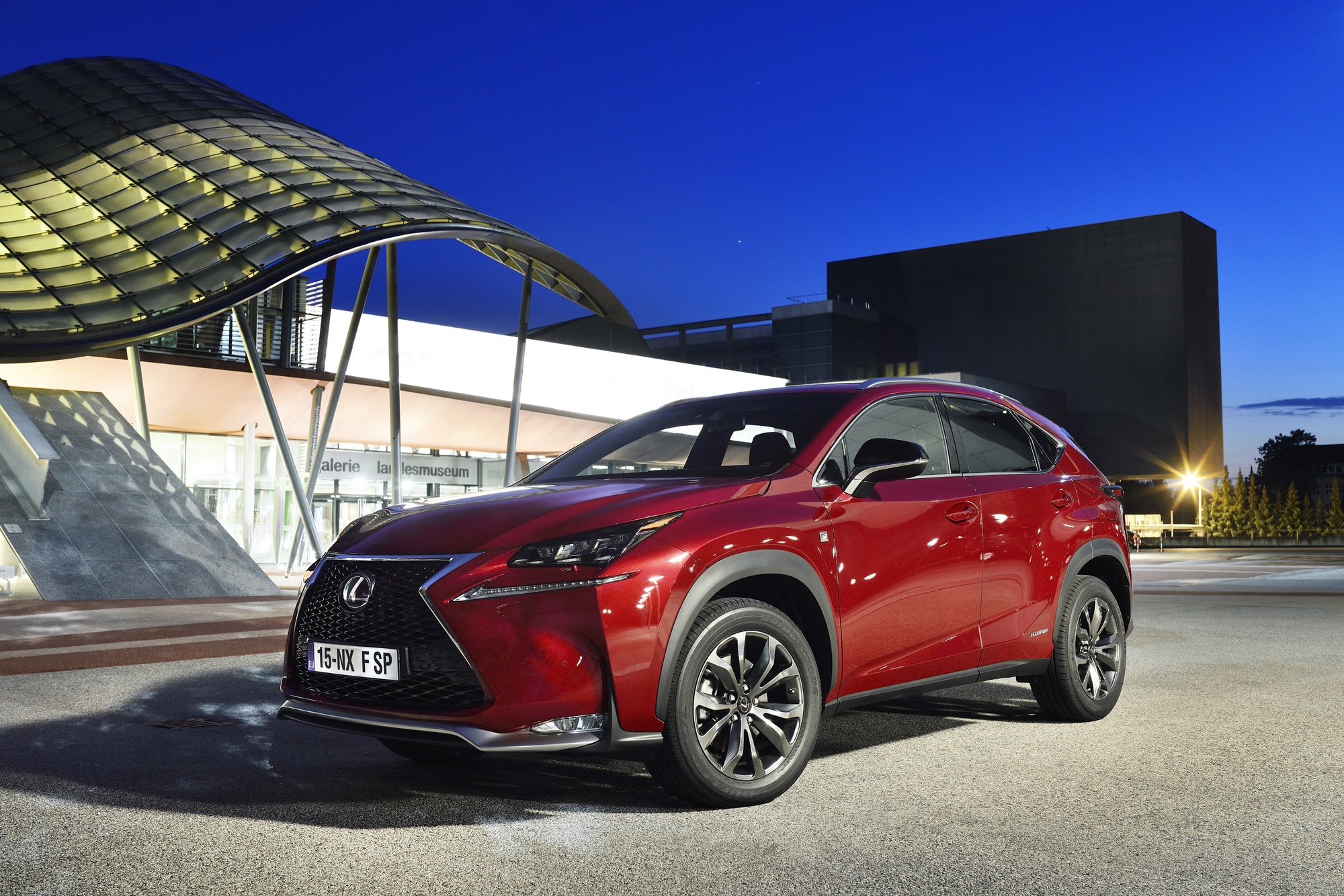

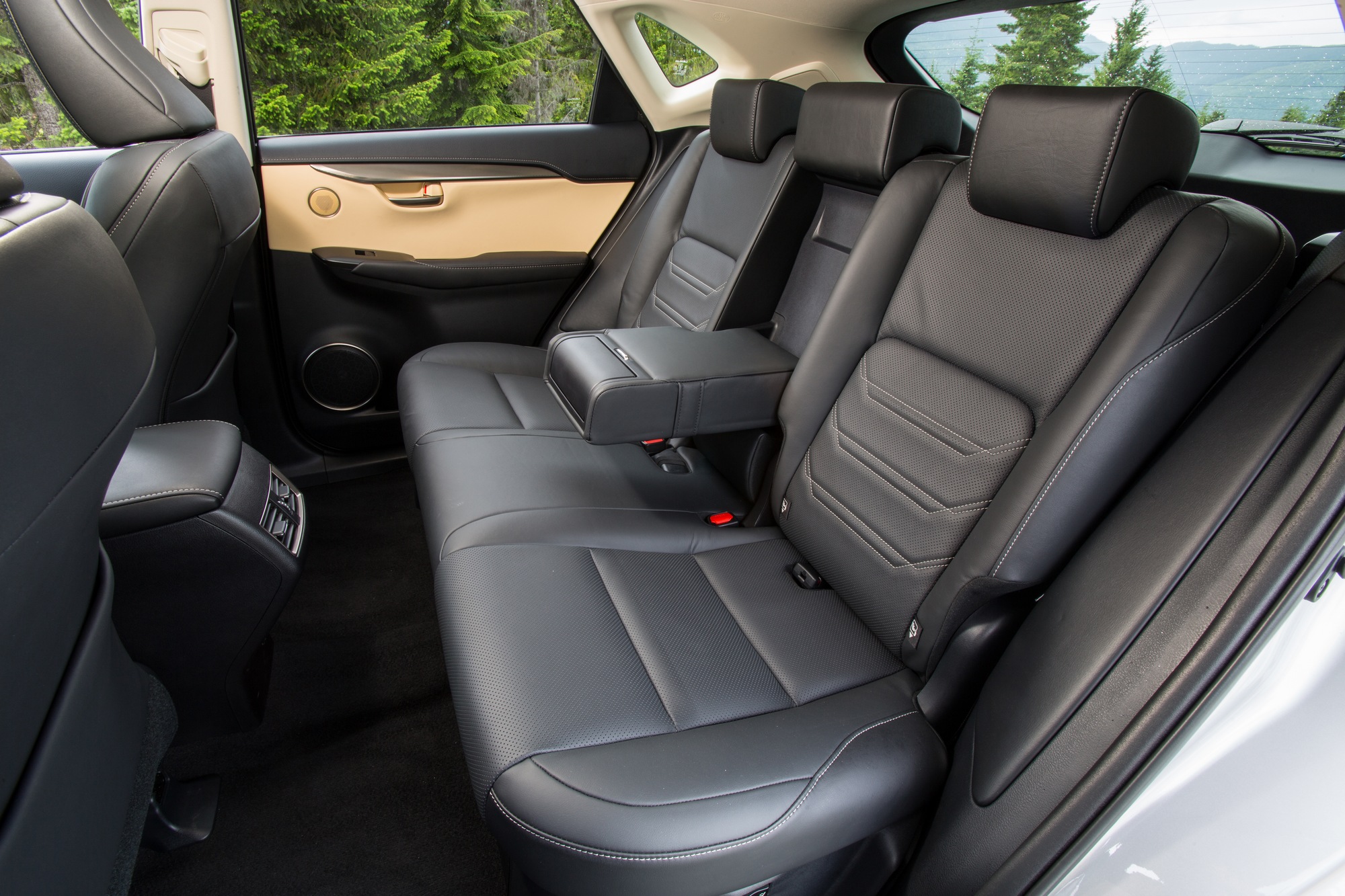

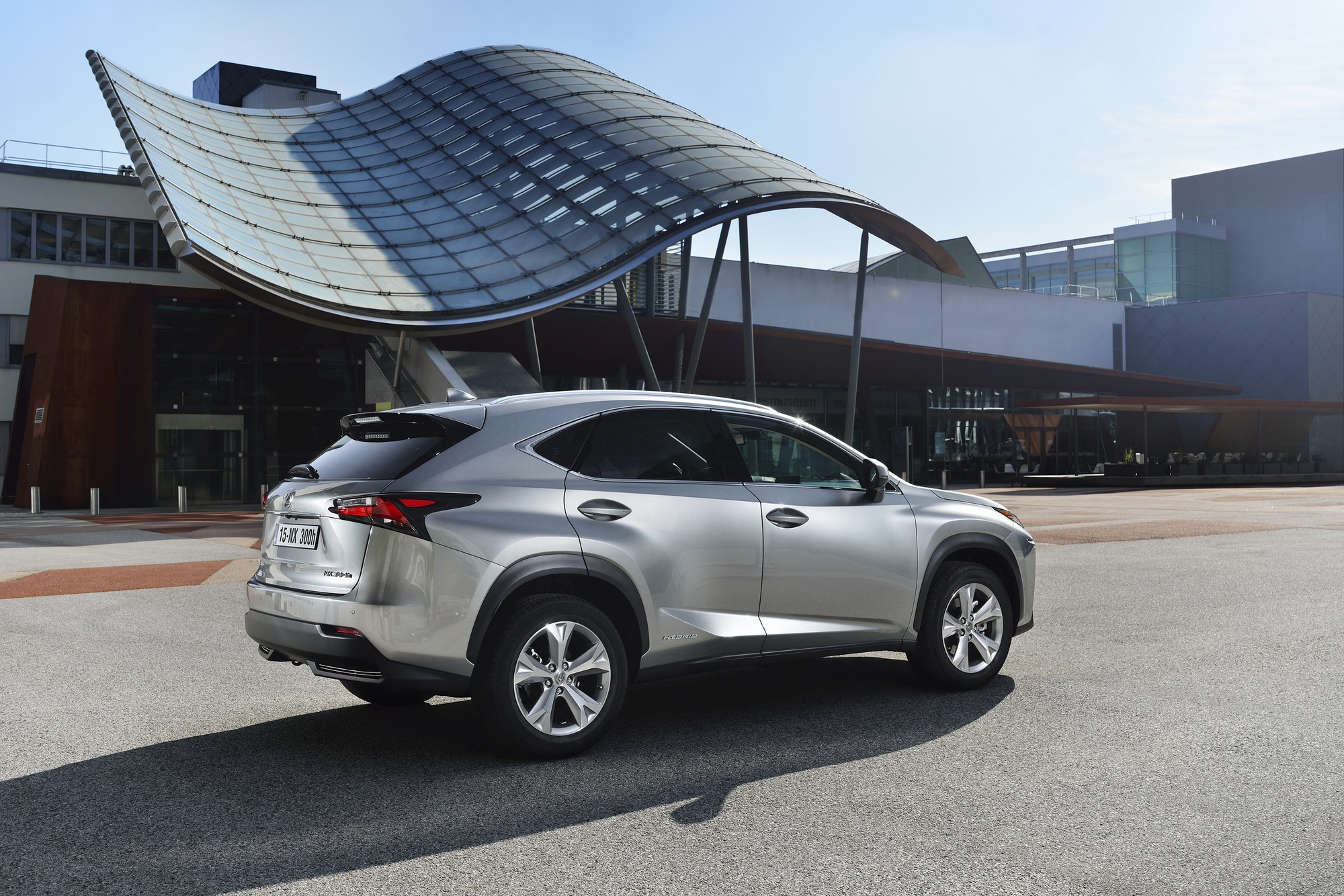

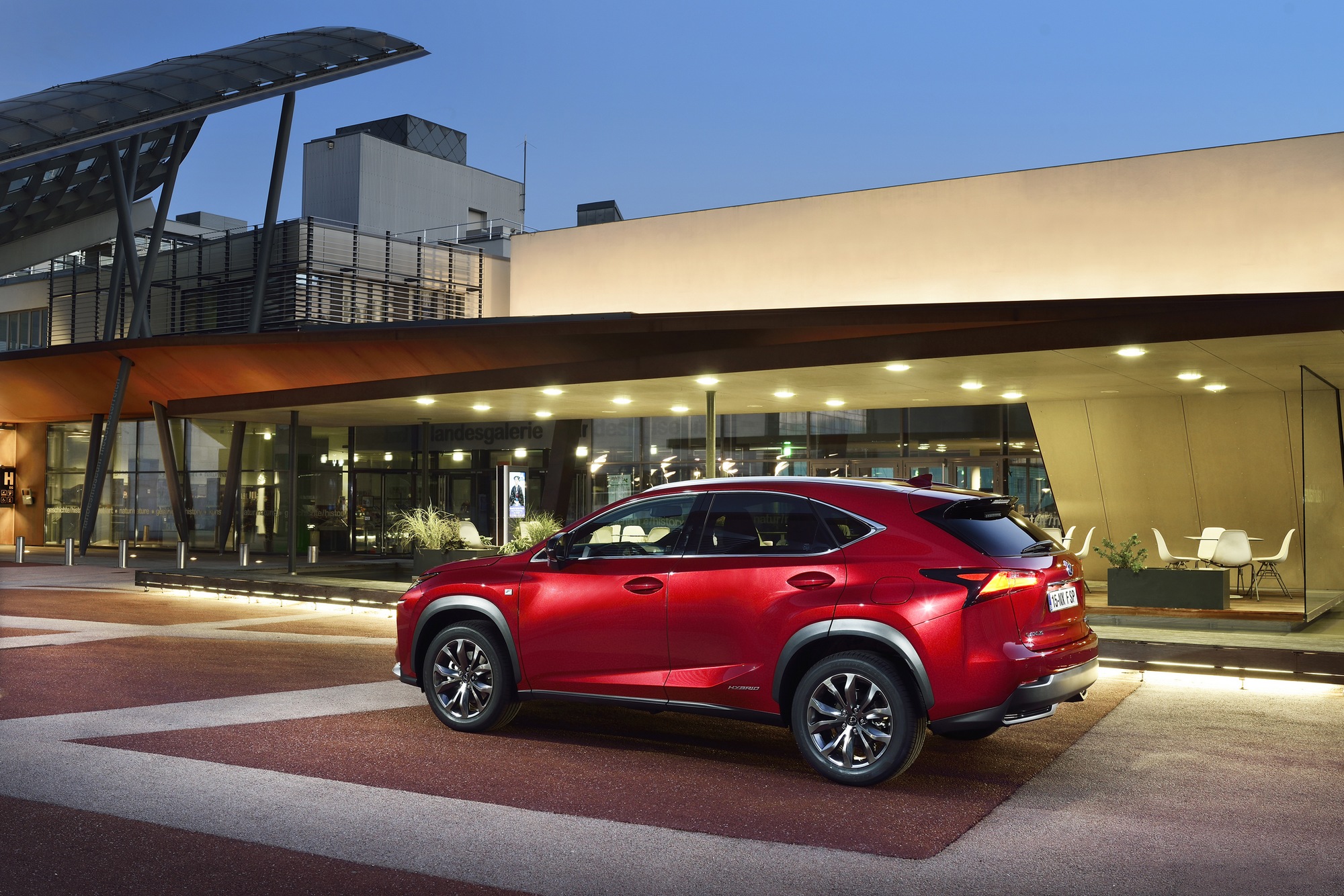

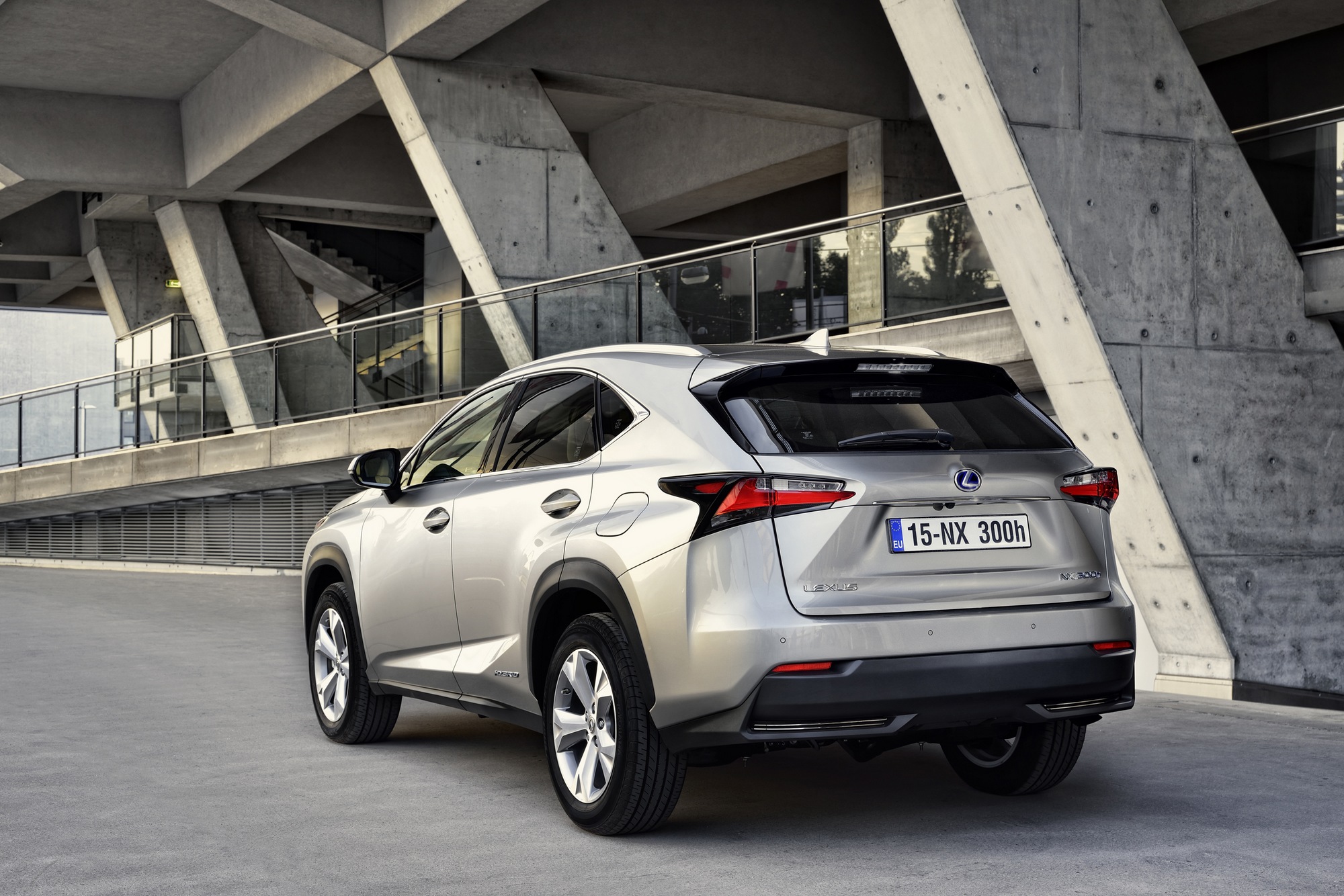

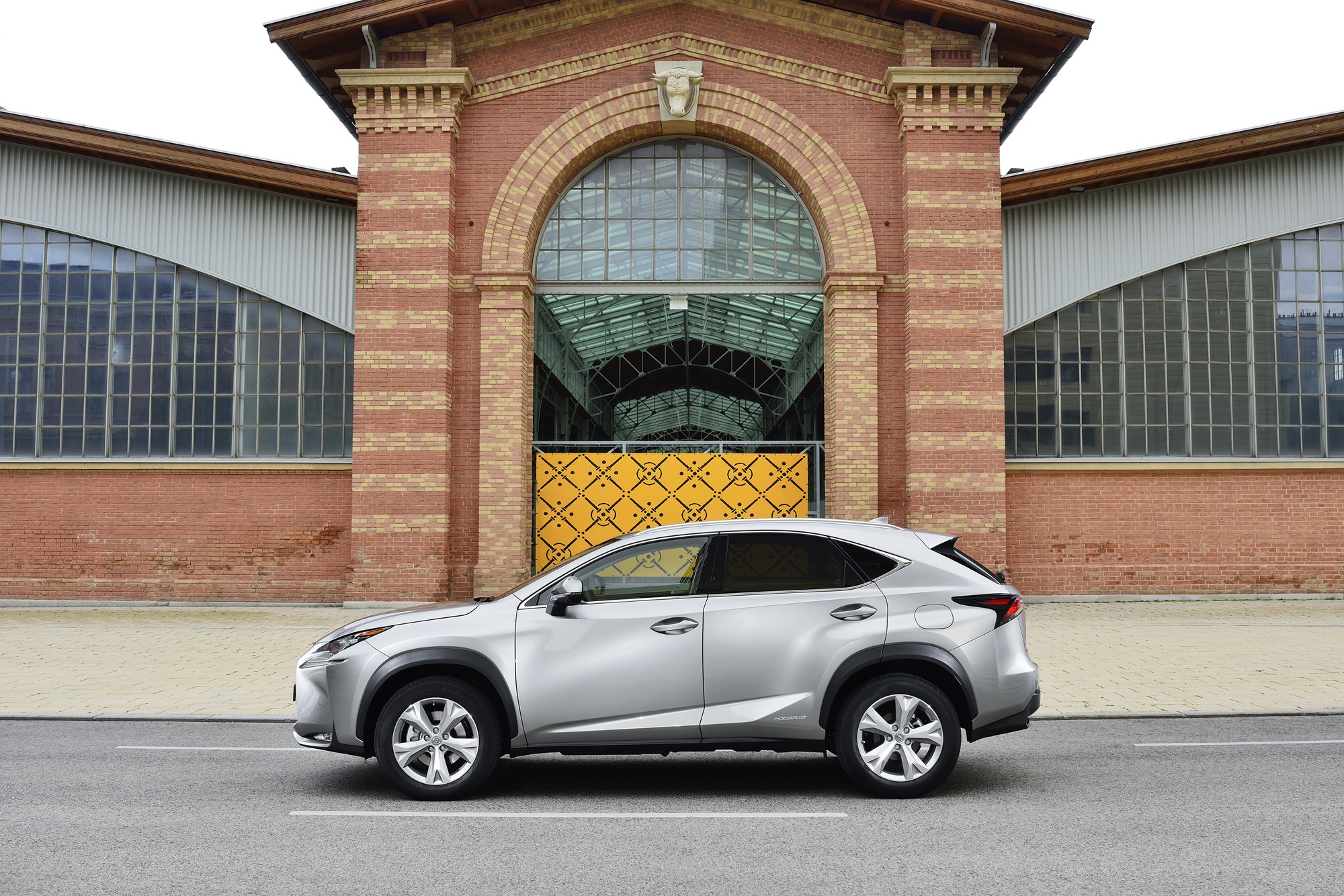

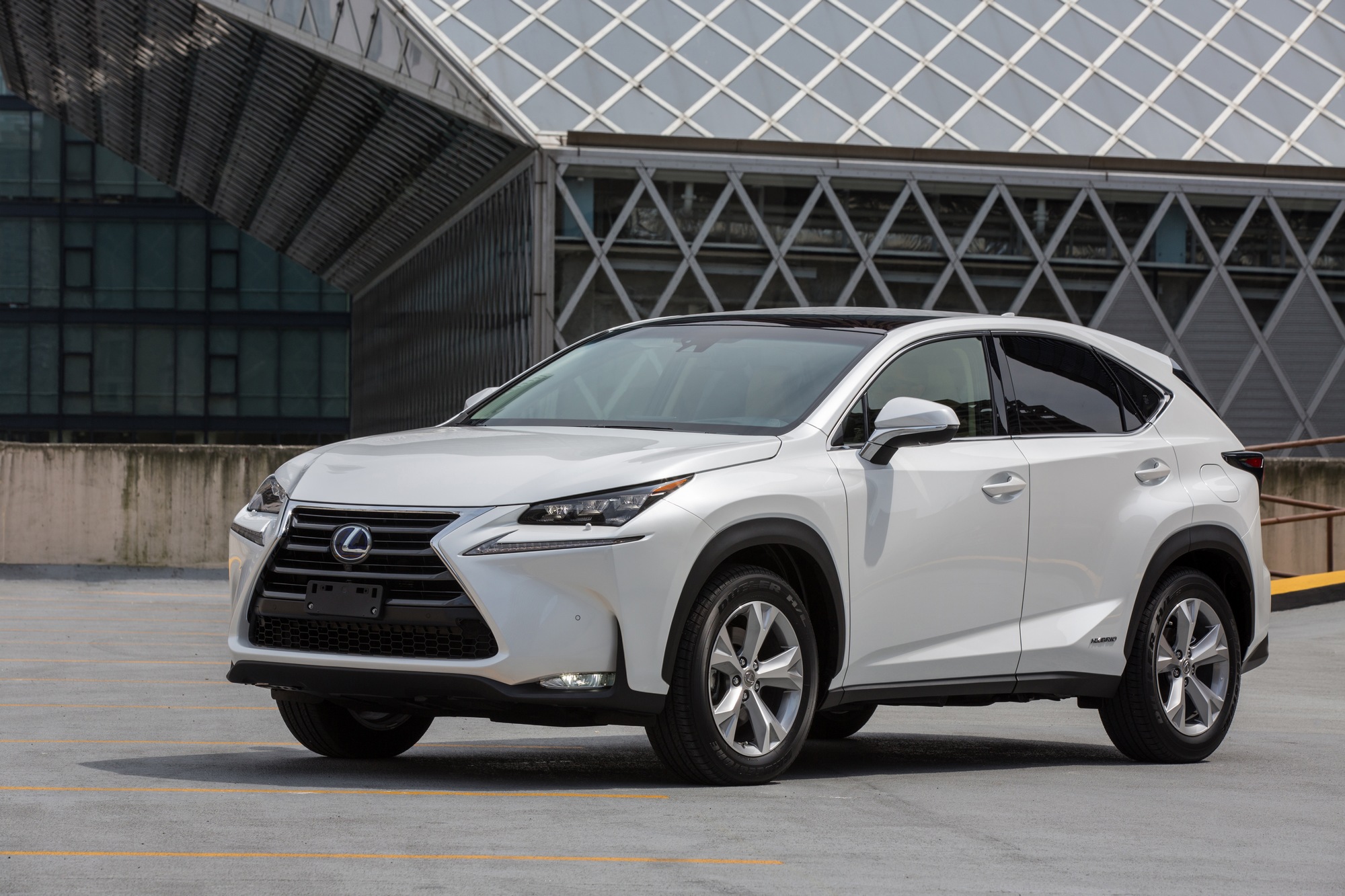

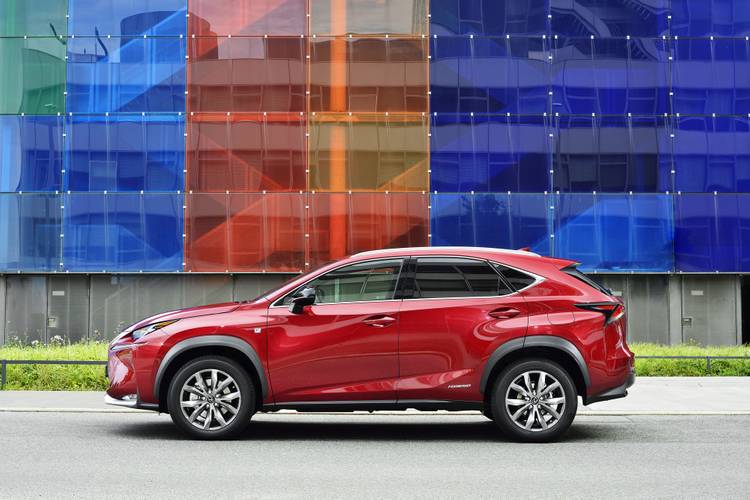

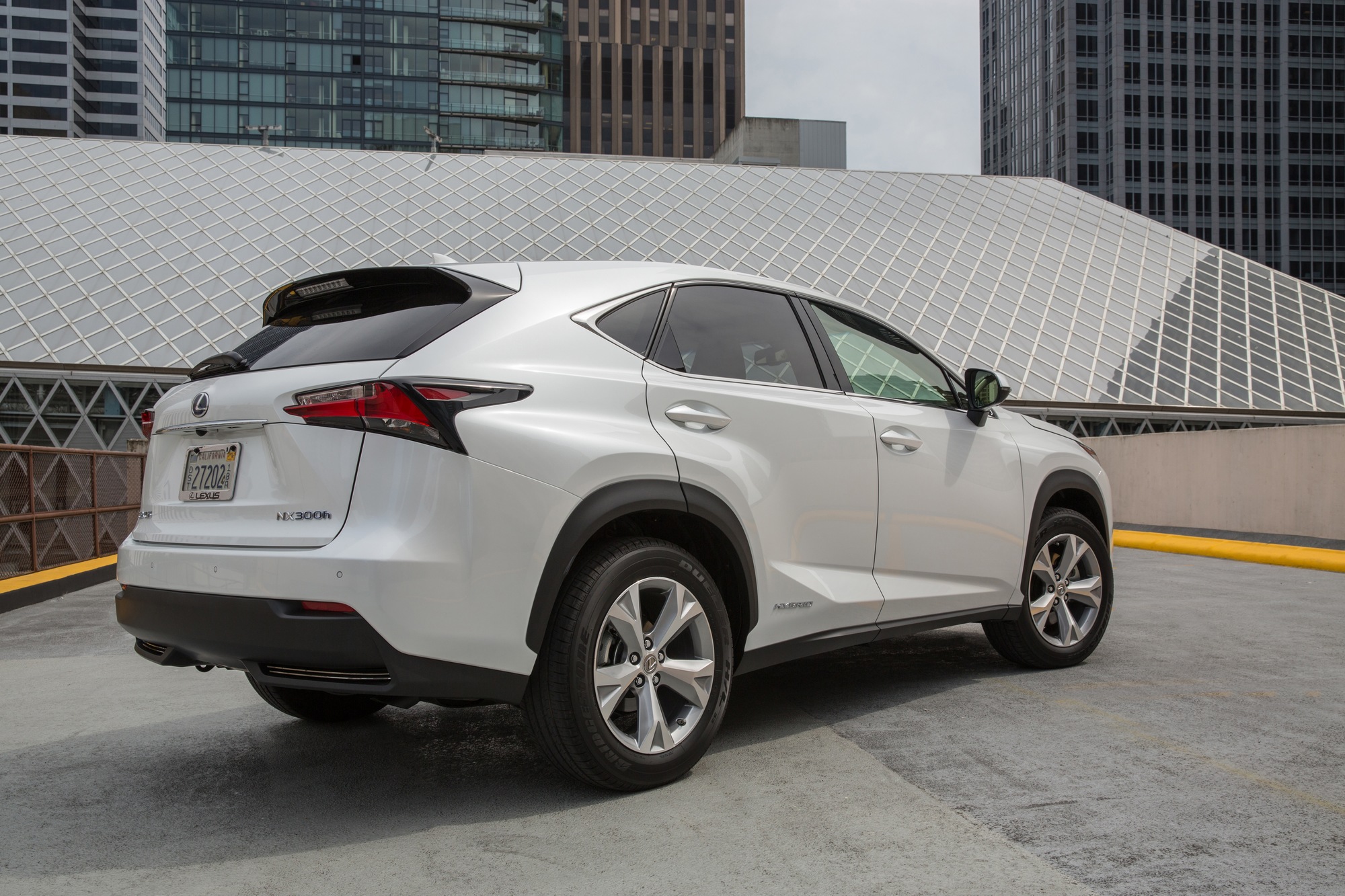

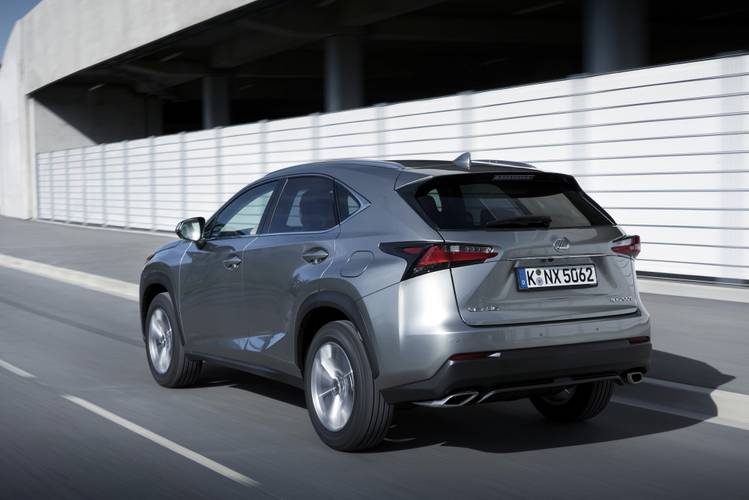

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
