Mazda 2

Date of manufacture

10/2014 – 2019 (Five-door hatchback)

Platform

Mazda DJ

Manufacturing locations

Hōfu, Japan

Rayong, Thailand

Salamanca, Mexico

Designer

Ikuo Maeda

Car body style

Five-door hatchback

Date of manufacture

10/2014 – 2019

Internal designation

Engine size

Petrol

Diesel

Euro NCAP

Technical data

Five-door hatchback

	1.5 SKYACTIV-G 75	1.5 SKYACTIV-G 90	1.5 SKYACTIV-G 90	1.5 SKYACTIV-G 115	1.5 SKYACTIV-D 105
Date of sale	-	-	-	-	from to 2016
Engine type	Petrol	Petrol	Petrol	Petrol	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1496	1496	1496	1496	1496
Maximum output / speed [kW/min-1]	55/6000	66/6000	66/6000	85/6000	77/4000
Maximum torque [Nm/min-1]	135/3800	148/4000	148/4000	148/4000	220/1400-3200
Bore and stroke [mm x mm]	74,5 x 85,8	74,5 x 85,8	74,5 x 85,8	74,5 x 85,8	76,0 x 82,6
Compression ratio	12,0:1	14,0:1	14,0:1	14,0:1	14,8:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	direct injection variable valve timing Dual SV‐T start&stop system i‐stop	direct injection variable valve timing Dual SV‐T start&stop system i‐stop	direct injection variable valve timing Dual SV‐T start&stop system i‐stop	direct injection variable valve timing Dual SV‐T start&stop system i‐stop brake energy recuperation i‐ELOOP	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system i‐stop

Drive axle	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	6 gear automatic	6 gear manual	6 gear manual
Drive specifications	-	-	automatic gearbox	-	-

Top speed [km/h]	171	183	177	200	178
Acceleration 0–100 km/h [s]	11.3-12.1	9.4-9.7	12.0	8.7-9.0	10.1
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	6.1-5.7	5.9-5.7	6.1-6.0	6.7-6.4	3.8
Out of town [l]	4.3-3.9	4.3-3.7	4.7-4.1	4.7-4.1	3.2
Combined [l]	4.9-4.7	4.9-4.5	5.2-4.8	5.4-4.9	3.4
CO2 emissions [g/km]	111-110	111-105	118-112	124-115	89

Low speed [l]	-	-	-	-	-
Medium speed [l]	-	-	-	-	-
High speed [l]	-	-	-	-	-
Extra high speed [l]	-	-	-	-	-
Combined speed [l]	5.7	5.7	5.9	5.8	-
CO2 emissions [g/km]	124	124	133	127	-

Emission standard	EU6 - Euro 6d-TEMP	EU6 - Euro 6d-TEMP	EU6 - Euro 6d-TEMP	EU6 - Euro 6d-TEMP	EU6
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1076-1110	1081-1120	1096-1135	1096-1130	1115
Overall weight [kg]	1496	1510	1530	1515	1575
Maximum trailer weight unbraked/braked [kg]	515/900	515/900	530/900	515/900	550/-
Maximum front/rear axle load [kg]	795/785	800/785	830/785	810/785	-
Maximum vertical load on the tow bar [kg]	50	50	50	50	50
Maximum load on roof/carrier [kg]	50/-	50/-	50/-	50/-	50/-

Boot volume [l]	280	280	280	280	280
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/950	-/950	-/950	-/950	-/950
Boot length [mm]	713	713	713	713	713
Boot length with rear seats folded [mm]	1367	1367	1367	1367	1367
Boot width between wheels/max [mm]	-/1000	-/1000	-/1000	-/1000	-/1000
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	5	5	5	5	5
Number of seats	5	5	5	5	5
Fuel tank volume [l]	44	44	44	44	44
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	185/65 R15	185/65 R15	185/65 R15	185/60 R16	185/65 R15
Tyre dimensions rear	185/65 R15	185/65 R15	185/65 R15	185/60 R16	185/65 R15
Wheel size front	5.5J x 15	5.5J x 15	5.5J x 15	5.5J x 16	5.5J x 15
Wheel size rear	5.5J x 15	5.5J x 15	5.5J x 15	5.5J x 16	5.5J x 15
Brake dimensions front	258	258	258	258	258
Brake dimensions rear	200 drum	200 drum	200 drum	200 drum	200 drum
Steering	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	9.4/-	9.4/-	9.4/-	9.8/-	9.4/-

Overall length [mm]	4060	4060	4060	4060	4060
Overall width without/including mirrors [mm]	1695/1983	1695/1983	1695/1983	1695/1983	1695/1983
Overall height [mm]	1495	1495	1495	1495	1495
Wheelbase [mm]	2570	2570	2570	2570	2570
Front wheel track [mm]	1495	1495	1495	1495	1495
Rear wheel track [mm]	1485	1485	1485	1485	1485
Forward overhang [mm]	815	815	815	815	815
Rear overhang [mm]	675	675	675	675	675
Clearance [mm]	143	143	143	143	143
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	984	984	984	984	984
Headroom rear [mm]	945	945	945	945	945
Front elbow/shoulder width [mm]	1322/1352	1322/1352	1322/1352	1322/1352	1322/1352
Rear elbow/shoulder width [mm]	1212/1272	1212/1272	1212/1272	1212/1272	1212/1272
Legroom front knees/total [mm]	-/1063	-/1063	-/1063	-/1063	-/1063
Legroom rear knees/total [mm]	-/881	-/881	-/881	-/881	-/881

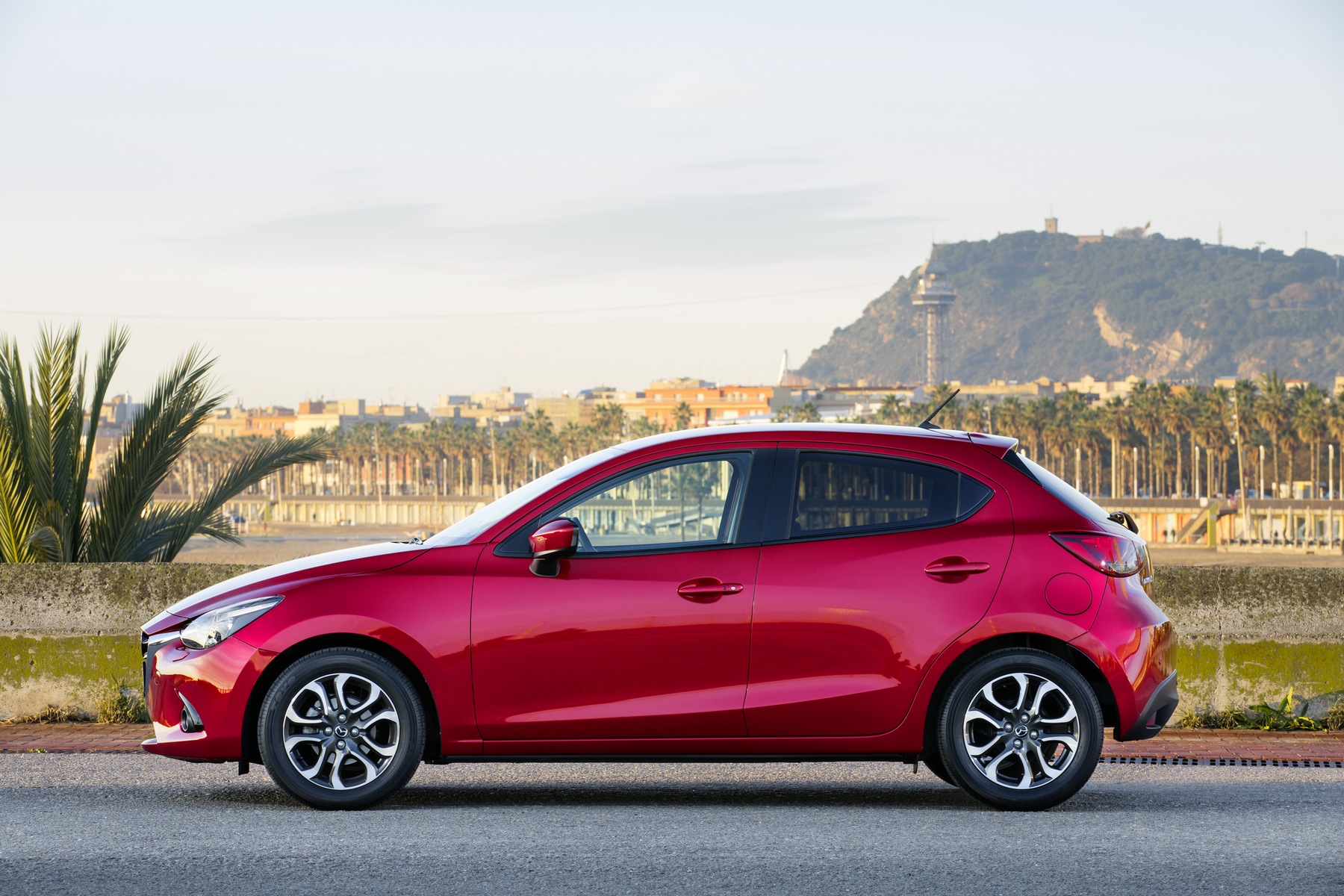

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
