Mazda 3
Date of manufacture
2016 – 2019 (Five-door hatchback)
2016 – 2019 (Sedan)
Platform
-
Manufacturing locations
Hōfu, Japan
Salamanca, Mexico
Rayong, Thailand
Designer
Koji Tabata
Tags
C-segment
Japanese cars
The Mazda 3 is available in two body styles - five-door hatchback and sedan. The car was first introduced to the market in 2016 and since then it has been manufactured in Japan, Mexico and Thailand. It offers a wide range of engines, including petrol and diesel engines. The highest power (121 kW) can be boasted by the 2.0 SKYACTIV-G 165, the fastest version is the 2.2 SKYACTIV-D 150 with a maximum speed of 213 km/h and the best acceleration 0-100 km/h in 8.0 seconds. The lowest fuel consumption is for the 1.5 SKYACTIV-D 105 with a value of 3.8 l/100 km and CO2 emissions of 99 g/km. The five-door hatchback offers a trunk volume of 364 l, the sedan 419 l. In terms of safety, the Mazda 3 took a rating of 5 out of 5 points from EURONCAP at the time.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2016 – 2019Internal designation
BNSedan
after upgrade (facelift)
Date of manufacture
2016 – 2019Internal designation
BNEngine size
Technical data
Five-door hatchback
| 1.5 SKYACTIV-G 100 | 2.0 SKYACTIV-G 120 | 2.0 SKYACTIV-G 120 | 2.0 SKYACTIV-G 165 | 1.5 SKYACTIV-D 105 | 1.5 SKYACTIV-D 105 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1496 | 1988 | 1988 | 1988 | 1496 | 1496 |
| Maximum output / speed [kW/min-1] | 74/6000 | 88/6000 | 88/6000 | 121/6000 | 77/4000 | 77/4000 |
| Maximum torque [Nm/min-1] | 150/4000 | 210/4000 | 210/4000 | 210/4000 | 270/1600-2500 | 270/1600-2500 |
| Bore and stroke [mm x mm] | 74,5 x 85,8 | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 | 76,0 x 82,6 | 76,0 x 82,6 |
| Compression ratio | 14,0:1 | 14,0:1 | 14,0:1 | 14,0:1 | 14,8:1 | 14,8:1 |
| Oil volume [l] | 3.9 | 4.0 | 4.0 | 4.0 | 4.7 | 4.7 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
| - | - |
|
| Top speed [km/h] | 182 | 195 | 194 | 210 | 185 | 181 |
| Acceleration 0–100 km/h [s] | 10,6 | 8.9 | 10.4 | 8.2 | 11,0 | 11,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.5 | 6.5 | 7.0 | 7.5 | 4,3 | 4,9 |
| Out of town [l] | 4.3 | 4.3 | 4.8 | 4.8 | 3,5 | 4,1 |
| Combined [l] | 5.1 | 5.1 | 5.6 | 5.8 | 3,8 | 4,4 |
| CO2 emissions [g/km] | 119 | 119 | 129 | 135 | 99 | 114 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1260-1346 | 1280-1366 | 1320-1407 | 1305-1391 | 1335-1418 | 1360-1443 |
| Overall weight [kg] | 1800 | 1815 | 1835 | 1815 | 1870 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 600/950 | 600/1300 | 600/1300 | 600/1300 | 600/1300 | 600/1300 |
| Maximum front/rear axle load [kg] | 930/945 | 960/930 | 980/930 | 960/930 | 1015/940 | 1040/945 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- 75 | 75/- | 75/- |
| Boot volume [l] | 364 | 364 | 364 | 364 | 364 | 364 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1263 | -/1263 | -/1263 | -/1263 | -/1263 | -/1263 |
| Boot length [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Boot length with rear seats folded [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Boot width between wheels/max [mm] | 1022/1261 | 1022/1261 | 1022/1261 | 1022/1261 | 1022/1261 | 1022/1261 |
| Boot height to headliner/ceiling [mm] | -/500 | -/500 | -/500 | -/500 | -/500 | -/500 |
| Loading edge height [mm] | 701 | 701 | 701 | 701 | 701 | 701 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 735 | 735 | 735 | 735 | 735 | 735 |
| Boot opening width min/max [mm] | -/1020 | -/1020 | -/1020 | -/1020 | -/1020 | -/1020 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/45 R18 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/45 R18 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7J x 18 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7J x 18 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 280 | 295 | 295 | 295 | 295 | 295 |
| Brake dimensions rear | 265 | 265 | 265 | 265 | 265 | 265 |
| Steering | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení |
| Number of steering wheel turns | 2.57 | 2.57 | 2.57 | 2.57 | 2.57 | 2.57 |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4470 | 4470 | 4470 | 4470 | 4470 | 4470 |
| Overall width without/including mirrors [mm] | 1795/2053 | 1795/2053 | 1795/2053 | 1795/2053 | 1795/2053 | 1795/2053 |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
| Rear overhang [mm] | 845 | 845 | 845 | 845 | 845 | 845 |
| Clearance [mm] | 155 | 155 | 155 | 155 | 155 | 155 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1411/1452 | 1411/1452 | 1411/1452 | 1411/1452 | 1411/1452 | 1411/1452 |
| Rear elbow/shoulder width [mm] | 1360/1382 | 1360/1382 | 1360/1382 | 1360/1382 | 1360/1382 | 1360/1382 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | 16/909 | 16/909 | 16/909 | 16/909 | 16/909 | 16/909 |
| 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2184 | 2184 | ||||
| Maximum output / speed [kW/min-1] | 110/4500 | 110/4500 | ||||
| Maximum torque [Nm/min-1] | 380/1800 | 380/1800 | ||||
| Bore and stroke [mm x mm] | 86,0 x 94,3 | 86,0 x 94,3 | ||||
| Compression ratio | 14,0:1 | 14,0:1 | ||||
| Oil volume [l] | 4.8 | 4.8 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 210 | 201 | ||||
| Acceleration 0–100 km/h [s] | 8.1 | 9,0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.9 | 6.0 | ||||
| Out of town [l] | 3.6 | 4,1 | ||||
| Combined [l] | 4.1 | 4.8 | ||||
| CO2 emissions [g/km] | 107 | 127 | ||||
| Emission standard | Euro 6 | Euro 6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1395-1481 | 1410-1496 | ||||
| Overall weight [kg] | 1910 | 1930 | ||||
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | ||||
| Maximum front/rear axle load [kg] | 1060/925 | 1075/ 930 | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 364 | 364 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1263 | -/1263 | ||||
| Boot length [mm] | 885 | 885 | ||||
| Boot length with rear seats folded [mm] | 1612 | 1612 | ||||
| Boot width between wheels/max [mm] | 1022/1261 | 1022/1261 | ||||
| Boot height to headliner/ceiling [mm] | -/500 | -/500 | ||||
| Loading edge height [mm] | 701 | 701 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 735 | 735 | ||||
| Boot opening width min/max [mm] | -/1020 | -/1020 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 51 | 51 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.275 | 0.275 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | ||||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | ||||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | ||||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | ||||
| Brake dimensions front | 295 | 295 | ||||
| Brake dimensions rear | 265 | 265 | ||||
| Steering | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení | ||||
| Number of steering wheel turns | 2.57 | 2.57 | ||||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | ||||
| Overall length [mm] | 4470 | 4470 | ||||
| Overall width without/including mirrors [mm] | 1795/2053 | 1795/2053 | ||||
| Overall height [mm] | 1465 | 1465 | ||||
| Wheelbase [mm] | 2700 | 2700 | ||||
| Front wheel track [mm] | 1555 | 1555 | ||||
| Rear wheel track [mm] | 1560 | 1560 | ||||
| Forward overhang [mm] | 925 | 925 | ||||
| Rear overhang [mm] | 845 | 845 | ||||
| Clearance [mm] | 155 | 155 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 981 | 981 | ||||
| Headroom rear [mm] | 952 | 952 | ||||
| Front elbow/shoulder width [mm] | 1411/1452 | 1411/1452 | ||||
| Rear elbow/shoulder width [mm] | 1360/1382 | 1360/1382 | ||||
| Legroom front knees/total [mm] | -/1073 | -/1073 | ||||
| Legroom rear knees/total [mm] | 16/909 | 16/909 |

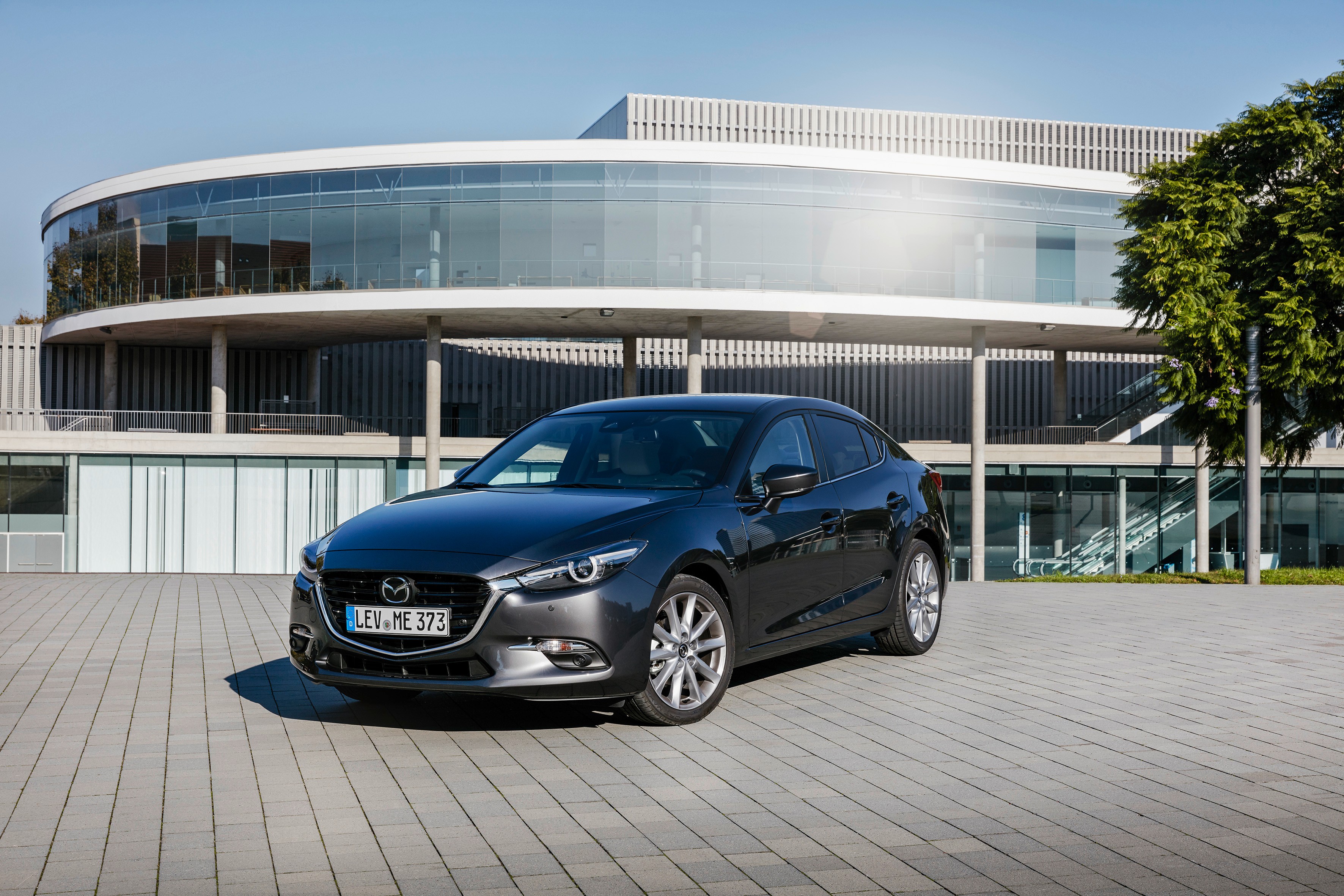

Sedan
| 1.5 SKYACTIV-G 100 | 2.0 SKYACTIV-G 120 | 2.0 SKYACTIV-G 120 | 1.5 SKYACTIV-D 105 | 2.2 SKYACTIV-D 150 | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1496 | 1988 | 1988 | 1496 | 2184 | |
| Maximum output / speed [kW/min-1] | 74/6000 | 88/6000 | 88/6000 | 77/4000 | 110/4500 | |
| Maximum torque [Nm/min-1] | 150/4000 | 210/4000 | 210/4000 | 270/1600-2500 | 380/1800 | |
| Bore and stroke [mm x mm] | 74,5 x 85,8 | 83,5 x 91,2 | 83,5 x 91,2 | 76,0 x 82,6 | 86,0 x 94,3 | |
| Compression ratio | 14,0:1 | 14,0:1 | 14,0:1 | 14,8:1 | 14,0:1 | |
| Oil volume [l] | 3.9 | 4.0 | 4.0 | 4.7 | 4.8 | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | |
| Drive specifications | - | - |
| - | - | |
| Top speed [km/h] | 185 | 198 | 198 | 186 | 213 | |
| Acceleration 0–100 km/h [s] | 10.7 | 8,8 | 10,3 | 11,0 | 8,0 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6.4 | 6,5 | 7,0 | 4,3 | 4,7 | |
| Out of town [l] | 4.2 | 4,3 | 4,8 | 3,5 | 3,5 | |
| Combined [l] | 5.0 | 5,1 | 5,6 | 3,8 | 3,9 | |
| CO2 emissions [g/km] | 118 | 119 | 128 | 99 | 104 | |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1265 | 1280-1364 | 1315-1399 | 1340-1422 | 1395-1479 | |
| Overall weight [kg] | 1800 | 1815 | 1835 | 1870 | 1910 | |
| Maximum trailer weight unbraked/braked [kg] | 600/950 | 600/1300 | 600/1300 | 600/1300 | 650/1500 | |
| Maximum front/rear axle load [kg] | 930/945 | 960/930 | 980/930 | 1.015 | /9401.060/925 | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 419 | 419 | 419 | 419 | 419 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | |
| Boot length with rear seats folded [mm] | 1754 | 1754 | 1754 | 1754 | 1754 | |
| Boot width between wheels/max [mm] | 1022/1319 | 1022/1319 | 1022/1319 | 1022/1319 | 1022/1319 | |
| Boot height to headliner/ceiling [mm] | -/501 | -/501 | -/501 | -/501 | -/501 | |
| Loading edge height [mm] | 706 | 706 | 706 | 706 | 706 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | 860/- | 860/- | 860/- | 860/- | 860/- | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Brake dimensions front | 280 | 295 | 295 | 295 | 295 | |
| Brake dimensions rear | 265 | 265 | 265 | 265 | 265 | |
| Steering | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení | Rack & pinion with electric power steering řízení | |
| Number of steering wheel turns | 2.57 | 2.57 | 2.57 | 2.57 | 2.57 | |
| Turning diameter track/circumference [m] | 10.6/11.4 | 10.6/11.4 | 10.6/11.4 | 10.6/11.4 | 10.6/11.4 | |
| Overall length [mm] | 4580 | 4580 | 4580 | 4580 | 4580 | |
| Overall width without/including mirrors [mm] | 1795/2053 | 1795/2053 | 1795/2053 | 1795/2053 | 1795/2053 | |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | |
| Front wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | |
| Rear overhang [mm] | 955 | 955 | 955 | 955 | 955 | |
| Clearance [mm] | 155 | 155 | 155 | 155 | 155 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | |
| Front elbow/shoulder width [mm] | 1411/1452 | 1411/1452 | 1411/1452 | 1411/1452 | 1411/1452 | |
| Rear elbow/shoulder width [mm] | 1360/1382 | 1360/1382 | 1360/1382 | 1360/1382 | 1360/1382 | |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | |
| Legroom rear knees/total [mm] | 16/909 | 16/909 | 16/909 | 16/909 | 16/909 |

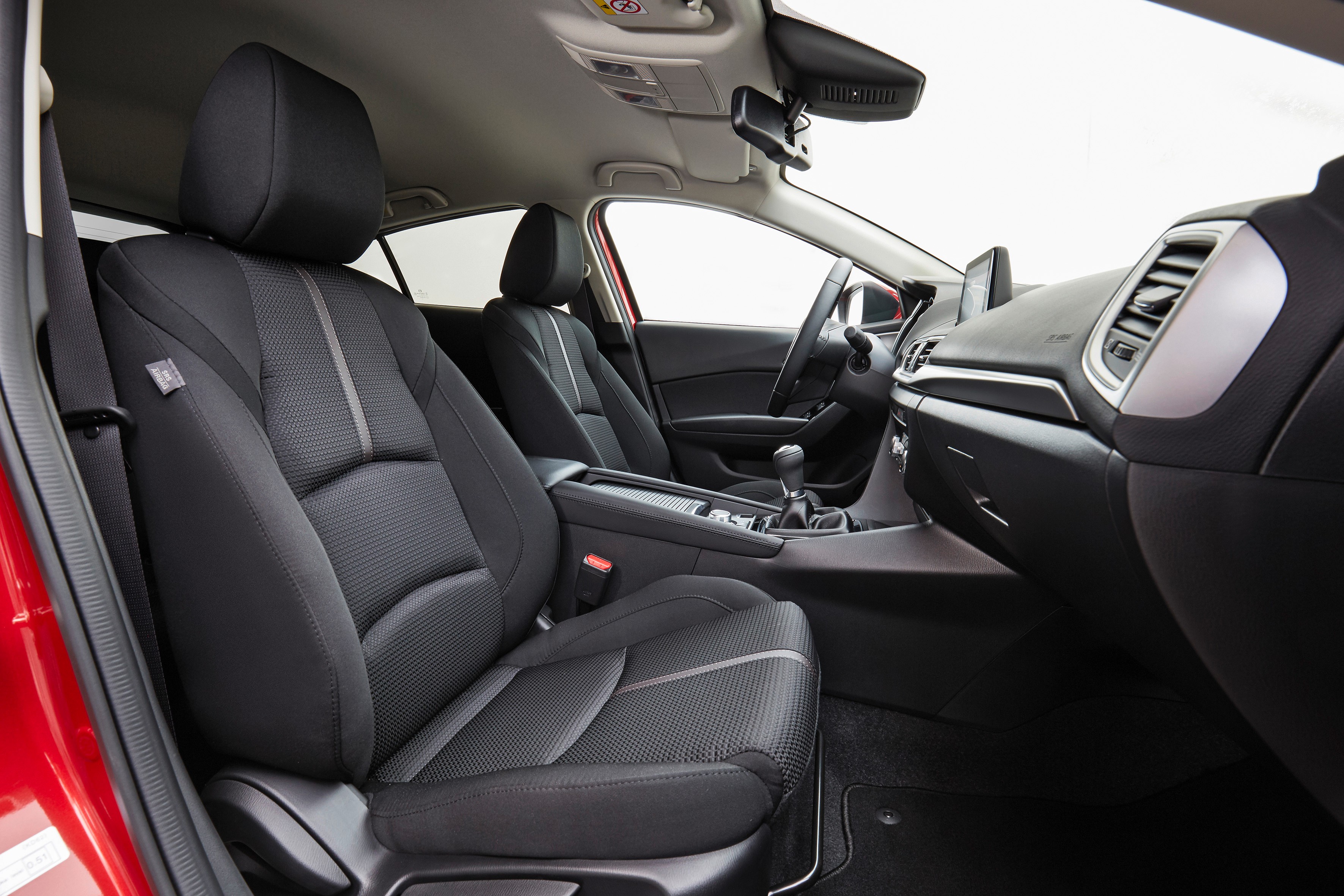

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
