Mercedes-Benz A
Date of manufacture
2004 – 2008 (Three-door hatchback)
2004 – 2008 (Five-door hatchback)
Platform
-
Manufacturing locations
Rastatt, Germany
Designer
-
Tags
A-segment
German cars
The Mercedes-Benz A is available in two body styles - a three-door hatchback and a five-door hatchback. The car was first manufactured in Germany in 2004 and offers petrol and diesel engines with a maximum power output of 142 kW (A 200 Turbo). The fastest model, the A 200 Turbo, has a top speed of 228 km/h and the slowest acceleration from 0-100 km/h in 7.5 seconds. The most fuel-efficient engine, the A 180 CDI, has a fuel consumption of 5.2 l/100 km and emissions of 137 g/km. The car's boot has a capacity of 435 litres for both body types. EURONCAP safety tests ended with a rating of 5 out of 5.
Car body style
Three-door hatchback
Date of manufacture
2004 – 2008Internal designation
W169
Technical data
Three-door hatchback
| A 150 | A 150 | A 170 | A 170 | A 200 | A 200 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1498 | 1498 | 1699 | 1699 | 2034 | 2034 |
| Maximum output / speed [kW/min-1] | 70/5200 | 70/5200 | 85/5500 | 85/5500 | 100/5750 | 100/5750 |
| Maximum torque [Nm/min-1] | 140/3500-4000 | 140/3500-4000 | 155/3500-4000 | 155/3500-4000 | 185/3500-4000 | 185/3500-4000 |
| Bore and stroke [mm x mm] | 83,0 x 69,2 | 83,0 x 69,2 | 83,0 x 78,5 | 83,0 x 78,5 | 83,0 x 94,0 | 83,0 x 94,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - | - | - | - |
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 1 gear automatic | 5 gear manual | 1 gear automatic | 5 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 175 | 175 | 188 | 188 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 12.6 | 12.6 | 10.9 | 10.9 | 9.8 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9-8.4 | 8.5-8.7 | 8.6-8.7 | 8.6-9.0 | 9.6 | 9.6 |
| Out of town [l] | 5.4-5.7 | 5.5-6.0 | 5.5-5.8 | 5.5-6.0 | 5.9-6.1 | 5.9-6.1 |
| Combined [l] | 6.2-6.7 | 6.6-7.0 | 6.6-6.8 | 6.6-7.1 | 7.2-7.4 | 7.2-7.4 |
| CO2 emissions [g/km] | 148-159 | 157-166 | 157-163 | 157-169 | 172-176 | 172-176 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1195 | 1195 | 1210 | 1210 | 1240 | 1240 |
| Overall weight [kg] | 1740 | 1740 | 1770 | 1770 | 1765 | 1765 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 435 | 435 | 435 | 435 | 435 | 435 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1485 | -/1485 | -/1485 | -/1485 | -/1485 | -/1485 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 195/65 R16 | 195/65 R16 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 195/65 R16 | 195/65 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | 276 x 12 | 276 x 12 | 276 x 22 | 276 x 22 | 276 x 22 | 276 x 22 |
| Brake dimensions rear | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- |
| Overall length [mm] | 3838 | 3838 | 3838 | 3838 | 3838 | 3838 |
| Overall width without/including mirrors [mm] | 1764/- | 1764/- | 1764/- | 1764/- | 1764/- | 1764/- |
| Overall height [mm] | 1593 | 1593 | 1593 | 1593 | 1593 | 1593 |
| Wheelbase [mm] | 2568 | 2568 | 2568 | 2568 | 2568 | 2568 |
| Front wheel track [mm] | 1556 | 1556 | 1556 | 1556 | 1556 | 1556 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 200 Turbo | A 200 Turbo | A 160 CDI | A 160 CDI | A 180 CDI | A 180 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2034 | 2034 | 1991 | 1991 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 142/5000 | 142/5000 | 60/4200 | 60/4200 | 80/4200 | 80/4200 |
| Maximum torque [Nm/min-1] | 280/1800-4850 | 280/1800-4850 | 180/1400-2600 | 180/1400-2600 | 250/1600-2600 | 250/1600-2600 |
| Bore and stroke [mm x mm] | 83,0 x 94,0 | 83,0 x 94,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 9,0:1 | 9,0:1 | 18,0:1 | 18,0:1 | 18,0:1 | 18,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 5 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 228 | 228 | 188 | 188 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.5 | 15.0 | 15.0 | 10.8 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.5-10.7 | 10.2-10.3 | 6.2-6.5 | 7.0-7.6 | 6.4-7.4 | 7.0-7.6 |
| Out of town [l] | 6.4-6.6 | 6.5-6.6 | 4.3-4.5 | 4.4-4.9 | 4.6-4.7 | 4.4-4.9 |
| Combined [l] | 7.9-8.1 | 7.9-8.1 | 5.9-5.2 | 5.4-5.8 | 5.2-5.7 | 5.4-5.8 |
| CO2 emissions [g/km] | 187-192 | 187-192 | 128-137 | 142-154 | 137-149 | 142-154 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1275 | 1275 | 1300 | 1300 | 1320 | 1320 |
| Overall weight [kg] | 1835 | 1835 | 1835 | 1835 | 1830 | 1830 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 435 | 435 | 435 | 435 | 435 | 435 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1485 | -/1485 | -/1485 | -/1485 | -/1485 | -/1485 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 195/65 R16 | 195/65 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 195/65 R16 | 195/65 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | 288 x 25 | 288 x 25 | 276 x 12 | 276 x 12 | 276 x 22 | 276 x 22 |
| Brake dimensions rear | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- |
| Overall length [mm] | 3838 | 3838 | 3838 | 3838 | 3838 | 3838 |
| Overall width without/including mirrors [mm] | 1764/- | 1764/- | 1764/- | 1764/- | 1764/- | 1764/- |
| Overall height [mm] | 1593 | 1593 | 1593 | 1593 | 1593 | 1593 |
| Wheelbase [mm] | 2568 | 2568 | 2568 | 2568 | 2568 | 2568 |
| Front wheel track [mm] | 1556 | 1556 | 1556 | 1556 | 1556 | 1556 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 200 CDI | A 200 CDI | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1991 | 1991 | ||||
| Maximum output / speed [kW/min-1] | 103/4200 | 103/4200 | ||||
| Maximum torque [Nm/min-1] | 300/1600-3000 | 300/1600-3000 | ||||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | ||||
| Compression ratio | 18,0:1 | 18,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 1 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 201 | 201 | ||||
| Acceleration 0–100 km/h [s] | 9.5 | 9.5 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.9-7.4 | 7.1-7.9 | ||||
| Out of town [l] | 4.5-4.7 | 4.9-5.0 | ||||
| Combined [l] | 5.4-5.7 | 5.7-6.0 | ||||
| CO2 emissions [g/km] | 141-149 | 149-159 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1340 | 1340 | ||||
| Overall weight [kg] | 1880 | 1880 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 435 | 435 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1485 | -/1485 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 54 | 54 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.29 | 0.29 | ||||
| Front suspension | - | - | ||||
| Rear suspension | - | - | ||||
| Tyre dimensions front | 195/65 R16 | 195/65 R16 | ||||
| Tyre dimensions rear | 195/65 R16 | 195/65 R16 | ||||
| Wheel size front | 6.0J x 16 | 6.0J x 16 | ||||
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | ||||
| Brake dimensions front | 288 x 25 | 288 x 25 | ||||
| Brake dimensions rear | 258 x 8 | 258 x 8 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | ||||
| Overall length [mm] | 3838 | 3838 | ||||
| Overall width without/including mirrors [mm] | 1764/- | 1764/- | ||||
| Overall height [mm] | 1593 | 1593 | ||||
| Wheelbase [mm] | 2568 | 2568 | ||||
| Front wheel track [mm] | 1552 | 1552 | ||||
| Rear wheel track [mm] | 1547 | 1547 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Five-door hatchback
| A 150 | A 150 | A 170 | A 170 | A 200 | A 200 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1498 | 1498 | 1699 | 1699 | 2034 | 2034 |
| Maximum output / speed [kW/min-1] | 70/5200 | 70/5200 | 85/5500 | 85/5500 | 100/5750 | 100/5750 |
| Maximum torque [Nm/min-1] | 140/3500-4000 | 140/3500-4000 | 155/3500-4000 | 155/3500-4000 | 185/3500-4000 | 185/3500-4000 |
| Bore and stroke [mm x mm] | 83,0 x 69,2 | 83,0 x 69,2 | 83,0 x 78,5 | 83,0 x 78,5 | 83,0 x 94,0 | 83,0 x 94,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - | - | - | - |
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 1 gear automatic | 5 gear manual | 1 gear automatic | 5 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 175 | 175 | 188 | 188 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 12.6 | 12.6 | 10.9 | 10.9 | 9.8 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9-8.4 | 8.5-8.7 | 8.6-8.7 | 8.6-9.0 | 9.6 | 9.6 |
| Out of town [l] | 5.4-5.7 | 5.5-6.0 | 5.5-5.8 | 5.5-6.0 | 5.9-6.1 | 5.9-6.1 |
| Combined [l] | 6.2-6.7 | 6.6-7.0 | 6.6-6.8 | 6.6-7.1 | 7.2-7.4 | 7.2-7.4 |
| CO2 emissions [g/km] | 148-159 | 157-166 | 157-163 | 157-169 | 172-176 | 172-176 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1225 | 1225 | 1240 | 1240 | 1270 | 1270 |
| Overall weight [kg] | 1740 | 1740 | 1770 | 1770 | 1765 | 1765 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 435 | 435 | 435 | 435 | 435 | 435 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1995 | -/1995 | -/1995 | -/1995 | -/1995 | -/1995 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 195/65 R16 | 195/65 R16 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 195/65 R16 | 195/65 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | 276 x 12 | 276 x 12 | 276 x 22 | 276 x 22 | 276 x 22 | 276 x 22 |
| Brake dimensions rear | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- |
| Overall length [mm] | 3838 | 3838 | 3838 | 3838 | 3838 | 3838 |
| Overall width without/including mirrors [mm] | 1764/2040 | 1764/2040 | 1764/2040 | 1764/2040 | 1764/2040 | 1764/2040 |
| Overall height [mm] | 1593 | 1593 | 1593 | 1593 | 1593 | 1593 |
| Wheelbase [mm] | 2568 | 2568 | 2568 | 2568 | 2568 | 2568 |
| Front wheel track [mm] | 1556 | 1556 | 1556 | 1556 | 1556 | 1556 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 200 Turbo | A 200 Turbo | A 160 CDI | A 160 CDI | A 180 CDI | A 180 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2034 | 2034 | 1991 | 1991 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 142/5000 | 142/5000 | 60/4200 | 60/4200 | 80/4200 | 80/4200 |
| Maximum torque [Nm/min-1] | 280/1800-4850 | 280/1800-4850 | 180/1400-2600 | 180/1400-2600 | 250/1600-2600 | 250/1600-2600 |
| Bore and stroke [mm x mm] | 83,0 x 94,0 | 83,0 x 94,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 9,0:1 | 9,0:1 | 18,0:1 | 18,0:1 | 18,0:1 | 18,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 5 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 228 | 228 | 188 | 188 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.5 | 15.0 | 15.0 | 10.8 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.5-10.7 | 10.2-10.3 | 6.2-6.5 | 7.0-7.6 | 6.4-7.4 | 7.0-7.6 |
| Out of town [l] | 6.4-6.6 | 6.5-6.6 | 4.3-4.5 | 4.4-4.9 | 4.6-4.7 | 4.4-4.9 |
| Combined [l] | 7.9-8.1 | 7.9-8.1 | 5.9-5.2 | 5.4-5.8 | 5.2-5.7 | 5.4-5.8 |
| CO2 emissions [g/km] | 187-192 | 187-192 | 128-137 | 142-154 | 137-149 | 142-154 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1305 | 1305 | 1325 | 1325 | 1345 | 1345 |
| Overall weight [kg] | 1835 | 1835 | 1835 | 1835 | 1830 | 1830 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 435 | 435 | 435 | 435 | 435 | 435 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1995 | -/1995 | -/1995 | -/1995 | -/1995 | -/1995 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 195/65 R16 | 195/65 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 195/65 R16 | 195/65 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | 288 x 25 | 288 x 25 | 276 x 12 | 276 x 12 | 276 x 22 | 276 x 22 |
| Brake dimensions rear | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 | 258 x 8 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- |
| Overall length [mm] | 3838 | 3838 | 3838 | 3838 | 3838 | 3838 |
| Overall width without/including mirrors [mm] | 1764/2040 | 1764/2040 | 1764/2040 | 1764/2040 | 1764/2040 | 1764/2040 |
| Overall height [mm] | 1593 | 1593 | 1593 | 1593 | 1593 | 1593 |
| Wheelbase [mm] | 2568 | 2568 | 2568 | 2568 | 2568 | 2568 |
| Front wheel track [mm] | 1556 | 1556 | 1556 | 1556 | 1556 | 1556 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 200 CDI | A 200 CDI | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1991 | 1991 | ||||
| Maximum output / speed [kW/min-1] | 103/4200 | 103/4200 | ||||
| Maximum torque [Nm/min-1] | 300/1600-3000 | 300/1600-3000 | ||||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | ||||
| Compression ratio | 18,0:1 | 18,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 1 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 201 | 201 | ||||
| Acceleration 0–100 km/h [s] | 9.5 | 9.5 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.9-7.4 | 7.1-7.9 | ||||
| Out of town [l] | 4.5-4.7 | 4.9-5.0 | ||||
| Combined [l] | 5.4-5.7 | 5.7-6.0 | ||||
| CO2 emissions [g/km] | 141-149 | 149-159 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1365 | 1365 | ||||
| Overall weight [kg] | 1880 | 1880 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 435 | 435 | ||||

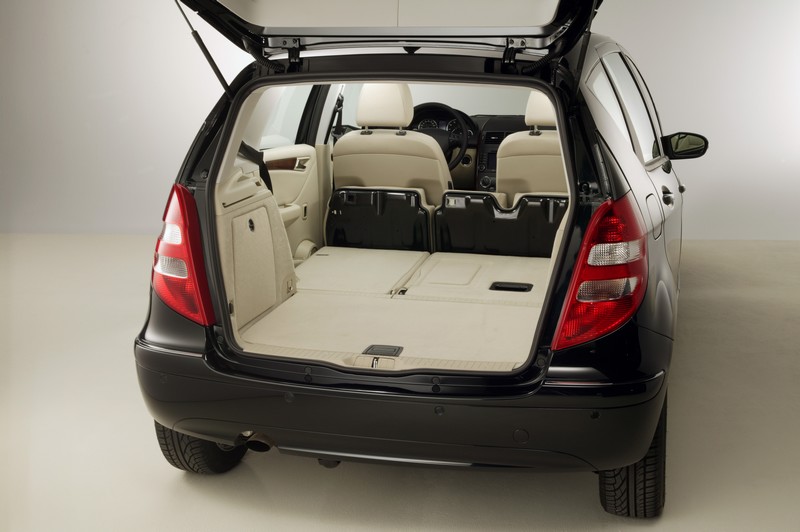

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1995 | -/1995 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 54 | 54 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.29 | 0.29 | ||||
| Front suspension | - | - | ||||
| Rear suspension | - | - | ||||
| Tyre dimensions front | 195/65 R16 | 195/65 R16 | ||||
| Tyre dimensions rear | 195/65 R16 | 195/65 R16 | ||||
| Wheel size front | 6.0J x 16 | 6.0J x 16 | ||||
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | ||||
| Brake dimensions front | 288 x 25 | 288 x 25 | ||||
| Brake dimensions rear | 258 x 8 | 258 x 8 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | ||||
| Overall length [mm] | 3838 | 3838 | ||||
| Overall width without/including mirrors [mm] | 1764/2040 | 1764/2040 | ||||
| Overall height [mm] | 1593 | 1593 | ||||
| Wheelbase [mm] | 2568 | 2568 | ||||
| Front wheel track [mm] | 1552 | 1552 | ||||
| Rear wheel track [mm] | 1547 | 1547 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
