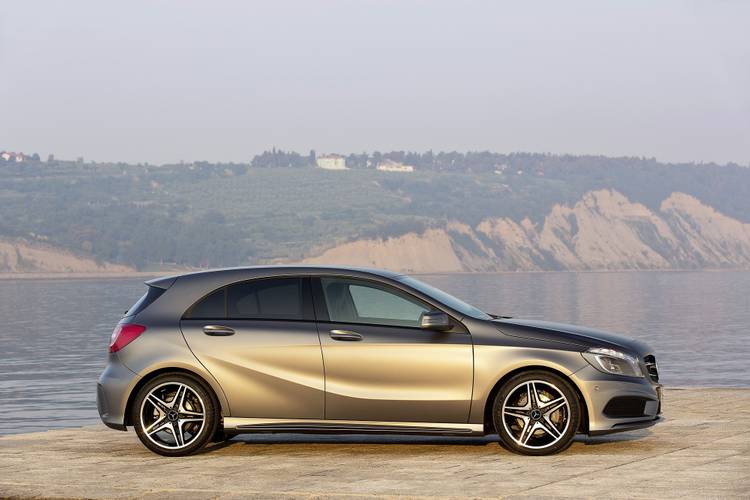

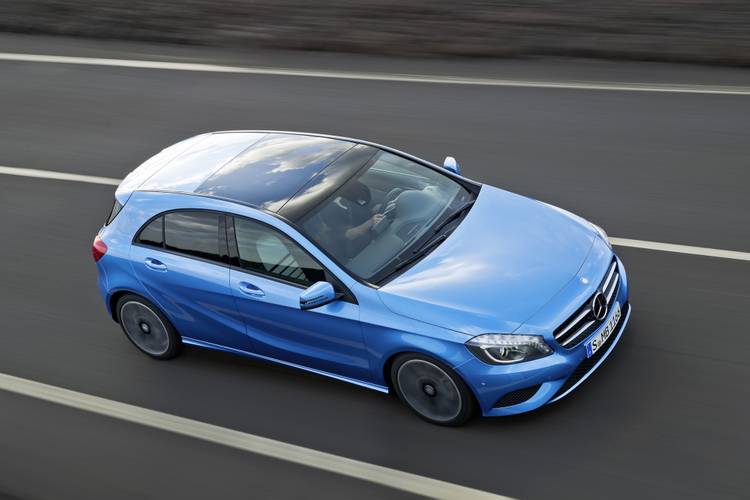

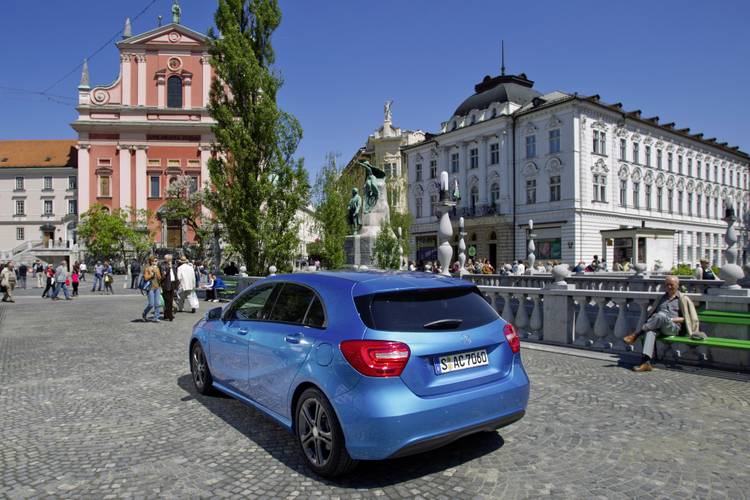

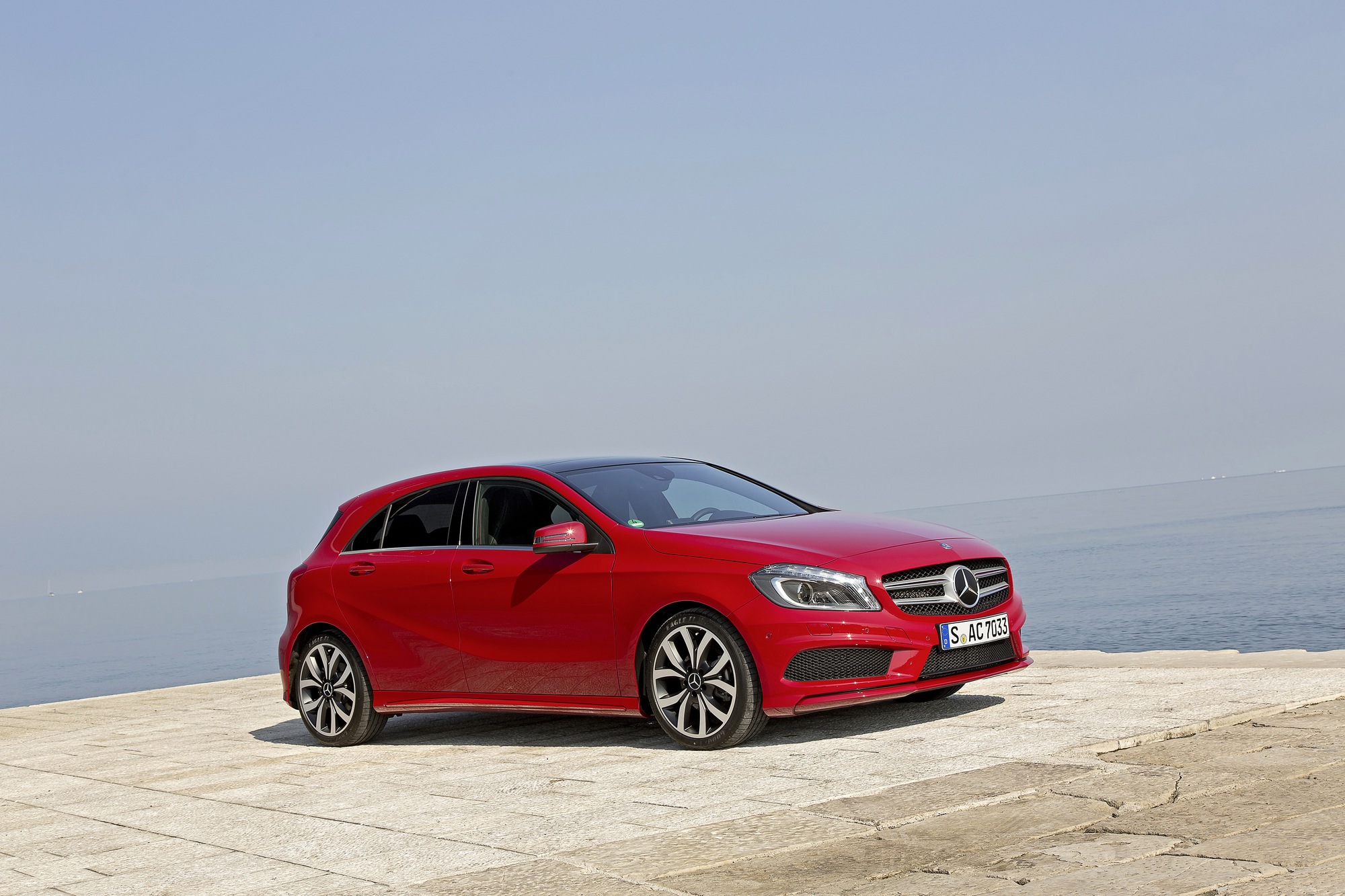

Mercedes-Benz A
Date of manufacture
7/2012 – 6/2015 (Five-door hatchback)
Platform
MFA
Manufacturing locations
Rastatt, Germany
Uusikaupunki, Finland
Designer
Mark Fetherston
Tags
C-segment
German cars
Mercedes-Benz A is a five-door hatchback that has been in production since 2012. It is based on the MFA platform and offers petrol and diesel engines. The highest power of 265 kW is achieved by the A 45 AMG 4MATIC, which also has the best acceleration from 0-100 km/h in 4.6 seconds and a maximum speed of 250 km/h. The most economical model is the A 180 CDI BlueEFFICIENCY with a consumption of 3.6 l/100 km and emissions of 92 g/km. The luggage compartment volume is 341 l. The car successfully passed EURONCAP safety tests and received a rating of 5 out of 5.
Car body style
Five-door hatchback
Date of manufacture
7/2012 – 6/2015Internal designation
W176
Technical data
Five-door hatchback
| A180 | A180 | A180 BlueEFFICIENCY | A200 | A200 | A220 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1595 | 1991 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 90/5000 | 115/5300 | 115/5300 | 135/5500 |
| Maximum torque [Nm/min-1] | 200/1250-4000 | 200/1250-4000 | 200/1250-4000 | 250/1250-4000 | 250/1250-4000 | 300/1200-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 202 | 202 | 190 | 224 | 224 | 228 |
| Acceleration 0–100 km/h [s] | 9.2 | 9.1 | 9.8 | 8.4 | 8.3 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5-7.7 | 6.7-6.8 | 6.9 | 7.5-7.7 | 6.7-6.8 | 8.3-8.4 |
| Out of town [l] | 4.3-4.7 | 4.2-4.6 | 4.1 | 4.4-4.8 | 4.2-4.6 | 5.2-5.5 |
| Combined [l] | 5.5-5.8 | 5.1-5.4 | 5.2 | 5.5-5.8 | 5.1-5.4 | 6.3-6.6 |
| CO2 emissions [g/km] | 128-135 | 112-126 | 120 | 129-136 | 119-126 | 148-154 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1370 | 1395 | 1360 | 1370 | 1395 | 1500 |
| Overall weight [kg] | 1935 | 1920 | 1925 | 1935 | 1920 | 2015 |
| Maximum trailer weight unbraked/braked [kg] | 685/1200 | 695/1200 | 680/1200 | 685/1400 | 695/1400 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 341 | 341 | 341 | 341 | 341 | 341 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1157 | -/1157 | -/1157 | -/1157 | -/1157 | -/1157 |
| Boot length [mm] | 707 | 707 | 707 | 707 | 707 | 707 |
| Boot length with rear seats folded [mm] | 1247 | 1247 | 1247 | 1247 | 1247 | 1247 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | 464/- | 464/- | 464/- | 464/- | 464/- | 464/- |
| Loading edge height [mm] | 561 | 561 | 561 | 561 | 561 | 561 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 605 | 605 | 605 | 605 | 605 | 605 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 40 | 50 | 50 | 56 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.28 | 0.26 | 0.29 | 0.29 | 0.32 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 H | 195/65 R15 H | 195/65 R15 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Tyre dimensions rear | 195/65 R15 H | 195/65 R15 H | 195/65 R15 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Wheel size front | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Wheel size rear | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4292 | 4292 | 4292 | 4292 | 4292 | 4292 |
| Overall width without/including mirrors [mm] | 1780/2022 | 1780/2022 | 1780/2022 | 1780/2022 | 1780/2022 | 1780/2022 |
| Overall height [mm] | 1433 | 1433 | 1433 | 1433 | 1433 | 1433 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1549 | 1549 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1548 | 1548 |
| Forward overhang [mm] | 906 | 906 | 906 | 906 | 906 | 906 |
| Rear overhang [mm] | 687 | 687 | 687 | 687 | 687 | 687 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A250 | A250 4MATIC | A 45 AMG 4MATIC | A 160 CDI | A 160 CDI | A 180 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1461 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 155/5500 | 155/5500 | 265/6000 | 66/2750-4000 | 66/2750-4000 | 80/4000 |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 350/1200-4000 | 450/2250-5000 | 240/1700-2500 | 240/1700-2500 | 260/1750-2500 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9,8:1 | 9,8:1 | 8,6:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 240 | 240 | 250 | 180 | 180 | 190 |
| Acceleration 0–100 km/h [s] | 6.6 | 6.5 | 4.6 | 13.8 | 14.1 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0-8.4 | 8.4 | 8.8-9.1 | 4.5-4.7 | 4.6-5.0 | 4.5-4.7 |
| Out of town [l] | 4.8-5.0 | 5.4-5.5 | 5.9-5.8 | 3.3-3.6 | 3.6-3.8 | 3.3-3.6 |
| Combined [l] | 5.9-6.2 | 6.5-6.6 | 6.9-7.1 | 3.8-4.0 | 4.0-4.3 | 3.8-4.0 |
| CO2 emissions [g/km] | 138-143 | 152-154 | 161-165 | 98-105 | 103-111 | 98-105 |
| Emission standard | EU6 | EU6 | EU6 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1445 | 1505 | 1555 | 1395 | 1425 | 1395 |
| Overall weight [kg] | 1970 | 2030 | 2050 | 1960 | 1960 | 1960 |
| Maximum trailer weight unbraked/braked [kg] | 720/1500 | 750/1500 | - | 695/1200 | 710/1200 | 695/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 341 | 341 | 341 | 341 | 341 | 341 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1157 | -/1157 | -/1157 | -/1157 | -/1157 | -/1157 |
| Boot length [mm] | 707 | 707 | 707 | 707 | 707 | 707 |
| Boot length with rear seats folded [mm] | 1247 | 1247 | 1247 | 1247 | 1247 | 1247 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | 464/- | 464/- | 464/- | 464/- | 464/- | 464/- |
| Loading edge height [mm] | 561 | 561 | 561 | 561 | 561 | 561 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 605 | 605 | 605 | 605 | 605 | 605 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 56 | 56 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.32 | 0.34 | 0.27 | 0.27 | 0.27 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/45 R17V | 225/45 R17V | 235/40 ZR18 | 195/65 R15 | 195/65 R15 | 195/65 R15 T |
| Tyre dimensions rear | 225/45 R17V | 225/45 R17V | 235/40 ZR18 | 195/65 R15 | 195/65 R15 | 195/65 R15 T |
| Wheel size front | 7.5J x 17 ET52.5 | 7.5J x 17 ET52.5 | 8.0J x 18 ET48 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 |
| Wheel size rear | 7.5J x 17 ET52.5 | 7.5J x 17 ET52.5 | 8.0J x 18 ET48 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 |
| Brake dimensions front | - | - | 350 x 32 | - | - | - |
| Brake dimensions rear | - | - | 330 x 22 | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4292 | 4292 | 4359 | 4292 | 4292 | 4292 |
| Overall width without/including mirrors [mm] | 1780/2022 | 1780/2022 | 1780/2022 | 1780/2022 | 1780/2022 | 1780/2022 |
| Overall height [mm] | 1433 | 1433 | 1417 | 1433 | 1433 | 1433 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1542 | 1542 | 1557 | 1553 | 1553 | 1553 |
| Rear wheel track [mm] | 1541 | 1541 | 1561 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 906 | 906 | - | 906 | 906 | 906 |
| Rear overhang [mm] | 687 | 687 | - | 687 | 687 | 687 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 180 CDI | A 180 CDI BlueEFFICIENCY | A 200 CDI | A 200 CDI | A 200 CDI | A 200 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1461 | 1461 | 1796 | 1796 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 80/4000 | 80/4000 | 100/3600-4400 | 100/3600-4400 | 100/3200-4400 | 100/3200-4400 |
| Maximum torque [Nm/min-1] | 260/1750-2500 | 260/1750-2500 | 300/1600-3000 | 300/1600-3000 | 300/1400-3000 | 300/1400-3000 |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 83,0 x 83,0 | 83,0 x 83,0 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 15,5:1 | 15,5:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
| - | - |
| - |
|
| Top speed [km/h] | 190 | 190 | 210 | 210 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 11.6 | 11.3 | 9.3 | 9.2 | 9.3 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.6-5.0 | 4.2 | 5.3-5.6 | 4.8-5.0 | 5.4-5.7 | 4.7-4.9 |
| Out of town [l] | 3.6-3.8 | 3.2 | 3.7-4.0 | 3.8-4.1 | 3.5-3.8 | 3.5-3.7 |
| Combined [l] | 4.0-4.3 | 3.6 | 4.3-4.6 | 4.1-4.4 | 4.2-4.5 | 3.9-4.1 |
| CO2 emissions [g/km] | 103-111 | 92 | 111-121 | 109-116 | 109-116 | 102-108 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1425 | 1385 | 1445 | 1475 | 1455 | 1485 |
| Overall weight [kg] | 1960 | 1850 | 2010 | 2000 | 2010 | 2010 |
| Maximum trailer weight unbraked/braked [kg] | 710/1200 | - | 720/1500 | 735/1500 | 725/1500 | 740/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 341 | 341 | 341 | 341 | 341 | 341 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1157 | -/1157 | -/1157 | -/1157 | -/1157 | -/1157 |
| Boot length [mm] | 707 | 707 | 707 | 707 | 707 | 707 |
| Boot length with rear seats folded [mm] | 1247 | 1247 | 1247 | 1247 | 1247 | 1247 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | 464/- | 464/- | 464/- | 464/- | 464/- | 464/- |
| Loading edge height [mm] | 561 | 561 | 561 | 561 | 561 | 561 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 605 | 605 | 605 | 605 | 605 | 605 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 40 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.26 | 0.28 | 0.28 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 T | 195/65 R15 T | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H |
| Tyre dimensions rear | 195/65 R15 T | 195/65 R15 T | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H |
| Wheel size front | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 |
| Wheel size rear | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4292 | 4292 | 4292 | 4292 | 4292 | 4292 |
| Overall width without/including mirrors [mm] | 1780/2022 | 1780/2022 | 1780/2022 | 1780/2022 | 1780/2022 | 1780/2022 |
| Overall height [mm] | 1433 | 1433 | 1433 | 1433 | 1433 | 1433 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 906 | 906 | 906 | 906 | 906 | 906 |
| Rear overhang [mm] | 687 | 687 | 687 | 687 | 687 | 687 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 200 CDI 4MATIC | A 220 CDI | A 220 CDI 4MATIC | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 2143 | 2143 | 2143 | |||
| Maximum output / speed [kW/min-1] | 100/3200-4400 | 125/3400-4400 | 125/3400-4400 | |||
| Maximum torque [Nm/min-1] | 300/1400-3000 | 350/1400-3400 | 350/1400-3400 | |||
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | |||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | Front | 4x4 | |||
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 210 | 220 | 217 | |||
| Acceleration 0–100 km/h [s] | 9.2 | 8.2 | 8.2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.5-5.7 | 4.8-5.0 | 5.5-5.7 | |||
| Out of town [l] | 4.1-4.4 | 3.5-3.7 | 4.1-4.4 | |||
| Combined [l] | 4.6-4.9 | 4.0-4.2 | 4.6-4.9 | |||
| CO2 emissions [g/km] | 121-127 | 104-109 | 121-127 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1545 | 1485 | 1545 | |||
| Overall weight [kg] | 2060 | 2010 | 2060 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 740/1500 | 750/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 341 | 341 | 341 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1157 | -/1157 | -/1157 | |||
| Boot length [mm] | 707 | 707 | 707 | |||
| Boot length with rear seats folded [mm] | 1247 | 1247 | 1247 | |||
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | |||
| Boot height to headliner/ceiling [mm] | 464/- | 464/- | 464/- | |||
| Loading edge height [mm] | 561 | 561 | 561 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | 605 | 605 | 605 | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 56 | 50 | 56 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 205/55 R16 H | 225/45 R17 | 225/45 R17 | |||
| Tyre dimensions rear | 205/55 R16 H | 225/45 R17 | 225/45 R17 | |||
| Wheel size front | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 | 7.5J x 17 ET52.5 | |||
| Wheel size rear | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 | 7.5J x 17 ET52.5 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | |||
| Overall length [mm] | 4292 | 4292 | 4292 | |||
| Overall width without/including mirrors [mm] | 1780/2022 | 1780/2022 | 1780/2022 | |||
| Overall height [mm] | 1433 | 1433 | 1433 | |||
| Wheelbase [mm] | 2699 | 2699 | 2699 | |||
| Front wheel track [mm] | 1553 | 1553 | 1553 | |||
| Rear wheel track [mm] | 1552 | 1552 | 1552 | |||
| Forward overhang [mm] | 906 | 906 | 906 | |||
| Rear overhang [mm] | 687 | 687 | 687 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1017 | 1017 | 1017 | |||
| Headroom rear [mm] | 952 | 952 | 952 | |||
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | |||
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
