Mercedes-Benz A
Date of manufacture
4/2018 – to this day (Five-door hatchback)
2018 – to this day (Sedan)
Platform
MFA2
Manufacturing locations
Rastatt, Germany
Beijing, People's Republic of China
Uusikaupunki, Finland
Kecskemét, Hungary
Designer
Gorden Wagener
Tags
C-segment
German cars
Mercedes-Benz A is a modern car that has been manufactured since 2018 in five-door hatchback and sedan versions. The vehicle is built on the MFA2 platform and offers petrol, diesel and hybrid engines. The highest speed is achieved by the AMG 45 S 4MATIC with a maximum power of 310 kW, the best acceleration 0-100 km/h in 3.9 seconds has this version and the lowest consumption 1.3 l/100 km and emissions 30 g/km has the A 250e model. The cars have a luggage compartment volume of 355 l (five-door hatchback) and 405 l (sedan). During EURONCAP safety tests, the model received a rating of 5 out of 5 according to the 2018 method.
Car body style
Five-door hatchback
Date of manufacture
4/2018 – to this dayInternal designation
W177Sedan
Date of manufacture
2018 – to this dayInternal designation
V177Engine size
Technical data
Five-door hatchback
| A 160 | A 180 | A 180 | A 200 | A 200 | A 200 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 1332 | 1332 | 1332 | 1332 | 1332 |
| Maximum output / speed [kW/min-1] | 80/5500 | 100/5500 | 100/5500 | 120/5500 | 120/5500 | 120/5500 |
| Maximum torque [Nm/min-1] | 180/1375-3500 | 200/1460-4000 | 200/1460-4000 | 250/1620-400 | 250/1620-400 | 250/1620-400 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 |
| Compression ratio | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic |
| Drive specifications | - | - |
| - |
|
|
| Top speed [km/h] | 200 | 215 | 215 | 225 | 225 | 221 |
| Acceleration 0–100 km/h [s] | 10.9 | 9.2 | 8.8 | 8.2 | 8.0 | 8.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,5-7,4 | 7,3-7,0 | 7.4-7.0 | 7,6-7,0 | 7.4-6.5 | - |
| Out of town [l] | 5,0-4,6 | 4,8-4,3 | 4,6-4,3 | 4,8-4,3 | 4,9-4,3 | - |
| Combined [l] | 6,0-5,6 | 5,6-5,3 | 5,6-5,3 | 5,8-5,3 | 5,6-5,2 | 6.9-6.3 |
| CO2 emissions [g/km] | 137-129 | 129-121 | 128-121 | 133-122 | 128-120 | 157-143 |
| Low speed [l] | 8.9-8.4 | 9.2-8.1 | 9.2-8.1 | 9.2-7.8 | 9.2-7.8 | 10.0-9.7 |
| Medium speed [l] | 6.6-5.9 | 6.5-5.8 | 6.5-5.8 | 6.6-5.7 | 6.6-5.7 | 7.2-6.6 |
| High speed [l] | 5.6-5.0 | 5.7-5.0 | 5.7-5.0 | 5.8-5.0 | 5.8-5.0 | 6.3-5.5 |
| Extra high speed [l] | 6.6-5.7 | 6.7-5.8 | 6.7-5.8 | 6.7-5.8 | 6.7-5.8 | 7.2-6.0 |
| Combined speed [l] | 6,7-5,8 | 6,7-5,8 | 6,7-5,8 | 6,6-5,9 | 6,6-5,9 | 7,3-6,4 |
| CO2 emissions [g/km] | 153-133 | 151-133 | 151-133 | 153-133 | 153-133 | 166-146 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1350 | 1350 | 1365 | 1355 | 1375 | 1450 |
| Overall weight [kg] | 1860 | 1865 | 1880 | 1870 | 1885 | 1375 |
| Maximum trailer weight unbraked/braked [kg] | 675/1300 | 675/1400 | 680/1400 | 675/1600 | 685/1600 | 725/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 355 | 355 | 355 | 355 | 355 | 355 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 840/1195 | 840/1195 | 840/1195 | 840/1195 | 840/1195 | 840/1195 |
| Boot length [mm] | 822 | 822 | 822 | 822 | 822 | 822 |
| Boot length with rear seats folded [mm] | 1327 | 1327 | 1327 | 1327 | 1327 | 1327 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | -/734 | -/734 | -/734 | -/734 | -/734 | -/734 |
| Loading edge height [mm] | 672 | 672 | 672 | 672 | 672 | 672 |
| Height of the open boot door [mm] | 1997 | 1997 | 1997 | 1997 | 1997 | 1997 |
| Boot opening height [mm] | 618 | 618 | 618 | 618 | 618 | 618 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 43 | 43 | 43 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.25 | 0.25 | 0.27 | 0.25 | 0.271 | 0.25 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |

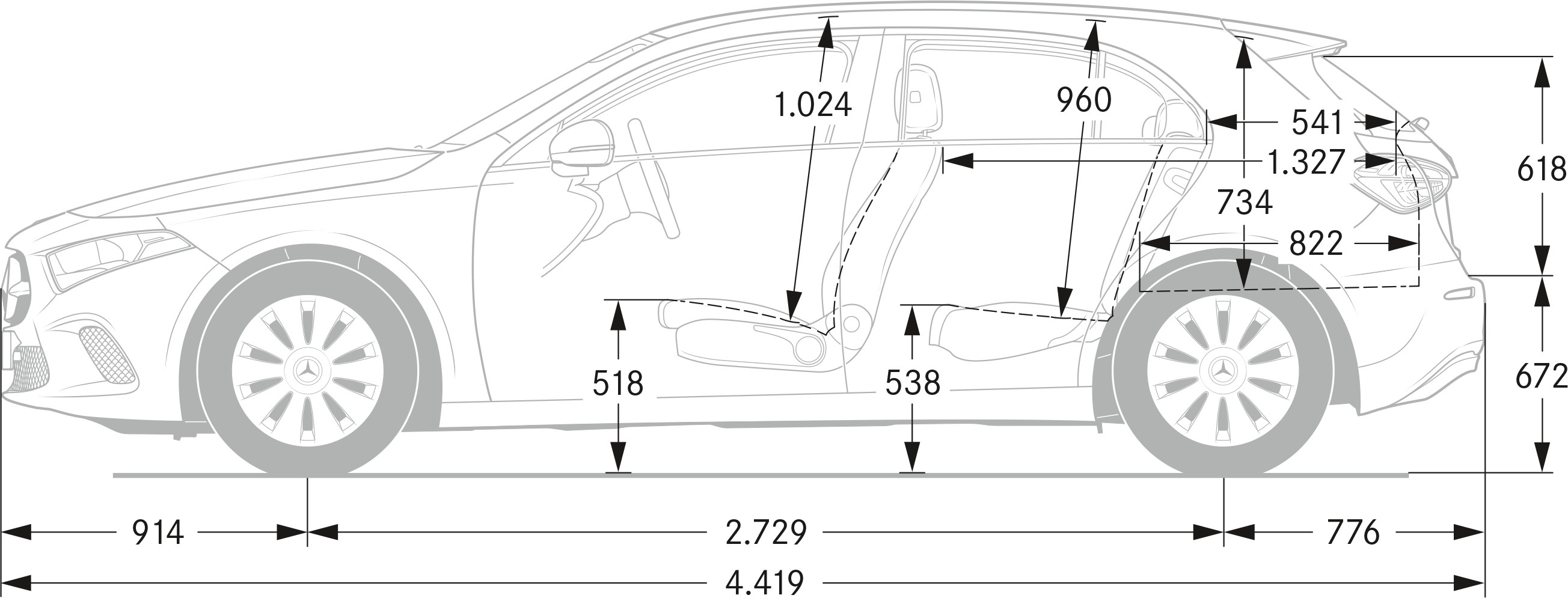

| Overall length [mm] | 4419 | 4419 | 4419 | 4419 | 4419 | 4419 |
| Overall width without/including mirrors [mm] | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 |
| Overall height [mm] | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 776 | 776 | 776 | 776 | 776 | 776 |
| Clearance [mm] | 104 | 104 | 104 | 104 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Approach angle rear [°] | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Front elbow/shoulder width [mm] | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 |
| Rear elbow/shoulder width [mm] | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 220 4MATIC | A 250 | A 250 4MATIC | AMG 35 4MATIC | AMG 45 4MATIC | AMG 45 S 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | - | - | - | from 2019 to | from 2019 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 140/5800 | 165/5500 | 165/5500 | 225/5800-6100 | 285/6500 | 310/6750 |
| Maximum torque [Nm/min-1] | 300/1600 | 350/1800 | 350/1800-400 | 400/3000-4000 | 480/4750-5000 | 500/5000-5250 |
| Bore and stroke [mm x mm] | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.0:1 | 10.0:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 235 | 250 | 250 | 250 | 250 | 270 |
| Acceleration 0–100 km/h [s] | 6,9 | 6.2 | 6.2 | 4.7 | 4.0 | 3.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,0-8,5 | 8,3-7,8 | 9,1-8,6 | 9,5-9,3 | 10,5-10,3 | 10,5-10,3 |
| Out of town [l] | 5,6-5,0 | 5,3-4,8 | 5,7-5,1 | 6,2-6,1 | 7,2-7,1 | 7,2-7,1 |
| Combined [l] | 6,9-6,3 | 6,4-5,9 | 7,0-6,4 | 7,4-7,3 | 8,4-8,3 | 8,4-8,3 |
| CO2 emissions [g/km] | 157-144 | 146-136 | 160-147 | 169-167 | 192-189 | 192 |
| Low speed [l] | - | 10.2-9.9 | 10.6-10.2 | 11.8-11.4 | 13.3-13.1 | 13.4-13.1 |
| Medium speed [l] | - | 7.5-6.9 | 7.9-7.1 | 8.4-8.0 | 9.0-8.7 | 9.1-8.7 |
| High speed [l] | - | 6.4-5.7 | 6.8-6.0 | 7.4-6.9 | 7.8-7.4 | 7.8-7.5 |
| Extra high speed [l] | - | 7.3-6.3 | 7.6-6.4 | 8.4-7.8 | 8.6-8.2 | 8.7-8.2 |
| Combined speed [l] | - | 7,5-6,7 | 7,9-6.9 | 8,6-8,0 | 9,1-8,7 | 9,1-8,7 |
| CO2 emissions [g/km] | - | 170-151 | 178-157 | 195-183 | 207-198 | 208-198 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1506 | 1445-1456 | 1515 | 1555-1574 | 1620-1622 | 1635-1642 |
| Overall weight [kg] | 2021 | 1965 | 2025 | 2055-2074 | 2100 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | - | 725/1600 | 750/1800 | 750/1800 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 355 | 355 | 355 | 355 | 355 | 355 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 840/1195 | 840/1195 | 840/1195 | 840/1195 | 840/1195 | 840/1195 |
| Boot length [mm] | 822 | 822 | 822 | 822 | 822 | 822 |
| Boot length with rear seats folded [mm] | 1327 | 1327 | 1327 | 1327 | 1327 | 1327 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | -/734 | -/734 | -/734 | -/734 | -/734 | -/734 |
| Loading edge height [mm] | 672 | 672 | 672 | 637 | 640 | 644 |
| Height of the open boot door [mm] | 1997 | 1997 | 1997 | 1957 | 1965 | 1969 |
| Boot opening height [mm] | 618 | 618 | 618 | 618 | 618 | 618 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 43 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | 0.26 | 0.26 | 0.323 | 0.348 | 0.351 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R17 | 205/55 R17 | 205/55 R17 | 235/40 R18 | 235/35 R19 | 235/35 R19 |
| Tyre dimensions rear | 205/55 R17 | 205/55 R17 | 205/55 R17 | 235/40 R18 | 235/35 R19 | 235/35 R19 |
| Wheel size front | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 8.0J x 18 | 8.0J x 19 | 8.5J x 19 |
| Wheel size rear | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 8.0J x 18 | 8.0J x 19 | 8.5J x 19 |
| Brake dimensions front | - | - | - | 350 | 350 x 34 | 3360 x 36 |
| Brake dimensions rear | - | - | - | 330 | 330 x 22 | 330 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4419 | 4419 | 4419 | 4436 | 4445 | 4445 |
| Overall width without/including mirrors [mm] | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1850/1992 | 1850/1992 |
| Overall height [mm] | 1440 | 1440 | 1440 | 1405 | 1407 | 1412 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1573 | 1597 | 1597 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1570 | 1558 | 1558 |
| Forward overhang [mm] | 914 | 914 | 914 | 917 | 926 | 926 |
| Rear overhang [mm] | 776 | 776 | 776 | 790 | 790 | 790 |
| Clearance [mm] | 104 | 104 | 104 | 81 | 94 | 97 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 10.8 | 10.1 | 10.3 |
| Approach angle rear [°] | 17.2 | 17.2 | 17.2 | 11.9 | 13.1 | 13.6 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 8.3 | 8.7 | 9.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Front elbow/shoulder width [mm] | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 |
| Rear elbow/shoulder width [mm] | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 250e | A 160d | A 180d | A 180d | A 180d | A 200d | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2020 | from to 2020 | from 2020 to | from 2020 to | - |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 1461 | 1461 | 1950 | 1950 | 1950 |
| Maximum output / speed [kW/min-1] | 118 combustion 75 el. 160 total | 70 | 85/4000 | 85/3400-4400 | 85/3400-4400 | 110/3400-4400 |
| Maximum torque [Nm/min-1] | 230/1620-4000 combustion 330 el. 450 total | 240 | 260/1750-2750 | 280/1300-2600 | 280/1300-2600 | 320/1400-3200 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 76.0 x 80.5 | 76.0 x 80.5 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 10.6:1 | 15.0:1 | 15.1:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - | - | - |
| - |
| Top speed [km/h] | 235-240 [140 el.] | 193 | 202 | 202 | 202 | 220 |
| Acceleration 0–100 km/h [s] | 6.6 | 12.4 | 10.6 | 10.0 | 9.5 | 8,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 4,9-4,7 | 5,0-4,7 | - | 6.5-5.3 | 5,4-4,9 |
| Out of town [l] | - | 4,2-3,6 | 4,1-3,6 | - | 4.0-3.8 | 3,9-3,5 |
| Combined [l] | 1,6-1,4 [15.4-14.7 kWh] | 4,5-4,0 | 4,3-4,0 | - | 4.9-4.4 | 4,4-4,0 |
| CO2 emissions [g/km] | 36-32 | 118-106 | 113-106 | - | 128-115 | 116-107 |
| Low speed [l] | - | - | - | 7.5-6.8 | 7.5-6.8 | 7.0-6.4 |
| Medium speed [l] | - | - | - | 5.9-4.8 | 5.9-4.8 | 5.7-4.9 |
| High speed [l] | - | - | - | 4.8-4.1 | 4.8-4.1 | 4.7-4.0 |
| Extra high speed [l] | - | - | - | 5.5-4.6 | 5.5-4.6 | 5.4-4.6 |
| Combined speed [l] | 1.3-1.0 [19.1-17.3 kWh] | - | - | 5,6-4,8 | 5,6-4,8 | 5,5-4,7 |
| CO2 emissions [g/km] | 30-23 | - | - | 146-126 | 146-126 | 144-125 |
| Emission standard | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 15.6 kWh | - | - | - | - | - |
| Range with fully charged battery [km] | 56-69 | - | - | - | - | - |
| Charging time |
| - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | 150 | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1680-1700 | 1426 | 1426 | 1460 | 1490 | 1460 |
| Overall weight [kg] | 2155-2175 | 1921 | 1921 | 1965 | 1995 | 1965 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | - | - | 730/1400 | 745/1400 | 730/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 310 | 355 | 355 | 355 | 355 | 355 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 780/1125 | 840/1195 | 840/1195 | 840/1195 | 840/1195 | 840/1195 |
| Boot length [mm] | 809 | 822 | 822 | 822 | 822 | 822 |
| Boot length with rear seats folded [mm] | 1327 | 1327 | 1327 | 1327 | 1327 | 1327 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | -/687 | -/734 | -/734 | -/734 | -/734 | -/734 |
| Loading edge height [mm] | 684 | 672 | 672 | 672 | 672 | 672 |
| Height of the open boot door [mm] | 2008 | 1997 | 1997 | 1997 | 1997 | 1997 |
| Boot opening height [mm] | 615 | 618 | 618 | 618 | 618 | 618 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 35 | 43 | 43 | 43 | 43 | 43 |
| AdBlue tank volume [l] | - | 23.8 | 23.8 | 23.8 | 23.8 | 23.8 |
| Air resistance [Cd] | 0.27 | - | - | - | 0.25 | 0.25 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | - | twist beam axle with trailing arms | twist beam axle with trailing arms | - | - | - |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4419 | 4419 | 4419 | 4419 | 4419 | 4419 |
| Overall width without/including mirrors [mm] | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 |
| Overall height [mm] | 1452 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1563 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Rear wheel track [mm] | 1558 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 776 | 776 | 776 | 776 | 776 | 776 |
| Clearance [mm] | 112 | 104 | 104 | 104 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.2 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Approach angle rear [°] | 19.7 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 |
| Transition angle [°] | 9.7 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Front elbow/shoulder width [mm] | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 |
| Rear elbow/shoulder width [mm] | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 200d | A 200d 4MATIC | A 220d | A 220d 4MATIC | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 1950 | ||
| Maximum output / speed [kW/min-1] | 110/3400-4400 | 110/3400-4400 | 140/3800 | 140/3800 | ||
| Maximum torque [Nm/min-1] | 320/1400-3200 | 320/1400-3200 | 400/1600-2600 | 400/1600-2600 | ||
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | ||
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | 4x4 | Front | 4x4 | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 220 | 217 | 235 | 233 | ||
| Acceleration 0–100 km/h [s] | 8,1 | 8.3 | 7.0 | 6.8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6.2-5.2 | 6,0-5,8 | 5,7-5,1 | 6,3-5,7 | ||
| Out of town [l] | 4.0-3.7 | 4,4-3,9 | 4,1-3,7 | 4,3-3,9 | ||
| Combined [l] | 4.8-4.3 | 5,0-4,6 | 4,6-4,2 | 5,0-4,6 | ||
| CO2 emissions [g/km] | 127-112 | 132-121 | 122-111 | 131-122 | ||
| Low speed [l] | 7.1-6.4 | 7.6-7.3 | 7.2-6.7 | 7.7-7.4 | ||
| Medium speed [l] | 5.7-4.9 | 5.9-5.4 | 5.7-5.3 | 5.8-5.5 | ||
| High speed [l] | 4.7-4.0 | 4.9-4.2 | 4.7-4.2 | 4.9-4.3 | ||
| Extra high speed [l] | 5.4-4.6 | 5.7-4.8 | 5.5-4.7 | 5.6-4.7 | ||
| Combined speed [l] | 5,5-4,7 | 5,7-5,0 | 5,5-4.9 | 5,7-5,1 | ||
| CO2 emissions [g/km] | 144-125 | 150-132 | 145-129 | 150-134 | ||
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1490 | 1555 | 1520 | 1575 | ||
| Overall weight [kg] | 1995 | 2055 | 2015 | 2070 | ||
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 750/1800 | 750/1600 | 750/1800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 355 | 355 | 355 | 355 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 840/1195 | 840/1195 | 840/1195 | 840/1195 | ||
| Boot length [mm] | 822 | 822 | 822 | 822 | ||
| Boot length with rear seats folded [mm] | 1327 | 1327 | 1327 | 1327 | ||
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | ||
| Boot height to headliner/ceiling [mm] | -/734 | -/734 | -/734 | -/734 | ||
| Loading edge height [mm] | 672 | 672 | 672 | 672 | ||
| Height of the open boot door [mm] | 1997 | 1997 | 1997 | 1997 | ||
| Boot opening height [mm] | 618 | 618 | 618 | 618 | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 43 | 51 | 43 | 51 | ||
| AdBlue tank volume [l] | 23.8 | 23.8 | 23.8 | 23.8 | ||
| Air resistance [Cd] | 0.25 | 0.26 | 0.26 | 0.26 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | - | - | - | ||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | ||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | ||
| Overall length [mm] | 4419 | 4419 | 4419 | 4419 | ||
| Overall width without/including mirrors [mm] | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | ||
| Overall height [mm] | 1440 | 1440 | 1440 | 1440 | ||
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | ||
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | ||
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | ||
| Forward overhang [mm] | 914 | 914 | 914 | 914 | ||
| Rear overhang [mm] | 776 | 776 | 776 | 776 | ||
| Clearance [mm] | 104 | 104 | 104 | 104 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 13.4 | ||
| Approach angle rear [°] | 17.2 | 17.2 | 17.2 | 17.2 | ||
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.4 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | ||
| Headroom rear [mm] | 960 | 960 | 960 | 960 | ||
| Front elbow/shoulder width [mm] | 1457/1400 | 1457/1400 | 1457/1400 | 1457/1400 | ||
| Rear elbow/shoulder width [mm] | 1446/1372 | 1446/1372 | 1446/1372 | 1446/1372 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Sedan
| A 180 | A 180 | A 200 | A 200 | A 200 4MATIC | A 220 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 1332 | 1332 | 1332 | 1332 | 1991 |
| Maximum output / speed [kW/min-1] | 100/5500 | 100/5500 | 120/5500 | 120/5500 | 120/5500 | 140/5800 |
| Maximum torque [Nm/min-1] | 200/1460-4000 | 200/1460-4000 | 250/1620-400 | 250/1620-400 | 250/1620-400 | 300/1600 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 83.0 x 92.0 |
| Compression ratio | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 216 | 216 | 230 | 230 | 226 | 237 |
| Acceleration 0–100 km/h [s] | 9.3 | 8.9 | 8.3 | 8.1 | 8.6 | 7,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,5-7,0 | 7,4-7,0 | 7,6-7,0 | 7.4-6.5 | 8.2-7.7 | 9,2-8,5 |
| Out of town [l] | 4,7-4,2 | 4,5-4,2 | 4,7-4,2 | 4,8-4.2 | 5.2-4.7 | 5,6-5,0 |
| Combined [l] | 5,7-5,2 | 5,5-5,2 | 5,7-5,2 | 5,5-5.2 | 6.2-5.8 | 6,9-6,3 |
| CO2 emissions [g/km] | 130-120 | 126-120 | 131-120 | 127-119 | 143-132 | 157-144 |
| Low speed [l] | 9.2-8.1 | 9.2-8.1 | 9.2-7.9 | 9.2-7.9 | 10.2-9.7 | - |
| Medium speed [l] | 6.5-5.8 | 6.5-5.8 | 6.6-5.7 | 6.6-5.7 | 7.2-6.6 | - |
| High speed [l] | 5.7-4.9 | 5.7-4.9 | 5.8-4.9 | 5.8-4.9 | 6.2-5.3 | - |
| Extra high speed [l] | 6.5-5.6 | 6.5-5.6 | 6.6-5.6 | 6.6-5.6 | 7.0-5.6 | - |
| Combined speed [l] | 6,6-5,8 | 6,6-5,8 | 6.6-5.8 | 6.6-5.8 | 7,2-6,3 | - |
| CO2 emissions [g/km] | 150-131 | 150-131 | 150-131 | 150-131 | 164-143 | - |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1365 | 1380 | 1375 | 1390 | 1470 | 1527 |
| Overall weight [kg] | 1890 | 1905 | 1900 | 1915 | 1395 | 2057 |
| Maximum trailer weight unbraked/braked [kg] | 680/1400 | 690/1400 | 685/1600 | 695/1600 | 735/1800 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 405 | 405 | 405 | 405 | 405 | 405 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 674 | 674 | 674 | 674 | 674 | 674 |
| Height of the open boot door [mm] | 1724 | 1724 | 1724 | 1724 | 1724 | 1724 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 43 | 43 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.244 | 0.244 | 0.244 | 0.244 | 0.23 | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | four-link |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/55 R17 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4549 | 4549 | 4549 | 4549 | 4549 | 4549 |
| Overall width without/including mirrors [mm] | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 |
| Overall height [mm] | 1446 | 1446 | 1446 | 1446 | 1446 | 1446 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 906 | 906 | 906 | 906 | 906 | 906 |
| Clearance [mm] | 104 | 104 | 104 | 104 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Approach angle rear [°] | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 |
| Rear elbow/shoulder width [mm] | 1372/1446 | 1372/1446 | 1372/1446 | 1372/1446 | 1372/1446 | 1372/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 250 | A 250 4MATIC | AMG 35 4MATIC | A 250e | A 160d | A 180d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2020 | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1332 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 165/5500 | 165/5500 | 225/5800-6100 | 118 combustion 75 el. 160 total | 70 | 85/4000 |
| Maximum torque [Nm/min-1] | 350/1800 | 350/1800-400 | 400/3000-4000 | 230/1620-4000 combustion 330 el. 450 total | 240 | 260/1750-2750 |
| Bore and stroke [mm x mm] | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 72.2 x 81.4 | 76.0 x 80.5 | 76.0 x 80.5 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.0:1 | 10.6:1 | 15.0:1 | 15.1:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 250 | 250 | 250 | 240 [140 el.] | 196 | 216 |
| Acceleration 0–100 km/h [s] | 6.3 | 6.3 | 4.8 | 6.7 | 12,5 | 10,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,3-7,9 | 9,2-8,5 | 9,5-9,3 | - | 5,0-4,7 | 5,1-4,7 |
| Out of town [l] | 5,1-4,7 | 5,6-5,0 | 6,3-6,0 | - | 4,0-3,5 | 4,0-3,5 |
| Combined [l] | 6,3-5,8 | 6,9-6,3 | 7,4-7,2 | 1,5-1,4 [14.8-14.7 kWh] | 4,4-4,0 | 4,4-4,0 |
| CO2 emissions [g/km] | 144-134 | 157-144 | 171-165 | 35-31 | 116-105 | 117-105 |
| Low speed [l] | 10.4-10.0 | 10.8-9.9 | 12.0-11.8 | - | - | - |
| Medium speed [l] | 7.5-6.8 | 7.8-7.0 | 8.6-8.1 | - | - | - |
| High speed [l] | 6.3-5.7 | 6.6-5.8 | 7.5-6.9 | - | - | - |
| Extra high speed [l] | 7.0-6.1 | 7.3-6.1 | 8.1-7.5 | - | - | - |
| Combined speed [l] | 7,5-6,6 | 7,6-6,7 | 8,5-8.0 | 1.3-1.0 | - | - |
| CO2 emissions [g/km] | 169-150 | 174-152 | 194-182 | 29-22 | - | - |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 15.6 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | 61-69 | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | 150 | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1470 | 1530 | 1570-1610 | 1700 | 1441 | 1441 |
| Overall weight [kg] | 1995 | 2055 | 2080-2120 | 2175 | 1946 | 1946 |
| Maximum trailer weight unbraked/braked [kg] | 735/1600 | 750/1800 | 750/1800 | 750/1600 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 100/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 405 | 405 | 405 | 345 | 395 | 395 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 674 | 674 | 615 | 683 | 674 | 674 |
| Height of the open boot door [mm] | 1724 | 1724 | 1692 | 1734 | 1724 | 1724 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 51 | 51 | 35 | 43 | 43 |
| AdBlue tank volume [l] | - | - | - | - | 23.8 | 23.8 |
| Air resistance [Cd] | 0.247 | 0.248 | 0.278 | 0.24 | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R17 | 205/55 R17 | 235/40 R18 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/55 R17 | 205/55 R17 | 235/40 R18 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 17 | 6.5J x 17 | 8.0J x 18 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 17 | 6.5J x 17 | 8.0J x 18 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | 350 | - | - | - |
| Brake dimensions rear | - | - | 330 | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4549 | 4549 | 4559 | 4549 | 4549 | 4549 |
| Overall width without/including mirrors [mm] | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 |
| Overall height [mm] | 1446 | 1446 | 1411 | 1451 | 1446 | 1446 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1567 | 1567 | 1573 | 1563 | 1567 | 1567 |
| Rear wheel track [mm] | 1558 | 1558 | 1570 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | 914 | 914 | 917 | 914 | 914 | 914 |
| Rear overhang [mm] | 906 | 906 | 913 | 906 | 906 | 906 |
| Clearance [mm] | 104 | 104 | 92 | 112 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 10.8 | 15.2 | 13.4 | 13.4 |
| Approach angle rear [°] | 15.5 | 15.5 | 11.1 | 17.4 | 15.5 | 15.5 |
| Transition angle [°] | 9.4 | 9.4 | 8.6 | 9.7 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 |
| Rear elbow/shoulder width [mm] | 1372/1446 | 1372/1446 | 1372/1446 | 1372/1446 | 1372/1446 | 1372/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 180d | A 180d | A 200d | A 200d | A 200d 4MATIC | A 220d | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 |
| Maximum output / speed [kW/min-1] | 85/3400-4400 | 85/3400-4400 | 110/3400-4400 | 110/3400-4400 | 110/3400-4400 | 140/3800 |
| Maximum torque [Nm/min-1] | 280/1300-2600 | 280/1300-2600 | 320/1400-3200 | 320/1400-3200 | 320/1400-3200 | 400/1600-2600 |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 206 | 206 | 227 | 227 | 227 | 246 |
| Acceleration 0–100 km/h [s] | 10.2 | 9.7 | 8.7 | 8.2 | 8.4 | 7,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.6-6.2 | 6.4-5.4 | 6,2-6,1 | 6,2-5.3 | 6,0-5,8 | 5,7-5,5 |
| Out of town [l] | 4.0-3.7 | 4.0-3.7 | 4,1-3,7 | 4,0-3,7 | 4,2-3,7 | 4,0-3,7 |
| Combined [l] | 5.0-4.6 | 4.8-4.4 | 4,9-4,6 | 4,8-4,3 | 4,9-4,5 | 4,6-4,3 |
| CO2 emissions [g/km] | 131 | 127-116 | 129-121 | 126-112 | 129-119 | 122-114 |
| Low speed [l] | 7.5-6.8 | 7.5-6.8 | 7.1-6.4 | 7.1-6.4 | 7.6-7.3 | 7.2-6.7 |
| Medium speed [l] | 5.9-4.8 | 5.9-4.8 | 5.7-4.9 | 5.7-4.9 | 5.9-5.3 | 5.7-5.3 |
| High speed [l] | 4.7-4.0 | 4.7-4.0 | 4.6-4.0 | 4.6-4.0 | 4.8-4.1 | 4.6-4.1 |
| Extra high speed [l] | 5.4-4.5 | 5.4-4.5 | 5.2-4.4 | 5.2-4.4 | 5.4-4.5 | 5.3-4.6 |
| Combined speed [l] | 5.5-4.7 | 5.5-4.7 | 5.4-4.7 | 5.4-4.7 | 5,6-4.9 | 5,4-4,9 |
| CO2 emissions [g/km] | 144-124 | 144-124 | 141-123 | 141-123 | 147-129 | 142-127 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1480 | 1510 | 1480 | 1510 | 1580 | 1540 |
| Overall weight [kg] | 1405 | 2010 | 1980 | 2010 | 2085 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 740/1400 | 750/1400 | 740/1600 | 750/1600 | 750/1800 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 395 | 395 | 395 | 395 | 395 | 395 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 674 | 674 | 674 | 674 | 674 | 674 |
| Height of the open boot door [mm] | 1724 | 1724 | 1724 | 1724 | 1724 | 1724 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 43 | 43 | 51 | 43 |
| AdBlue tank volume [l] | 23.8 | 23.8 | 23.8 | 23.8 | 23.8 | 23.8 |
| Air resistance [Cd] | 0.23 | 0.23 | 0.23 | 0.23 | 0.227 | 0.23 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | four-link | four-link |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4549 | 4549 | 4549 | 4549 | 4549 | 4549 |
| Overall width without/including mirrors [mm] | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 | 1796/1992 |
| Overall height [mm] | 1446 | 1446 | 1446 | 1446 | 1446 | 1446 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 906 | 906 | 906 | 906 | 906 | 906 |
| Clearance [mm] | 104 | 104 | 104 | 104 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Approach angle rear [°] | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 |
| Rear elbow/shoulder width [mm] | 1372/1446 | 1372/1446 | 1372/1446 | 1372/1446 | 1372/1446 | 1372/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| A 220d 4MATIC | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1950 | |||||
| Maximum output / speed [kW/min-1] | 140/3800 | |||||
| Maximum torque [Nm/min-1] | 400/1600-2600 | |||||
| Bore and stroke [mm x mm] | 82.0 x 92.3 | |||||
| Compression ratio | 15.5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 240 | |||||
| Acceleration 0–100 km/h [s] | 6.9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6,2-5,7 | |||||
| Out of town [l] | 4,1-3,8 | |||||
| Combined [l] | 4,9-4,5 | |||||
| CO2 emissions [g/km] | 128-118 | |||||
| Low speed [l] | 7.7-7.4 | |||||
| Medium speed [l] | 5.8-5.5 | |||||
| High speed [l] | 4.8-4.2 | |||||
| Extra high speed [l] | 5.3-4.5 | |||||
| Combined speed [l] | 5,6-5,0 | |||||
| CO2 emissions [g/km] | 148-131 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1595 | |||||
| Overall weight [kg] | 2100 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 395 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 674 | |||||
| Height of the open boot door [mm] | 1724 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 51 | |||||
| AdBlue tank volume [l] | 23.8 | |||||
| Air resistance [Cd] | 0.23 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | four-link | |||||
| Tyre dimensions front | 205/60 R16 | |||||
| Tyre dimensions rear | 205/60 R16 | |||||
| Wheel size front | 6.5J x 16 | |||||
| Wheel size rear | 6.5J x 16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.0/- | |||||
| Overall length [mm] | 4549 | |||||
| Overall width without/including mirrors [mm] | 1796/1992 | |||||
| Overall height [mm] | 1446 | |||||
| Wheelbase [mm] | 2729 | |||||
| Front wheel track [mm] | 1567 | |||||
| Rear wheel track [mm] | 1558 | |||||
| Forward overhang [mm] | 914 | |||||
| Rear overhang [mm] | 906 | |||||
| Clearance [mm] | 104 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 13.4 | |||||
| Approach angle rear [°] | 15.5 | |||||
| Transition angle [°] | 9.4 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1024 | |||||
| Headroom rear [mm] | 994 | |||||
| Front elbow/shoulder width [mm] | 1400/1457 | |||||
| Rear elbow/shoulder width [mm] | 1372/1446 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
