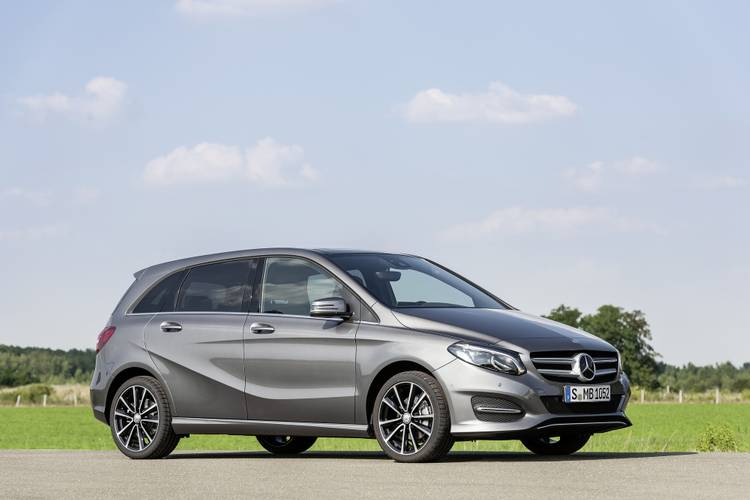

Mercedes-Benz B
Date of manufacture
9/2014 – 2018 (MPV)
Platform
MFA
Manufacturing locations
Rastatt, Germany
Kecskemét, Hungary
Designer
Mark Fetherston
Tags
Mid-size MPV
German cars
The Mercedes-Benz B MPV is the only body variant of this vehicle, which was released to the market in 2014. The car can be manufactured in Germany or Hungary and is built on the MFA platform. The engine range includes petrol, diesel and electric power units with a maximum power of 155 kW (B250 4MATIC). The highest speed is achieved by the B250 (240 km/h) and the best acceleration 0-100 km/h in 6.5 seconds is achieved by the B250 4MATIC models. The most economical version is the B180 d BlueEFFICIENCY with a combined consumption of 3.6 l/100 km and CO2 emissions of 94 g/km. The trunk volume is 488 liters. In 2011, this car received a 5 out of 5 rating in safety tests according to EURONCAP.
Car body style
MPV
after upgrade (facelift)
Date of manufacture
9/2014 – 2018Internal designation
W246
Technical data
MPV
| B160 | B160 | B180 | B180 BlueEFFICIENCY | B180 | B200 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1595 | 1595 |
| Maximum output / speed [kW/min-1] | 75/4500-6000 | 75/4500-6000 | 90/5000 | 90/5000 | 90/5000 | 115/5300 |
| Maximum torque [Nm/min-1] | 180/1200-3500 | 180/1200-3500 | 200/1250-4000 | 200/1250-4000 | 200/1250-4000 | 250/1250-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 190 | 190 | 200 | 190 | 200 | 220 |
| Acceleration 0–100 km/h [s] | 10.7 | 10.6 | 9.0 | 9.0 | 8.7 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.9-7.0 | 7.4-7.6 | 7.0 | 6.9-7.0 | 7.4-7.6 |
| Out of town [l] | 4.4-4.6 | 4.5-4.8 | 4.5-4.8 | 4.2 | 4.5-4.8 | 4.6-4.8 |
| Combined [l] | 5.5-5.6 | 5.4-5.6 | 5.6-5.8 | 5.2 | 5.4-5.6 | 5.7-5.8 |
| CO2 emissions [g/km] | 126-130 | 125-130 | 129-135 | 122 | 125-130 | 130-135 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1425 | 1395 | 1395 | 1425 | 1395 |
| Overall weight [kg] | 1960 | 1960 | 1960 | 1960 | 1950 | 1960 |
| Maximum trailer weight unbraked/braked [kg] | 695/1000 | 710/1000 | 695/1200 | 695/1200 | 710/1200 | 695/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 488 | 488 | 488 | 488 | 488 | 488 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 |
| Boot length [mm] | 744 | 744 | 744 | 744 | 744 | 744 |
| Boot length with rear seats folded [mm] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | 538 | 538 | 538 | 538 | 538 | 538 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.27 | 0.26 | 0.25 | 0.27 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 205/55 R16V |
| Tyre dimensions rear | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 205/55 R16V |
| Wheel size front | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 16 ET49 |
| Wheel size rear | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 16 ET49 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4393 | 4393 | 4393 | 4393 | 4393 | 4393 |
| Overall width without/including mirrors [mm] | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Forward overhang [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 780 | 780 | 780 | 780 | 780 | 780 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1047 | 1047 | 1047 | 1047 | 1047 | 1047 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 |
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B200 | B200 c | B200 c | B220 4MATIC | B250 | B250 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1991 | 1991 | 1991 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 115/5300 | 115/5000 | 115/5000 | 135/5500 | 155/5500 | 155/5500 |
| Maximum torque [Nm/min-1] | 250/1250-4000 | 270/1250-4000 | 270/1250-4000 | 300/1200-4000 | 350/1200-4000 | 350/1200-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,3:1 | 11,0:1 | 11,0:1 | 9,8:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 220 | 200 | 200 | 225 | 240 | 240 |
| Acceleration 0–100 km/h [s] | 7.9 | 9.2 | 9.1 | 7.0 | 6.6 | 6.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.9-7.0 | 6.0 [kg] | 5.6-5.7 [kg] | 8.4 | 8.6-8.8 | 8.5-8.6 |
| Out of town [l] | 4.5-4.8 | 3.4-3.5 [kg] | 3.5 [kg] | 5.4-5.7 | 5.3-5.5 | 4.6-4.7 |
| Combined [l] | 5.4-5.6 | 4.4 [kg] | 4.2-4.3 [kg] | 6.5-6.7 | 6.6-6.8 | 6.1 |
| CO2 emissions [g/km] | 125-130 | 117-119 | 115-117 | 151-156 | 152-157 | 141-143 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1425 | 1505 | 1535 | 1505 | 1440 | 1465 |
| Overall weight [kg] | 1950 | 2020 | 2050 | 2030 | 1990 | 1990 |
| Maximum trailer weight unbraked/braked [kg] | 710/1400 | 750/1500 | 750/1500 | 750/1500 | 720/1500 | 730/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 488 | 501 | 501 | 488 | 488 | 488 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1547 | -/1456 | -/1456 | -/1547 | -/1547 | -/1547 |
| Boot length [mm] | 744 | 744 | 744 | 744 | 744 | 744 |
| Boot length with rear seats folded [mm] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | 538 | 538 | 538 | 538 | 538 | 538 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 12 [20 kg] | 12 [20 kg] | 56 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.3 | 0.3 | 0.31 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16V | 205/55 R16 91H | 205/55 R16 91H | 205/55 R16 | 225/45 R17 V | 225/45 R17 V |
| Tyre dimensions rear | 205/55 R16V | 205/55 R16 91H | 205/55 R16 91H | 205/55 R16 | 225/45 R17 V | 225/45 R17 V |
| Wheel size front | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 | 7.5J x 17 ET52.5 |
| Wheel size rear | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 | 7.5J x 17 ET52.5 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4393 | 4359 | 4359 | 4393 | 4393 | 4393 |
| Overall width without/including mirrors [mm] | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 |
| Overall height [mm] | 1557 | 1590 | 1590 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1552 | 1536 | 1536 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1549 | 1542 | 1542 | 1549 | 1549 | 1549 |
| Forward overhang [mm] | 914 | 886 | 886 | 914 | 914 | 914 |
| Rear overhang [mm] | 780 | 773 | 773 | 780 | 780 | 780 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1047 | 1013 | 1013 | 1047 | 1047 | 1047 |
| Headroom rear [mm] | 985 | 956 | 956 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 |
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B250 4MATIC | B250 e | B160 d | B160 d | B180 d | B180 d BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | - | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1991 | - | 1461 | 1461 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 155/5500 | 132/9900-12500 | 66/2750-4000 | 66/2750-4000 | 80/4000 | 80/4000 |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 340 | 240/1700-2500 | 240/1700-2500 | 260/1750-2500 | 260/1750-2500 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | - | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9,8:1 | - | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - |
| - | - |
| Top speed [km/h] | 235 | 160 | 180 | 180 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 6.5 | 7.9 | 14.0 | 13.8 | 11.6 | 11.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | - | 4.6-4.9 | 4.4-4.7 | 4.6-4.9 | 4.1 |
| Out of town [l] | 5.5-5.7 | - | 3.6-4.0 | 3.7-4.1 | 3.6-4.0 | 3.3 |
| Combined [l] | 6.6-6.7 | - | 4.0-4.4 | 4.0-4.3 | 4.0-4.4 | 3.6 |
| CO2 emissions [g/km] | 154-156 | - | 104-113 | 104-113 | 104-113 | 94 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 28 kWh | - | - | - | - |
| Range with fully charged battery [km] | - | 200 | - | - | - | - |
| Charging time | - |
| - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1725 | 1420 | 1450 | 1420 | 1410 |
| Overall weight [kg] | 2030 | 1725 | 1985 | 1985 | 1985 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | - | 710/1200 | 725/1200 | 710/1200 | 715/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 488 | 501 | 488 | 488 | 488 | 488 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1547 | -/1456 | -/1547 | -/1547 | -/1547 | -/1547 |
| Boot length [mm] | 744 | 744 | 744 | 744 | 744 | 744 |
| Boot length with rear seats folded [mm] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | 538 | 538 | 538 | 538 | 538 | 538 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 56 | - | 50 | 50 | 50 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.28 | 0.27 | 0.27 | 0.27 | 0.25 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/45 R17 V | 205/60 R 16 92V | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T |
| Tyre dimensions rear | 225/45 R17 V | 205/60 R 16 92V | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T |
| Wheel size front | 7.5J x 17 ET52.5 | 6.5J x 16 ET44.5 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 |
| Wheel size rear | 7.5J x 17 ET52.5 | 6.5J x 16 ET44.5 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4393 | 4358 | 4393 | 4393 | 4393 | 4393 |
| Overall width without/including mirrors [mm] | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 |
| Overall height [mm] | 1557 | 1599 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1552 | 1544 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1549 | 1551 | 1549 | 1549 | 1549 | 1549 |
| Forward overhang [mm] | 914 | 886 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 780 | 773 | 780 | 780 | 780 | 780 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1047 | 1036 | 1047 | 1047 | 1047 | 1047 |
| Headroom rear [mm] | 985 | 956 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 |
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B180 d | B200 d | B200 d | B200 d 4MATIC | B220 d | B220 d 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1461 | 2143 | 2143 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 80/4000 | 100/3200-4000 | 100/3200-4000 | 100/3200-4000 | 130/3600-3800 | 130/3600-3800 |
| Maximum torque [Nm/min-1] | 260/1750-2500 | 300/1400-3000 | 300/1400-3000 | 300/1400-3000 | 350/1400-3400 | 350/1400-3400 |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 15,5:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 190 | 210 | 210 | 207 | 224 | 220 |
| Acceleration 0–100 km/h [s] | 11.9 | 9.4 | 8.9 | 8.9 | 8.3 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.4-4.7 | 5.3-5.5 | 4.7-4.9 | 5.8-5.9 | 4.9-5.0 | 5.8-5.9 |
| Out of town [l] | 3.7-4.1 | 3.5-3.9 | 3.5-3.8 | 4.5 | 3.6-3.8 | 4.5 |
| Combined [l] | 4.0-4.3 | 4.2-4.5 | 4.0-4.2 | 5.0 | 4.1-4.3 | 5.0 |
| CO2 emissions [g/km] | 104-113 | 109-117 | 104-111 | 130-131 | 107-111 | 130-131 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1450 | 1485 | 1505 | 1575 | 1505 | 1575 |
| Overall weight [kg] | 1985 | 2025 | 2025 | 2095 | 2025 | 2095 |
| Maximum trailer weight unbraked/braked [kg] | 725/1200 | 740/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 488 | 488 | 488 | 488 | 488 | 488 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 |
| Boot length [mm] | 744 | 744 | 744 | 744 | 744 | 744 |
| Boot length with rear seats folded [mm] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | 538 | 538 | 538 | 538 | 538 | 538 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 56 | 50 | 56 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.28 | 0.28 | 0.28 | 0.28 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 T | 205/55 16H | 205/55 16H | 225/45 R17 V | 205/55 16H | 225/45 R17 V |
| Tyre dimensions rear | 195/65 R15 T | 205/55 16H | 205/55 16H | 225/45 R17 V | 205/55 16H | 225/45 R17 V |
| Wheel size front | 6.5J x 15 ET47 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 |
| Wheel size rear | 6.5J x 15 ET47 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4393 | 4393 | 4393 | 4393 | 4393 | 4393 |
| Overall width without/including mirrors [mm] | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Forward overhang [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 780 | 780 | 780 | 780 | 780 | 780 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1047 | 1047 | 1047 | 1047 | 1047 | 1047 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 |
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
