Mercedes-Benz B
Date of manufacture
2018 – to this day (Medium MPV)
Platform
MFA2
Manufacturing locations
Rastatt, Germany
Kecskemét, Hungary
Designer
-
Tags
Mid-size MPV
German cars
The Mercedes-Benz B is a mid-size MPV that has been manufactured since 2018 in two countries - Germany and Hungary. The vehicle is based on the MFA2 platform and offers a wide range of engine options, including petrol, diesel and hybrid versions. The highest power output of 165 kW is offered by the B 250 4MATIC with a top speed of 250 km/h and best 0-100 km/h acceleration time of 6.4 seconds. The lowest fuel consumption of 1.4 l/100 km is achieved by the B 250e with CO2 emissions of 34 g/km. The boot has a capacity of 405 l. The model received a 5 out of 5 EURONCAP safety rating according to the 2019 methodology.
Car body style
Medium MPV (Sports Tourer)
Date of manufacture
2018 – to this dayInternal designation
W247Engine size
Technical data
Medium MPV (Sports Tourer)
| B 160 | B 180 | B 180 | B 200 | B 200 | B 200 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2020 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 1332 | 1332 | 1332 | 1332 | 1332 |
| Maximum output / speed [kW/min-1] | 80/5500 | 100/5500 | 100/5500 | 120/5500 | 120/5500 | 120/5500 |
| Maximum torque [Nm/min-1] | 180/1375-3500 | 200/1460-4000 | 200/1460-4000 | 250/1620-400 | 250/1620-400 | 250/1620-400 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 |
| Compression ratio | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic |
| Drive specifications | - | - |
| - |
|
|
| Top speed [km/h] | 198 | 212 | 212 | 223 | 223 | 219 |
| Acceleration 0–100 km/h [s] | 11,3 | 9,4 | 9.0 | 8,5 | 8.2 | 8.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,5-7,4 | 7,7-7,0 | 7.0-7.0 | 7,6-6.6 | 7.4-6.6 | 7.7-7.6 |
| Out of town [l] | 5,1-4,6 | 4,9-4,4 | 4.7-4.4 | 5.1-4,4 | 5.1-4.4 | 5.5-4.9 |
| Combined [l] | 6,0-5,7 | 5,7-5,4 | 5.7-5.4 | 5,9-5,4 | 5.7-5.4 | 6.3-5.9 |
| CO2 emissions [g/km] | 138-130 | 133-123 | 131-123 | 134-123 | 130-123 | 144-135 |
| Low speed [l] | 9.0-8.5 | 9.3-8.2 | 9.3-8.2 | 9.3-7.9 | 9.3-7.9 | 10.4-9.7 |
| Medium speed [l] | 6.7-6.0 | 6.6-5.9 | 6.6-5.9 | 6.8-5.8 | 6.8-5.8 | 7.4-6.7 |
| High speed [l] | 5.8-5.0 | 5.9-5.1 | 5.9-5.1 | 6.0-5.1 | 6.0-5.1 | 6.5-5.6 |
| Extra high speed [l] | 6.8-5.8 | 6.9-5.9 | 6.9-5.9 | 6.9-5.9 | 6.9-5.9 | 7.7-6.3 |
| Combined speed [l] | 6,8-6,0 | 6,8-5.9 | 6,9-6,0 | 6,8-6,0 | 6,9-6,1 | 7,6-6,6 |
| CO2 emissions [g/km] | 155-136 | 155-135 | 157-137 | 155-136 | 157-137 | 174-150 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1385 | 1385 | 1405 | 1395 | 1410 | 1495 |
| Overall weight [kg] | 1935 | 1940 | 1955 | 1945 | 1960 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 690/1300 | 690/1400 | 700/1400 | 695/1600 | 705/1600 | 745/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

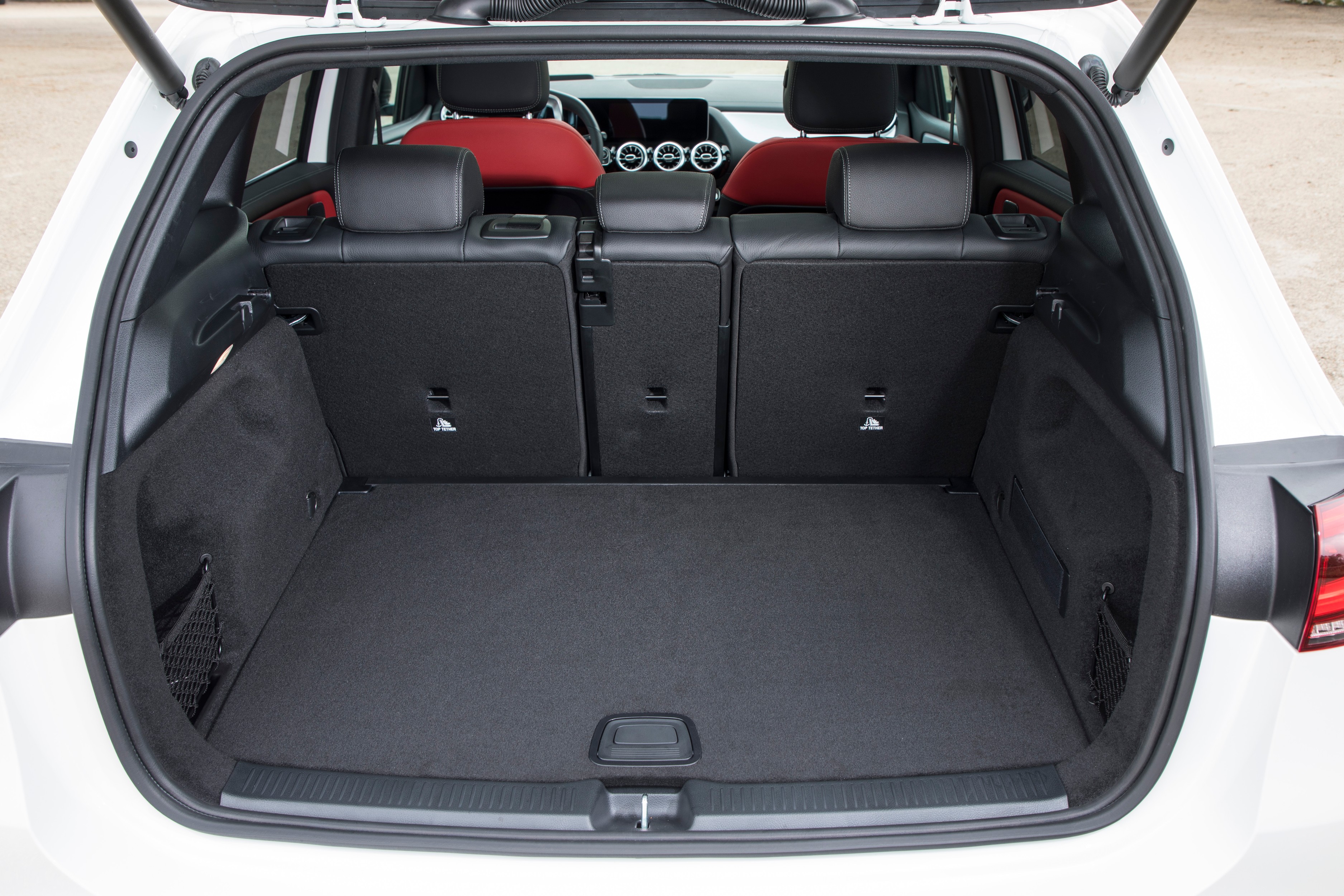

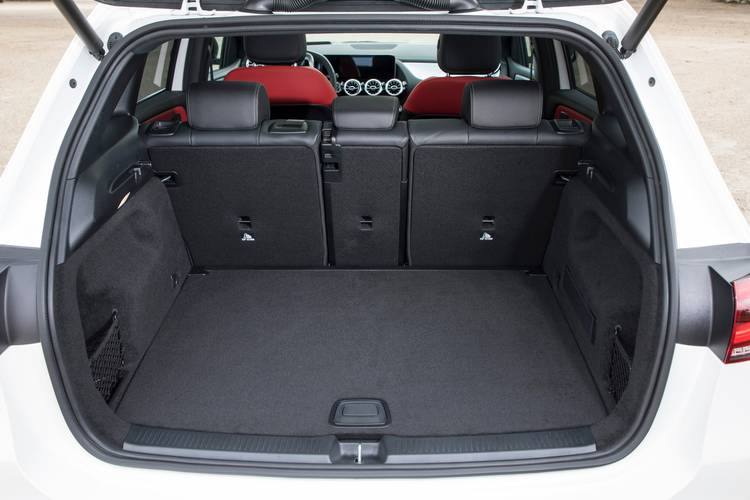

| Boot volume [l] | 440 | 440 | 440 | 440 | 440 | 440 |

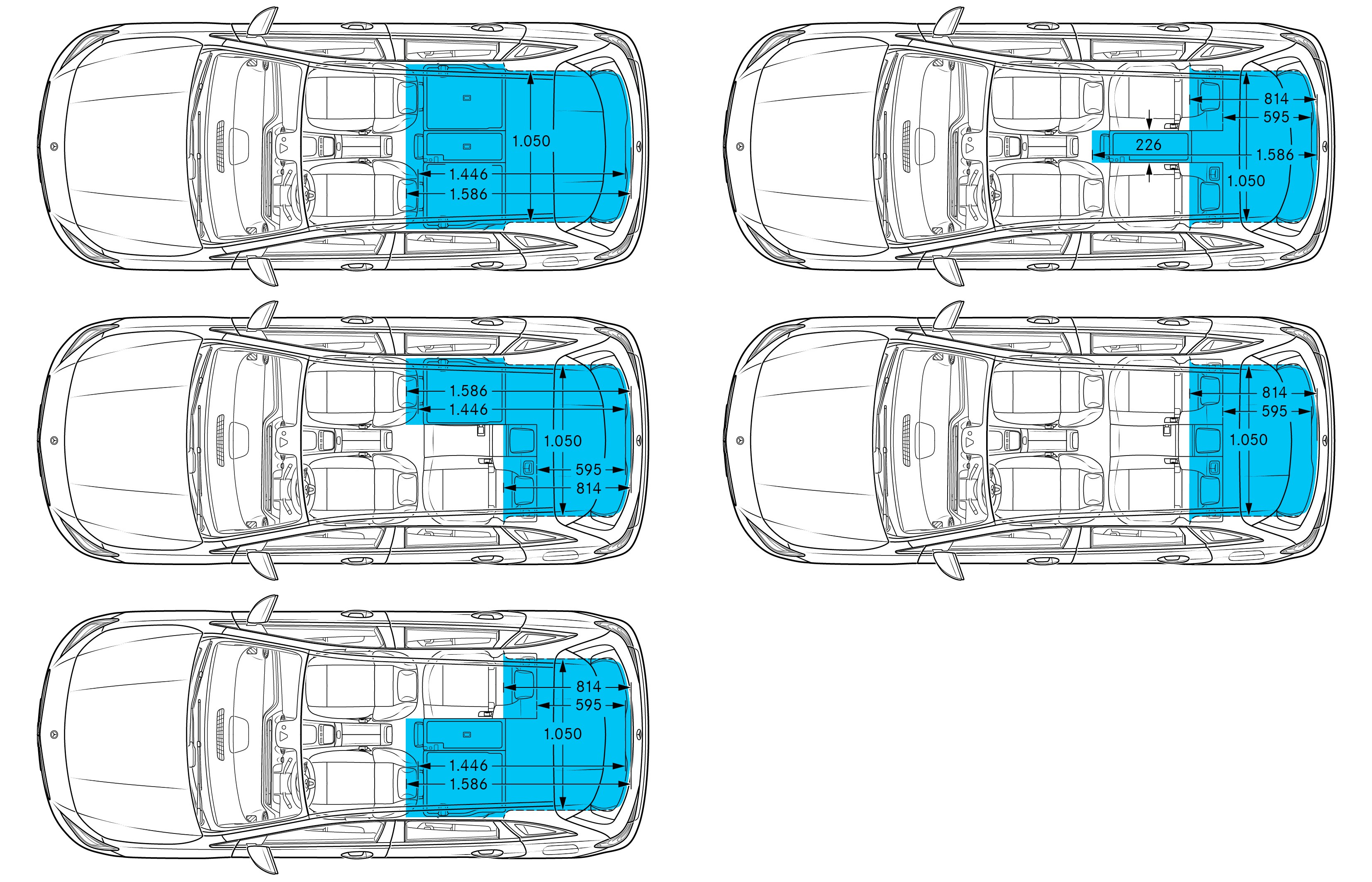

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1100/1525 | 1100/1525 | 1100/1525 | 1100/1525 | 1100/1525 | 1100/1525 |
| Boot length [mm] | 814 | 814 | 814 | 814 | 814 | 814 |

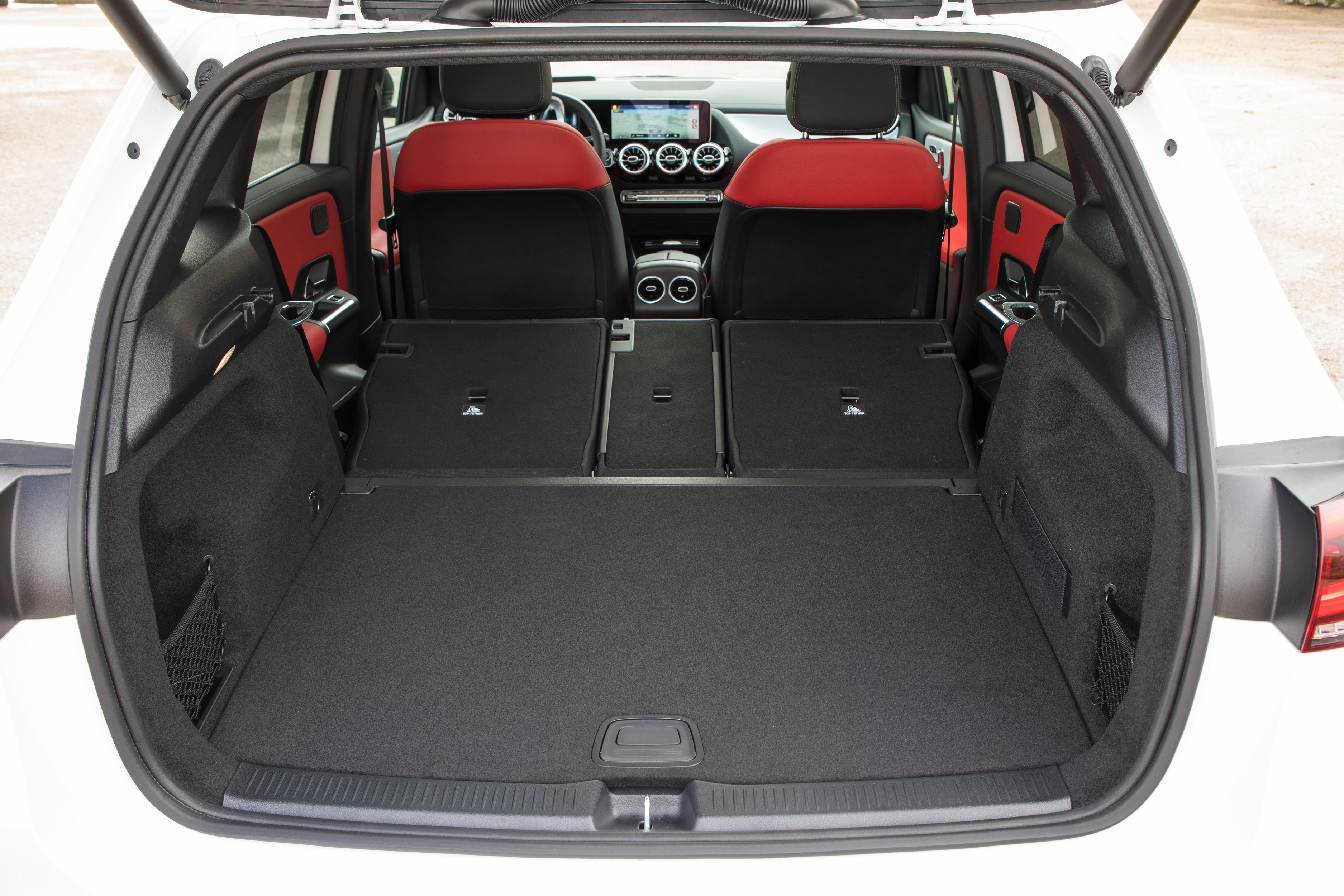

| Boot length with rear seats folded [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 647 | 647 | 647 | 647 | 647 | 647 |
| Height of the open boot door [mm] | 2065 | 2065 | 2065 | 2065 | 2065 | 2065 |
| Boot opening height [mm] | 743 | 743 | 743 | 743 | 743 | 743 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 43 | 43 | 43 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.24 | 0.24 | 0.24 | 0.24 | 0.24 | 0.25 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 |
| Tyre dimensions rear | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 |
| Wheel size front | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |

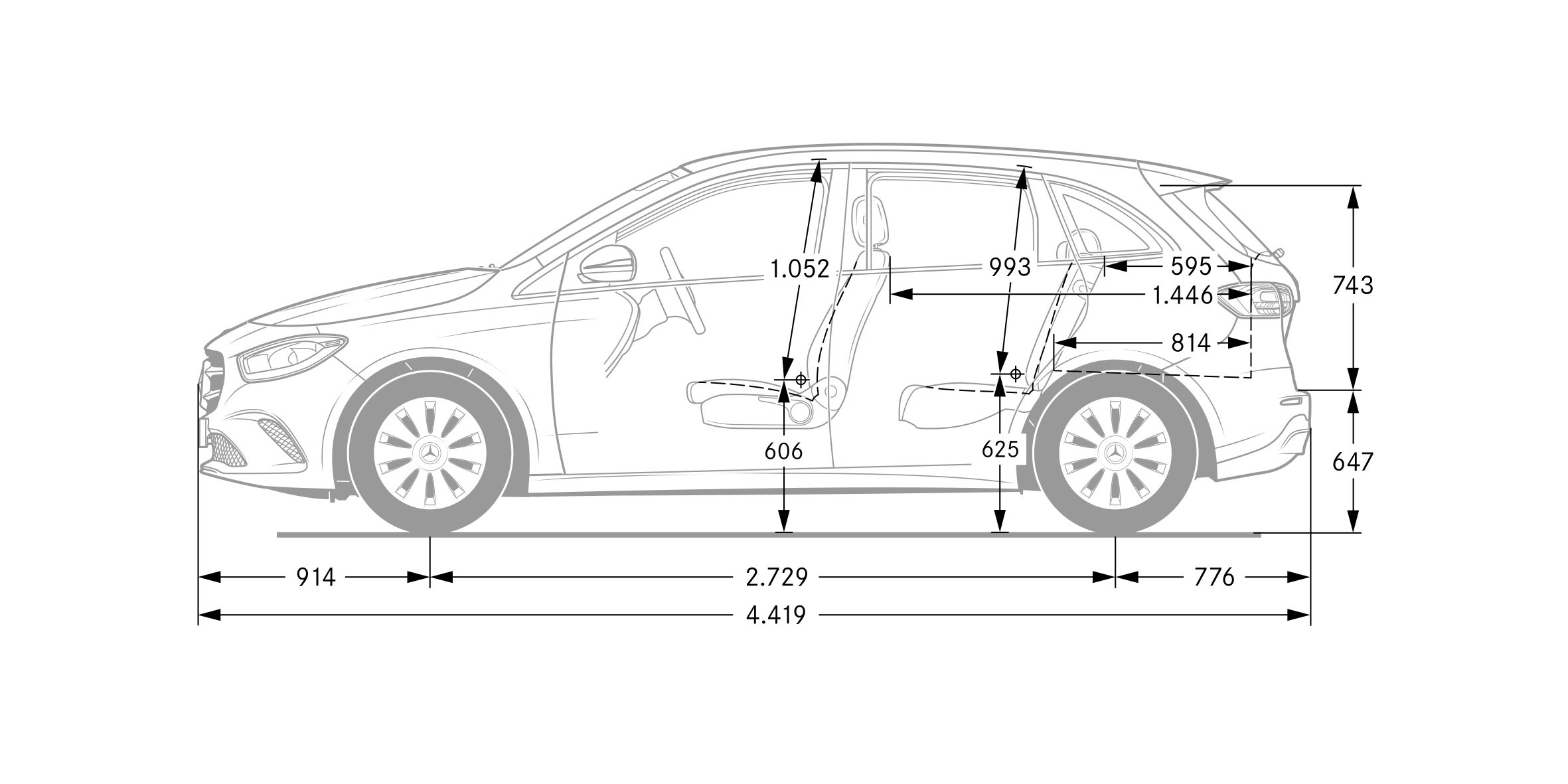

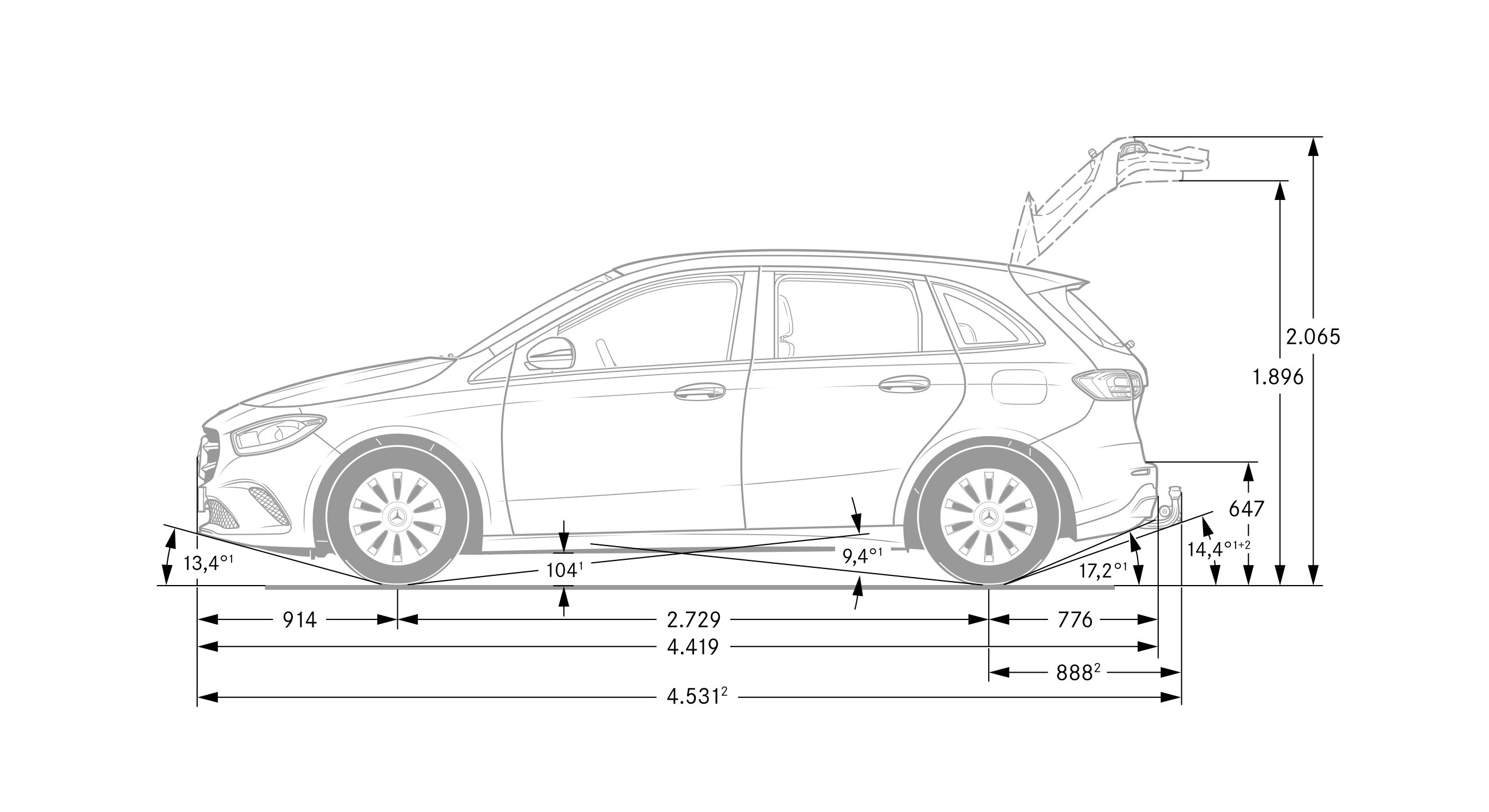

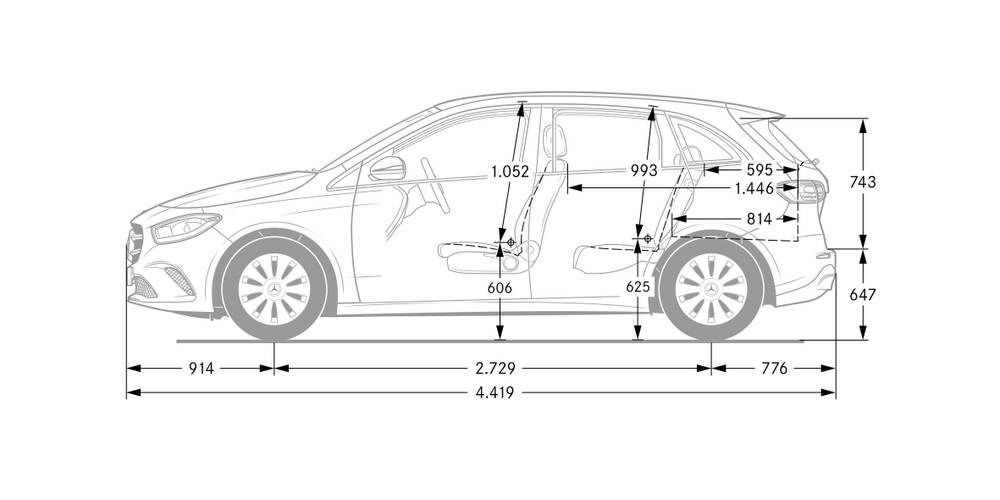

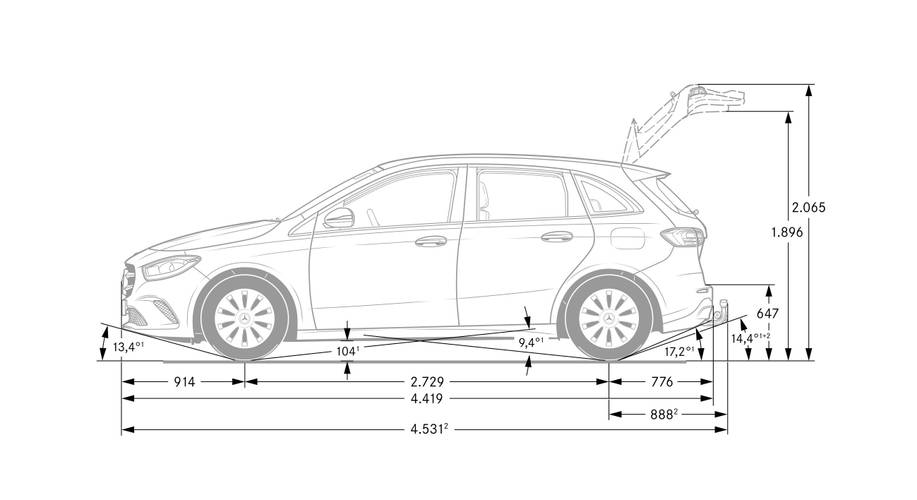

| Overall length [mm] | 4419 | 4419 | 4419 | 4419 | 4419 | 4419 |
| Overall width without/including mirrors [mm] | 1796/2020 | 1796/2020 | 1796/2020 | 1796/2020 | 1796/2020 | 1796/2020 |
| Overall height [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 776 | 776 | 776 | 776 | 776 | 776 |
| Clearance [mm] | 104 | 104 | 104 | 104 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Approach angle rear [°] | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 |
| Rear elbow/shoulder width [mm] | 1392/1446 | 1392/1446 | 1392/1446 | 1392/1446 | 1392/1446 | 1392/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B 220 4MATIC | B 250 | B 250 4MATIC | B 250e | B 160d | B 180d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | - | - | - | from to 2020 | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1332 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 140/5800 | 165/5500 | 165/5500 | 118 combustion 75 el. 160 total | 70 | 85/4000 |
| Maximum torque [Nm/min-1] | 300/1600 | 350/1800 | 350/1800-400 | 230/1620-4000 combustion 330 el. 450 total | 240 | 260/1750-2750 |
| Bore and stroke [mm x mm] | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 72.2 x 81.4 | 76.0 x 80.5 | 76.0 x 80.5 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.6:1 | 15.0:1 | 15.1:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
|
| - | - |
| Top speed [km/h] | 234 | 250 | 250 | 235 | 188 | 200 |
| Acceleration 0–100 km/h [s] | 7,1 | 6,4 | 6,4 | 6.8 | 12,7 | 10,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,0-8,7 | 8,2-7,9 | 9,0-8,7 | - | 4,9-4,7 | 5,0-4,7 |
| Out of town [l] | 5,9-5,2 | 5,2-4,9 | 5,9-5,2 | - | 4,2-3,7 | 4,2-3,7 |
| Combined [l] | 7,1-6,5 | 6,5-6,0 | 7,1-6,5 | 1.5-1.4 [15.1-14.7 kWh] | 4,5-4,1 | 4,5-4,1 |
| CO2 emissions [g/km] | 162-148 | 148-137 | 162-148 | 34-32 | 119-107 | 120-107 |
| Low speed [l] | - | 10.3-9.9 | 11.0-10.4 | - | - | - |
| Medium speed [l] | - | 7.7-7.0 | 8.2-7.3 | - | - | - |
| High speed [l] | - | 6.6-5.8 | 6.9-6.0 | - | - | - |
| Extra high speed [l] | - | 7.6-6.5 | 7.9-6.6 | - | - | - |
| Combined speed [l] | - | 7,8-6.8 | 8,2-7,1 | 1.4-1.1 [19.6-17.7 kWh] | - | - |
| CO2 emissions [g/km] | - | 176-155 | 185-161 | 34-32 | - | - |
| Emission standard | Euro 6d Euro 6d ISC-FCM | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP - Euro 6d Euro 6d-TEMP-EVAP-ISC |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 15.6 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | 58-68 | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1553 | 1495 | 1555 | 1725 | 1466 | 1466 |
| Overall weight [kg] | 2098 | 2040 | 2105 | 2225 | 2001 | 2001 |
| Maximum trailer weight unbraked/braked [kg] | - | 745/1600 | 750/1800 | 750/1600 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 440 | 440 | 440 | 405 | 440 | 440 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1100/1525 | 1100/1525 | 1100/1525 | 1030/1440 | 1100/1525 | 1100/1525 |
| Boot length [mm] | 814 | 814 | 814 | 820 | 814 | 814 |
| Boot length with rear seats folded [mm] | 1594 | 1594 | 1594 | 1569 | 1594 | 1594 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 647 | 647 | 647 | 658 | 647 | 647 |
| Height of the open boot door [mm] | 2065 | 2065 | 2065 | 2075 | 2065 | 2065 |
| Boot opening height [mm] | 743 | 743 | 743 | 743 | 743 | 743 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 43 or 51 | 51 | 35 | 43 | 43 |
| AdBlue tank volume [l] | - | - | - | - | 23.8 | 23.8 |
| Air resistance [Cd] | - | 0.25 | 0.25 | 0.25 | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | multilink | multilink | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R 16 | 205/55 R17 | 205/55 R17 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 |
| Tyre dimensions rear | 205/60 R 16 | 205/55 R17 | 205/55 R17 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 |
| Wheel size front | 6.5 J x 16 | 6.5 J x 17 | 6.5 J x 17 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 17 | 6.5 J x 17 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4419 | 4419 | 4419 | 4419 | 4419 | 4419 |
| Overall width without/including mirrors [mm] | 1796/2020 | 1796/2020 | 1796/2020 | 1796/2020 | 1796/2020 | 1796/2020 |
| Overall height [mm] | 1562 | 1562 | 1562 | 1574 | 1562 | 1562 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 776 | 776 | 776 | 776 | 776 | 776 |
| Clearance [mm] | 104 | 104 | 104 | 112 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 15.1 | 13.4 | 13.4 |
| Approach angle rear [°] | 17.2 | 17.2 | 17.2 | 19.7 | 17.2 | 17.2 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.7 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 |
| Rear elbow/shoulder width [mm] | 1392/1446 | 1392/1446 | 1392/1446 | 1392/1446 | 1392/1446 | 1392/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B180d | B 180d | B 200d | B 200d | B 200d 4MATIC | B 220d | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | - | from 2020 to | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 |
| Maximum output / speed [kW/min-1] | 85/3400-4400 | 85/3400-4400 | 110/3400-4400 | 110/3400-4400 | 110/3400-4400 | 140/3800 |
| Maximum torque [Nm/min-1] | 280/1300-2600 | 280/1300-2600 | 320/1400-3200 | 320/1400-3200 | 320/1400-3200 | 400/1600-2600 |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 200 | 200 | 219 | 219 | 216 | 234 |
| Acceleration 0–100 km/h [s] | 10.4 | 9.8 | 8.9 | 8,3 | 8,6 | 7,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.5-5.4 | 6.5-5.4 | 6.2-5.3 | 6.2--5.1 | 6.1-5.6 | 5,7-5,1 |
| Out of town [l] | 4.2-3.8 | 4.2-3.8 | 4.1-3.8 | 4.1-3.7 | 4.2-4.0 | 4,1-3,7 |
| Combined [l] | 4.9-4.5 | 4.9-4.5 | 4.9-4.4 | 4.9-4.2 | 4.9-4.9 | 4,7-4,3 |
| CO2 emissions [g/km] | 130-119 | 130-119 | 128-116 | 128-112 | 129-123 | 123-112 |
| Low speed [l] | 7.6-6.8 | 7.6-6.8 | 7.2-6.4 | 7.2-6.4 | - | 7.3-6.8 |
| Medium speed [l] | 6.0-4.9 | 6.0-4.9 | 5.9-5.0 | 5.9-5.0 | - | 5.9-5.4 |
| High speed [l] | 4.9-4.2 | 4.9-4.2 | 4.9-4.1 | 4.9-4.1 | - | 4.9-4.3 |
| Extra high speed [l] | 5.8-4.7 | 5.8-4.7 | 5.7-4.8 | 5.7-4.8 | - | 5.7-4.9 |
| Combined speed [l] | 5,7-4,9 | 5,8-5,1 | 5,7-4,9 | 5,7-4.9 | 5,9-5,3 | 5,7-5.0 |
| CO2 emissions [g/km] | 151-129 | 151-134 | 149-128 | 149-127 | 156-139 | 151-132 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1535 | 1505 | 1535 | 1615 | 1565 |
| Overall weight [kg] | 2045 | 2075 | 2045 | 2075 | 2135 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1400 | 750/1600 | 750/1600 | 750/1800 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | - | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 440 | 440 | 440 | 440 | 440 | 440 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1100/1525 | 1100/1525 | 1100/1525 | 1100/1525 | 1100/1525 | 1100/1525 |
| Boot length [mm] | 814 | 814 | 814 | 814 | 814 | 814 |
| Boot length with rear seats folded [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 647 | 647 | 647 | 647 | 647 | 647 |
| Height of the open boot door [mm] | 2065 | 2065 | 2065 | 2065 | 2065 | 2065 |
| Boot opening height [mm] | 743 | 743 | 743 | 743 | 743 | 743 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 43 | 43 | 51 | 43 or 51 |
| AdBlue tank volume [l] | 23.8 | 23.8 | 23.8 | 23.8 | 23.8 | 23.8 |
| Air resistance [Cd] | - | - | 0.24 | 0.24 | - | 0.25 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink | twist beam axle with trailing arms | multilink |
| Tyre dimensions front | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/55 R17 |
| Tyre dimensions rear | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/60 R 16 | 205/55 R17 |
| Wheel size front | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 17 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4419 | 4419 | 4419 | 4419 | 4419 | 4419 |
| Overall width without/including mirrors [mm] | 1796/2020 | 1796/2020 | 1796/2020 | 1796/2020 | 1796/2020 | 1796/2020 |
| Overall height [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Rear overhang [mm] | 776 | 776 | 776 | 776 | 776 | 776 |
| Clearance [mm] | 104 | 104 | 104 | 104 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Approach angle rear [°] | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 |
| Rear elbow/shoulder width [mm] | 1392/1446 | 1392/1446 | 1392/1446 | 1392/1446 | 1392/1446 | 1392/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B 220d 4MATIC | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1950 | |||||
| Maximum output / speed [kW/min-1] | 140/3800 | |||||
| Maximum torque [Nm/min-1] | 400/1600-2600 | |||||
| Bore and stroke [mm x mm] | 82.0 x 92.3 | |||||
| Compression ratio | 15.5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 231 | |||||
| Acceleration 0–100 km/h [s] | 7,0 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6,1-6,0 | |||||
| Out of town [l] | 4,4-4,2 | |||||
| Combined [l] | 5,0-4,8 | |||||
| CO2 emissions [g/km] | 132-127 | |||||
| Low speed [l] | 7.6-6.9 | |||||
| Medium speed [l] | 6.1-5.6 | |||||
| High speed [l] | 5.2-4.4 | |||||
| Extra high speed [l] | 6.1-5.0 | |||||
| Combined speed [l] | 6,0-5,2 | |||||
| CO2 emissions [g/km] | 157-136 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1625 | |||||
| Overall weight [kg] | 2145 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 440 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1100/1525 | |||||
| Boot length [mm] | 814 | |||||
| Boot length with rear seats folded [mm] | 1594 | |||||
| Boot width between wheels/max [mm] | 1050/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 647 | |||||
| Height of the open boot door [mm] | 2065 | |||||
| Boot opening height [mm] | 743 | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 51 | |||||
| AdBlue tank volume [l] | 23.8 | |||||
| Air resistance [Cd] | 0.24 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 205/55 R17 | |||||
| Tyre dimensions rear | 205/55 R17 | |||||
| Wheel size front | 6.5 J x 17 | |||||
| Wheel size rear | 6.5 J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | Rack & pinion with electric power steering | |||||
| Turning diameter track/circumference [m] | 11.0/- | |||||
| Overall length [mm] | 4419 | |||||
| Overall width without/including mirrors [mm] | 1796/2020 | |||||
| Overall height [mm] | 1562 | |||||
| Wheelbase [mm] | 2729 | |||||
| Front wheel track [mm] | 1567 | |||||
| Rear wheel track [mm] | 1558 | |||||
| Forward overhang [mm] | 914 | |||||
| Rear overhang [mm] | 776 | |||||
| Clearance [mm] | 104 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 13.4 | |||||
| Approach angle rear [°] | 17.2 | |||||
| Transition angle [°] | 9.4 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1052 | |||||
| Headroom rear [mm] | 993 | |||||
| Front elbow/shoulder width [mm] | 1419/1456 | |||||
| Rear elbow/shoulder width [mm] | 1392/1446 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

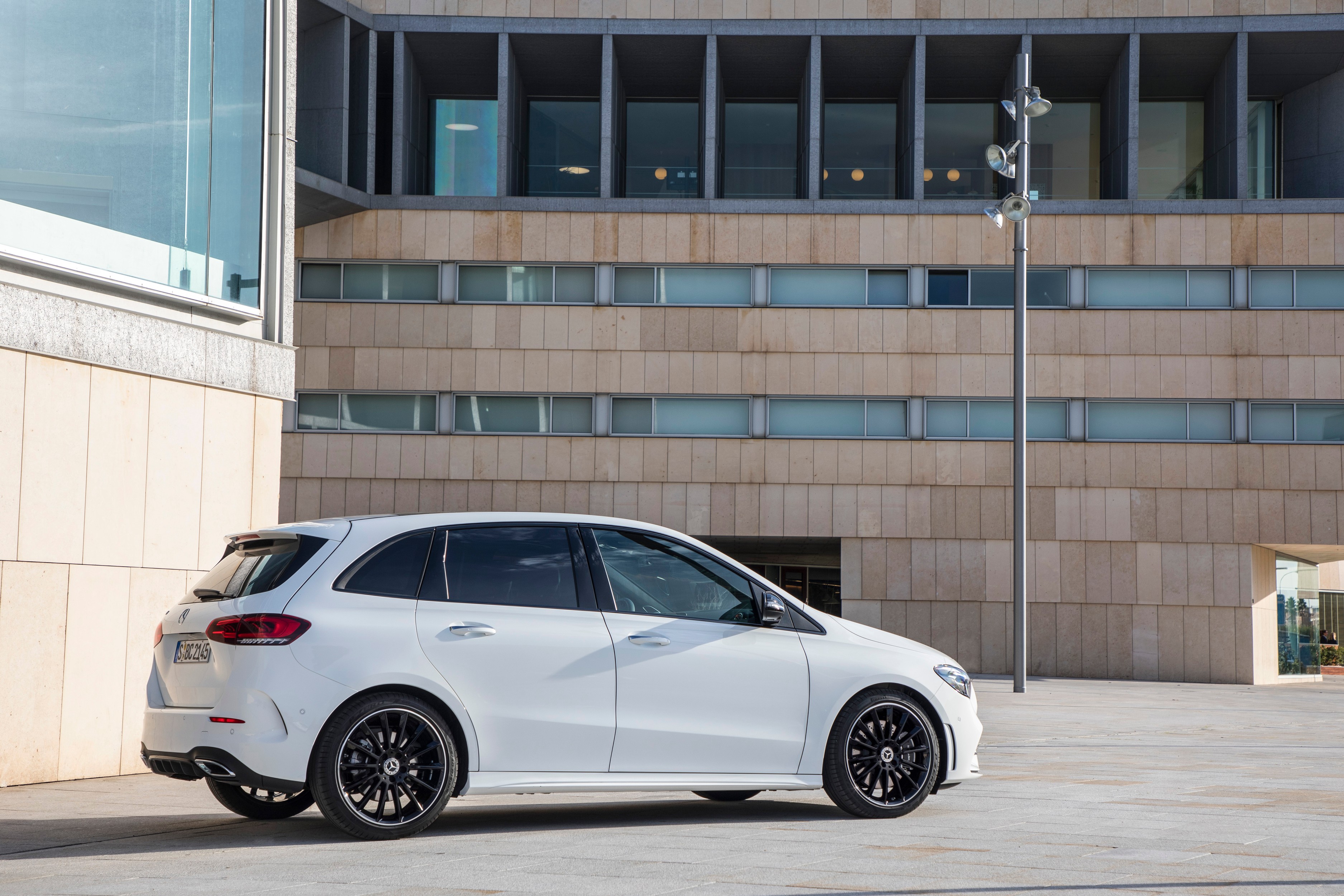

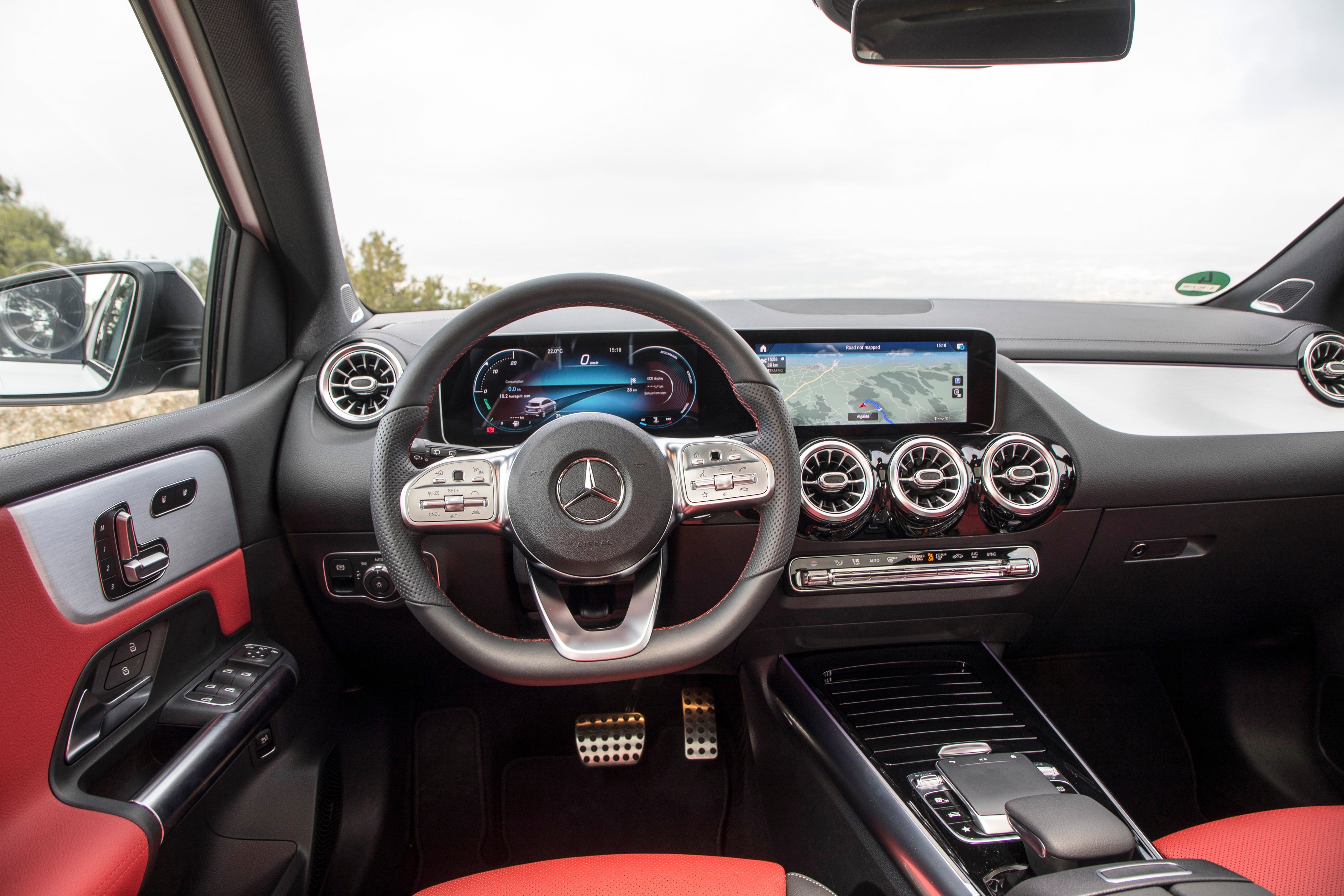

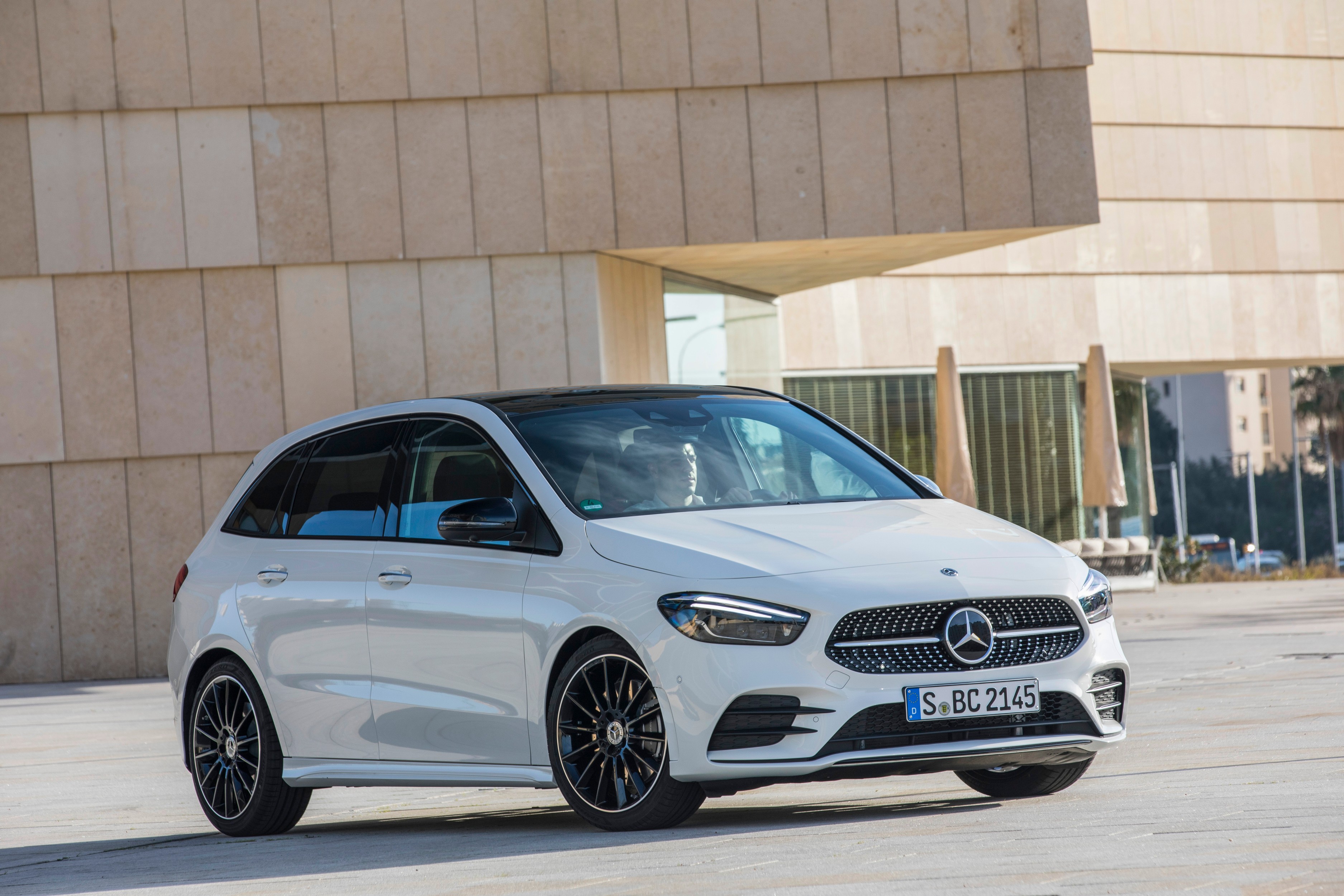

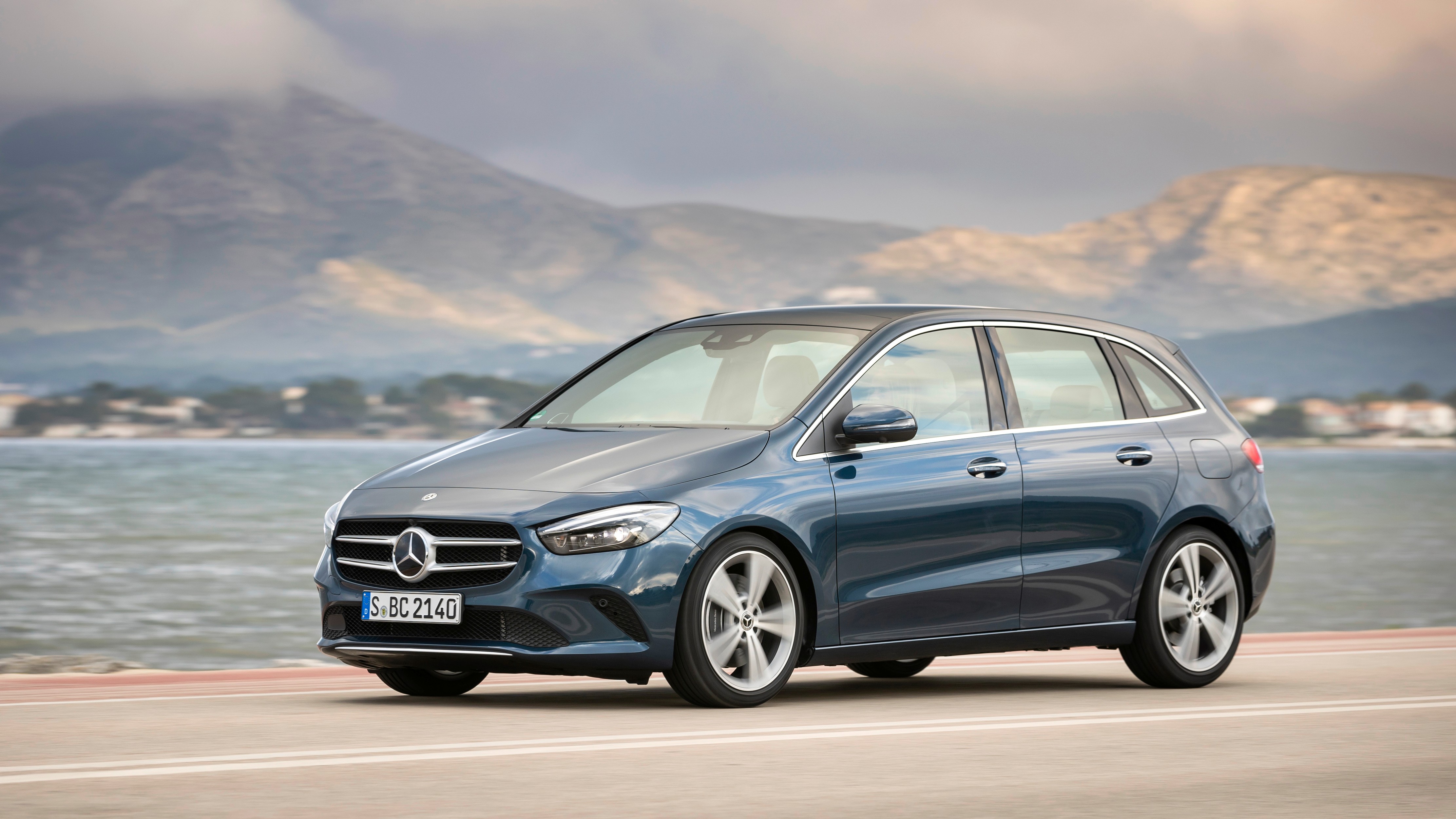

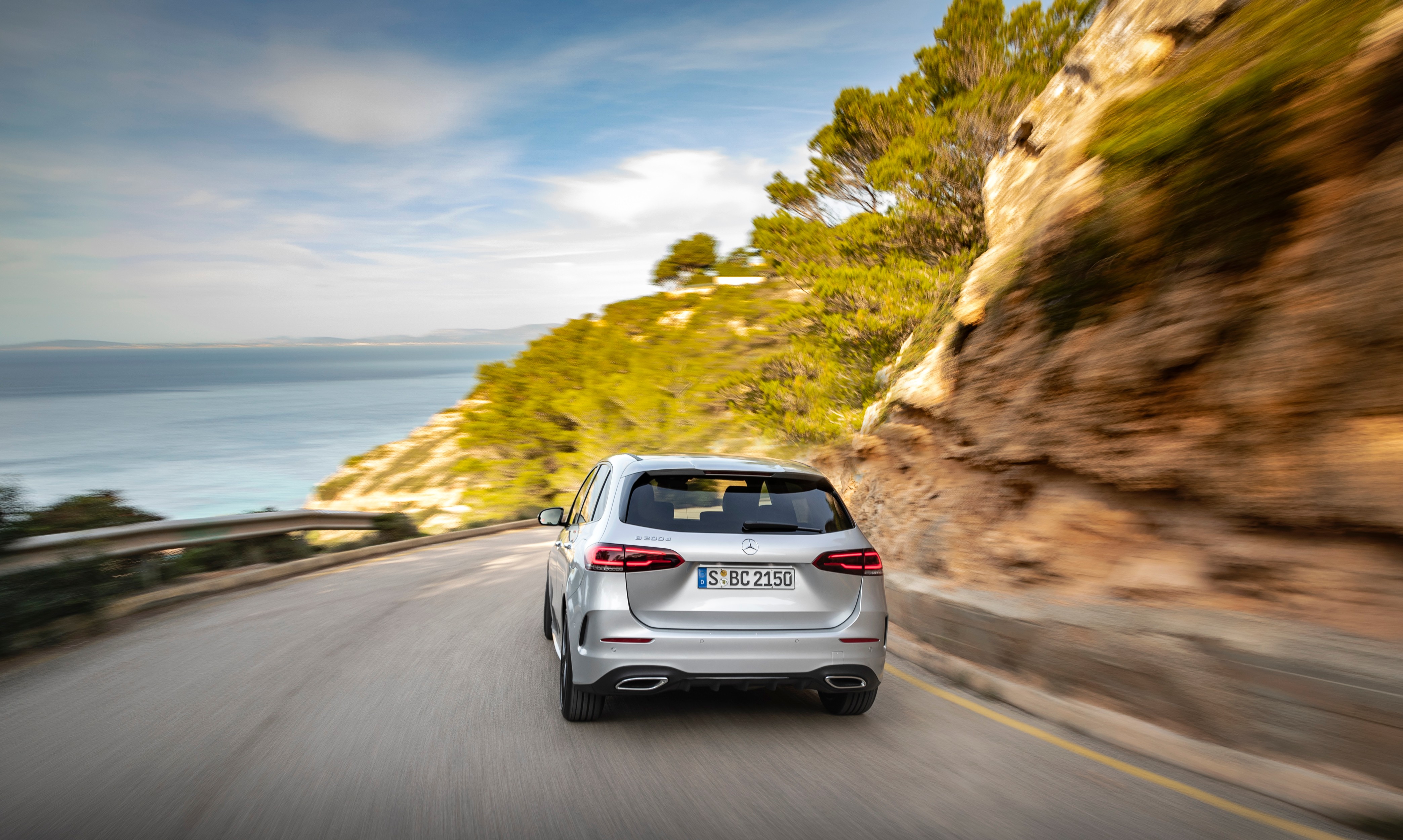

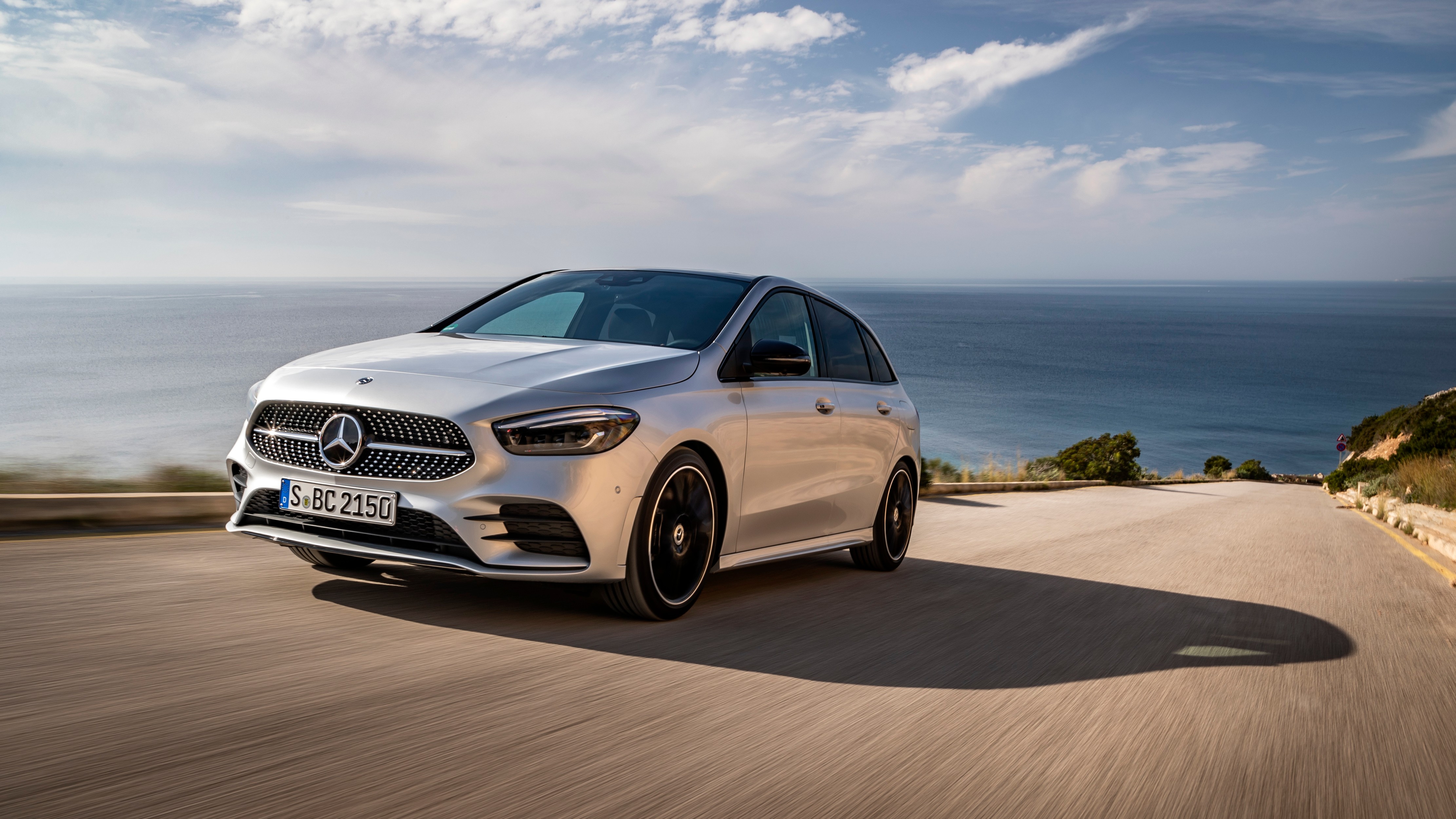

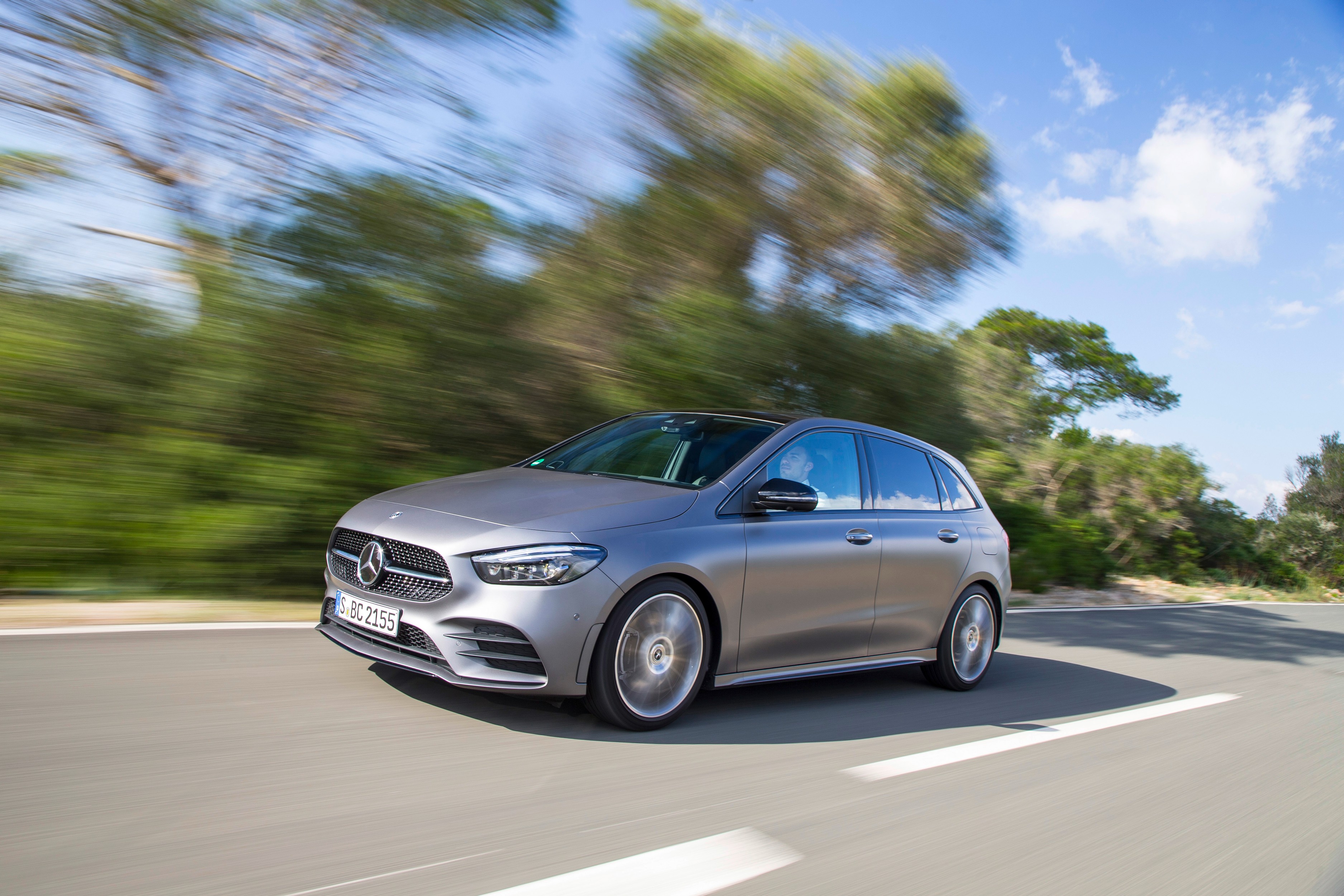

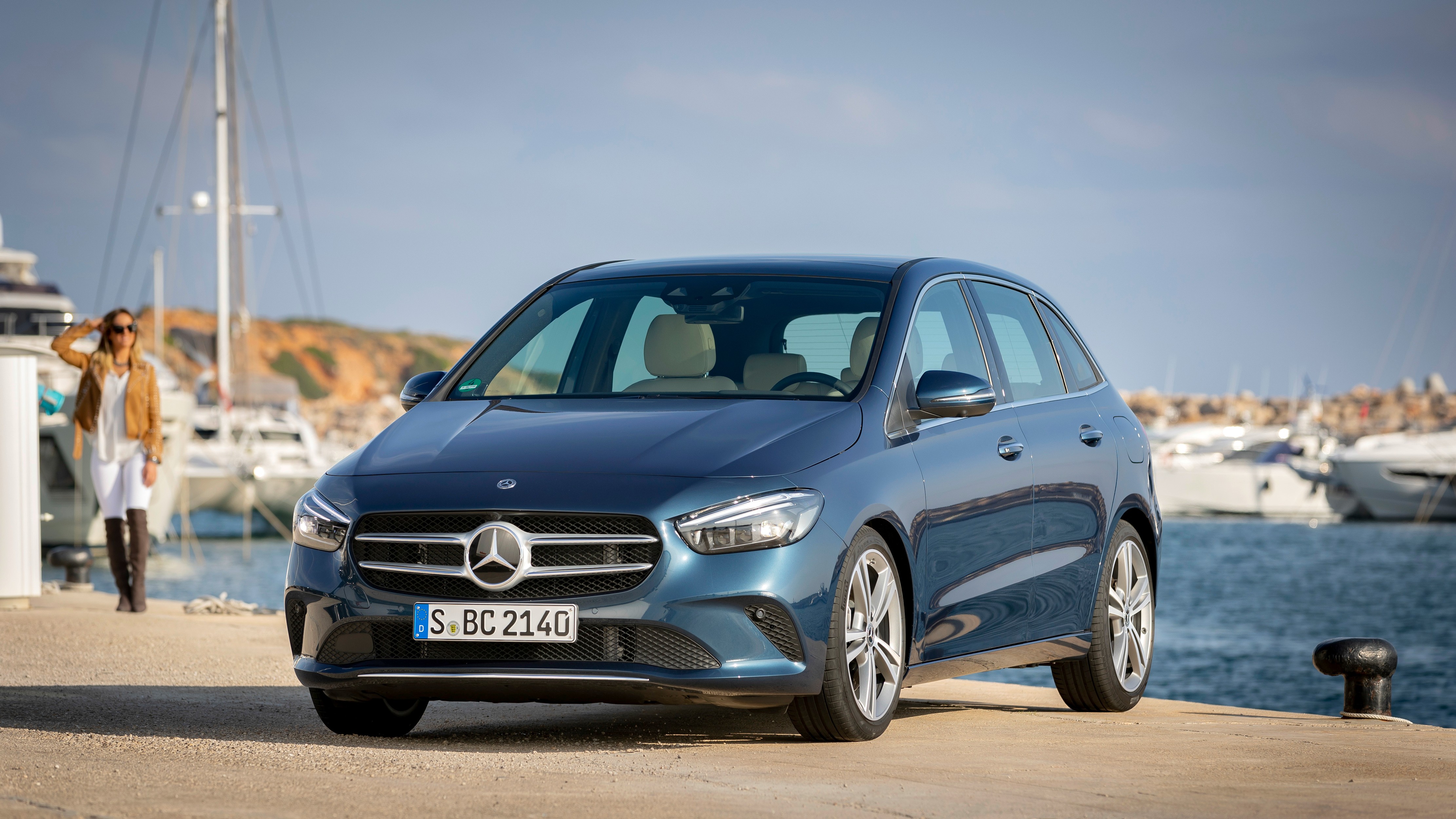

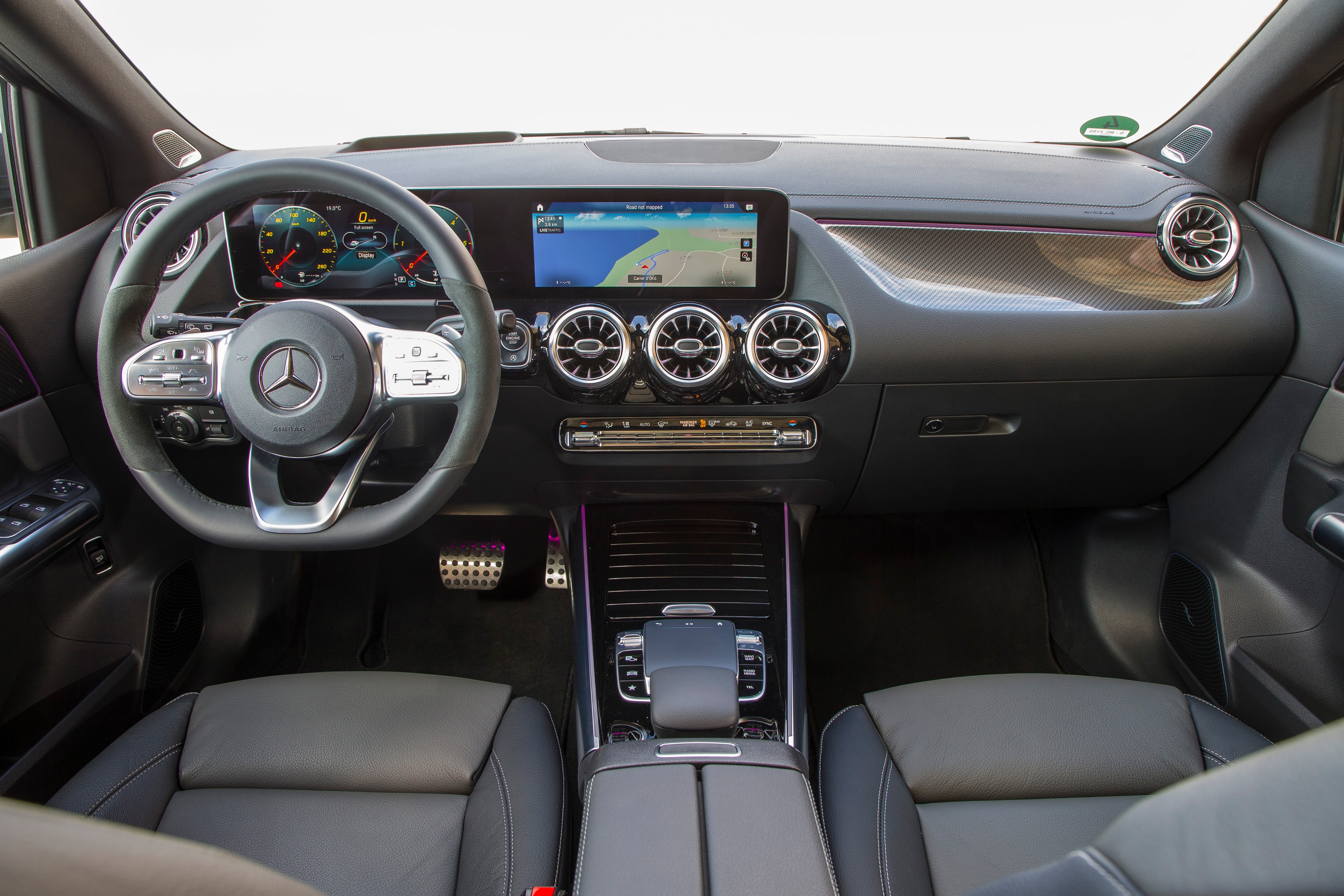

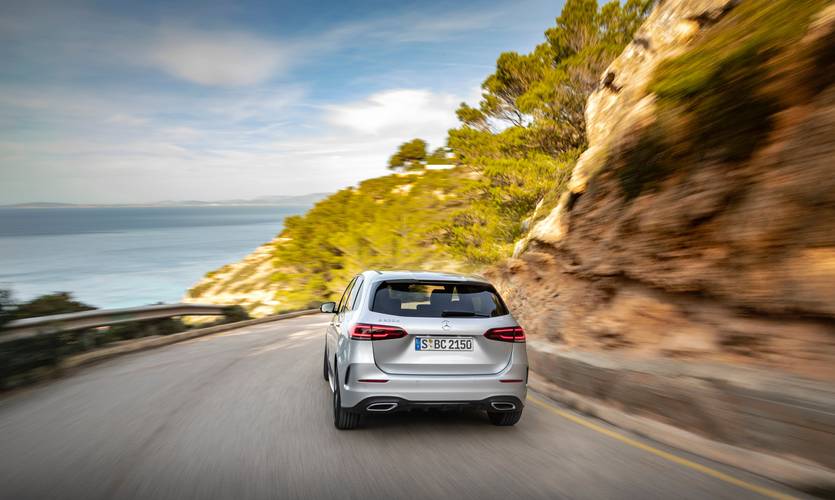

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
