Mercedes-Benz C
Date of manufacture
2007 – 2010 (Sedan)
7/2007 – 2010 (Estate)
Platform
-
Manufacturing locations
Bremen, Germany
Sindelfingen, Germany
Beijing, People's Republic of China
Designer
Karl Heinz Bauer
Tags
D-segment
German cars

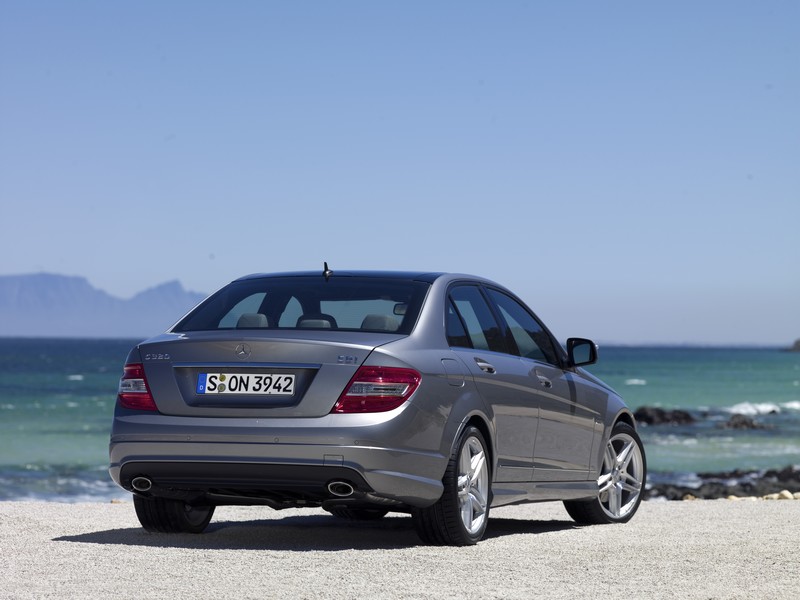

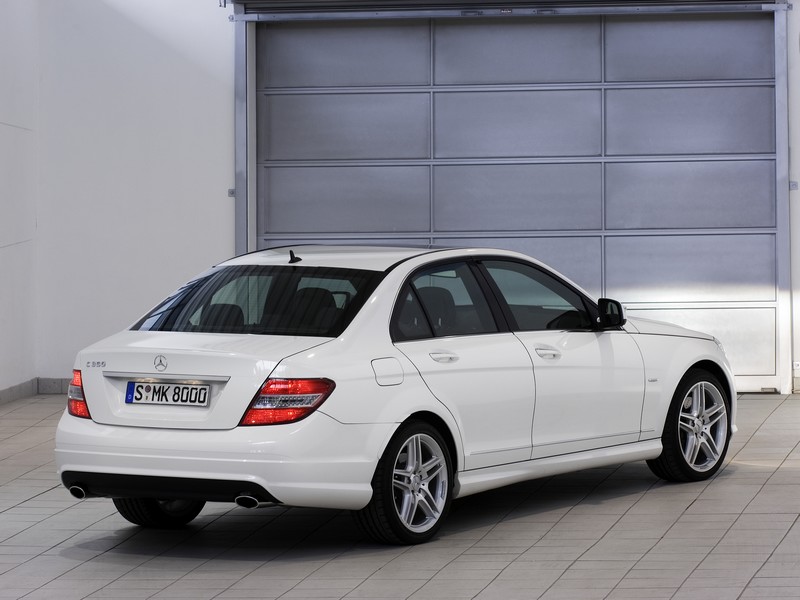

The Mercedes-Benz C is available as both a sedan and a station wagon. This vehicle has been manufactured since 2007 in two countries - Germany and China. The engine range includes both petrol and diesel variants, the most powerful being the C 63 AMG with 336 kW of power, the highest speed reaching 250 km/h and the best acceleration from 0-100 km/h being 4.5 seconds. The most comfortable version is the C 220 CDI BlueEFFICIENCY with a combined fuel consumption of 4.8 l/100 km and CO2 emissions of 127 g/km. For the sedan model, you have a 475-liter trunk, and for the station wagon, it is 485 liters. In 2009, this car was tested by EURONCAP and achieved the maximum rating of 5 out of 5 possible points.
Car body style
Sedan
Date of manufacture
2007 – 2010Internal designation
W204 Engine size
Petrol
Diesel

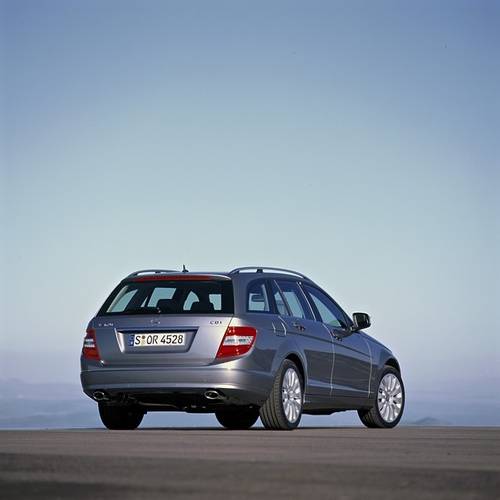

Estate
Date of manufacture
7/2007 – 2010Internal designation
S204 Engine size
Petrol
Diesel
Technical data
Sedan
| C 180 Kompressor | C 180 Kompressor BlueEFFICIENCY | C 180 Kompressor | C 180 Kompressor BlueEFFICIENCY | C 180 CGI BlueEFFICIENCY | C 180 CGI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1796 | 1796 | 1796 | 1796 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 115/5200 | 115/5200 | 115/5200 | 115/5200 | 115/5000 | 115/5000 |
| Maximum torque [Nm/min-1] | 230/2800-4600 | 230/2800-4600 | 230/2800-4600 | 230/2800-4600 | 250/1600-4200 | 250/1600-4200 |
| Bore and stroke [mm x mm] | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 |
| Compression ratio | 9,3:1 | 9,3:1 | 9,3:1 | 9,3:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear automatic | 5 gear automatic | 6 gear manual | 5 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 223 | 230 | 220 | 223 | 225 | 220 |
| Acceleration 0–100 km/h [s] | 9.5 | 9.5 | 9.9 | 9.9 | 9.0 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.5-10.7 | 9.5-9.9 | 10.7-10.9 | 10.1-10.5 | 9.3-9.6 | 9.9-10.2 |
| Out of town [l] | 5.6-5.8 | 5.1-5.7 | 5.8-6.0 | 5.4-6.0 | 5.2-5.9 | 5.4-6.1 |
| Combined [l] | 7.4-7.6 | 6.7-7.3 | 7.6-7.8 | 7.1-7.7 | 6.7-7.3 | 7.0-7.6 |
| CO2 emissions [g/km] | 177 | 159-173 | 180 | 169-183 | 157-169 | 163-177 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1485 | 1485 | 1500 | 1500 | 1485 | 1495 |
| Overall weight [kg] | 1970 | 1970 | 1985 | 1970 | 1990 | 2000 |
| Maximum trailer weight unbraked/braked [kg] | 740/1700 | 740/1700 | 750/1800 | - | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.26 | 0.29 | 0.26 | 0.26 | 0.26 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 89V | 195/60 R16 89V | 195/60 R16 89V | 195/60 R16 89V | 195/60 R16 89V | 195/60 R16 89V |
| Tyre dimensions rear | 195/60 R16 89V | 195/60 R16 89V | 195/60 R16 89V | 195/60 R16 89V | 195/60 R16 89V | 195/60 R16 89V |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4581 | 4581 | 4581 | 4581 | 4581 | 4581 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 200 Kompressor | C 200 Kompressor | C 200 CGI BlueEFFICIENCY | C 200 CGI BlueEFFICIENCY | C 250 CGI BlueEFFICIENCY | C 230 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1796 | 1796 | 1796 | 1796 | 1796 | 2496 |
| Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 135/5250 | 135/5250 | 150/5500 | 150/6100 |
| Maximum torque [Nm/min-1] | 250/2800-5000 | 250/2800-5000 | 270/1800-4600 | 270/1800-4600 | 310/2000-4300 | 245/2900-5500 |
| Bore and stroke [mm x mm] | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 88,0 x 68,4 |
| Compression ratio | 8,5:1 | 8,5:1 | 9,3:1 | 9,3:1 | 9,3:1 | 11,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 5 gear automatic | 6 gear manual | 5 gear automatic | 5 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 235 | 230 | 237 | 232 | 240 | 240 |
| Acceleration 0–100 km/h [s] | 8.6 | 8.8 | 8.2 | 8.2 | 7.4 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.5-10.7 | 11.0-11.2 | 9.5-10.5 | 10.1-10.7 | 10.1-10.7 | 13.3-13.5 |
| Out of town [l] | 5.8-6.0 | 6.1-6.3 | 5.3-6.0 | 5.5-6.2 | 5.5-6.2 | 6.7-6.9 |
| Combined [l] | 7.6-7.8 | 7.9-8.1 | 6.8-7.6 | 7.2-7.9 | 7.2-7.9 | 9.1-9.3 |
| CO2 emissions [g/km] | 180 | 187 | 158-177 | 168-184 | 168-184 | 216 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1490 | 1505 | 1500 | 1505 | 1505 | 1540 |
| Overall weight [kg] | 1975 | 1990 | 2005 | 2010 | 2010 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 745/1800 | 750/1800 | 740/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 59 | 59 | 59 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.26 | 0.26 | 0.26 | 0.29 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 91 W |
| Tyre dimensions rear | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 91 W |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4581 | 4581 | 4581 | 4581 | 4581 | 4581 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 230 | C 280 / C 300 | C 280 / C 300 | C 280 / C 300 4MATIC | C 350 | C 350 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2496 | 2996 | 2996 | 2996 | 3498 | 3498 |
| Maximum output / speed [kW/min-1] | 150/6100 | 170/6000 | 170/6000 | 170/6000 | 200/6000 | 200/6000 |
| Maximum torque [Nm/min-1] | 245/2900-5500 | 300/2500-5000 | 300/2500-5000 | 300/2500-5000 | 350/2400-5000 | 350/2400-5000 |
| Bore and stroke [mm x mm] | 88,0 x 68,4 | 88,0 x 82,1 | 88,0 x 82,1 | 88,0 x 82,1 | 92,9 x 86,0 | 92,9 x 86,0 |
| Compression ratio | 11,4:1 | 11,3:1 | 11,3:1 | 11,3:1 | 10,7:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 233 | 250 | 246 | 243 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.7 | 7.3 | 7.2 | 7.3 | 6.4 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.1-13.5 | 13.3-13.9 | 13.6-13.8 | 13.7-13.9 | 14.2-14.5 | 14.8 |
| Out of town [l] | 6.8-7.0 | 6.9-7.1 | 7.0-7.2 | 7.3-7.5 | 7.4-7.8 | 7.7 |
| Combined [l] | 9.1-9.3 | 9.4-9.6 | 9.4-9.6 | 9.6-9.8 | 9.9-10.2 | 10.2 |
| CO2 emissions [g/km] | 217 | 220-225 | 219-224 | 224-229 | 232-239 | 239 |
| Emission standard | EU4 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1560 | 1555 | 1575 | 1635 | 1610 | 1670 |
| Overall weight [kg] | 2045 | 2040 | 2060 | 2120 | 2095 | 2155 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91 W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 91W | 225/45 R17 91W |
| Tyre dimensions rear | 205/55 R16 91 W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 91W | 225/45 R17 91W |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4581 | 4581 | 4581 | 4581 | 4581 | 4581 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1533 | 1533 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1536 | 1536 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

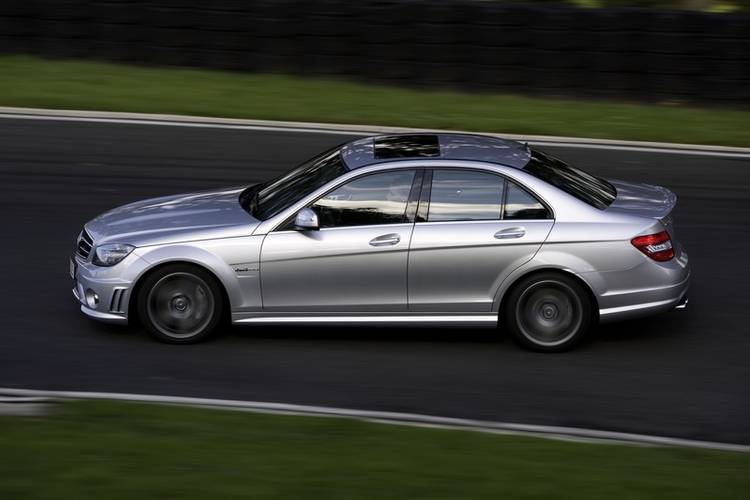

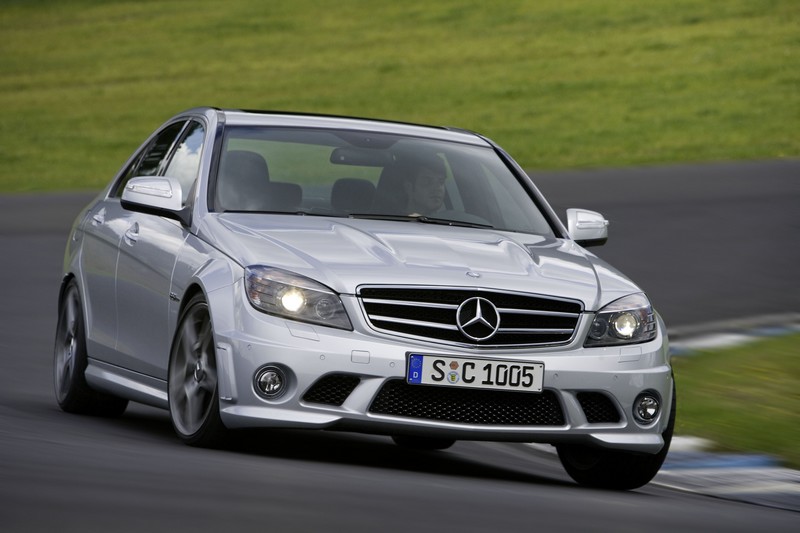

| C 350 CGI BlueEFFICIENCY | C 63 AMG | C 200 CDI | C 200 CDI BlueEFFICIENCY | C 200 CDI | C 200 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 3498 | 6208 | 2143 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 215/6400 | 336/6800 | 100/3800 | 100/3800 | 100/3800 | 100/3800 |
| Maximum torque [Nm/min-1] | 365/3000 | 600/5000 | 270/1600-3000 | 360/1600-2600 | 270/1600-3000 | 330/1600-2800 |
| Bore and stroke [mm x mm] | 92,9 x 86,0 | 102,2 x 94,6 | 88,0 x 88,3 | 83,0 x 99,0 | 88,0 x 88,3 | 83,0 x 99,0 |
| Compression ratio | 12,2:1 | 11,3:1 | 17,5:1 | 16,2:1 | 17,5:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual | 5 gear automatic | 5 gear automatic |
| Drive specifications |
|
| - | - |
|
|
| Top speed [km/h] | 250 | 250 | 215 | 218 | 213 | 214 |
| Acceleration 0–100 km/h [s] | 6.2 | 4.5 | 10.4 | 9.2 | 10.2 | 9.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.0-12.6 | 20.9 | 7.7-8.2 | 6.5-7.1 | 9.0-9.2 | 7.4-8.1 |
| Out of town [l] | 6.1-6.7 | 9.2 | 4.5-4.9 | 4.1-4.8 | 5.0-5.3 | 4.4-5.2 |
| Combined [l] | 8.3-8.9 | 13.4 | 5.7-6.1 | 5.0-5.7 | 6.5-6.7 | 5.5-6.3 |
| CO2 emissions [g/km] | 193-208 | 319 | 149 | 130-148 | 171 | 144-164 |
| Emission standard | EU5 | EU4 | EU4 | EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1730 | 1560 | 1575 | 1575 | 1590 |
| Overall weight [kg] | 2100 | 2170 | 2045 | 2080 | 2060 | 2095 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | - | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 59 | 66 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.32 | 0.27 | 0.26 | 0.27 | 0.26 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/45 R17 91W | 235/40 R18 | 195/60 R16 89 V | 195/60 R16 89 V | 195/60 R16 89 V | 195/60 R16 89 V |
| Tyre dimensions rear | 225/45 R17 91W | 255/35 R18 | 195/60 R16 89 V | 195/60 R16 89 V | 195/60 R16 89 V | 195/60 R16 89 V |
| Wheel size front | 7.5J x 17 ET47 | 8.0J x 18 ET45 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 7.5J x 17 ET47 | 9.0J x 18 ET54 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | - | 360 x 36 | - | - | - | - |
| Brake dimensions rear | - | 330 x 26 | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/11.10 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4581 | 4726 | 4581 | 4581 | 4581 | 4581 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1447 | 1439 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2765 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1533 | 1569 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1536 | 1525 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 765 | - | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1056 | - | 1056 | 1056 | 1056 | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 220 CDI | C 220 CDI BlueEFFICIENCY | C 220 CDI | C 220 CDI BlueEFFICIENCY | C 250 CDI BlueEFFICIENCY | C 250 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 125/3800 | 125/3800 | 125/3800 | 125/3800 | 150/4200 | 150/4200 |
| Maximum torque [Nm/min-1] | 400/2000 | 400/2000 | 400/2000 | 400/2000 | 500/1600-1800 | 500/1600-1800 |
| Bore and stroke [mm x mm] | 88,0 x 88,3 | 83,0 x 99,0 | 88,0 x 88,3 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 17,5:1 | 16,2:1 | 17,5:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear automatic | 5 gear automatic | 6 gear manual | 5 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 229 | 232 | 227 | 231 | 240 | 240 |
| Acceleration 0–100 km/h [s] | 8.5 | 8.4 | 8.4 | 8.4 | 7.0 | 7.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9-8.2 | 6.2-6.7 | 9.1-9.2 | 7.8-8.1 | 6.6-7.1 | 8.1-8.5 |
| Out of town [l] | 4.7-4.9 | 4.0-4.6 | 5.1-5.3 | 4.3-4.8 | 4.2-4.8 | 4.4-5.1 |
| Combined [l] | 5.9-6.1 | 4.8-5.4 | 6.6-6.7 | 5.6-6.0 | 5.1-5.6 | 5.8-6.4 |
| CO2 emissions [g/km] | 156 | 127-143 | 173 | 149-158 | 134-147 | 153-167 |
| Emission standard | EU4 | EU5 | EU4 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1585 | 1610 | 1605 | 1610 | 1615 | 1615 |
| Overall weight [kg] | 2070 | 2115 | 2090 | 2115 | 2120 | 2120 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 59 | 66 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.26 | 0.28 | 0.26 | 0.26 | 0.26 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V |
| Tyre dimensions rear | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4581 | 4581 | 4581 | 4581 | 4581 | 4581 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 250 CDI BlueEFFICIENCY 4MATIC | C 320 CDI | C 320 CDI | C 320 CDI 4MATIC | C 350 CDI BlueEFFICIENCY | C 350 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2143 | 2987 | 2987 | 2987 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 150/4200 | 165/3800 | 165/3800 | 165/3800 | 170/3800 | 170/3800 |
| Maximum torque [Nm/min-1] | 500/1600-1800 | 510/1600-2800 | 510/1600-2800 | 510/1600-2800 | 540/1600-2400 | 540/1600-2400 |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 16,2:1 | 17,7:1 | 17,7:1 | 17,7:1 | 17,7:1 | 17,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 5 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 240 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.0 | 7.7 | 6.9 | 6.9 | 6.4 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7-9.0 | 9.2-9.5 | 10.0-10.3 | 10.1-10.5 | 8.6-8.9 | 9.1-9.2 |
| Out of town [l] | 5.0-5.4 | 5.5-5.8 | 5.9-6.2 | 6.1-6.6 | 5.4-5.7 | 5.9-6.1 |
| Combined [l] | 6.4-6.8 | 6.9-7.2 | 7.3-7.6 | 7.6-8.0 | 6.6-6.9 | 7.0-7.2 |
| CO2 emissions [g/km] | 167-177 | 182 | 193 | 200-211 | 174-180 | 185-189 |
| Emission standard | EU5 | EU4 | EU4 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1675 | 1700 | 1700 | 1760 | 1700 | 1760 |
| Overall weight [kg] | 2180 | 2185 | 2185 | 2245 | 2205 | 2265 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.29 | 0.29 | 0.29 | 0.28 | 0.28 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91 V | 225/45 R17 91 W | 225/45 R17 91 W | 225/45 R17 91 W | 225/45 R17 91 W | 225/45 R17 91 W |
| Tyre dimensions rear | 205/55 R16 91 V | 225/45 R17 91 W | 225/45 R17 91 W | 225/45 R17 91 W | 225/45 R17 91 W | 225/45 R17 91 W |
| Wheel size front | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 7.5J x 17 ET47 |
| Wheel size rear | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 7.5J x 17 ET47 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4581 | 4581 | 4581 | 4581 | 4581 | 4581 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1533 | 1533 | 1533 | 1533 | 1533 |
| Rear wheel track [mm] | 1544 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Estate
| C 180 Kompressor | C 180 Kompressor BlueEFFICIENCY | C 180 Kompressor | C 180 Kompressor BlueEFFICIENCY | C 180 CGI BlueEFFICIENCY | C 180 CGI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1796 | 1796 | 1796 | 1796 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 115/5200 | 115/5200 | 115/5200 | 115/5200 | 115/5000 | 115/5000 |
| Maximum torque [Nm/min-1] | 230/2800-4600 | 230/2800-4600 | 230/2800-4600 | 230/2800-4600 | 250/1600-4200 | 250/1600-4200 |
| Bore and stroke [mm x mm] | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 |
| Compression ratio | 9,3:1 | 9,3:1 | 9,3:1 | 9,3:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear automatic | 5 gear automatic | 6 gear manual | 5 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 218 | 223 | 215 | 218 | 218 | 213 |
| Acceleration 0–100 km/h [s] | 9.7 | 9.8 | 9.9 | 10.2 | 9.2 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.7-10.8 | 9.4-9.8 | 11.2-11.3 | 10.4-10.8 | 9.7-10.7 | 10.3-10.8 |
| Out of town [l] | 5.9-6.0 | 5.5-6.0 | 6.3-6.4 | 5.8-6.2 | 5.5-6.4 | 5.7-6.4 |
| Combined [l] | 7.7-7.8 | 6.9-7.4 | 8.1-8.2 | 7.5-7.9 | 7.0-7.9 | 7.4-8.0 |
| CO2 emissions [g/km] | 185 | 164-176 | 194 | 179-187 | 164-185 | 172-186 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1535 | 1530 | 1550 | 1545 | 1545 | 1555 |
| Overall weight [kg] | 2065 | 2060 | 2065 | 2065 | 2085 | 2095 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 485 | 485 | 485 | 485 | 485 | 485 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | 1799 | 1799 | 1799 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/785 | -/785 | -/785 | -/785 | -/785 | -/785 |
| Loading edge height [mm] | 592 | 592 | 592 | 592 | 592 | 592 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.29 | 0.29 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V |
| Tyre dimensions rear | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 91 V |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4596 | 4596 | 4596 | 4596 | 4596 | 4596 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 200 Kompressor | C 200 Kompressor | C 200 CGI BlueEFFICIENCY | C 200 CGI BlueEFFICIENCY | C 250 CGI BlueEFFICIENCY | C 230 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1796 | 1796 | 1796 | 1796 | 1796 | 2496 |
| Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 135/5250 | 135/5250 | 150/5500 | 150/6100 |
| Maximum torque [Nm/min-1] | 250/2800-5000 | 250/2800-5000 | 270/1800-4600 | 270/1800-4600 | 310/2000-4300 | 245/2900-5500 |
| Bore and stroke [mm x mm] | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 88,0 x 68,4 |
| Compression ratio | 8,5:1 | 8,5:1 | 9,3:1 | 9,3:1 | 9,3:1 | 11,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 5 gear automatic | 6 gear manual | 5 gear automatic | 5 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 228 | 225 | 228 | 225 | 233 | 232 |
| Acceleration 0–100 km/h [s] | 8.8 | 9.0 | 8.2 | 8.2 | 7.5 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.7-10.9 | 11.2-11.4 | 9.8-10.4 | 10.3-10.7 | 10.3-10.7 | 13.4-13.6 |
| Out of town [l] | 6.0-6.2 | 6.4-6.6 | 5.6-6.3 | 5.9-6.5 | 5.9-6.5 | 6.9-7.1 |
| Combined [l] | 7.8-8.0 | 8.1-8.3 | 7.2-7.8 | 7.5-8.0 | 7.5-8.0 | 9.3-9.5 |
| CO2 emissions [g/km] | 184-189 | 193-198 | 164-182 | 175-188 | 175-188 | 221-226 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1540 | 1555 | 1560 | 1565 | 1575 | 1585 |
| Overall weight [kg] | 2070 | 2085 | 2100 | 2105 | 2115 | 2115 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 485 | 485 | 485 | 485 | 485 | 485 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | 1799 | 1799 | 1799 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/785 | -/785 | -/785 | -/785 | -/785 | -/785 |
| Loading edge height [mm] | 592 | 592 | 592 | 592 | 592 | 592 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 59 | 59 | 59 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.29 | 0.29 | 0.29 | 0.32 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 91 W |
| Tyre dimensions rear | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 91 W |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4596 | 4596 | 4596 | 4596 | 4596 | 4596 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 230 | C 280 / C 300 | C 280 / C 300 | C 350 | C 63 AMG | C 200 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 4/16 |
| Engine displacement [cm³] | 2496 | 2996 | 2996 | 3498 | 6208 | 2143 |
| Maximum output / speed [kW/min-1] | 150/6100 | 170/6000 | 170/6000 | 200/6000 | 336/6800 | 100/3800 |
| Maximum torque [Nm/min-1] | 245/2900-5500 | 300/2500-5000 | 300/2500-5000 | 350/2400-5000 | 600/5000 | 270/1600-3000 |
| Bore and stroke [mm x mm] | 88,0 x 68,4 | 88,0 x 82,1 | 88,0 x 82,1 | 92,9 x 86,0 | 102,2 x 94,6 | 88,0 x 88,3 |
| Compression ratio | 11,4:1 | 11,3:1 | 11,3:1 | 10,7:1 | 11,3:1 | 17,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 227 | 242 | 240 | 250 | 250 | 208 |
| Acceleration 0–100 km/h [s] | 8.9 | 7.5 | 7.5 | 6.5 | 4.6 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.4-13.6 | 13.9-14.1 | 13.7-13.9 | 14.8-15.1 | 20.4 | 7.7-8.1 |
| Out of town [l] | 6.9-7.1 | 7.1-7.3 | 7.2-7.4 | 7.4-7.8 | 9.6 | 4.8-5.0 |
| Combined [l] | 9.3-9.5 | 9.6-9.8 | 9.6-9.8 | 10.1-10.4 | 13.6 | 5.9-6.1 |
| CO2 emissions [g/km] | 221-226 | 224-229 | 224-229 | 235-242 | 316 | 154-161 |
| Emission standard | EU4 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1605 | 1600 | 1615 | 1655 | 1795 | 1605 |
| Overall weight [kg] | 2135 | 2130 | 2145 | 2185 | 2275 | 2135 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | - | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 485 | 485 | 485 | 485 | 485 | 485 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | 1799 | 1799 | 1799 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/785 | -/785 | -/785 | -/785 | -/785 | -/785 |
| Loading edge height [mm] | 592 | 592 | 592 | 592 | 592 | 592 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.31 | 0.28 | 0.31 | 0.32 | 0.3 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91 W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 91W | 235/40 R18 | 205/55 R16 91 V |
| Tyre dimensions rear | 205/55 R16 91 W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 91W | 255/35 R18 | 205/55 R16 91 V |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 8.0J x 18 ET45 | 7.0J x 16 ET43 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 9.0J x 18 ET54 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | 360 x 36 | - |
| Brake dimensions rear | - | - | - | - | 330 x 26 | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/11.10 | -/10.84 |
| Overall length [mm] | 4596 | 4596 | 4596 | 4596 | 4711 | 4596 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1442 | 1459 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2765 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1533 | 1533 | 1569 | 1541 |
| Rear wheel track [mm] | 1544 | 1544 | 1536 | 1536 | 1525 | 1544 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | - | 765 |
| Rear overhang [mm] | 1071 | 1071 | 1071 | 1071 | - | 1071 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 200 CDI BlueEFFICIENCY | C 200 CDI | C 200 CDI BlueEFFICIENCY | C 220 CDI | C 220 CDI BlueEFFICIENCY | C 220 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 100/3800 | 100/3800 | 100/3800 | 125/3800 | 125/3800 | 125/3800 |
| Maximum torque [Nm/min-1] | 360/1600-2600 | 270/1600-3000 | 330/1600-2800 | 400/2000 | 400/2000 | 400/2000 |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 88,0 x 88,3 | 83,0 x 99,0 | 88,0 x 88,3 | 83,0 x 99,0 | 88,0 x 88,3 |
| Compression ratio | 16,2:1 | 17,5:1 | 16,2:1 | 17,5:1 | 16,2:1 | 17,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 5 gear automatic | 5 gear automatic | 6 gear manual | 6 gear manual | 5 gear automatic |
| Drive specifications | - |
|
| - | - |
|
| Top speed [km/h] | 209 | 204 | 207 | 224 | 219 | 220 |
| Acceleration 0–100 km/h [s] | 9.6 | 10.6 | 10.1 | 8.9 | 8.8 | 8.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7-7.4 | 8.9-9.0 | 7.7-8.1 | 7.8-8.1 | 6.3-6.6 | 9.2-9.2 |
| Out of town [l] | 4.4-5.1 | 5.2-5.3 | 4.7-5.4 | 4.8-5.0 | 4.1-4.7 | 5.3-5.5 |
| Combined [l] | 5.2-5.9 | 6.1-6.7 | 5.8-6.4 | 5.9-6.1 | 4.9-5.4 | 6.8-6.8 |
| CO2 emissions [g/km] | 137-155 | 175-176 | 153-167 | 156-161 | 130-144 | 178-180 |
| Emission standard | EU5 | EU4 | EU5 | EU4 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1635 | 1615 | 1650 | 1630 | 1665 | 1650 |
| Overall weight [kg] | 2175 | 2145 | 2190 | 2160 | 2205 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 485 | 485 | 485 | 485 | 485 | 485 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | 1799 | 1799 | 1799 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/785 | -/785 | -/785 | -/785 | -/785 | -/785 |
| Loading edge height [mm] | 592 | 592 | 592 | 592 | 592 | 592 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 66 | 59 | 66 | 59 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.3 | 0.29 | 0.31 | 0.29 | 0.31 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 | 205/55 R16 91 W | 205/55 R16 | 205/55 R16 91 W |
| Tyre dimensions rear | 205/55 R16 91 V | 205/55 R16 91 V | 205/55 R16 | 205/55 R16 91 W | 205/55 R16 | 205/55 R16 91 W |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4596 | 4596 | 4596 | 4596 | 4596 | 4596 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 220 CDI BlueEFFICIENCY | C 250 CDI BlueEFFICIENCY | C 250 CDI BlueEFFICIENCY | C 250 CDI BlueEFFICIENCY 4MATIC | C 320 CDI | C 320 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 125/3800 | 150/4200 | 150/4200 | 150/4200 | 165/3800 | 165/3800 |
| Maximum torque [Nm/min-1] | 400/2000 | 500/1600-1800 | 500/1600-1800 | 500/1600-1800 | 510/1600-2800 | 510/1600-2800 |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 17,7:1 | 17,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | Rear |
| Gearbox | 5 gear automatic | 6 gear manual | 5 gear automatic | 5 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 219 | 238 | 237 | 235 | 245 | 244 |
| Acceleration 0–100 km/h [s] | 8.1 | 7.8 | 7.2 | 7.2 | 7.9 | 7.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.2-8.8 | 6.7-7.1 | 8.0-8.3 | 9.1-9.7 | 9.7-10.0 | 10.2-10.5 |
| Out of town [l] | 4.7-5.2 | 4.2-5.1 | 4.5-5.0 | 5.2-5.8 | 5.9-6.2 | 6.2-6.5 |
| Combined [l] | 6.0-6.2 | 5.3-5.8 | 5.8-6.2 | 6.6-7.3 | 7.1-7.4 | 7.5-7.8 |
| CO2 emissions [g/km] | 159-171 | 140-153 | 154-162 | 173-190 | 188-198 | 199-209 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1665 | 1675 | 1675 | 1735 | 1750 | 1750 |
| Overall weight [kg] | 2205 | 2215 | 2215 | 2275 | 2280 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 485 | 485 | 485 | 485 | 485 | 485 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | 1799 | 1799 | 1799 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/785 | -/785 | -/785 | -/785 | -/785 | -/785 |
| Loading edge height [mm] | 592 | 592 | 592 | 592 | 592 | 592 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.31 | 0.32 | 0.32 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 91 V | 205/55 R16 | 225/45 R17 91 W | 225/45 R17 91 W |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 91 V | 205/55 R16 | 225/45 R17 91 W | 225/45 R17 91 W |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4596 | 4596 | 4596 | 4596 | 4596 | 4596 |
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 | 1770/2009 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1533 | 1533 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1536 | 1536 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 320 CDI 4MATIC | C 350 CDI BlueEFFICIENCY | C 350 CDI BlueEFFICIENCY | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 2987 | 2987 | 2987 | |||
| Maximum output / speed [kW/min-1] | 165/3800 | 170/3800 | 170/3800 | |||
| Maximum torque [Nm/min-1] | 510/1600-2800 | 540/1600-2400 | 540/1600-2400 | |||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | |||
| Compression ratio | 17,7:1 | 17,7:1 | 17,7:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | Rear | 4x4 | |||
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 244 | 244 | 242 | |||
| Acceleration 0–100 km/h [s] | 7.1 | 6.5 | 6.5 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 9.9-10.7 | 8.8-9.0 | 9.2-9.3 | |||
| Out of town [l] | 6.3-6.6 | 5.7-5.9 | 6.0-6.4 | |||
| Combined [l] | 7.7-8.1 | 6.8-7.0 | 7.2-7.4 | |||
| CO2 emissions [g/km] | 205-215 | 180-184 | 191-195 | |||
| Emission standard | EU4 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1810 | 1750 | 1810 | |||
| Overall weight [kg] | 2340 | 2280 | 2340 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 485 | 485 | 485 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | |||
| Boot length [mm] | 1037 | 1037 | 1037 | |||
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | -/785 | -/785 | -/785 | |||
| Loading edge height [mm] | 592 | 592 | 592 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | 704 | 704 | 704 | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 66 | 66 | 66 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.32 | 0.31 | 0.31 | |||
| Front suspension | three-link | three-link | three-link | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 225/45 R17 91 W | 225/45 R17 91 W | 225/45 R17 91 W | |||
| Tyre dimensions rear | 225/45 R17 91 W | 225/45 R17 91 W | 225/45 R17 91 W | |||
| Wheel size front | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | |||
| Wheel size rear | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | |||
| Overall length [mm] | 4596 | 4596 | 4596 | |||
| Overall width without/including mirrors [mm] | 1770/2009 | 1770/2009 | 1770/2009 | |||
| Overall height [mm] | 1459 | 1459 | 1459 | |||
| Wheelbase [mm] | 2760 | 2760 | 2760 | |||
| Front wheel track [mm] | 1533 | 1533 | 1533 | |||
| Rear wheel track [mm] | 1536 | 1536 | 1536 | |||
| Forward overhang [mm] | 765 | 765 | 765 | |||
| Rear overhang [mm] | 1071 | 1071 | 1071 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 984 | 984 | 984 | |||
| Headroom rear [mm] | 964 | 964 | 964 | |||
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | |||
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
